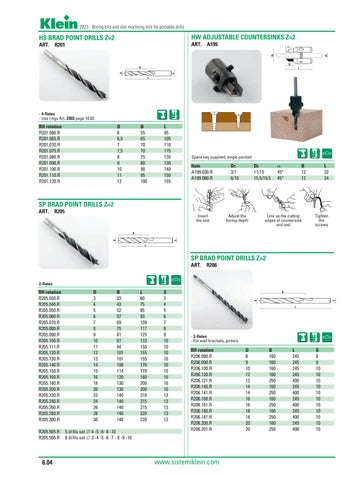

2023 - Boring bits and slot mortising bits for portable drills
HS BRAD POINT DRILLS Z=2
HW ADJUSTABLE COUNTERSINKS Z=2
ART. R201
ART. A199
- 4-flutes - Use rings Art. Z003 page 10.03
RH rotation R201.060.R R201.065.R R201.070.R R201.075.R R201.080.R R201.090.R R201.100.R R201.110.R R201.120.R
D 6 6,5 7 7,5 8 9 10 11 12
B 55 65 70 70 75 80 90 95 100
L 95 105 110 115 120 130 140 150 155
Spare key supplied; single packed
Item A199.030.R A199.060.R
D1 3/7 6/10
D2 11/15 15,5/19,5
Insert the tool
Adjust the boring depth
B 12 12
a 45° 45°
L 32 34
SP BRAD POINT DRILLS Z=2 ART. R205 Line up the cutting edges of countersink and tool
Tighten the screws
SP BRAD POINT DRILLS Z=2 ART. R206
2-flutes
RH rotation R205.030.R R205.040.R R205.050.R R205.060.R R205.070.R R205.080.R R205.090.R R205.100.R R205.111.R R205.120.R R205.130.R R205.140.R R205.150.R R205.160.R R205.180.R R205.200.R R205.220.R R205.240.R R205.260.R R205.280.R R205.300.R
D 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 20 22 24 26 28 30
R205.505.R R205.508.R
5 drills set ∆ 4 -5 -6 -8 -10 8 drills set ∆ 3 -4 -5 -6 -7 - 8 -9 -10
6.04
B 33 43 52 57 69 75 81 87 94 101 101 108 114 120 130 130 140 140 140 140 140
L 60 75 85 93 109 117 125 133 150 155 155 170 170 180 200 200 210 215 215 220 220
S 3 4 5 6 7 8 9 10 10 10 10 10 10 10 10 10 13 13 13 13 13
- 2-flutes - For wall brackets, girders
RH rotation R206.080.R R206.090.R R206.100.R R206.120.R R206.121.R R206.140.R R206.141.R R206.160.R R206.161.R R206.180.R R206.181.R R206.200.R R206.201.R
www.sistemiklein.com
D 8 9 10 12 12 14 14 16 16 18 18 20 20
B 160 160 160 160 250 160 250 160 250 160 250 160 250
L 245 245 245 245 400 245 400 245 400 245 400 245 400
S 8 9 10 10 10 10 10 10 10 10 10 10 10
