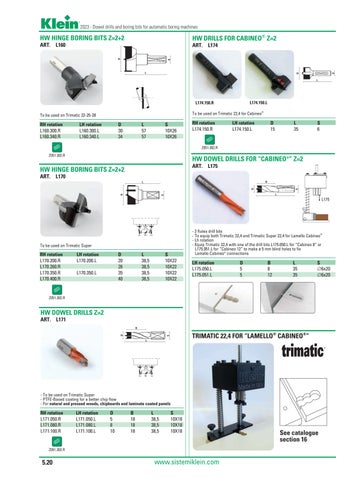

2023 - Dowel drills and boring bits for automatic boring machines
HW HINGE BORING BITS Z=2+2
HW DRILLS FOR CABINEO® Z=2
ART. L160
ART. L174
L174.150.L
L174.150.R
To be used on Trimatic 22,4 for Cabineo®
To be used on Trimatic 22-25-28
RH rotation L160.300.R L160.340.R
LH rotation L160.300.L L160.340.L
D 30 34
L 57 57
S 10X26 10X26
RH rotation L174.150.R
LH rotation L174.150.L
D 15
L 35
S 6
Z051.302.R Z051.302.R
HW DOWEL DRILLS FOR “CABINEO®” Z=2 ART. L175
HW HINGE BORING BITS Z=2+2 ART. L170
L175
To be used on Trimatic Super
RH rotation L170.200.R L170.260.R L170.350.R L170.400.R
LH rotation L170.200.L
D 20 26 35 40
L170.350.L
L 38,5 38,5 38,5 38,5
S 10X22 10X22 10X22 10X22
- 2 flutes drill bits - To equip both Trimatic 22,4 and Trimatic Super 22,4 for Lamello Cabineo® - Lh rotation - Equip Trimatic 22,4 with one of the drill bits L175.050.L for “Cabineo 8” or L175.051.L for “Cabineo 12” to make ø 5 mm blind holes to fix Lamello Cabineo® connections
LH rotation L175.050.L L175.051.L
D 5 5
B 8 12
L 35 35
S ∆6x20 ∆6x20
Z051.302.R
HW DOWEL DRILLS Z=2 ART. L171
TRIMATIC 22,4 FOR “LAMELLO® CABINEO®”
trimatic - To be used on Trimatic Super - PTFE-Based coating for a better chip flow - For natural and pressed woods, chipboards and laminate coated panels
RH rotation L171.050.R L171.080.R L171.100.R
LH rotation L171.050.L L171.080.L L171.100.L
D 5 8 10
B 18 18 18
L 38,5 38,5 38,5
S 10X18 10X18 10X18
Z051.302.R
5.20
www.sistemiklein.com
See catalogue section 16
