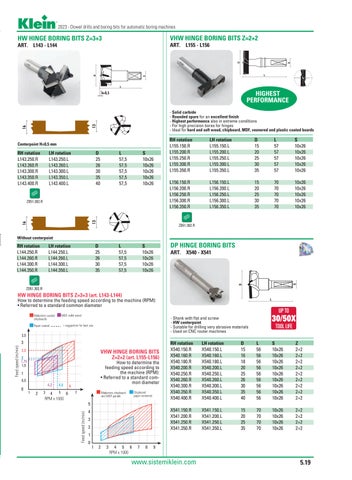

2023 - Dowel drills and boring bits for automatic boring machines
HW HINGE BORING BITS Z=3+3
VHW HINGE BORING BITS Z=2+2
ART. L143 - L144
ART. L155 - L156
HIGHEST PERFORMANCE - Solid carbide - Rounded spurs for an excellent finish - Highest performance also in extreme conditions - For high precision bores for hinges - Ideal for hard and soft wood, chipboard, MDF, veenered and plastic coated boards Centerpoint H=0,5 mm
RH rotation L143.250.R L143.260.R L143.300.R L143.350.R L143.400.R
LH rotation L143.250.L L143.260.L L143.300.L L143.350.L L143.400.L
D 25 26 30 35 40
L 57,5 57,5 57,5 57,5 57,5
S 10x26 10x26 10x26 10x26 10x26
Z051.302.R
RH rotation L155.150.R L155.200.R L155.250.R L155.300.R L155.350.R
LH rotation L155.150.L L155.200.L L155.250.L L155.300.L L155.350.L
D 15 20 25 30 35
L 57 57 57 57 57
S 10x26 10x26 10x26 10x26 10x26
L156.150.R L156.200.R L156.250.R L156.300.R L156.350.R
L156.150.L L156.200.L L156.250.L L156.300.L L156.350.L
15 20 25 30 35
70 70 70 70 70
10x26 10x26 10x26 10x26 10x26
Z051.302.R
Without centerpoint
RH rotation L144.250.R L144.260.R L144.300.R L144.350.R
LH rotation L144.250.L L144.260.L L144.300.L L144.350.L
D 25 26 30 35
L 57,5 57,5 57,5 57,5
S 10x26 10x26 10x26 10x26
DP HINGE BORING BITS ART. X540 - X541
Z051.302.R
HW HINGE BORING BITS Z=3+3 (art. L143-L144) How to determine the feeding speed according to the machine (RPM): • Referred to a standard common diameter
UP TO
30/50X
- Shank with flat and screw - HW centerpoint - Suitable for drilling very abrasive materials - Used on CNC router machines
VHW HINGE BORING BITS Z=2+2 (art. L155-L156) How to determine the feeding speed according to the machine (RPM): • Referred to a standard common diameter
TOOL LIFE
RH rotation X540.150.R X540.160.R X540.180.R X540.200.R X540.250.R X540.260.R X540.300.R X540.350.R X540.400.R
LH rotation X540.150.L X540.160.L X540.180.L X540.200.L X540.250.L X540.260.L X540.300.L X540.350.L X540.400.L
D 15 16 18 20 25 26 30 35 40
L 56 56 56 56 56 56 56 56 56
S 10x26 10x26 10x26 10x26 10x26 10x26 10x26 10x26 10x26
Z 2+2 2+2 2+2 2+2 2+2 2+2 2+2 2+2 2+2
X541.150.R X541.200.R X541.250.R X541.350.R
X541.150.L X541.200.L X541.250.L X541.350.L
15 20 25 35
70 70 70 70
10x26 10x26 10x26 10x26
2+2 2+2 2+2 2+2
www.sistemiklein.com
5.19
