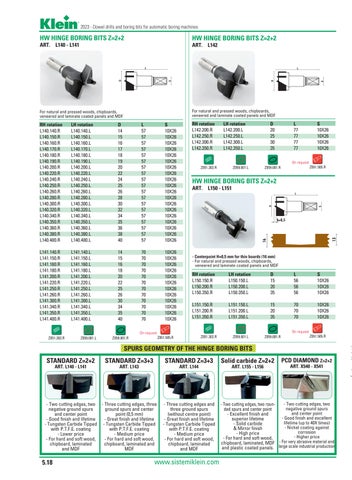

2023 - Dowel drills and boring bits for automatic boring machines
HW HINGE BORING BITS Z=2+2
HW HINGE BORING BITS Z=2+2
ART. L140 - L141
ART. L142
For natural and pressed woods, chipboards, veneered and laminate coated panels and MDF
For natural and pressed woods, chipboards, veneered and laminate coated panels and MDF
RH rotation L140.140.R L140.150.R L140.160.R L140.170.R L140.180.R L140.190.R L140.200.R L140.220.R L140.240.R L140.250.R L140.260.R L140.280.R L140.300.R L140.320.R L140.340.R L140.350.R L140.360.R L140.380.R L140.400.R
LH rotation L140.140.L L140.150.L L140.160.L L140.170.L L140.180.L L140.190.L L140.200.L L140.220.L L140.240.L L140.250.L L140.260.L L140.280.L L140.300.L L140.320.L L140.340.L L140.350.L L140.360.L L140.380.L L140.400.L
D 14 15 16 17 18 19 20 22 24 25 26 28 30 32 34 35 36 38 40
L 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57
S 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26
L141.140.R L141.150.R L141.160.R L141.180.R L141.200.R L141.220.R L141.250.R L141.260.R L141.300.R L141.340.R L141.350.R L141.400.R
L141.140.L L141.150.L L141.160.L L141.180.L L141.200.L L141.220.L L141.250.L L141.260.L L141.300.L L141.340.L L141.350.L L141.400.L
14 15 16 18 20 22 25 26 30 34 35 40
70 70 70 70 70 70 70 70 70 70 70 70
10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26 10X26
RH rotation L142.200.R L142.250.R L142.300.R L142.350.R
LH rotation L142.200.L L142.250.L L142.300.L L142.350.L
D 20 25 30 35
Z059.001.L
Z059.001.L
Z051.505.R
Z059.001.R
HW HINGE BORING BITS Z=2+2 ART. L150 - L151
- Centerpoint H=0,5 mm for thin boards (16 mm) - For natural and pressed woods, chipboards, veneered and laminate coated panels and MDF
RH rotation L150.150.R L150.200.R L150.350.R
LH rotation L150.150.L L150.200.L L150.350.L
D 15 20 35
L 56 56 56
S 10X26 10X26 10X26
L151.150.R L151.200.R L151.350.R
L151.150.L L151.200.L L151.350.L
15 20 35
70 70 70
10X26 10X26 10X26
Z059.001.L
Z059.001.R
On request Z051.302.R
Z051.505.R
Z059.001.R
S 10X26 10X26 10X26 10X26
On request Z051.302.R
On request Z051.302.R
L 77 77 77 77
Z051.505.R
SPURS GEOMETRY OF THE HINGE BORING BITS STANDARD Z=2+2
STANDARD Z=3+3
STANDARD Z=3+3
Solid carbide Z=2+2
PCD DIAMOND Z=2+2
ART. L140 - L141
ART. L143
ART. L144
ART. L155 - L156
ART. X540 - X541
- Two cutting edges, two - Three cutting edges, three negative ground spurs ground spurs and center and center point point (0,5 mm) - Good finish and lifetime - Great finish and lifetime - Tungsten Carbide Tipped - Tungsten Carbide Tipped with P.T.F.E. coating with P.T.F.E. coating - Lower price - Medium price - For hard and soft wood, - For hard and soft wood, chipboard, laminated chipboard, laminated and and MDF MDF
5.18
- Three cutting edges and three ground spurs (without centre point) - Great finish and lifetime - Tungsten Carbide Tipped with P.T.F.E. coating - Medium price - For hard and soft wood, chipboard, laminated and MDF
www.sistemiklein.com
- Two cutting edges, two - Two cutting edges, two rounnegative ground spurs ded spurs and center point and center point - Excellent finish and - Good finish and excellent superior lifetime lifetime (up to 40X times) - Solid carbide - Nickel coating against & Mirror finish corrosion - High price - Higher price - For hard and soft wood, chipboard, laminated, MDF - For very abrasive material and and plastic coated panels. large scale industrial production
