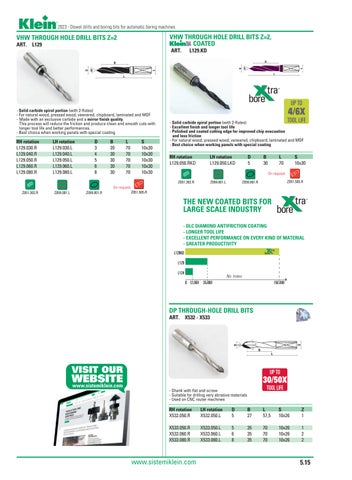

2023 - Dowel drills and boring bits for automatic boring machines
VHW THROUGH HOLE DRILL BITS Z=2, COATED
VHW THROUGH HOLE DRILL BITS Z=2 ART. L129
ART.
L129.KD
UP TO - Solid carbide spiral portion (with 2-flutes) - For natural wood, pressed wood, veenered, chipboard, laminated and MDF - Made with an exclusive carbide and a mirror finish quality. This process will reduce the friction and produce clean and smooth cuts with longer tool life and better performances. - Best choice when working panels with special coating
RH rotation L129.030.R L129.040.R L129.050.R L129.060.R L129.080.R
LH rotation L129.030.L L129.040.L L129.050.L L129.060.L L129.080.L
D 3 4 5 6 8
B 20 30 30 30 30
L 70 70 70 70 70
S 10x30 10x30 10x30 10x30 10x30
4/6X TOOL LIFE
- Solid carbide spiral portion (with 2-flutes) - Excellent finish and longer tool life - Polished and coated cutting edge for improved chip evacuation and less friction - For natural wood, pressed wood, veneered, chipboard, laminated and MDF - Best choice when working panels with special coating
RH rotation L129.050.RKD
LH rotation L129.050.LKD
D 5
B 30
L 70
S 10x30
On request Z051.302.R
Z059.001.L
Z051.505.R
Z059.001.R
On request Z051.302.R
Z059.001.L
Z059.001.R
Z051.505.R
THE NEW COATED BITS FOR LARGE SCALE INDUSTRY - DLC DIAMOND ANTIFRICTION COATING - LONGER TOOL LIFE - EXCELLENT PERFORMANCE ON EVERY KIND OF MATERIAL - GREATER PRODUCTIVITY L129KD L129 L124
No. holes 0 12.000
35.000
150.000
DP THROUGH-HOLE DRILL BITS ART. X532 - X533
VISIT OUR
UP TO
WEBSITE www.sistemiklein.com
30/50X TOOL LIFE
- Shank with flat and screw - Suitable for drilling very abrasive materials - Used on CNC router machines
RH rotation X532.050.R
LH rotation X532.050.L
D 5
B 27
L 57,5
S 10x26
Z 1
X533.050.R X533.060.R X533.080.R
X533.050.L X533.060.L X533.080.L
5 6 8
35 35 35
70 70 70
10x26 10x26 10x26
1 2 2
www.sistemiklein.com
5.15
