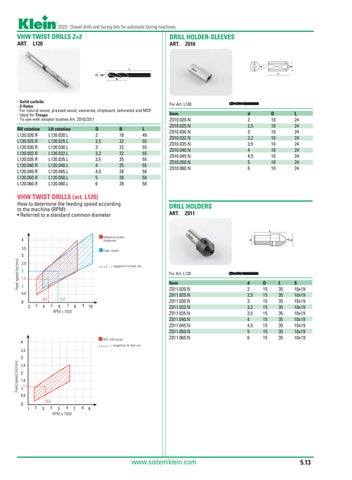

2023 - Dowel drills and boring bits for automatic boring machines
VHW TWIST DRILLS Z=2
DRILL HOLDER-SLEEVES
ART. L120
ART. Z010
- Solid carbide - 2-flutes - For natural wood, pressed wood, veenered, chipboard, laminated and MDF - Ideal for Trespa - To use with adaptor bushes Art. Z010/Z011
RH rotation L120.020.R L120.025.R L120.030.R L120.032.R L120.035.R L120.040.R L120.045.R L120.050.R L120.060.R
LH rotation L120.020.L L120.025.L L120.030.L L120.032.L L120.035.L L120.040.L L120.045.L L120.050.L L120.060.L
D 2 2,5 3 3,2 3,5 4 4,5 5 6
B 18 22 22 22 25 25 28 28 28
L 49 55 55 55 55 55 58 58 58
For Art. L120
Item Z010.020.N Z010.025.N Z010.030.N Z010.032.N Z010.035.N Z010.040.N Z010.045.N Z010.050.N Z010.060.N
d 2 2,5 3 3,2 3,5 4 4,5 5 6
D 10 10 10 10 10 10 10 10 10
L 24 24 24 24 24 24 24 24 24
VHW TWIST DRILLS (art. L120) How to determine the feeding speed according to the machine (RPM): • Referred to a standard common diameter
DRILL HOLDERS ART. Z011
For Art. L120
Item Z011.020.N Z011.025.N Z011.030.N Z011.032.N Z011.035.N Z011.040.N Z011.045.N Z011.050.N Z011.060.N
www.sistemiklein.com
d 2 2,5 3 3,2 3,5 4 4,5 5 6
D 15 15 15 15 15 15 15 15 15
L 35 35 35 35 35 35 35 35 35
S 10x19 10x19 10x19 10x19 10x19 10x19 10x19 10x19 10x19
5.13
