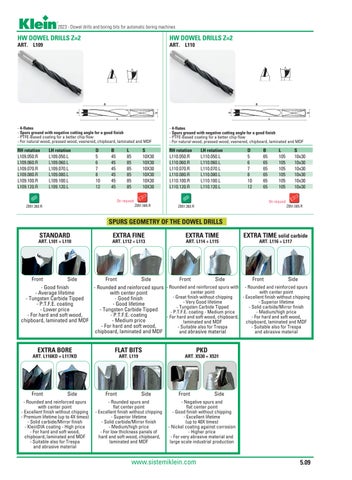

2023 - Dowel drills and boring bits for automatic boring machines
HW DOWEL DRILLS Z=2
HW DOWEL DRILLS Z=2
ART. L109
ART. L110
- 4-flutes - Spurs ground with negative cutting angle for a good finish - PTFE-Based coating for a better chip flow - For natural wood, pressed wood, veenered, chipboard, laminated and MDF
- 4-flutes - Spurs ground with negative cutting angle for a good finish - PTFE-Based coating for a better chip flow - For natural wood, pressed wood, veenered, chipboard, laminated and MDF
RH rotation L109.050.R L109.060.R L109.070.R L109.080.R L109.100.R L109.120.R
RH rotation L110.050.R L110.060.R L110.070.R L110.080.R L110.100.R L110.120.R
LH rotation L109.050.L L109.060.L L109.070.L L109.080.L L109.100.L L109.120.L
D 5 6 7 8 10 12
B 45 45 45 45 45 45
L 85 85 85 85 85 85
S 10X30 10X30 10X30 10X30 10X30 10X30
LH rotation L110.050.L L110.060.L L110.070.L L110.080.L L110.100.L L110.120.L
On request
B 65 65 65 65 65 65
L 105 105 105 105 105 105
S 10x30 10x30 10x30 10x30 10x30 10x30
On request Z051.505.R
Z051.302.R
D 5 6 7 8 10 12
Z051.505.R
Z051.302.R
SPURS GEOMETRY OF THE DOWEL DRILLS STANDARD
EXTRA FINE
EXTRA TIME
EXTRA TIME solid carbide
ART. L101 ÷ L110
ART. L112 ÷ L113
ART. L114 ÷ L115
ART. L116 ÷ L117
Front Side Front Side Front Side Front Side Rounded and reinforced spurs with Rounded and reinforced spurs - Good finish - Rounded and reinforced spurs center point with center point - Average lifetime with center point - Great finish without chipping - Excellent finish without chipping - Tungsten Carbide Tipped - Good finish - Very Good lifetime - Superior lifetime - P.T.F.E. coating - Good lifetime - Tungsten Carbide Tipped - Solid carbide/Mirror finish - Lower price - Tungsten Carbide Tipped - P.T.F.E. coating - Medium price - Medium/high price - For hard and soft wood, - P.T.F.E. coating - For hard and soft wood, chipboard, - For hard and soft wood, chipboard, laminated and MDF - Medium price laminated and MDF chipboard, laminated and MDF - For hard and soft wood, - Suitable also for Trespa - Suitable also for Trespa chipboard, laminated and MDF and abrasive material and abrasive material
EXTRA BORE
FLAT BITS
PKD
ART. L116KD ÷ L117KD
ART. L119
ART. X530 ÷ X531
Front
Side
- Rounded and reinforced spurs with center point - Excellent finish without chipping - Premium lifetime (up to 4X times) - Solid carbide/Mirror finish - KleinDIA coating - High price - For hard and soft wood, chipboard, laminated and MDF - Suitable also for Trespa and abrasive material
Front
Side
- Rounded spurs and flat center point - Excellent finish without chipping - Superior lifetime - Solid carbide/Mirror finish - Medium/high price - For low thickness panels of hard and soft wood, chipboard, laminated and MDF
Front
Side
- Negative spurs and flat center point - Good finish without chipping - Excellent lifetime (up to 40X times) - Nickel coating against corrosion - Higher price - For very abrasive material and large scale industrial production
www.sistemiklein.com
5.09
