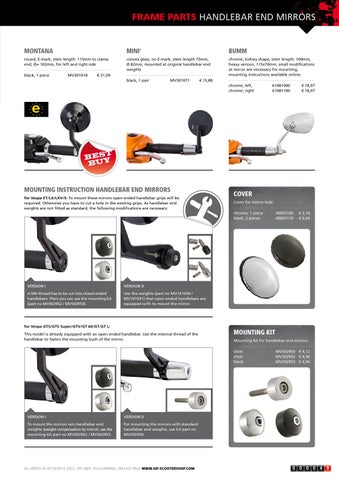

Frame Parts HANDLEBAR END MIRRORS
MONTANA
MINI§
BUMM
round, E-mark, stem length: 115mm to clamp end, Ø= 102mm, for left and right side
convex glass, no E-mark, stem length 75mm, Ø 82mm, mounted at original handlebar end weights
chrome, kidney shape, stem length: 100mm, heavy version, 115x70mm, small modifications at mirror are necessary for mounting, mounting instructions available online.
black, 1 piece
MV301018
€ 31,09 black, 1 pair
MV301071
€ 15,88 chrome, left, chrome, right
61081000 61081100
€ 18,07 € 18,07
e
T B E SY BU MOUNTING INSTRUCTION HANDLEBAR END MIRRORS for Vespa ET/LX/LXV/S: To mount these mirrors open ended handlebar grips will be required. Otherwise you have to cut a hole in the existing grips. As handlebar end weights are not fitted as standard, the following modifications are necessary:
COVER Cover for mirror hole chrome, 1 piece black, 2 pieces
Version I
Version II
A M6 thread has to be cut into closed ended handlebars. Then you can use the mounting kit (part no MV502952 / MV502953).
Use the weights (part no MV161030 / MV161031) that open ended handlebars are equipped with to mount the mirror.
for Vespa GTS/GTS Super/GTV/GT 60/GT/GT L: This model is already equipped with an open ended handlebar. Use the internal thread of the handlebar to fasten the mounting bush of the mirror.
MOUNTING KIT Mounting kit for handlebar end mirrors silver silver black
Version I
Version II
To mount the mirrors w/o handlebar end weights (weight compensation by mirror), use the mounting kit part no MV502952 / MV502953.
For mounting the mirrors with standard handlebar end weights, use kit part no MV502950.
ALL PRICES AS OF 05/2013, EXCL. VAT (NET), PLUS SHIPPING, SEE LAST PAGE www.sip-scootershop.com
40093100 € 3,78 40093110 € 6,64
MV502950 € 4,12 MV502952 € 4,96 MV502953 € 4,96
