Track Mounting

1.3 TRACK MOUNTING

4.1 FIXED POINT MOUNT

5.0 TRACK MOUNT Vehicle specific tracks are designed for strength and flexibility. Vehicle specific tracks are designed for strength and flexibility.

TRACKS ARE OUR SPECIALTY

1.3.1 RLT600 The Quick Mount™ RLT600 Leg Set is designed for single person use with a trigger locking system. Full (4) or Half (2) (RLT600H) leg sets to suit Vortex bars. Spacer kits and fitting kits are available for Rhino-Rack® Heavy Duty Bars and Pioneer™ systems. Leg height: 71mm / 2.8”

1.3.3 RLTF/RLTP

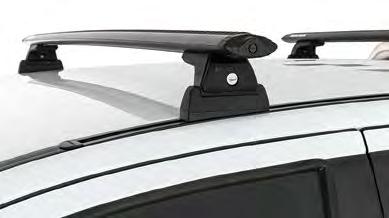

The Rhino-Rack® RLTF/RLTP legs are attached to your roof via a set of mounting brackets or Rhino-Rack® tracks. Leg Height RLTF: 85mm / 3.3” Leg Height RLTP: 50mm / 1.9” For product numbers and specification, see page 18

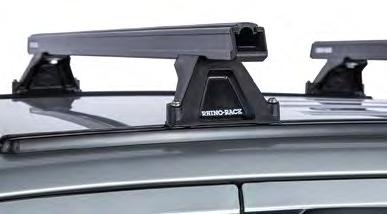

1.3.2 RCH/RCL The RCH Locking Legs are designed with a key locking system to reduce wind resistance and increase security. This unique design helps reduce noise without compromising durability and load carrying capacity. Leg Height RCH: 52mm / 2.1” Leg Height RCL: 37mm / 1.5”

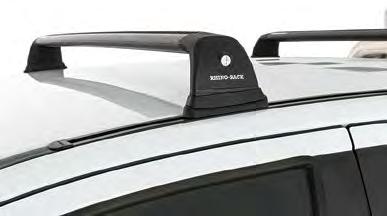

1.3.4 RV

The Vortex RV flush leg system can attach to Rhino-Rack tracks or in a fixed mounting position permanently anchored to your roof. Leg Height RVH: 65mm / 2.5” Leg Height RVL: 45mm / 1.7”
