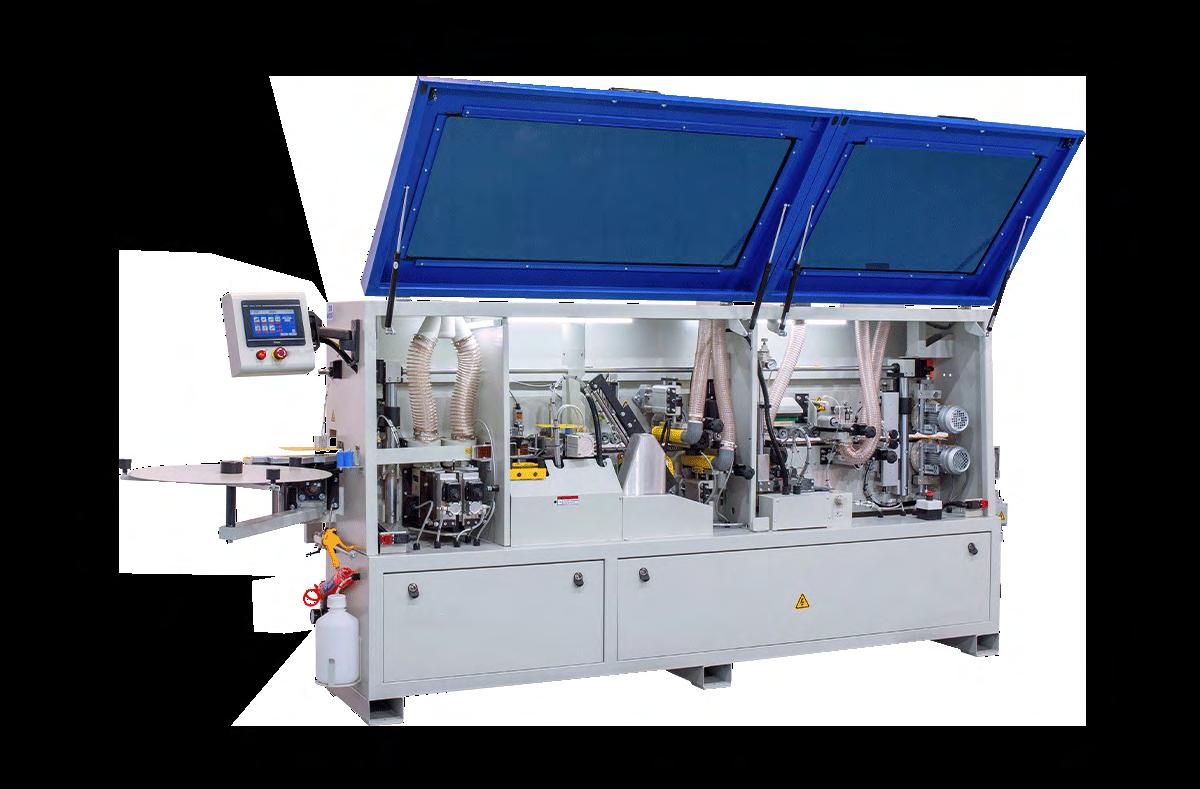

EDGE BANDING MACHINE
This edge banding machine is engineered with a compact and highly functional design, where every component is precisely aligned to deliver superior finishing quality and accuracy. The machine’s construction and all critical components are manufactured with exceptional precision to ensure long-term reliability and consistent performance. An intuitive touchscreen control panel enables fast and efficient diagnostics—if an issue occurs, the system provides clear error information along with guided instructions for quick troubleshooting.

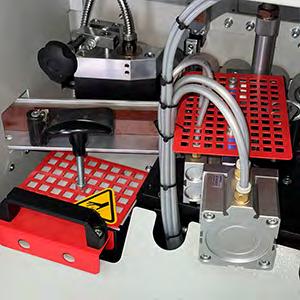

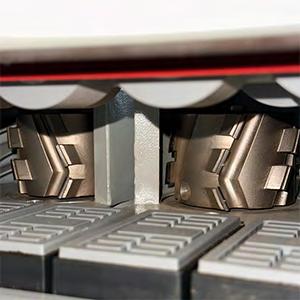

PRE-MILLING UNIT
Designed to eliminate cutting damage and guarantee a flat surface ideal for gluing.
Made with diamond cutters that rotate in different directions.
ADHESIVE APPLICATION
The canister is coated with Teflon and features a quick-detach system. It is designed for adhesive granules that require just 15 minutes to heat up.

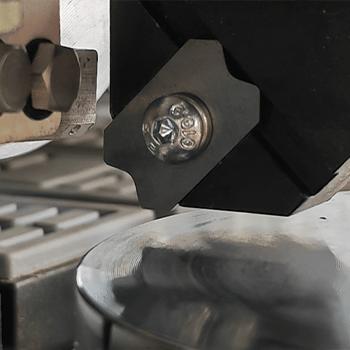

RADIUS SCRAPING UNIT
Scrapers with a radius for edge finishing to ensure smoothness. Provides precise finishing and removes excess material, resulting in clean and well-defined edges.
Panel width
Panel thickness
Edge band thickness
Panel length
Processing

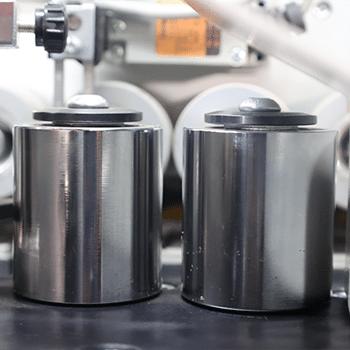

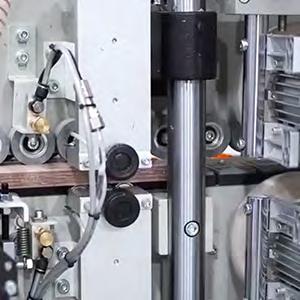

PNEUMATIC ROLLERS
Two pneumatic rollers apply pressure to the tape with adjustable regulators. Provide consistent and even pressure, guaranteeing secure adhesion of the edging tape without material deformation.

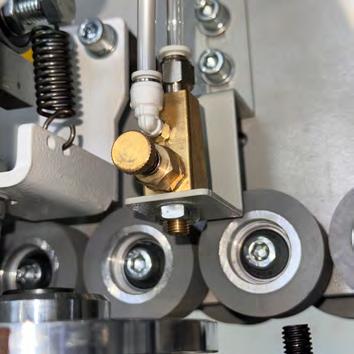

Allows the application of adhesive residue cleaning agents on the panel. Ensures a clean and professional edge finish, ready for final processing or assembly.
Precise cutting of panel edges with two saw blades and high spindle speeds (12,000 RPM). Delivers stable and precise cuts, producing perfectly prepared edges for further processing.
The flat scraping unit is used to remove micro-ripples and marks left during the milling process. This operation ensures a cleaner, more even, and smoother finish on both the upper and lower surfaces of the panel.
UNIT

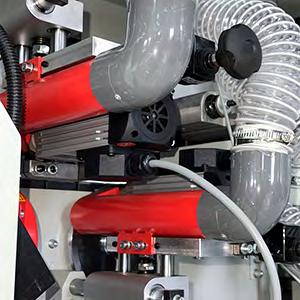

Precise processing of the upper and lower panel parts with two radius routers (R1, R2, R3) and high spindle speeds (12,000 RPM). Ensure perfectly rounded edges, contributing to a professional and aesthetically refined final product.

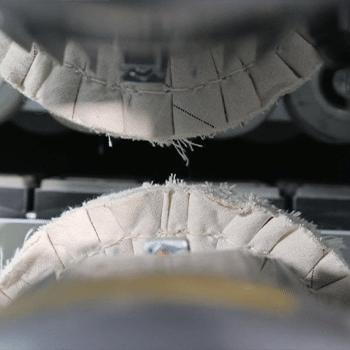

Final panel finishing by polishing for an even smoother surface. Polishing units eliminate fine residues and machining marks, leaving a high-gloss surface with a professional appearance.

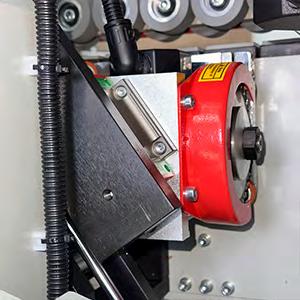

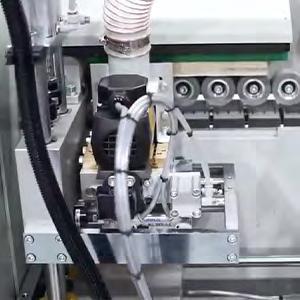

The corner rounding unit enables precise machining of both front and rear edges, significantly enhancing the aesthetic appearance of the panel. Thanks to a single high-frequency motor, this operation requires minimal space within the machine.
TRIMMING
FLAT SCRAPING UNIT
BUFFING UNIT
SPRAYING UNIT
CORNER MILLING UNIT
