Supplies4Heat Brochure Edition 29 by IRSAP UK

Supplies 4 Heat Value & Service

FREE NEXT DAY DELIVERY – NOW AVAILABLE !

We know how important it is to keep your projects running smoothly, without delays or extra costs. That’s why we’re now offering FREE Next Day Delivery* on all products in stocked finishes. Order before 11am, and your materials will be on their way—arriving next working day, at no extra charge.

11am

At Supplies4Heat our aim is to provide you with a range of great value designer radiators and towel rails. We understand that you want a choice of good-looking, good-quality products, all delivered with reliable service and guarantees.

We promise;

• Great Value: quality products at affordable prices.

• All Products from Stock: ready to be sent when you need them (excluding Cornel Curved).

• Free NEXT DAY DELIVERY* for stock finishes: Free next day delivery applies to stocked finishes ordered by 11am. Scotland and offshore islands may take longer where we aim to deliver within 5 working days (please note that delivery times start from order confirmation date).

• 23 RAL Colours & 10 special finishes: see pages 12-13 for details

• Bundle Savings: best value easy to order bundle options with our +Valves prices.

• Quality Guaranteed: 10-year guarantee on radiators & towel rails made in our factories.

CORNEL ELECTRIC DESIGN & LACQUER FINISH, LADDER RAIL WITH ELECTRIC OPTION, 50MM VALVES

CORNEL Electric Bare Metal Lacquer (22-23) BAYFORD Hydronic (78-79)

CORNEL Electric White BAYFORD Electric (78-79)

WREN 50mm valves (95)

*orders received after

will be delivered in 2 working days. 5 working days for non-stock finishes (see pages 12-13)

RADIATORS

TOWEL RAILS

Type 11 (K1)

Type 22 (K2)

Terms & Conditions;

Please note VAT will be charged at the prevailing rate at time of invoice; at the time of going to print VAT is 20%. Orders should be sent to enquiries@supplies4heat.co.uk

Orders received into a different inbox may result in delays to the advertised delivery time scales. Delivery times start from order confirmation date. For a copy of the full Terms & Conditions please call 01342 306880 or visit supplies4heat.co.uk

Our Radiators are produced & outputs measured according to the approved standard BS EN442 which uses Delta t50˚c (Δt). (FARADAY Eco tested to BS EN16430). BS EN442 states that all hydronic radiators and towel rails are tested and presented at Delta T50. If you require outputs based on a different Delta T multiply the listed Delta T50 outputs by the correction factors shown in the table on page 11.

Supplies4Heat is a brand of , Italy’s leading manufacturer of design led radiators.

If you cannot find what you are looking for in this brochure please refer to our sister brand The Radiator Company for a wider choice; theradiatorcompany.co.uk or telephone 01342 302250 for a brochure .

Please visit supplies4heat.co.uk for help calculating your heat output requirements, selecting your radiators or finding your local merchant or showroom.

Our network of local Merchants will be able to provide expert advice and help with any plumbing & heating needs.

CORNEL 2 Column

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column radiator

• Wall brackets as standard; alternative mounting options available (pg.10)

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm. See page 11 for pipe centres.

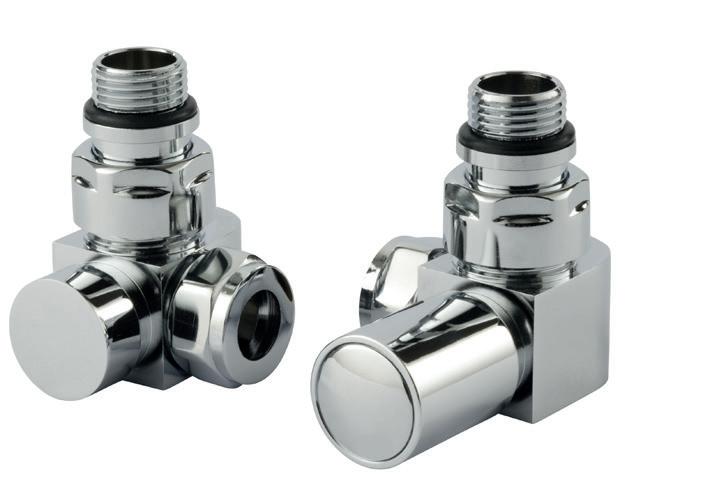

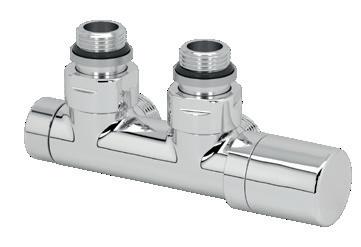

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

CORNEL alternative mounting options

Please refer to pages 10-11 for alternative mounting options and pipe centre information.

O ptional slip on Feet O ptional floor mounts

23 RAL Colours & 10 special finishes available ( see pages 12-13 for full RAL and Special Finish options).

Please note: Due to printing processes & manufacturing tolerances the colour of finished radiators may vary from the colours represented in this brochure.

+Valves Prices include angled Chrome or White

Please specify at time of order

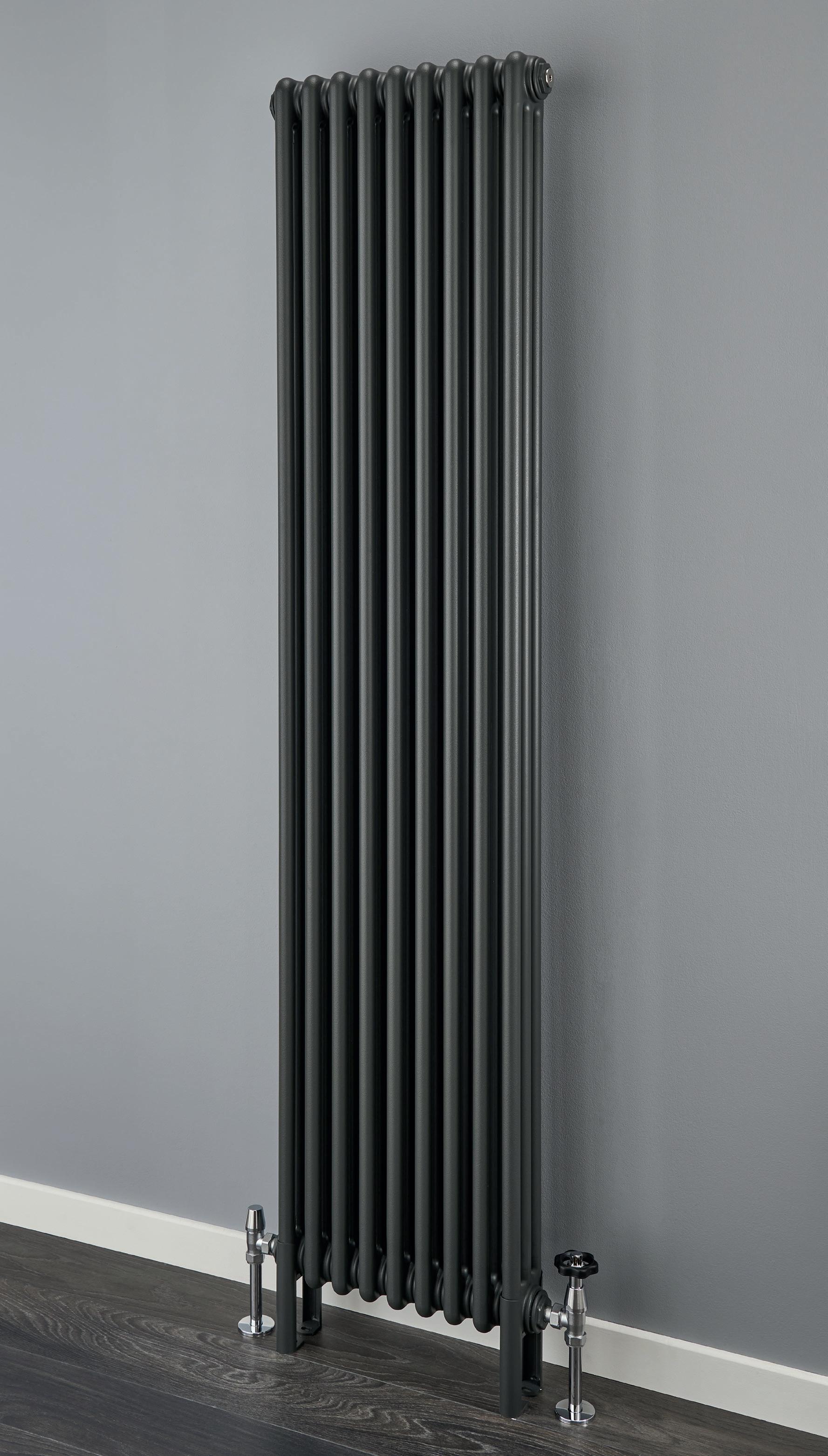

CORNEL vertical 2 column, 1800mm x 341mm with optional slip on feet and White

KINGSTON TRVs.

Mottled Copper finish

Matching CORNEL towel bar (pg.11)

KINGSTON TRVs

CORNEL 3 Column

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column radiator

• Wall brackets as standard; alternative mounting options available (pg.10)

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm. See page 11 for pipe centres. *+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Please refer to page 10 for alternative mounting options; slip on feet plus floor mounts as well as pipe centre information. CORNEL

O ptional slip on feet

Please add 100mm to your overall height.

O ptional floor mounts

Please add 105mm to your overall height.

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

◊

CORNEL 3 column, 600mm x 836mm in special finish Mottled Copper with optional slip on feet & Antique Copper KINGSTON TRVs.

CORNEL 4 Column

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column radiator

• Wall brackets as standard; alternative mounting options available (pg.10)

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm. See page 11 for pipe centres.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

CORNEL alternative mounting options

Please refer to pages 10-11 for alternative mounting options and pipe centre information.

Please specify at time of order

CORNEL horizontal 4 column, 500mm x 836mm in special finish Carbon with optional slip on feet, Chrome KINGSTON TRVs & matching pipe covers & shrouds.

+Valves Prices include angled Chrome or White KINGSTON TRVs

CORNEL

Steel Multi Column

White RAL 9016 supplied as standard 45mm mild steel sections - up to 40 sections available

ALTERNATIVE MOUNTING OPTIONS

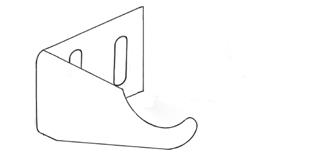

Wall Brackets (supplied as standard)

Optional Slip on Feet (adds 100mm to the overall height)

Please Note: 2 slip on feet / floor mounts per radiator up to 18 sections, 4 feet for 21-40 sections.

Optional Floor Mounts (adds 105mm to the overall height)

Optional Stud Wall Brackets (minimum height from floor = 100mm)

centres from wall

& 3 Column = 70mm - 80mm 4 Column = 95mm - 130mm

CORNEL

Steel Multi Column

PIPE CENTRES

(Based on adjustable wall ties)

Pi pe centres left to right = width of radiator plus valves Pipe centres from wall = 2 column = 64mm - 74mm = 3 column = 82mm - 92mm = 4 column = 102mm - 112mm

BORE CENTRES

Bore centres = height less 65mm

Bore centres from base = 32.5mm

2 column 3 column 4 column

Sections 45mm

4 column 1800mm x 431mm in special finish

with optional slip on welded feet & White

TRVs & matching pipe covers & shrouds.

ACCESSORIES

DELTA T CORRECTION FACTORS

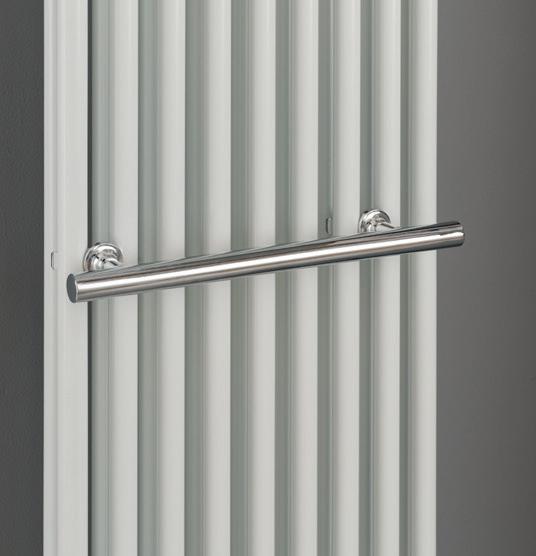

Optional CORNEL Towel Bar

Please note: The towel bar will sit off centre for CORNEL radiators that have an uneven number of sections.

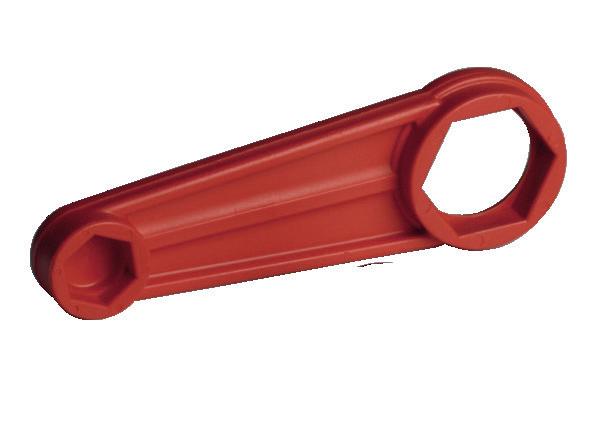

Nylon Spanner

Perfect for tightening CORNEL bushes and airvents, this robust nylon spanner is an exact fit and will reduce the risk of damaging your radiator with inappropriate metal tools.

If you need to know outputs based on a different Delta T you can simply multiply the listed Delta T50 outputs by the correction factors shown in the table (shown right) to get the appropriate output for your system.

CORNEL

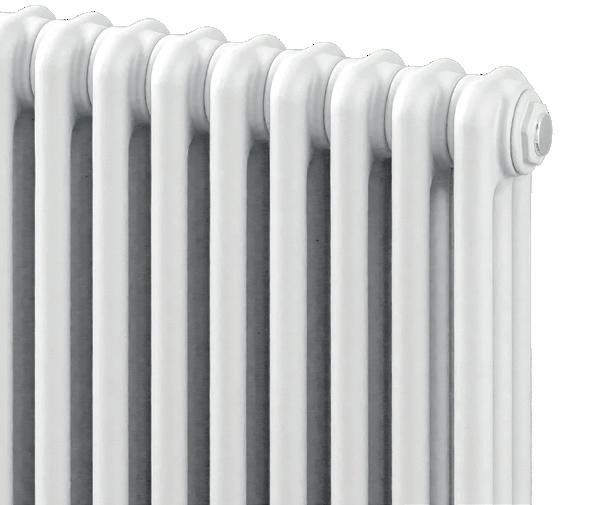

Matt White

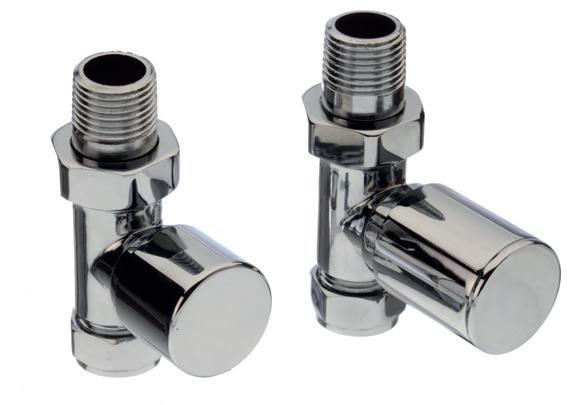

KINGSTON

23 RAL COLOURS

A wide range of our white radiator & towel rail ranges are also available in a choice of 23 RAL Colours or 10 special finishes (excluding the Cornel Electric, Faraday® Eco, Chase, Newlands, Bosworth, Addison, Bayford, Lanark, Cleves & Boleyn)

Your new radiator or towel rail will be painted by our UK-based specialists in a durable satin finish. To allow for the colour process, delivery will take up to 5 working days to UK mainland invoice addresses (Please note: RAL colours marked with an asterisk (*) may require additional time).

The Cornel Curved & Cornel Bench Seat, Faraday & W itton ranges are not included in this 5-day service. Deliveries to Scotland and offshore islands may take longer, where we aim to deliver within 10 working days. For orders of more than 10 radiators, please allow an additional 2 working days.

Choose from 23 popular RAL colours, all painted in a satin sheen finish similar to eggshell. If you need help selecting your finish, colour chip samples are available. Please contact Customer Services on 01342 306880 or visit supplies4heat.co.uk to order your sample.

supplied as standard (excluding the SAXON which is supplied in RAL 9010 as standard).

Please send orders to enquiries@supplies4heat.co.uk. Orders received into a different inbox may result in delays to the advertised delivery time scales.

Please note delivery dates can only be confirmed once we have receipt of your chosen RAL colour number or special finish; please ensure your selected colour number and name and or special finish is included on your order.

Please contact Customer Services on 01342 306880 or visit supplies4heat.co.uk to order a colour chip sample.

RAL 9016 - Traffic White

RAL 1001 - Beige

RAL 3004 - Purple Red*

RAL 1013 - Oyster White

RAL 4003 - Heather Violet*

RAL 1015 - Light Ivory

RAL 5024 - Pastel Blue*

RAL 3000 - Flame Red*

RAL 7042 - Traffic Grey A RAL 7044 - Silk Grey

RAL 8011 - Nut Brown

RAL 8025 - Pale Brown

RAL 9001- Cream

RAL 3003 - Ruby Red*

RAL 1019 - Grey Beige

RAL 6006 - Grey Olive*

RAL 7016 - Anthracite Grey RAL 7032 - Pebble Grey

RAL 6013 - Reed Green

RAL 9004 - Signal Black

RAL 9005 - Jet Black

RAL 7040 - Window Grey

RAL 7035 - Light Grey

RAL 9010 - Pure White

10 SPECIAL FINISHES

P lease add 10% to the RAL Colour price to work out your Special Finish price.

Please contact Customer Services on 01342 306880 or visit supplies4heat.co.uk to order a colour chip sample.

Please send orders to enquiries@supplies4heat.co.uk. Orders received into a different inbox may result in delays to the advertised delivery time scales.

To discuss a quotation for other colours outside of the above range please call 01342 306880

Please note: Due to the printing process and manufacturing tolerances the colour (including white) of a finished radiator may vary slightly from the colours represented in this brochure. It should also be noted that the final finished colour of radiators ordered in the same colour but at different times may vary due to production processes.

Carbon

Textured Anthracite

G un Metal Grey

M ottled Copper

M ottled Silver Textured Matt Black

M att White

M att Black

W hite Aluminium G rey Aluminium

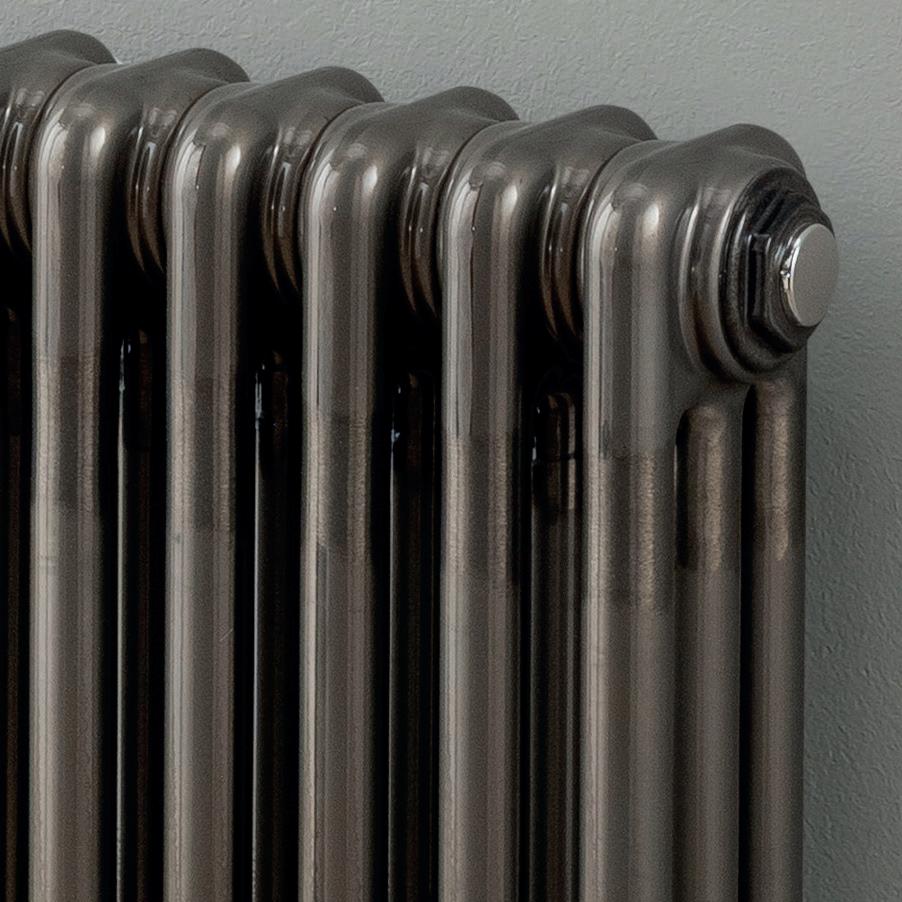

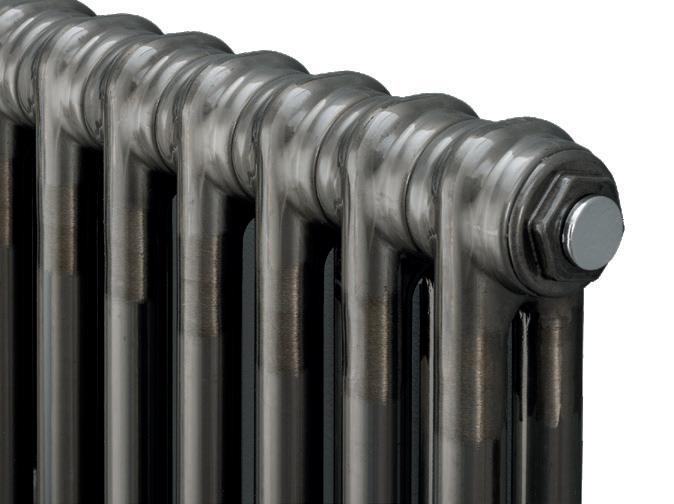

CORNEL in Mottled Copper

TALLIS in Textured Anthracite

BEAUFORT SLIM in Matt White

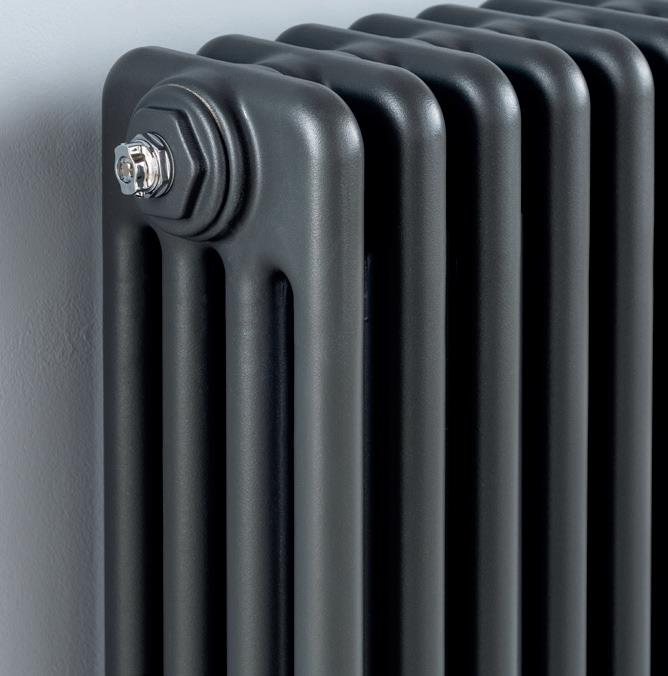

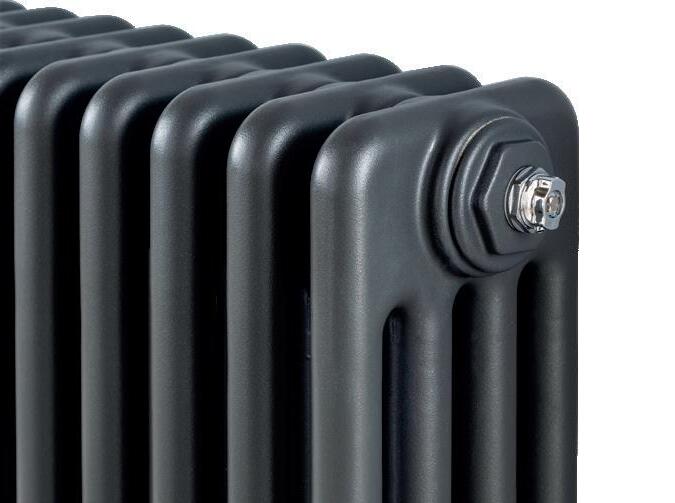

CORNEL Textured Anthracite

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column horizontal radiator

• Wall brackets as standard; optional slip on feet available

• 2, 3 & 4 column options in 2 heights & up to 6 widths; set sizes only

Sizes and Prices

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

* + Valves Prices include angled Nickel KINGSTON TRVs, (if you require straight valves please specify).

Optional slip on feet kits (2 feet per radiator up to 18 sections, 22 & 26 sections require 4 feet).

Pi pe centres left to right = width of radiator plus valves

(Based on adjustable

Pipe centres from wall = 2 column = 64mm - 74mm = 3 column = 82mm - 92mm = 4 column = 102mm - 112mm

If you would like an alternative size in our Textured Anthracite finish, we have a wider selection available with a delivery time of 5 working days; please see pages 4-9 for more information.

+Valves Prices include angled Nickel KINGSTON TRVs

Please specify at time of order

CORNEL in Textured Anthracite, 3 column, 500mm x 836mm with optional slip on feet, Nickel BELSAY TRVs & matching pipe covers & shrouds.

CORNEL Textured Anthracite

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column horizontal radiator

• Wall brackets as standard; optional slip on feet available

• 2 & 3 column options in 2 heights & up to 8 widths; set sizes only

Sizes and Prices

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

* + Valves Prices include angled Nickel KINGSTON TRVs, (if you require straight valves please specify).

Optional slip on feet kits (2 feet per radiator up to 18 sections).

Pi pe centres left to right = width of radiator plus valves

(Based on adjustable wall ties)

Pipe centres from wall = 2 column = 64mm - 74mm = 3 column = 82mm - 92mm = 4 column = 102mm - 112mm

If you would like an alternative size in our Textured Anthracite finish we have a wider selection available with a delivery time of 5 working days; please see pages 4-9 for more information.

+Valves Prices include angled Nickel KINGSTON TRVs

Please specify at time of order

CORNEL Textured Anthracite vertical 3 column, 1800mm x 431mm with slip on feet & Chrome SHIRE TRVs.

4 column in Textured Anthracite

Horizontal

CORNEL Bare Metal Lacquer

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column vertical radiator

• 2, 3 & 4 column options in 2 heights & up to 6 widths; set sizes only

• Universal wall brackets as standard, optional slip on feet available

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

* + Valves Prices include angled Nickel KINGSTON TRVs, (if you require straight valves please specify).

Please specify at time of order

CORNEL Bare Metal Lacquer Horizontal 3 Column, 500mm x 836mm with optional Slip on Feet, Nickel KINGSTON TRVs & matching pipe covers & shrouds.

+Valves Prices include angled Nickel KINGSTON TRVs

CORNEL Bare Metal Lacquer

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel multi column vertical radiator

• 2 & 3 column options in 2 heights & up to 8 widths; set sizes only

• Universal wall brackets as standard, optional slip on feet available

All prices include universal wall brackets. S lip on feet available at a supplementary price, please specify at time of order.

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

* + Valves Prices include angled Nickel KINGSTON TRVs, (if you require straight valves please specify).

Universal Wall Brackets (Supplied as standard )

Optional slip on feet kits ( 2 feet per radiator up to 18 sections).

Pipe Centres for Bare Metal Lacquer only

Pi pe centres left to right = Width of radiator plus valves Pipe centres from wall = 2 column = 56mm, 3 column = 74mm

Each radiator will be unique, with the random position of the weld lines on the column tubes and the level of the final sanding.

The clear lacquer allows these characteristics to be the hero and maintains the natural steel finish.

Bare Metal Lacquer Finish

24mm

+Valves Prices include angled Nickel KINGSTON TRVs

Please specify at time of order

CORNEL Bare Metal Lacquer vertical 2 Column, 1800mm x 431mm with wall brackets & Nickel KINGSTON TRVs.

Black weld lines and manufacturing marks create industrial chic

Horizontal version with slip on feet (pg.18-19)

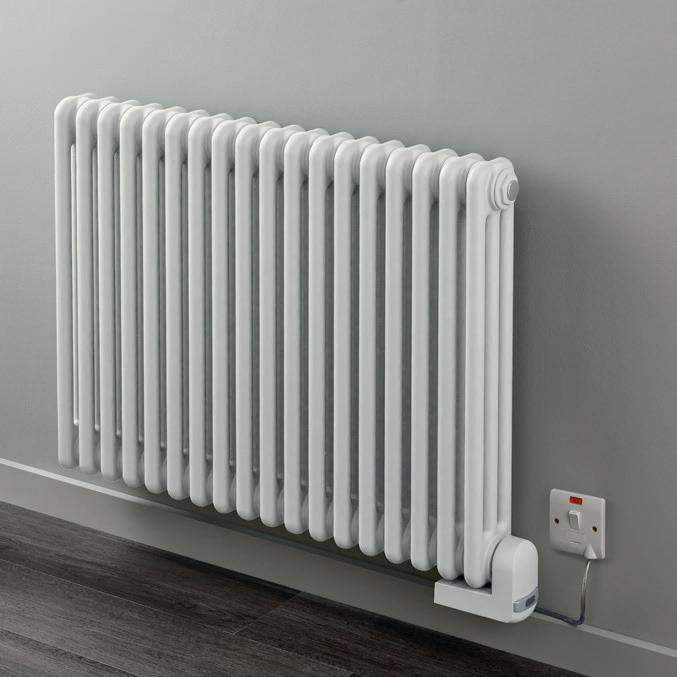

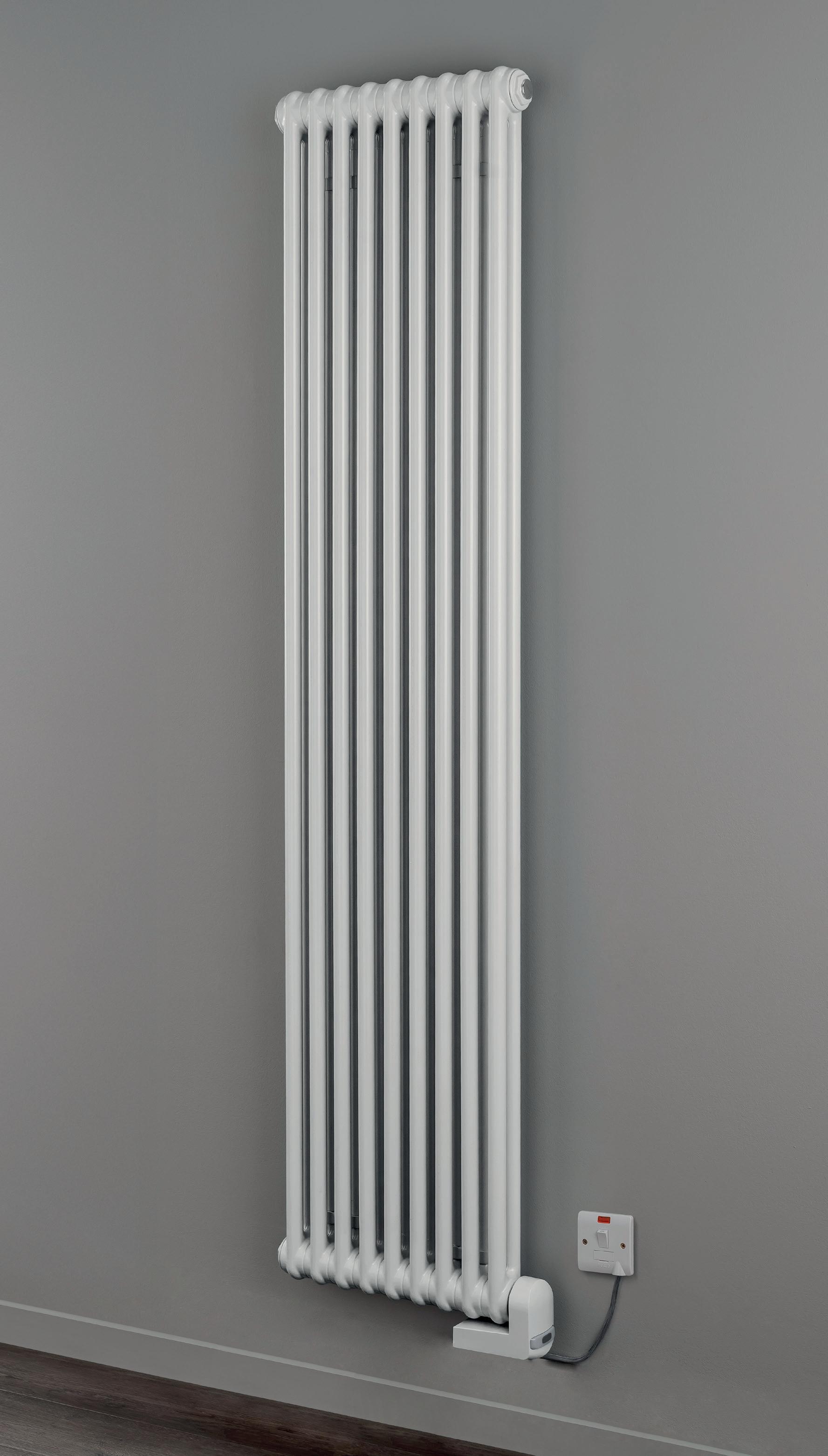

CORNEL Electric

• Italian design & manufacture, electric steel multi column radiator

• 2 & 3 column options wall mounted

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days.

• 2-year guarantee on the element, 10-year guarantee on the radiator

Our latest CORNEL Electric range brings together classic design and smart technology to give you the perfect balance of elegance and efficiency. With a brand-new element design & flexible formats (choose from 2 or 3 columns and 2 height options) this range fits beautifully into any room. Smart, simple control. Take full control with the intuitive IR remote, making it easy to set the perfect temperature, anytime.

Sizes and Prices

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

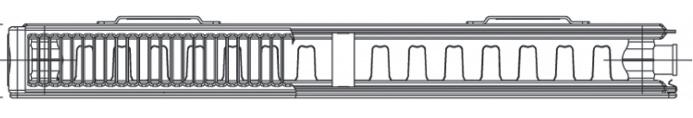

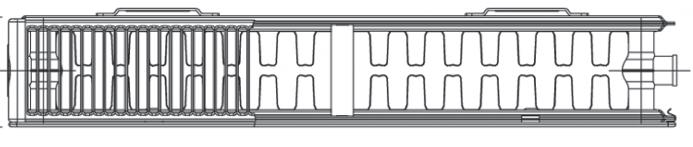

Technical Drawings

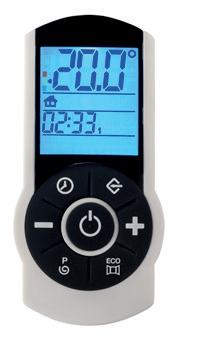

Enjoy a range of smart modes designed for your lifestyle

• Customisable weekly program – set it and forget it

• Adaptive Start-up – warms up in time for when you need it

• Child lock – peace of mind for families

• Comfort, Eco, & Antifreeze modes – tailored comfort & energy savings

• Holiday & Standby modes – efficient when you’re away

• Open window detection – stops heating when it senses a drop in temperature

• Pilot wire compatibility – ready for home automation systems

Intuitive Infra Red Remote Control supplied with every CORNEL Electric Radiator

CORNEL Electric 2 column, 1853mm x 465mm in White RAL 9016.

Bare Metal Lacquer programmable element

3 Column 653mm x 870mm

Black weld lines and manufacturing marks create industrial chic on Bare Metal Lacquer finishes

CORNEL Bench Seat

• Italian design & manufacture, steel multi column with optional seat

• 4 column option in 1 height & up to 15 widths; set sizes only

• White RAL 9016 delivered in 48-72 hours

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Radiator Sizes & Prices (excluding bench seat)

Technical features:

• tubes made of 25 mm diameter sheet steel

• manifolds made of pressed sheet steel

• elements 45 mm long (element pitch)

• threading 1” 1/4 G right and left on top and bottom manifold

• mounted 1/2” plugs supplied as standard

• maximum working pressure 10 bar

• maximum working temperature 95 °C

• standard hydraulic connec tion supplied Cod. 02

Please add 10% to the RAL colour price to work out your special finish price.

TESI BENCH VERTICAL is a particular version of the classical TESI tubular radiators. It is composed of columns going from 4 up to 6 and of the following number of elements: 22, 28 , 32 36 38 , 45, 52

The lengths are from 1014 mm to 2364 mm and it is 300 mm high

Perfec t and for private installations or for public areas (gym, nurser y, school...).

The seat is not supplied.

The te chnical drawing refers to TESI BENCH VERTICAL with 22 sections

Other RAL colors

Finishing codes see page 596.

Widths include measurement for bushes. Please note due to manufacturing tolerances widths shown may vary by +/- 2mm.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Please note: All radiators will be supplied with the correct number of feet.

Pipe centres = width of radiator + valves

Bench Seat Sizes & Prices

CORNEL Bench Seat in RAL 7016 with optional wooden seat, 4 column, 496mm x 1016mm with Nickel KINGSTON TRVs & matching pipe covers & shrouds.

CORNEL Bench shown without Seat

CORNEL Curved

• Italian design & manufacture, made to order curved radiators

• 2, 3 & 4 column options in a choice of 2 heights in up to 40 sections

• Available in White RAL 9016, 23 RAL colours & 10 special finishes

• Delivery 6 weeks from receipt of written sign off of technical drawings

Our CORNEL Curved radiators are made to order and can be curved to fit bay windows and curved walls. Wall brackets are supplied as standard, optional welded feet are available, please specify at time of order.

Radiators can be curved using up to 40 sections, minimum 10 sections (450mm). It is essential to always know how much heat you need to keep your room comfortable. Use our online Heat Output Calculator to work out how much heat you will need for your room before you size your straight radiator. Curving is a precise process and as such, accurate measurements and calculations must be made and checked before production can begin. Since our CORNEL Curved is made on a bespoke basis to your exact requirements, we have created a specification form to make the process as easy as possible;

To order your curved radiator follow these simple steps;

• Go to our website supplies4heat.co.uk and select ‘Cornel Curved’ (or scan QR code above) and download the specification form which explains how to measure for your curved radiator, we can also email the specification form to you direct by calling 01342 306880

• When you have reviewed the specification form, double-check your measurements are correct to see how your radiator will fit in your space.

• Complete the specification form with the dimensions of your bay and return it to your chosen merchant/installer to place an ini tial order.

• You will receive a technical drawing of your bay and requested measurements from your merchant and if you are happy you will need to sign the document.

• Use the signed specification form to place your order with your merchant/installer to start production.

Please note; once you have signed off your drawings and ordered your curved radiator it cannot be cancelled or returned.

Calculate the number of sections you need by dividing the required BTU (Watt) output with the output per section; e.g 4500 BTUs divided by 225 = 20 sections, based on 4 column, 500mm high sections (always round up to the next whole number of sections). If the use of this section size does not work in the available space, try a different column option or if possible a different height.

Sizes and Prices (by section)

2 Column - 65mm deep

Dimensions

3 Column - 101mm deep

4 Column - 139mm

Optional Welded Feet kits

Note: Please remember to add 97mm to the height of the CORNEL curved section you have chosen if you are using Welded Feet.

CORNEL Curved in White RAL 9016, 3 column, 597mm x 1826mm with optional welded feet shown with White KINGSTON TRVs & matching pipe covers & shrouds.

CORNEL Curved with wall brackets

FARADAY® Eco

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Exclusively for use with low temperature (∆t 30˚C) systems

• Type 22 (K2) Flat panel radiator with integrated fans

• Integral fans increase the heat output by over 40% *

• 2-year guarantee on electrical components, 10-year on the radiator

The innovative FARADAY ® Eco panel radiator, ensures efficient heating in low temperature heating systems. Its unique nature lies in the integration of fans and an autonomous controller directly into the radiator. It can be used without operating the fans or at one of five levels of intensity of forced convection. The efficient fans on top of the radiator can increase the output by over 40% *

Maximum flow temperature 60ºc, not suitable for systems with higher flow temperatures. Tested to BS EN16430. †Sound pressure not tested.

Sizes and Prices

+Valves Prices include White, angled KINGSTON TRVs, (if you require straight valves please specify). KINGSTON TRVs can be viewed on page 96.

Provided with: 1 x transformer plug with 1.2m wire

Input: 100–240VAC 0.3A 50/60Hz

Output: 12VDC, 2A

Pipe centres left to right = Width plus valves

Pipe centres from wall = 73mm / 93mm Depth from wall = 125mm / 145mm

Faraday ® Eco Outputs ∆t 30˚C

Exclusively for Low Temperature Systems

Heat pumps represent a very efficient and economical method of heating. However, choosing a suitable low temperature radiator is important to guarantee optimum performance. The FARADAY ® Eco radiator is perfect when combined with a heat pump, ensuring the desired comfort level. Using its integrated fans, this radiator can increase heat output by over 40% *

The FARADAY ® Eco panel radiator can also be used during the summer months, operating in passive cooling mode, they can be part of systems designed to use heat pumps that are able to circulate cooler water (min 18ºc to avoid condensation), which will then help to cool the building.

Whether your heating or cooling, the FARADAY® Eco is designed specifically for low temperature systems, maximising outputs in winter and taking the heat off in summer. Standard sizes and brackets make specifying easy and installation simple.

FARADAY ® Eco Type 22 (K2) 624mm x 1200mm in White RAL 9016 with White WELLINGTON TRVs

FARADAY® Type 22 (K2)

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Smooth plain front with double flat panels and double convectors

• Steel flat panel radiator available in 4 heights and 12 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Type 22 (K2) Profile

Double steel panels (one front, one back) with double convectors.

/ 145

Pipe centres left to right = Width plus valves

Pipe centres from wall = 73mm / 93mm

Depth from wall = 125mm / 145mm

◊ Please specify at time of order

FARADAY ® Type 22 (K2) 500mm x 1000mm in RAL 7016 Anthracite Grey with Nickel KINGSTON TRVs & matching pipe covers & shrouds.

+Valves Prices include angled Chrome or White KINGSTON TRVs.

FARADAY® Type 21 (P+)

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Smooth plain front with double flat panels and a single convector

• Steel flat panel radiator available in 1 height and 10 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Type 21 (P+) Profile

Double steel panels (one front, one back) with a single convector.

Pipe centres left to right = Width plus valves

Pipe centres from wall = 56mm / 76mm

Depth from wall = 91mm / 111mm

® FARADAY is a registered trademark of IRSAP UK Limited.

23 RAL Colours & 10 special finishes available ( see pages 12-13 for full RAL and Special Finish options).

P lease add 10% to the RAL

Carbon Gun Metal Grey

Mottled Copper Mottled Silver Textured Matt Black

Colour price to work out your Special Finish price.

Textured Anthracite Matt White Matt Black

◊ Please specify at time of order

FARADAY ® Type 21 (P+) 600mm x 600mm in RAL 7042 Traffic Grey A shown with Nickel KINGSTON TRVs & matching pipe covers & shrouds.

+Valves Prices include angled Chrome or White KINGSTON TRVs

FARADAY® Type 21 (P+)

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Smooth plain front with double flat panels and a single convector

• Steel flat panel radiator available in 3 heights and 3 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs, (if you require angled valves please specify).

Pipe Centres and Technical Drawings

Type 21 (P+) Profile

Double steel panels (one front, one back) with a single convector.

Pipe centres left to right = width minus 56mm or 50mm

Pipe centres from wall = 65mm

Depth from wall = 106mm

® FARADAY is a registered trademark of IRSAP UK Limited.

+Valves Prices include straight Chrome or White KINGSTON TRVs

Please specify at time of order

FARADAY® Type 21 (P+) Vertical 1600mm x 600mm in White RAL 9016 with White WELLINGTON TRVs.

◊

FARADAY® Type 22 (K2) in RAL 7016 Anthracite Grey

FARADAY® Type 21 (P+) Vertical profile

FARADAY® Type 11 (K1)

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Smooth plain front with a single flat panel and a single convector

• Steel flat panel radiator available in 3 heights and 12 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Type 11 (K1) Profile

Single steel panel with a single convector.

Pipe centres left to right = Width plus valves

Pipe centres from wall = 48mm / 68mm

Depth from wall = 82mm / 102mm

® FARADAY is a registered trademark of

Please specify at time of order

◊ FARADAY ® Type 11 (K1) 500mm x 1000mm in White RAL 9016 shown with White WELLINGTON TRVs and White Radsnaps.

+Valves Prices include angled Chrome or White KINGSTON TRVs

WITTON Type 11

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Grooved front with a single flat panel and a single convector

• Steel flat panel radiator available in 3 heights and up to 9 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify). Please add 10% to the

Pipe Centres and Technical Drawings

WITTON Type 11 (K1) Profile

Single steel panel with a single convector.

Pipe centres left to right = Width plus valves

Pipe centres from wall = 48mm / 68mm

Depth from wall = 82mm / 102mm

Carbon Gun Metal Grey Mottled Copper Mottled Silver Textured Matt Black Textured Anthracite Matt White Matt Black

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

WITTON Type 11 (K1) 600mm x 1000mm in White RAL 9016 shown with White KINGSTON TRVs & matching pipe covers & shrouds.

WITTON Type 22

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Grooved front with double flat panels and double convectors

• Steel flat panel radiator available in 3 heights and up to 10 widths

• 23 RAL colours, 10 special finishes, up to 8 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

73 / 93

125 / 145

Type 22 (K2) Profile

Double steel panels (one front, one back) with double convectors.

Pipe centres left to right = Width plus valves

Pipe centres from wall = 73mm / 93mm

Depth from wall = 125mm / 145mm

23 RAL Colours & 10 special finishes available ( see pages 12-13 for full RAL and Special Finish options).

Please note: Due to printing processes & manufacturing tolerances the colour of finished radiators may vary from the colours represented in this brochure.

WITTON

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

WITTON Type 22 (K2) 600mm x 600mm in White RAL 9016 shown with White KINGSTON TRVs & matching pipe covers & shrouds.

SAXON Horizontal

• Next Day Delivery for stock White RAL 9010 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, aluminium radiator

• Combines low water content with high thermal efficiency

Please note widths include measurement for bushes.

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

For a larger range of aluminium please refer to The Radiator Company; theradiatorcompany.co.uk where we have an additional range of sizes.

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13) Pipe

Wall Brackets

Each SAXON radiator will be supplied with 2 x left hand and 2 x right hand Brackets.

Pipe centres left to right = Width plus valves

Pipe centres from wall = 70mm

Depth from wall = 120mm

SAXON HANGING BARS

Hanging Pegs for SAXON radiators also available, see page 44.

Please specify at time of order

◊

SAXON Horizontal 690mm x 980mm shown in special finish Gun Metal Grey with Nickel KINGSTON TRV s & matching pipe covers & shrouds.

+Valves Prices include angled Chrome or White KINGSTON TRVs

SAXON Vertical

• Next Day Delivery for stock White RAL 9010 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, aluminium radiator

• Combines low water content with high thermal efficiency

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

Please note widths include measurement for bushes.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

For a larger range of aluminium please refer to The Radiator Company; theradiatorcompany.co.uk where we have an additional range of sizes.

Pipe Centres and Technical Drawings

Side Profile Front Profile

Wall Brackets

Each SAXON radiator will be supplied with 2 x left hand and 2 x right hand Brackets.

Pipe centres left to right = Width plus valves Pipe centres from wall = 70mm Depth from wall = 120mm

SAXON HANGING PEGS

Hanging Bars for SAXON radiators also available, see page 42.

+Valves Prices include angled Chrome or White KINGSTON TRVs.

Please specify at time of order

SAXON Vertical 1846mm x 500mm in White RAL 9010 shown with White WELLINGTON TRVs.

SAXON White Hanging Bar (pg.42)

SAXON shown in Gun Metal Grey

PAXTON

• Next Day Delivery for stock textured matt White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, aluminium radiator

• Combines low water content with high thermal efficiency

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

Horizontal in Textured Anthracite

PAXTON Vertical 1826mm x 395mm shown in Matt White RAL 9016 with Chrome KINGSTON TRVs & matching pipe covers & shrouds.

PAXTON in Matt White

CHASE

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Extruded Aluminium radiator manufactured to BS EN442

• Combines low water content with high thermal efficiency

• Available in Matt White and Flat Anthracite

Sizes and Prices

Please specify your finish of either Matt White or Flat Anthracite at time of order.

*+Valves Prices for Matt White include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

*+Valves Prices for Flat Anthracite include Nickel angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

+Valves Prices for Matt White radiators include angled Chrome or White KINGSTON TRVs

Please specify at time of order

CHASE profile

CHASE Vertical 1780mm x 395mm in Flat Anthracite with Nickel KINGSTON TRVs & matching pipe covers & shrouds..

Horizontal in Matt White

NEWLANDS

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Extruded Aluminium radiator manufactured to BS EN442

• Combines low water content with high thermal efficiency

• Available in Matt White and Flat Anthracite

Sizes and Prices

Please specify your finish of either Matt White or Flat Anthracite at time of order.

*+Valves Prices for Matt White include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

*+Valves Prices for Flat Anthracite include Nickel angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Please

NEWLANDS Vertical in Matt White

Please specify at time of order

NEWLANDS Horizontal in Flat Anthracite, 580mm x 1016mm shown with Nickel KINGSTON TRVs & matching pipe covers & shrouds.

+Valves Prices for Flat Anthracite finishes include angled Nickel KINGSTON TRVs

BOSWORTH

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Extruded Aluminium radiator manufactured to BS EN442

• Combines low water content with high thermal efficiency

• Available in Matt White and Flat Anthracite

Sizes and Prices

Please specify your finish of either Matt White or Flat Anthracite at time of order.

*+Valves Prices for Matt White include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

*+Valves Prices for Flat Anthracite include Nickel angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Pipe centres left to right = Width plus valves Pipe centres from wall = 70mm

BOSWORTH profile

+Valves Prices for Flat Anthracite finishes include angled Nickel KINGSTON TRVs

Please specify at time of order

Horizontal in Flat Anthracite

BOSWORTH Vertical 1784mm x 596mm shown in Matt White with White KINGSTON TRVs & matching pipe covers & shrouds.

ADDISON

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Extruded Aluminium radiator manufactured to BS EN442

• Combines low water content with high thermal efficiency

• Available in Matt White and Flat Anthracite

Sizes and

Prices

Please specify your finish of either Matt White or Flat Anthracite at time of order.

*+Valves Prices for Matt White include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

*+Valves Prices for Flat Anthracite include Nickel angled KINGSTON TRVs, (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Top view

Pipe centres left to right = Width plus valves

Pipe centres from wall = 34mm - 43mm

Depth from wall = 74mm - 83mm

ADDISON Vertical in Matt White

Please specify at time of order

ADDISON Horizontal in Flat Anthracite, 575mm x 1195mm shown with Textured Anthracite TOWER TRVs & matching pipe covers & shrouds.

+Valves Prices for Flat Anthracite finishes include angled Nickel KINGSTON TRVs

TALLIS Horizontal

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel horizontal radiator

• 50mm x 25mm oval tubes in single & double; 3 heights & 3 widths

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Pipe Centres and Technical Drawings ◊

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs, (if you require angled valves please specify).

Single Horizontal

Pipe centres left to right = Width less 50mm

Pipe centres from wall = 55mm

Depth from wall = 95mm

Double Horizontal

Pipe centres left to right = Width less 50mm

Pipe centres from wall = 80mm-90mm

Depth from wall = 120mm-130mm

brochure. 23 RAL Colours & 10 special finishes available ( see pages 12-13 for full RAL and Special Finish options).

Please add 10% to the RAL colour price to work out your special finish price. Please

+Valves Prices include straight Chrome or White KINGSTON TRVs

Please specify at time of order

TALLIS Double Horizontal in White RAL 9016, 600mm x 1020mm shown with White KINGSTON TRVs & matching pipe covers & shrouds.

TALLIS Vertical

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel horizontal radiator

• 50mm x 25mm oval tubes in single & double; 3 heights & 3 widths

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13) )

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Centres and Technical Drawings

Single Vertical

Pipe centres left to right = Width plus valves

Pipe centres from wall = 55mm

Depth from wall = 95mm

Double Vertical

Pipe centres left to right = Width plus valves

Pipe centres from wall = 80mm-90mm

Depth from wall = 120mm-130mm

23 RAL Colours & 10 special finishes available ( see pages 12-13 for full RAL and Special Finish options).

Please note: Due to

Carbon Gun Metal Grey Mottled Copper Mottled Silver Textured Matt Black

Textured Anthracite Matt White Matt Black

+Valves Prices include Angled Chrome or White KINGSTON TRVs

Please specify at time of order

TALLIS Single Vertical in White RAL 9016

1820mm x 480mm shown with White WELLINGTON TRVs.

TALLIS S ide Rail (pg.81)

TALLIS Textured Anthracite

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture; textured anthracite from stock

• Steel radiator with 50mm x 25mm oval tubes

• 2 heights & 4 widths in single & double, horizontal & vertical

Sizes and Prices

*+Valves Prices include angled Textured Anthracite TOWER TRVs, (if you require straight valves please specify).

If you would like an alternative size in our Textured Anthracite finish we have a wider selection available with a delivery time of 5 working days; please see pages 56-59 for more information.

Pipe Centres and Technical Drawings

Single Horizontal Double Horizontal

Horizontal

Pipe centres left to right = Width less 50mm

Pipe centres from wall = Single:55mm

Double:80mm-90mm

Depth from wall = Single:95mm

Double:120mm-130mm

Single Vertical Double Vertical

Vertical

Pipe centres left to right = Width plus valves

Pipe centres from wall = Single:55mm

Double:80mm-90mm

Depth from wall = Single:95mm

Double:120mm-130mm

+Valves Prices include angled

Textured Anthracite TOWER TRVs

Please specify at time of order

TALLIS Textured Anthracite Double Horizontal 600mm x 1020mm

TALLIS Single Vertical in Textured Anthracite 1820mm x 480mm shown with Nickel KINGSTON TRVs.

Double Horizontal

Single Vertical

CHAUCER Horizontal

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, steel horizontal radiator

• 23mm round tubes in 2 heights & 3 widths in single & double

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs, (if you require angled valves please specify). Actual tube size 23mm

Pipe Centres and Technical Drawings

White Hanging Bar 480mm shown on a CHAUCER horizontal

CHAUCER Single Horizontal 402mm x 1220mm shown in RAL 9004 Signal Black with Chrome KINGSTON TRVs & matching pipe covers & shrouds.

Matching 23mm round tubed

C HAUCER Side Rail (pg.83).

CHAUCER Vertical

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel vertical radiator

• 23mm round tubes available in 1 height & 4 widths in single & double

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (if you require straight valves please specify).

Actual tube size 23mm

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

CHAUCER Double Vertical in RAL 7042 Traffic Grey A, 1820mm x 402mm with Chrome KINGSTON TRVs.

Horizontal (pg.62-63)

Single Vertical

LARKIN

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, horizontal or vertical configurations

• Steel radiator with 20mm x 25mm tubes & 30mm collectors

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

x Oriz zontale Horizontal Verticale

* + Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (straight valves available on request).

Please add 10% to the RAL colour price to work out your special finish price. Pipe Centres and Technical Drawings Horizontal

Pipe centres left to right = Width less 30mm

Pipe centres from wall = Single:55mm

Double:76mm-82mm

Depth from wall = Single:95mm

Double:116mm-122mm

Pipe centres left to right = Width plus valves

Pipe centres from wall = Single:55mm

Double:76mm- 82mm

Depth from wall = Single:95mm

Double:116mm-122mm

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

Double Horizontal detail

LARKIN Single Vertical 1800mm x 520mm in RAL 7042 Traffic Grey A shown with Nickel KINGSTON TRVs.

Double Horizontal

BEAUFORT Max Horizontal

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Type 11 (K1) & 22 (K2) convectors cloaked in 70mm flat tubed radiators

• Steel radiator available in 3 heights & 2 widths

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13) Sizes

144, 218, 366, 514, 588, 662, 884, 958 mm

500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2300, 2600, 3000 mm

144, 218, 366, 514, 588, 662, 884, 958 mm

500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2300, 2600, 3000 mm

cover grille. Four clips are welded on the back of the radiator for installation on the wall, radiators of 1800 mm in l ength and longer have six welded clips. Types 20, 21 and 22 at a max imum height of 588 mm can be supplied without the back clips. T hese radiators are designed for mounting on the floor using stand brackets. Mounting of the radiators is not included.

Overview of Types

radiators with horizontally aligned profiles, which allows a side connection from the bottom down to the heating system with forced circulation of the heat transfer agent. Type 10 is supplied with a full top cover, Types 11, 20, 21 and 22 then with a top cover grille. Four clips are welded on the back of the radiator for installation on the wall, radiators of 1800 mm in l ength and longer have six welded clips. Types 20, 21 and 22 at a max imum height of 588 mm can be supplied without the back clips. T hese radiators are designed for mounting on the floor using stand brackets. Mounting of the radiators is not included.

Overview of Types

Type K10H

Type 11 (K1)

Type 22 (K2)

Type 11 (K1)

Type K10H

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs shown right (if you require angled valves please specify).

Type K11H

Type 22 (K2)

Type K11H

Type K20H

Single flat tubed radiator with a single convector.

Type K20H

Type K21H

Type K22H

Double flat tubed radiator (front and back) with double convectors.

Type K22H

Pipe centres left to right = Width less 50mm

Pipe centres from wall = 71mm / 89mm

Depth from wall = 151mm / 169mm

BEAUFORT Max Type 11 (K1) Horizontal 662mm x 1000mm shown in White RAL 9016 with White KINGSTON TRVs & matching pipe covers & shrouds.

BEAUFORT Max Type 11 (K1) Profile

BEAUFORT Max Vertical

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Type 11 & Type 20 profiles cloaked in 70mm flat tubed radiators

• Steel radiator available in 1 height & 4 widths

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes & Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs shown right (if you require straight valves please specify).

Pipe Centres and Technical Drawings

Type 11

Single flat tubed radiator with a single convector

Pipe centres left to right = Width plus valves

Pipe centres from wall = 63mm

Depth from wall = 99mm

Double flat tubed radiator (front and back)

Pipe centres left to right = Width plus valves

Pipe centres from wall = 75mm

Depth from wall = 112mm

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

Horizontal (pg.68-69)

BEAUFORT Max Vertical Type 11 1800mm x 366mm in White RAL 9016 with White WELLINGTON TRVs.

BEAUFORT Max Vertical Type 11

BEAUFORT Horizontal

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days.

• Italian design & manufacture, steel horizontal radiator

• 70mm flat tubes available in 3 heights & 2 widths in single & double

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs, (if you require angled valves please specify).

Pipe Centres and Technical Drawings

Single Horizontal

Pipe centres left to right = Width less 58mm

Pipe centres from wall = 55mm - 65mm

Depth from wall = 79mm - 89mm

79-89 55-65

Double Horizontal

Pipe centres left to right = Width less 58mm

Pipe centres from wall = 67mm-77mm

Depth from wall = 91mm-101mm

91-101 67-77

Please specify at time of order

◊ BEAUFORT Double Horizontal 464mm x 1020mm shown in White RAL 9016 with White KINGSTON TRVs & matching pipe covers & shrouds .

+Valves Prices include straight Chrome or White KINGSTON TRVs

BEAUFORT Vertical

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, steel vertical radiator

• 70mm flat tube steel radiator available in 1 height & 4 widths

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

* + Valves Prices include a choice of either Chrome or White, angled KINGSTON TRVs, (Straight valves available on request).

Pipe Centres & Technical Drawings

Single Vertical

Pipe centres left to right = Width plus valves

Pipe centres from wall = 55mm-65mm

Depth from wall = 79mm-89mm

Double Vertical

Pipe centres left to right = Width plus valves

Pipe centres from wall = 67mm-77mm

Depth from wall = 91mm-101mm

+Valves Prices include angled Chrome or White KINGSTON TRVs

Please specify at time of order

Horizontal (pg.72-73)

BEAUFORT Single Vertical (BOE Connections) 1820mm x 540mm in Grey Aluminium with Chrome KINGSTON TRVs.

BEAUFORT Slim (pg.76-77)

BEAUFORT Slim

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, steel vertical radiator

• 70mm flat tube steel radiator with underneath connections only

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13 )

Sizes & Prices (Underneath Connections)

*+Valves Prices include a choice of either Chrome or White, straight KINGSTON TRVs, (if you require angled valves please specify).

Pipe Centres & Technical Drawings

Pipe centres from wall = 55mm-65mm Depth from wall = 79mm-89mm Double Pipe centres left to right = Width less 84mm Pipe centres from wall = 67mm-77mm Depth from wall = 91mm-101mm Please add 10% to the RAL

Pipe centres left to right = Width

+Valves Prices include straight Chrome or White KINGSTON TRVs

Please specify at time of order

Underneath Connections

BEAUFORT Slim Single 1820mm x 388mm in Matt Black shown with Nickel KINGSTON TRVs.

Double Horizontal (pg.72-73)

BAYFORD Ladder Rail

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, 23mm round tubed steel towel rail

• Available in White RAL 9016 and Chrome

• +Valves prices for hydronic models include Chrome DRAKE valves*

Sizes and Prices White RAL 9016

The BAYFORD Hydronic is suitable for use as dual fuel.

Pipe Centres & Technical Drawings

Pipe centres left to right = width less 30mm

Pipe centres from wall = 70mm-85mm Depth from wall = 85mm-100mm

Optional White or Chrome hanging bars available please see page 88 for details.

Please specify at time of

• Voltage-feed 230V 50Hz, 1ph

• IEC Class Protection - Class II. IP Rating - IP44

• White towel rails supplied with a white control unit & a white cable

• Chrome towel rails supplied with a chrome control unit & a grey cable

• Optional remote control available, please call 01342 306880 for details

BAYFORD Hydronic 1462mm x 500mm in White RAL 9016 with Chrome DRAKE Valves

BAYFORD Electric in White RAL 9016

BAYFORD Electric 1118mm x 500mm in Chrome

TALLIS Ladder Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture

• +Valves prices include Chrome DRAKE valves*

• 50mm x 25mm oval tube steel towel rail

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

Pipe centres left to right = width less 30mm

Pipe centres from wall = 55mm-65mm Depth from wall = 72mm-82mm

TALLIS Ladder Rail Sizes and Prices

x 600mm shown in Gun Metal Grey with DRAKE valves & matching pipe covers & shrouds.

Please add 10% to the RAL colour price to work out your special finish price. Please specify at time of order +Valves Prices include angled Chrome DRAKE Valves

* + Valves Prices include angled Chrome DRAKE Valves, please specify at time of order if you require straight valves. The TALLIS Ladder Rail is suitable for use as dual fuel.

TALLIS

Side Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture

• 50mm x 25mm oval tubed side loading towel rail

• +Valves prices include Chrome WREN 50mm valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

The Tallis Side Rail can be hung left or right-handed.

Right-hand option

Pipe centres left to right = 50mm

Pipe centres from wall = 57mm-67mm Depth from wall = 95mm-105mm

TALLIS Side Rail Sizes and Prices

Please specify at time of order +Valves Prices include angled

1570mm x 500mm, left-hand option shown in White RAL 9016 with DRAKE valves & matching pipe covers & shrouds.

Please add 10% to the RAL colour price to work out your special finish price.

* + Valves Prices include angled Chrome WREN 50mm Valves, please specify at time of order if you require straight valves. The TALLIS Side Rail is suitable for use as dual fuel

ASHBY

Ladder Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture

• Steel ladder rail with 50mm x 10mm cross tubes

• +Valves prices include Chrome DRAKE valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

Pipe centres left to right = Width less 30mm

Pipe centres from wall = 57mm - 67mm

Depth from wall = 72mm - 82mm

ASHBY Ladder Rail Sizes and Prices

CHAUCER

Side Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, steel towel rail

• Side loading towel rail with 23mm round tubes

• +Valves prices include Chrome WREN 50mm valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

The Chaucer Side Rail can be hung left or right-handed.

Pipe centres left to right = 50mm

Pipe centres from wall = 57mm-67mm

Depth from wall = 92mm-102mm

Sizes and Prices

Please specify at time of order

Please add 10% to the RAL colour price to work out your special finish price.

* + Valves Prices include angled Chrome WREN 50mm Valves, please specify at time of order if you require straight valves. The CHAUCER Side Rail is suitable for use as dual fuel.

1348mm x 500mm in White RAL 9016 with DRAKE Valves & matching pipe covers & shrouds.

DALE Towel Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Slimline steel towel rail with decorative holes

• Painted or brushed stainless steel towel bar options

• Towel bars can be positioned in any location

• Extra accessories available to purchase (pg. 86)

• +Valves prices include Chrome WREN 50mm valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

Pipe centres left to right = 50mm

Pipe centres from wall = 30mm - 58mm

Depth from wall = 117mm - 145mm

Sizes and Prices

Please add 10% to the RAL colour price to work out your special finish price.

Towel Bar will be painted to match the same colour as the radiator (note: widths listed in this table include towel bars)

Supplied with a Brushed towel bar (note: widths listed in this table include towel bars)

* + Valves Prices include angled Chrome WREN 50mm Valves (page 95), please specify at time of order if you require straight valves.

HOLT Towel Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Slimline steel towel rail with soft curved edges

• Painted or brushed stainless steel towel bar options

• Towel bars are positioned in set locations

• Optional towel hook available (pg. 86)

• +Valves prices include Chrome WREN 50mm valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Pipe Centres and Technical Drawings

centres left to right = 50mm Pipe centres from wall = 30mm - 58mm Depth from wall = 117mm - 145mm

Sizes and Prices

HAWKHURST Towel Rail

• Next Day Delivery for stock White RAL 9016 (orders placed by 11am), orders after this time will be delivered within 2 working days

• Slimline steel towel rail with painted or brushed stainless steel towel bars

• Extra accessories available to purchase (see below)

• Towel bars & accessories can be positioned at any height

• +Valves prices include Chrome WREN 50mm valves*

• 23 RAL colours, 10 special finishes, delivered in up to 5 working days (pg.12-13)

Sizes and Prices

Bar will be painted to match the same colour as the radiator (note: widths listed in this table

* + Valves Prices include Angled Chrome WREN 50mm Valves (page 95), please specify at time of order if you require straight valves.

Towel Hook White Towel Hook Matt Black

Please specify at time of order

HAWKHURST 1790mm x 286mm in Matt Black shown with Brushed towel bars and matching SHELLEY Valves, pipe covers & shrouds.

1790mm x 586mm in White RAL 9016 with matching towel bars and optional Mirror Bar

+Valves Prices include angled Chrome WREN 50mm Valves

WINSFORD Ladder Rail

• Next Day Delivery for stock finishes (orders placed by 11am), orders after this time will be delivered within 2 working days

• Italian design & manufacture, steel ladder rail, 25mm straight cross tubes

• 23 RAL colours, 10 special finishes, up to 5 working days (pg.12-13)

• Next Day Delivery for Stocked Textured Anthracite & Matt Black sizes

Sizes and Prices

centres left to right = Width less 44mm Pipe

HANGING BARS

Textured Anthracite

Matt Black

Chrome Hanging Bar 370mm shown on a Chrome BAYFORD Ladder Rail

Please specify at time of order

WINSFORD Ladder Rail 1374mm x 500mm in Textured Anthracite shown with matching SHELLEY Valves

+Valves Prices include angled Chrome DRAKE or matching SHELLEY Valves.

1374 x 600 in White RAL 9016

SHELLEY DRAKE

CLEVES

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days

• Classic steel towel rail in Chrome

• Floor or wall mounted options

• Dual fuel option available, please specify at time of order

Sizes and Prices

*+Valve Prices include Chrome WILLOW Valves, angled only. The

is suitable for use as dual

please see below for supplement prices.

Supplement Prices for Dual Fuel Option

Centres and Technical Drawings

+Valves Prices include Chrome WILLOW Valves

Please specify at time of order

◊

Wall Mounted option

CLEVES Floor Standing 1548mm x 598mm shown with WILLOW Valves & matching pipe covers & shrouds.

Floor Standing option

BOLEYN

• Next Day Delivery (for orders placed by 11am), orders after this time will be delivered within 2 working days

• Classic steel towel rail with a steel multi column radiator

• Chrome with white RAL 9016 multi column sections

Sizes and Prices

*+Valve Prices include Chrome WILLOW Valves, angled only. The BOLEYN is suitable for use as dual fuel, please see below for supplement prices.

Supplement Prices for Dual Fuel Option

• Dual fuel option available, please specify at time of order Pipe Centres

and Technical Drawings

Floor Standing

Pipe centres left to right = Width less 145mm less valves

Pipe centres from wall = 92mm

Depth from wall = 230mm

Please Note: Elements have an IP rating of 55 and are guaranteed for 2 years.

Boleyn Wall Mounted

Pipe centres left to right = Width less 75mm

Pipe centres from wall = 50mm

Depth from wall = 250mm

+Valves Prices include Chrome WILLOW Valves

Please specify at time of order

Wall Mounted option available Dual Fuel option available

◊

BOLEYN Floor Standing 963mm x 763mm shown with WILLOW Valves.

BOLEYN

LANARK Stainless Steel

• Next Day Delivery (orders placed by 11am), orders after this time will be delivered within 2 working days

• 22mm cross tubes

• Polished Stainless steel towel rail

• +Valves prices include Chrome DRAKE valves*

• Suitable for direct systems

Pipe Centres and Technical Drawings

Sizes and Prices

ACCESSORIES

AIRVENT & BLANKING PLUGS

Co-ordinate with your radiator & valve to create the perfect finish.

PIPE COVERS & SHROUDS

Creating a neat finish for your radiator. Each set is supplied with 2 x 160mm pipe covers and 2 shrouds.

WREN 50mm VALVES

The Perfect Fit for Towel Rails

50mm valves give towel rails a clean, symmetrical look by centralising pipe connections and hiding messy pipework. WREN 50mm valves are suitable with the following towel rails; TALLIS SIDE RAIL, CHAUCER SIDE RAIL, HAWKHURST,

TRV VALVES & VALVE KITS

Please note all valves are sold in pairs - Lockshield & Wheelhead. Angled versions will be supplied as standard, if you require a Straight pair please specify at time of order. These valves are not Bi-directional.
