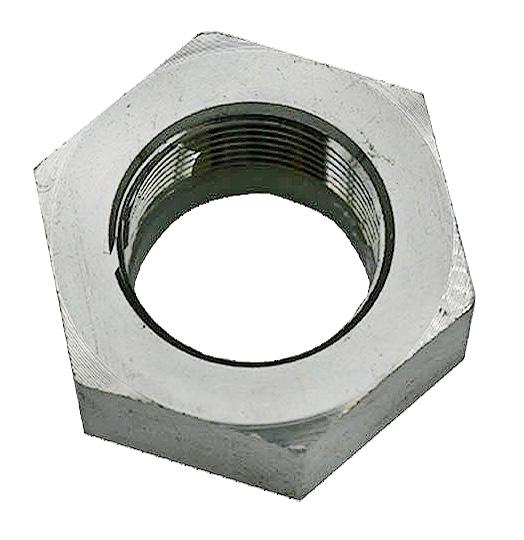

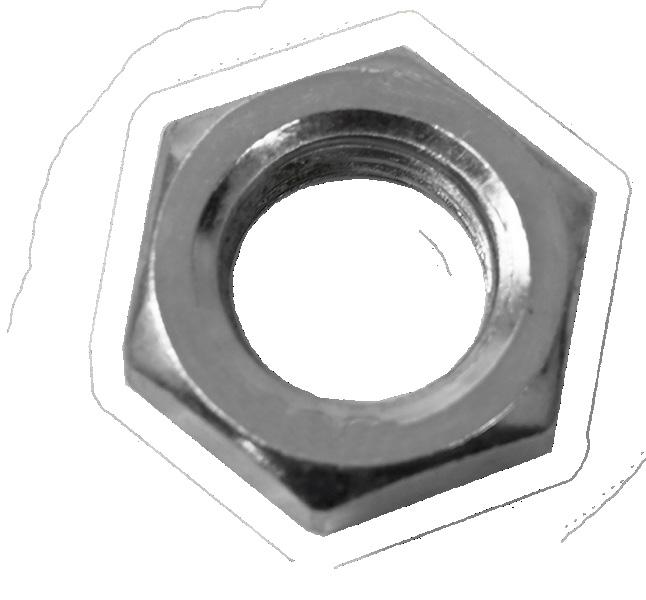

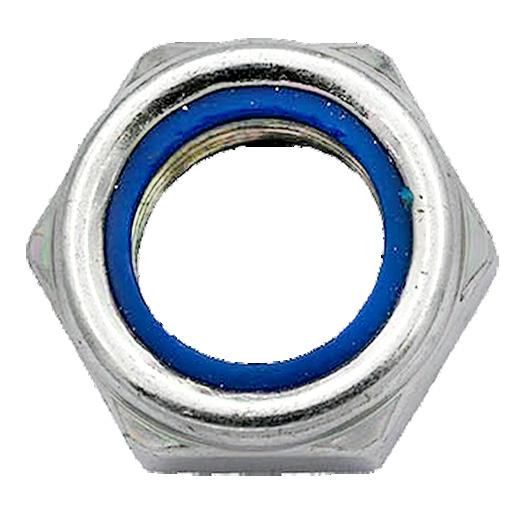

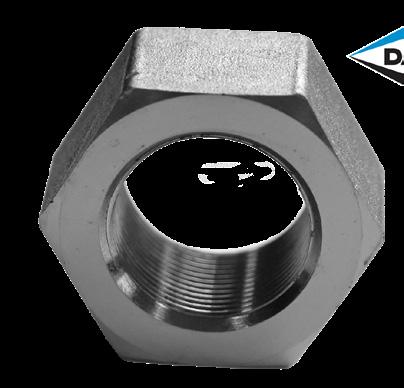

M20 LOCK NUT
500886 | OE Ref: L157600

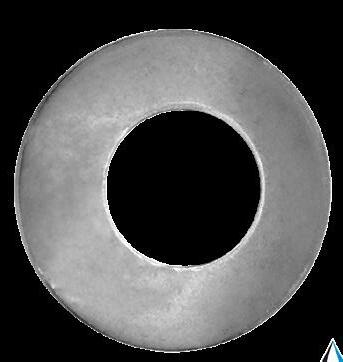

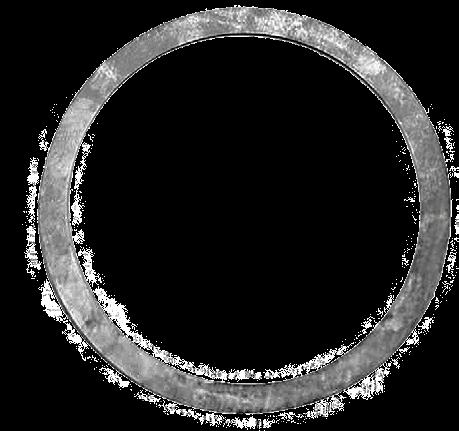

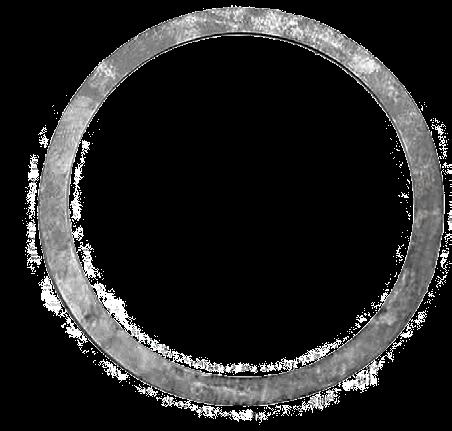

FRONT AXLE THRUST WASHER 500773 | OE Ref: L113978
SHAFT SEAL 600070 | OE Ref: AL159591 1 2 3 5 4

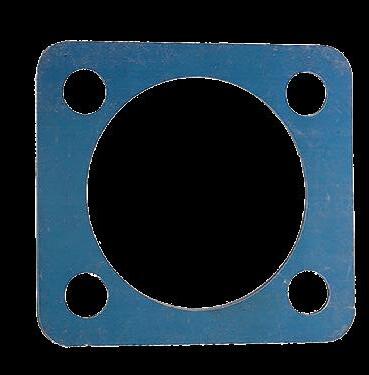

SHIM KIT 500887 | OE Ref: AL174434
AGCO | OE Ref: F350300020020 AGCO | OE Ref: F222301020070 AGCO | OE Ref: ACV0244810
John Deere 5M 5E 6M 6R 6020 Series

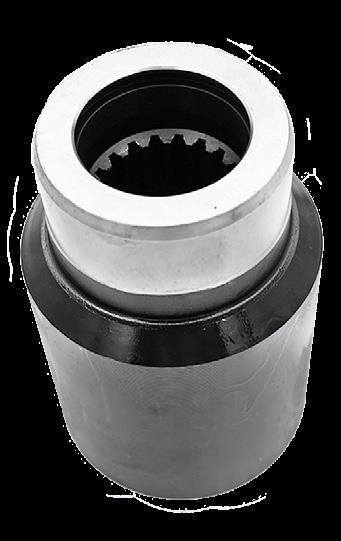

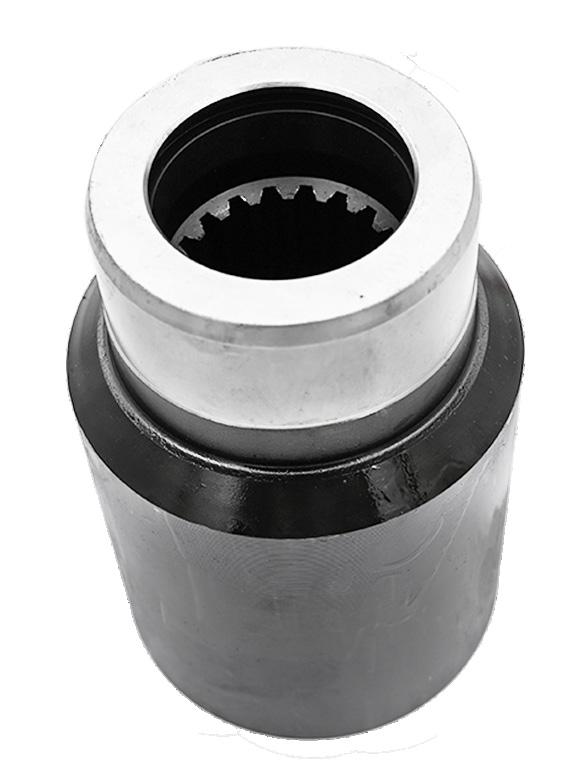

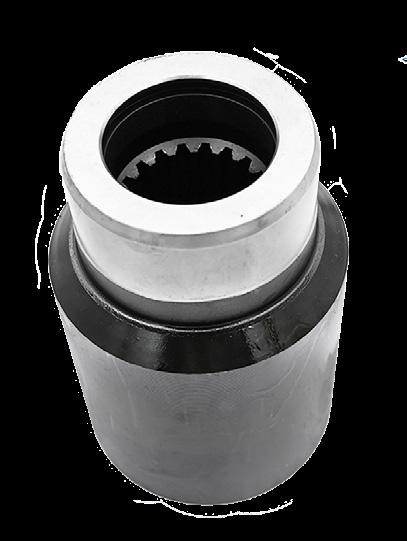

FRONT AXLE COUPLING
500777 | OE Ref: L156899
John Deere 6M 6R 6020 Series
John Deere 6J 6M 6R Series
AXLE INPUT PINION O-RING 500333 | OE Ref: L156850
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series AGCO | OE Ref: V31794000
John Deere 6M 6R 6020 Series
John Deere Series

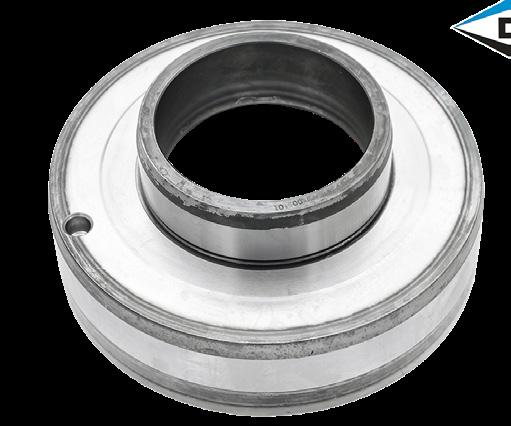

DRIVE SHAFT BEARING
500775 | OE Ref: AL209966
John Deere 6M 6R Series
FRONT AXLE BEARING
AGCO | OE Ref: F334310020670
John Deere 6M 6R Series

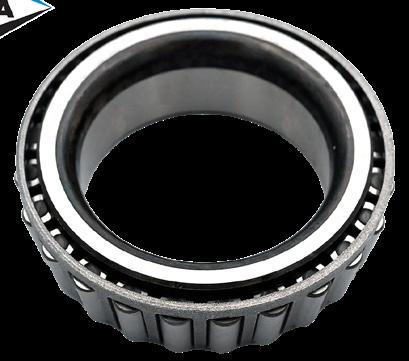

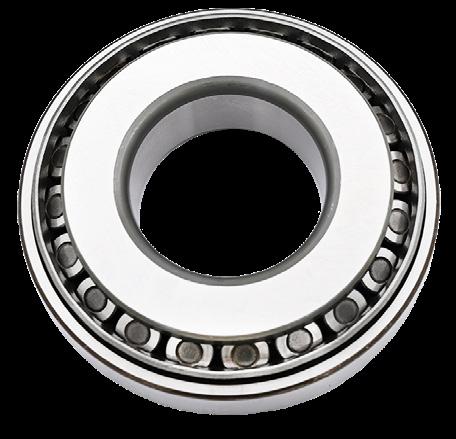

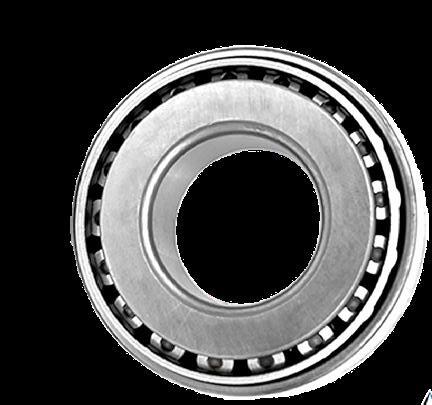

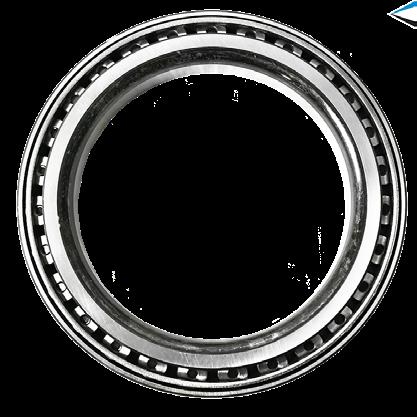

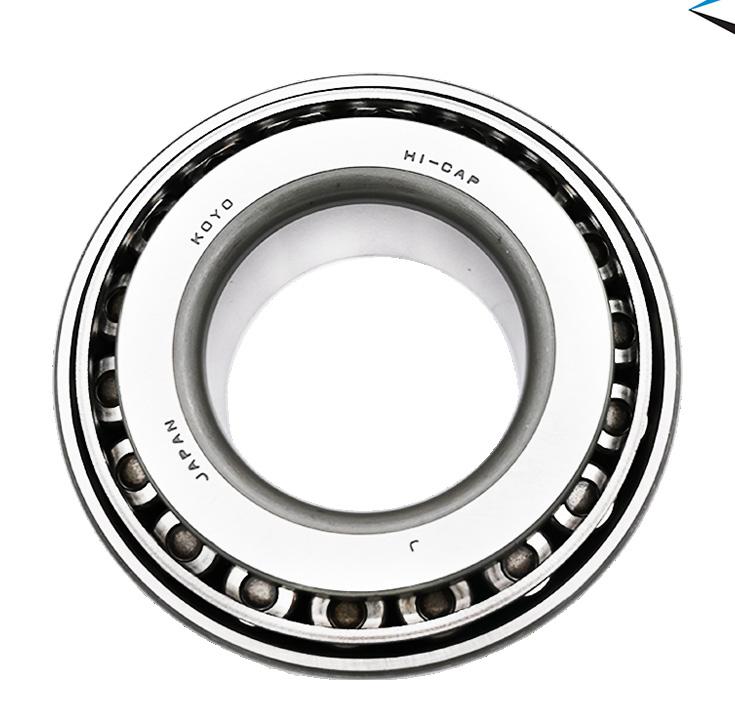

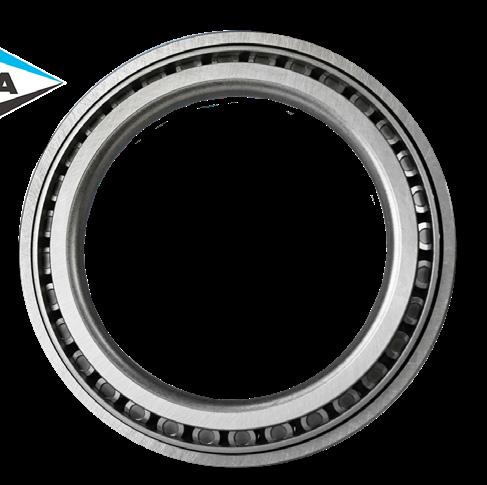

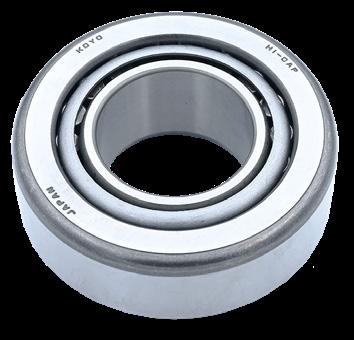

TAPERED ROLLER BEARING
500771 | OE Ref: AL161275
AGCO | OE Ref: 005101285
John Deere 6M 6R Series

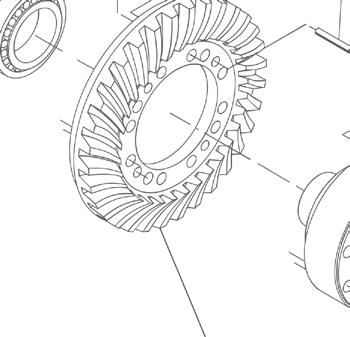

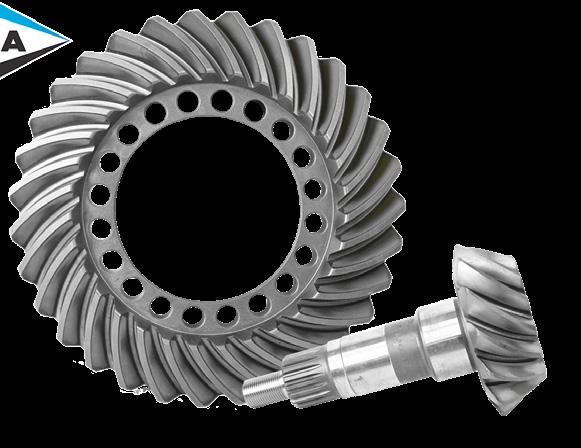

CROWN WHEEL & PINION
500888 | OE Ref: AL161277
John Deere 6M 6R Series
14 15 7 8

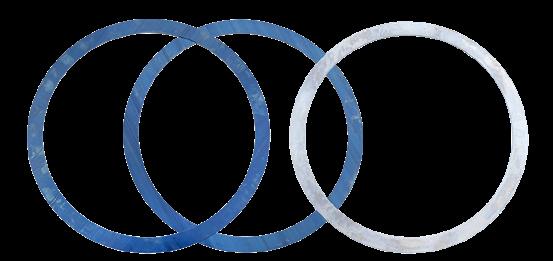

SHIM KIT
500890 | OE Ref: AL160118
AGCO | OE Ref: F653150020040
John Deere 6M 6R Series
500889 | OE Ref: AL235445 10 11 12 13

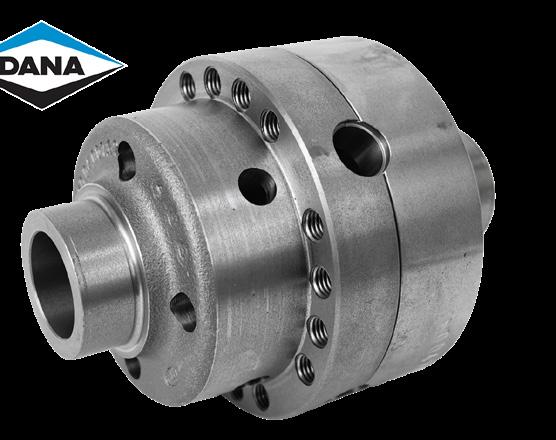

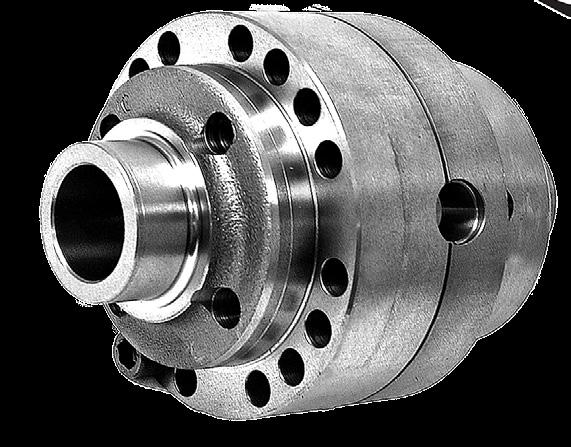

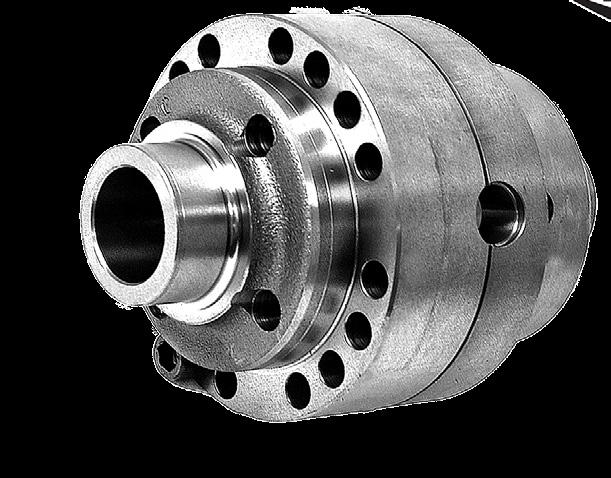

DIFFERENTIAL CARRIER
500892 | OE Ref: AL161278
AGCO | OE Ref: F222301020170
John Deere 6M 6R 6020 6030 Series
PIN FASTENER
500785 | OE Ref: L157602
AGCO | OE Ref: F411301021140
John Deere 6M 6R 6020 6030 Series

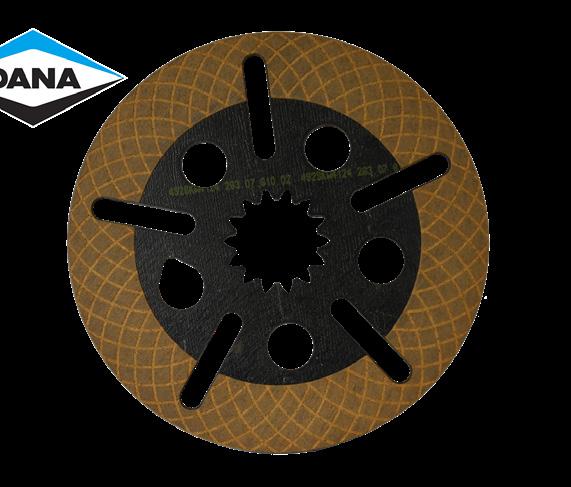

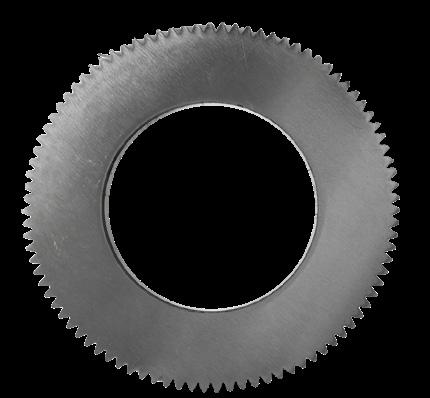

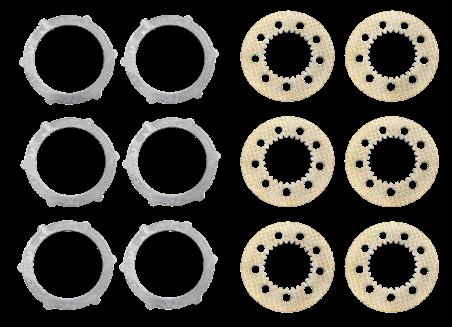

BRAKE DISC SET FRONT AXLE
500590 | OE Ref: AL160176
AGCO | OE Ref: F119300020070
John Deere 6020 6R 6M 6RC Series

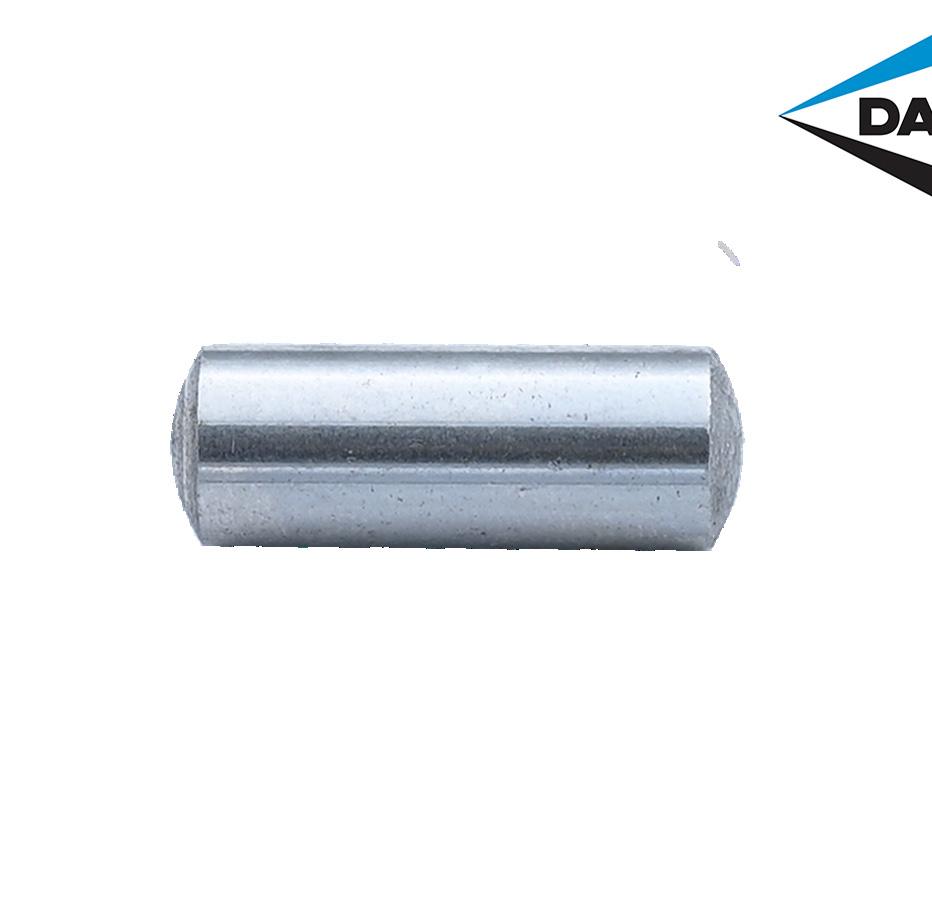

SPRING PIN
500786 | OE Ref: 34M3870
AGCO | OE Ref: X500625900000
John Deere 6M 6R 7000 Series

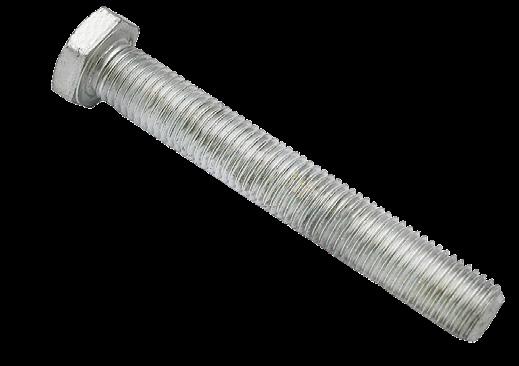

DIFFERENTIAL HOUSING BOLT
500891 | OE Ref: L166293
AGCO | OE Ref: F650153021750
John Deere 6M 6R 6020 6030 Series

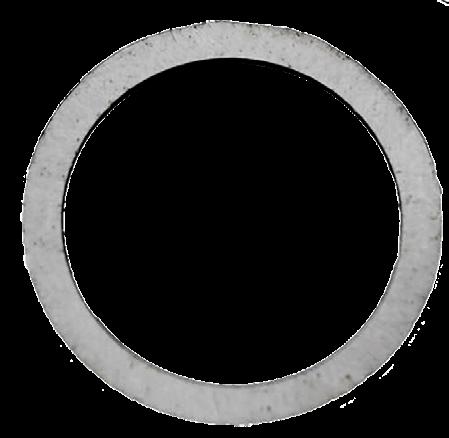

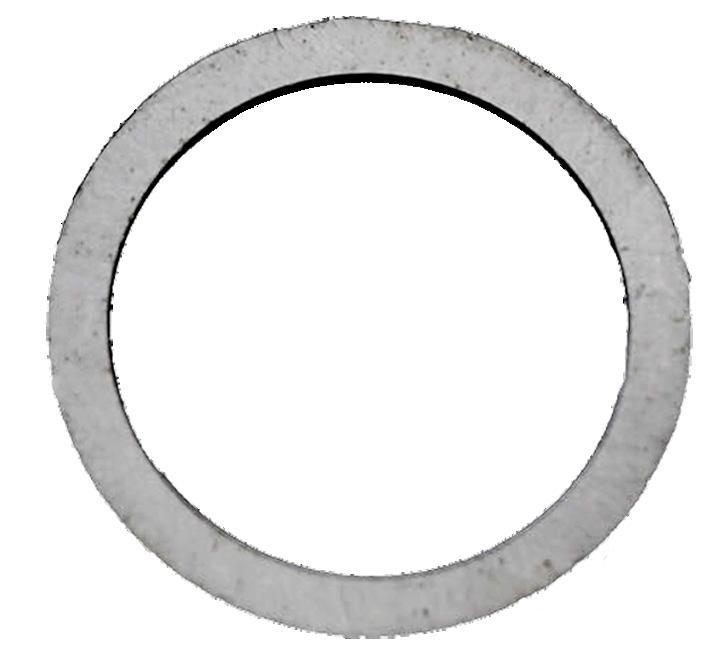

FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
AGCO | OE Ref: F718301020120
John Deere 6M 6R 6020 6030 Series

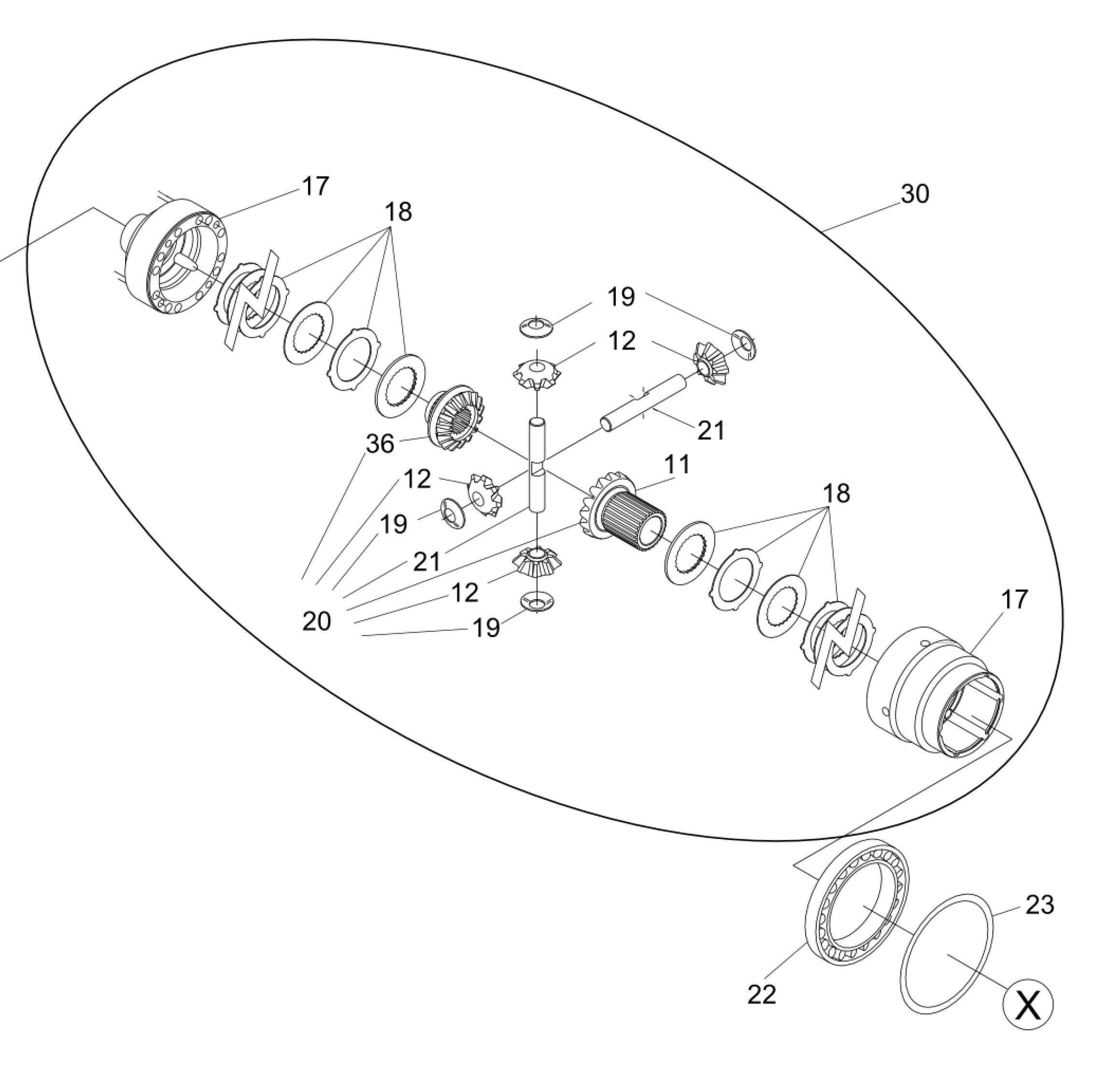

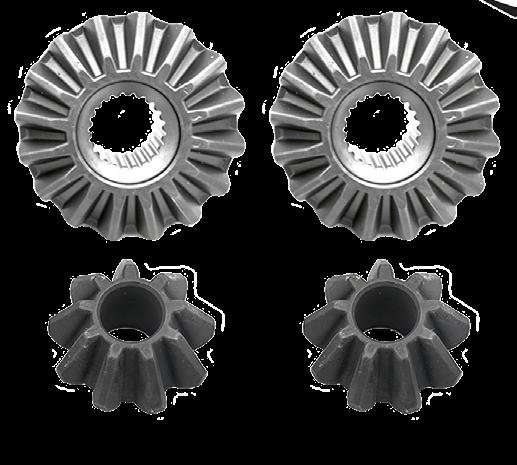

DIFFERENTIAL KIT
500784 | OE Ref: AL209970
John Deere 6M 6R Series
2 1 3 1 9 4 8 7 5 10 6

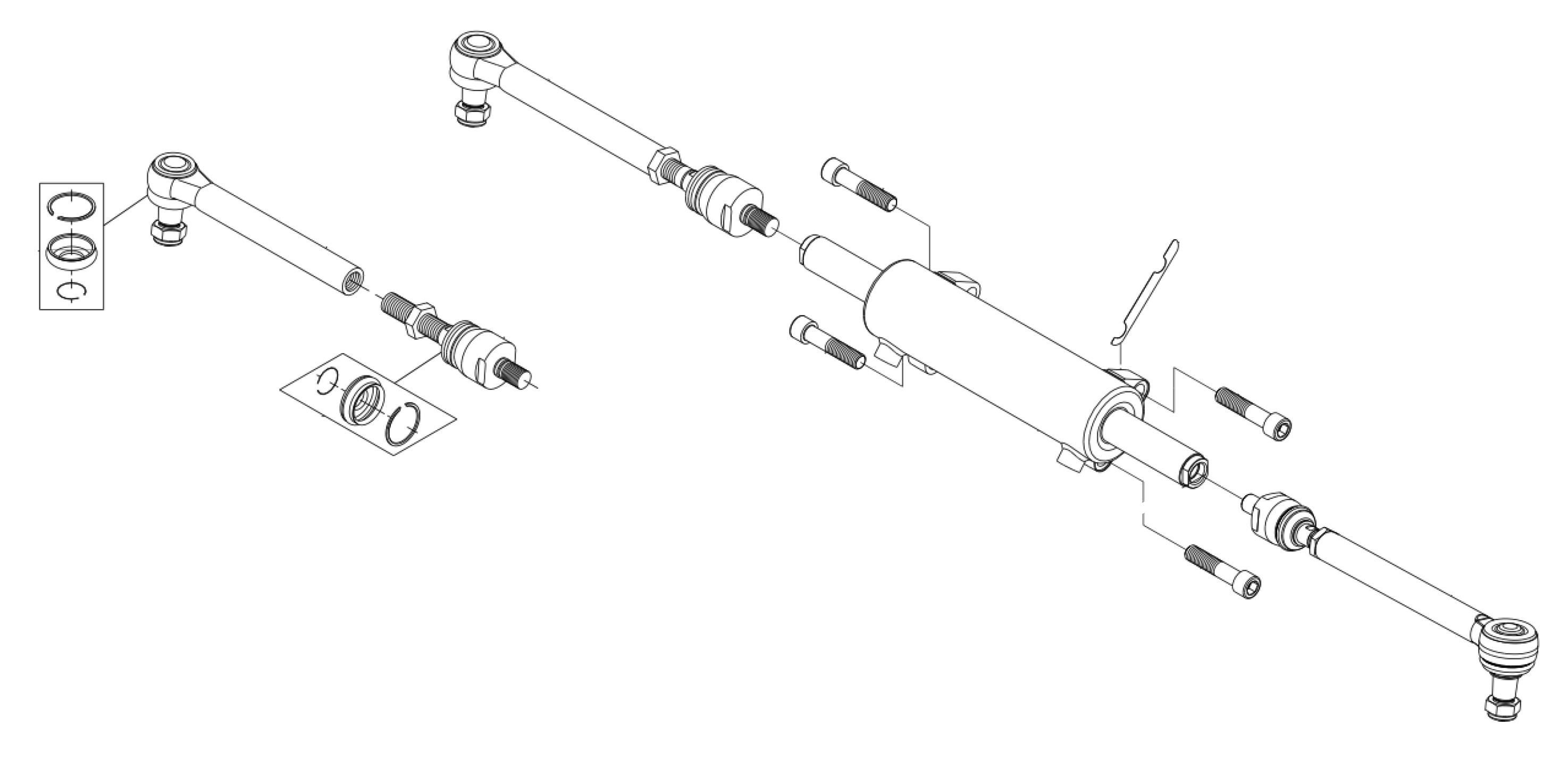

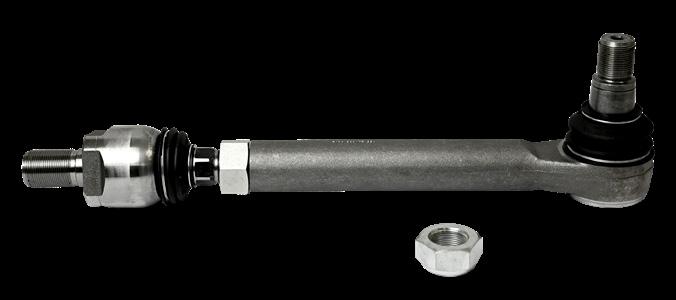

TRACK ROD ASSEMBLY
500894 | OE Ref: AL222370
John Deere 6M 6R Series

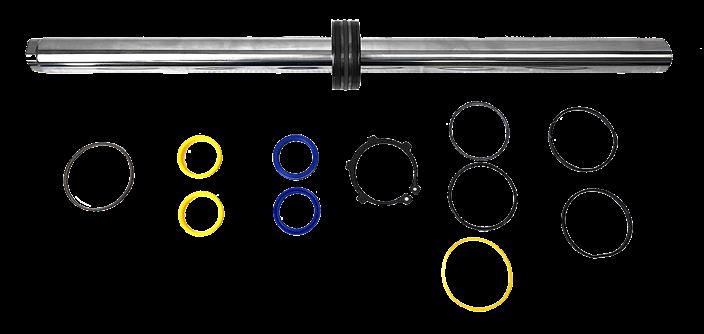

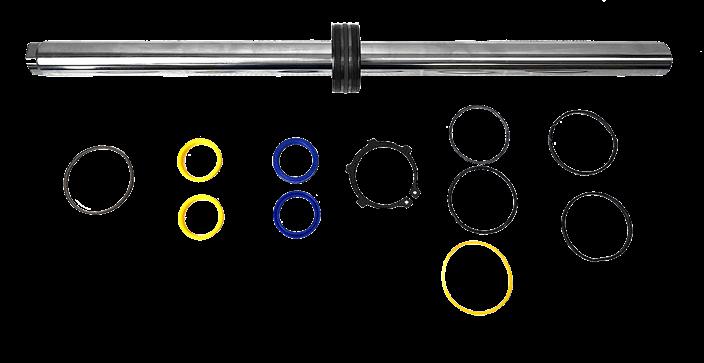

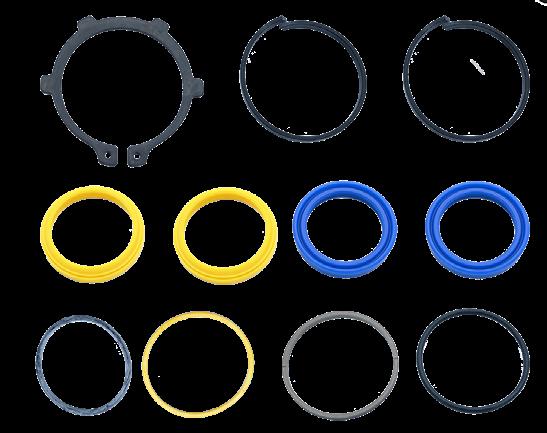

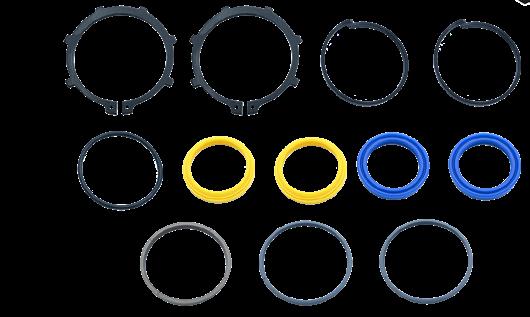

STEERING CYLINDER SEAL KIT
500897 | OE Ref: AL211658

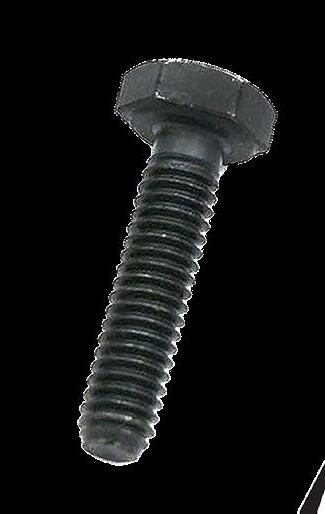

STEERING CYLINDER BOLT
500895 | OE Ref: L209650
John Deere 6M 6R Series

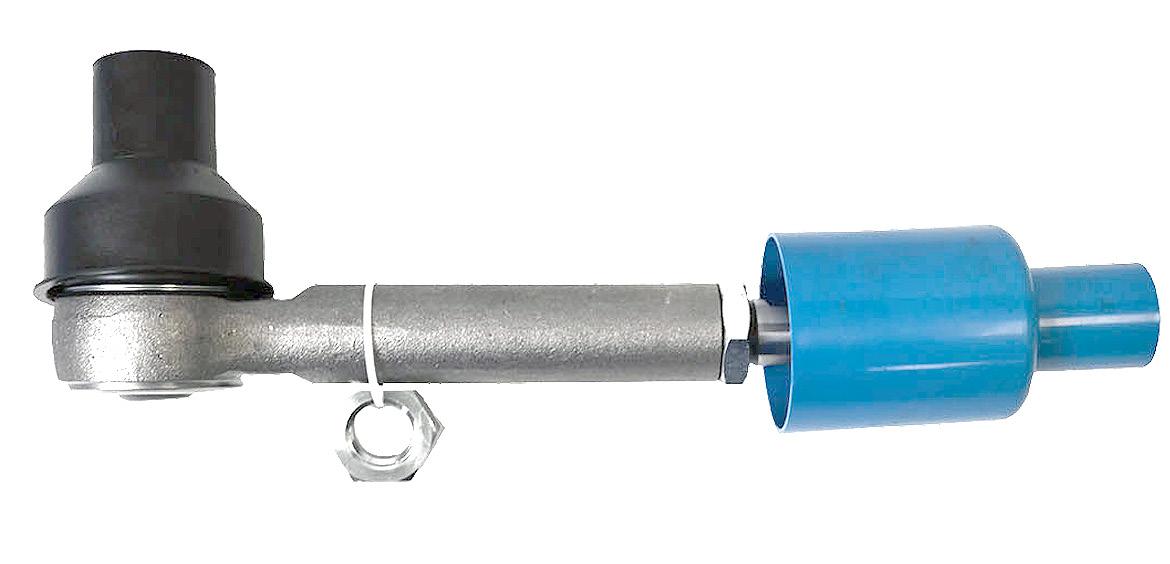

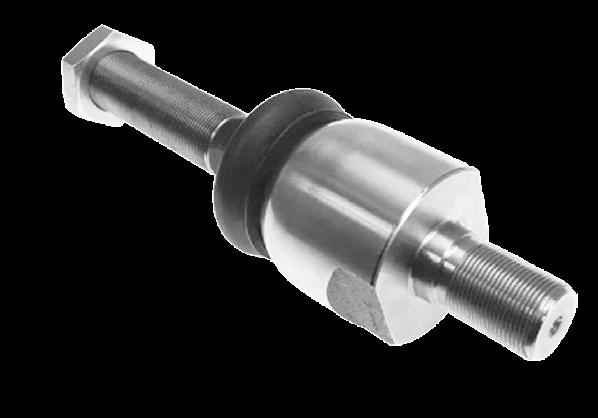

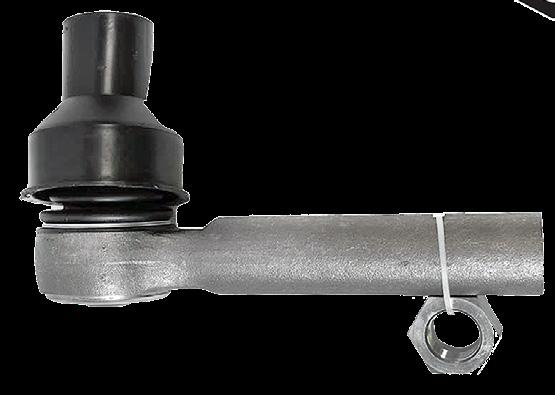

TRACK ROD END
John Deere 6M 6R Series
500898 1 2 4 5 3 AGCO | OE Ref: ACV0300450
John Deere 6M 6R Series

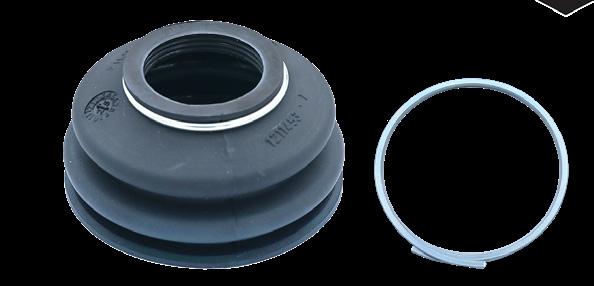

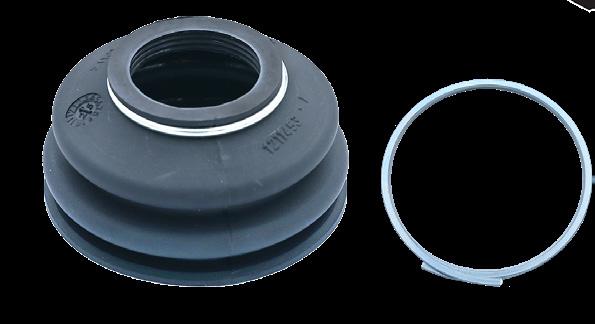

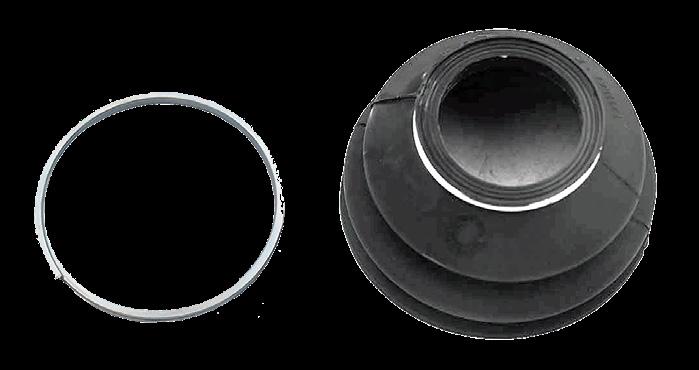

RUBBER BOOT
STEERING CYLINDER
500900 | OE Ref: 7302445043
AGCO | OE Ref: 7302445043
John Deere 6M 6R Series
TRACK ROD NUT
500903 | OE Ref: L218899
John Deere 6M 6R Series

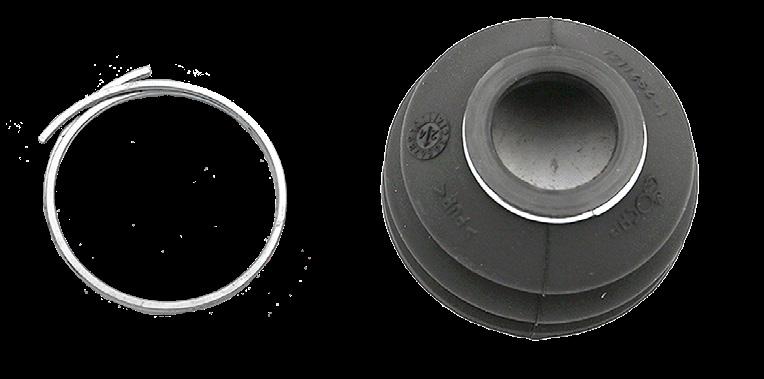

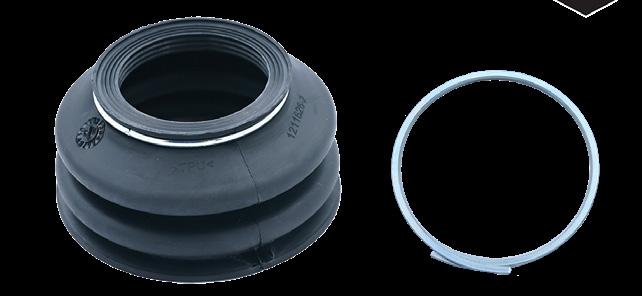

RUBBER BOOT STEERING CYLINDER
500901 | OE Ref: AL214095
AGCO | OE Ref: 7302445044
John Deere 6M 6R Series
TRACK ROD LOCK NUT
500902 | OE Ref: 6094451
AGCO | OE Ref: 006094451
John Deere 6M 6R Series
1
4 5 Visit website for compatibility SEAL 580010 | OE Ref: AL161384
2
FRONT AXLE HOUSING SNAP RING 500908 | OE Ref: 354750A1
John Deere 6M 6R Series
3
MFWD BEARING
500315 | OE Ref: AL161285
John Deere 6005 6003 6020 6030 5E 6E 6D 6M 6R 6RC 6J 6B Series
4 5

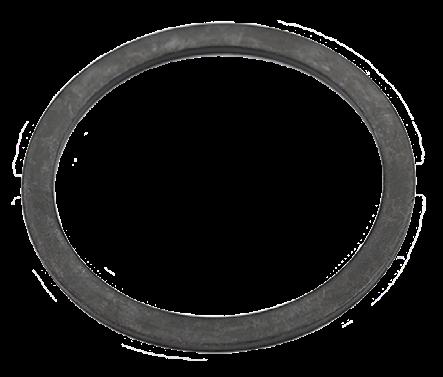

FRONT AXLE WASHER
500794 | OE Ref: 84021797
8 6

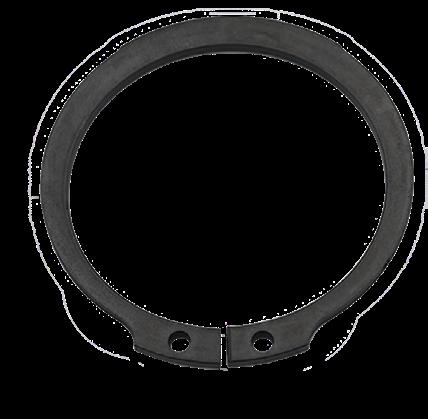

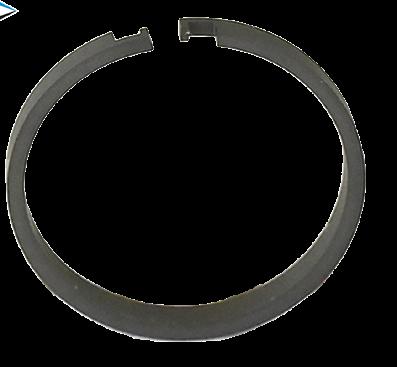

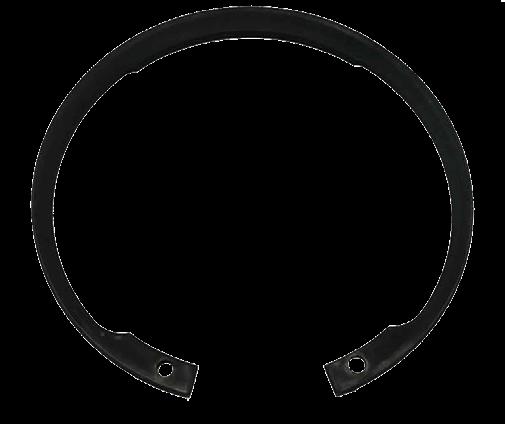

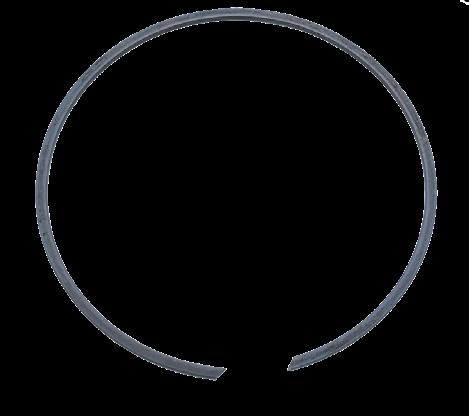

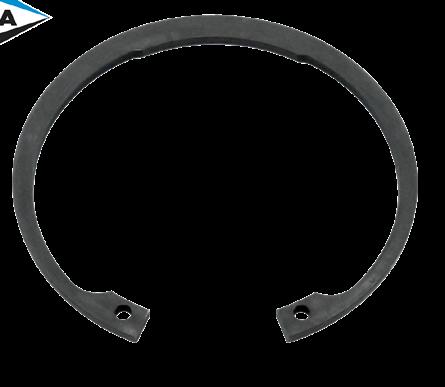

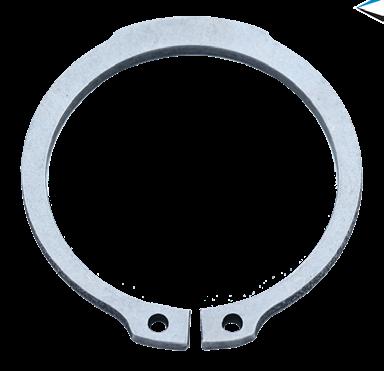

SNAP RING
500795 | OE Ref: 40M7166
AGCO | OE Ref: 345606 AGCO | OE Ref: 005010537
John Deere 6M 6R 6020 6030 Series
John Deere 6M 6R 6010 6020 6030 7010 Series

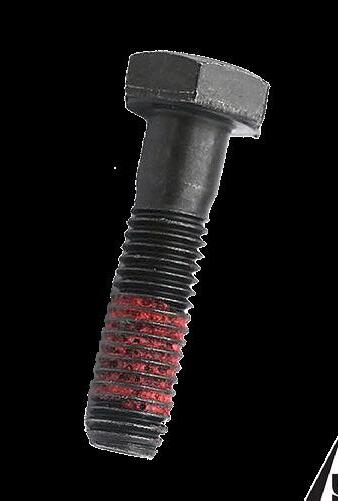

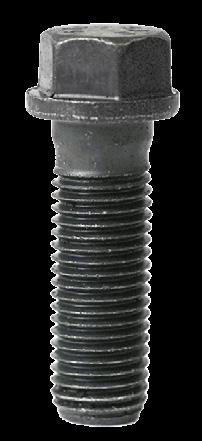

HOUSING BOLT 500913 | OE Ref: L218665
John Deere 6M 6R Series
HOUSING NUT
500912 | OE Ref: 6053434 9
AGCO | OE Ref: 6053434
John Deere 6M 6R Series

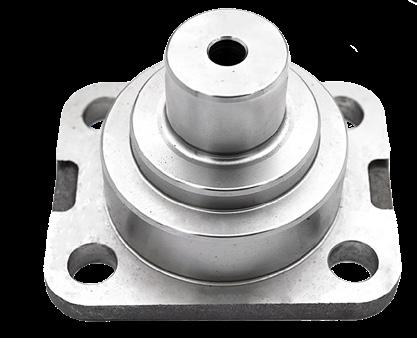

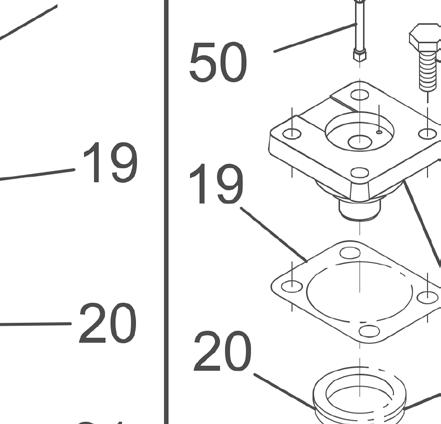

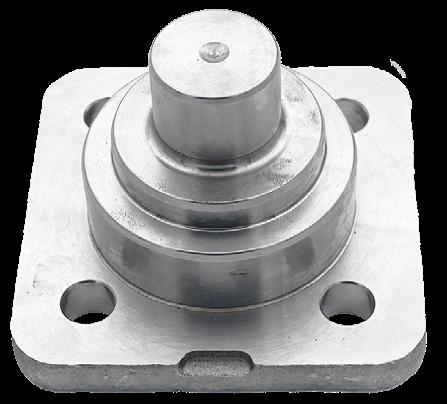

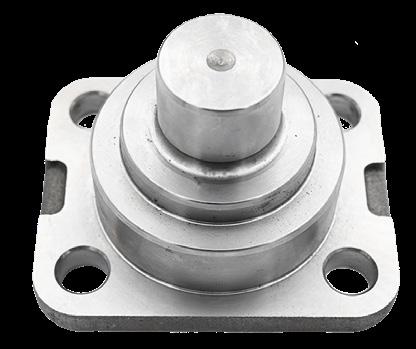

KING PIN
500909 | OE Ref: L221857
John Deere 6M 6R Series
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
John Deere 6020 6030 6R 6M Series

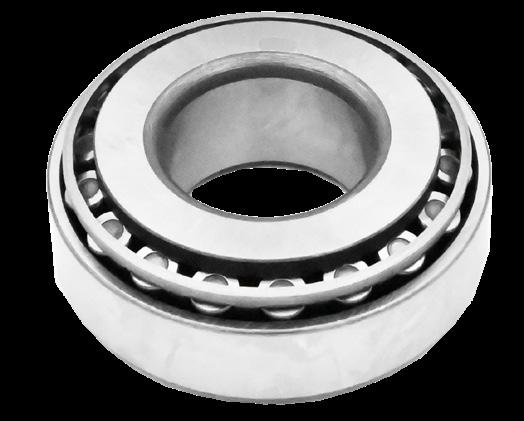

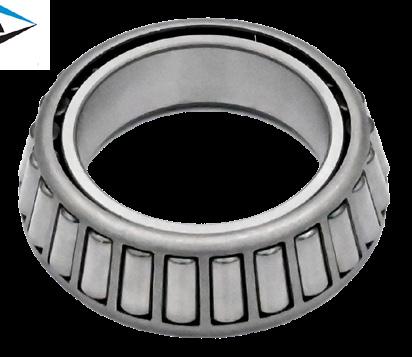

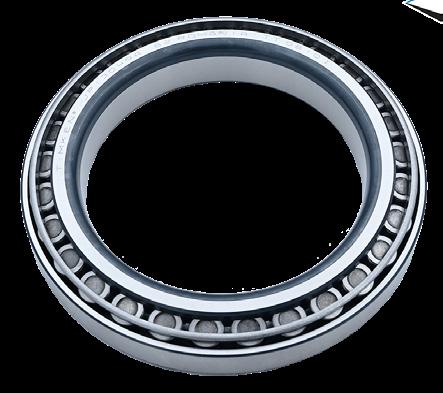

TAPERED ROLLER BEARING
500848 | OE Ref: AL161289
AGCO | OE Ref: G524300020300
John Deere 6M 6R Series

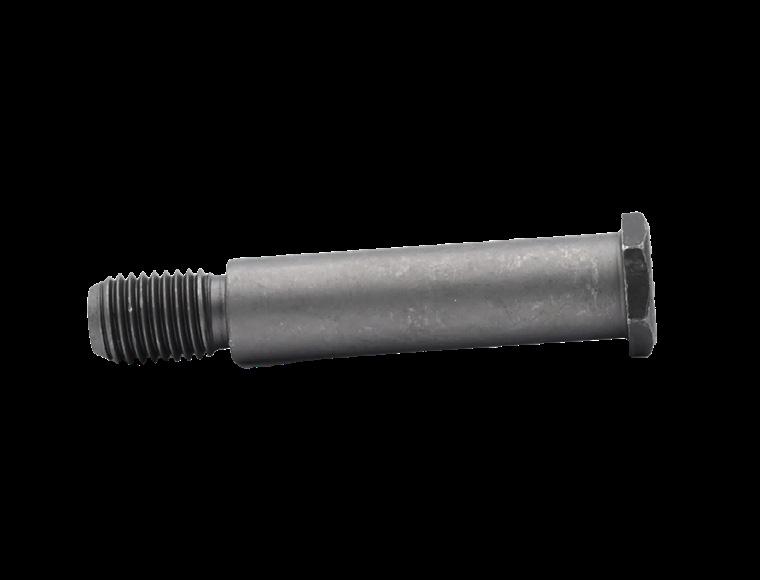

KING PIN BOLT
500910 | OE Ref: L157613
AGCO | OE Ref: 016011006
John Deere 6M 6R Series

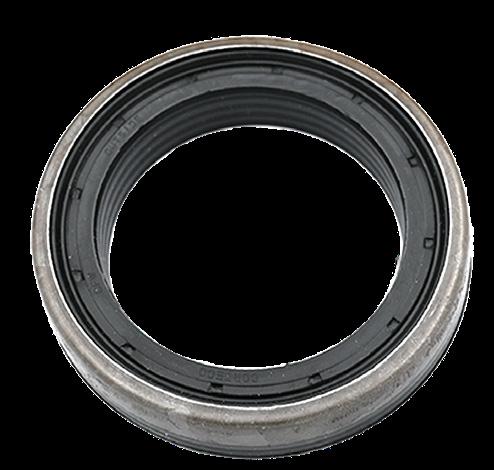

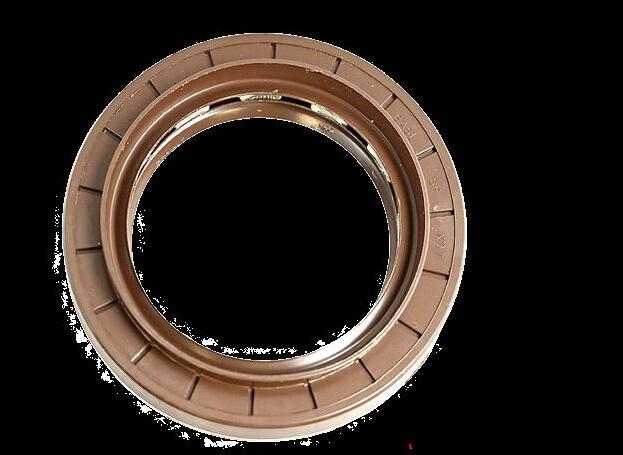

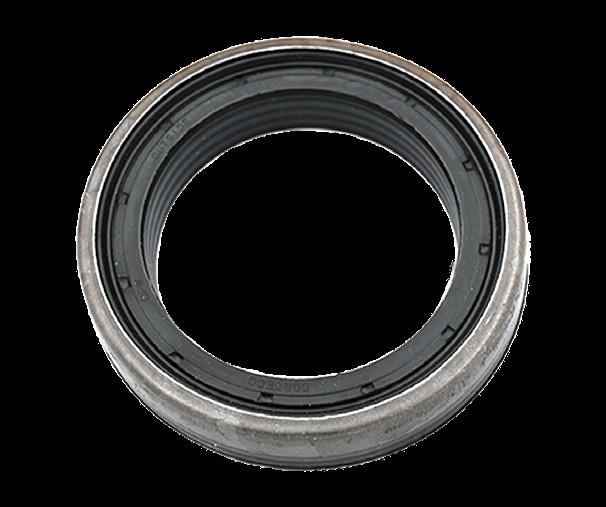

AXLE SEAL
58856 | OE Ref: AL79902
John Deere 6000 6010 6030 7020 7030 6005 6D 6003 Series
KING PIN BOLT 500918 | OE Ref: L208687
John Deere 6M 6R Series

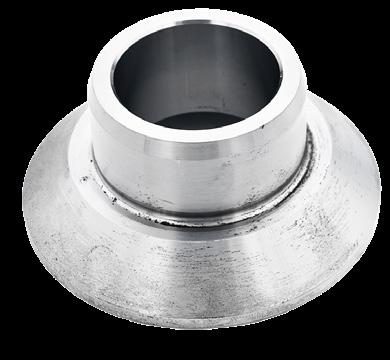

FRONT AXLE BUSHING
500799 | OE Ref: 87472582
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series

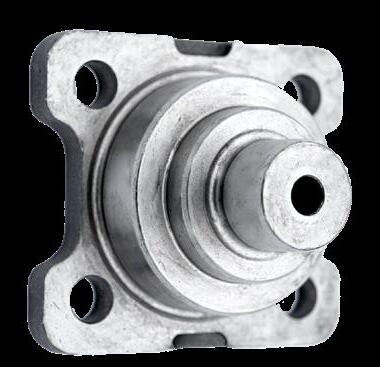

KING PIN 500919 | OE Ref: L218738
John Deere 6M 6R Series
WHEEL POSITION SENSOR WITH CONNECTING ADAPTER
500798 | OE Ref: L218742
John Deere 6J 6M 6R Series

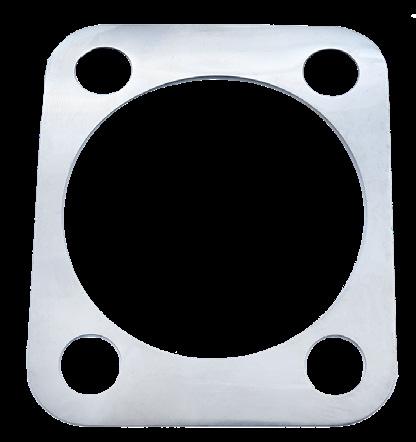

KING PIN SHIM KIT 500911 | OE Ref: AL162112
AGCO | OE Ref: ACV0300210
John Deere 6M 6R Series

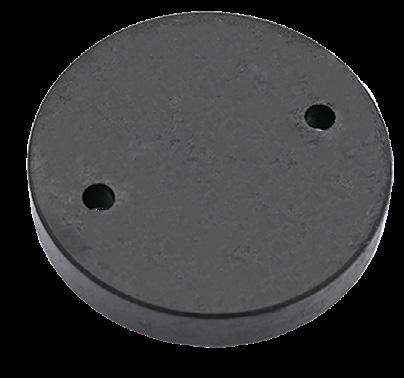

WHEEL POSITION SENSOR CONNECTION DISC 500796 | OE Ref: L165798
John Deere 6M 6R 6020 Series
1 2 3 4 5 6 7 7 8 9 10 2
1

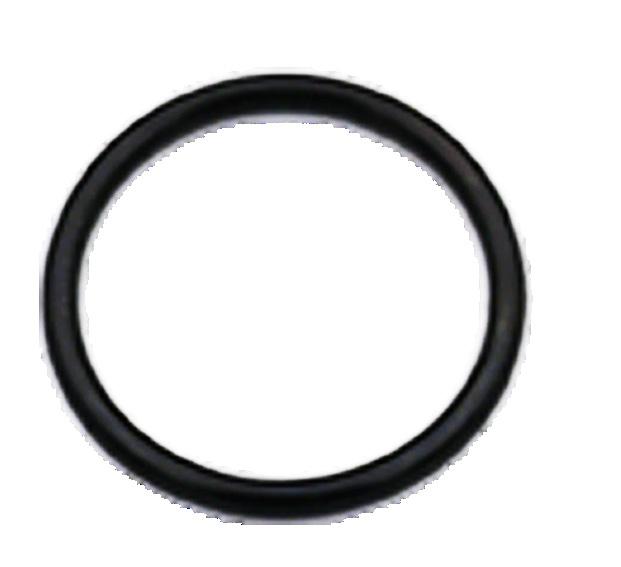

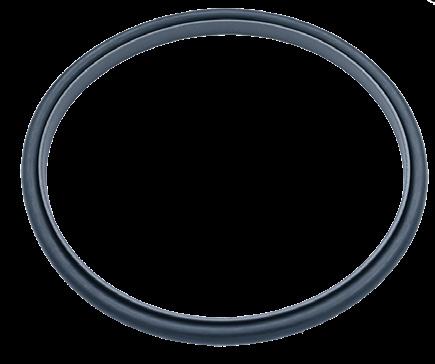

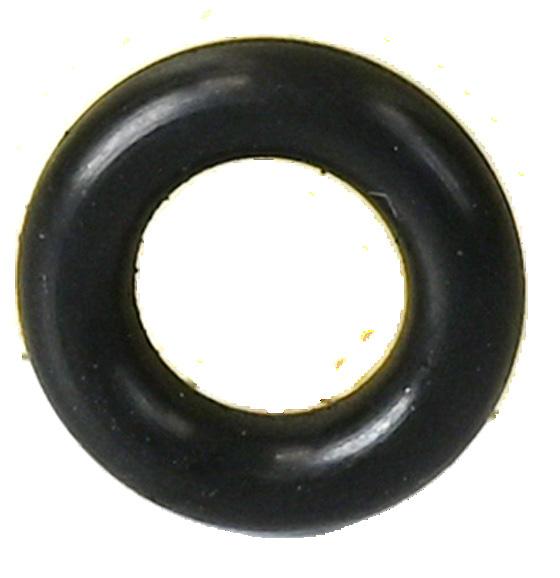

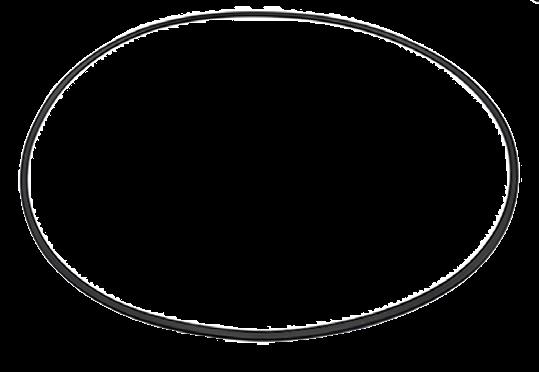

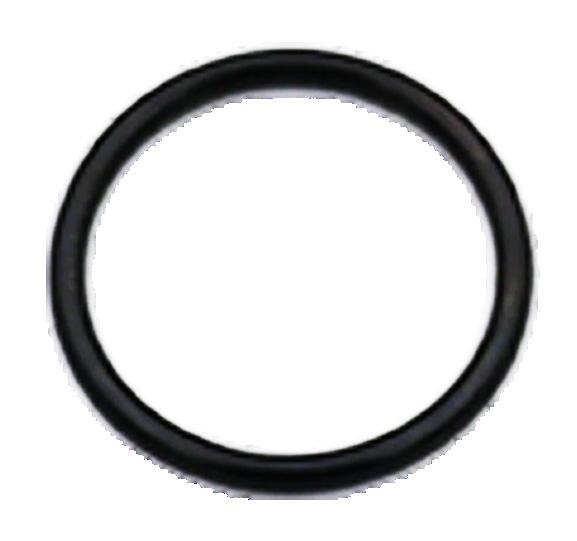

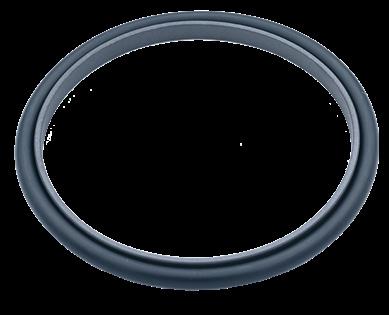

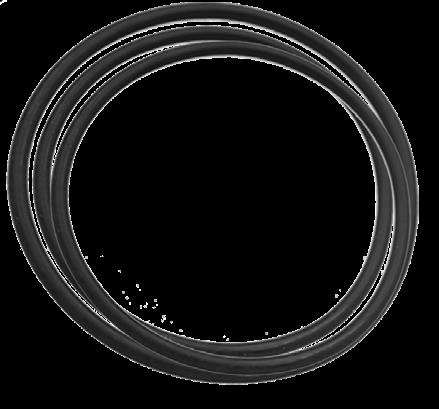

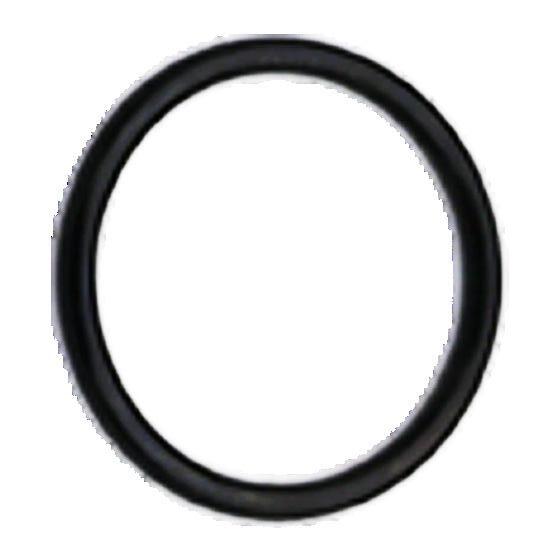

FRONT AXLE O-RING
FRONT AXLE HOUSING BOLT
500843 | OE Ref: L169942 2 3 1
500769 | OE Ref: L157607
AGCO | OE Ref: X549032500000
John Deere 5E 5M 6M 6R Series
500906 | OE Ref: L156873
AGCO | OE Ref: F119300020130
John Deere 6M 6R 6020 Series
5

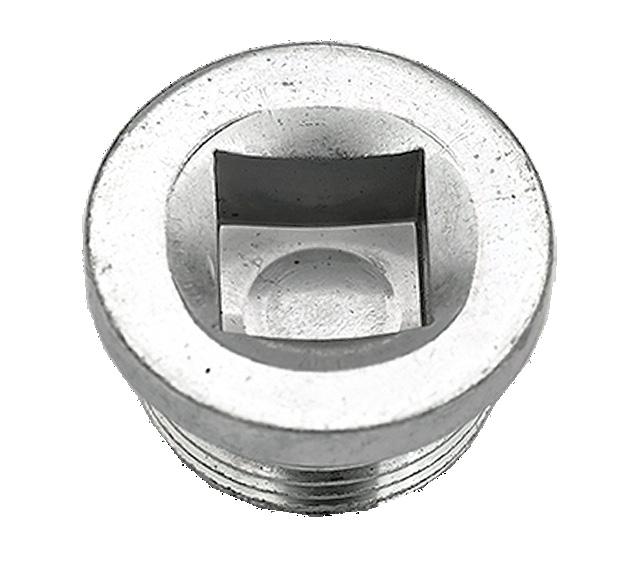

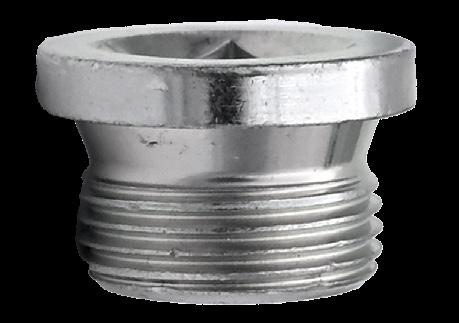

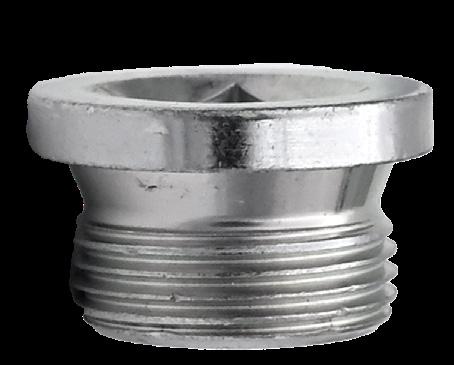

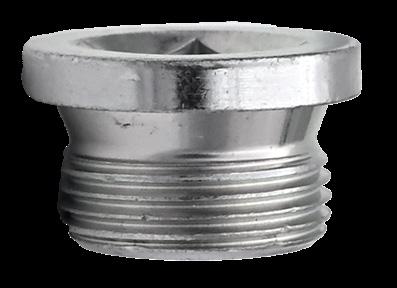

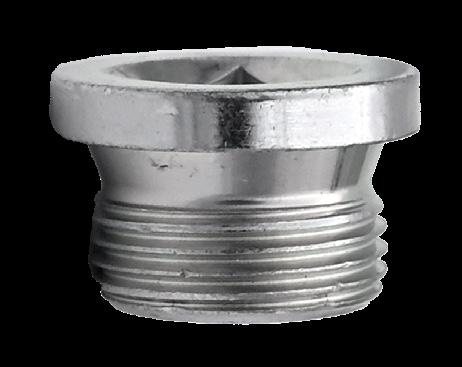

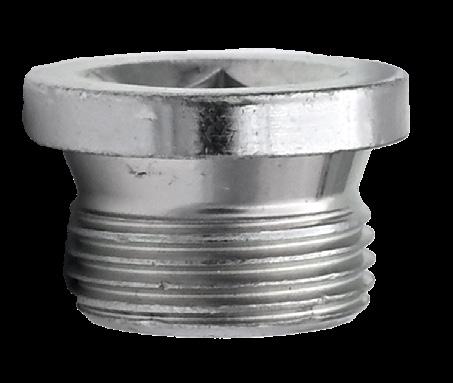

DRAIN PLUG
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series

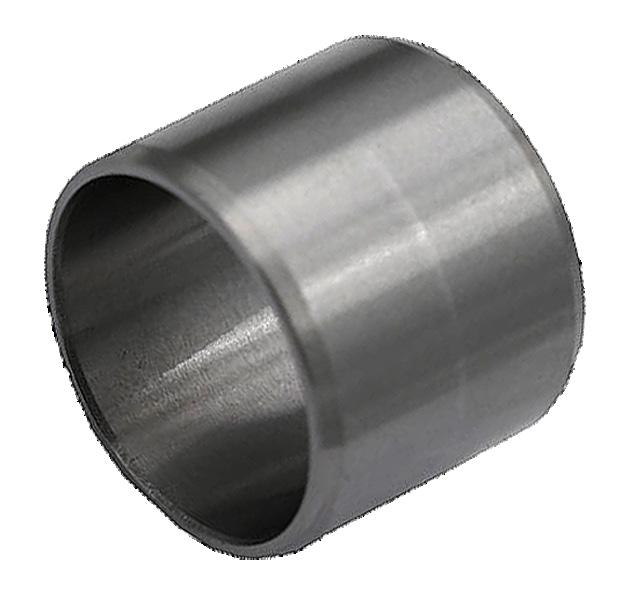

FRONT AXLE BUSH
500768 | OE Ref: L209640
AGCO | OE Ref: F260310020250
John Deere 6M 6R Series
7

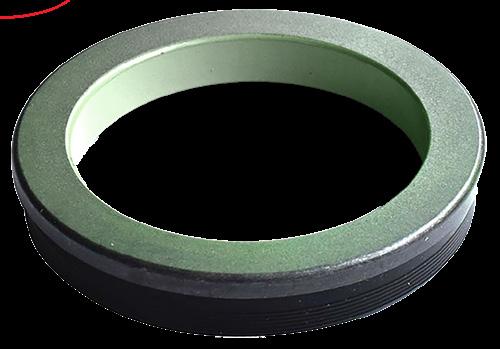

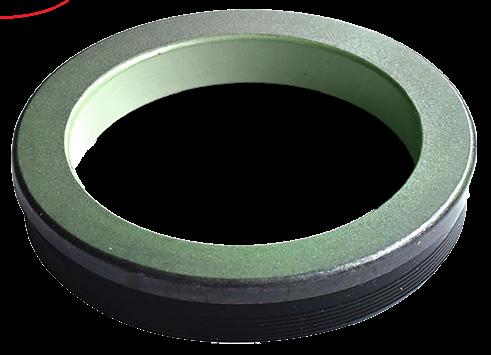

FRONT AXLE SEAL CASSETTE 55531 | OE Ref: 82013226
John Deere 6M 6RC 6R 6E 6J Series
8
9 10

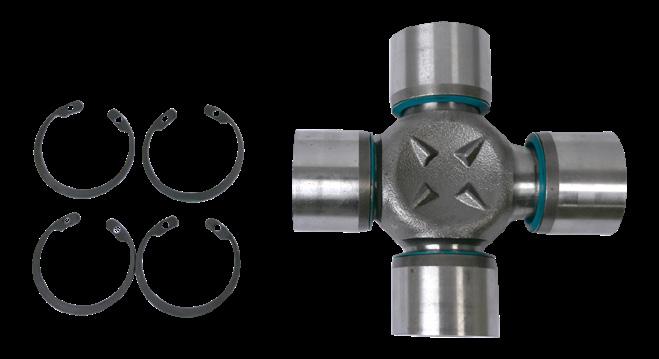

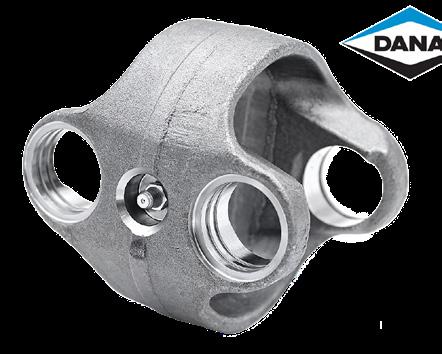

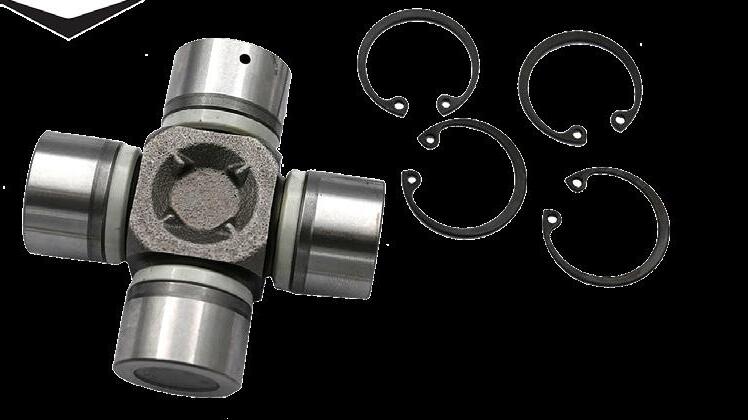

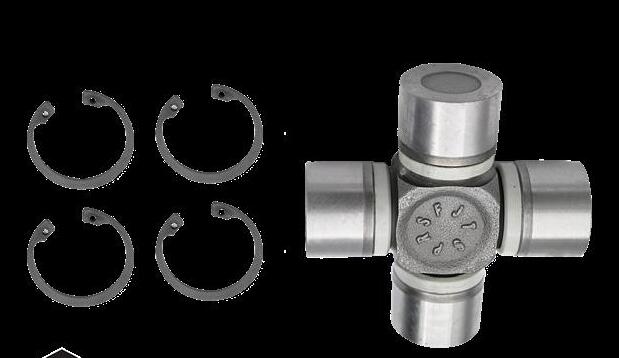

UNIVERSAL JOINT
500916 | OE Ref: AL226566
AGCO | OE Ref: 3429996M1
John Deere 6M 6R Series

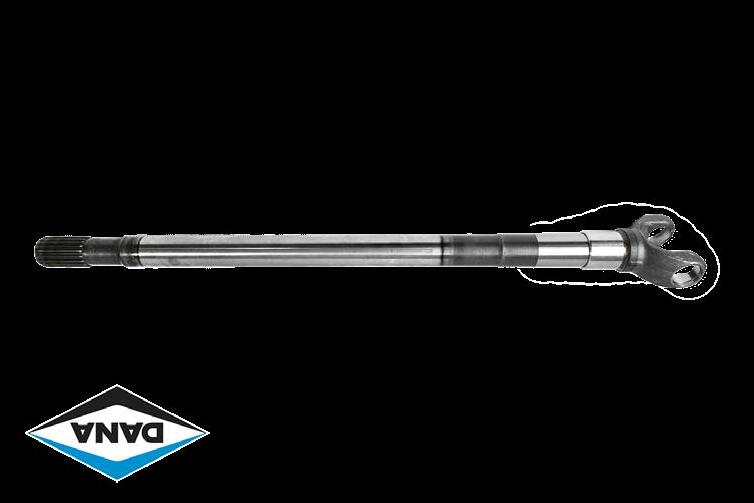

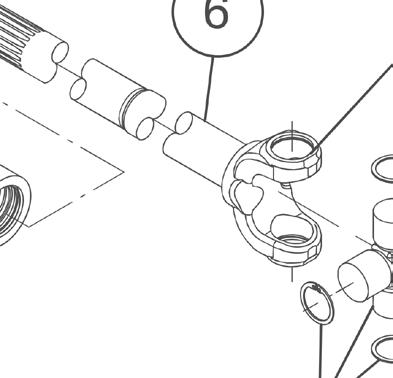

FRONT AXLE SHAFT
500905 | OE Ref: AL211693 6
John Deere 6M 6R Series

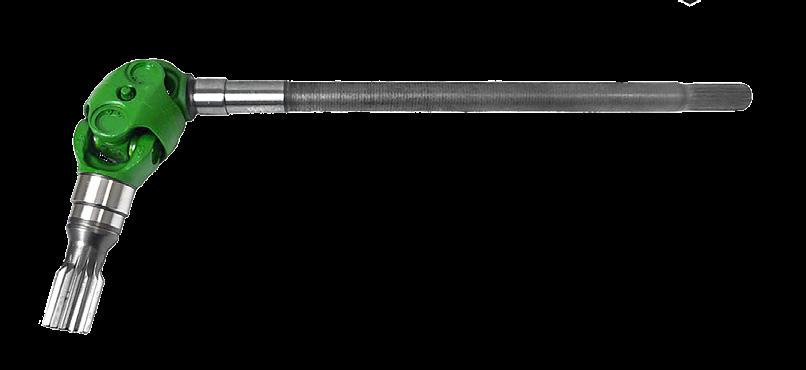

DOUBLE JOINTED SHAFT 500850 | OE Ref: AL211692
AGCO | OE Ref: 3429997M1
John Deere 6M 6R Series
FRONT AXLE BUSH
500917 | OE Ref: L210768
John Deere 6M 6R Series

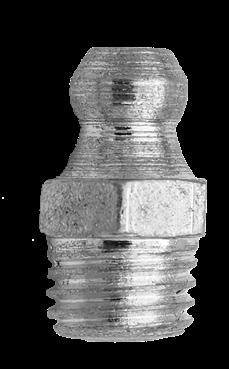

GREASE NIPPLE
500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

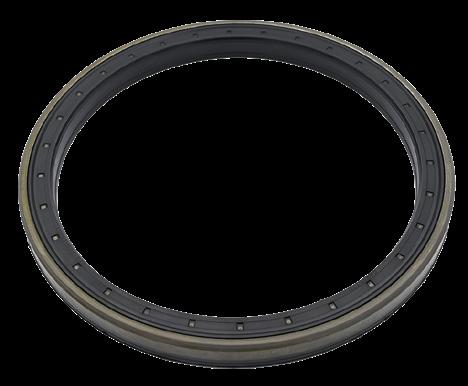

HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series
FRONT AXLE HOUSING HUB
WHEEL HUB TAPERED ROLLER BEARING
500314 | OE Ref: AL161291
AGCO | OE Ref: ACV0080370
John Deere 6D 6E 6J 6M 6R 6020 6030 Series

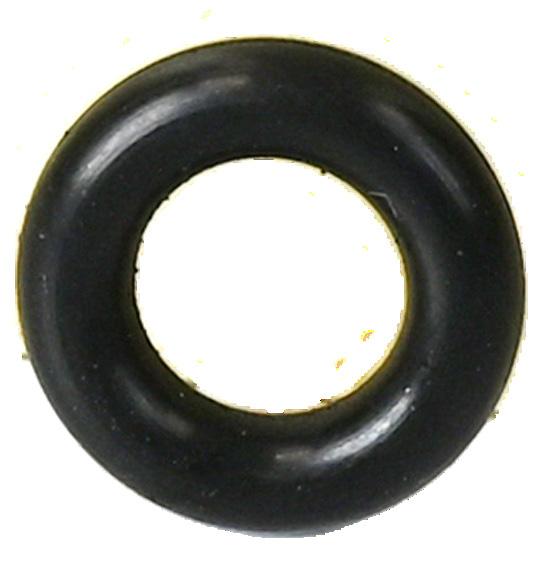

HUB O-RING
500316 | OE Ref: AL159591 1 2 3 5 6 4
500921 | OE Ref: L221852
John Deere 6M 6R Series
500920 | OE Ref: L21845
John Deere 6M 6R Series

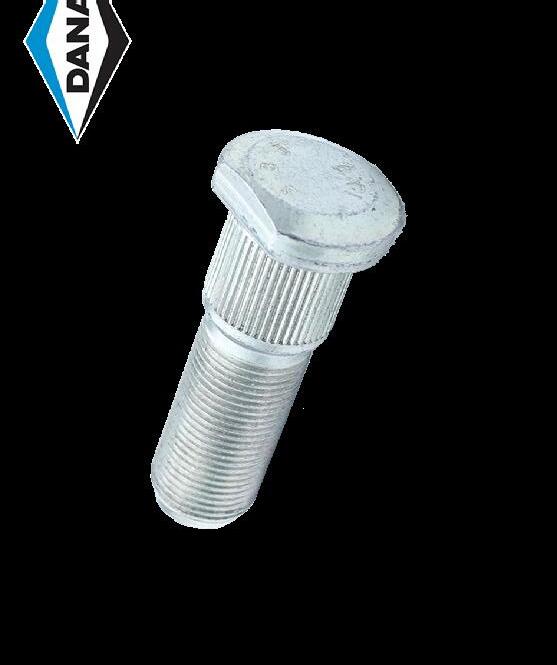

WHEEL HUB BOLT
500922 | OE Ref: 84021779
AGCO | OE Ref: 7330605301
John Deere 6M 6R Series
MFWD SNAP RING
AGCO | OE Ref: F411301021310
John Deere 5 - 9 Series

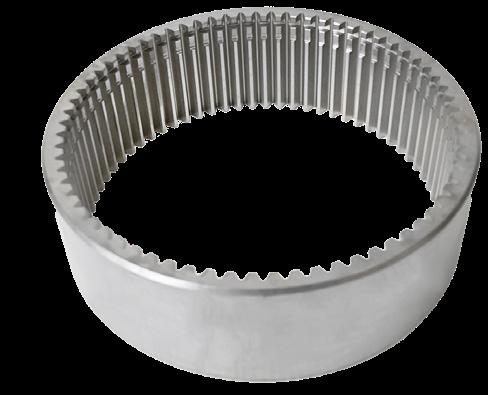

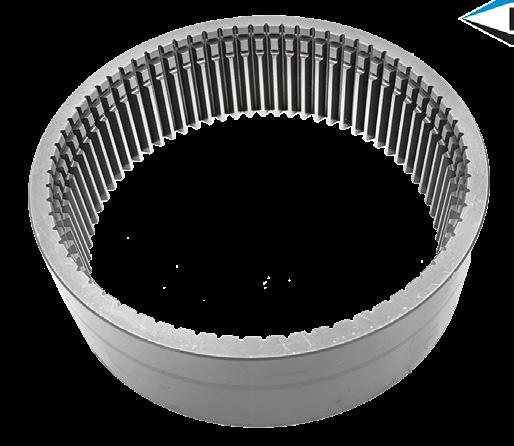

RING GEAR
500805 | OE Ref: R271413
PLANETARY RING GEAR PLATE
500317 | OE Ref: L174121
AGCO | OE Ref: F334310020460 AGCO | OE Ref: F411301021330
John Deere 5E 5M 6M 6R Series
SNAP RING MFWD
500297 | OE Ref: 2143191
AGCO | OE Ref: 002143191
John Deere Series

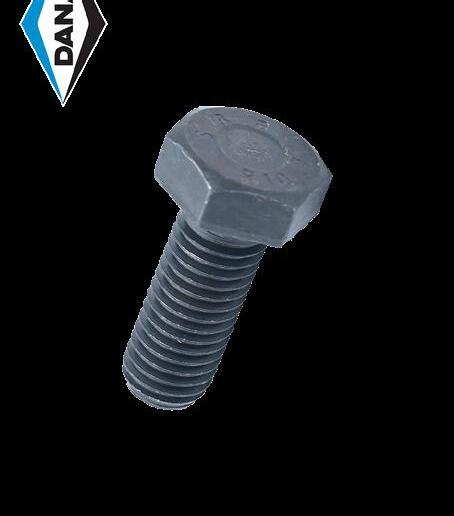

FRONT AXLE HOUSING BOLT
500924 | OE Ref: AL160176
John Deere 6020 6R 6M 6RC Series
John Deere 6D 6E 6M 6R 6020 Series
FRONT AXLE PLANET AND BEARING KIT
500926 | OE Ref: AL227338
John Deere 6M 6R Series

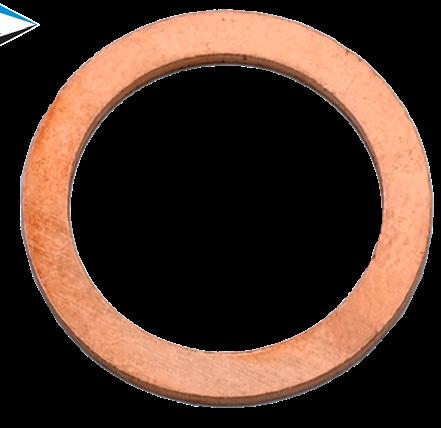

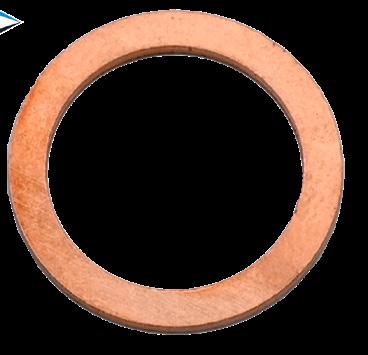

SEALING WASHER
PLANETARY HOUSING
500587 | OE Ref: Z104508

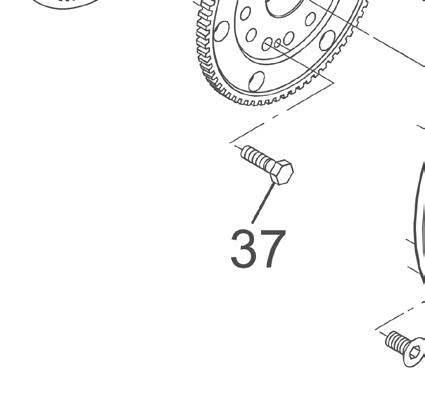

RING GEAR BOLT
500923 | OE Ref: L166298
AGCO | OE Ref: X486531800000
John Deere 6M 6R Series

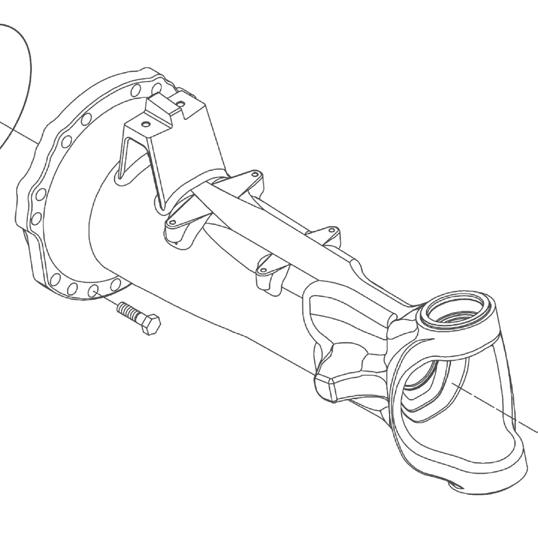

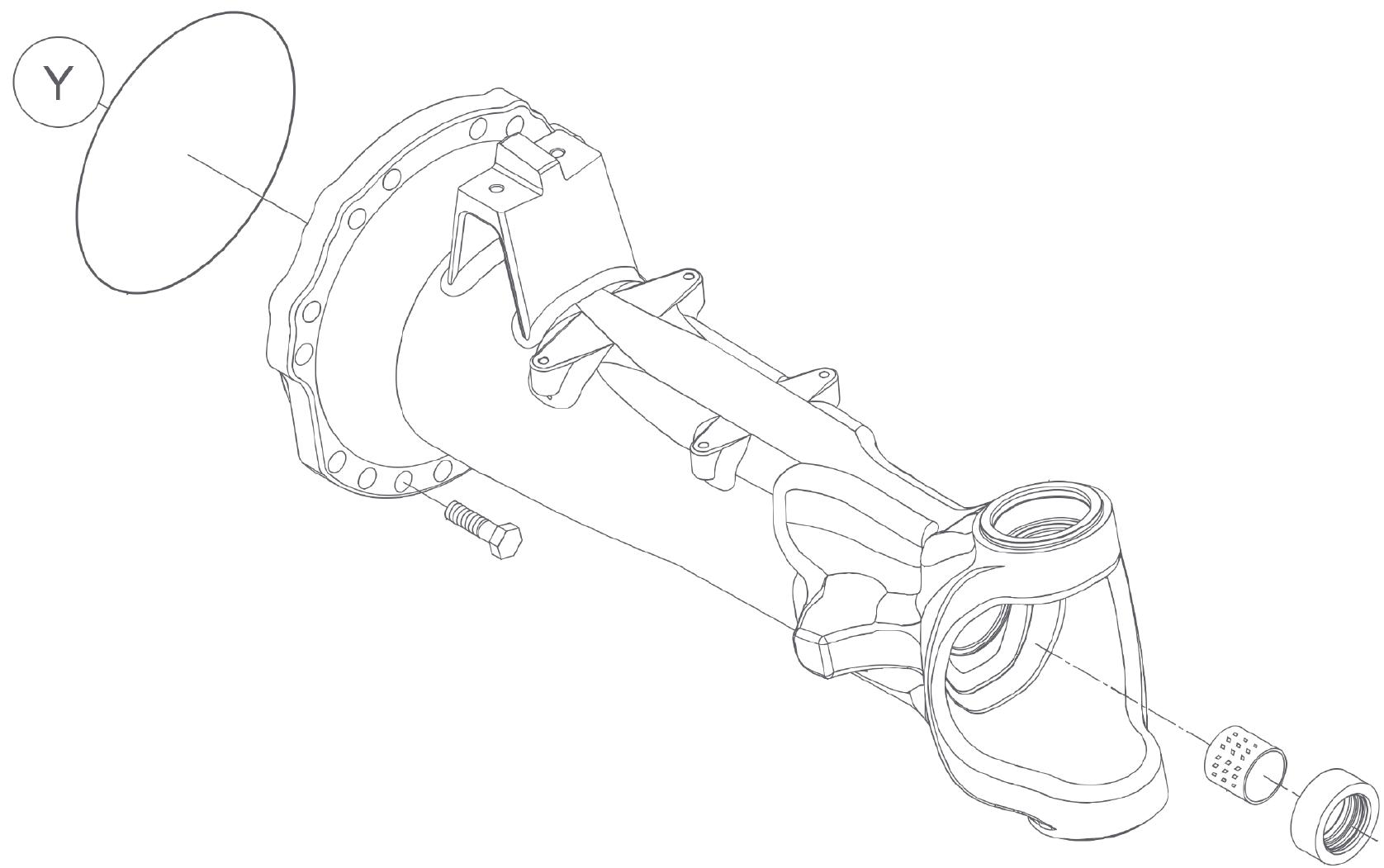

FRONT AXLE HOUSING
500925 | OE Ref: L221854
John Deere 6M 6R Series
500586 | OE Ref: L156853 14
John Deere 6M 6R Series
DRAIN PLUG

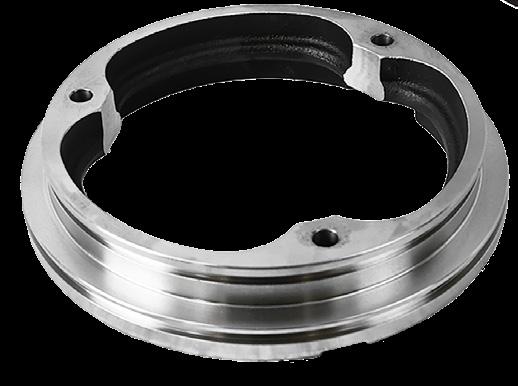

PLANETARY HOUSING
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
M20 LOCK NUT
500886 | OE Ref: L157600
FRONT AXLE THRUST WASHER
500773 | OE Ref: L113978
AGCO | OE Ref: F350300020020
AGCO | OE Ref: F222301020070
SHIM KIT 500887 | OE Ref: AL174434
AGCO | OE Ref: ACV0244810
John Deere 5M 5E 6M 6R 6020 Series
FRONT AXLE COUPLING
500777 | OE Ref: L156899
John Deere 6M 6R 6020 Series
John Deere 6J 6M 6R Series
AXLE INPUT PINION O-RING
500333 | OE Ref: L156850
AGCO | OE Ref: V31794000
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series
John Deere 6M 6R 6020 Series
SHAFT SEAL 600070 | OE Ref: AL159591
John Deere Series
DRIVE SHAFT BEARING
500775 | OE Ref: AL209966
John Deere 6M 6R Series
FRONT AXLE BEARING
500889 | OE Ref: AL235445
AGCO | OE Ref: F334310020670
John Deere 6M 6R Series
DIFFERENTIAL CARRIER
500892 | OE Ref: AL161278
AGCO | OE Ref: F222301020170
John Deere 6M 6R 6020 6030 Series
PIN FASTENER
TAPERED ROLLER BEARING
500771 | OE Ref: AL161275
AGCO | OE Ref: 005101285
John Deere 6M 6R Series
SHIM KIT
500890 | OE Ref: AL160118
AGCO | OE Ref: F653150020040
John Deere 6M 6R Series
CROWN WHEEL & PINION
500888 | OE Ref: AL161277
John Deere 6M 6R Series
AGCO | OE Ref: F650153021750
John Deere 6M 6R 6020 6030 Series
BRAKE DISC SET FRONT AXLE
500590 | OE Ref: AL160176
AGCO | OE Ref: F119300020070
John Deere 6020 6R 6M 6RC Series
SPRING PIN
FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
AGCO | OE Ref: F718301020120
John Deere 6M 6R 6020 6030 Series
500785 | OE Ref: L157602 18
AGCO | OE Ref: F411301021140
John Deere 6M 6R 6020 6030 Series
500786 | OE Ref: 34M3870
AGCO | OE Ref: X500625900000
John Deere 6M 6R 7000 Series
DIFFERENTIAL KIT
500784 | OE Ref: AL209970
John Deere 6M 6R Series
4 8 7 5 10 6
2 1 3 1 9
TRACK ROD ASSEMBLY
500894 | OE Ref: AL222370
John Deere 6M 6R Series
STEERING CYLINDER SEAL KIT
STEERING CYLINDER BOLT
500895 | OE Ref: L209650
John Deere 6M 6R Series
TRACK ROD END
500898 | OE Ref: AL222371 1 2 4 5
3
PISTON ROD STEERING CYLINDER
500897 | OE Ref: AL211658
John Deere 6M 6R Series
John Deere 6M 6R Series
AGCO | OE Ref: ACV0300450
John Deere 6M 6R Series
RUBBER BOOT
STEERING CYLINDER
500900 | OE Ref: AL214094
AGCO | OE Ref: 7302445043
John Deere 6M 6R Series
TRACK ROD NUT
500903 | OE Ref: L218899
John Deere 6M 6R Series

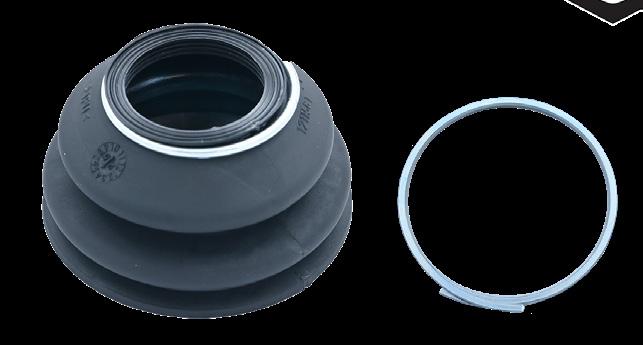

RUBBER BOOT STEERING CYLINDER
500901 | OE Ref: AL214095
AGCO | OE Ref: 7302445044
John Deere 6M 6R Series
TRACK ROD LOCK NUT
500902 | OE Ref: 6094451
AGCO | OE Ref: 006094451
John Deere 6M 6R Series
Visit website for compatibility SEAL 580010 | OE Ref: AL161384 2
John Deere 6M 6R Series
MFWD BEARING 500315 | OE Ref: AL161285
John Deere 6005 6003 6020 6030 5E 6E 6D 6M 6R 6RC 6J 6B Series AGCO | OE Ref: 005010537
FRONT AXLE HOUSING SNAP RING 500908 | OE Ref: 354750A1 1 3 4 5
FRONT AXLE WASHER
500794 | OE Ref: 84021797
AGCO | OE Ref: 345606
John Deere 6M 6R 6020 6030 Series
500795 | OE Ref: 40M7166
John Deere 6M 6R 6010 6020 6030 7010 Series
HOUSING BOLT 500913 | OE Ref: L218665 8 6
John Deere 6M 6R Series
500912 | OE Ref: 6053434 9
HOUSING NUT
AGCO | OE Ref: 6053434
John Deere 6M 6R Series
KING PIN
500909 | OE Ref: L221857
John Deere 6M 6R Series
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
TAPERED ROLLER BEARING
500848 | OE Ref: AL161289
AGCO | OE Ref: G524300020300
John Deere 6M 6R Series
KING PIN BOLT
500910 | OE Ref: L157613
AGCO | OE Ref: 016011006
John Deere 6M 6R Series
FRONT AXLE BUSHING
500799 | OE Ref: 87472582
9
AXLE SEAL
58856 | OE Ref: AL79902
John Deere 6000 6010 6030 7020 7030 6005 6D 6003 Series
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series
KING PIN
500919 | OE Ref: L218738
John Deere 6M 6R Series
KING PIN BOLT
500918 | OE Ref: L208687
John Deere 6M 6R Series
WHEEL POSITION SENSOR WITH CONNECTING ADAPTER
500798 | OE Ref: L218742
John Deere 6J 6M 6R Series
KING PIN SHIM KIT 500911 | OE Ref: AL162112
AGCO | OE Ref: ACV0300210
John Deere 6M 6R Series
WHEEL POSITION SENSOR CONNECTION DISC
500796 | OE Ref: L165798
John Deere 6M 6R 6020 Series
1 2 3 4 5 6 7 7 8 9 10 2 1
1
2
3

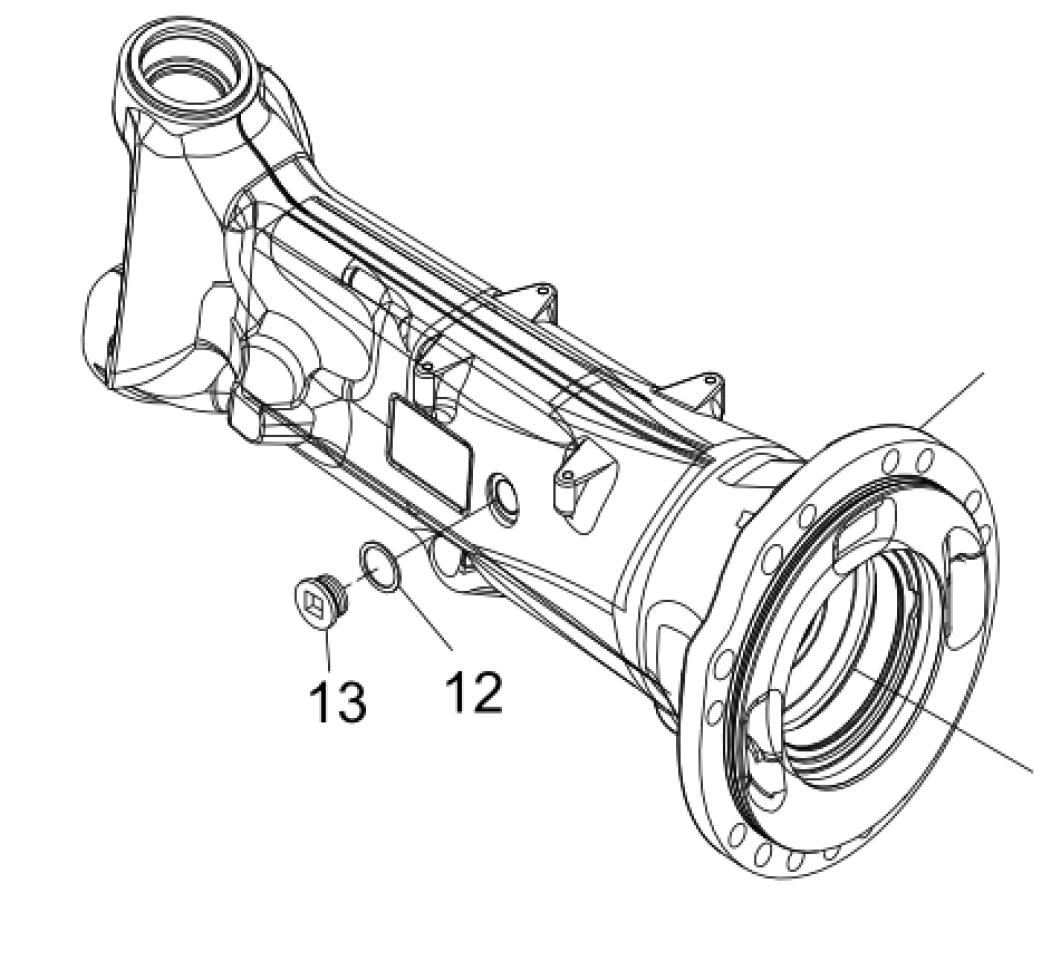

FRONT AXLE O-RING
500769 | OE Ref: L157607
AGCO | OE Ref: X549032500000
John Deere 5E 5M 6M 6R Series
FRONT AXLE HOUSING BOLT
500906 | OE Ref: L156873
AGCO | OE Ref: F119300020130
John Deere 6M 6R 6020 Series
5
DRAIN PLUG 500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
6
FRONT AXLE BUSH
500768 | OE Ref: L209640
AGCO | OE Ref: F260310020250
John Deere 6M 6R Series
7
FRONT AXLE SEAL CASSETTE 55531 | OE Ref: 82013226
John Deere 6M 6RC 6R 6E 6J Series
8
9 10
FRONT AXLE BUSH 500917 | OE Ref: L210768
John Deere 6M 6R Series

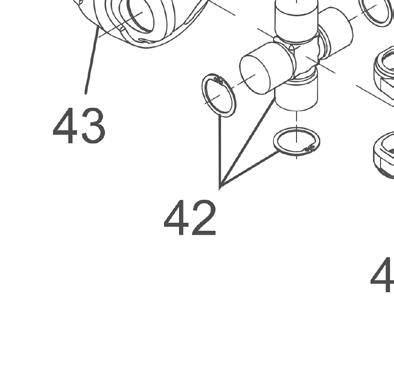

UNIVERSAL JOINT
500916 | OE Ref: AL226566
AGCO | OE Ref: 3429996M1
John Deere 6M 6R Series
FRONT AXLE SHAFT
500905 | OE Ref: AL211693
John Deere 6M 6R Series
DOUBLE JOINTED SHAFT 500850 | OE Ref: AL211692
AGCO | OE Ref: 3429997M1
John Deere 6M 6R Series
GREASE NIPPLE 500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series

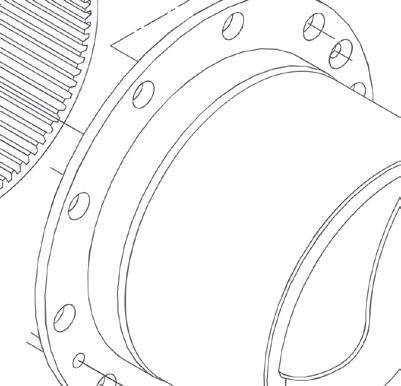

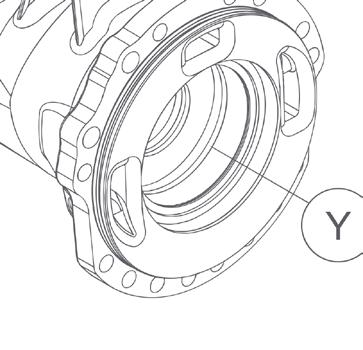

FRONT AXLE HOUSING HUB
WHEEL HUB TAPERED ROLLER BEARING
500314 | OE Ref: AL161291
AGCO | OE Ref: ACV0080370
John Deere 6D 6E 6J 6M 6R 6020 6030 Series
HUB O-RING
500921 | OE Ref: L221852
John Deere 6M 6R Series
500920 | OE Ref: L21845
John Deere 6M 6R Series
WHEEL HUB BOLT
500922 | OE Ref: 84021779
AGCO | OE Ref: 7330605301
John Deere 6M 6R Series
MFWD SNAP RING
500316 | OE Ref: AL159591 1 2 3 5 6 4
AGCO | OE Ref: F411301021310
John Deere 5 - 9 Series

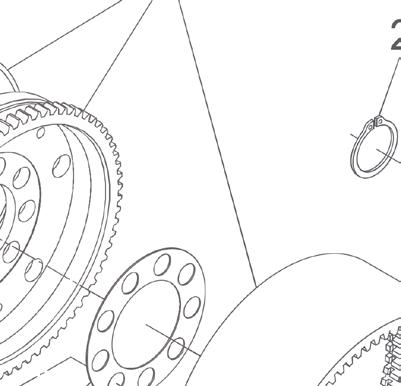

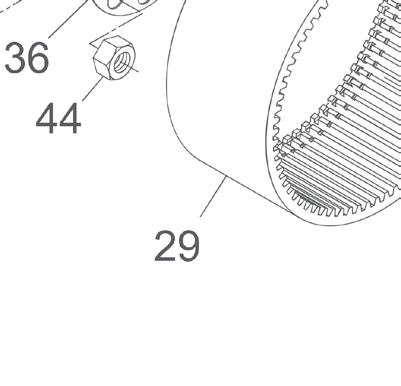

RING GEAR
500805 | OE Ref: R271413
AGCO | OE Ref: F334310020460
John Deere 5E 5M 6M 6R Series
SNAP RING MFWD
500297 | OE Ref: 2143191
AGCO | OE Ref: 002143191
John Deere Series

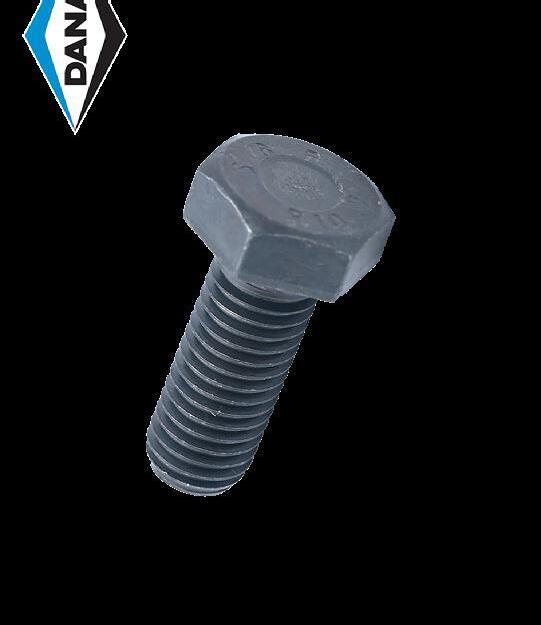

FRONT AXLE HOUSING BOLT
500924 | OE Ref: L157625
John Deere 5M 6M 6R Series
PLANETARY RING GEAR PLATE
500317 | OE Ref: L174121
AGCO | OE Ref: F411301021330
John Deere 6D 6E 6M 6R 6020 Series
FRONT AXLE PLANET AND BEARING KIT
500926 | OE Ref: AL227338
John Deere 6M 6R Series
SEALING WASHER
PLANETARY HOUSING
500587 | OE Ref: AL209970

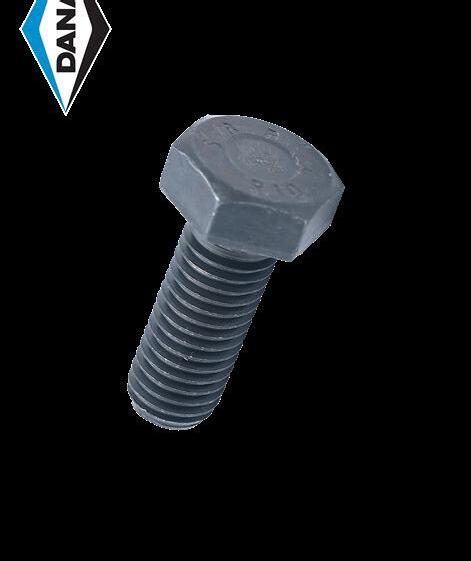

RING GEAR BOLT
500923 | OE Ref: L166298
AGCO | OE Ref: X486531800000
John Deere 6M 6R Series
FRONT AXLE HOUSING
500925 | OE Ref: L221854
John Deere 6M 6R Series
500586 | OE Ref: L156853 9 14
John Deere 6M 6R Series

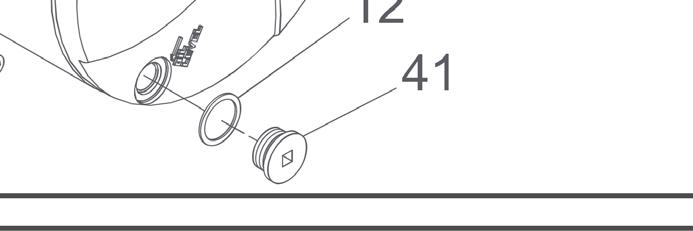

DRAIN PLUG
PLANETARY HOUSING
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
M20 LOCK NUT
500886 | OE Ref: L157600
FRONT AXLE THRUST WASHER
500773 | OE Ref: L113978
AGCO | OE Ref: F350300020020
AGCO | OE Ref: F222301020070
SHAFT SEAL 600070 | OE Ref: AL159591 1 2 3 5 4
SHIM KIT 500887 | OE Ref: AL174434
AGCO | OE Ref: ACV0244810
John Deere 5M 5E 6M 6R 6020 Series
FRONT AXLE COUPLING
500777 | OE Ref: L156899
John Deere 6M 6R 6020 Series
John Deere 6J 6M 6R Series
AXLE INPUT PINION O-RING 500333 | OE Ref: L156850
AGCO | OE Ref: V31794000
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series
John Deere 6M 6R 6020 Series
John Deere Series
DRIVE SHAFT BEARING
500775 | OE Ref: AL209966
John Deere 6M 6R Series
FRONT AXLE BEARING
AGCO | OE Ref: F334310020670
John Deere 6M 6R Series
TAPERED ROLLER BEARING
500771 | OE Ref: AL161275
AGCO | OE Ref: 005101285
John Deere 6M 6R Series
500889 | OE Ref: AL235445 10 11 12 13 14 15 7 8

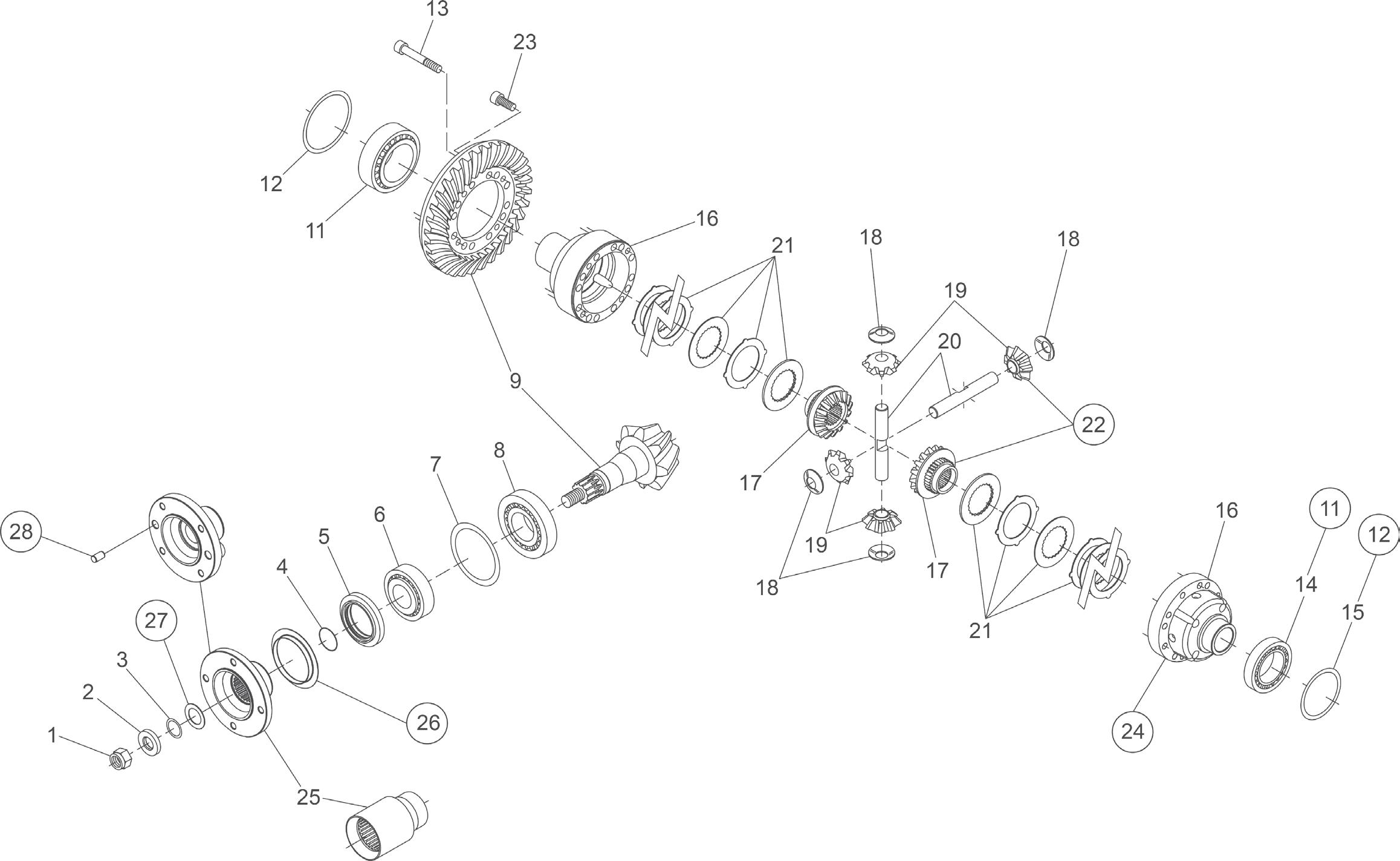

DIFFERENTIAL CARRIER
500892 | OE Ref: AL161278
AGCO | OE Ref: F222301020170
John Deere 6M 6R 6020 6030 Series
PIN FASTENER
500785 | OE Ref: L157602
AGCO | OE Ref: F411301021140
John Deere 6M 6R 6020 6030 Series
CROWN WHEEL & PINION
500888 | OE Ref: AL161277
John Deere 6M 6R Series

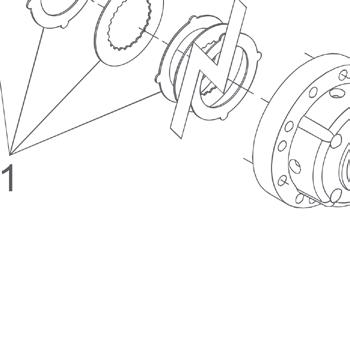

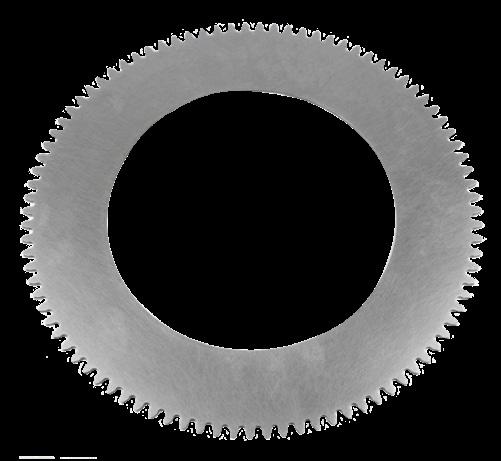

BRAKE DISC SET FRONT AXLE
500590 | OE Ref: AL160176
AGCO | OE Ref: F119300020070
John Deere 6020 6R 6M 6RC Series
SPRING PIN
500786 | OE Ref: 34M3870
AGCO | OE Ref: X500625900000
John Deere 6M 6R 7000 Series
SHIM KIT
500890 | OE Ref: AL160118
AGCO | OE Ref: F653150020040
John Deere 6M 6R Series
DIFFERENTIAL HOUSING BOLT
500891 | OE Ref: L166293
AGCO | OE Ref: F650153021750
John Deere 6M 6R 6020 6030 Series
FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
AGCO | OE Ref: F718301020120
John Deere 6M 6R 6020 6030 Series
18
DIFFERENTIAL KIT
500784 | OE Ref: AL209970
John Deere 6M 6R Series
FRONT AXLE WASHER
500794 | OE Ref: 84021797
AGCO | OE Ref: 345606
RING 500795 | OE Ref: 40M7166
Visit website for compatibility SEAL 580010 | OE Ref: AL161384
2
FRONT AXLE HOUSING SNAP RING 500908 | OE Ref: 354750A1 1
John Deere 6M 6R Series
MFWD BEARING 500315 | OE Ref: AL161285
John Deere 6005 6003 6020 6030 5E 6E 6D 6M 6R 6RC 6J 6B Series AGCO | OE Ref: 005010537
HOUSING BOLT 500913 | OE Ref: L218665 8 6
John Deere 6M 6R 6020 6030 Series
John Deere 6M 6R 6010 6020 6030 7010
John Deere 6M 6R Series
HOUSING NUT
500912 | OE Ref: 6053434
AGCO | OE Ref: 6053434
John Deere 6M 6R Series

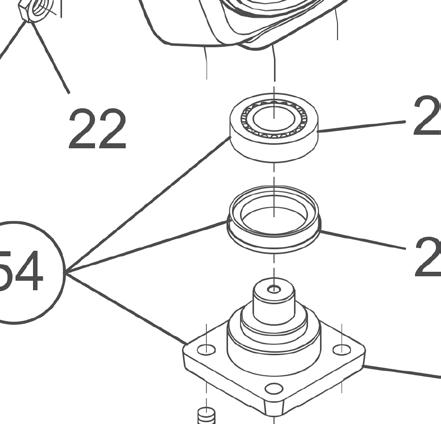

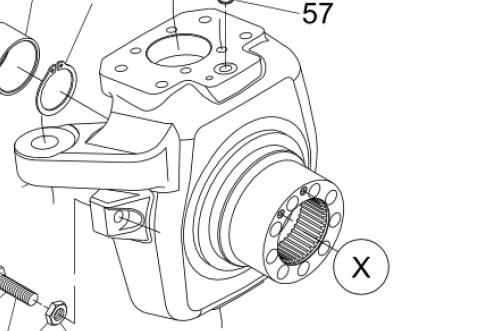

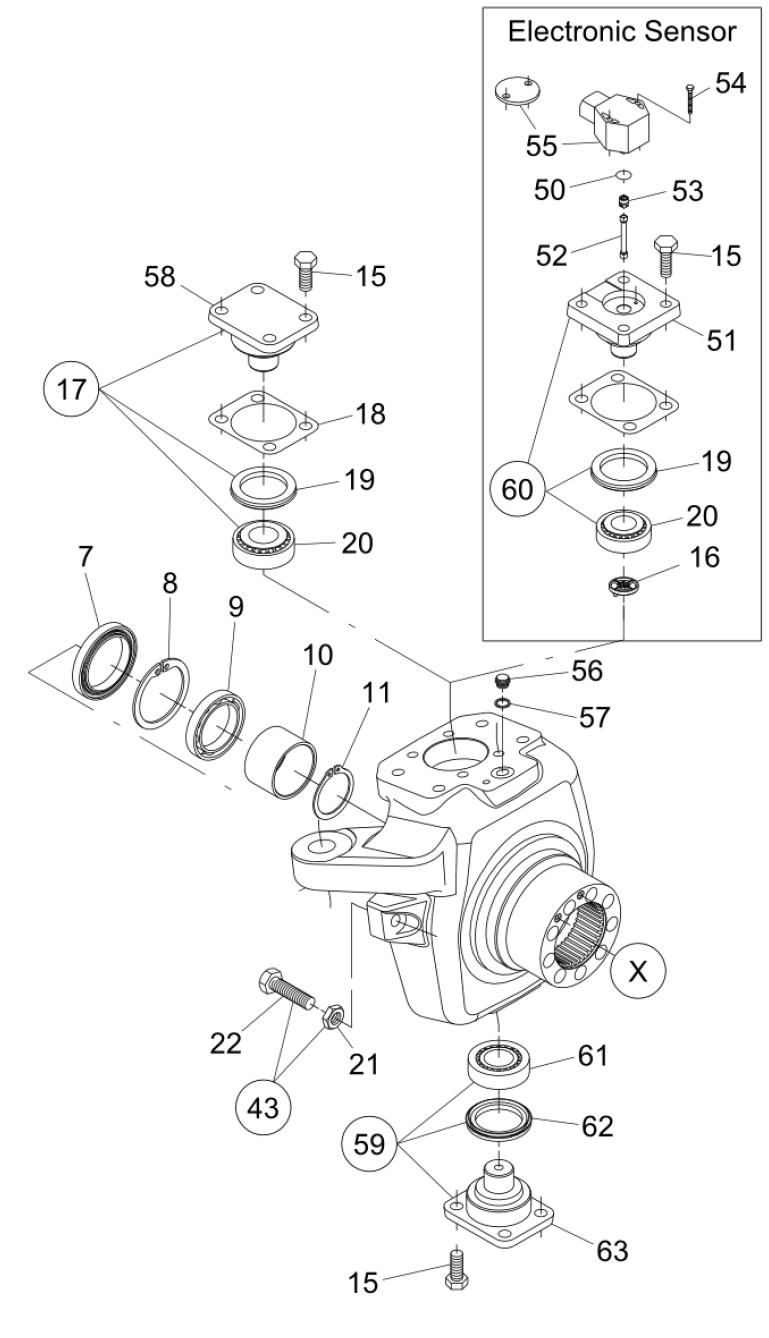

KING PIN
500909 | OE Ref: L221857
John Deere 6M 6R Series

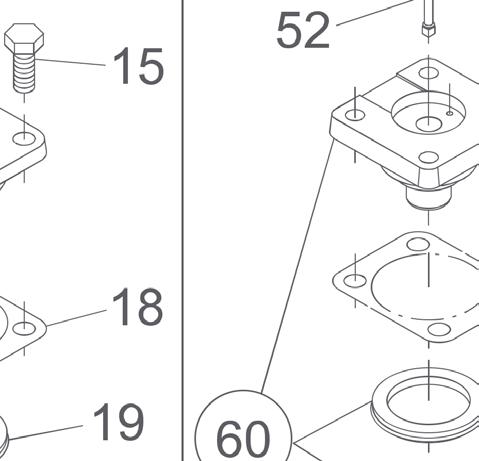

KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
TAPERED ROLLER BEARING
500848 | OE Ref: AL161289
AGCO | OE Ref: G524300020300
John Deere 6M 6R Series
KING PIN BOLT
500910 | OE Ref: L157613
AGCO | OE Ref: 016011006
John Deere 6M 6R Series
FRONT AXLE BUSHING
500799 | OE Ref: 87472582
AXLE SEAL
58856 | OE Ref: AL79902
John Deere 6000 6010 6030 7020 7030 6005 6D 6003 Series
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series
KING PIN
500919 | OE Ref: L218738
John Deere 6M 6R Series
KING PIN BOLT
500918 | OE Ref: L208687
John Deere 6M 6R Series

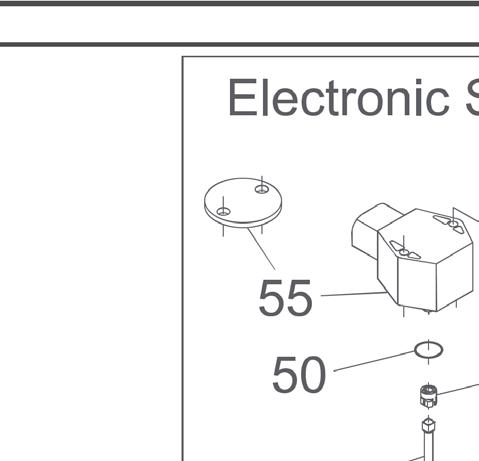

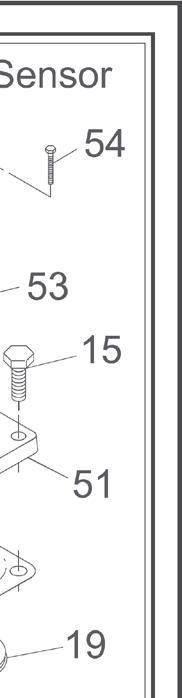

WHEEL POSITION SENSOR WITH CONNECTING ADAPTER
500798 | OE Ref: L218742
John Deere 6J 6M 6R Series
KING PIN SHIM KIT
AGCO | OE Ref: ACV0300210
500911 | OE Ref: AL162112 John Deere 6M 6R 6020 Series WHEEL POSITION SENSOR CONNECTION
500796 | OE Ref: L165798
John Deere 6M 6R Series
1 2 3 4 5 6 7 7 8 9 10 2 1
1
2
3
FRONT AXLE O-RING
500769 | OE Ref: L157607
AGCO | OE Ref: X549032500000
John Deere 5E 5M 6M 6R Series
FRONT AXLE HOUSING BOLT 500906 | OE Ref: L156873
AGCO | OE Ref: F119300020130
John Deere 6M 6R 6020 Series
5
DRAIN PLUG 500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
6
FRONT AXLE BUSH 500768 | OE Ref: L209640
AGCO | OE Ref: F260310020250
John Deere 6M 6R Series
7
FRONT AXLE SEAL CASSETTE 55531 | OE Ref: 82013226
John Deere 6M 6RC 6R 6E 6J Series
8
9
FRONT AXLE BUSH 500917 | OE Ref: L210768
John Deere 6M 6R Series
UNIVERSAL JOINT 500916 | OE Ref: AL226566
AGCO | OE Ref: 3429996M1
John Deere 6M 6R Series
FRONT AXLE SHAFT
500905 | OE Ref: AL211693
John Deere 6M 6R Series
DOUBLE JOINTED SHAFT 500850 | OE Ref: AL211692
AGCO | OE Ref: 3429997M1
John Deere 6M 6R Series
GREASE NIPPLE 500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series
FRONT AXLE HOUSING HUB
500316 | OE Ref: L157620 1 2 3 5 6 4
500921 | OE Ref: L221852
John Deere 6M 6R Series
WHEEL HUB TAPERED ROLLER BEARING
500314 | OE Ref: AL161291
AGCO | OE Ref: ACV0080370
John Deere 6D 6E 6J
6M 6R 6020 6030 Series
HUB O-RING
500920 | OE Ref: L21845
John Deere 6M 6R Series
WHEEL HUB BOLT
500922 | OE Ref: 84021779
AGCO | OE Ref: 7330605301
John Deere 6M 6R Series
MFWD SNAP RING
AGCO | OE Ref: F411301021310
John Deere 5 - 9 Series
RING GEAR
500805 | OE Ref: R271413
AGCO | OE Ref: F334310020460
John Deere 5E 5M 6M 6R Series
SNAP RING MFWD
500297 | OE Ref: 2143191
AGCO | OE Ref: 002143191
John Deere Series
13
PLANETARY RING GEAR PLATE
500317 | OE Ref: L174121
AGCO | OE Ref: F411301021330
John Deere 6D 6E 6M 6R 6020 Series
FRONT AXLE PLANET AND BEARING KIT
500926 | OE Ref: AL227338
John Deere 6M 6R Series
FRONT AXLE HOUSING BOLT
500924 | OE Ref: L157625
John Deere 5M 6M 6R Series
SEALING WASHER
PLANETARY HOUSING
500587 | OE Ref: AL209970
John Deere 6M 6R Series
15 7
RING GEAR BOLT
500923 | OE Ref: L166298
AGCO | OE Ref: X486531800000
John Deere 6M 6R Series
12
FRONT AXLE HOUSING
500925 | OE Ref: L221854
John Deere 6M 6R Series
DRAIN PLUG PLANETARY HOUSING
500586 | OE Ref: L169940
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
4 8 7 5 10 6
2 1 3 1 9
TRACK ROD ASSEMBLY
500894 | OE Ref: AL222370
John Deere 6M 6R Series
1 2 4 5
STEERING CYLINDER SEAL KIT
500897 | OE Ref: AL211658
John Deere 6M 6R Series
STEERING CYLINDER BOLT
500895 | OE Ref: L209650
John Deere 6M 6R Series
3
TRACK ROD END
500898 | OE Ref: AL222371
John Deere 6M 6R Series
John Deere 6M 6R Series AGCO | OE Ref: ACV0300450
RUBBER BOOT
STEERING CYLINDER
500900 | OE Ref: AL214094
RUBBER BOOT
STEERING CYLINDER
500901 | OE Ref: AL214095
AGCO | OE Ref: 7302445043 AGCO | OE Ref: 7302445044
John Deere 6M 6R Series
TRACK ROD NUT
500903 | OE Ref: L218899
John Deere 6M 6R Series
John Deere 6M 6R Series
TRACK ROD LOCK NUT
500902 | OE Ref: 6094451
AGCO | OE Ref: 006094451
John Deere 6M 6R Series
1 2 3 4 5 6 7 8 12 9 10 11 13 14
FRONT AXLE THRUST WASHER
500773 | OE Ref: L113978
AGCO | OE Ref: F222301020070
John Deere 6J 6M 6R Series
AXLE INPUT PINION O-RING
FRONT AXLE SHIM KIT
500770 | OE Ref: AL174434
John Deere 6M 6R Series
SHAFT SEAL
600070 | OE Ref: 36696500 1 2 4 3 5 13 9 10
500333 | OE Ref: L156850
AGCO | OE Ref: V31794000
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series
John Deere Series
FRONT AXLE COUPLING
500777 | OE Ref: L156899
John Deere 6M 6R 6020 Series
500591 | OE Ref: AL166518 6
BEARING CROWN WHEEL & PINION
AGCO | OE Ref: ACV0300100
John Deere 04 6003 6B 6D 6E Series
MFWD SHIM KIT
500321 | OE Ref: AL160114
John Deere 6J 6M 6R
6020 7020 7030 Series
TAPERED ROLLER BEARING
500835 | OE Ref: 005103697
AGCO | OE Ref: 005103697
John Deere 6M 6R Series
FRONT AXLE SHIM KIT
AGCO | OE Ref: F650153021740
John Deere 6J 6M 6R Series
500778 | OE Ref: AL160118 9 10 11
TAPERED ROLLER BEARING
43791G | OE Ref: 76086014
John Deere 6M 6R 6010 6020 Series
DIFFERENTIAL CARRIER
500330 | OE Ref: AL160210
John Deere 6J 6M 6R 6020
6030 7020 7050 7080 9000 Series
PIN FASTENER
500842 | OE Ref: L114209
DIFFERENTIAL HOUSING BOLT
500891 | OE Ref: L166293
AGCO | OE Ref: F650153021750
John Deere 6M 6R 6020 6030 Series
500589 | OE Ref: AL208846 14 16
AGCO | OE Ref: F718301020140
John Deere 6M 6R
6010 6020 7030 Series
BRAKE DISC SET FRONT AXLE
500590 | OE Ref: L166293
AGCO | OE Ref: F119300020070
John Deere 6020 6R 6M 6RC Series
CROWN WHEEL & PINION
500329 | OE Ref: AL160170
John Deere 6J 6M 6R 6020 6030 7020 Series
FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
AGCO | OE Ref: F718301020120
John Deere 6M 6R 6020 6030 Series
DIFFERENTIAL KIT
AGCO | OE Ref: F650153021730
John Deere 6R 6M Series
9 8 6 11 1 2 3 1 4 5 10 7
1
TRACK ROD ASSEMBLY
500940 | OE Ref: AL224138
John Deere 6M 6R Series
AGCO | OE Ref: 16044644
John Deere 6M 6R Series
3 4
5
STEERING CYLINDER ROD
500943 | OE Ref: AL228338
John Deere 6M 6R Series
500946 | OE Ref: AL224140
John Deere 6M 6R Series
STEERING CYLINDER O-RING KIT
500944 | OE Ref: AL228339
John Deere 6M 6R Series
7 8 10 11
TRACK ROD NUT
500949 | OE Ref: L171642
John Deere 6M 6R Series
TRACK ROD END BOOT SEAL
500947 | OE Ref: AL209609
AGCO | OE Ref: 7502445021
John Deere 6M 6R Series
TRACK ROD BALL JOINT NUT
500950 | OE Ref: L217271
John Deere 6M 6R Series
STEERING CYLINDER SHIM
500942 | OE Ref: L216924
John Deere 6M 6R Series
6
TRACK ROD END
500945 | OE Ref: AL224139
John Deere 6M 6R Series
9
TRACK ROD END BOOT
500948 | OE Ref: AL209610
AGCO | OE Ref: 7502445020
John Deere 6M 6R Series
59854 | OE Ref: AL161384
SNAP RING 500339 | OE Ref: 40M1872
AGCO | OE Ref: 002020087
SPACER FRONT AXLE KNUCKLE HOUSING 500607 | OE Ref: L216820 Visit website for compatibility
John Deere 6M 6R
John Deere 6E 6M 6R 6020 8000 Series
500282 | OE Ref: AL161285
John Deere 6J 6M 6R 6020 6030 7030 Series
AGCO | OE Ref: 002013405
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
AGCO | OE Ref: X605595700000
John Deere 6M 6R Series
FRONT AXLE KNUCKLE HOUSING LH 500963 | OE Ref: L220018
FRONT AXLE
500964 | OE Ref: L220019 7 8 9
KNUCKLE HOUSING RH
HOUSING BOLT
500913 | OE Ref: L218665
John Deere 6M 6R Series
KNUCKLE HOUSING NUT
500955 | OE Ref: 14M7276
John Deere 6M 6R Series
12 11
KING PIN
500828 | OE Ref: L218739
AGCO | OE Ref: VHA9369 AGCO | OE Ref: V36249300
John Deere 6M 6R Series
STUB AXLE BEARING
500322 | OE Ref: VLA9316
AGCO | OE Ref: VLA9316
John Deere 6M 6R 6020 6030 7020 7030 Series
John Deere 6J 6M 6R 6020 Series
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
SHIM FRONT AXLE KNUCKLE HOUSING
500610 | OE Ref: AL160138
AGCO | OE Ref: 7500440007
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
500918 | OE Ref: L208687
John Deere 6M 6R Series
13
FRONT AXLE
KING PIN SEAL
580000 | OE Ref: AL110924
John Deere 6000 7000 10 20 30 Series
17 18 20 21
WHEEL POSITION SENSOR CONNECTING ADAPTER
500796 | OE Ref: L165798 14 15
500798 | OE Ref: L165796
John Deere 6M 6R 7R Series
6020 7020 Series
KING PIN
500834 | OE Ref: L218742
John Deere 6J 6M 6R 6020 Series
FRONT AXLE BUSHING
500799 | OE Ref: L166758
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series
WHEEL POSITION SENSOR CONNECTION DISC
John Deere 6M 6R 6020 Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 6 1
HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series
O-RING FRONT AXLE WHEEL HUB
500606 | OE Ref: L113950
AGCO | OE Ref: X549040200000
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
FRONT AXLE
KNUCKLE HOUSING HUB
500829 | OE Ref: L217078
John Deere 6M 6R Series
TAPERED ROLLER BEARING
500283 | OE Ref: AL81844
AGCO | OE Ref: VLA9321
John Deere 6M 6R 6010 6020 6030 7030 Series
500313 | OE Ref: L156870 2 5 4
AGCO | OE Ref: 385300020860
John Deere 6M 6R Series
SNAP RING MFWD
AGCO | OE Ref: F718301020380
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
RING GEAR SUPPORT
500827 | OE Ref: L217115
John Deere 6M 6R Series
NUT PLANETARY RING GEAR
500593 | OE Ref: L220017
John Deere 6R 6M Series
PLANETARY RING GEAR
PLANETARY DRIVE LOCK PLATE
500309 | OE Ref: L216840
John Deere 6M 6R Series
500585 | OE Ref: L216839 11 12
AGCO | OE Ref: F530300220090
John Deere 6R 6M Series
AGCO | OE Ref: 016050435
John Deere 6020 6R 6M 6RC Series
500826 | OE Ref: L217116
John Deere 6M 6R Series
14
SEALING WASHER
PLANETARY HOUSING
500587 | OE Ref: Z104508
John Deere 6M 6R Series
18 20 19 17 18
PLANETARY
SNAP RING
500287 | OE Ref: L156866
| OE Ref: F718301020350
John Deere 6J 6R 6M Series
| OE Ref: AL160140
| OE Ref: X619069900005
PLANETARY GEAR CARRIER
500825 | OE Ref: L218745
John Deere 6M 6R Series
500586 | OE Ref: L156853 9
DRAIN PLUG PLANETARY HOUSING
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
21 19
PINION BEARING CONE 500285 | OE Ref: AL160139
PLANETARY DRIVE PLANET PINION 500284 | OE Ref: L166395 AGCO | OE Ref: F718301020340 AGCO | OE Ref: X619069800005
John Deere 6J 6M 6R
1 2 3 4 5 6 7 8 9 10 10 11 12 13
1
MFWD O-RING
500332 | OE Ref: L113937
AGCO | OE Ref: VKH3784
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
4
SEALING WASHER PLANETARY HOUSING
500587 | OE Ref: Z104508
John Deere 6R 6M Series
7
FRONT MFWD AXLE BUSHING
500286 | OE Ref: L114652
AGCO | OE Ref: F718301020520
John Deere Series
2
FRONT AXLE HOUSING BOLT
500951 | OE Ref: L216824
AGCO | OE Ref: 1120607010
John Deere 6M 6R Series
5
MFWD THRUST BUSHING
500337 | OE Ref: L113966
AGCO | OE Ref: 339040
John Deere Series
8
3
DRAIN PLUG
500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
6
MFWD SEAL 500335 | OE Ref: AL227049
John Deere Series
DRIVE SHAFT
500962 | OE Ref: AL220210
John Deere 6M 6R Series
John Deere 6M 6R Series
500965 | OE Ref: L217178 18 19 20 21 10 11 13
UNIVERSAL JOINT
500750 | OE Ref: AL220306
John Deere 6R 6M Series
GREASE NIPPLE
500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
UNIVERSAL JOINT YOKE 500960 | OE Ref: AL220304
John Deere 6M 6R Series
DOUBLE JOINTED PINION SHAFT
John Deere 6M 6R Series
2
4 5
FRONT AXLE PINION NUT
500937 | OE Ref: L113979
AGCO | OE Ref: F222301020060
FRONT AXLE THRUST WASHER
500773 | OE Ref: L113978
AGCO | OE Ref: F222301020070
John Deere 6M 6R Series
John Deere 6J 6M 6R Series
FRONT AXLE COUPLING
AXLE INPUT PINION O-RING
SHAFT SEAL 600070 | OE Ref: AL159591 1 2 3 5 4 6 15 10 11
500777 | OE Ref: L156899
John Deere 6M 6R 6020 Series
500333 | OE Ref: L156850
AGCO | OE Ref: V31794000
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series
FRONT AXLE SHIM KIT 500770 | OE Ref: AL174434
John Deere 6M 6R Series
John Deere Series
BEARING CROWN WHEEL & PINION
500591 | OE Ref: AL166518
AGCO | OE Ref: ACV0300100
John Deere 04 6003 6B 6D 6E Series
FRONT AXLE SHIM KIT
AGCO | OE Ref: F650153021740
John Deere 6J 6M 6R Series
500589 | OE Ref: AL208846 19 20 21 18 19 8 14 18 15
MFWD SHIM KIT
500321 | OE Ref: AL160114
John Deere 6J 6M 6R
6020 7020 7030 Series
500778 | OE Ref: AL160118 10 11 13
DIFFERENTIAL HOUSING BOLT
500938 | OE Ref: L166394
AGCO | OE Ref: 016303719
John Deere 6M 6R Series
BRAKE DISC
SET FRONT AXLE
500590 | OE Ref: AL160176
TAPERED ROLLER BEARING
43791G | OE Ref: 76086014
TAPERED ROLLER BEARING
500835 | OE Ref: 005103697
AGCO | OE Ref: 005103697
John Deere 6M 6R Series
John Deere 6M 6R 6010 6020 Series
AGCO | OE Ref: F650153021750 John Deere 6020 6R 6M 6RC Series
John Deere 6M 6R 6020 6030 Series
CROWN WHEEL & PINION
500329 | OE Ref: AL160170
John Deere 6J 6M 6R
6020 6030 7020 Series
FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
DIFFERENTIAL CARRIER
500330 | OE Ref: AL160210
John Deere 6J 6M 6R 6020
6030 7020 7050 7080 9000 Series
FASTENER
| OE Ref: L114209
Deere 6R 6M
9 8 6 11 2 2 3 1 2 4 5 10 7
TRACK ROD ASSEMBLY
500940 | OE Ref: AL224138
John Deere 6M 6R Series
John Deere 6M 6R Series 1
AGCO | OE Ref: 16044644
STEERING CYLINDER SHIM
500942 | OE Ref: L216924
John Deere 6M 6R Series
STEERING CYLINDER ROD
500943 | OE Ref: AL228338
John Deere 6M 6R Series
5
STEERING CYLINDER O-RING KIT
500944 | OE Ref: AL228339
John Deere 6M 6R Series
BALL JOINT
500946 | OE Ref: AL224140
John Deere 6M 6R Series
TRACK ROD END BOOT SEAL
500947 | OE Ref: AL209609
AGCO | OE Ref: 7502445021
John Deere 6M 6R Series
TRACK ROD NUT
500949 | OE Ref: L171642
John Deere 6M 6R Series
TRACK ROD BALL JOINT NUT
500950 | OE Ref: L217271
John Deere 6M 6R Series
6
7 8 9 10 11 4
TRACK ROD END
500945 | OE Ref: AL224139
John Deere 6M 6R Series
TRACK ROD END BOOT
500948 | OE Ref: AL209610
AGCO | OE Ref: 7502445020
John Deere 6M 6R Series
SPACER FRONT
John Deere 6M 6R
FRONT AXLE HUB SEAL 59854 | OE Ref: AL160535
KNUCKLE HOUSING 500607 | OE Ref: L216820 Visit website for compatibility
AGCO | OE Ref: 002020087
John Deere 6E 6M 6R 6020 8000 Series SNAP RING 500339 | OE Ref: 354750A1
MFWD CYLINDRICAL BALL BEARING 500282 | OE Ref: AL159599
John Deere 6J 6M 6R 6020 6030 7020 7030 Series AGCO | OE Ref: X605595700000
John Deere 6J 6M 6R 6020 6030 7030 Series
AGCO | OE Ref: 002013405
John Deere 6M 6R Series
FRONT AXLE KNUCKLE HOUSING LH 500963 | OE Ref: L220018
4 5
8 9
FRONT AXLE
500964 | OE Ref: L220019 7 8 9
KNUCKLE HOUSING RH
AGCO | OE Ref: VHA9369
John Deere 6M 6R Series
STUB AXLE BEARING
500322 | OE Ref: 5103860
AGCO | OE Ref: VLA9316
John Deere 6M 6R 6020
6030 7020 7030 Series
HOUSING BOLT
500913 | OE Ref: L218665
John Deere 6M 6R Series
KING PIN
500828 | OE Ref: L218739
KNUCKLE HOUSING NUT
500955 | OE Ref: 14M7276
John Deere 6M 6R Series
580000 | OE Ref: AL110924 11
AGCO | OE Ref: V36249300
John Deere 6J 6M 6R 6020 Series
SHIM FRONT AXLE KNUCKLE HOUSING
500610 | OE Ref: AL160138
AGCO | OE Ref: 7500440007
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
KING PIN BOLT
500918 | OE Ref: L208687
John Deere 6M 6R Series
FRONT AXLE
KING PIN SEAL
John Deere 6000 7000 10 20 30 Series
500796 | OE Ref: L165798 14 15 16 17 18 20
WHEEL POSITION SENSOR WITH CONNECTING ADAPTER
500798 | OE Ref: L206295
John Deere 6M 6R 7R Series
John Deere 6M 6R 6020 7020 Series
KING PIN
500834 | OE Ref: L218742
John Deere 6J 6M 6R 6020 Series
FRONT AXLE BUSHING
500799 | OE Ref: 87472582
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series
21
WHEEL POSITION SENSOR CONNECTION DISC
John Deere 6M 6R 6020 Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series
O-RING FRONT AXLE WHEEL HUB
FRONT AXLE
KNUCKLE HOUSING HUB
500829 | OE Ref: L217078
John Deere 6M 6R Series
TAPERED ROLLER BEARING
500313 | OE Ref: L156870 1 2 5 4
500606 | OE Ref: L113950
AGCO | OE Ref: X549040200000
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
500283 | OE Ref: AL81844
AGCO | OE Ref: VLA9321
John Deere 6M 6R 6010 6020 6030 7030 Series
AGCO | OE Ref: 385300020860
John Deere 6M 6R Series
6
MFWD SNAP RING
AGCO | OE Ref: F718301020380
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
RING GEAR SUPPORT
500827 | OE Ref: L217115
John Deere 6M 6R Series
NUT PLANETARY RING GEAR
500585 | OE Ref: L216839
AGCO | OE Ref: F530300220090
John Deere 6R 6M Series
John Deere 6020 6R 6M 6RC Series AGCO | OE Ref: 016050435
500593 | OE Ref: L220017
John Deere 6R 6M Series
PLANETARY RING GEAR
500826 | OE Ref: L217116
John Deere 6M 6R Series
SEALING WASHER PLANETARY HOUSING
500587 | OE Ref: Z104508
John Deere 6M 6R Series
PLANETARY DRIVE LOCK PLATE
500309 | OE Ref: L216840
John Deere 6M 6R Series
PLANETARY GEAR CARRIER 500825 | OE Ref: L218745
John Deere 6M 6R Series
DRAIN PLUG PLANETARY HOUSING
500586 | OE Ref: L169940
John Deere 6M 6R Series AGCO | OE Ref: F835300020680
1 2 3 4 5 6 7 8 9 10 10 11 12 13
MFWD O-RING
500332 | OE Ref: L113937
AGCO | OE Ref: VKH3784
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
4
SEALING WASHER PLANETARY HOUSING
John Deere 6R 6M Series

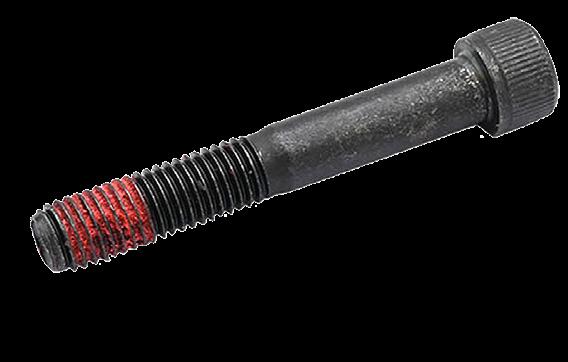

FRONT AXLE HOUSING BOLT
500951 | OE Ref: L216824
AGCO | OE Ref: 1120607010
John Deere 6M 6R Series
MFWD THRUST BUSHING
500337 | OE Ref: L113966
AGCO | OE Ref: 339040
John Deere Series
8
FRONT MFWD AXLE BUSHING
500286 | OE Ref: L114652
AGCO | OE Ref: F718301020520
John Deere Series
DRIVE SHAFT
500962 | OE Ref: AL220210 3
DRAIN PLUG
500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
500587 | OE Ref: Z104508 5 6 7
John Deere 6M 6R Series
MFWD SEAL
500335 | OE Ref: AL227049
John Deere Series
500965 | OE Ref: L217178 18 19 20 21 10 11 13
UNIVERSAL JOINT
500750 | OE Ref: AL220306
John Deere 6R 6M Series
GREASE NIPPLE
500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
UNIVERSAL JOINT YOKE
500961 | OE Ref: AL220304
John Deere 6M 6R Series
DOUBLE JOINTED PINION SHAFT
John Deere 6M 6R Series
1 2 3 4 5 6 7 8 11 12 13 9 10
FRONT BRAKE SEAL 500617 | OE Ref: L208685 2 3 1
BLEED VALVE 500802 | OE Ref: L156879
John Deere 6M 6R 6020 6030 Series
FRONT BRAKE SEAL 500616 | OE Ref: L208686
John Deere 6R Series
MFWD O-RING 500311 | OE Ref: L156880
John Deere 6M 6R 6020 6030 7030 Series
BRAKE PISTON 500618 | OE Ref: L208684
John Deere 6R Series
John Deere 6R 6M Series 8
PLANETARY RING GEAR PLATE 500300 | OE Ref: L172015
John Deere 6R Series
John Deere 6R Series

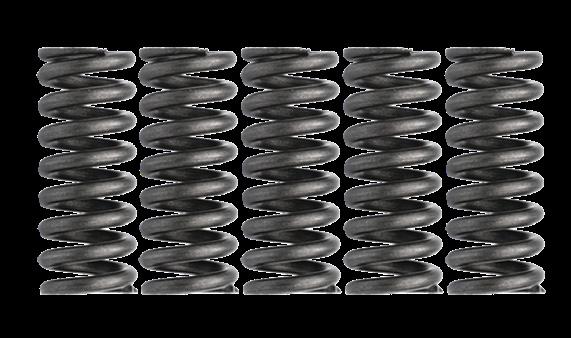

SPRING FOR PLANETARY HUB 500592 | OE Ref: L156885
| OE Ref: V37963000
John Deere 6R 6M Series
MFWD DISC WITH INNER SPLINE 500301 | OE Ref: L166562 6
John Deere 6M 6R 6020 6030 Series
500305 | OE Ref: L156891 18 19 20 21 10 11 13
5 6 7 8 9 10 8 9 11 12 13 15 16 17 18 19 20 21 13 14
1 2 3
PINION GEAR NUT
500967 | OE Ref: L171981
AGCO | OE Ref: 006093877
John Deere 6M 6R Series
PINION GEAR WASHER
500968 | OE Ref: L171982
AGCO | OE Ref: 7550401601
John Deere 6M 6R Series
3 2
FRONT AXLE SHIM KIT
500770 | OE Ref: AL174434
John Deere 6M 6R Series
6 1
4 5
COUPLING
500974 | OE Ref: L208669
John Deere 6M 6R Series
BEARING CROWN WHEEL & PINION
500591 | OE Ref: AL166518
AGCO | OE Ref: ACV0300100
PINION GEAR O-RING
500969 | OE Ref: L208667
AGCO | OE Ref: 001050669
John Deere 6M 6R Series
FRONT AXLE SHIM
500971 | OE Ref: AL220033
AGCO | OE Ref: 7500440037
John Deere 6M 6R Series
John Deere 04 6003 6B 6D 6E Series
SHAFT SEAL
600070 | OE Ref: H524300020121
John Deere Series
TAPERED ROLLER BEARING
500972 | OE Ref: AL175761
AGCO | OE Ref: VLA9324
John Deere 6M 6R Series
CROWN WHEEL & PINION
500973 | OE Ref: AL221776
John Deere 6M 6R Series
FRONT AXLE HOUSING BOLT
500975 | OE Ref: L166310
AGCO | OE Ref: 016303737
John Deere 6M 6R Series
DIFFERENTIAL DISC KIT
500982 | OE Ref: L216946 14 15 16 17 18 19 20 21 7 8 9 10 11 14
DIFFERENTIAL HOUSING BOLT
500938 | OE Ref: L166394
AGCO | OE Ref: 016303719
John Deere 6M 6R Series
500981 | OE Ref: AL222133
AGCO | OE Ref: F835300020810
John Deere 6M 6R Series
FRONT AXLE FLANGE
AGCO | OE Ref: F718301020190
John Deere 6M 6R Series
FRONT AXLE SNAP RING
500983 | OE Ref: L216947
| OE Ref: X533321800000
John Deere 6M 6R Series
FRONT AXLE PISTON
500986 | OE Ref: L216950 18 20 15
BALL BEARING
| OE Ref: F712301020120
500987 | OE Ref: AL220041 17 16
| OE Ref: F718301020200 AGCO | OE Ref: X505545139000
John Deere 6M 6R Series
FRONT AXLE O-RING
500988 | OE Ref: AL220042
FRONT AXLE SNAP RING
FRONT AXLE HOUSING
500976 | OE Ref: AL224452
500985 | OE Ref: L216949
| OE Ref: X533323900000
John Deere 6M 6R Series
FRONT AXLE O-RING
| OE Ref: F718301020210 AGCO | OE Ref: F718301020220
John Deere 6M 6R Series
John Deere 6M 6R Series
500787 | OE Ref: L156853 21 24 19 26
DIFFERENTIAL KIT
John Deere 6M 6R Series
DIFFERENTIAL DISC KIT
500977 | OE Ref: AL115652
| OE Ref: F712301020160
John Deere 6M 6R Series
500980 | OE Ref: AL220039 14 15 16 18 20 21 21 22 23 25 27 28
| OE Ref: F718301020130
John Deere 6M 6R Series
500978 | OE Ref: AL220037 6020 7030 Series
| OE Ref: F718301020140
TAPERED ROLLER BEARING
500979 | OE Ref: AL220034
| OE Ref: 005104102
John Deere 6M 6R Series
FRONT AXLE THRUST WASHER
| OE Ref: F718301020120
John Deere 6M 6R 6020 6030 Series
FRONT AXLE SHIM KIT
| OE Ref: F835300020590
John Deere 6M 6R Series
5 12 1 3 2 3 4 3 3 2 11 10 7 6 8 9
POWER STEERING CYLINDER
TRACK ROD ASSEMBLY
STEERING CYLINDER BOLT
500990 | OE Ref: AL224308
500941 | OE Ref: L216835 2 3 1
John Deere 6M 6R Series
500991 | OE Ref: AL224311
John Deere 6M 6R Series
AGCO | OE Ref: 16044644
John Deere 6M 6R Series
STEERING CYLINDER SHIM
500942 | OE Ref: L216924
John Deere 6M 6R Series
STEERING CYLINDER ASSEMBLY
500993 | OE Ref: AL224310
John Deere 6M 6R Series
AGCO | OE Ref: 7552445018
John Deere 6M 6R Series 8 9 10 11 12 4 5
TRACK ROD BALL JOINT NUT
500950 | OE Ref: L217271
John Deere 6M 6R Series
TRACK ROD RUBBER BOOT
500996 | OE Ref: AL220296
John Deere 6M 6R Series

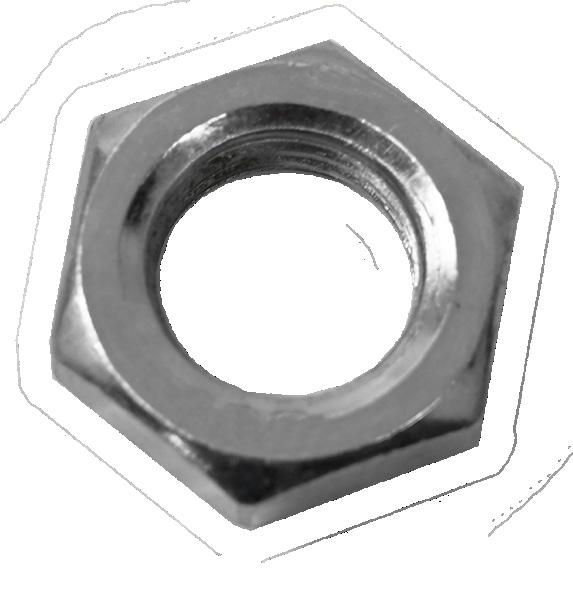

TRACK ROD NUT
500949 | OE Ref: L171642
John Deere 6M 6R Series
TRACK ROD END
500994 | OE Ref: AL224312
John Deere 6M 6R Series
TRACK ROD END BOOT
500948 | OE Ref: AL209610
AGCO | OE Ref: 7502445020
John Deere 6M 6R Series
POWER STEERING CYLINDER SEAL KIT
500997 | OE Ref: AL224303 6
John Deere 6M 6R Series
1
FRONT AXLE HUB SEAL
59854 | OE Ref: AL160535
John Deere 6005 6010 6020 6030 7030 Series
2
SNAP RING FRONT AXLE
KNUCKLE HOUSING
500609 | OE Ref: L171986
AGCO | OE Ref: 002023410
John Deere 6J 6M 6R Series
4 5
SPACER FRONT AXLE
KNUCKLE HOUSING
500607 | OE Ref: L216820
John Deere 6M 6R Series
7
FRONT AXLE
KNUCKLE HOUSING RH
501005 | OE Ref: L220318
John Deere 6M 6R Series
18 19 11
HOUSING BOLT
500913 | OE Ref: L218665
John Deere 6M 6R Series
SNAP RING
500338 | OE Ref: L156859
AGCO | OE Ref: 002013405
John Deere 6J 6M 6R
6020 6030 7030 Series
8
DRAIN PLUG
500803 | OE Ref: 15M7020
AGCO | OE Ref: V37954500
John Deere 6M 6R 6010 6030 7020 Series
20 12
HOUSING NUT
500912 | OE Ref: 6053434
AGCO | OE Ref: 6053434
John Deere 6M 6R Series
3

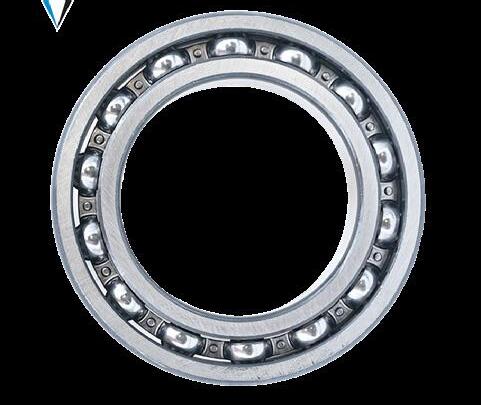

BALL BEARING
501001 | OE Ref: AL175771
John Deere 6M 6R Series
6
FRONT AXLE
KNUCKLE HOUSING LH
501004 | OE Ref: L220317
John Deere 6M 6R Series
9
SEALING RING
500804 | OE Ref: 51M4236
AGCO | OE Ref: V37954600
John Deere 6M 6R 6020 6030 7030 Series
21 13
TAPERED ROLLER BEARING
501014 | OE Ref: AL175783
AGCO | OE Ref: 005101035
John Deere 6M 6R Series
KING PIN SEAL
56636 | OE Ref: AL175778
John Deere 6M 6R 7030
8000 9000 Series
KING PIN
501015 | OE Ref: L218740
AGCO | OE Ref: 7550602804
John Deere 6M 6R Series
AGCO | OE Ref: VHA9369
John Deere 6M 6R Series
17 18
KING PIN SHIM
501003 | OE Ref: AL160138
AGCO | OE Ref: V36267400
John Deere 6M 6R Series
20
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
16
19 14
FRONT AXLE KING PIN SEAL 580000 | OE Ref: AL110924
John Deere 6000 7000 10 20 30 Series
21
KING PIN BOLT
500918 | OE Ref: L208687
John Deere 6M 6R Series
KING PIN 57140 | OE Ref: AL172488
AGCO | OE Ref: 7500670901
John Deere 6M 6R Series
STUB AXLE BEARING 500322 | OE Ref: AL172489
AGCO | OE Ref: VLA9316
John Deere 6M 6R 6020 6030 7020 7030 Series
22
FRONT AXLE BUSHING 500799 | OE Ref: L166758
John Deere 6R 6020 7020 Series AGCO | OE Ref: X548852301000
18 19 20 21 23 24 26
WHEEL POSITION SENSOR
CONNECTING ADAPTER
500798 | OE Ref: L165796
John Deere 6M 6R 7R Series
John Deere 6M 6R 6020 7020 Series
KING PIN 500834 | OE Ref: L218742
John Deere 6J 6M 6R 6020 Series
WHEEL POSITION SENSOR CONNECTION DISC
500796 | OE Ref: L165798
John Deere 6M 6R 6020 Series
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
HUB SEAL FRONT AXLE
500612 | OE Ref: AL237903
| OE Ref: 7550608201
1 2 3 5 6
TAPERED ROLLER BEARING 501007 | OE Ref: AL115660
| OE Ref: 3907228M1
John Deere 6J 6M 6R Series
O-RING FRONT AXLE WHEEL HUB
500606 | OE Ref: L113950
AGCO | OE Ref: X549040200000
FRONT AXLE WHEEL HUB
501008 | OE Ref: L216838
John Deere 6M 6R Series
TAPERED ROLLER BEARING
500283 | OE Ref: AL81844
AGCO | OE Ref: VLA9321
AGCO | OE Ref: 385300020860
John Deere 6M 6R Series
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
John Deere 6M 6R 6010 6020 6030 7030 Series
7
MFWD SNAP RING
500313 | OE Ref: L156870
AGCO | OE Ref: F718301020380
John Deere 6J 6M 6R 6020 6030 7020 7030 Series
PLANETARY DRIVE LOCK PLATE
500309 | OE Ref: L216840
John Deere 6M 6R Series
RING GEAR SUPPORT
500603 | OE Ref: AL224299
John Deere 6R Series
NUT PLANETARY RING GEAR
500585 | OE Ref: L216839
AGCO | OE Ref: F530300220090
John Deere 6R 6M Series
SNAP RING FRONT AXLE PINION
501006 | OE Ref: L220320
John Deere 6M 6R Series
STUD FOR PLANETARY HUB
500593 | OE Ref: L220017
John Deere 6R 6M Series
RING GEAR FRONT AXLE 500604 | OE Ref: L220167 8
John Deere 6R Series
14 15 16 17
FRONT AXLE DRIVE PINION BEARING CONE
500595 | OE Ref: AL224530
John Deere 6R Series
FRONT AXLE DRIVE PINION
56830 | OE Ref: L220322
John Deere 6R Series
FRONT AXLE DRIVE PINION BEARING CONE
500594 | OE Ref: AL224529
John Deere 6R Series
18 19 20
21 18 20
PLANET PINION CARRIER
501009 | OE Ref: L220324
John Deere 6R 6M Series
AXLE CARRIER BOLT
500959 | OE Ref: 19M5039
AGCO | OE Ref: 016050435
John Deere 6020 6R 6M 6RC Series
SEALING WASHER PLANETARY HOUSING
500587 | OE Ref: Z104508
John Deere 6M 6R Series
DRAIN PLUG
PLANETARY HOUSING
500586 | OE Ref: L169940
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
AXLE HOUSING O-RING
500998 | OE Ref: L208672
AGCO | OE Ref: X549039400000
John Deere 6M 6R Series
4
FRONT AXLE HOUSING LH 501002 | OE Ref: AL224526
John Deere 6M 6R Series
MFWD SEAL 500335 | OE Ref: AL227049
John Deere Series
FRONT AXLE HOUSING RH 500999 | OE Ref: AL224524
John Deere 6M 6R Series
6 1
3 2
FRONT AXLE HOUSING BOLT 500951 | OE Ref: L216824
AGCO | OE Ref: 1120607010
John Deere 6M 6R Series
AXLE SHAFT 501013 | OE Ref: L220165 14 15 16 18 19 20 21 7 8 9 11 12 13 14 5
UNIVERSAL JOINT 501011 | OE Ref: AL224298
John Deere 6M 6R Series
SEALING WASHER
PLANETARY HOUSING 500587 | OE Ref: Z104508
John Deere 6R 6M Series
FRONT MFWD AXLE BUSHING 500286 | OE Ref: L114652
AGCO | OE Ref: F718301020520
John Deere Series
DRAIN PLUG 500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
GREASE NIPPLE 500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
DRIVESHAFT ASSEMBLY 501000 | OE Ref: AL224295
John Deere 6M 6R Series
UNIVERSAL JOINT YOKE 501012 | OE Ref: AL224297
John Deere 6M 6R Series
John Deere 6M 6R Series
1 2 3 4 5 6 7 8 11 12 13 9 10
BLEED VALVE
MFWD O-RING
500802 | OE Ref: L156879
PLANETARY GEAR O-RING 500602 | OE Ref: L220326 2 3 1
John Deere 6M 6R 6020 6030 Series
RING GEAR BACKUP O-RING
John Deere 6R Series
500311 | OE Ref: L156880
John Deere 6M 6R 6020 6030 7030 Series
BRAKE PISTON
500600 | OE Ref: L220325
John Deere 6R Series
| OE Ref: V37962300 AGCO | OE Ref: V37963000
John Deere 6R Series
500601 | OE Ref: L220327 8 9 4 5
PLANETARY CARRIER DISC WITH OUTER SPLINE
| OE Ref: V37963100
John Deere 6R 6M Series
500599 | OE Ref: L172015
| OE Ref: V63140600
John Deere 6R Series
BRAKE DISC WITH OUTER SPLINE
500597 | OE Ref: L172017
| OE Ref: V63140800
John Deere 6R Series
SPRING FOR PLANETARY HUB
500592 | OE Ref: L156885
John Deere 6R 6M Series
BRAKE DISC 500598 | OE Ref: L172016 6
| OE Ref: V63140700
John Deere 6R Series
O-RING 500305 | OE Ref: L156891 18 19 20 21 10 11 13
| OE Ref: X549031800000
John Deere 6M 6R Series
| OE Ref: V37962900
John Deere 6M 6R 6020 6030 7030 Series
FRONT AXLE PINION NUT
500937 | OE Ref: L113979
AGCO | OE Ref: F222301020060
John Deere 6M 6R Series
FRONT AXLE COUPLING
500777 | OE Ref: L156899
FRONT AXLE THRUST WASHER
500773 | OE Ref: L113978
AGCO | OE Ref: F222301020070
John Deere 6J 6M 6R Series
AXLE INPUT PINION O-RING
500333 | OE Ref: L156850
AGCO | OE Ref: V31794000
FRONT AXLE SHIM KIT 500770 | OE Ref: AL174434
John Deere 6M 6R Series
John Deere Series SHAFT SEAL 600070 | OE Ref: AL159591 1 2 3 5 4 6
John Deere 6M 6R 6020 Series
John Deere 6D 6J 6M 6R 6020 6030 7020 7030 Series
BEARING CROWN WHEEL & PINION
500591 | OE Ref: AL166518
AGCO | OE Ref: ACV0300100
John Deere 04 6003 6B 6D 6E Series
FRONT AXLE SHIM KIT
MFWD SHIM KIT
500321 | OE Ref: AL160114
John Deere 6J 6M 6R
6020 7020 7030 Series
TAPERED ROLLER BEARING
9
TAPERED ROLLER BEARING
500835 | OE Ref: AL160115
AGCO | OE Ref: 005103697
John Deere 6M 6R Series
500778 | OE Ref: AL160118 10 11 12
AGCO | OE Ref: F650153021740
John Deere 6J 6M 6R Series
13 7
DIFFERENTIAL HOUSING BOLT
500938 | OE Ref: L166394
AGCO | OE Ref: 016303719
John Deere 6M 6R Series
FRONT AXLE
43791G | OE Ref: AL235445
John Deere 6M 6R 6010 6020 Series
CROWN WHEEL & PINION
500329 | OE Ref: AL160170
John Deere 6J 6M 6R
6020 6030 7020 Series
BRAKE DISC SET
500590 | OE Ref: AL160176
FRONT AXLE THRUST WASHER
500787 | OE Ref: L156853
BOLT DIFFERENTIAL HOUSING
500891 | OE Ref: L166293
AGCO | OE Ref: F650153021750
John Deere 6M 6R 6020 6030 Series
DIFFERENTIAL CARRIER
500330 | OE Ref: AL160210
500589 | OE Ref: AL208846 19 20 21 18 19 8 14 18 15
John Deere 6J 6M 6R 6020 6030 7020 7050 7080 9000 Series
PIN FASTENER
500842 | OE Ref: L114209
| OE Ref: F718301020140
John Deere 6M 6R 6010 6020 7030 Series
DIFFERENTIAL KIT
| OE Ref: F650153021730
John Deere 6R 6M Series
TRACK ROD ASSEMBLY
500940 | OE Ref: AL224138 1
John Deere 6M 6R Series
AGCO | OE Ref: 16044644
John Deere 6M 6R Series
STEERING CYLINDER ROD
500943 | OE Ref: AL228338
John Deere 6M 6R Series
500946 | OE Ref: AL224140
John Deere 6M 6R Series
STEERING CYLINDER SHIM
500942 | OE Ref: L216924
John Deere 6M 6R Series
STEERING CYLINDER O-RING KIT
500944 | OE Ref: AL228339
John Deere 6M 6R Series
TRACK ROD END BOOT SEAL
500947 | OE Ref: AL209609
AGCO | OE Ref: 7502445021
John Deere 6M 6R Series
TRACK ROD NUT
500949 | OE Ref: L171642
John Deere 6M 6R Series
TRACK ROD BALL JOINT NUT
500950 | OE Ref: L217271 5
John Deere 6M 6R Series
TRACK ROD END
John Deere 6M 6R Series
500945 | OE Ref: AL224139 6 7 8 9 10 11 4
TRACK ROD END BOOT
500948 | OE Ref: AL209610
AGCO | OE Ref: 7502445020
John Deere 6M 6R Series
FRONT AXLE HUB SEAL
59854 | OE Ref: AL160535
John Deere 6005 6010 6020 6030 7030 Series
4
SPACER FRONT AXLE
KNUCKLE HOUSING
500607 | OE Ref: L216820
John Deere 6M 6R Series
2
3 1
SNAP RING FRONT AXLE
KNUCKLE HOUSING
500609 | OE Ref: L171986
AGCO | OE Ref: 002023410
John Deere 6J 6M 6R Series
5
SNAP RING
500338 | OE Ref: L156859
AGCO | OE Ref: 002013405
John Deere 6J 6M 6R
6020 6030 7030 Series
BALL BEARING
501001 | OE Ref: AL175771
John Deere 6M 6R Series
6
FRONT AXLE
KNUCKLE HOUSING LH
501004 | OE Ref: L220317
John Deere 6M 6R Series
7 8
FRONT AXLE
KNUCKLE HOUSING RH
501005 | OE Ref: L220318
John Deere 6M 6R Series
18 19 10 11
HOUSING BOLT
500913 | OE Ref: L218665
John Deere 6M 6R Series
DRAIN PLUG
500803 | OE Ref: 15M7020
AGCO | OE Ref: V37954500
John Deere 6M 6R 6010 6030 7020 Series
20 12
HOUSING NUT
500912 | OE Ref: 6053434
AGCO | OE Ref: 6053434
John Deere 6M 6R Series
9
SEALING RING
500804 | OE Ref: 51M4236
AGCO | OE Ref: V37954600
John Deere 6M 6R 6020 6030 7030 Series
21 13
TAPERED ROLLER BEARING
501014 | OE Ref: AL175783
AGCO | OE Ref: 005101035
John Deere 6M 6R Series
KING PIN SEAL
56636 | OE Ref: AL175778
John Deere 6M 6R 7030
8000 9000 Series
KING PIN 501015 | OE Ref: L218740
AGCO | OE Ref: 7550602804
John Deere 6M 6R Series
KING PIN SHIM
AGCO | OE Ref: VHA9369
John Deere 6M 6R Series
501003 | OE Ref: AL160138 17 18 19 14
AGCO | OE Ref: V36267400
John Deere 6M 6R Series
20
KING PIN COVER
500800 | OE Ref: L208688
John Deere 6J 6M 6R Series
FRONT AXLE KING PIN SEAL 580000 | OE Ref: 76086014
John Deere 6000 7000 10 20 30 Series
KING PIN 57140 | OE Ref: AL172488
AGCO | OE Ref: 7500670901
John Deere 6M 6R Series
STUB AXLE BEARING 500322 | OE Ref: AL172489 16
AGCO | OE Ref: VLA9316
John Deere 6M 6R 6020 6030 7020 7030 Series
22
FRONT AXLE BUSHING 500799 | OE Ref: L166758
AGCO | OE Ref: X548852301000
John Deere 6R 6020 7020 Series
18 19 20 21 23 24 26
WHEEL POSITION SENSOR CONNECTING ADAPTER
500798 | OE Ref: L165796
John Deere 6M 6R 7R Series
John Deere 6M 6R 6020 7020 Series
KING PIN 500834 | OE Ref: L218742
John Deere 6J 6M 6R 6020 Series
WHEEL POSITION SENSOR CONNECTION DISC 500796 | OE Ref: L165798
John Deere 6M 6R 6020 Series
HUB SEAL
62716 | OE Ref: 3785511M1
Industrial John Deere Series
Case IHC CVX Maxxum MX Series
O-RING FRONT AXLE WHEEL HUB
500313 | OE Ref: L156870 1 2 5 6 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
500606 | OE Ref: L113950
John Deere 6J 6M 6R 6020
FRONT AXLE
KNUCKLE HOUSING HUB
500829 | OE Ref: L217078
John Deere 6M 6R Series
TAPERED ROLLER BEARING
500283 | OE Ref: AL81844
John Deere 6M 6R 6010
6020 6030 7030 Series
AGCO | OE Ref: 385300020860
John Deere 6M 6R Series
MFWD SNAP RING
6030 7020 7030 Series AGCO | OE Ref: X549040200000 AGCO | OE Ref: VLA9321 AGCO | OE Ref: F718301020380
John Deere 6J 6M 6R 6020
6030 7020 7030 Series
RING GEAR SUPPORT
500827 | OE Ref: L217115
John Deere 6M 6R Series
NUT PLANETARY RING GEAR
500585 | OE Ref: L216839
500593 | OE Ref: L220017
John Deere 6R 6M Series
PLANETARY RING GEAR
500826 | OE Ref: L217116
PLANETARY DRIVE LOCK PLATE
500309 | OE Ref: L216840
John Deere 6M 6R Series
PLANETARY GEAR CARRIER 500825 | OE Ref: L218745
AGCO | OE Ref: F530300220090 AGCO | OE Ref: 016050435
John Deere 6020 6R 6M 6RC Series
John Deere 6M 6R Series
DIFFERENTIAL KIT
500587 | OE Ref: AL209970
John Deere 6M 6R Series
John Deere 6M 6R Series
18 19 20 21 17 18 19 14
500287 | OE Ref: L156866
| OE Ref: F718301020350
DRAIN PLUG PLANETARY HOUSING
500586 | OE Ref: L156853
AGCO | OE Ref: F835300020680
John Deere 6M 6R Series
PINION
| OE Ref: L166395 PINION BEARING CONE 500285 | OE Ref: AL160139
| OE Ref: X619069800005
1 3 2 4 5 6 7 8 9 10 11 12 12 13 14 15
AXLE HOUSING O-RING
500998 | OE Ref: L208672 7 8 9
AGCO | OE Ref: X549039400000
John Deere 6M 6R Series
SHORT AXLE HOUSING LH 501023 | OE Ref: AL224325
John Deere 6M 6R Series
MFWD SEAL
500335 | OE Ref: AL227049
John Deere Series
FRONT AXLE HOUSING BOLT
500951 | OE Ref: L216824
AGCO | OE Ref: 1120607010
John Deere 6M 6R Series
DRAIN PLUG
500843 | OE Ref: L169942
AGCO | OE Ref: 7330103201
John Deere 5M 6M 6R Series
FRONT MFWD AXLE BUSHING
500286 | OE Ref: L114652
AGCO | OE Ref: F718301020520
John Deere Series
SHORT AXLE HOUSING RH 501021 | OE Ref: AL224323
John Deere 6M 6R Series
SEALING WASHER PLANETARY HOUSING
500587 | OE Ref: Z104508
John Deere 6R 6M Series
DOUBLE JOINT UNIVERSAL DRIVESHAFT 501022 | OE Ref: AL219747
John Deere 6M 6R Series
AGCO | OE Ref: 339040
John Deere 50 6000 7000 8000 9000 6M 6R 6D 6E 6J 6B Series
MFWD THRUST BUSHING 500337 | OE Ref: L113966 10 13 11 2 8 9 10 13 14 15 4 7 5 12 6
UNIVERSAL JOINT
500820 | OE Ref: AL219976
501031 | OE Ref: L216963 14 15 16 18 19 20 21
John Deere 6R 6M Series
GREASE NIPPLE
500821 | OE Ref: 58M5574
AGCO | OE Ref: F835300020700
John Deere 6M 6R 7M 7R Series
UNIVERSAL JOINT
500822 | OE Ref: AL219975
John Deere 6M 6R Series
DOUBLE JOINTED PINION SHAFT
John Deere 6M 6R Series
