2023 PFS Product Catalog

Page 1

taking care of your business is our specialty PREPRESS 4 5 OFFSET 6 7 DIGITAL 8 9 10 11 FINISHING 14 16 19 22 23 24 25 26 27 28 29 30 31 32 CONSUMABLES Consumables 33 PFS Pre-Owned Equipment 38 About 39

Kodak Prinergy Workflow

Kodak Prinergy Workflow is a prepress workflow solution based on an open architecture, which integrates with a wide range of hardware and software solutions. It is compatible with a variety of file formats and can handle both traditional offset and digital printing workflows.

• Automation: Automates many routine tasks, such as file handling, file processing, and file delivery. This helps to reduce errors and save time, enabling print service providers to focus on high-value activities.

• Integration: Integrates with a wide range of software and hardware solutions, including third-party applications, MIS systems, and digital presses.

• Color Management: Advanced color management tools that enable print service providers to achieve accurate and consistent color across different printing processes and substrates.

• Job Tracking and Reporting: Real-time job tracking and reporting, allowing print service providers to monitor job progress, identify bottlenecks, and generate custom reports.

• Security: Robust security features, including user authentication and access control, to help protect sensitive customer data.

Kodak Prinergy EVO

Kodak Prinergy EVO Solutions is an updated version of the Prinergy Workflow system, which is designed to provide print service providers with more advanced automation and efficiency features. Prinergy EVO is a fully integrated workflow solution that helps printers manage their prepress production process from job submission to final output.

• Increased Automation: Automated preflight, trapping, and imposition. These features help to reduce manual labor, save time, and increase efficiency.

• Enhanced Integration: Improved integration capabilities, allowing it to work seamlessly with a wide range of hardware and software solutions, including digital presses and MIS systems.

• Improved Color Management: Advanced color management tools that help print service providers achieve accurate and consistent color across different printing processes and substrates.

• Enhanced Reporting and Analytics: Improved reporting and analytics capabilities, providing printers with real-time insights into their production processes, including job tracking, productivity, and waste reduction.

• Cloud-Enabled: Prinergy EVO can be deployed on-premise or in the cloud.

Kodak Achieve T400/T800 Platesetters

KODAK ACHIEVE T400/T800 Platesetters are robust and reliable CTP devices that deliver the stability of Kodak’s thermal light-valve imaging technology at a surprisingly low cost. They’re based on the successful KODAK TRENDSETTER Platesetter platform and available with a variety of automation and speed options.

• High-speed imaging: Produces up to 22 plates per hour, while the T800 can produce up to 40 plates per hour.

• High-quality output: Utilizes Kodak’s SquareSpot imaging technology, which produces high-resolution, stable, and consistent output.

• Automation: Automated plate loading and unloading. The systems also include automated imaging and calibration, which reduces setup time.

• Sustainability: Uses Kodak’s process-free Sonora X-N plates, which eliminates the need for processing chemistry and reduce waste.

Kodak Trendsetter Q400/Q800

The Kodak Trendsetter Q400/Q800 are computer-to-plate (CTP) systems designed for high-volume commercial printing applications.

• High-speed imaging: Produces up to 22 plates per hour, while the Q800 can produce up to 40 plates per hour. This makes them some of the fastest CTP systems on the market.

• High-quality output: Utilizes Kodak’s SquareSpot imaging technology, which produces high-resolution, stable, and consistent output.

• Automation: Automated plate loading and unloading.The systems also include automated imaging and calibration, which reduces setup time.

• Sustainability: Uses Kodak’s process-free Sonora X-N plates, which eliminates the need for processing chemistry and reduce waste.

• Connectivity: Integrates with Kodak’s Prinergy Workflow software.

Kodak Magnus Q800 Platesetter

The Kodak Magnus Q800 Platesetter is a computer-to-plate (CTP) system designed for high-volume commercial printing applications.

• High-speed imaging: Produces up to 80 plates per hour.

• High-quality output: Utilizes Kodak’s SquareSpot imaging technology, which produces high-resolution, stable, and consistent output.

• Automation: Includes automated plate loading and unloading, which reduces manual labor and improves efficiency.

• Sustainability: Incorporates Kodak’s process-free Sonora X-N plates, which eliminate the need for processing chemistry and reduces waste.

• Connectivity: Integrates with Kodak’s Prinergy Workflow software.

Mitsubishi TDP-459

Mitsubishi Imaging makes going green affordable with the eco-friendly Thermal DigiPlate. The 2-up CTP system is ideal for small printers who want an environmentally friendly upgrade from analog and electrostatic plates and the ability to image film.

Mitsubishi Imaging’s processless and chemistry-free Thermal DigiPlater is a 2-up dual function platesetter and film imager. The system is available in two configurations: TDP-459 and TDP-324.

5 (800) 398-5283 PFSGRAPHICS .COM 4


The RMGT 10 Series is a leading press in the commercial print and packaging industry. Available in many different configurations include the Tandem Perfector. The RMGT 10 can boast the lowest cost of ownership amongst all other 40 inch press manufacturers, making it ideal for the packaging industry with extreme reliability.

• Max Printing Speed: 17,700 SPH (Sheets Per Hour)

• Max Sheet Size: 750 x 1050 mm (29.53” x 41.34”)

• Max Printing Area: 740 x 1050 mm (29.13” x 41.34”)

• Paper Thickness: 0.05 - 1.00 mm (0.002” - 0.040”)

Available with convertible perfector and LED-UV technology.


The 9 series offers full-sized performance with full-sized features. This press boasts a 19-roller inker, Ryobi-matic continuous dampering, semi-automatic plate loader, blanket washers, roller washers, the PCS-G Printing Control Console, program inking, ultrasonic double sheet detection, and much, much, more. All this with a 31 percent production cost saving over a traditional 40” press.

• A1-size 4 &5-color offset press

• Max. paper size: 36.22 x 24.61”

• Max. printing speed: 16,200 sph

Available with convertible perfector and LED-UV technology.


Quite possibly the world’s perfect printing press, the 7 Series provides unsurpassed print quality, reliability, and state-of-theart automation. U/V and aqueous chambered anilox coating with full automation including all preset, plate loaders, closed loop spectrophotometry, ink volume setter software, double diameter impression and transfer cylinders, superior inking capabilities, and 31 point stock capabilities!

• B2-size multi-color offset press

• Available in 2-10 color models including optional

• Max. paper size: 29.5 x 23.6”

• (31 X 23.6” can be fed)

• Max. printing speed: 16,000 sph

Available with convertible perfector and LED-UV technology.


The 5 Series offset presses are specially designed for diverse, short-run and long-run printing of catalogs, high-quality art, packages, envelopes, and postcards with enhanced productivity and superior quality. The newly-developed GX series features a semi-automatic plate changer, pull side guide and impression pressure preset systems, a suction tape feeder board, automatic cleaning device, PCS-H printing control system, and program inking. The GX series can be configured for printing with UV inks; including LED, and UV coating applications.

• A3-plus size 524GX 4-color

• Max. Paper Size: 20.47 x 14.76”

• Max. Printing Speed: 15,000 sph

Available with LED-UV technology.


The RMGT 3 Series press is designed to complement the larger offerings from RMGT. This flexible press is available in 1 – 4 color configurations with an A3 format size. Ideal for Letterhead, Stationary, Forms, and Business Cards.

• A3-plus size portrait format printing presses

• Max. Paper Size: 13.39 x 17.72”

• Max. Printing Speed: 10,000 sph


The Sentinel iPro® Ink Management System is an electronically-controlled, completely automated cartridge-based ink dispensing system with the capabilities to track and report ink usage. The electronic sensor monitors the amount of ink in the fountain and automatically adds ink when and where needed. With the Sentinel system, customers experience ink savings of up to 15-20%, savings through reduced waste ink disposal, improved color consistency and increased productivity.

Benford UV-LED

Benford offers a wide range of UV curing systems, including traditional UV curing lamps as well as LED UV systems. Each solution is expertly designed for a specific purpose and application. A customized solution will be tailored to fit the exact needs required to optimize performance. All Benford UV curing lamps are based on a modular, compact and solid-state design that allows for fast and simple UV retrofitting. With the future in mind, Benford UV has designed the Dual UV™ system, which is a combination of 2 or more UV curing lamps in one system.

7 (800) 398-5283 PFSGRAPHICS .COM 6

Kodak Prosper 7000 Turbo

Kodak Prosper 7000 Turbo Press is a high-speed inkjet web press built on Kodak’s Stream Inkjet Technology, which produces a continuous flow of ink. It’s drop velocity is almost 3x faster than drop-on demand technologies.

• Throughput: Up to 410 mpm (1,345 fpm)

• Image quality: Approaching 200 Ipi at 200mpm

• Substrates: Uncoated, matte, glossy and silk coated papers

• Paper Weight: 42-270gsm

• Digital Front end: Kodak 800 Print Manager

• Print Configurations (Standard): (92 x 26 x 8 feet)²

• Print Configurations (L-Shaped): (52 x 64 x 8 feet)²

• Print Configurations (U-Shaped): (50 x 43 x 8 feet)²

Kodak Prosper Ultra 520 Press

Kodak Prosper Ultra 520 Press is a high-speed inkjet web press built on Kodak’s continuous inkjet technology, which uses piezoelectric printheads to produce high-quality, variable data printing at high speeds.

• Print speed: up to 500 ft./min.

• Maximum print width: 20.5”

• Maximum page length: 3.8m

• Resolution: 600 x 1800 dpi

• Paper weight: 45-270gsm on ULTRA C520

Kirk Rudy Firejet 4C NEW!

The FireJet 4C is an all-in-one printing system that combines the heavy-duty transport Kirk-Rudy is famous for along with the quality and reliability from Memjet and its new DuraFlex technology. This new breed of inkjet printer offers a profitable alternative to the smaller desktop, toner-based digital color printers on the market today, as well as a low cost alternative to larger production press systems.

• Resolution up to 1600 x 1600 dpi.

• Speeds up to 150 ft./min (at 1600 x 954 dpi.)

• Print width up to 12.75” (A3 and A4 cut sheets)

• Aqueous pigment inks with long print head life (approx. 120 liters)

• XColor RIP and color management software

Postmark 1170 Rapid Color Pro

Enhance pre-existing setups or start new with a complete turnkey solution. Whether it’s envelopes, bags, boxes, napkins or more, the line of versatile 1170 RapidColor Print Solutions will provide high-speed, high-quality, four-color inkjet printing! Three print solutions to choose from: RapidColor Mobile, RapidColor Core and RapidColor Pro.

• Speeds up to 12,000 pieces/hour (#10 landscape)

• Thickness up to 1/8”

• Adjustable angle for delivery tray and height for the conveyor

• 20” monitor and computer pre-installed

• 38.5” conveyor with 11.7” bleed channel

Formax ColorMaxLP2 Digital Color Label Printer

The ColorMaxLP2 Digital Color Label Printer produces brilliant full-color labels at speeds of up to 60 feet per minute, in a compact unit powerful enough for a production print environment.

• High-speed inkjet label printer

• Full CMYK color

• Unwinder and rewinder included

• 7” color touchscreen

• Speed up to 60 ft/min

• Up to 1600 x 1600 dpi

SP1360(W) Digital Printer

The revolutionary new SP1360(W) delivers the ultimate in high-impact output that demands attention. The SP1360(W) prints brilliant color on white stocks, and adds the unique ability to print solid white and white under CMYK to deliver brilliant color on color stocks.

• Graphic design/on-demand printing

• Sharp 1200 x 1200dpi print resolution

• High speed: Up to 45ppm CMYK(W)

• Suports white and clear spot color

• Adobe PostScript 3TM, PCL6, PCL5c, XPS

SP1360(W) with HCF/HCC NEW!

Compatible with the SP1360 and SP1360W. Broaden your services by expanding short-run offerings (under 5,000 pieces) and offer variable data printing in high definition color. New design simplified job set up, delivering new level of production reliability in cost efficient manner.

• Range from 4 Color (CMYK) to 5 Color

• Sharp 1200 x 1200dpi print resolution

• Straight-through paper path for envelopes and heavy stock (up to 360gsm)

• 50 ppm on letter-size sheets

• 3”x5” cards to 52” banners; Tabloid extra (12”x18”) and Super B (13”x19”)

9 (800) 398-5283 PFSGRAPHICS .COM 8

Intoprint RP530W Label Printer

The RP530W brings creative printing to life with vibrant colors and high quality output at 1200 dpi.

• Minimal training

• Variable printing capabilities

• 5.12” wide and 30 feet/min.

• Print CMYK+W

• Roll-to-Cut-produce as few as 1 label at a time

• Roll-to-Roll option

Intoprint RF510 Label Printer Rewinder

The RF510 is an affordable digital label finishing solution that meets the needs of converters and end users who have short run label finishing requirements.

• Contour Cutting Full HPGL vector cutting

• Speed: Up to 13 feet/min 4 meters/min

• Web Width: Maximum 5 inches | 10 - 21.5 cm

• Max Frame Length: 14 inches | 35.5 cm

• Warranty: 1 year

• Adobe Illustrator Plug In Direct Cut, Remote Control Panel

Intoprint RF8520 All-In-One Finisher

The RF8510 digital label finisher is an all-in-one finishing solution that laminates, digital die-cuts without dies, strips, slits and re-wind labels. It provides the ability to design “in-house” labels to current customers with value-added capabilities.

• Speed: Up to 13 ft/min

• Web Width: 4-8.5”

• Recommend Roll Length: 500’

• Cutting Technology: Pivoting carbide tip

JV100-160 Eco-Solvent Roll-to-Roll Printer NEW!

The JV100-160 is perfect for high quality fine art reproduction to signage to vehicle wrapping. Best value for money allowing for professional-grade ecosolvent wide format printing.

• Available in 64”

• Media thickness: up to 0.04”

• Speeds up to 677 sq.ft./hr.

• RasterLink 7 reduces RIP time by 25%

UJV 100-160 UV LED Printer NEW!

The UJV100-160 is a competitively priced UV-LED roll-based printer with all the productivity features of higher-end models. This multi-purpose machine is suited for a variety of applications while keeping costs low.

• Great for poster, banners, signs, vehicle exterior, wallpaper & more

• Media thickness: up to 0.04”

• Speeds up to 247.7 SqFt/Hr

• Instantly-cured prints for shorter turnarounds

JV/CJV 330 Eco-Solvent Roll-to-Roll Printer NEW!

Compatible with Mimaki Original Eco-Solvent inks this print & cut device offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, decals, posters, and more for internal and external use.

• Multiple media roll handling unit

• 2 staggered heads (6400 nozzles)

• Integrated XY Slitter

• Print area: 53.5” x 63.4”

• Thickness: up to 0.04”

• Print speed: up to 1076.4 sq.ft./hr.

• CJV: Cutting speed: Max 300mm/sec.

11 (800) 398-5283 PFSGRAPHICS .COM 10

UCJV 300 Series UV-LED Print & Cut System

The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly cured. Print and cut - labels, decals, window clings, vehicle markings, all in one unit.

• 4 or 7 color configuration

• Integrated cutting capabilities

• Instant-dry for instant use

• 1-liter ink bottles

• Available in 32”, 42”, 54” and 64”

• Speeds up to 277.7 sq.ft./hr

• Max. media thickness: up to 0.04”

• Cut speed: 16.5 sec

• RasterLink 6 Plus with ID Cut function included

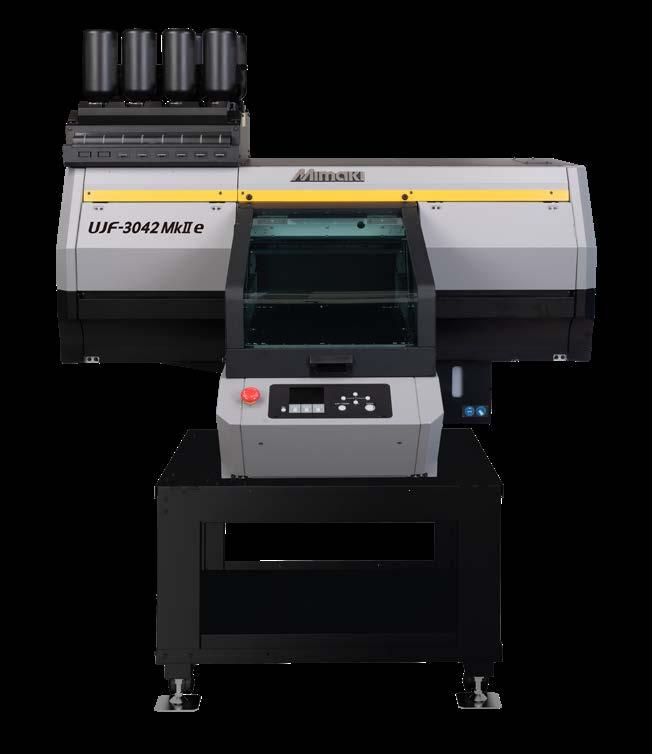

UJF 3042 MkIIe UV-LED Tabletop Flatbed

This desktop sized printer enables the creation of stunning applications with a small footprint. Expect a more stable, faster printing process and access to all of the benefits if its larger counterparts.

• Available with an 11.8” x 16.5” print area; up to 6” thick

• Enclosed print area reduces dust contamination

• Mimaki Clear Control (MCC) for smoother, cleaner clear effects

• RIP software RasterLink7 included

Mimaki UJF 6042 MkIIe UV-LED Flatbed

The UJF-6042 MkII e is a flatbed UV inkjet printer that uses state-of-the-art technology to create high-quality prints with exceptional accuracy. Designed for efficient on-demand, direct-to-object printing, it leverages Mimaki’s latest technological advances, including MFD2 (half-toning) for more precise ink dot positioning. A staggered head configuration maintains productivity levels even when two layers of color and spot colors are printed simultaneously.

• Available in 24” x 16.5”; up to 6” thick

• Print on a variety of substrates, inc. plastic, metal, wood, leather and glass

• Enclosed print area reduces dust contamination and UV exposure

• Mimaki Clear Control (MCC) for smoother, cleaner clear effects

• RIP software RasterLink7 with variable print functions included

• 4 print heads

UJF 7151 Plus II UV-LED Flatbed

The UJF-7151 achieves print speeds up to 190% faster than the previous model and features 8 print heads, enabling configurations that suit any application. The 8 ink slots can be configured for a standard 4 color setup or expanded to include light cyan, light magenta, white, clear and primer. Enjoy industrial capabilities in a small form factor.

• Print area of 28” x 20”; up to 6” thick

• Load capacity has been increased from 22lbs to 66lb

• Capable of printing up to 1800 dpi

• 8 print heads

• Print speed: 645 sq.ft./hr

• RasterLink 7 included

JFX 200-2513 UV-LED Flatbed

The Mimaki JFX200-2513 UV-LED is a large-format flatbed UV printer designed for high-quality printing on a variety of substrates. It uses UVcurable inks that dry instantly when exposed to UV light, allowing for fast production speeds and the ability to print on a wide range of materials, including acrylic, PVC, foam board, wood, glass, and more.

• Print on one 4’ x 8’ board up to 2” thick

• Max print speed: 8 boards/hr

• Dual-zoned vacuum table

• Two on-demand piezo heads

• RasterLink 6 included

JFX 200-2513EX UV-LED Flatbed

Mimaki JFX 200-2513EX UV LED flatbed is a large format UV inkjet printer designed for printing high-quality images on rigid and flexible substrates. It has a vacuum table with adjustable zones to ensure accurate and stable substrate placement.

• Print on one 4’ x 8’ board up to 2” thick

• Max print speed:12 boards/hr

• Dual-zoned vacuum table

• Three on-demand piezo heads

• RasterLink 6 Plus to support 2.5D textured print workflows

JFX600-2513 UV-LED Flatbed NEW!

The Mimaki JFX600-2513 UV-LED flatbed printer is the fastest model in the world’s best-selling JFX Series line. Productivity has never looked better. This state-of-the-art printer is geared for high accuracy, high image quality, and blazing speed.

• 16 print heads

• Print speeds up to 2,152 sq.ft./hr

• Equivalent to 67 boards per hour

• Print area of 98.425” x 51.181”; up to 2.362” thick

13 (800) 398-5283 PFSGRAPHICS .COM 12

CRF-362 – Digital Creaser/Folder

The new Horizon CRF-362 Creaser/Folder has been designed to handle the unique requirements of creasing and folding digital color output across a wide range of light and heavy weight stocks, coated or uncoated. Creasing and folding can be done in one pass for easy and accurate processing of a variety of applications such as restaurant menus, greeting cards, book covers, and marketing collateral.

• Up to 200 jobs can be stored in memory for easy recall.

• Paper weights up to 400 gsm for creasing without folding (350 gsm with folding)

• Sheet sizes up to 14.33” x 34”

• Speeds up to 5000 sheets per hour with one crease and one fold

RD N-4055 Die Cutting System NEW!

The Horizon RD N4055 Rotary Die Cutting machine combines a high-capacity feeder, a single- or dual-magnetic cylinder die cutter, a specially designed separator, and an optional card stacker into a highly efficient, versatile system for operatorfriendly production. It features a modular design allowing for simultaneous die-cutting, kiss-cutting, creasing, and perforating operations. The machine’s advanced features driven by servo-technology provides precise registration and positioning, multi-up applications from a single-up die as well as automatic waste removal.

• Kiss-cut and die cut simultaneously

• Production speed: 6,000 cycles/hr

• Up to 400gsm

• Increase productivity by 20%

SMSL-100 Smartslitter Sheet Cutter and Creaser

The Horizon SmartSlitter is an all-in-one smart sheet processing system that can slit, gutter cut, edge trim, cross-cut, perforate, and crease all in one pass. Perforation and creasing can be performed in both horizontal and vertical directions in the same pass. The system can deliver multiple up greeting cards with or without creasing, table tents, invitations, and more with both matrix and rotary creasing. For accordion fold applications or perfect bound books, up and down creasing can also be performed in one pass.

• Paper sizes from 5.5” x 7.6” – 14” x 20”

• 20 creasing lines, positive and negative can be made in one pass

• Production: 54 sheets/minute

• Standard business cards: 21-up on a sheet

HOF-400 High-Speed Near-Line Sheet Feeder

The HOF-400 High-speed Sheet Feeder is the latest in Horizon’s line of versatile sheet feeders and can be configured to run in-line with Horizon bookletmakers and saddlestitchers to fit various customer requirements. Variable page count production can be handled with integrity and verification using the standard mark reader, which the operator can quickly change between top and bottom reading for different applications.

• Paper sizes from 8 x 8” up to 14 x 24”

• Production speed up to 35,000 sheets/hr

• Options Iinclude CF-400 cover feeder

VAC-1000 Collator

The VAC-1000 collator provides flawless feeding on virtually any stock. The system is expandable from one to six towers, with the ability to run in both directions at full rated speed. All system controls are centralized on the simple but powerful icon-based touch-screen console.

• Air-Suction (Rotary Pulse Feeding)

• Paper sizes from 4.73” x 5.83” – 13.77” x 19.68”

• Production speed up to 9,900 sets/hr

SPF-200L Landscape Bookletmaker

The SPF/FC-200L fully-automated combination stitcher/ folder and face trimmer is equipped with a user-friendly 10.4” intelligent color touch-screen that provides advanced set-up automation and centralized control. Features an integrated hand-marry station for increased flexibility, and a built-in error eject tray which allows for nonstop production at speeds up to 4,500 booklets/hr.

• Sheet Size 4.7” x 7.1” to 14” x 24”

• Booklet Size 4.7” x 3.5” to 14” x 12”

• Sheet Weight Range 64 to 157gsm

Mark IV Saddlestitcher NEW!

The Horizon iCE StitchLiner Mark IV Saddlestitcher is a high-speed, fully-automated booklet-making machine designed for commercial printing applications. The machine features advanced technology that ensures accurate stitching and folding of booklets at a rate of up to 6,000 booklets per hour.  All processes, including signature scoring and folding, saddlestitching, and three-knife trimming are performed in one pass. The iCE StitchLiner Mark IV can handle a wide range of paper sizes including landscape and pocket-size booklets.

• Variable thickness production

• Production speed: 6,000 booklets/hr

• Up to 350 gsm

• iCE LINK ready

15 (800) 398-5283 PFSGRAPHICS .COM 14 FINISHING


The Horizon BQ-160 Single-clamp Perfect Binder is equipped with an intuitive, icon-based color touchscreen for fingertip adjustment of key parameters.

• Binding thickness: up to 1.1”

• Cycle speed up to 180 books/hr

• Book dimensions from 5.8 x 4.1” - 11.8 x 15.7”

• Spine preparation includes roughing & notching

• PUR capabilities: Model BQ-160PU


The BQ-270V single-clamp binder offers high-quality production perfect binding with fully automated operation, push-button simplicity. EVA Capabilities.

• Binding thickness up to 2”

• Cycle speed: 500 books/hr

• Book dimensions: 5.9 x 4.2” - 12.5 x 12.5”

• Spine prep: roughing, notching & milling

• PUR Capabilities: Model BQ-280PUR

BQ-280 PUR

Horizon’s BQ-280PUR Perfect Binder is specially designed to handle the unique requirements of digital print – with digital print friendly processing, quick set-up and changeover for shorter production runs, book-of-one capability, and even inline verification for document integrity.

• PUR Perfect Binder

• Easy to use touch screen controls

• Precision caliper system

• Store jobs for quick set-up

• Designed for print-on-demand

BQ 500 Perfect Binder NEW!

The BQ500 is designed to increase book-of-one productivity, increase automation, and quality control over a wider range of substrates.

• 21 automated sections for faster setup time

• Equipped with ICE LINK

• Speed: 8,000 books/hr

• 12.1” user friendly touch screen

HT-30C Three Sided Trimmer

The HT-30 Three-side Trimmer features automated job set-ups and quick changeovers to meet the requirements of the short run print-on-demand book market.

• Automated job set-ups

• Quick changeovers

• Store up to 40 different book jobs in memory

• Cycle speed up to 200 books/hr

HT-80 Three Sided Trimmer

The Horizon HT-80 is an in-line or off-line three-knife trimmer that produces precise, clean cuts with no rough edges.

• Cycle speed up to 1,000 books/hr

• Variable production

• Advanced automation

• Precision Trimming

HT-300 Three Sided Trimmer NEW!

The HT-300 Three-side Trimmer features a fully automated setup with color touchscreen control. The system offers higher productivity, unique corner cut capability, optional flap cover trimming, and it’s automated setup can be barcode driven.

• Over 35% faster than previous models

• Processes up to 300 books/stacks/hr

• 4 books/stack x 300 = 1,200 bph

CMT-130TC Book Trimmer

The ultimate book trimming solution necessary to be competitive, the Challenge CMT 130TC book trimmer is built from steel and cast-iron. The system can be configured as a hand-feed off-line trimmer for entry level cost-effective book finishing. Made in the USA.

• Powerful hydraulic cutting and clamping pressure

• Cuts up to 2” book

• 10.5” color touch screen display

• Easy to operate

17 (800) 398-5283 PFSGRAPHICS .COM 16


The Horizon AFV-566/TV-564 Folder is a highly automated and dynamic machine that achieves new levels of production efficiency in folding.

Standard features include simple touchscreen setup reducing setup time and allowing for easy operation via color touchscreen. The uniquely designed buckle plate ensures consistent, accurate folds, and accommodates a wider range of substrates. Optional dynamic folding is available to change fold patterns on the fly for variable signatures with no blank sheets in the set.

• Maximum Sheet Size: 22.05”W x 35.43”L

• Minimum Sheet Size: 4.13” W x 5.83”L

• Belt Speed: 30 to 270 meters/min

AFC 746F B1 Pallet-Feed Folder

AutoCreaer Pro XL

The AutoCreaser Pro XL paper creasing system is an easy to use automatic paper creasing system with a cost efficient vacuum top feeder. The unique creasing rule in the AutoCreaser Pro XL eliminates paper tearing and therefore cracking.

• Edge registered vacuum top feeder with load capacity of 7.8”

• New sheet separation sensor adapts to different media

• Automatic feeding parameter simplifies set up

• Ultrasonic double sheet detection

The Horizon AFC-746F B1 Pallet-Feed Folder includes advanced set-up automation through a user-friendly color touch-screen control panel that displays all common fold formats and sheet sizes for easy selection.

• Up to 47 automated adjustments including in-feed, roller gap, buckle fold, and knife-fold sections

• Handles sheet sizes up to 29.1” x 43.3” and as small as 8.27” x 11.695”

• 20 pre-set fold patterns with a programmable memory for up to 200 different jobs

• 47” pallet pile feeder with suction head

Table top and floor model folders, inserters and tabbers

DigiFold Pro XL

The Morgana DigiFold Pro XL is designed to complement the long sheet capabilities enabled in the commercial print shop. It features a standard pull-out extension that enables sheet sizes up to 51’’. This heavy-duty automatic creasing and folding system is designed to complement mid to high volume digital and offset production presses.

• Folds up to 6,000 A4 per hour / crease only – 7,500 per hour

• Max loading capacity up to 7.9”

• Up to 30 creases per sheet (static crease)

• Top fed vacuum feeder, ensures stable production for long runs

• Full cross perforation available, plus up to five in-line perforation/ scoring wheels

AutoFold Pro / Autocut Pro

Link the AutoCut Pro to the Morgana AutoFold for easy cutting, creasing and folding. The user interface operates with three modes depending on job requirements. PRESET Mode is used for most jobs. Non-standard jobs use the Manual Set mode which modifies preset jobs. Flex mode helps program the widest variety of formats. The optional AutoFold Pro includes Morgana’s unique “flying knife” technology which is in use in thousands of printing operations. When it’s not attached to the Morgana AutoCut Pro, it can be attached to other finishing devices.

AutoFold Pro:

• 6,240 sph

• Min. & Max. sheet size: 8.2 x 5.5” – 35.4” x 19.6”

AutoCut Pro:

• Min. & Max. sheet size: 8.2” x 8.2” – 13” x 19”

• Creases 5,000 sph

• Spine thickness from 1.97”

19 (800) 398-5283 PFSGRAPHICS .COM 18
DocuFold 714XLT 6406 FD280HF Paper Size Min.: 6.2 x 5.5” 3 x 5” 3.5” x 5.1” 3.5 x 5.1” Paper Size Max: 14.3 x 26.5” 14 x 20” 14 x 9” 15 x 11” Speed Per Hr.: 27,000 35,000 4,000 25,000 Stock Weight: 16lb-90lb 13lb-90lb 16lb-90lb N/A Auto Set-up: Yes No Yes No 8 page Available: No Yes N/A N/A
DocuFold Pro 6406 Series FD280HF
Tabber 714XLT

BM 3035/3050 Booklet Maker

The new Morgana BM3035/3050 is a modular booklet making solution for centralized reproduction departments and commercial print providers –large and small.

• BM3050 - 200 page (50 sheet) booklet maker

• BM3035 - 140 page (35 sheet) booklet maker

• Intuitive user interface

• Patented folding mechanism

BM 4000 Series Booklet Maker NEW!

A new kind of booklet maker that can produce A4 landscape or large format 297mm x 297mm books. Includes a corner and edge stapling function as standard

• Available as BM4035 or BM 4050

• Produce square folded booklets from A6 to A4 ndscape, or large format 297 x 297mm

• Corner stapled documents in portrait A4

• Edge stapled documents in portrait and landscape A4

• Up to 140 page booklet capacity

• Supports up to 660mm long sheets without CST or 620mm with CST

BM 5000 Booklet Maker with Dual Bin Feeder

The all NEW Morgana BM5000 series is the latest member of the Plockmatic Group booklet making family. Engineered for mid-to-high volume customers with the highest quality and functionality requirements.

• Produces landscape and oversize sizes

• Handles 24.5” long sheets

• Finish 50 sheets, 2-up w/ 4 stitching heads

• Higher productivity and efficiency


The NEW PowerSquare™ 224VF with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VF vacuum assisted feeder which has a loading capacity of up to 540mm, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.

• Makes books from 4 – 224 pagesFast and cost-effective alternative to perfect binding or tape binding

• Produces high quality SquareBack™ Books

• Inserts 1-6 stitches

• Small footprint

• Low power requirements

• Can carry print on the spine

• Static stitching head

• Little to no operator intervention required

• Optional P2T Full Bleed Trimming module

DigiBook 200

The DigiBook 200 perfect binder is suited for traditional and digital printers who require short to medium runs of PUR perfect bound books. The DigiBook 200 perfect binding machine is equipped with a patented closed gluing system where spine and side gluing is automatically applied by a slot applicator for the utmost binding quality and accuracy.

• Up to 200 books per hour

• Touch screen operation with automatic set up

• Sophisticated milling and notching device, designed for PUR

• Automatic cleaning and sealing of the glue head

• Binding length (spine) from 4.34” up to 15”

• Spine thickness from 1.97”

Digibook 300XL

Ideally suited for litho and digital printers who require short to medium runs of PUR perfect bound books. PUR glue is applied to the book spine and on the sides by independent glue shots. Milling and notching tools gives the optimum spine preparation of the book block to interact with the glue.

• 300 books per hour

• Touch screen operation complete with automatic format change

• Pneumatic opening and closing of clamp

• Binding length (spine) from 3.93” up to 17.71”

• Spine thickness from 0.07” to 1.96”

• Spine preparation by sophisticated milling device

• Automatic cleaning and sealing of the glue head

• Retractable milling

• Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off

• Unique angled work surface

• Automatic book block measuring and set-up

Digibook 450

Similar to the 300XL, the 450 is high productivity model ideally suited for short to medium runs of PUR perfect bound books. The DigiBook 450 is equipped with an automatic book delivery and stacking section to maintain output speeds and reduce handling of the bound books.

• 450 books per hour

• Touch screen operation complete with automatic format change

• Pneumatic opening and closing of clamp

• Binding length (spine) from 3.93” up to 17.71”

• Spine thickness from 0.07” to 1.96”

• Spine preparation by sophisticated milling device

• Automatic cleaning and sealing of the glue head

• Retractable milling

• Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off

• Automatic cover feeder

• Automatic delivery and stacking of finished books

• Automatic book block measuring and set-up

21 (800) 398-5283 PFSGRAPHICS .COM 20

230 265 305

Cutting Width: 23” 26.5” 30.5”

Cutting Height: 3.25” 4” 4”

Auto Clamp & Cut: Hydraulic Hydraulic Hydraulic

Programmable: Yes Yes Yes

Adj. Clamp Pressure: Yes Yes Yes

Light Beam Safety: Yes Yes Yes

Air Table: N/A Yes Yes

Challenge paper cutters are designed for high-volume commercial print and digital environments. Manufactured in the USA with proven quality for over 110 years. Range in size from 12” to 37”with various programmability options. Every Challenge paper cutter features hydraulic cutting and clamping, designed to last for many years.

Baumann Stack Lifter and Jogger

The new BSB 3 L / BSB 5L professional is able to jog even “difficult” materials, such as metallic paper, pharmaceutical package inserts or labels, much easier and thus quicker than conventional joggers.

• Additional aeration during the jogging process

• Margin-free air expulsion

• Highly planed and micro-perforated table surface

• Micro-perforated side gauges

• New, powerful jogging motor

• New air expulsion roller for very high pressure

• Layer stabilizer

• Format (mm): 770 x 1070

• Max. ream height (mm): 160

Perfecta 115TC Paper Cutter

A first-class, heavy-duty computer-controlled high-speed guillotine. For print shops, paper mills, binderies and plastic converters that want to economically and precisely accomplish complex and frequently changing jobs.

• Fastest, safest, most productive paper cutter

• Full range of peripherals to speed production

• Increase productivity 300%

Full line of light and medium duty, tabletop and floor-model paper drills. Various economical models are designed for office, copy center, and print shop environments.


Since the 1930’s, Challenge has been producing the highest quality, longest lasting line of paper drills from one to ten spindles.

JF Single Spindle Drill

Electric, manual foot pedal operated drill with auto-trip side guide for multi-hole applications.

• 2” drilling capacity

• 13 drill bit sizes (1/8 - 1/2”)

• Automatic paper chip removal

• Adjustable margins

• Built to last

EH-3C Three Spindle Drill

The hydraulic operated EH-3C has been the industry benchmark for three spindle paper drills for over 30-years.

• 2.5” drilling capacity

• 13 drill bit sizes (1/8 - 1/2”)

• Automatic paper chip removal

• Multi-hole drilling- up to 3 holes

• Fast and easy head adjustment

• Automatic drill return

MS-5 Five Spindle Drill

Hydraulic operation makes the MS-5 ideal for most commercial applications including medical and automotive.

• 2.5” drilling capacity

• 13 drill bit sizes (1/8 - 1/2”)

• Automatic paper chip removal

• Adjustable backguage and side guides

• Multi-hole drilling- up to 5 holes

• Optional narrow heads available

MS-10 Ten Spindle Drill

High production drilling up to 10 holes in a single stroke. Designed for special applications and commercial binderies.

• 2.5” drilling capacity

• 13 standard drill bit sizes (1/8 - 1/2”)

• 9 large hole drill bit sizes (9/16 - 1-5/8”)

• Multi-hole drilling- up to 10 holes

• Variable speed stroke control

• Multi-splined drive shaft

Electric Programmable 5260 Hydraulic Programmable 5560

5260 5560

Cutting Width: 20 3/8” 21 5/8”

Cutting Height: 3” 3. 3/4”

Auto Clamp & Cut: Electric Hydraulic

Programmable: Yes Yes

Adj. Clamp Pressure: No Yes

Light Beam Safety: Yes Yes

Triumph paper cutters are the most widely-distributed manual and electric/hydraulic guillotine cutters with the latest in cutting automation for office, digital, and commercial print and copy environments. Triumph cutters range in size from a 15” tabletop to a 28” floor-model. Every model offers the very best combination of features and affordability.

23 (800) 398-5283 PFSGRAPHICS .COM 22
Titan 265TC Champion 305TC


AEROCUT NANO is the card cutter that can take up to 350gsm stock. It feeds, slits and cross cuts to finish prints into business cards, post cards, flyers and more. Two single slitter blades and two double slitter blades. These slitter blocks can be easily adjusted manually and fixed with InstaSet bar – a patented mechanism that intuitively snaps onto the machine to change the job with keeping extreme accuracy.

• Intuitive touch screen display

• 16 pre-programmed jobs and 40 customized jobs

• Basic functions - slit, cross cut

• Stable air suction feed system

• Paper weight - 120-350 gsm, depending on paper quality

• Feeding system - upper belt air suction feed

• Cutmark registration


The newly refined model of the original Aerocut, the Aerocut X features enhanced productivity and user-friendliness. With the innovative feeding mechanism, it drastically reduces risks of double feeds and misfeeds. AeroCut X is an ideal solution for finishing especially short-run digitally printed applications, such as business cards, post cards, invitations, greeting cards, leaflets, tickets and more. The AeroCut X saves times and costs for any print shops, inhouse printers, commercial printers etc.

• Intuitive operation with 7” built-in screen

• Flex mode allows cuts of multiple size cards

• Cuts 400gsm with self-sharpening slitters

• Max paper size: 14.5”x29.5”

• 266 preset jobs

• 10,800+ business cards per hour

• 6,400+ post cards per hour

• Instant job change

• Lytrod Software included (first year only)


The Aerocut X Pro is the top-end slitter/cutter/creaser available on the market today. With it’s laser sharp accuracy, it is designed, built and calibrated with Japanese engineering and craftsmanship at its best. The robust full-metal machine body keeps top level of accuracy and finishing quality every time.

• Intuitive operation with 10” built-in screen

• Expandable feed tray feeds stocks up to 29.5” with stacking capacity of 4”

• Max paper size: 14.5”x29.5”

• 266 preset jobs

• 16,000+ business cards per hour

• 7,000+ post cards per hour

• Cuts 400gsm with self-sharpening slitters

• Instant job change

• Lytrod Software included (first year only)

Numbering / Perfing / Scoring / Slitting / Cutting / Creasing

GW-6000 GW-8000 GW-12000

Speed: 6000 8000 12,000

Max Sheet Size: 18 x 18” 18 x 18” 18 x 18”

Numbering Positions: 10 100 100

Drive Type: Electronic Pneumatic Pneumatic

No. Job Memories: N/A 100 100

GW-6000 GW-12000

Graphic Whizard is the world’s leading manufacturer of numbering systems with a model appropriate for any job and budget.

• Up to 12,000 sheets per hour

• Available in friction or horizontal air feed

• Print up to 100 numbers per page

• Numbering heads are individually adjustable and can be rotated 360 degrees

• Perf, score and slit during the numbering process

• Wide variety of perfing and scoring wheels, including microperf


The PT 335SCC Multi series has a choice of five creasing widths, as well as an array of rotary tools for perforating and scoring. For strike perf option, bar code/OMR software, cut mark registration in both directions.

• 4” pile feeder

• 150-350 gsm

• Up to 25 sheets/min.

• No. of slitters: 6

PT 8336SCC Multi NEW!

The PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 335SCC Multi can quickly switch from perfing to creasing to prevent digital toner cracking. Strike perf capability.

• Feed capacity: 4”

• Paper Weight: 150-400gsm

• Speed: Up to 25 sheets/min.

• No. of slitters: 6

• Crease direction: Up or Down

SINAJET DF0604 Digital Die Cutting NEW!

Designed for the “on-demand” creation of folders, rounded business cards, greeting cards, self-adhesive labels, counter displays, cases, boxes customized in shape and style. All this in a simple, fast, and precise machine without waiting to create expensive and elaborate dies. The Graphic Whizard Digital Flatbed Cutter is the only one in the market of automatic plotters with Interchangeable Tools capable of handling plasticized prints up to 10mm.

25 (800) 398-5283 PFSGRAPHICS .COM 24

DocuPunch PLUS

This versatile, ergonomically designed time-saver offers handsfree punching of pre-collated books, presentations, reports and even tabbed sheets (documents up to 13” wide). With 110v power and heavy-duty casters, this unit can be set up in minutes anywhere in your shop.

• Punches up to 76,500+ sheets/hr

• Pick thickness: 0.4-1mm

• 3 Selectable Speeds: 50, 60 or 75 cycles/minute

• Paper thickness: 5.5” x 5.5” up to 13” x 12”


The Alpha-Doc® MK4 provides large volume hands-free punching of pre-printed, collated documents directly from your copier or printer including mixed stocks from 16 lb. bond to 110 lb. index.

• Top Speed: 90 cycles/min

• Punch 30,000 – 40,000 sheets/hr

• Paper thickness: 5.5” x 5.5” up to 14” x 13”

Koilmatic Tabletop Automatic Coil Inserter & Crimper

• Paper Size: 8 1/2”, 11”, A5, & A4

Binding Edges

• Maximum Book Thickness: Up to 5/8” Thick

• Speed: Up to 450 Books per Hour

• Setup Time: Less than 5 Minutes

CB30QS Automatic Inserter

• Binding edge from 4-1/2” up to 12”

• Cycling speeds up to 1200 per hour

• Practical output of 250-500 books per hour

• Hands-free foot pedal allows twohanded document placement

Wire-O-Bind 3500

• Binds books 1/4” to 1-1/4” at a rate up to 1000 books per hour

Professional Book Binding Solutions

Tornado Autopunch EX

The system will save binding service providers an average of 40% in process efficiency, dramatically reducing overall costs. Handling the widest range of media in the industry, the system delivers unparalleled flexibility and enables concurrent binding operations. Perfect for on-demand, short runs the system includes easy programmable job set-up, monitoring and changeovers.

Eliminate 4 manual steps:

• No manual collation of covers, index tabs and inserts

• No manual punching of covers, index tabs or inserts

• No manual paper lift punching

• No manual separation of book stacks after punching - no color slip-sheets by book/section required when printing

• 7” Screen Display

• Punching Speed: Up to 10,800 sph

ONYX 3-in-1 PPS (Pick-Punch-Stack)

HD7700 heavy duty 14” punch (up to 55 sheets / cycle)

PAL-M (manual) or PAL-14 (automated) pick module

APES-14 automated paper ejector / stacker module

ONYX HD8000 (14”)

Closes wire from 3/16” to 1-1/4”

All metal construction

“Rhin-O-Roll” HD4170

Coil inserter with 12” dual powered rollers Adjustable lower roller for all size coil

Paddy-Wagon Pack-Rak

Turn your padding operation from messy inconvenience to a high-capacity profit center with simple 1-2-3 operation:

(1) Tilt & Load (2) Clamp (3) Tilt & Pad

• Sample capacity 15,000 8-1/2 x 11” Sheets

• Portable

• Heavy-duty casters

• Welded tubular steel construction

Makes every job easy for printers, mail rooms, copy shops, and binderies.

• Holds 11 x 17” stock

• 500 lb total capacity

• 12 shelves (4 fixed, 8 adjustable)

• Portable

• Heavy-duty industrial casters

• Side handles

• Solid construction

27 (800) 398-5283 PFSGRAPHICS .COM 26

PP1519 L’Sealer and Shrink Tunnel

This compact L’Sealer with Magnetic Hold down and power discharge conveyor with attached Tunnel is only 74 inches in total length. Featuring new “Band Seal” Technology - Will seal PVC or Polyolofin Shrink Films with no smoke or residue. Tunnel features Live Roller ROD Conveyor with fully Re-Circulating Air Chamber, AC variable Speed Conveyor, 0 to 60 FPM, and Automatic Cool Down with Shut Off. A great machine for low to medium production speeds of 8 to 12 packages per minute.

• Available in 110 volts or 220 volts

• Seal dimension 15” x 19”

• Tunnel dimension 20” x 16” x 6”

• Cycle speed 12 pkgs. per minute

PP1622MK- Combo L’Sealer and Shrink Tunnel Series

This fully adjustable combination L’Sealer with attached Shrink Tunnel includes the latest “Micro-Knife” Technology - No more seal wires to replace.

The L’Sealer is mounted on linear bearings, and easily moves forward or backward to center product into Tunnel. Discharge conveyor on L’Sealer also adjusts up or down. Shrink Tunnel features a fully Re-Circulating Air Chamber with Live Roller ROD Conveyor. Convenient crank handle on Tunnel allows operator to move tunnel up or down to match sealer conveyor height.

• Uni-body frame makes this unit easy to move around

• Seal dimension 16” x 22”

• Tunnel dimension 28” x 18” x 8”

• Cycle speed 15 pkgs. per minute

TC5600 Automatic Combo

• Combination fully automatic L’ Sealer and tunnel built on same frame

• Motorized adjustment of inverting triangle, infeed, and center seal (fully motorized)

• Single piece seal blade

• Easy load film cradle

• Fully enclosed safety doors

• Easy access control panel

• Self diagnosing Delta PLC

• Delta 7” color touch screen with 12 program memory

• Vertical seal head design for packages up to 8” high

• Variable speed drive (0 to 110 FPM)

• Speeds to 40 PPM

Small and large format laminators from Vivid, GMP, D&K, GBC, Innove, DryLam and Royal Sovereign

GMP Q-Topic 380

Introducing the all new QTopicTM-380 print on-demand single-sided lamination system. With maximum sheet size capabilities up to 15”W x 48”L this unit is an excellent complement for any print engine on the market today. Pneumatic chrome lamination roller sets the new standard in compact production environments! Adjustable de-curling system and rear burst roller ensures excellent results. Sleeking option is pre-loaded and included. Spot coat gloss, matte, holographics and sleeking foils with this low cost laminator.

TheMX-370/530 Matrix® laminators from Vivid are the best value single and double-sided laminators on the market.


Matrix systems are incredibly cost-effective.


Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost.


The new Matrix Duplex (pictured to the right) laminates both sides of the printed sheet at the same time. Same great Features as the 370P and 530P.

DryLam 3230

Eliminate time-consuming, costly hand feeding and trimming in laminating with the new value priced ALM3230 lamination system!

• Small Foot Print – less than 4 sq. ft.

• 115 Volt, 15 amp service

• Ultra quick warm up < 5 minutes

• Sheets sizes: 13”x19”, 12”x18”, 11”x17”, 8.5”x11”

• Laminates copy paper up to 100lb

HLA-2301 Automatic Laminator

The newest, commercial-grade Fujipla laminator. 25% faster than the ALM3230.

• Ultra-quick, warm-up

• Single or double sided

• Width: 12.6”

• Speed: 68”/min

• Thickness: 16mil, 17-100lb cover

All ALM film is designed to work with all digital devices and available in 1.5, 3, or 5mil gloss, matte. Soft touch and 1.2 single side nylon.

EXCELAM 1100RS /1670RS

Produce a wide range of services. Ideal for laminating posters, inkjet prints, leaflets, photographs with superb results. Professional mounting up to 13mm-thick foamboard.

Available in widths of 43” and 65”

29 (800) 398-5283 PFSGRAPHICS .COM 28

Foliant Vega 400a Laminator NEW!

The Foliant Vega 400A Industrial Laminating Machine is a very compact industrial laminating machines, designed for heavy-duty digitally printed material. It is equipped with an integrated deep pile vacuum feeder, highspeed bump separator, non-sticky pressure roller and in-run adjustable twin de-curl bar and overlap system.

• Single sided thermal laminator

• Maximum speed 59 ft/minute

• 2,100 sheets p/hour of 14” x 20”

Foliant Mercury 530NG Laminator NEW!

The Foliant Mercury 530 NG is a very compact industrial Laminating Machine. Constructed for heavy-duty digital and offset output. It is equipped with a Foliant integrated suction feeder and a high-speed bump separator. Several options are available: Foliant Foiler, non-sticky pressure roller, motorized pallet stacker, extended sheets laminating module, etc.

• Easy operation with touch screen interface

• Maximum speed 88 ft/minute

• 2,300 sheets /hour of 19.7” x 27.8” portrait (white 200 gsm)

• Pressure is pneumatically adjustable

• De-curl blade/roller for offset/digital sheets

Foliant Taurus 760 NG DS Laminator NEW!

The Foliant Taurus 760 NG is a fast and Compact Industrial Laminating Machine, constructed for nonstop work with an integrated suction feeder and high-speed bump separator, and with options like a pallet stacker and Foliant Foiler.

• Easy operation

• Equipped with a rising back pile separation stream feeder with suction feed head

• Single-sided thermal industrial laminator

• Film is mounted on an air shaft that allows convenient, easy and precise film positioning

Dynacut RD435 Rotary Die Cutter NEW!

The most affordable rotary die cutter on the market today. No more expensive dies required.

• Paper weight: 106-435 gsm

• Cylinder spin speed: 6000/hr.

• Max sheet size: up to 14x20”

• 8” stacking capacity

• Made in the USA

Intec SC6000 Automatic Die Cutter NEW!

The newest generation SC Digital Die Cutting and Creasing machine is an ultrareliable feeding with an instant job retrieval system. Perfect for lightweight card, packaging, POS and kiss-cut sheet labels.

• Twin head cutter

• Cutting force: 760gf

• Max speed: 37.8”/sec.

• Max working area: 13.4” x 30”

• Feeder: up to 900 sheets

• ColorCut Pro software included

• Media thickness: 140-350 gsm

Intec FB 9000 Automatic Digital Die Flatbed NEW!

The all NEW Intec FB9000 is an advanced, fully automated digital die cutter delivering lightning speed performance, unparalleled media control in a user-friendly format.

• Easy set up and use

• Stacks 2,000 80gsm sheets

• Dual tool head contains highest resolution CCD camera

• Cut up to 1,000 micron media

• 800 gsm cut only. 450gsm cut/score for boxes

• ColorCut Pro software included

Valiani Omnia 80 Auto Feed Digital Cutter NEW!

Omnia has been designed to automatically feed and contour cut media. Automation digital die cutting gets bigger and wider with Omnia.

• Feeder holds 600 sheets of 300gsm

• Ave. speed per sheet: 35-45 secs

• Cuts variety of materials up to 1/2” thick

• Simplified workflow

• Cutting size: 23.6”x31.5” / 29.5” x 41.3”

• Can work all day without an operator

Valiani Integra 250 Cutter with Router NEW!

Integra is a digital cutting system designed for the sign and packaging industry. It simplifies complex die-cutting with its incredibly accurate 1kW router.

• All-in-One die cutting capabilities

• Ave. speed per sheet: 35-42.5 secs

• Cuts variety of materials up to 1/2” thick

• 5 year warranty

• Cutting size (min.): 48.5x64”

• Cutting size (max.): 64x 121’’

31 (800) 398-5283 PFSGRAPHICS .COM 30

1640 Premium Lamination Table

Most popular model for commercial lamination. This is a very strong production machine built for working long shifts uninterrupted. Table surface will accommodate a large number of standard sheets and roller widths currently available on the market.

• Suitable for all types of installation work with self-adhesive materials.

• Workspace 3560x1560 mm 11ft. 8in. x 5ft. 1in.

• Bed size 4000x1600 mm 13ft.1in. x 5ft. 3in.

• Materials 0-70 mm/0-2,8in.

• Required air 6-8bar/87-116psi

• Capacity up to 140 m2/H 1500ft2/H

APEX Pro Digital Flatbed Cutter

The Award Winning Apex Pro Series of Digital Flatbed Cutters is designed for a variety of processing and finishing production needs for visionary PSP, packaging, sign & graphics, POP/POS display and textile market professionals. Increase your productivity and profitability by having a multi-function digital cutting solution in-house.

• Available in two cutting area sizes: 4.3”x 3.6” and/or 8.2” x 5.2”

• Efficient cutting speeds of 1.5m/sec increasing productivity

• Max. cutting thickness: 1.97”

• X& Y Drive belt with 15 vacuum zones

Eclipse Digital Die Cutter

The Eclipse Digital Die Cutter Series is a die free flatbed cutting solution designed for the Printing, Packaging and Sign industries. It is a cost-effective solution for sample making and short-run production of adhesive sheets, business cards, specially shaped cards, invitations, labels, small packaging, tags and more.

• No Cutting dies

• Combination cutting & creasing functions

• Max. thickness: up to 4.5” (400 pieces of 200 gsm)

• Speed: 39”/sec.

XTRA benefits


SONORA XTRA Plates boast image contrast three times stronger than that of SONORA X. It’s easy to see even the smallest image details on the plate, and you can be confident adding automation, thanks to SONORA XTRA’s improved readability with vision systems and sorting equipment.


SONORA XTRA Plates are quick enough for the fastest platesetters, so you can get more out of your existing equipment, or you can upgrade your CTP to get to press even faster. With the T-speed KODAK MAGNUS Q800 Platesetter, you can image up to 80 SONORA XTRA Plates per hour.

Galaxy Heat-Assisted Top Roller Laminator

Professional heat-assisted top roller laminator for self-adhesive materials. It allows to laminate, mount and encapsulate. Designed to be reliable and easy-to-use for perfect and high quality results.

• Cost effective: very good quality, price and performance

• Excellent results without air bubbles and defects

• Ideal for small and medium size user

• Versatility in materials

• Load and unload of rolls of materials in seconds

• User-friendly control panel


Plate Non-ablative, thermal, negative-working (write-the-image) process free plate. No debris removable system required.

Application High-quality, long-run plate for sheetfed, packaging, web and all UV print applications

Substrate Electrochemically grained and anodised aluminum substrate

Gauge 0.15, 0.20, 0.30, and 0.40 mm

Spectral Sensitivity 800 - 850 nm

Platesetter Compatibility Recommended: KODAK TRENDSETTER, MAGNUS, and ACHIEFE Platesetters. SONORA XTRA Plates are compatible with platesetters from all major suppliers.

Laser Energy Required 90 to 120 m.l/cm² depending on platesetter. Provides maximum productivity on most platesetters.

Resolution 1 to 99% @ 200 lpi and FM20 capable Up to 450 lpi is possible, dependent upon capability of imaging device.

Run Length • Up to 400,000 impressions with heatset/coldset web presses

• Up to 250,000 impressions with sheetfed presses

• Up to 100,000 impressions for offset packaging (non-UV ink)

• Up to 100,000 impressions for UV-ink applications Dependent upon image resolution, press, press chemistry, ink and paper conditions.

Safelight @400 Lux White = 2 hours

C20 UV-cut = 16 hours

G10 Yellow = 40 hours


33 (800) 398-5283 PFSGRAPHICS .COM 32
FINISHING CONSUMABLES • SUPPLIES • PARTS Online store: www.pfsgraphics.com
Now even the most demanding print operation can go process free.
The best processs free platenow with


Online store: www.pfsgraphics.com

PFS carries a large inventory of consumables/supplies and parts for most print, bindery and finishing equipment with the best prices and services. This is a small sample of consumables that PFS has available. PFS also carries other popular binding supplies such as plastic coils, plastic comb, wire, dies, document covers as well as drill bits and blocks. Please contact PFS for specific items (800)-398-5283 or visit the online store: www.pfsgraphics.com.


UV, Eco-Solvent, Sub dye and Textile inks available for all Mimaki printers (pg. 10-13).


Online store: www.pfsgraphics.com


Print beautiful labels and stickers with digital media from Intoprint (pg. 9)


Compatible with all OKI C931-C941-C942 Digital Envelope Press Sytems



PL88 Staples (880001)

• Secure 30 sheets with 1/4” length legs

• 5,000 staples per cartridge - 20,000 staples total

• Compatible with Plockmatic, MBM, Xeorx, Swingline booklet makers

Plockmatic Staples Cartridges (760023)

• 1 box contains 3 cartriges

• 5,000 cartridges - 15,000 staples total

• Compatible with BM230-350-5000



pro510/511DW/900DP CMYK

C931/C941/C942 CMYK+White+Clear

C941 Image Drum: Clear Clear and/or White


pro510/511DW/900DP CMYK

C931/C941/C942 CMYK+White+Clear


Fuser Kit C931/C941/C942

Transfer Belt C931/C941/C942

Waste Toner Box C931/C941/C942



• Wide array of EVA Adhesives

• Compatible with Horizon, Morgana, Duplo & others

• Coolbind melts at lower temperatures to reduce waste


• Excellent adhesion: 20-25% greater pull strength than

34 35 (800) 398-5283 (800) 398-5283
Intoprint 1360(W) Digital Printer RP 530(W) Label Printer
Model Color
CMYKW-Clear-Light CM
Flatbed/Roll to Roll JFX/SIJ/UCJV/UFJ/UJV CMYKW-Clear-Light CM
Flatbed/Roll to Roll UJF/JFX/UCJV
Type Model Color
to Roll JV/CJV CMYK-Light
Sub TS330 CMYK TP400 Hybrid TX CMYK SP1360 Digital Envelope System Type Color Toner SP1360(W) CMYKW-Clear Drum SP1360(W) CMYKW-Clear Fuser SP1360(W) Transfer Belt SP1360(W) Waste Toner SP1360(W) RP530(W) Label Printer Type Color Transfer Belt RP530(W) Fuser Unit RP530(W) Waste Toner RP530(W) Toner/Drum
Compatible with Intoprint RP530(W) Label Printer (pg. 8) and 1360 (W) Digital Press Envelope System (pg. 9).
LH-100 Flatbed/Roll to Roll UJF/JFX/UCJV
ES3 220cc Roll
CM-Silver SS21 600cc Roll to Roll
KM - Orange-Yellow SPECIALTY Type Model
Sb411 Dye
25 Gauge
5lb tcoil
in Narrow & Standard
Morgana Stitchliners
Compatible with
bag includes 8 bags/box •
Morgana Digibook and other bookbinders
RP 530(W) Label Printer Laminate for RP530(W) Label Printer Thickness width (in.) x length (ft.) Matte BOPP 1.5 mil 4.9" x 2500' Silver PET Metallic 2.0 mil 5.0" x 375' Rainbot PET Holographic 2.0 mil 5.1" x 621' Semi-Gloss (Perm Adhesive) 5.1" x 500' High Gloss (Perm Adhesive) 5.1" x 500' Matte Laser (Perm Adhesive) 5.1" x 500' STAPLES
Cartridge/Box PL88 5000 880001 4 BM230/350/500 5000 760023 3 STITCHING WIRE Gauge Coil Weight Stitching Wire, Round Tinned - Standard 25 Standard 5 Stitching Wire, Round Tinned -Narrow 25 Narrow 5 Temp Form Weight Horizon Adhesive #HM225 356° F Chips 44lbs. EVA PLUS Hot Melt Adhesive 350° F Chips 5lbs./50lbs. Technomelt CoolBind Adhesive 260° F Pellets 30lbs. Type Temp Form Weight Technomelt PUR 3317 Hot Melt Adhesive PUR 135° C Slug/Pellet 1kg./2kg.
Cartridge Part #


Online store: www.pfsgraphics.com

Sleeking Foil

Sleeking® Foil adds value to your packaging and prints by elevating designs and enabling customization. Engineered for on-demand variable-data foiling, Sleeking foil adheres directly to digital inks without sticking to the surface of the substrate, leaving a clean, precise foil effect exactly where desired.

ALM Laminate

These are ideal for laminating digitally printed materials. ALM specialized polymer films are designed especially for digitally printed media, formulated with a higher polyester-to-adhesive ratio for superior rigidity and clarity. Compatible with Drylam and Fujipla ALM Laminators. All laminate is double-sided unless otherwise noted.

Gloss Matte Silk Matte

Platinum POLY

Platinum® laminate films are the best of the best, being the broadest high-quality film line available. Offered in premium polyester (PET), top-quality burstable polypropylene (OPP) and high-grade layflat (NYLON) base films with thermally activated (DigiBOND) and without. Platinum® laminate films utilize premium copolymer resins, ensuring outstanding clarity, strength, flexibility and adhesion. The ideal commercial laminate for demanding trade laminators, printers and finishing providers.


Type Thickness width (in.) x length (ft.) LFHGL




• Made from high density poyethylene, unplasticised polyvinyl chloride & nylon

• Standard, premium & custom sizes available

• Cutting knives available for all makes & models of paper cutters

• Available in red, beige grey, soft white & green

• 12 sticks per pack


Lux Film


LuxeFilms overlaminate film finish feels as soft as a rose petal and as luscious as silk. LuxFilm Specialty laminates & films, includes: Scuff Proof Matt, softouch, textured, and thermally activated (DigiBOND). This laminate will protect and enhance premium prints and packaging products. Laminate featured below are A/I.


• German designed and manufactured

• Meets exacting requirements of OEM standards

• Suitable for Challenge, MBM, ITOTEC, Perfecta, POLAR and many others

• High speed steel knives available for all models



36 37 (800) 398-5283 (800) 398-5283
DryLam 3230 Fujipla ALM 3222
Matrix 370P Mercury 530NG
Online store: www.pfsgraphics.com
Gloss Laminate (A/O) 3.0 mil 12"x2000' LFHGL Gloss Laminate (A/O) 3.0 mil 18"x2000'
Gloss Laminate (A/O) 3.0 mil 25"x2000' LFPGN Gloss Laminate (A/O) 5.0 mil 18"x1000' LFPGN Gloss Laminate (A/O) 5.0 mil 25"x1000 LFHGV Gloss Laminate (A/O) 10.0 mil 12"x500' LFHML Matte Laminate (A/I) 3.0 mil 12"x2000' LFPML Matte Laminate (A/O) 3.0 mil 25"x2000' LFHMN Matte Laminate (A/I) 5.0 mil 12"x1000' Type Thickness width (in.) x length (ft.) LFNGD Nylon Gloss SuperFlat (A/I) 1.2 mil 11.75"x10000' LFNGD Nylon Gloss SuperFlat (A/I) 1.2 mil 12.75"x3000 LFNGD Nylon Gloss SuperFlat (A/I) 1.2 mil 27.5"x3000' LFNGD Nylon Gloss SuperFlat (A/I) 1.2 mil 12.75"x5000' LFNGD Nylon Gloss SuperFlat (A/I) 1.2 mil 12.75"x10000' Type Thickness Width (in) x Length (ft) LFHSP Scuff Proof Matte 1.2 mil 11.75"x3000' LFHSP Scuff Proof Matte 1.2 mil 12.75"x3000' LFHSS Scuff Proof Matte 1.2 mil 12.5"x3000' Type Thickness Width (in) x Length (ft) LFSQC Karess Printable Softouch 1.1 mil 11.75"x3000' LFSQC Karess Printable Softouch 1.1 mil 12.75"x3000' LFHSS Scuff Proof Matte 1.2 mil 12.5"x3000' Type Thickness Width (in) x Length (ft) LFSTG Karess Softouch 1.5 mil 11.75"x3000' LFSTG Karess Softouch 1.5 mil 12"x3000' LFSTG Karess Softouch 1.5 mil 12.75"x3000' Type Thickness width (in.) x length (ft.) LFOGS Gloss Printable (A/I Burstable) 1.2 mil 11.75"x3000' LFOGS Gloss Printable (A/I Burstable) 1.2 mil 12.75"x3000' Type Thickness Width (in) x Length (ft) LFSP Scuff Proof Matte 1.2 mil 11.75"x3000' LFSP Scuff Proof Matte 1.2 mil 12.75"x3000' Type Thickness width (in.) x length (ft.) LFNHG Nylon Gloss SuperFlat (A/I) 1.2 mil 11.5"x3000' Width (in) x Length (ft) Thickness 12.6 x 328 5 mil 12.6 x 164 10 mil 12.6 x 984 1.5 mil 12.6 x 492 3 mil 12.6 x 984 (single sided) 1.2 mil Width (in) x Length (ft) Thickness 12.6 x 984 (single sided) 1.2 mil 12.6 x 984 (single sided) 1.5 mil 12.6 x 328 5 mil 12.6 x 492 3 mil Width (in) x Length (ft) Thickness 12.6 x 984 1.2 mil 12.6 x 492 3 mil 12.6 x 328 5 mil
Type Thickness Width (in) x Length (ft) LSGL Gold Foil (A/I) 1.0 mil 12"x1000' LSGL Gold Foil (A/I) 1.0 mil 12.5"x1000' LSGL Gold Foil (A/I) 1.0 mil 12.75"x1000' LSRG Rose Gold Foil (A/I) 1.0 mil 12.75"x1000' LSSF Silver Foil (A/I; Printable ) 1.0 mil 12.6"x984' LSSL Silver Foil (A/I) 1.0 mil 12"x1000' Item Length (Inches) CMC60057 Spartan 150 16.5 CMC63015 Spartan 185 18.5 CMC4166 Titan 200 series 20 CMC4165 Titan 265, Diamond 265 26.5 CMC4171 Challenge 305M, 305X/XG 30.5 CMC4173 Challenge 370/370X 37 Item Length (Inches) MBM0677 Triumph 3905,3915 17.81 MBM0695 Triumph 4205/4215/4305 22.43 MBM0671 Triumph 7228/721-06LT 19.31 MBM0672 Triumph 430EP 19.31 MBM0675 Triumph 4700,4810,4850 22.88 MBM0696 Triumph 4705 26.33 MBM0679 Triumph 6550,6550EC 30.13 Dims (LxHxW") # of holes Spartan 150 18.250 x 1.625 x .250 6 Spartan 185 22.250 x 2.630 x .375 6 Titan 200 23.750 x 3.000 x .375 4 Titan 230 26.750 x 3.000 x .375 5 Titan 265C 30.000 x 4.000 x .375 10 Challenge 305 34.750 x 4.000 x .375 12 Challenge 370XG 43.260 x 4.500 x .371 18 Dims (LxHxW") # of holes 3600, 3610 16.732 x 1.535 x .236 6 3900, 3905, 3915, 4205, 4215 17.480 x 1.535 x .236 5 420,5 4215, 4225, 4250, 4300 19.187 x 1.511 x .236 5 430EP, 4225 19.187 x 1.511 x .236 5 5550EP, 5551-06EP, 5560, 5560LT 25.984 x 4.094 x .393 10 6550, 6550EC, 6550EP, 6655 6660 29.724 x 3.543 x .393 5 7228, 721-06LT, 7260 33.071 x 3.937 x .394 6 Sleeking® Foils - 3” CORE CHALLENGE CHALLENGE MBM MBM Triumph Series

Used & Refurbished Machinery

PFS features the largest selection of new and used / reconditioned graphics machinery in the USA. Used solutions with the same level of support as with new machinery—our experienced and factory certified technicians service PFS used machinery to operate like new.

Download current used list at used.pfsgraphics.com with pictures and pricing.

Need additional pictures or information?

Used machinery for sale or trade?

Need to move a piece of machinery or complete shop?

Paper Cutters

E-mail: sales1@pfsgraphics.com

Paper Cutters

• Drills

• Folders

Stitchers / Staplers

Collators & Bookletmakers

Booklet Makers & Collators

• Perfect Binders

• Punch & Bind

• Perf-Score-Number

Shrink Wrap • Card Slitters • Laminators

Mailing Systems

• Shredders

Digital & Offset Printing Presses

Triumph, Challenge & Perfecta 15 - 45” Presses RYOBI 754WXL(Pre-Owned) Perfect Binders Horizon BQ270 (Pre-Owned) Horizon, Plockmatic & Bourg - Friction & Air-Feed
