ORALITE® ECO Traffic Printer
Eco-solvent printing system for the production of temporary and permanent traffic signs
ENGINEERED FOR EXCELLENCE
ORAFOL is a leading manufacturer of retroreflective materials and a recognized expert in printing technology and traffic control solutions. In partnership with Roland, ORAFOL delivers a comprehensive eco-solvent printing system, positioning itself as a trusted technology partner for its customers.
By offering an integrated portfolio that includes materials, printers, and maintenance services allowing for the production of high-quality MUTCD-compliant traffic signs utilizing the ORALITE® Engineered Matched Component System, ORAFOL ensures reliable performance, consistent quality, and long-term operational support for eco-solvent printing applications.
ORAFOL partners with ROLAND to offer a state of the art Eco-Solvent Traffic Sign Printer.

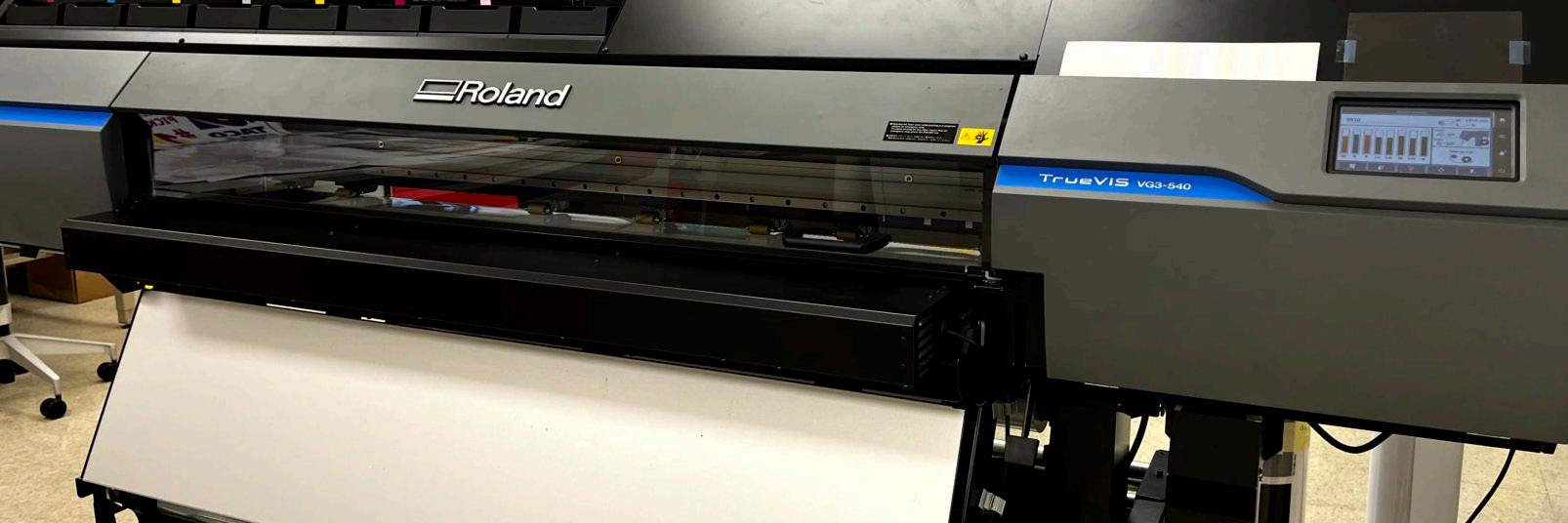

The ORALITE® Eco-Solvent Traffic Sign Printer, based on the Roland TrueVIS VG3-540, utilizes the specially formulated ORALITE® 5017 CMYKR ink system; allowing for the production of high quality MUTCD compliant traffic signs and graphics.
The
Service You Expect

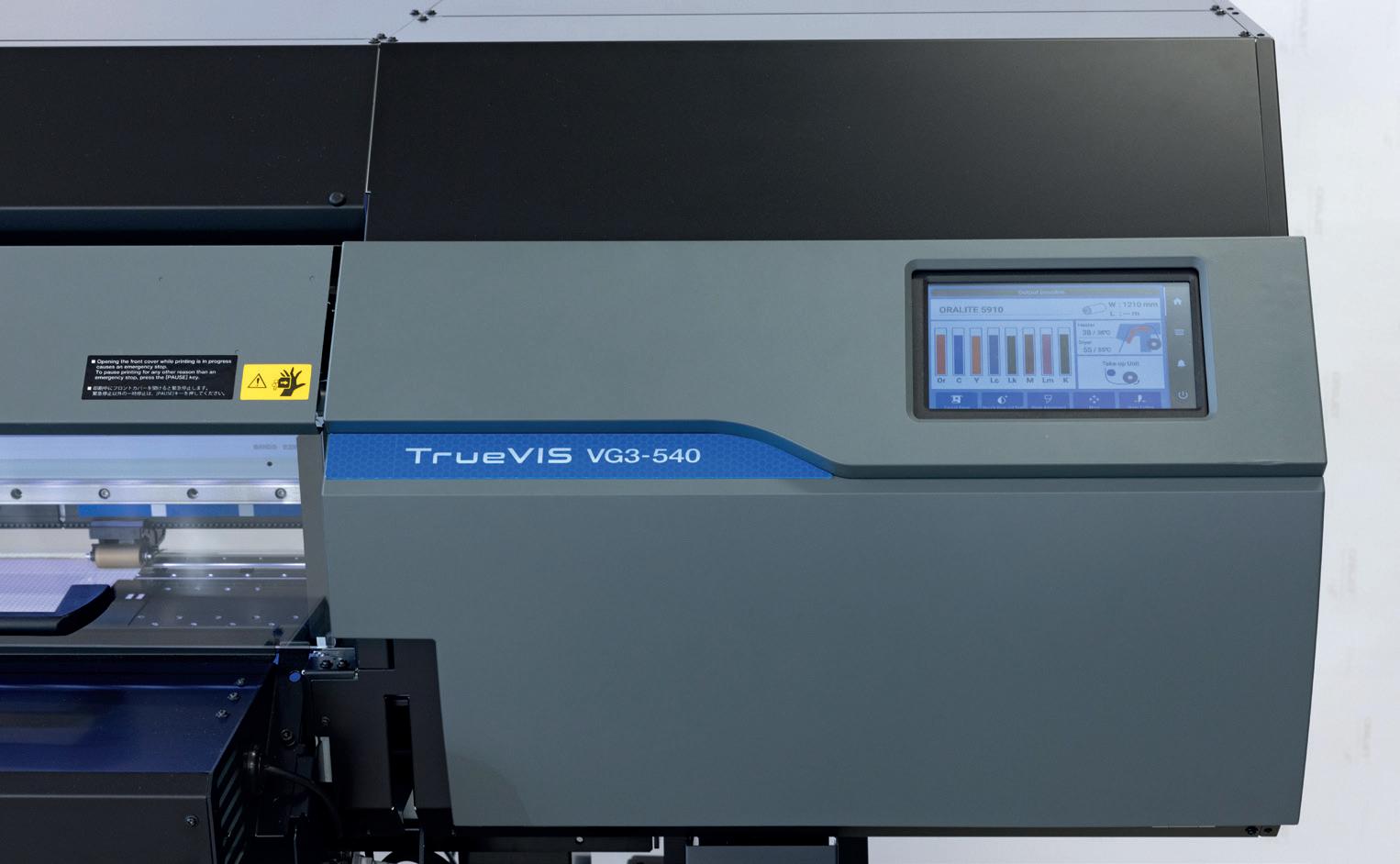

7” LCD Touch Panel
Software You Trust
Enhanced Media Handling
• 3 years maintenance, license, and technical support included
• 3 years full service warranty on hardware, parts, and technician expenses
• 3 year warranty on all print heads
• ORAFOL warranted sign system (ASTM Traffic Sign Colors)

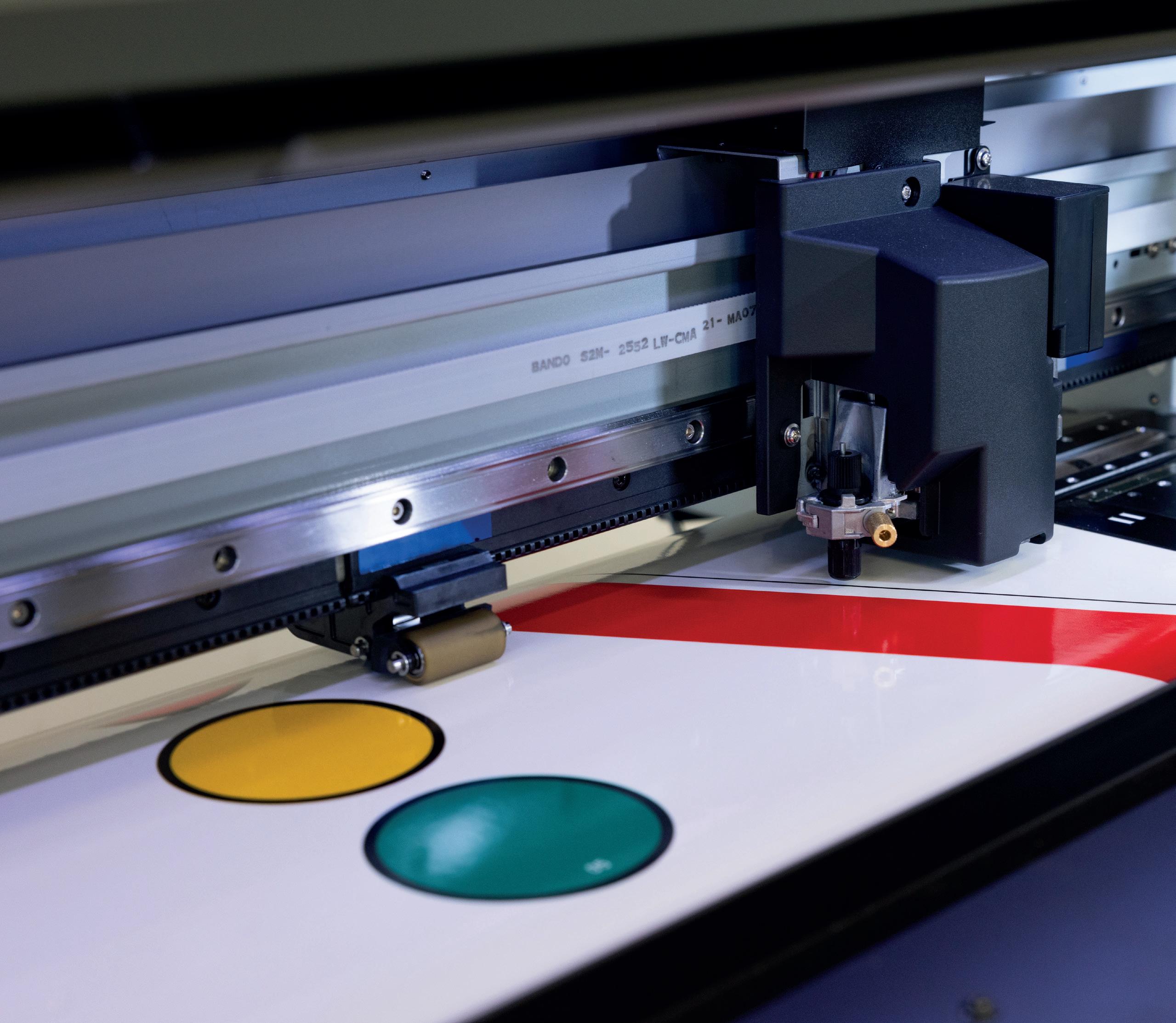

• Immediately access print cut settings and machine notifications
• Real time view of ink levels and remaining print time
• Easily operate take up and perform sheet cuts
• Ergo-Soft RIP Software
• Roland VG3-540 Anti-Static Bar, reducing the build up of static electricity when printing microprismatic sheeting
• Roland DU3-54 Dryer Unit, high volume dryer unit improving dry times for roll-to-roll applications
• Wider rear opening and one-touch media holder for quick and easy loading
• NEW take up unit with fully adjustable end cap, allowing more freedom of media placement and use of various tube sizes
• Modified wider pinch rollers result in no pressure marks while feeding microprismatic sheeting

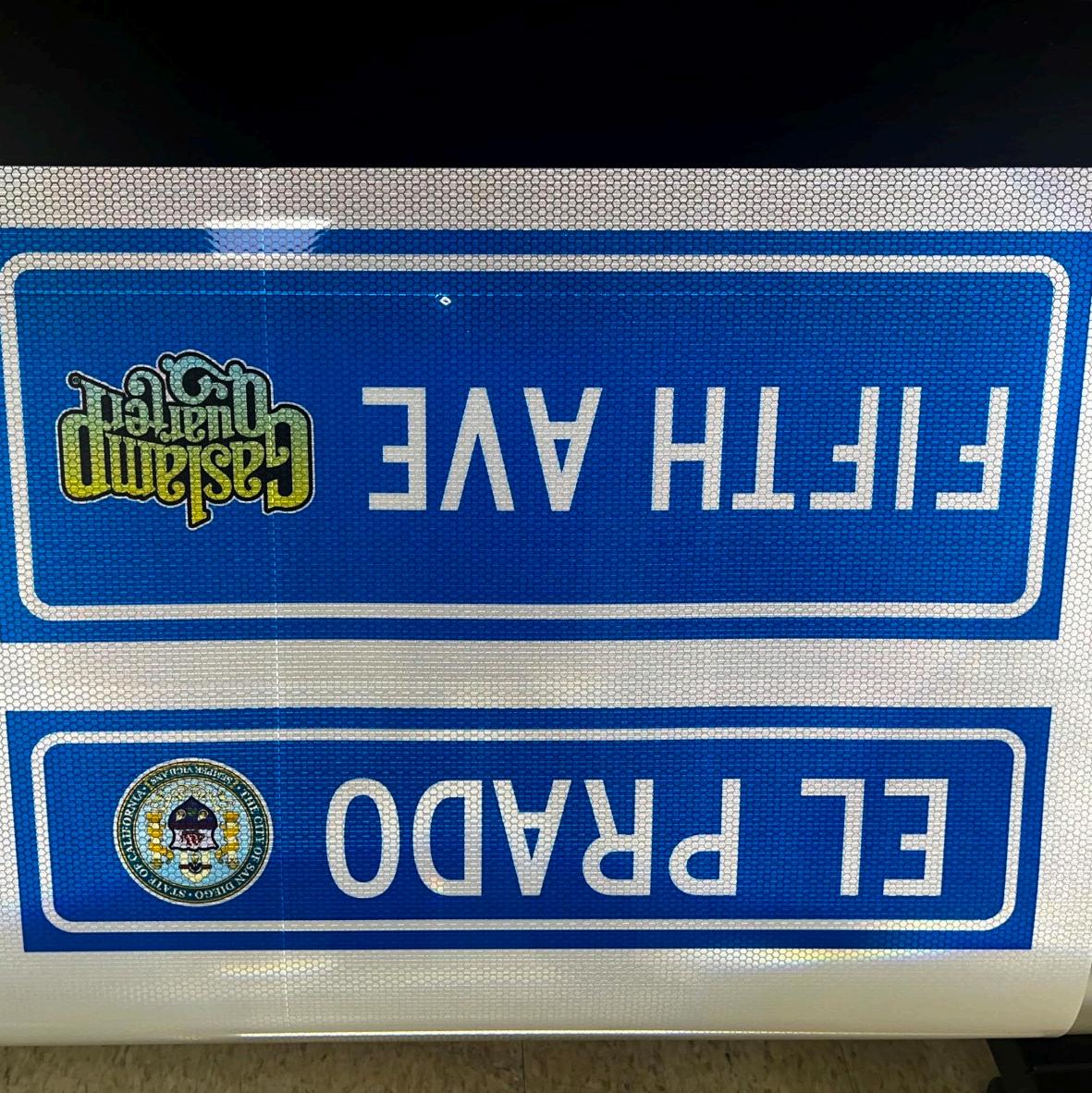

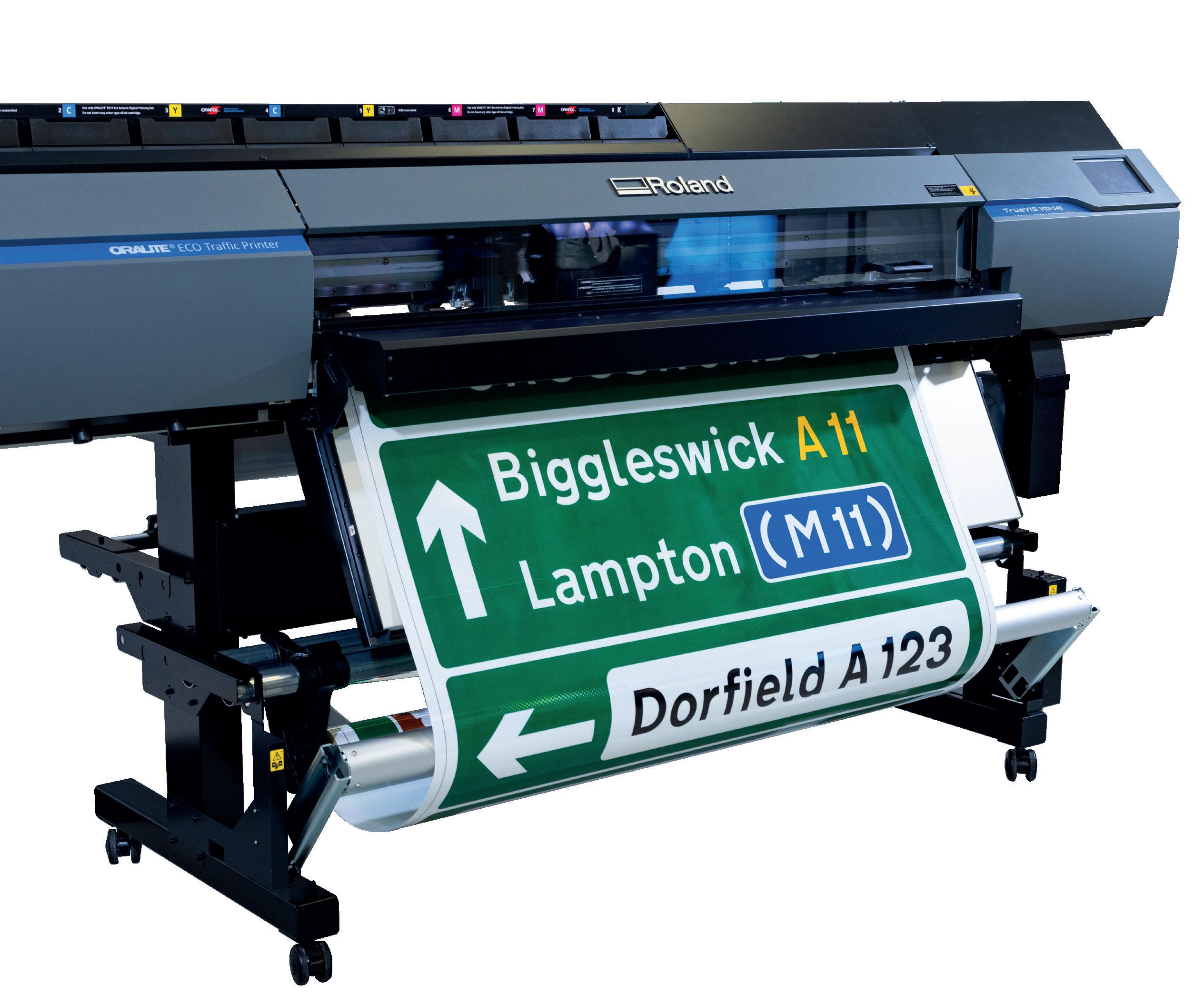

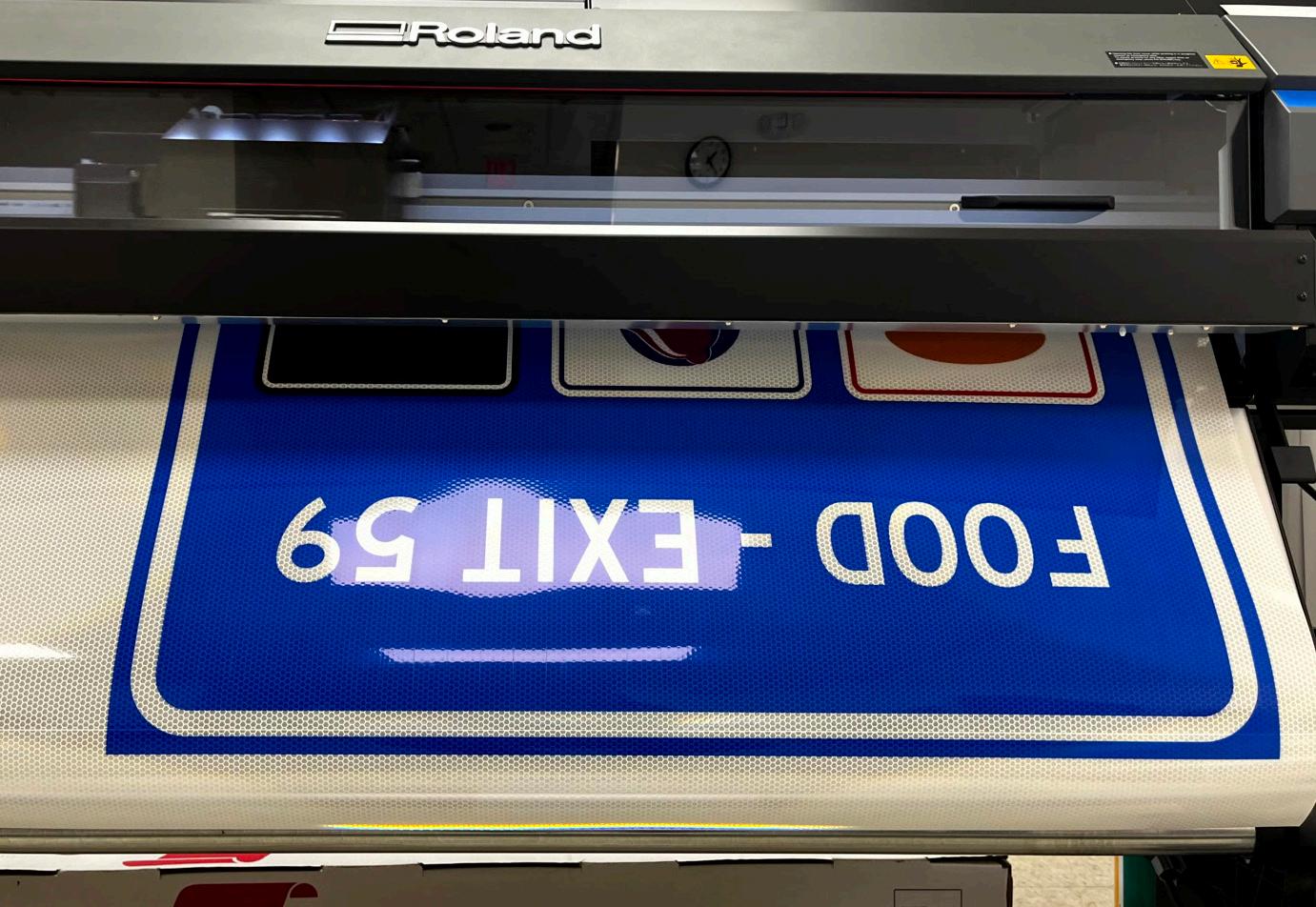

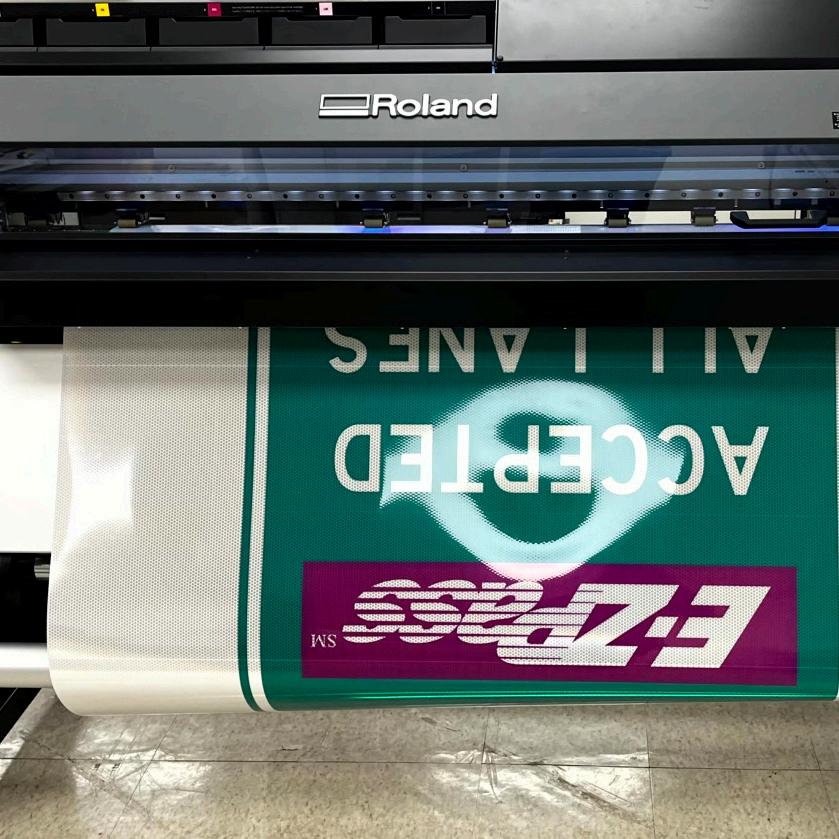

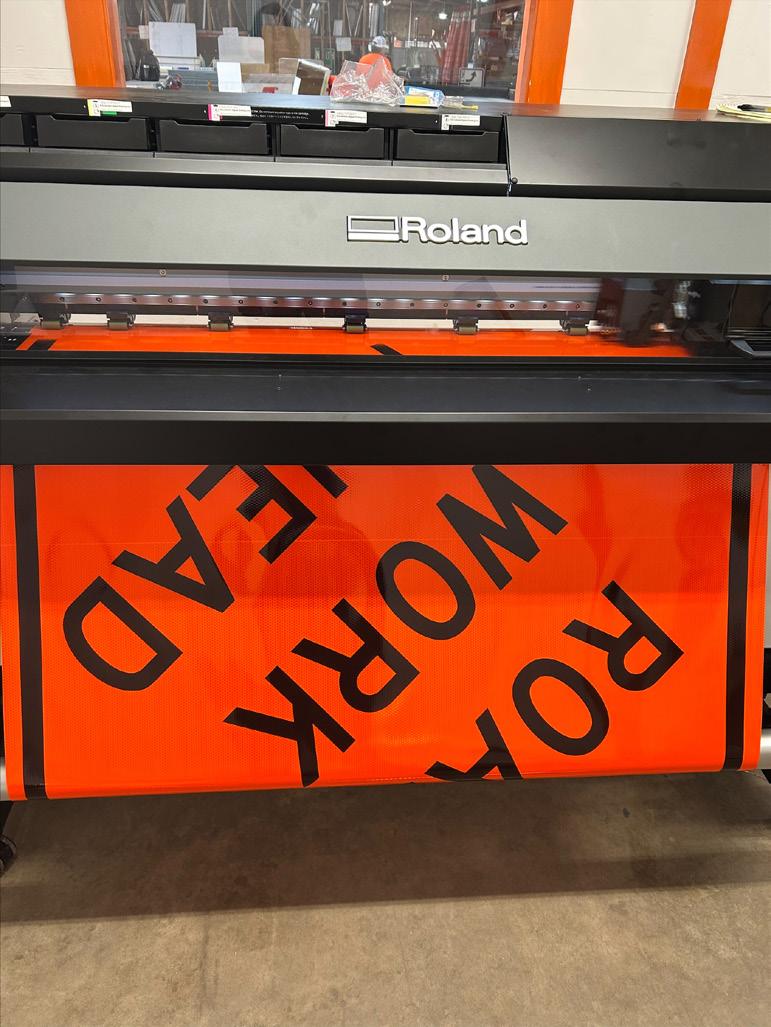

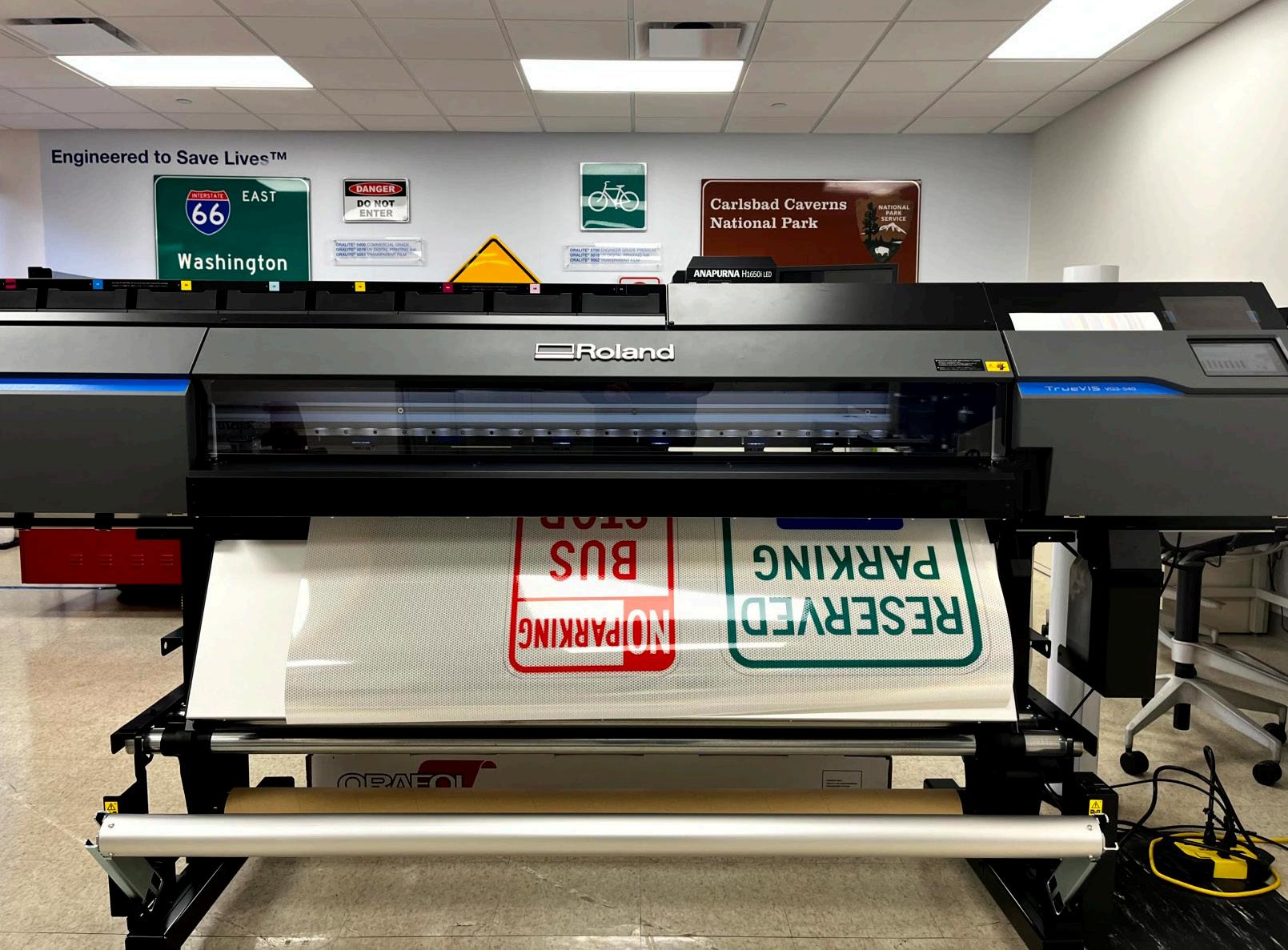

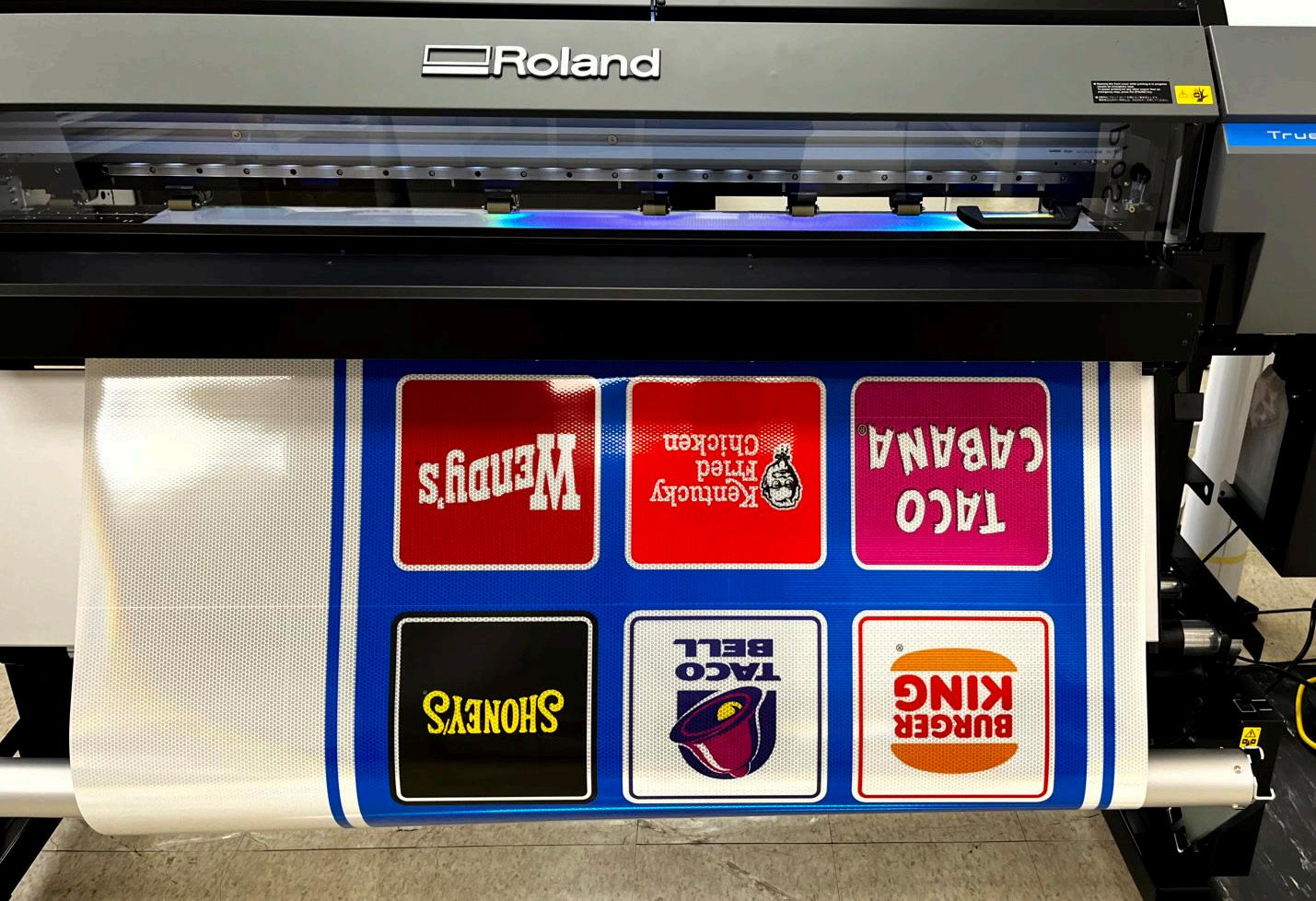

The ORALITE® ECO Traffic Printer is a specialized solution designed to produce both reusable temporary and permanent signs for traffic safety, construction site signage, in-sign graphics, and a wide range of graphic applications. It is engineered to deliver traffic signs with extended service life in accordance with most national and international standards, making it a reliable choice for certified signage production.
In addition, the system is highly resource-efficient, requiring fewer maintenance and service interventions compared to alternative systems on the market. When paired with ORAFOL’s specialized expert support, it offers an optimal balance of affordability, superior print quality, and long-term reliability.
An integrated LCD display provides a user-friendly interface, enhancing ease of operation and overall productivity.

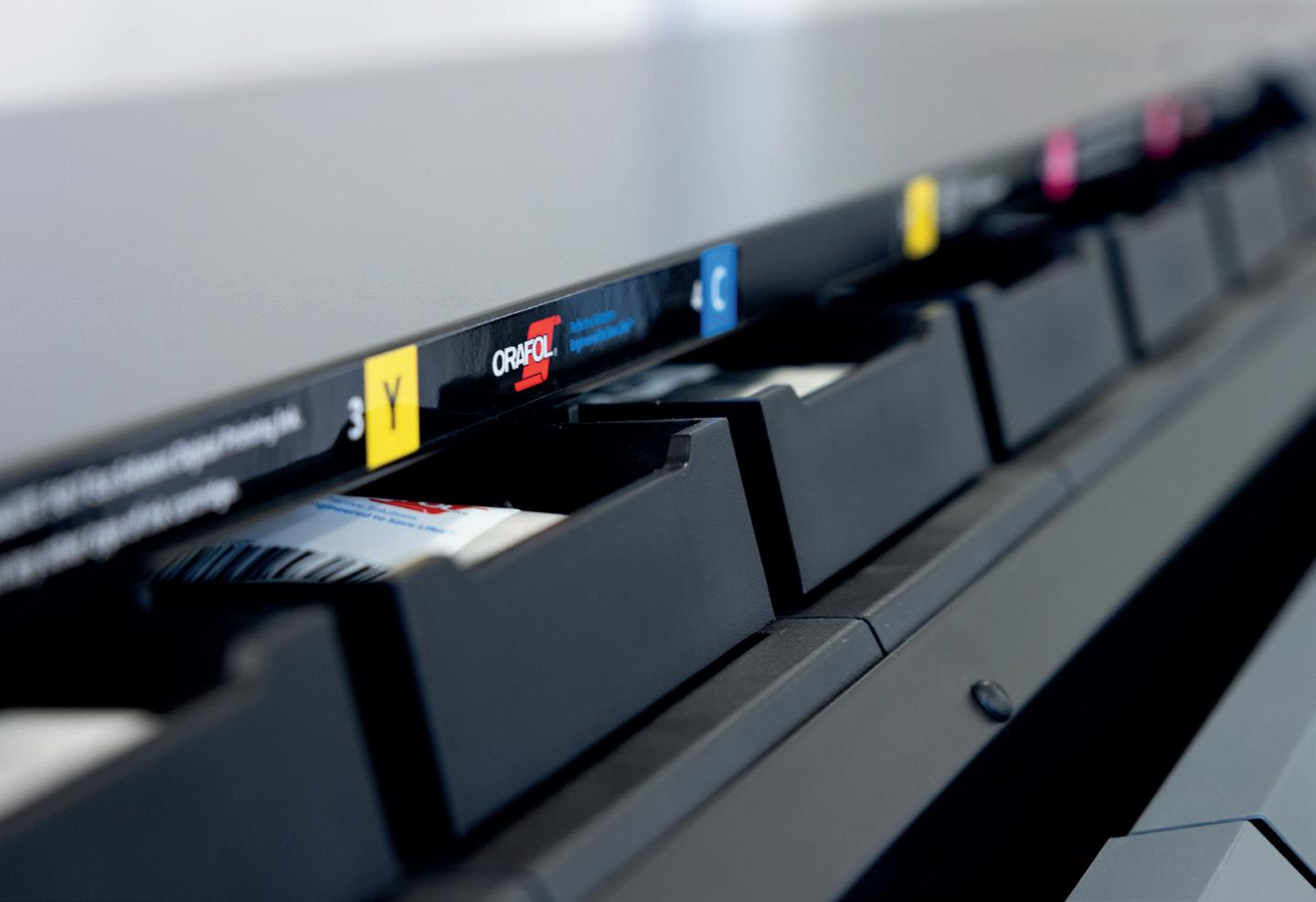

ORALITE® 5017
ECO Solvent Digital Printing Ink
Perfectly matched to the ORALITE® ECO Traffic Printer, these high-performance inks are engineered for optimal use on ORALITE® reflective films, meeting the demands of both permanent and temporary traffic sign applications.
The specially formulated eco-solvent ink delivers low odor and reliable, trouble-free operation. It is fully customizable
to meet specific printing requirements, offering exceptional decap time, extended nozzle-open performance, and rapid drying.
Featuring highly resilient pigments, these inks provide outstanding durability and fade resistance, ensuring vibrant, long-lasting color. Their versatility also supports a wide range of printed sign applications, including those requiring CE approval.
Digital printing with ORALITE® 5017
ECO Solvent Digital Printing Ink:
Printing on various media
· Eco-friendly operation
· Low-odor
· Optimized Print-On-Demand
· Quick-drying
TECHNICAL DETAILS
SPECIFICATIONS
Model Roland DG TrueVIS VG3-540
Print Head
Maximum Resolution
Maximum Media Width
Maximum Print Width
Printing Speed
Media Weight
Maximum Media Diameter
Margin Size
Ink Type
Color
Industrial High Frequency drop-on-demand piezo print head
Traffic Mode 900 x 900 dpi, graphics 1200 dpi
295 to 1,371 mm (11.7 to 54 in.)
Max. 1,346 mm (52.9 in.)
7.5 m²/h 80 ft²/h Traffic Mode (and up to 8,2 m² 88 ft²/h in other print modes)
Up to 35 kg (77 lbs.) – 76.2 mm (3 in.) or 50.8 mm (2 in.) core diameter
Up to 250 mm (9.8 in.)
5 mm (0.2 in.) on each edge (with rolled media, without edge guards)
ORALITE® 5017 ECO Solvent Digital Printing Ink
5 (CCMMYYKR) RFID controlled
Maximum ink capacity 500ml per color
Media
Heater
Take-up Modes
Interface
User Interface
Power Source
Power Consumption
Operating Environment
Acoustic noise level
Storage Environment
External Dimensions
Weight
Software
SERVICE & WARRANTY
Hardware
Software
Print heads
ORALITE® 5900, 6700, 7900, 9900, and many more ORAFOL media
Built-in heaters & Roland DG DU-3 heater extension inclusive
Tension or loose / inside or outside printing
RJ 45 - Ethernet (100BASE-TX/1000BASE-T, auto-neogation)
7 inch LCD Touchscreen control for media control, maintenace, cutting, drying
100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A
Up to 1090W – Standby: 50 W - auto sleep mode (energy saving)
20–32°C (68 – 89.6°F), 5 bis 80 % rh (no condensation)
Operating: 63 db(A) or less, Standby: 53 db(A) or less, Office: 55 – 70 db(A)
5–40°C (41–104°F), 20–80% rh (no condensation)
2,632 mm × 748 mm × 1.320 mm (103.7 in. x 29.5 in. x 52.0 in.)
189 kg (417 lbs.) (without media and ink)
ErgoSoft (Version +17.2) included, computer NOT included (review recommendations)
3 years Roland DG support inclusive travel and labor costs and many parts
3 years ErgoSoft remote support
3 years full coverage
