Quinta Da Malegueira is a public housing project designed by Alvaro Siza located in Evora, Portugal. The civic spaces in Malagueira are very sparse and limited. After thorough site investigation and conversations with locals it was discovered that the social life of Malageuira heavily relied on a Community Garden, Horta Da Nora, managed by the Cultural Association of Malagueira (APCDM). In addition to managing the community garden APCDM also held educational workshops related to farming and social events such as community barbecues and markets. However they planned to expand on these activities and the key issues they faced were insufficient space for workshops and shortage of storage for produce and tools.
The Community Barn,situated in a vacant site across the garden, aims to expand and support the existing activities of the site thereby improving the communal and civic life of the area and its residents.
It will provide:
A space to host workshops related to farming for the locals
A Community Kitchen and Cafe where food would be cooked using produce from the garden
A Storage Space for the garden
A space to have markets that sell the produce from the garden
COMMUNITY BARN

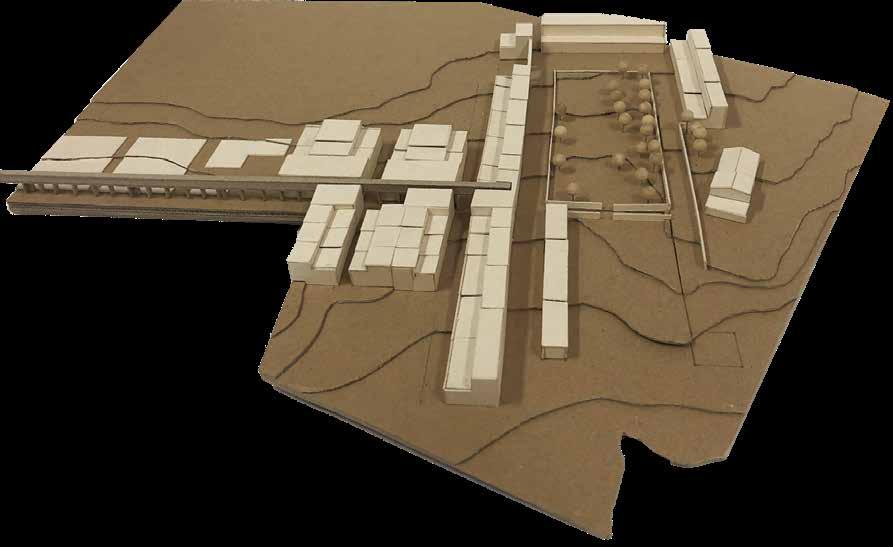

SITE MODEL
GARDEN
HOUSING
COMMUNITY
SOCIAL

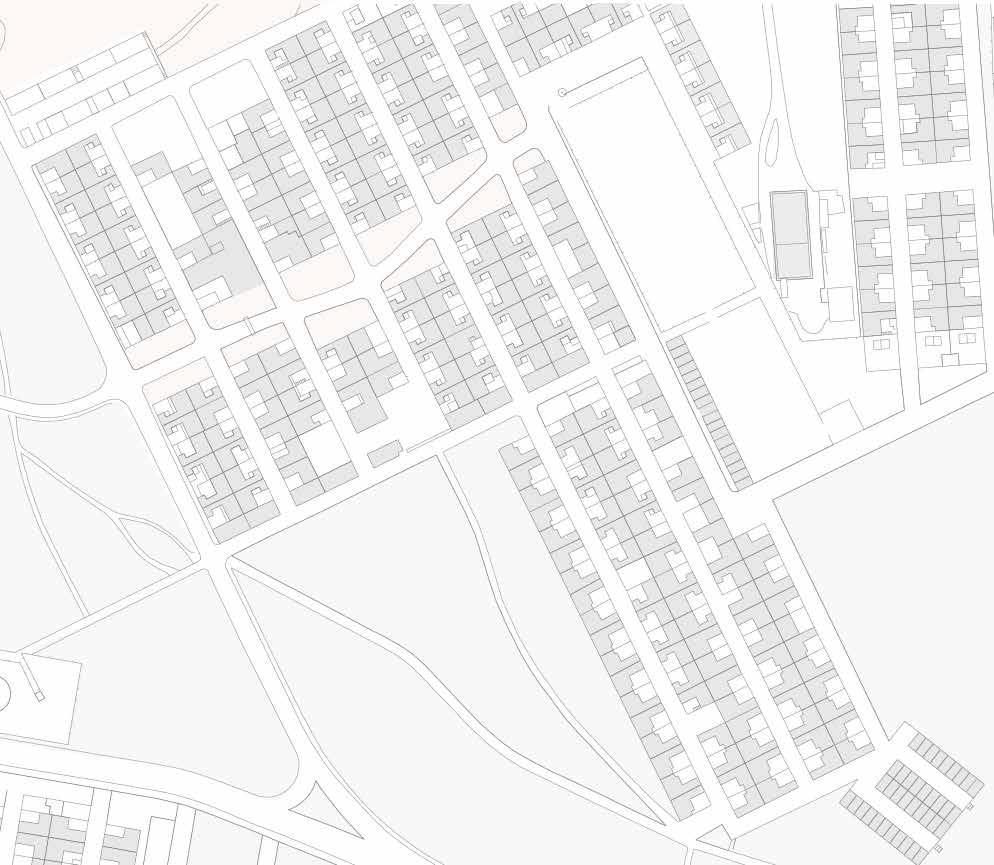

SITE
PROJECT SITE PROJECT
COMMUNITY BARN

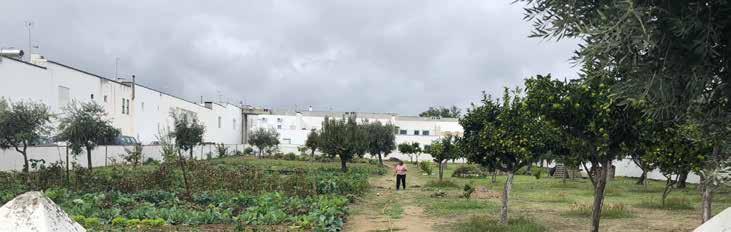

EXISTING SITE CONDITIONS
COMMUNITY BARN

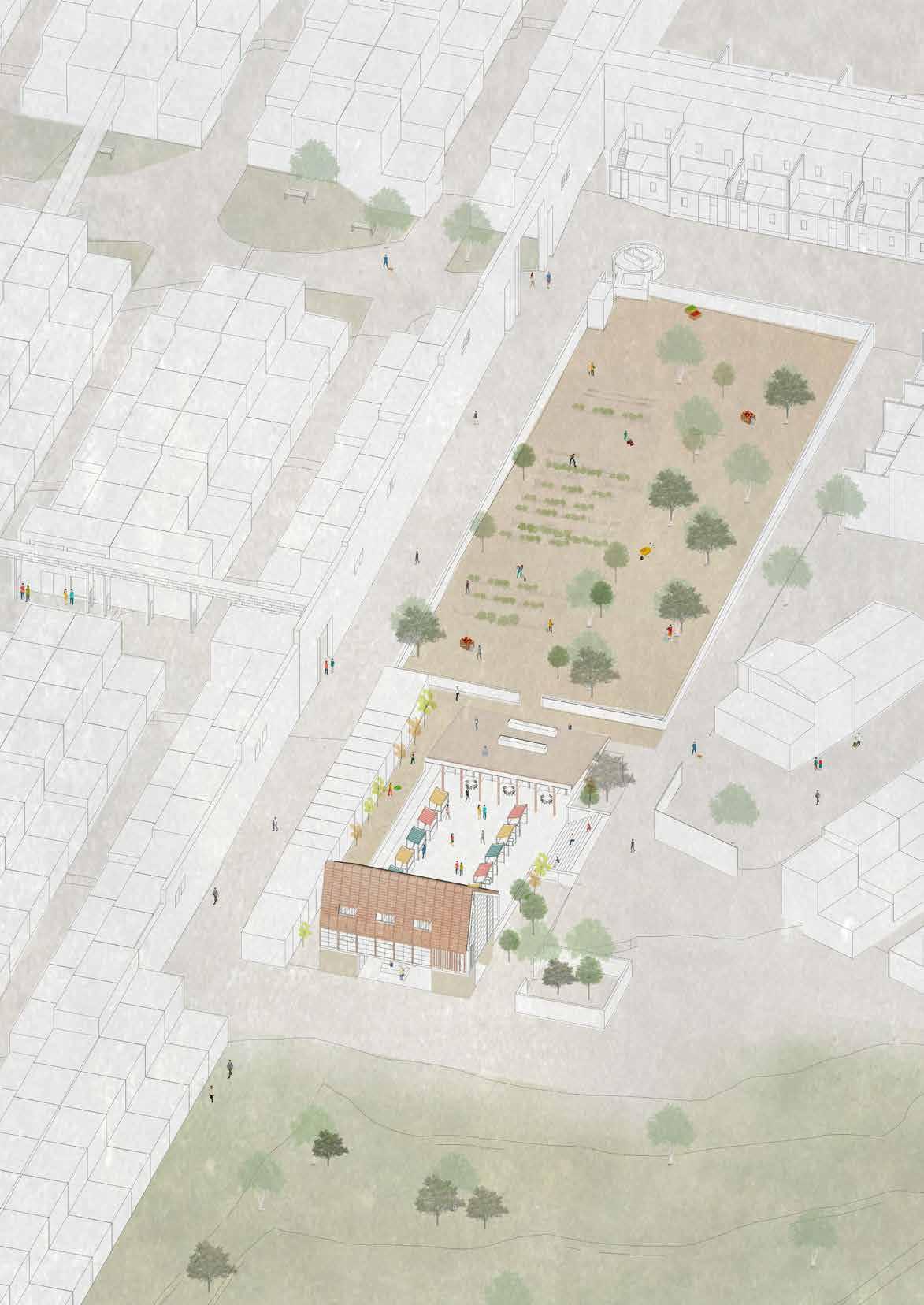

PROPOSAL IN CONTEXT COMMUNITY BARN

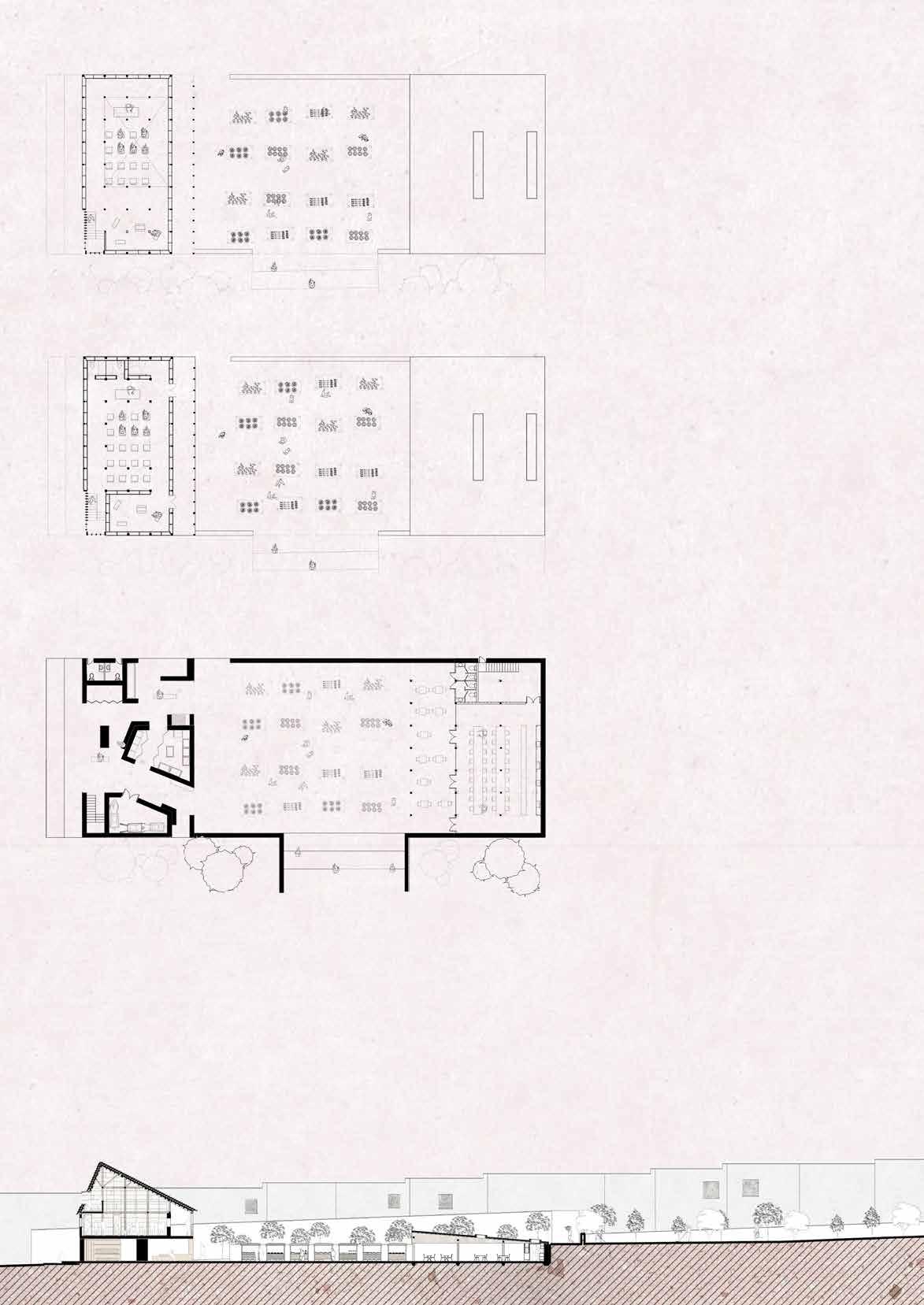

MEZZANNINE
FIRST FLOOR
GROUND FLOOR
A STORAGE SPACES
B COURTYARD FOR MARKETS
C COMMUNITY KITCHEN/CAFE
A B C D
D WORKSHOP SPACE COMMUNITY BARN
MATERIALS AND CONSTRUCTION
The two main materials used in the construction of the Barn were Cork and Rammed Earth, both locally sourced.
Timber Roof
Timber Floor
Timber Floor
Joists
200mmx200mm
Timber Posts
200mm Concrete Slab
Rammed Earth
Cork Tile
2500mmx2500mm
Grid

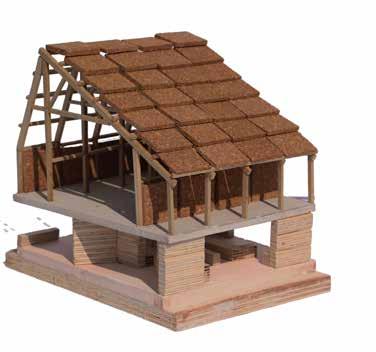

Typical Cork and Timber Module
Rammed Earth
Compressed Cork Block Concrete Slab
COMMUNITY BARN
Cork Floor Tile
COMMUNITY
THE
BARN VIEW FROM
GARDEN
COMMUNITY BARN
VIEW TO GARDEN AND MARKET PLACE FROM THE BARN
COMMUNITY BARN
PROJECT LOCATION: LOGAN SQUARE, PHILADELPHIA
PROJECT BRIEF:
A foldable and mobile structure to accommodate the unhoused. The space comprises of 8 sleeping units with 8 storage units.
SHELTER
UNFOLDING PROCESS

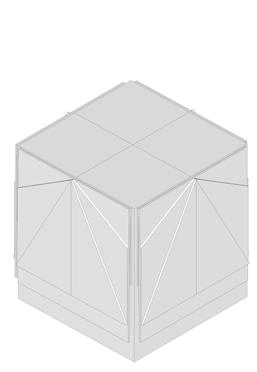

Proposed structure is a cube with each side unfolding to two sleeping units. The central block is divided into 8 spaces to accomodate storage
Central block divided into eight storage spaces
Sleeping units
CLOSED OPEN PLAN VIEW

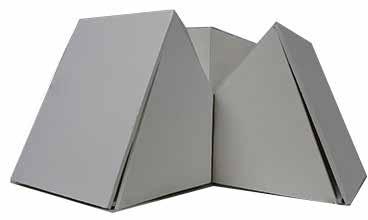

MODEL
PROJECT TYPE: SOCIO-SPATIAL RESEARCH LOCATION: LONDON,UK

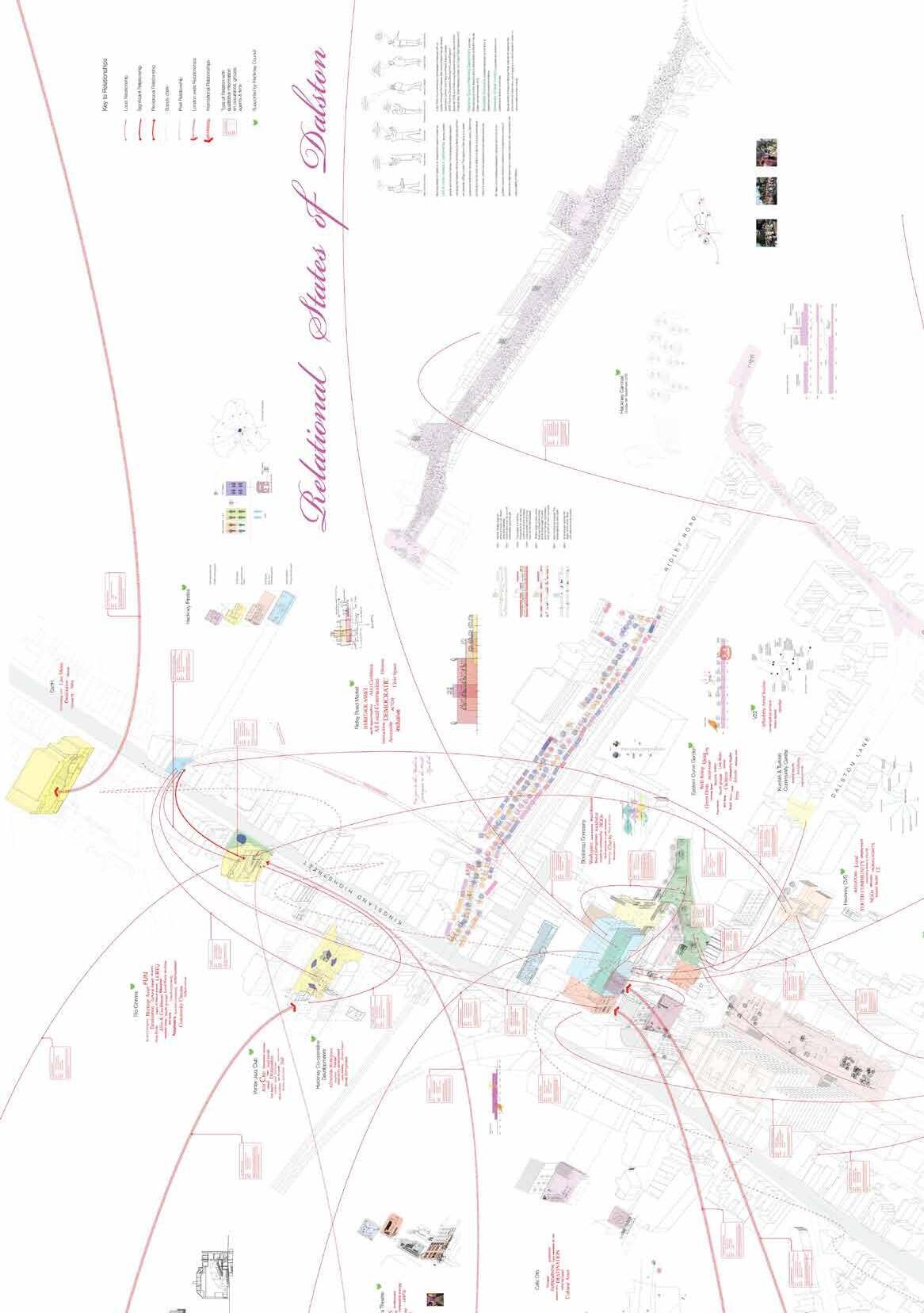

Dalston, an area in London’s borough of Hackney, has been going through a lot of changes. Relational States of Dalston is a research project, in partnership with Hackney Council, that highlights the various stakeholders in this area and their relationship with each other.
This was a collaborative effort of 7 student researches. Each student was responsible for researching, analysing and interviewing these stake holders and producing relevant drawings. The final drawing was exhibited at London Design Fair
More details about the project can be found on https://hackney.gov.uk/dalston-spd
RELATIONAL STATES OF DALSTON
PROJECT TYPE: PUBLIC PARK CONTRIBUTION: MASTER PLAN AND DESIGN LOCATION: LAHORE, PAKISTAN
DREAM GARDENS LAHORE
*The renderings have been created by the Visualisation Department at the firm
DREAM GARDENS LAHORE
PROJECT TYPE: RESIDENTIAL
CONTRIBUTION: FLOOR PLAN AND ELEVATION DESIGN LOCATION: BAHAWALPUR, PAKISTAN
DHA BAHAWALPUR
*The renderings have been created by the Visualisation Department at the firm

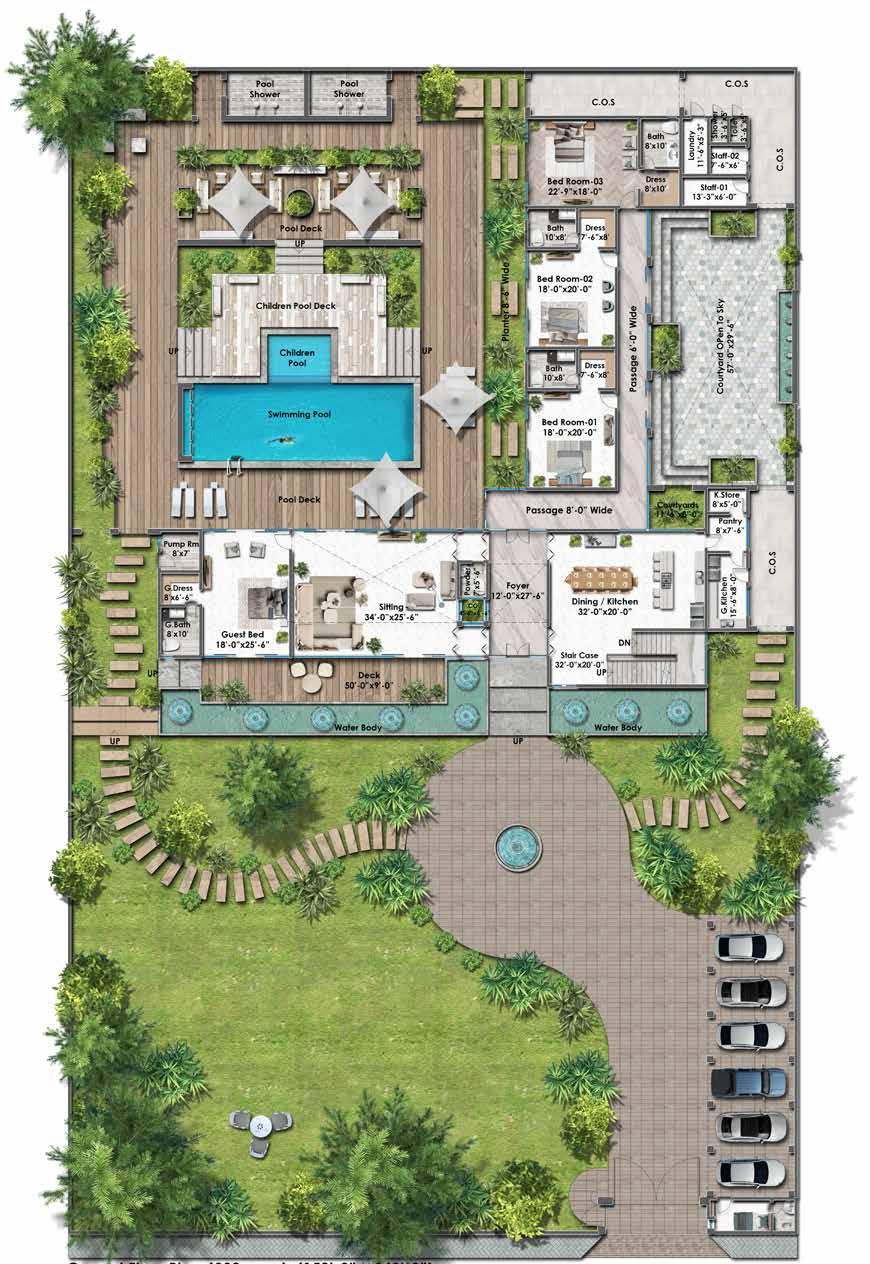

FIRST FLOOR PLAN GROUND FLOOR PLAN DHA BAHAWALPUR
PROJECT TYPE: CORPORATE INTERIOR
CONTRIBUTION: INTERIOR MOODBOARDS
LOCATION: KARACHI,PAKISTAN
Conceptual Moodboards for PSRM, a Rebar Manufacturing and Shipbreaking company.
RECEPTION WORKHALL PSRM OFFICE
DIRECTORS ROOM MEETING ROOM PSRM OFFICE
PROJECT TYPE: CORPORATE INTERIOR
CONTRIBUTION: INTERIOR MOODBOARDS
LOCATION: KARACHI,PAKISTAN
Conceptual Moodboards for Artistic Milliners, a denim manufacturing company.
ARTISTIC MILLINERS OFFICE
RECEPTION MEETING ROOM
WORK HALL WORK HALL ARTISTIC MILLINERS OFFICE
PROJECT TYPE: CORPORATE
CONTRIBUTION: FURNITURE DETAIL DESIGN LOCATION: KARACHI,PAKISTAN
ARTISTIC MILLINERS CREATIVE ZONE
4"RAISED PLATFORM
ELEVATION - 02
WOODEN VENEER DOOR
2" THICK MS PIPE SHELF WITH MOUNTED SCREEN
WOODEN HANDLE POLISH FINISH EXISTING BLOCK MASONRY
WOODEN FILE CABINET
WOODEN VENEER DOOR
2" THICK MS PIPE SHELF WITH MOUNTED SCREEN
WOODEN HANDLE POLISH FINISH EXISTING BLOCK MASONRY
WOODEN FILE CABINET
SHELF DETAIL 1/2" = 1'-0"
SCALE: 3/8"=1'-0"
AIR SUPPLY DUCT
PROJECT TYPE: PUBLIC CONTRIBUTION: FLOOR PLAN SKETCH LOCATION: LONDON, UK

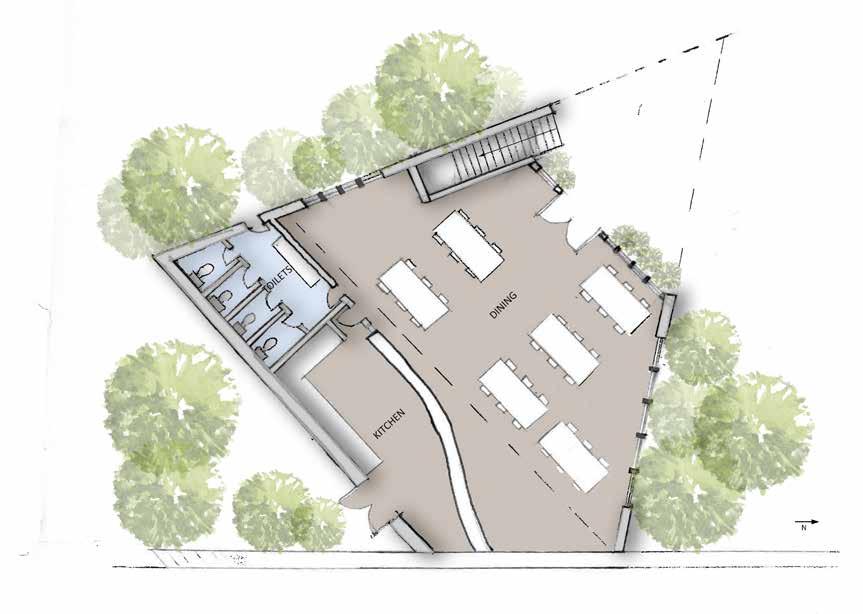

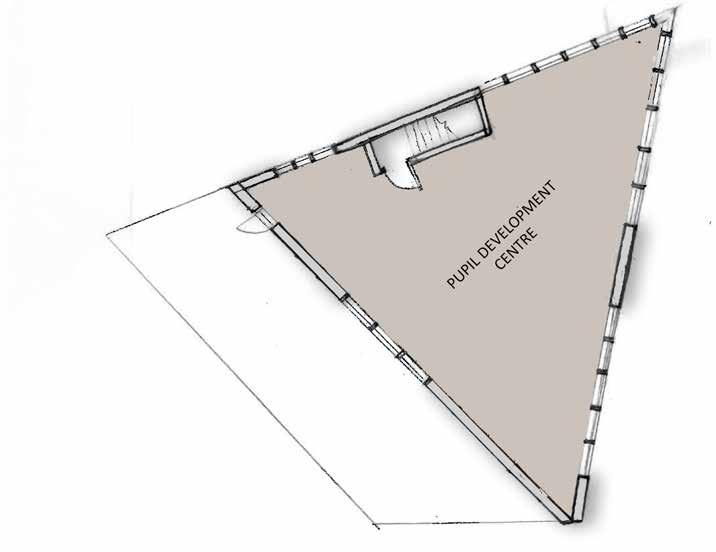

Preliminary Concept Sketch for a dining facility for Snowsfield Primary School
SNOWSFIELD PRIMARY SCHOOL
PROJECT TYPE: FARMHOUSE
CONTRIBUTION: FLOOR PLAN AND ELEVATION DESIGN
LOCATION: KARACHI,PAKISTAN
*The renderings have been created by the Visualisation Department at the firm
BELLA VISTA FARMHOUSE
*The renderings have been created by the Visualisation Department at the
BELLA VISTA FARMHOUSE
firm
