While they appear to be independent members resting on each other, each piece is connected via steel apertures to corresponding members for greater stability.
MANUFACTURE
A
C
B
Detail Key 1. Precast concrete 2. Grout 3. Steel Contact Weld 4. Grouted Steel Tension Connection Steel contacts are welded together on site to finally bond the pre-cast members. these contacts are imbedded during the manufacturing process pre-cast elements. Contacts imbedded in foundation are done during the site casting process.
Precast Concrete
TRANSPORTX+XASSEMBLY

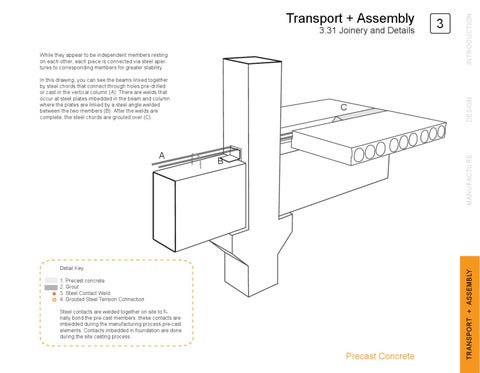

In this drawing, you can see the beams linked together by steel chords that connect through holes pre-drilled or cast in the vertical column (A). There are welds that occur at steel plates imbedded in the beam and column where the plates are linked by a steel angle welded between the two members (B). After the welds are complete, the steel chords are grouted over (C).
3
INTRODUCTION
3.31 Joinery and Details
DESIGN
Transport + Assembly
