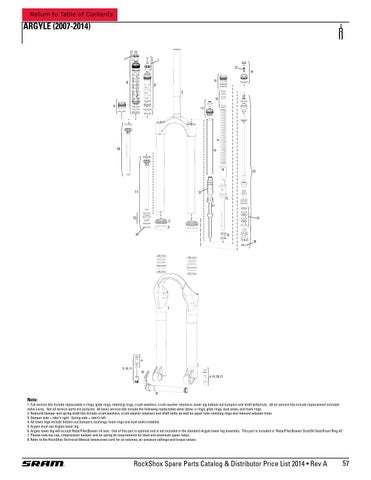

ARGYLE (2007-2014)
7
7 27 18 13
8
9 2 15
6
17
14
10
19
16
11
22
23 15 21
12
23
3 3
26
15 26
1
4 5, 10, 11
25 4, 15, 20, 21
24
Note:
1. Full service kits include replaceable o-rings, glide rings, retaining rings, crush washers, crush washer retainers, lower leg bottom-out bumpers and shaft bolts/nuts. All air service kits include replacement schrader valve cores. Not all service parts are pictured. All basic service kits include the following replaceable wear items: o-rings, glide rings, dust seals, and foam rings. 2. Rebound damper and spring shaft kits include crush washers, crush washer retainers and shaft bolts, as well as upper tube retaining rings and rebound adjuster knob. 3. Damper side = rider’s right. Spring side = rider’s left. 4. All lower legs include bottom-out bumpers, bushings, foam rings and dust seals installed. 5. Argyle must use Arglye lower leg. 6. Argyle lower leg will accept Reba/Pike/Boxxer oil seal. Use of this part is optional and is not included in the standard Argyle lower leg assembly. This part is included in ‘Reba/Pike/Boxxer Dust/Oil Seal/Foam Ring kit’. 7. Please note top cap, compression damper and air spring kit requirements for steel and aluminum upper tubes. 8. Refer to the RockShox Technical Manual (www.sram.com) for oil volumes, air pressure settings and torque values.
