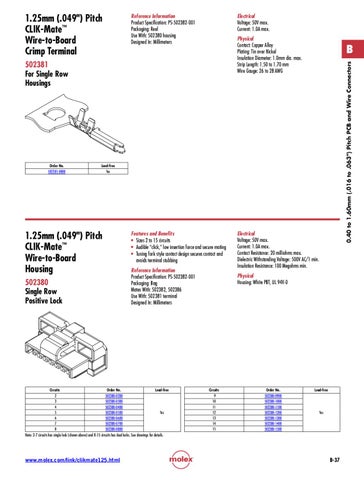

Reference Information Product Specification: PS-502382-001 Packaging: Reel Use With: 502380 housing Designed In: Millimeters
Electrical Voltage: 50V max. Current: 1.0A max.
Features and Benefits • Sizes 2 to 15 circuits • Audible “click,” low insertion force and secure mating • Tuning fork style contact design secures contact and avoids terminal stubbing
Electrical Voltage: 50V max. Current: 1.0A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 100 Megohms min.
Physical Contact: Copper Alloy Plating: Tin over Nickel Insulation Diameter: 1.0mm dia. max. Strip Length: 1.50 to 1.70 mm Wire Gauge: 26 to 28 AWG
502381 For Single Row Housings
Order No. 502381-0000
Lead-free Yes
1.25mm (.049") Pitch CLIK-Mate™ Wire-to-Board Housing
Reference Information Product Specification: PS-502382-001 Packaging: Bag Mates With: 502382, 502386 Use With: 502381 terminal Designed In: Millimeters
502380 Single Row Positive Lock
Circuits 2 3 4 5 6 7 8
B 0.40 to 1.60mm (.016 to .063") Pitch PCB and Wire Connectors
1.25mm (.049") Pitch CLIK-Mate™ Wire-to-Board Crimp Terminal
Order No. 502380-0200 502380-0300 502380-0400 502380-0500 502380-0600 502380-0700 502380-0800
Lead-free
Yes
Physical Housing: White PBT, UL 94V-0
Circuits 9 10 11 12 13 14 15
Order No. 502380-0900 502380-1000 502380-1100 502380-1200 502380-1300 502380-1400 502380-1500
Lead-free
Yes
Note: 2-7 circuits has single lock (shown above) and 8-15 circuits has dual locks. See drawings for details.
