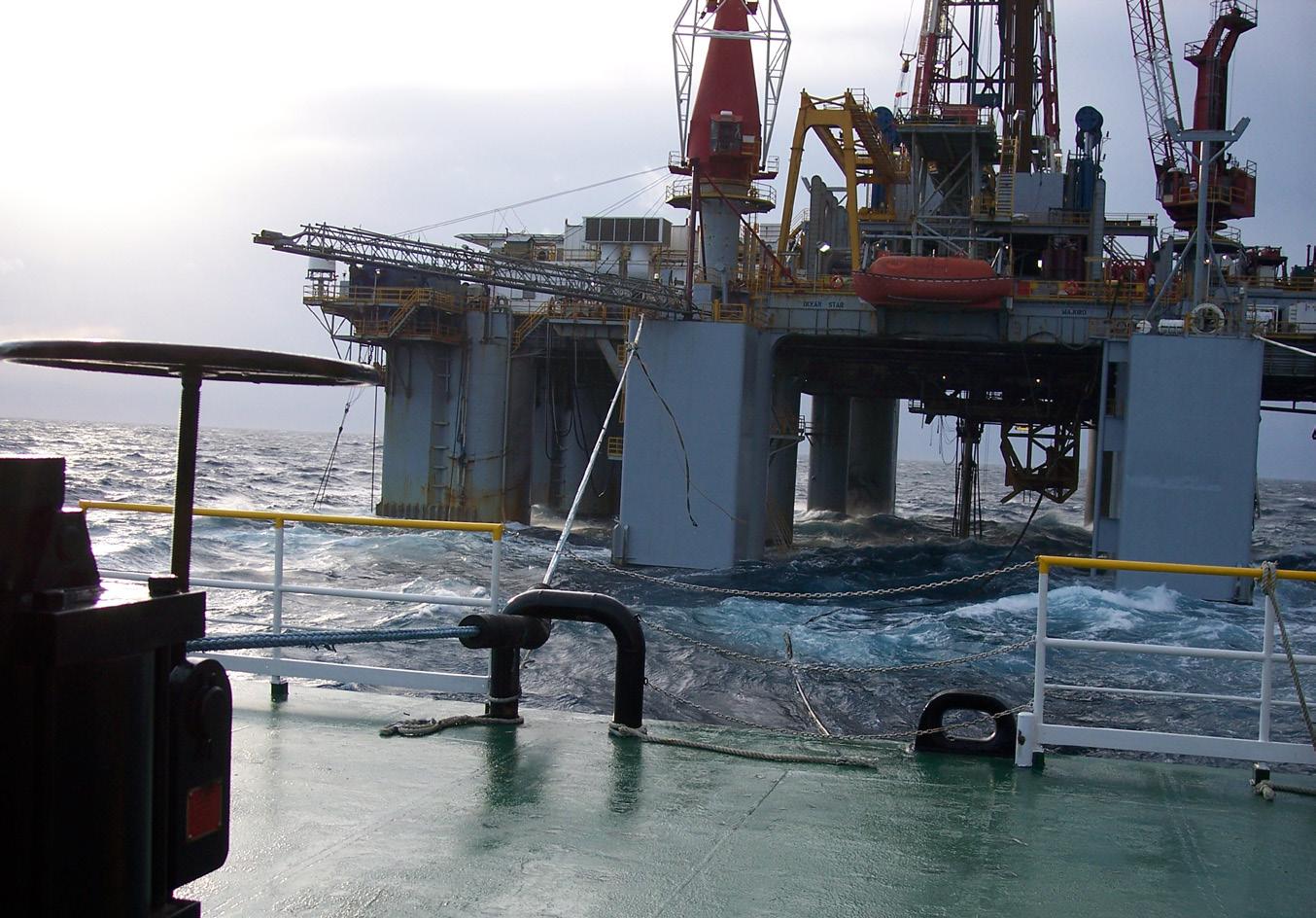

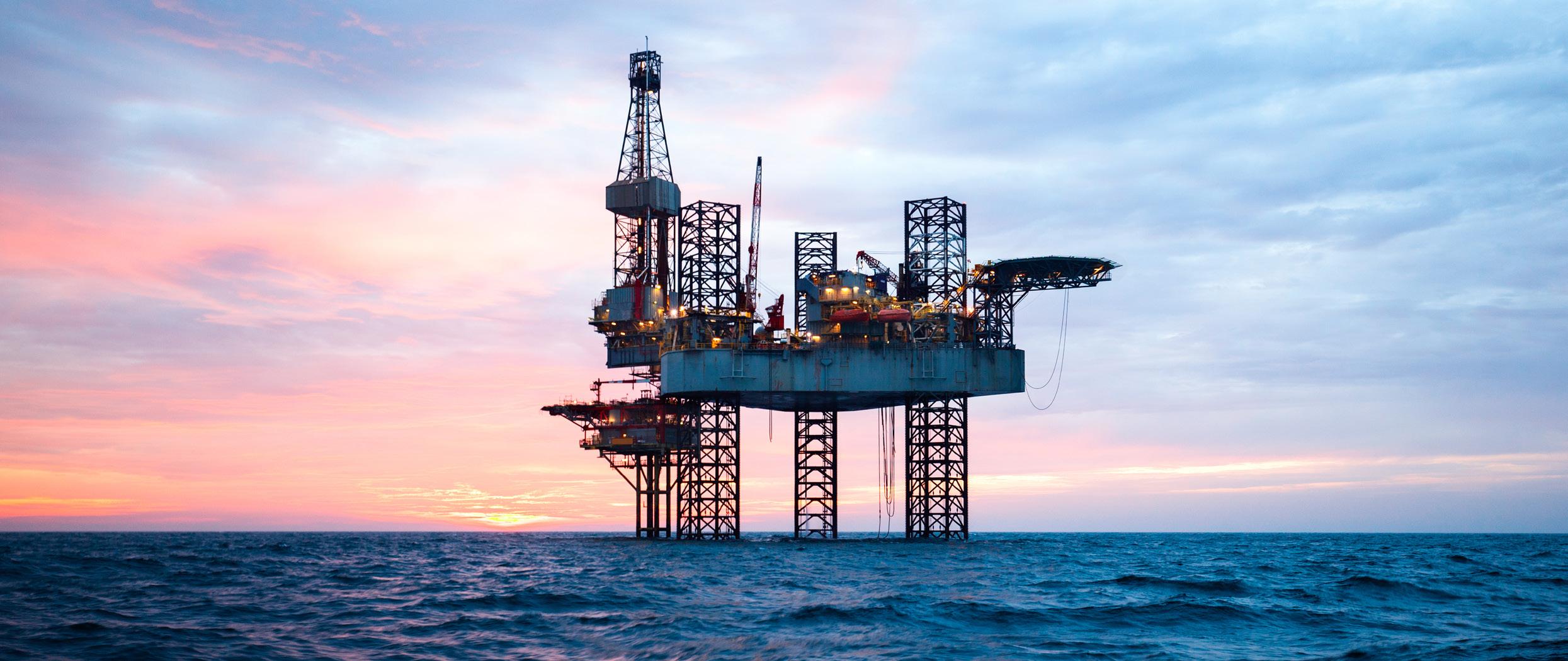

Common applications of this product include pipeline coatings, platform structural members (legs and diagonals), conventional risers, pipelines pulled through J-tubes, conductors, and the lining of riser clamps. Mark Tool has coated offshore platforms with SplashTRON® for two decades.
The tough, long-lasting elastomer is applied to structural members exposed to the splash zone during fabrication. It provides complete protection against the erosive action of abrasive-laden seawater, the harsh attack of ozone and ultraviolet rays, incidental impact from boats and floating debris, and the effect of sea life which builds upon all offshore installations.
An important feature of SplashTRON® in pipeline coating application is the fact that it is completely and permanently bonded to the metal surface, and because it is flexible, it won’t crack or disbond as the members bend, expand, and contract. This product can be expected to protect against corrosion for the life of the platform. SplashTRON® has proven its effectiveness in the Gulf of Mexico and other offshore areas around the world for more than 30 years. It is used by the leading producers of oil and gas, and most transmission companies.
Thermal Insulation
TYPICAL APPLICATIONS FOR THERMOTRON 350®:
• Insulation System for Flow-lines
• Insulation System for Production Risers
• Insulation System for Hull piping
• Insulation System for Tie-backs
• Insulation System for Spool
THERMOTRON® 350 THREE-LAYER PROTECTION SYSTEM
1. The first layer is a corrosion coating that provides the pipe surface (the pipe is first steel grit blasted) with a film that is highly resistant to chemical attack and to cathodic disbondment.
2. The second layer consists of a bonding agent that works as a bonding layer between the top coat and the first layer of corrosion coating.
3. The third layer consists of extruded ThermoTRON 350™ 1” thick depending on the service conditions (the thickness could vary). The function of the third layer is to provide the system with excellent thermal insulation properties and both anticorrosive and mechanical protection.

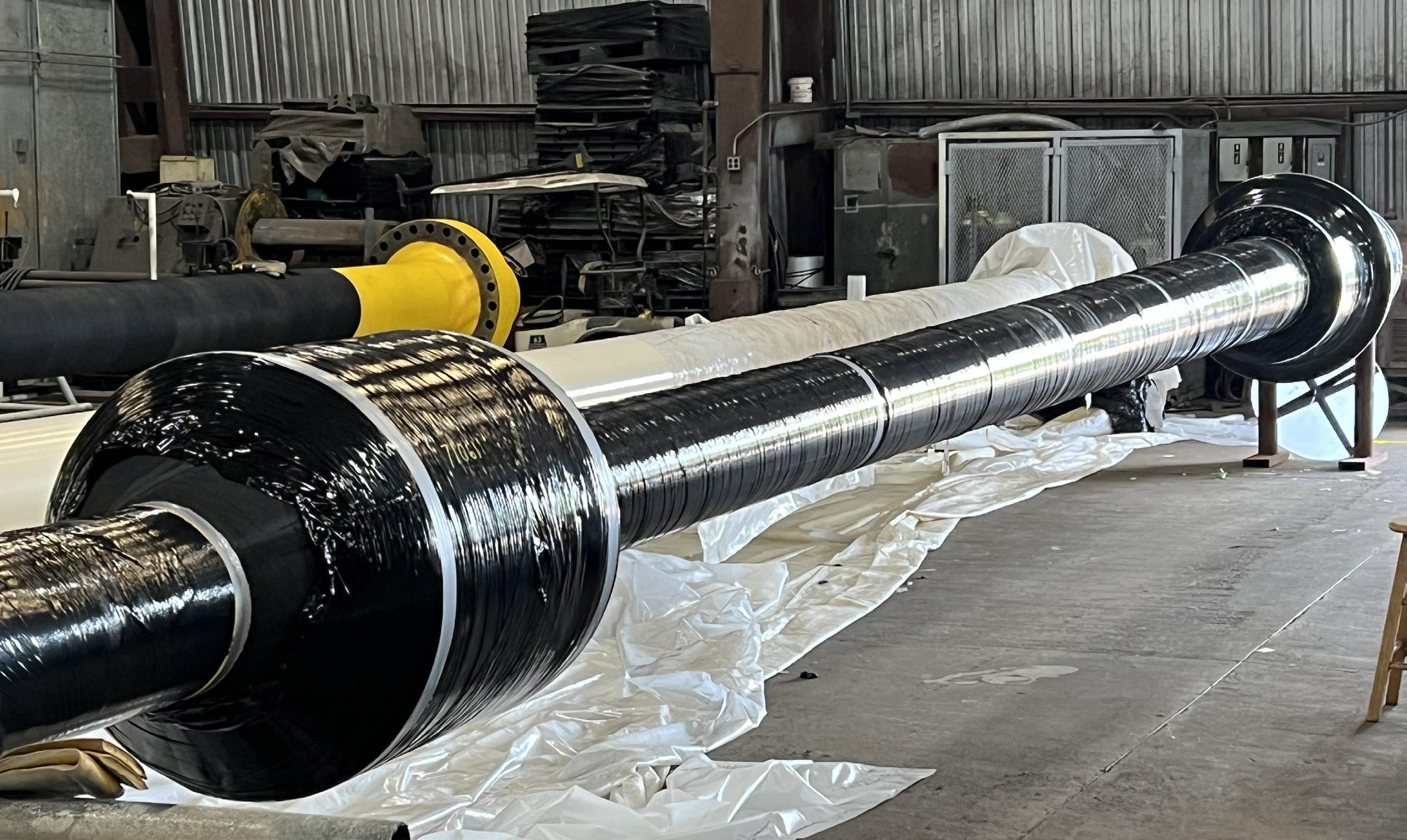

SUBTRON®
ADVANCED DEEPWATER PROTECTION FOR TITANIUM STRESS JOINTS
SubTRON® is a high-performance bromobutyl rubber (BBR) protection system engineered specifically for titanium stress joints (TSJs) used in deepwater offshore risers and subsea production systems. Developed for some of the world’s most demanding offshore environments, SubTRON provides a durable environmental barrier that protects critical titanium components against seawater exposure, extreme hydrostatic pressure, and hydrogen ingress throughout the service life of the field.
Titanium is widely selected for stress joints because of its exceptional strength-toweight ratio and outstanding corrosion resistance. However, in deepwater subsea systems utilizing cathodic protection, atomic hydrogen can be generated at the metal surface. Under certain conditions, hydrogen may diffuse into the titanium and form titanium hydrides, reducing ductility and fracture toughness and potentially affecting the long-term structural integrity of highly stressed components.
SubTRON addresses this challenge by utilizing a factory-vulcanized bromobutyl rubber barrier that is chemically bonded to the titanium surface. Bromobutyl rubber exhibits exceptionally low permeability to gases, moisture, and hydrogen-containing species, significantly reducing the transport of seawater and dissolved gases to the titanium interface. Compared with conventional neoprene-based protection systems, SubTRON provides superior barrier performance for applications where long-term environmental isolation is critical.
Thermal Spray Coating
Mark Tool offers thermal spray coating solutions that provide robust corrosion protection and extended service life in aggressive operating environments.
Our thermal spray capabilities include:
THERMAL SPRAY ALUMINUM (TSA)
Thermal Spray Aluminum is recognized worldwide as one of the most effective longterm corrosion protection systems for offshore and marine environments.
Benefits include:
• Exceptional corrosion resistance
• Extended service life
• Proven offshore performance
• Sacrificial corrosion protection
• Reduced maintenance requirements
• Compatibility with sealing systems for enhanced protection
THERMAL SPRAY ZINC
Thermal Spray Zinc systems provide sacrificial protection for steel structures and are often selected for atmospheric and industrial exposure conditions where long-term corrosion control is critical.
RUBBER PRODUCTS
PRODUCTS:
Ruber Rollers
Vulcanized Rubber Clamps
Tensioner Pads
Bearing Pads

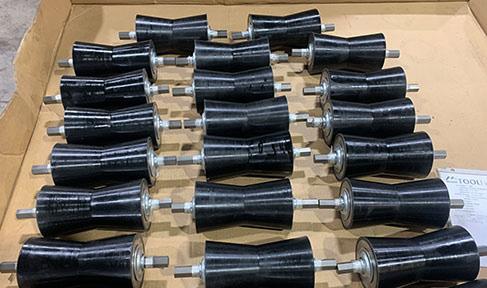

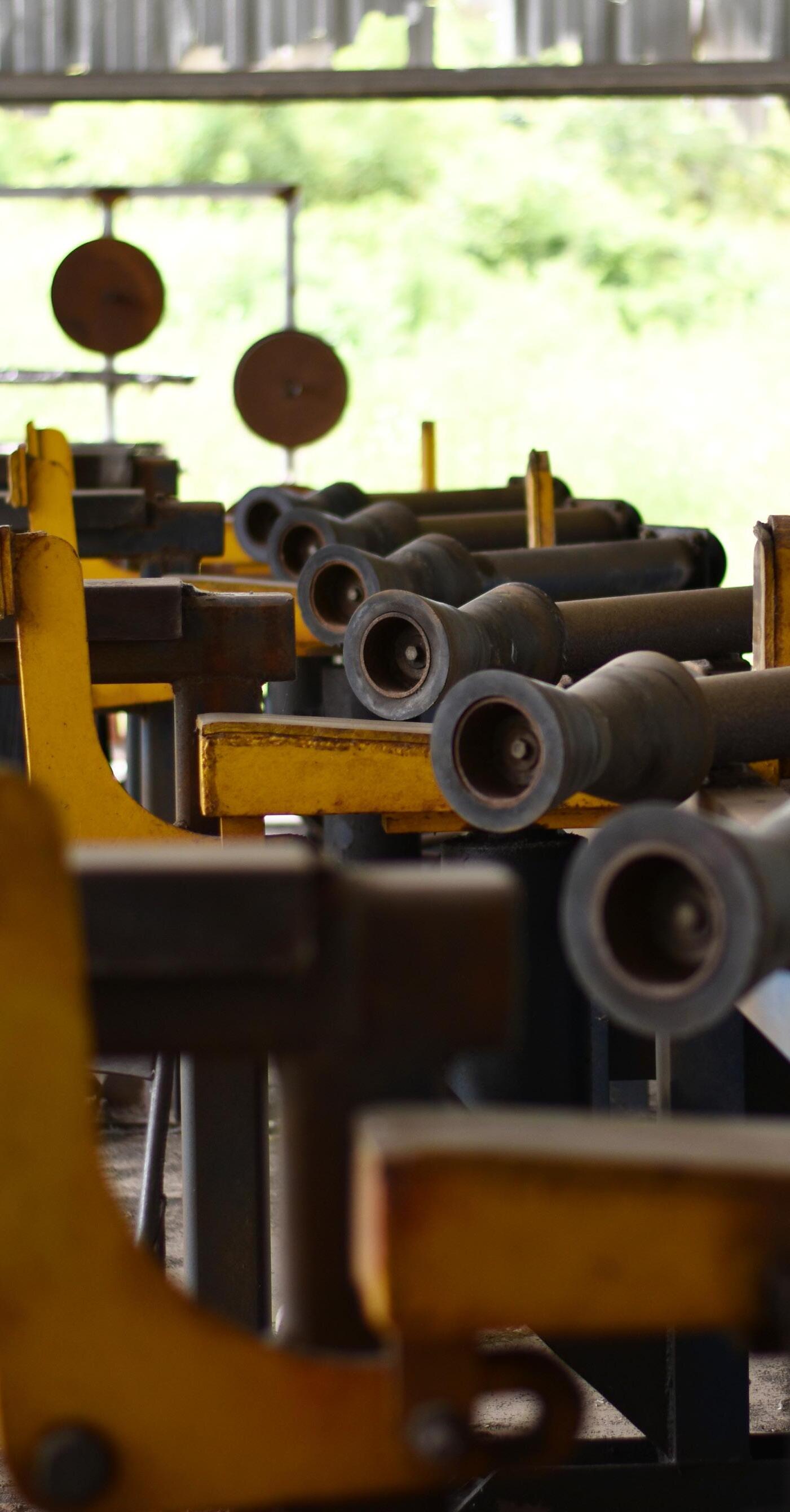

RUBBER ROLLERS
Mark Tool Company, Inc. can manufacture just about any size and type of rubber roller. Whether you’re looking for agriculture rollers, industrial rollers, or even pipeline rollers, we can supply and satisfy your rubber roller needs.
Rollers can be produced out of a variety of rubbers based on specific customer needs and rubber applications. Long lasting and durable, Mark Tool will keep customers’ rollers in stock for immediate shipment based on customer demands for volume & usage.
TYPES OF ROLLERS
We can produce many different types of rollers and products including:
Conveyor Rollers

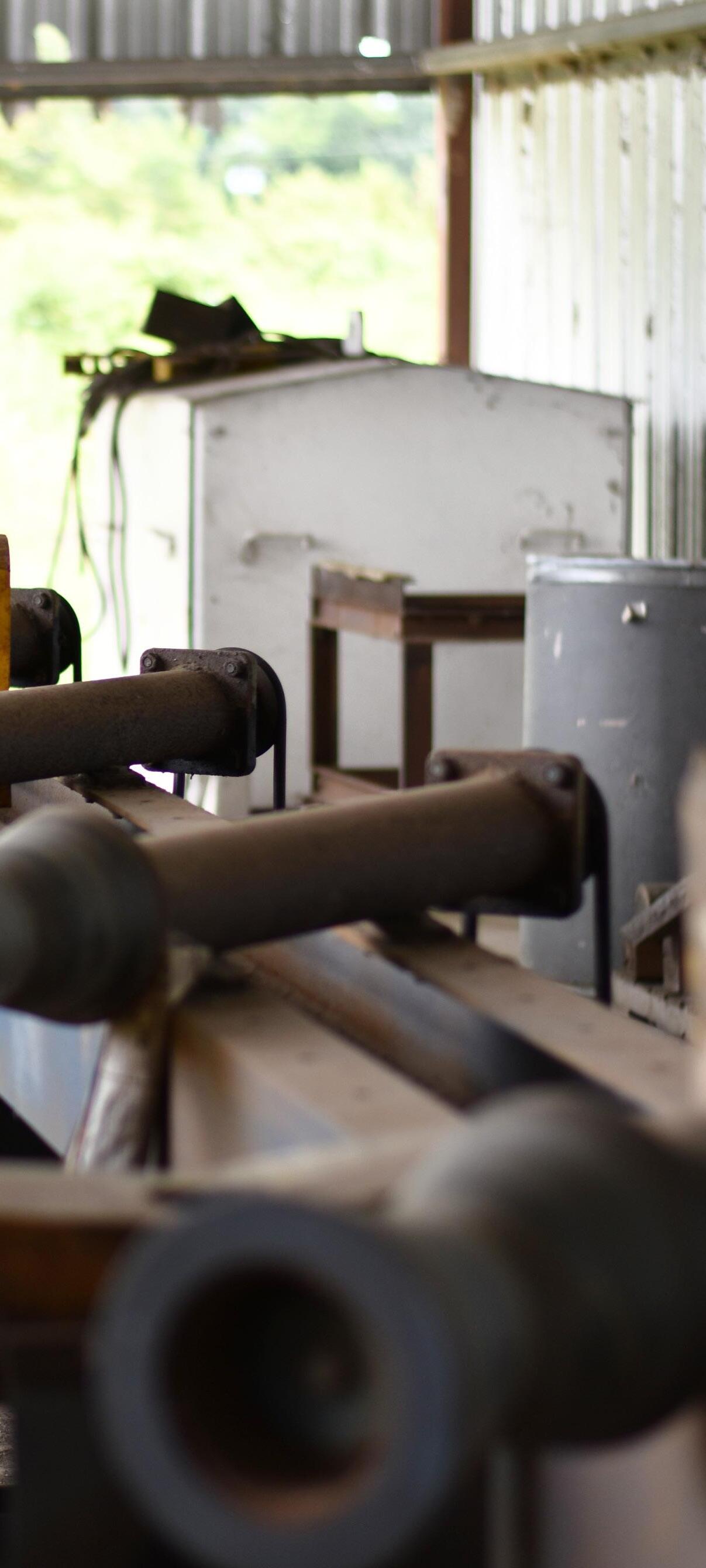

Rubber Pipeline Rollers
Roller Reconditioning
Industrial Rollers

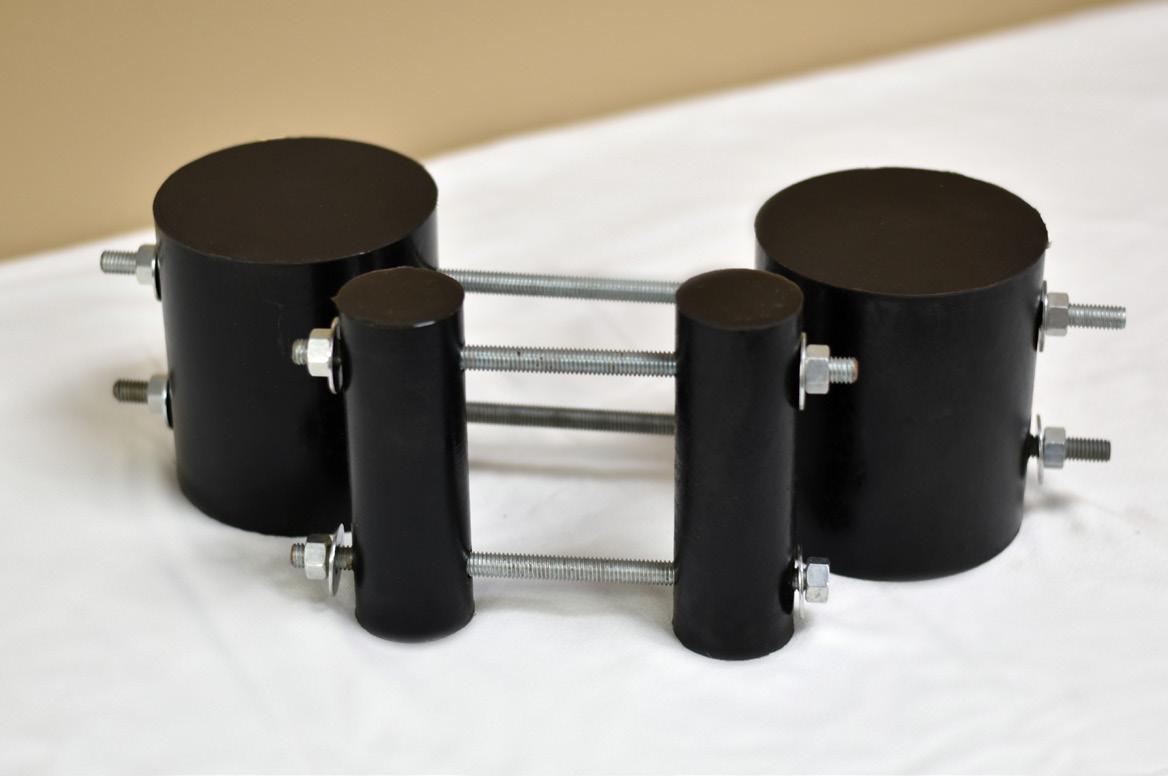

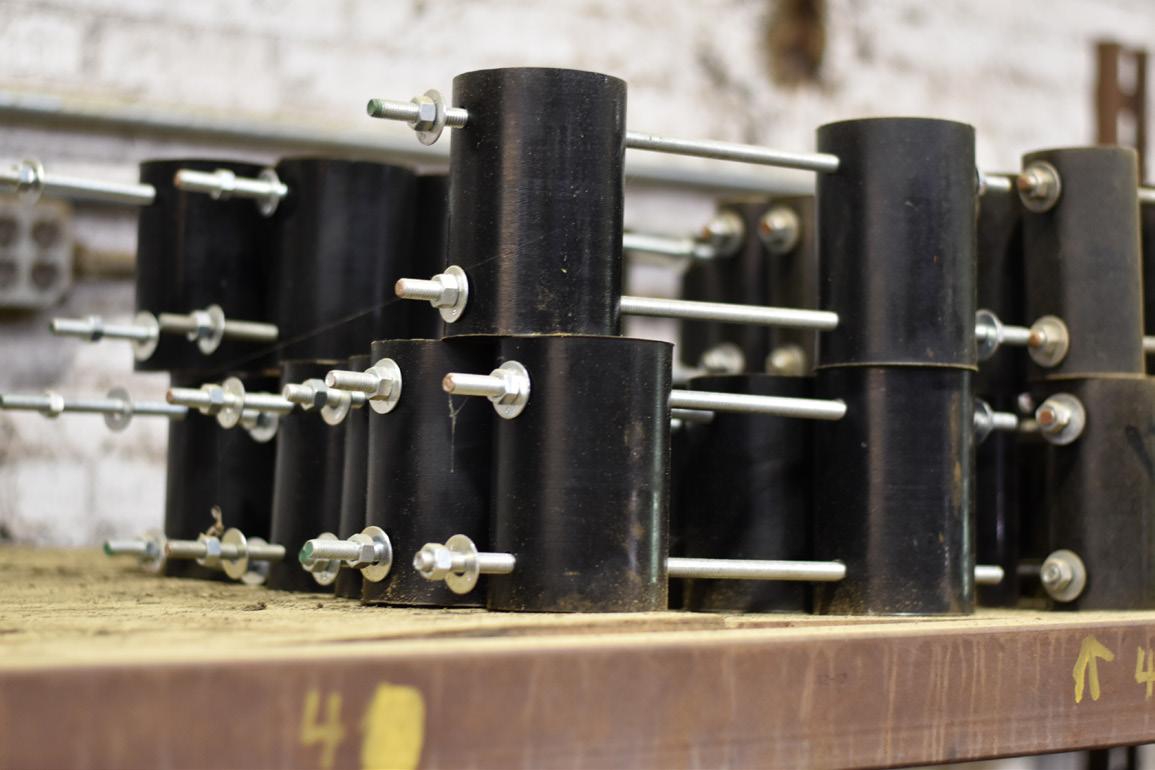

VULCANIZED RUBBER CLAMPS
Mark Tool & Rubber has been vulcanizing riser clamps for the oil & gas industry with SplashTRON® for over 40 years. Vulcanization refers to a specific curing process of a rubber product involving high heat and the addition of sulfur or other equivalent curatives. It is a chemical process in which polymer molecules are linked to other polymer molecules by atomic bridges composed of sulfur atoms or carbon to carbon bonds.
CUSTOMIZABLE, COSTEFFECTIVE & DURABLE
The end result is that the springy rubber molecules become crosslinked to a greater or lesser extent. This makes the bulk material harder, much more durable, and also more resistant to chemical attack. Mark Tool & Rubber also can fabricate riser clamps to customer specification or drawings.

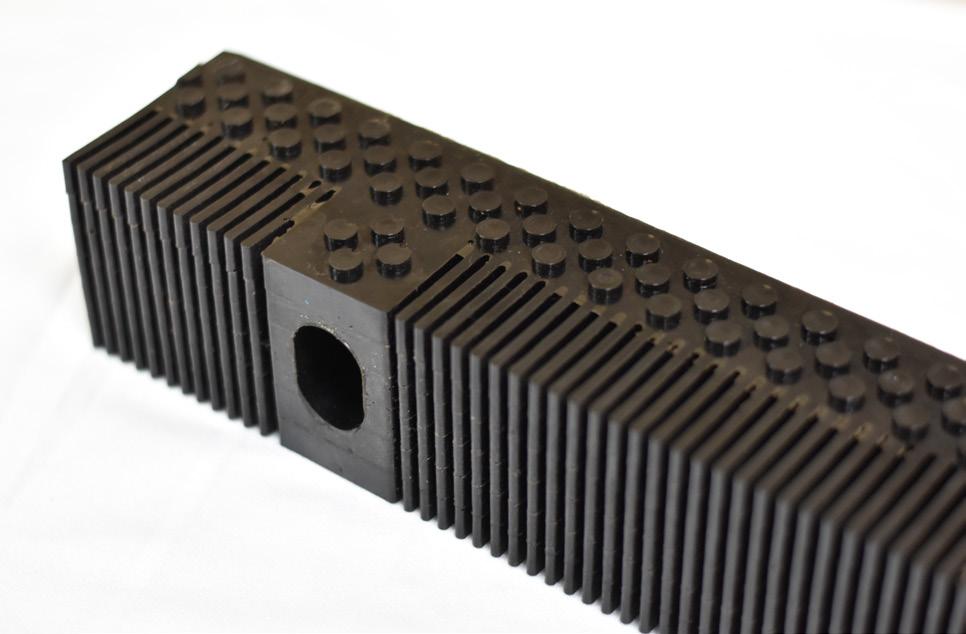

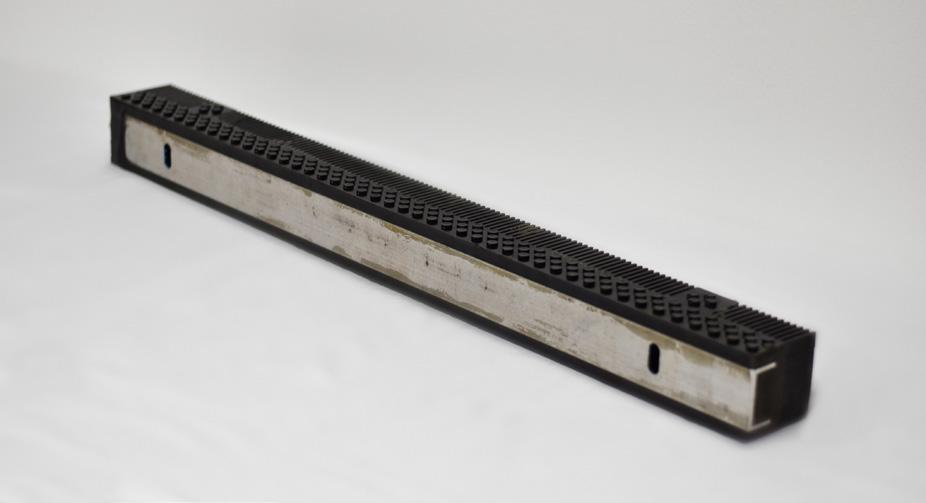

TENSIONER PADS
Mark Tool Co., Inc. has provided tensioner pads to the major lay barge operation for years. We can manufacture almost any size and type of tensioner pad to meet or exceed customer specification. We keep long lasting and durable tension pads in stock for immediate shipment, based on customer demands for volume and use.
Long-Lasting and Durable Tensioner Pads
Our range of high quality rubber parts and components includes rollers, tension pads, and a wide variety of custom molded rubber products. We have the capabilities and resources to take our customers’ designs and create precise molds that are then utilized to create high quality parts through compression molding, injection molding, or extruding. Regardless of what type of rubber components you require, chances are that Mark Tool & Rubber Company can meet your unique needs.
BEARING PADS
Mark Tool & Rubbers Neoprene Bearing Pads are engineered to provide reliable load transfer while accommodating the rotational and translational movement that naturally occurs in structural systems. Manufactured from high-quality elastomer compounds, these bearing pads help distribute loads uniformly, minimize stress concentrations, and extend the service life of supporting structures.
FEATURES & BENEFITS
• Provides uniform load distribution between structural members
• Accommodates beam rotation caused by deflection and misalignment
• Allows for thermal expansion and contraction without inducing stresses
• Absorbs vibration and reduces impact loading
• Minimizes transmission of noise and vibration between connected structures
• Durable neoprene construction resists many environmental conditions
• Available in custom sizes, thicknesses, and durometers
TYPICAL APPLICATIONS
• Neoprene Bearing Pads are widely used in:
• Highway and railway bridges
• Prestressed and precast concrete structures
• Steel and concrete building construction
• Offshore platforms and marine structures
• Heavy industrial equipment
• Machinery foundations
• Pipe supports
• Structural bearing assemblies
STANDARDS
Standard bearing pads are manufactured to comply with applicable requirements of:
• AASHTO M251 – Elastomeric Bearings
• AASHTO Standard Specifications for Highway Bridges
• Applicable state Department of Transportation (DOT) specifications upon request
Note: Individual state DOT agencies may specify requirements that differ from standard AASHTO specifications. Project-specific material properties, dimensions, and testing requirements should be identified at the time of quotation.
URETHANE PRODUCTS
CUSTOM
Forklift Pads
Rollers
Pipe Supports
Pipe Spacers
UreGuard Towline Protectors
Other Custom Products

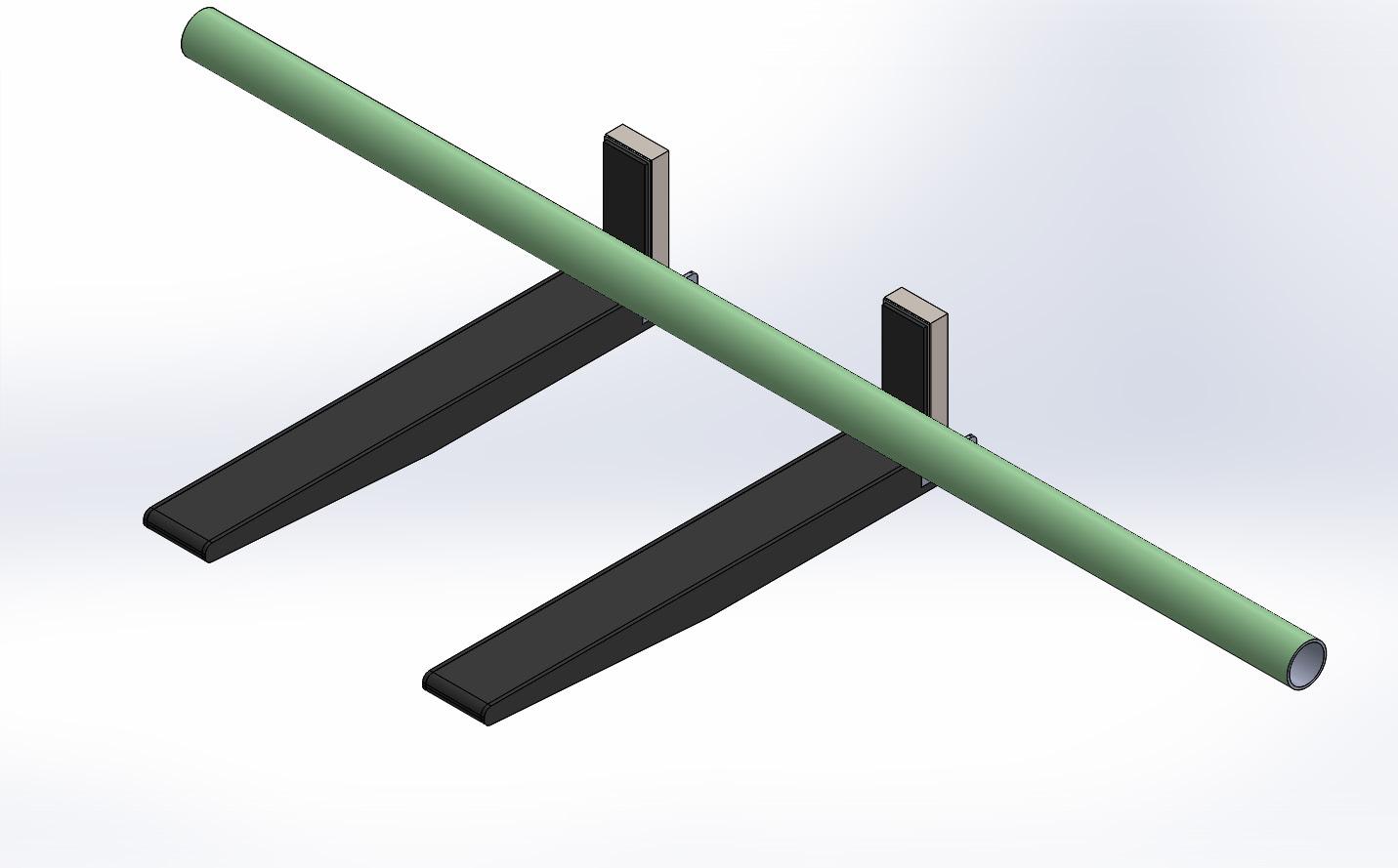

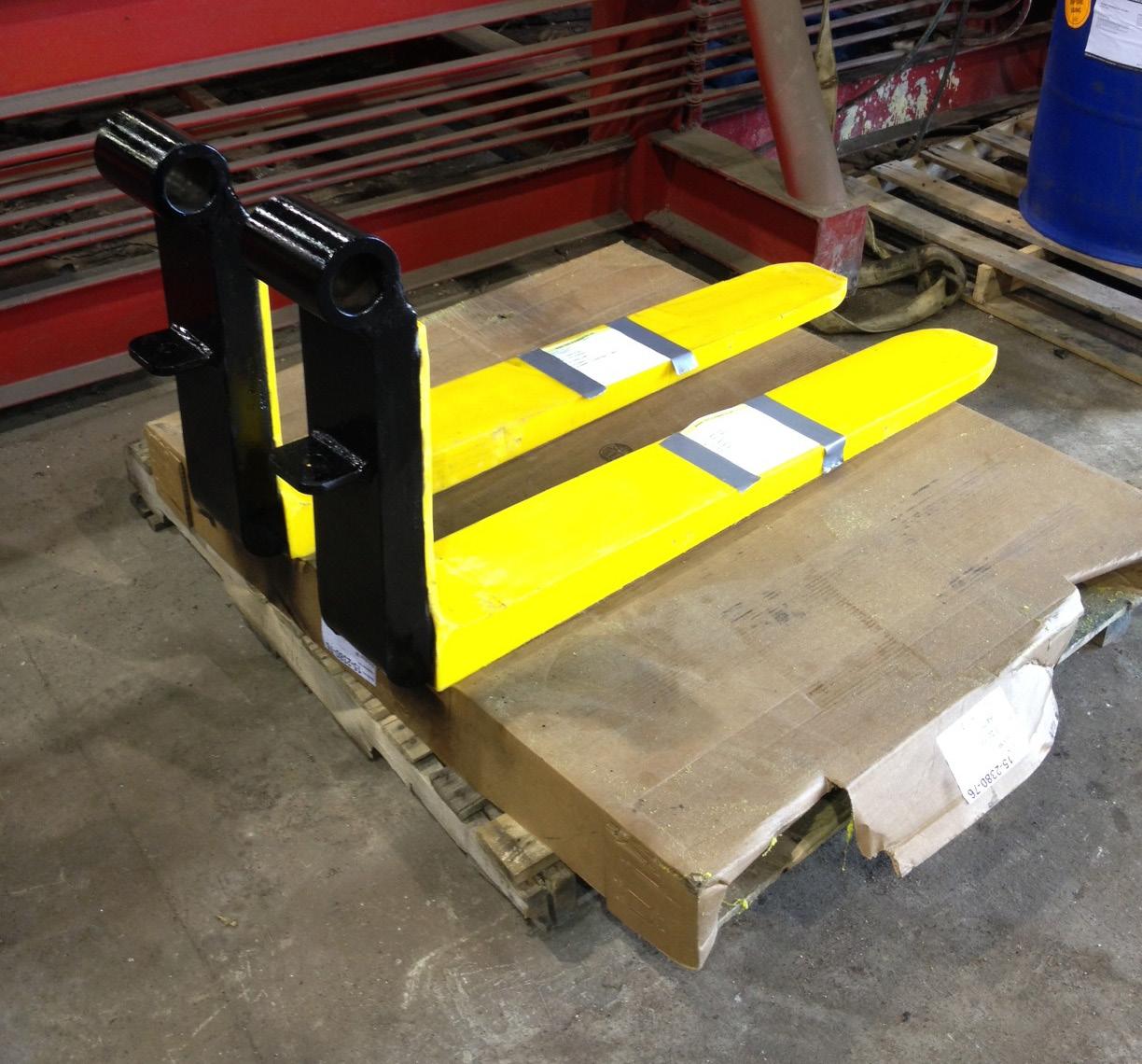

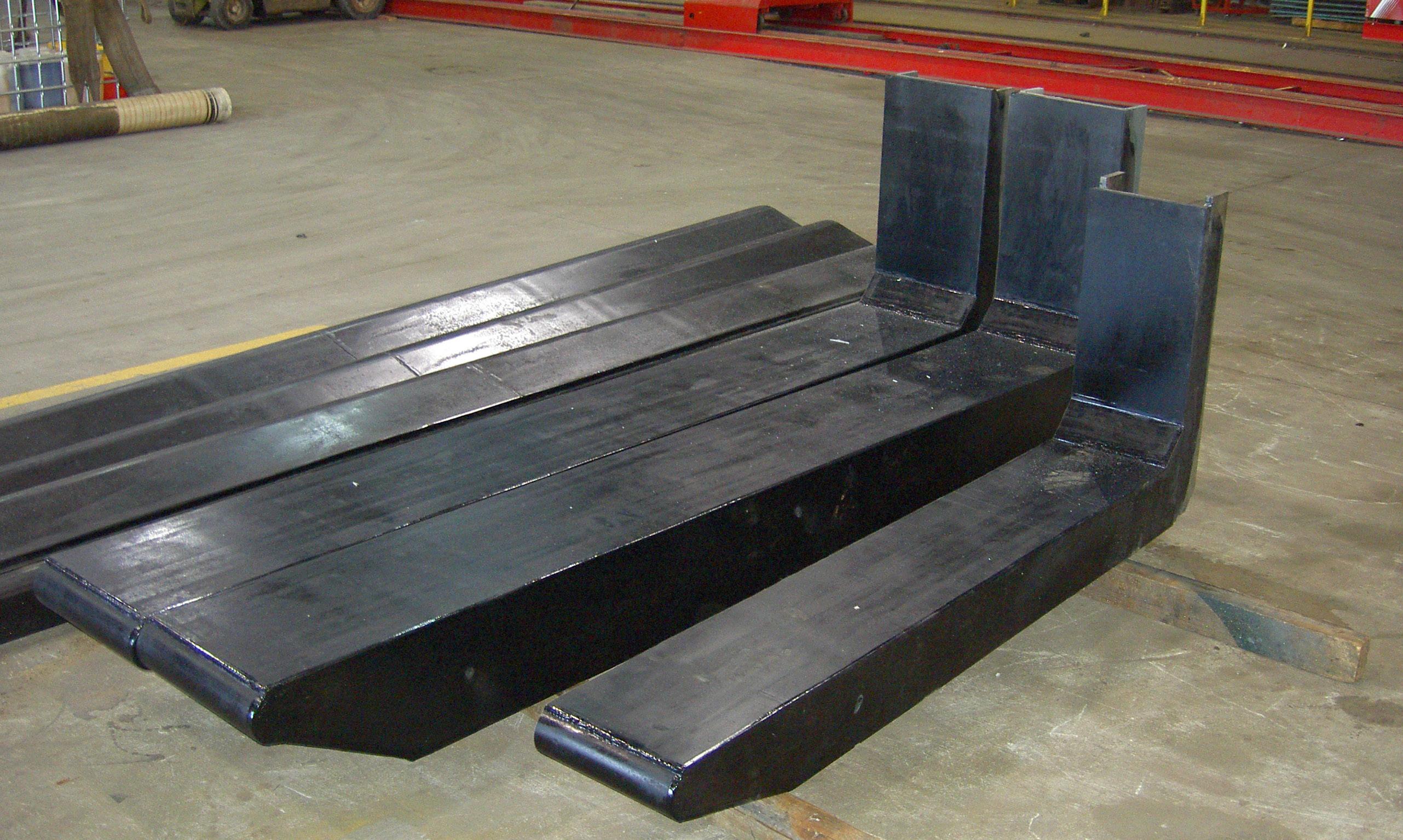

FORKLIFT PADS
SAVE TIME AND MONEY ON COSTLY REPAIRS BY HELPING EXTEND THE LIFE OF YOUR EQUIPMENT.

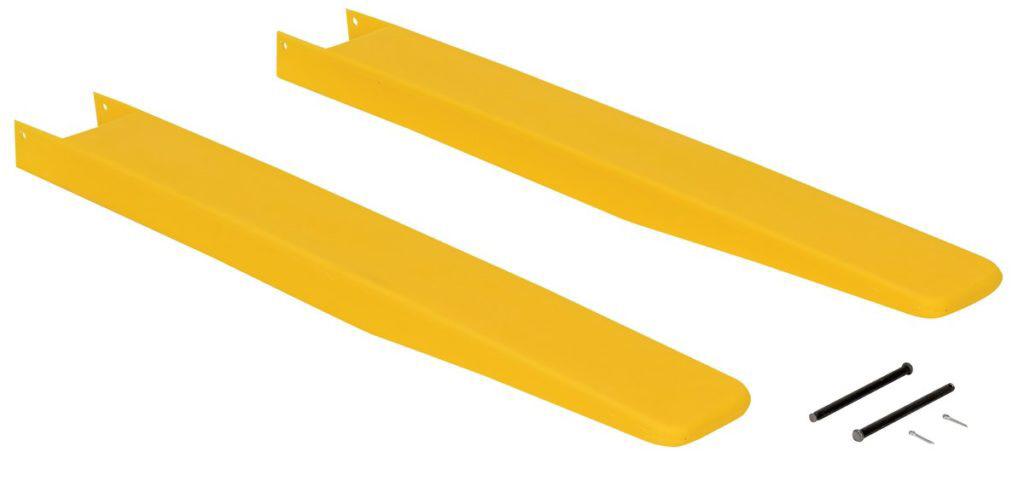

Light Duty Application
Polyurethane Forklift Blade Protectors
Prevent damage to packages and skids from sharp edges of fork truck forks with blunt end Fork Blade Protectors. Hide unsightly scratches and gouges on your forks as well. Constructed from lightweight 100% Polyurethane material. Simply slide over forks. Held in place with a clevis pin and cotter pin.
Heavy Duty Application
Polyurethane Forklift Blade Pads
Mark Tool’s custom molded polyurethane forklift pads will prevent scratches or scuffs guaranteed to protect Fusion Bonded Epoxy (FBE) coated pipe or any other coated substrates. This will save you time and money on costly repairs.
Our forklift pads are fabricated steel sleeves and then coated with high quality, custom molded polyurethane, engineered to stand up against extreme abuse and environmental conditions.
We can make pads many different sizes & styles to fit the customer’s needs. We can also strip worn out polyurethane off steel pads and recoat pads to new. This can be done many times over the years.

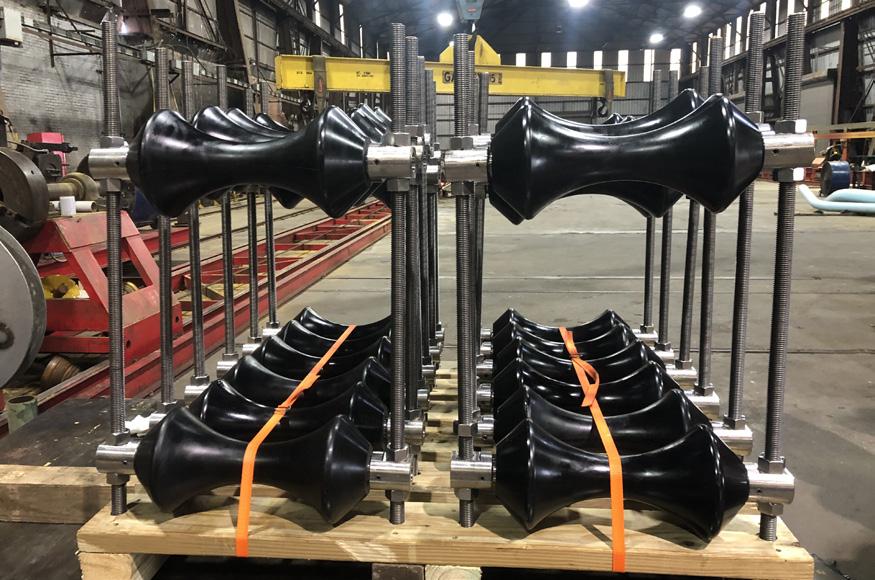

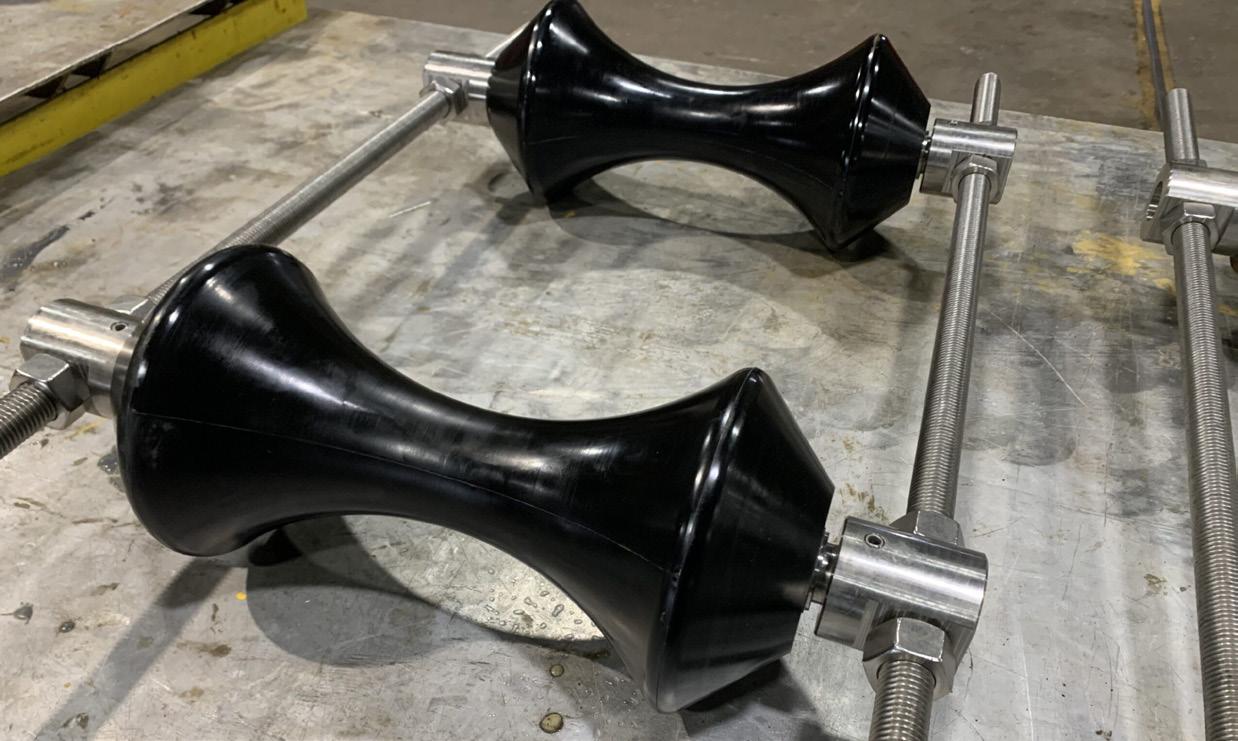

POLYURETHANE ROLLERS
HIGHER, MORE RELIABLE PERFORMANCE FROM A MATERIAL THAT STRONGLY RESISTS ABRASION, HARSH CHEMICALS, ACIDS, AND SOLVENTS
All of our polyurethane rollers are made from the highest quality polymers available. We can make hundreds of shapes and sizes of rollers, including (but not limited to):

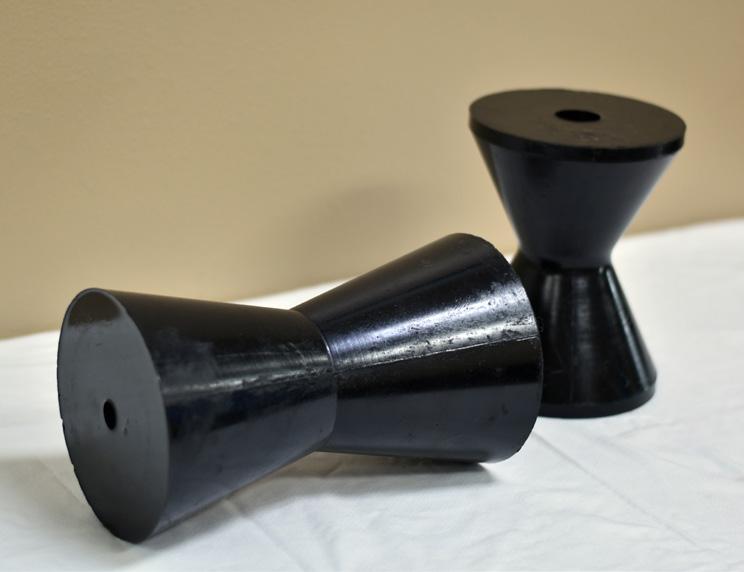

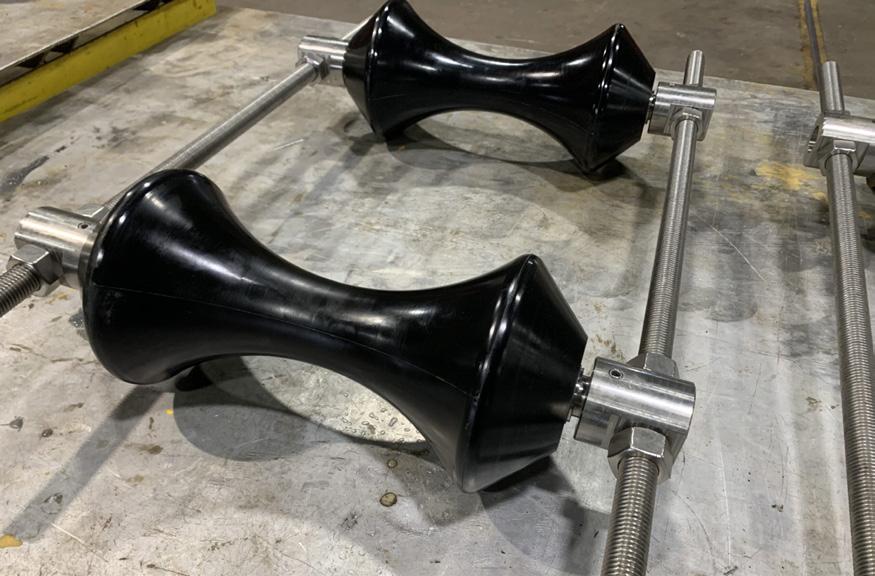

• Hourglass Polyurethane Rollers (or V Polyurethane Rollers)
• Conveyor Belt Polyurethane Rollers
• Pipe Conveyor Polyurethane Rollers
• Sheave Rollers
• Paper Mill Rollers
• Polyurethane Pipeline Rollers
Rollers can be made of many different thicknesses, sizes, colors, and hardness from shore 10A to 80D.
The next time you are thinking of discarding those old, used, worn-out polyurethane rollers, think again! Give Mark Tool a call or email us and let us see if we can rebuild your old parts and save you some money by putting them in our burn-off oven, cleaning them, and re-coating them.
In addition to polyurethane pipeline rollers, Mark Tool also offers rubber pipeline rollers and pipe spacers (see page 25-26).

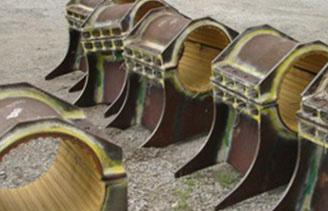

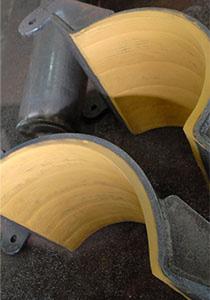

UREGUARD PIPE SUPPORTS
OUR PIPELINE SUPPROTS CAN BE REMOVED WITHOUT PICKING THE PIPELINE UP FOR MAINTENANCE OR PAINTING
The corrosion-related cost to the transmission pipeline industry is approximately $5.4 to $8.6 billion annually. One of the most common corrosion problems on a pipeline is where pipe supports interface with the pipe.
Mark Tool & Rubber Co, Inc. working together with pipe line Corrosion Technician has come up with the ultimate design for Pipeline Support System.
Our UreGuard Pipeline Supports are made of a durable castable polyurethane 90D durometer and can be adjusted to multiple sizes of pipe. The biggest advantage of our system is that it can be removed from the pipeline without picking the pipeline up for maintenance painting.

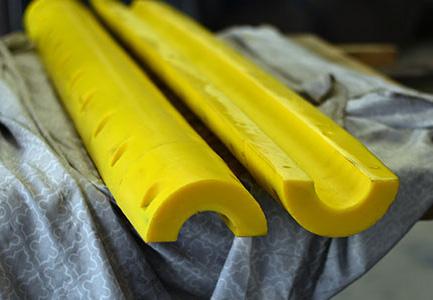

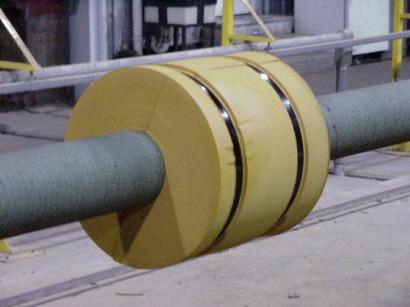

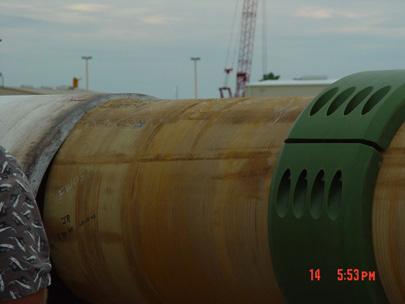

URETHANE PIPE SPACERS
PREVENT A SLOW DOWN IN OPERATIONS WITH A MATERIAL THAT CAN STAND THE TEST OF TIME
Polyurethane is the ultimate workhorse.
Whether used as a spray, foam, a flexible, spongey elastomer, or a solid that is as hard and tough (almost) as any diamond, polyurethane’s versatility means it can be molded into components of any size, shape, and hardness.
The oil and gas industry demands a lot from its tools, including customization in the design-build phase and ongoing reliability in the field. Polyurethane parts stand up to any punishment thrown at them, and new ones can be quickly machined as needs change or evolve.
Urethane pipe spacers and casing spacers are placed around pipelines in underground and subsea applications. They make a perfect case study to illustrate what we’re talking about.
Put simply, these humble components keep pipes carrying oil and gas a specific distance apart. Outside of the oil and gas industry, they’re used to hold water, sewage, and electric pipelines in place. They also prevent damage to pipes and casing as they’re being stored in pipe yards or transported to the field. Pipelines protected by casing also use spacers to separate and isolate the carrier pipeline from the casing.
Pipes maybe made of steel, concrete, PVC, polyethylene, or plastic. Pipe spacers can be formed from various types of rubber and plastics, including polyurethane, polyethylene, PVC, carbon steel, and stainless steel. Along with the product the pipe carries and the environment surrounding the pipeline, the pipe’s material will determine what kind of spacers are appropriate.
Polyurethane, however, is our material of choice for the harsh environment of the oil and gas industry. When other materials often crack, break, tear, swell, abrade, and deteriorate, polyurethane can stand the test of time. Metallic and plastic spacers are vulnerable to problems that can slow down operations and, ultimately, lose revenue.
Polyurethane pipe spacers can be easily formed to your precise specifications because they are castable. Complicated design and engineering are usually required to adjust metallic pipe spacers, while urethane-based materials are easily formed into exact dimensions from simple silicone molds.

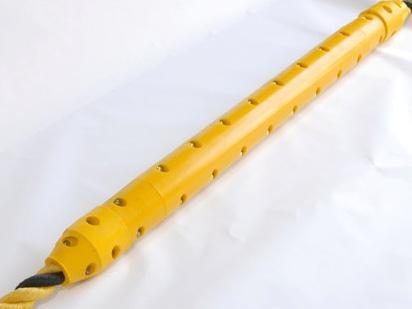

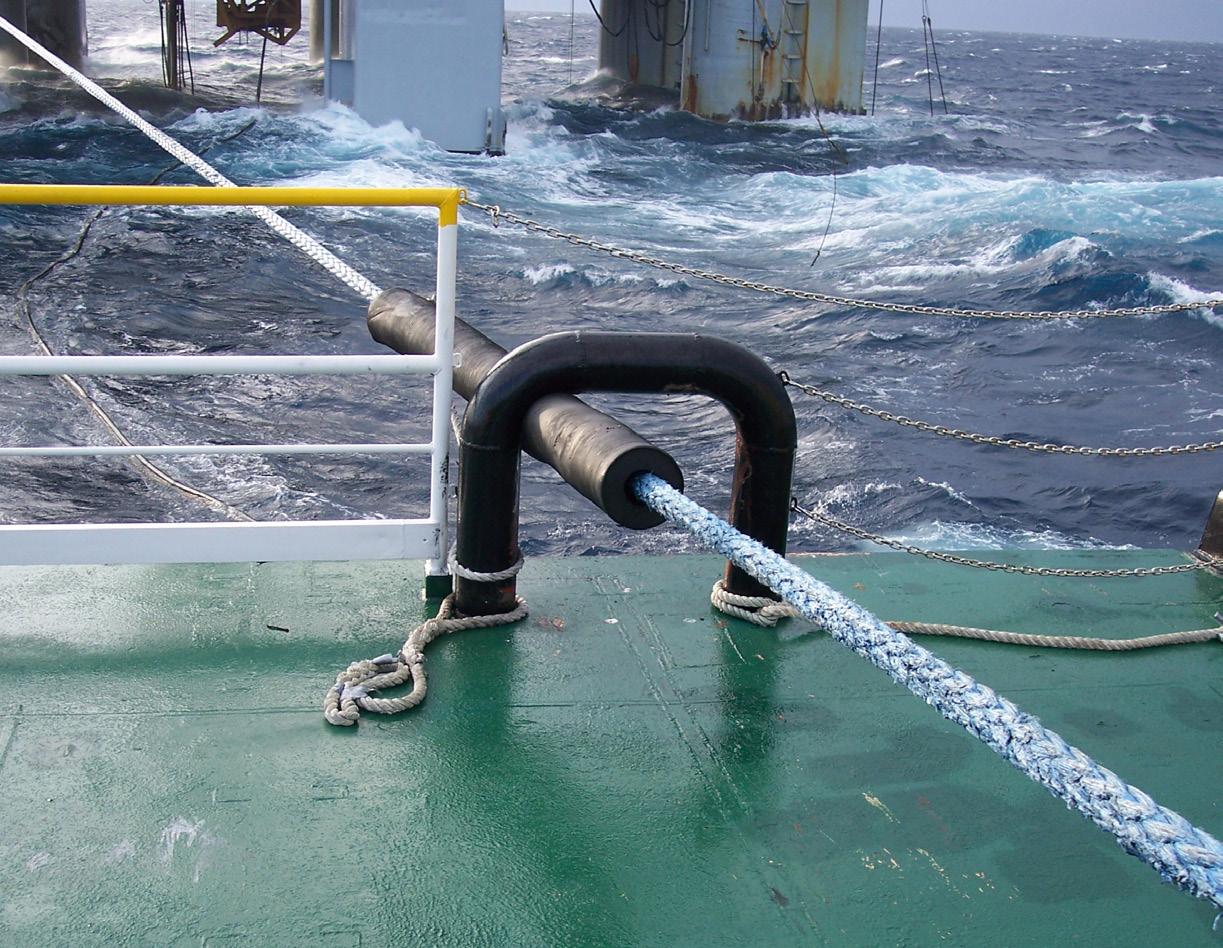

UREGUARD TOWLINE PROTECTORS
OUR UREGUARD TOWLINE PROTECTORS ARE CUSTOM MADE TO FIT ANY SIZE CABLE OR ROPE
Commercial towing vessels depend on towlines, also known as hawsers. They also depend on Mark Tool to keep those lines protected from chafing and from the harmful effects of seawater.
Whether used for offshore oil and gas operations, dead-ship towing or salvage, the towing hawser is the key element in the tugtow connection.
Hawsers used for conventional tugs are essentially a thick cable of wire rope. The condition of these lines is critical; they must be inspected on a regular basis, lubricated regularly, and shielded against excessive wear.
Towline Protection
UreGuard towline protectors are made of two halves bolted together with high-grade, noncorrosive bolts for easy installation. The tapered ends of the Mark Tool towline protectors act as bearings to prevent premature line parting and lost tows.
A tug master should always know the condition of his tug, towing hooks, and fittings. Steel towlines and ropes should have a safe working load at least two to three times the bollard pull of the tug. Ancillary equipment, including wire towage protectors and thimbles, should be regularly inspected.
Regular towline inspection means looking for signs of ultraviolet or chemical degradation, worn or fused strands, overstretched sections, and kinking.
It also means having the sleeves and protectors you need for your main and secondary towlines. Mark Tool towline protectors are available in lengths of 5-10 feet or can be manufactured to your specifications. We’ll be happy to custom-build them to fit any size cable or rope.
OTHER CUSTOM PRODUCTS
DECADES OF EXPERTISE IN MAKING CUSTOM RUBBER & POLYURETHANE PRODUCTS FOR COMPANIES AROUND THE WORLD

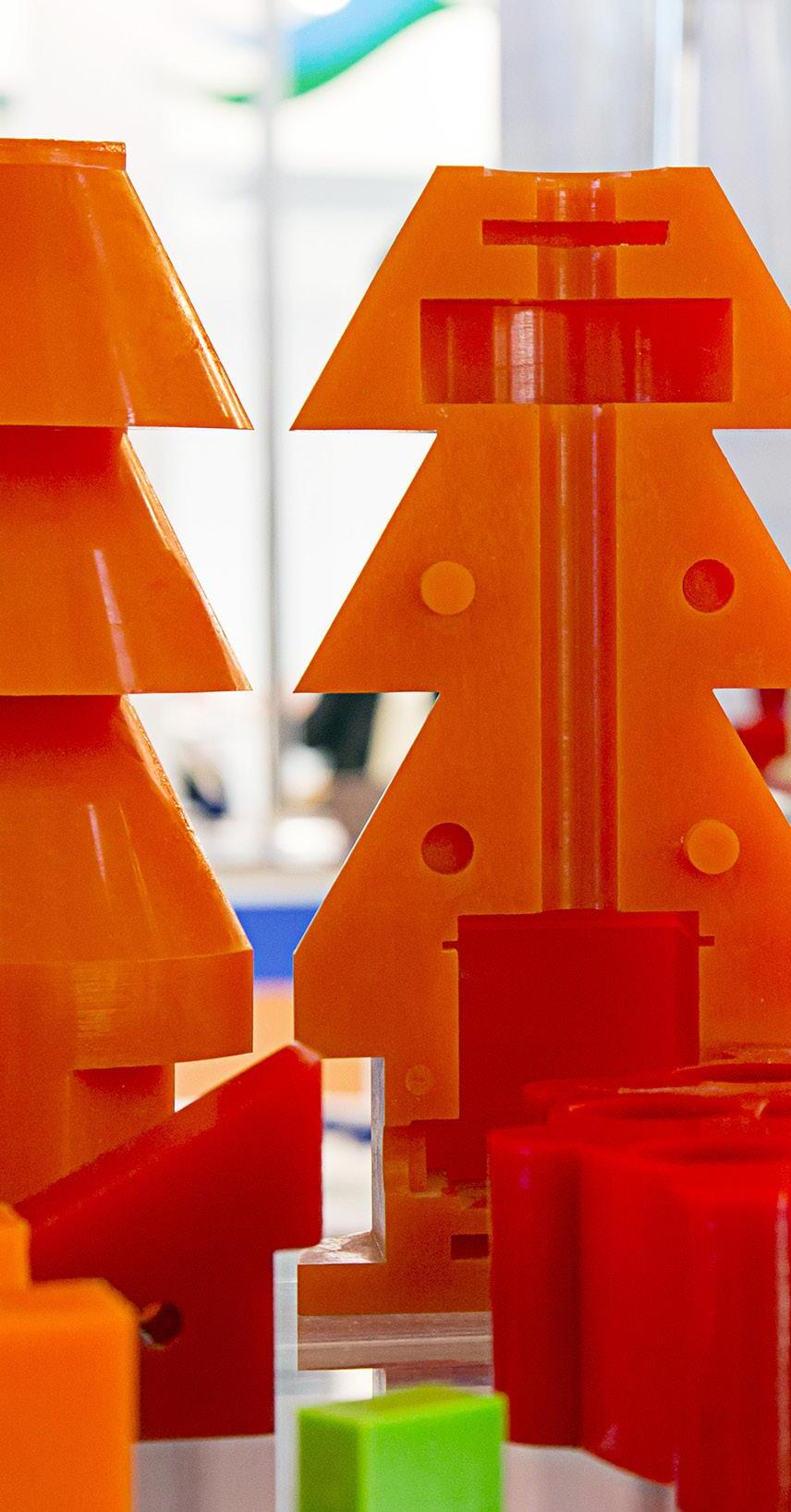

Mark Tool produces custom rubber and urethane products used in a broad range of industry applications including farm equipment, the oil & gas industry, valves, electrical distribution, railroad, heavy truck, and a variety of automotive applications.
Given your design, Mark Tool can offer to manufacture your product by fabricating a custom mold. After analyzing your product, its dimensions, material, and anticipated volumes, we can then cast your parts out of a wide range of polyurethane products.

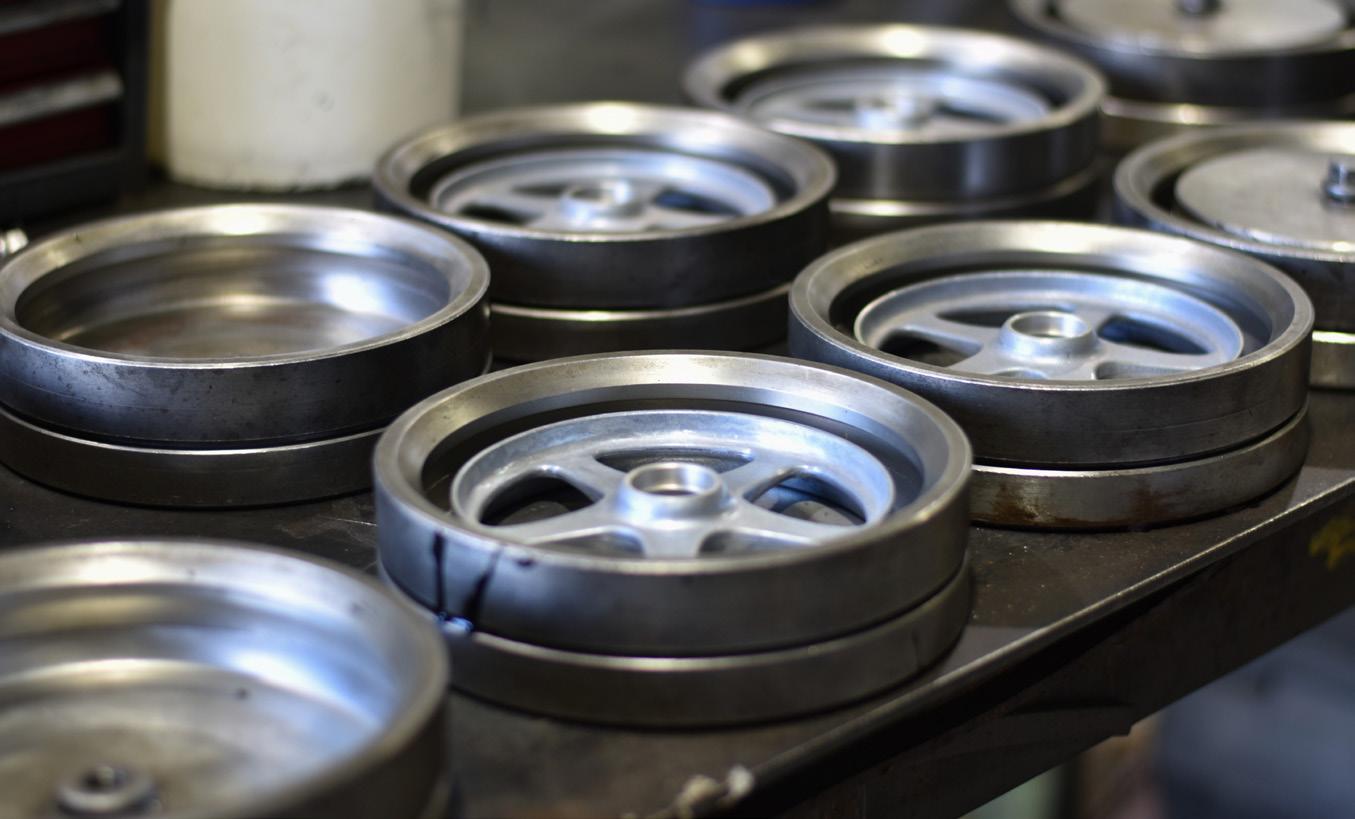

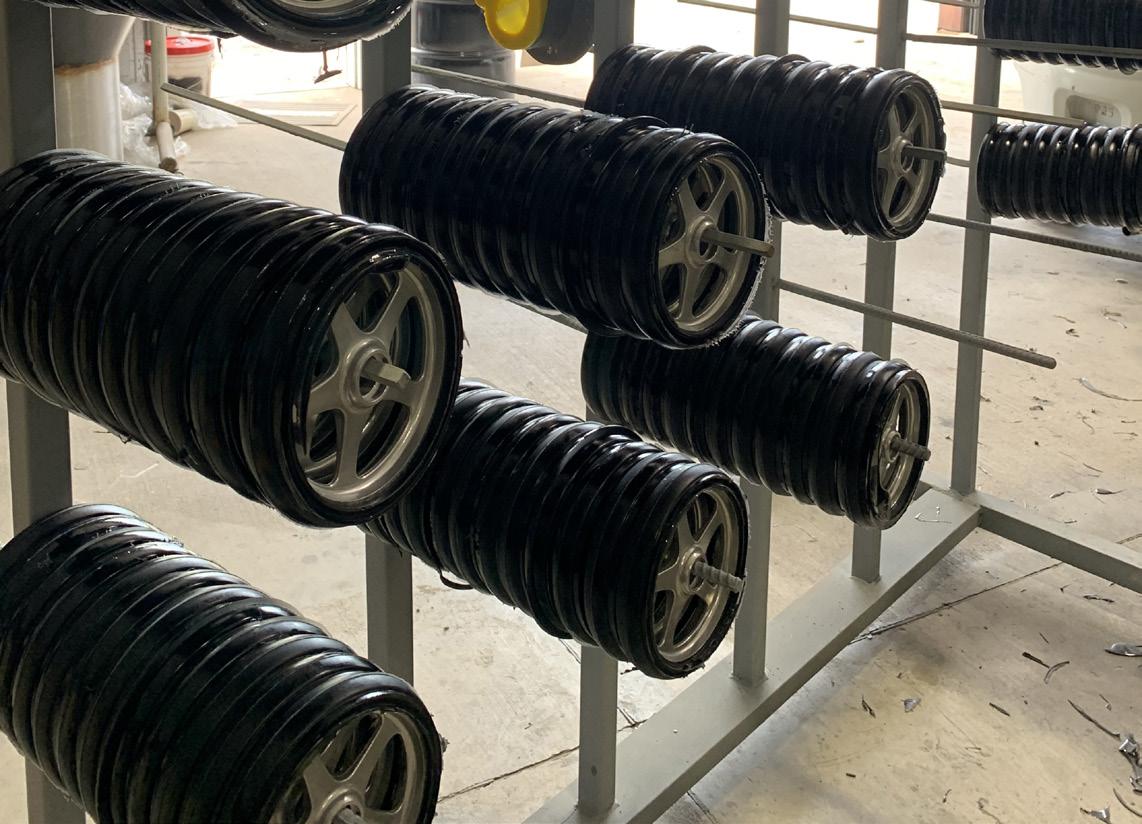

HIGH-QUALITY CUSTOM POLYURETHANE SCOOTER WHEELS
At Mark Tool & Rubber, we understand the importance of performance and product demand; therefore, when the customer came to us looking for a new supplier that could consistently deliver a high-quality product on time, we got to work and began developing a product that would satisfy their needs. With the creativity of our engineering team and the hard work of our technical team, we delivered a top-notch scooter wheel that we have since produced thousands of for our loyal customer.
The process:
The manufacturing process of our customized scooter wheels involves 4-steps. The first step is surface preparation, where the aluminum hubs are blasted and coated with a bonding agent. Next, the hubs are placed in the molds, and the polyurethane is poured. After the material has hardened, the part is removed from the mold and set on the rack to be cured in our oven. Once the part is cured, we machine the exposed side to give the wheels an appealing finish. Lastly, the finished product is checked by our quality control team, then packaged up and ready to be shipped out.
Built to fit your needs
Mark Tool takes pride in the fact that we have the capability of meeting the needs of companies of all sizes and markets. Our customer list includes small business operations to the major oil & gas companies.

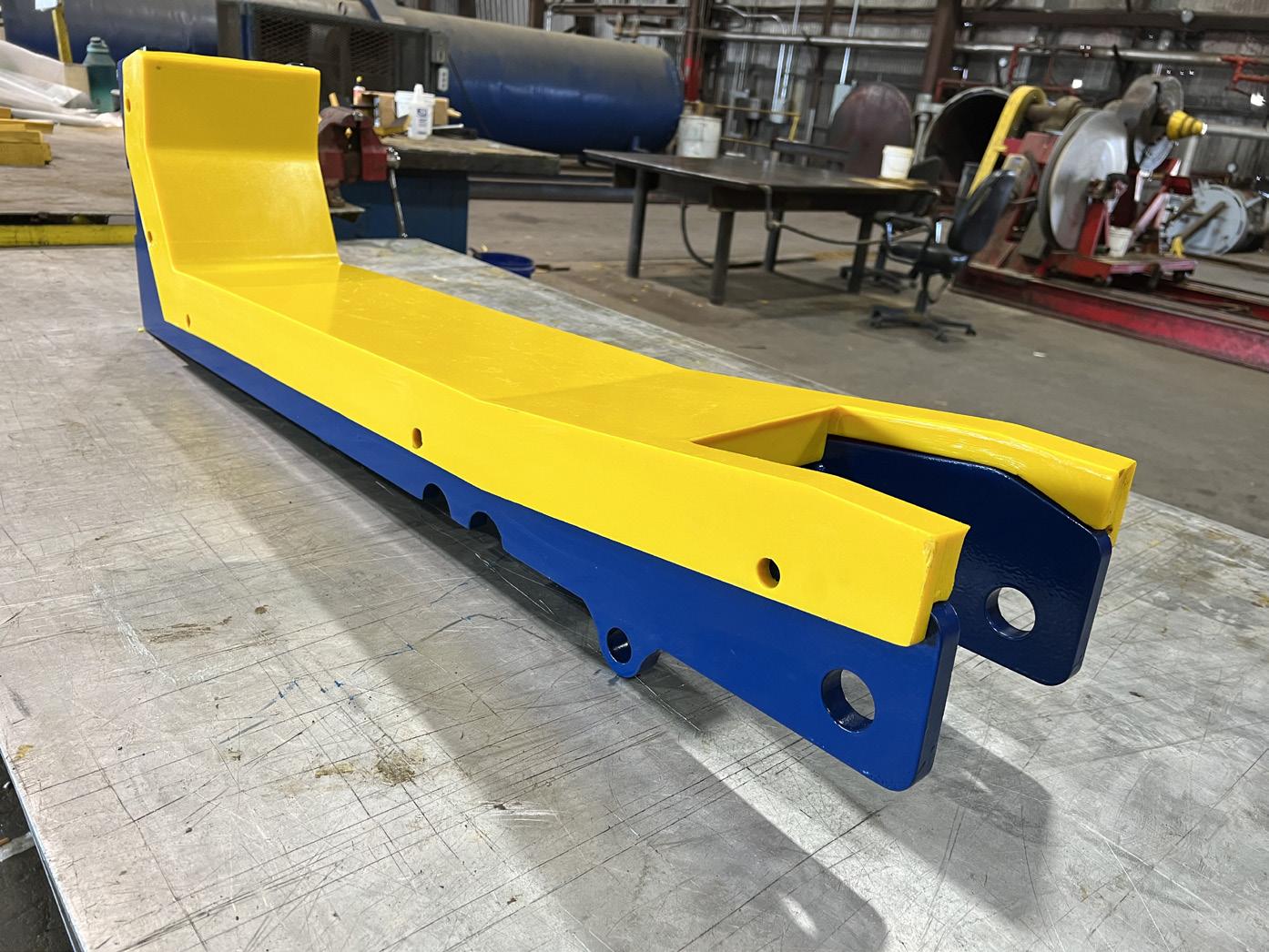

The polyurethane protective pads were developed when Offshore Energy came to us looking for an answer to a problem they had recently encountered. As a result, our team at Mark Tool started brainstorming and created the ideal solution for safeguarding your valuable equipment and products. Whether you need to protect delicate glass surfaces, furniture, or heavy machinery, our customized pads are up to the task.
At Mark Tool & Rubber, our team always goes the extra mile, ensuring complete customer satisfaction. This job was no different; being a turnkey job, we designed and fabricated the polyurethane pads, blasted, and painted all the equipment, then delivered them to their location. The services that went into this job are all done daily at Mark Tool, guaranteeing we can make your idea become a reality.
INTRODUCING OUR UNIQUELY DESIGNED PRODUCT, POLYURETHANE PLATFORM GAP FILLERS
Our gap fillers were designed to bridge and fill gaps where needed. Our team at Mark Tool engineered this product to minimize the risk of injuries and provide exceptional slip resistance. The textured surface provides optimal traction, even in wet or oily environments. In addition, the gap fillers’ chemical resistance ensures longevity, minimizing maintenance and replacement costs.
Look into our platform gap fillers for any of your dangerous voids that require a safe and viable solution.
MARK MACHINING
SPECIALISTS IN ELASTOMERIC ROLLER MACHINING
MACHINE & MANUFACTURING
A DIVISION
OF
MARK TOOL & RUBBER COMPAN Y
MACHINING

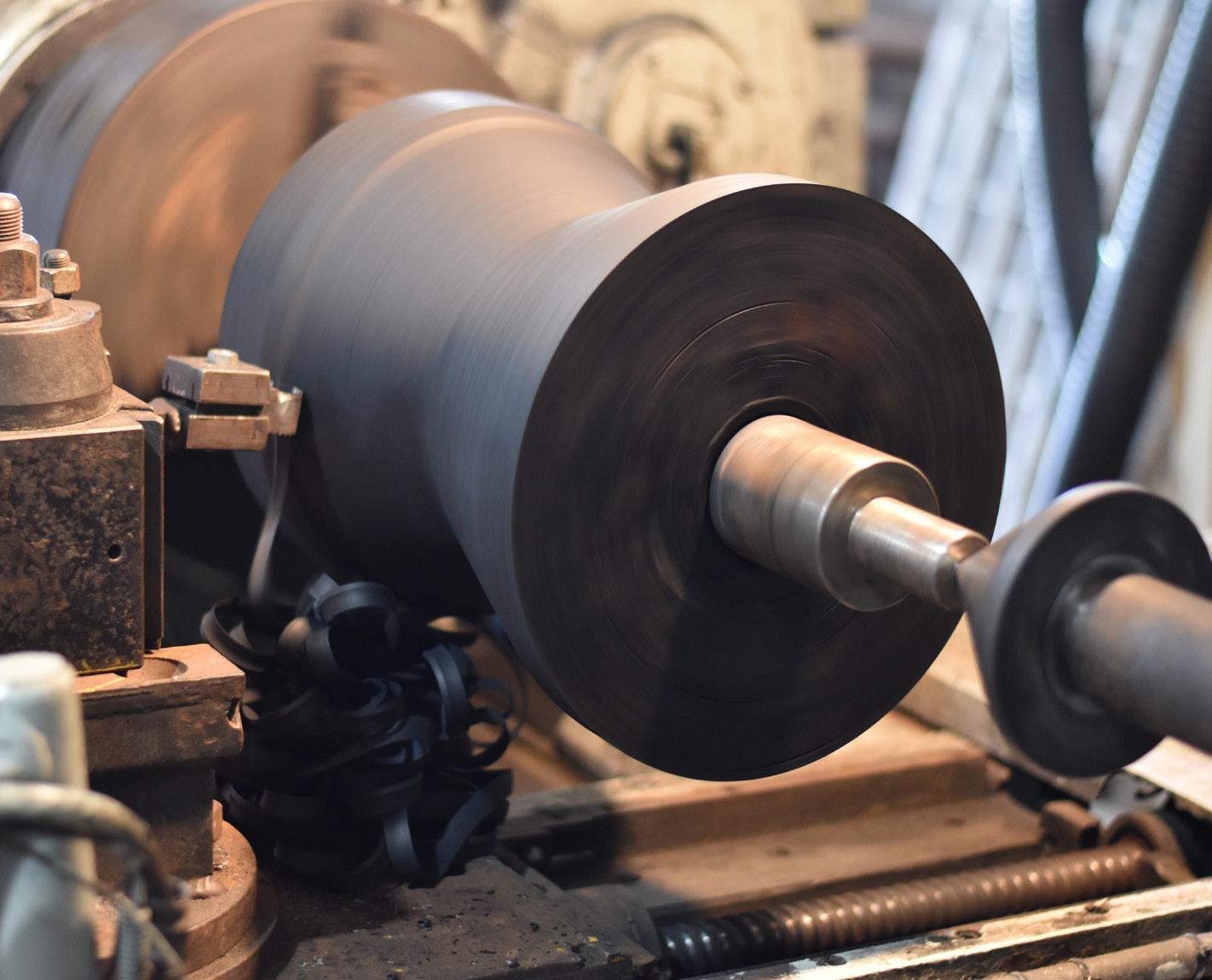

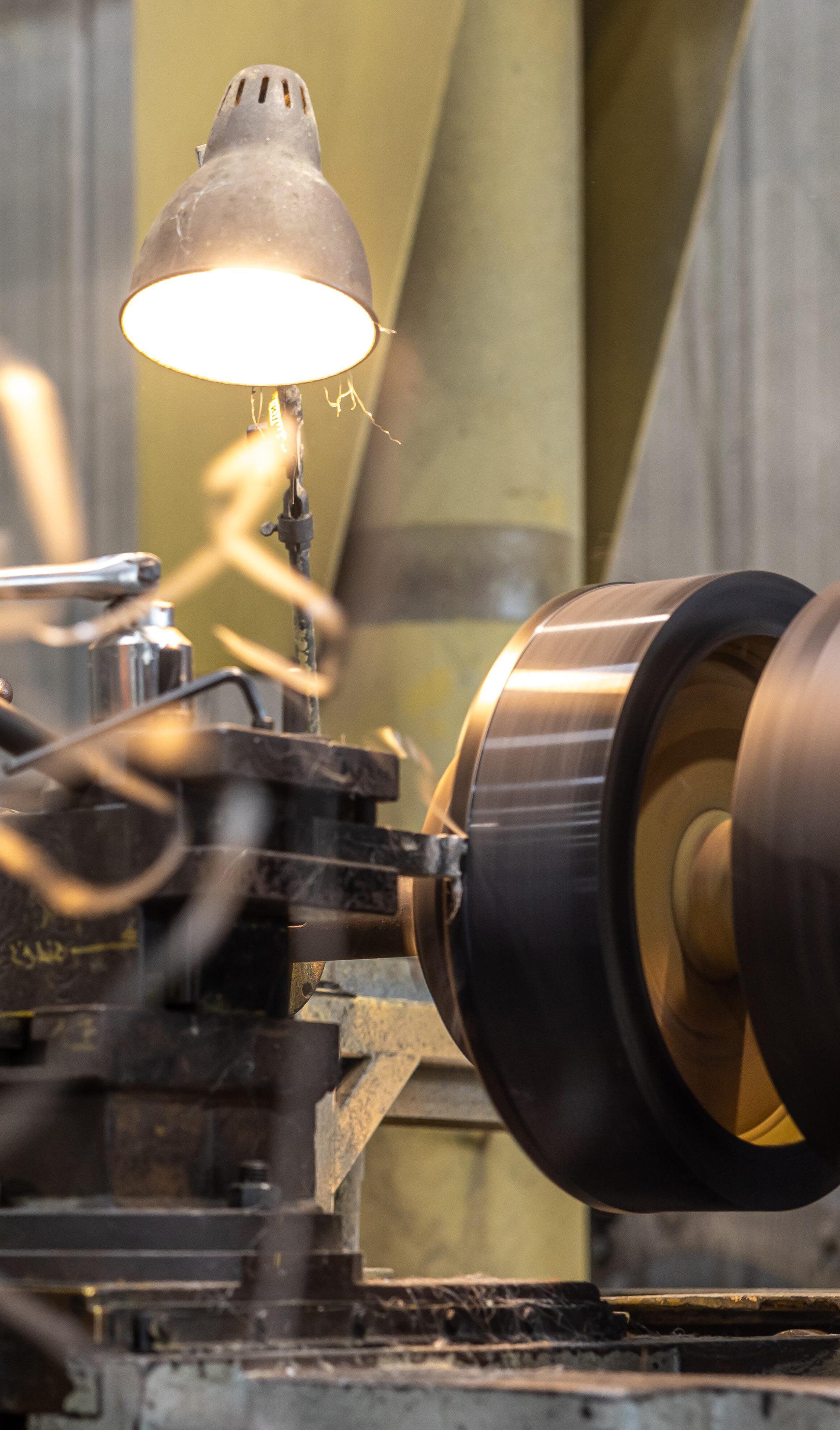

Mark Machining (a division of Mark Tool Co., Inc.) specializes in elastomeric roller machining & grinding, mold & die fabricating, and parts manufacturing for the worldwide oil and gas industry. Our modern facility is equipped with the most up-to-date equipment available to supply your machining needs. Total capabilities include CNC machining, sawing CNC plasma cutting, and weld fabrication, allowing us to give excellent service at competitive prices.
PRODUCTS WITH MORE RELIABILITY AND INCREASED ACCURACY WITH OVER 50 YEARS OF PARTS MANUFACTURING
Superior equipment, qualified people, and the desire to be the leader in the machining and repair industry give us the combination we need to serve your industry in the most efficient manner available. With over 40,000 square feet of manufacturing area, Mark Machining can strip, cast, cure, and machine new or refurbished rollers and any related accessories. We also offer production machining services which include, but are not limited to turning, milling, drilling, tapping, and grinding.
Our highly skilled staff has nearly a half century of experience in the resurfacing of coated rollers and will be glad to help you select the proper coating for your roller application. These expert craftsmen bring you the highest quality parts, shipped on-time, and for a fair price. In addition to meeting regular lead-time requirements, we will do all that is possible to meet any expedited delivery requirements you may have.
