ARCHITECTURE PORTFOLIO
Collection of Work done by KOMAL SHARMA
ABOUT ME:
With a fervent enthusiasm for project management and architectural design, I bring over five years of hands-on experience to the table. Proficient in AutoCAD, Autodesk Revit, and project scheduling, I've navigated a diverse range of projects with finesse. My collaborative approach and meticulous attention to detail consistently drive successful project completions, earning recognition for leadership and technical expertise. Dive into my portfolio to explore innovative solutions and unwavering commitment to excellence in architecture and project management.

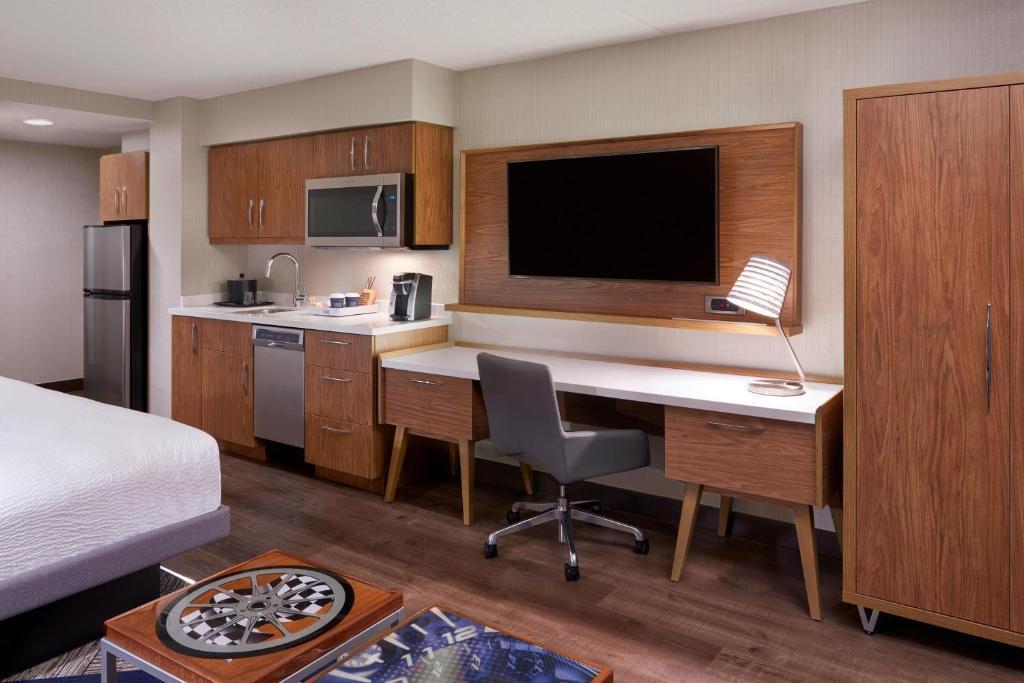

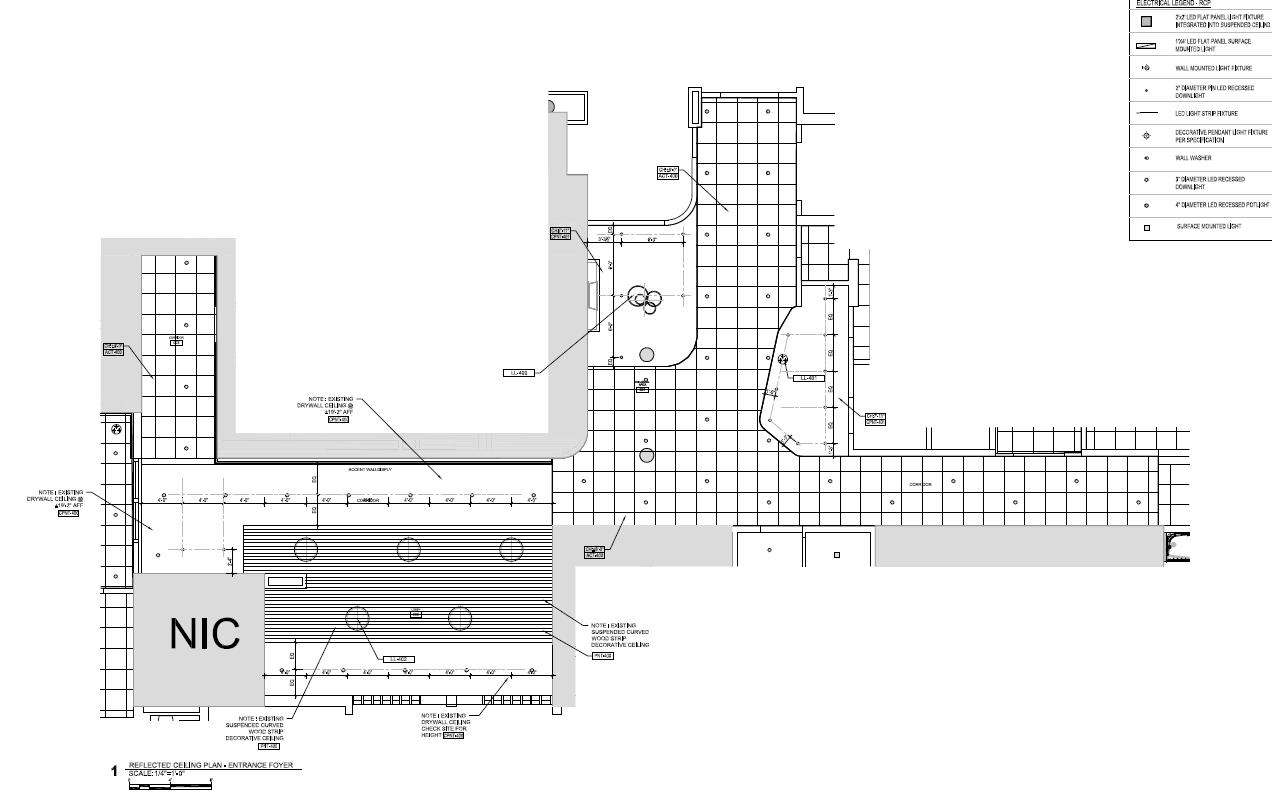

FOUR POINTS BY SHERATON
LOCATION: 49 Goderich Rd, Hamilton, ON ROLE:
•INTERIOR LAYOUT
•PROJECT MANAGEMENT
•SOFTWARE: AutoCad, MS-Project

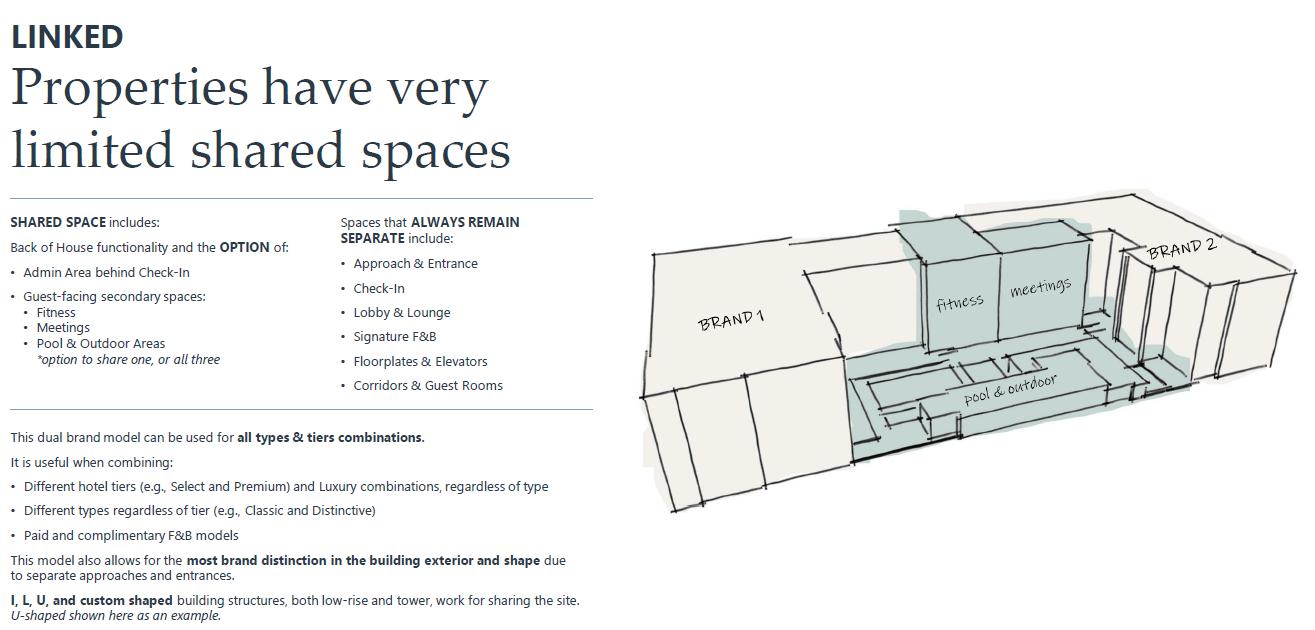

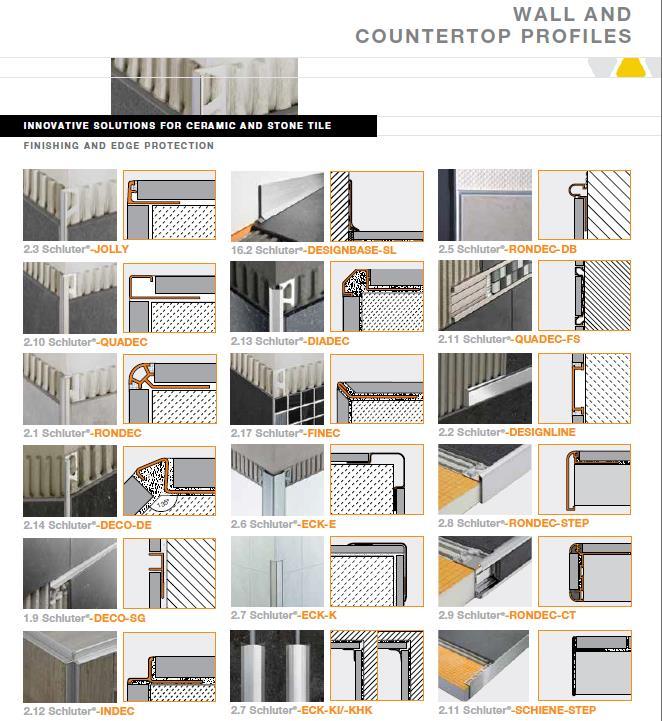

DESIGN STANDARDS

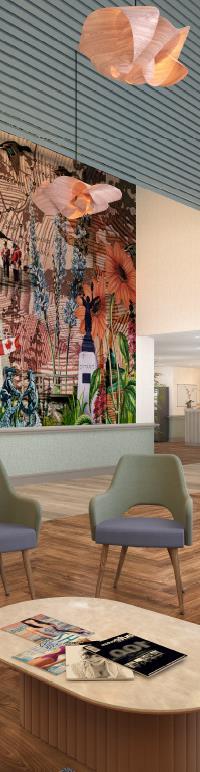

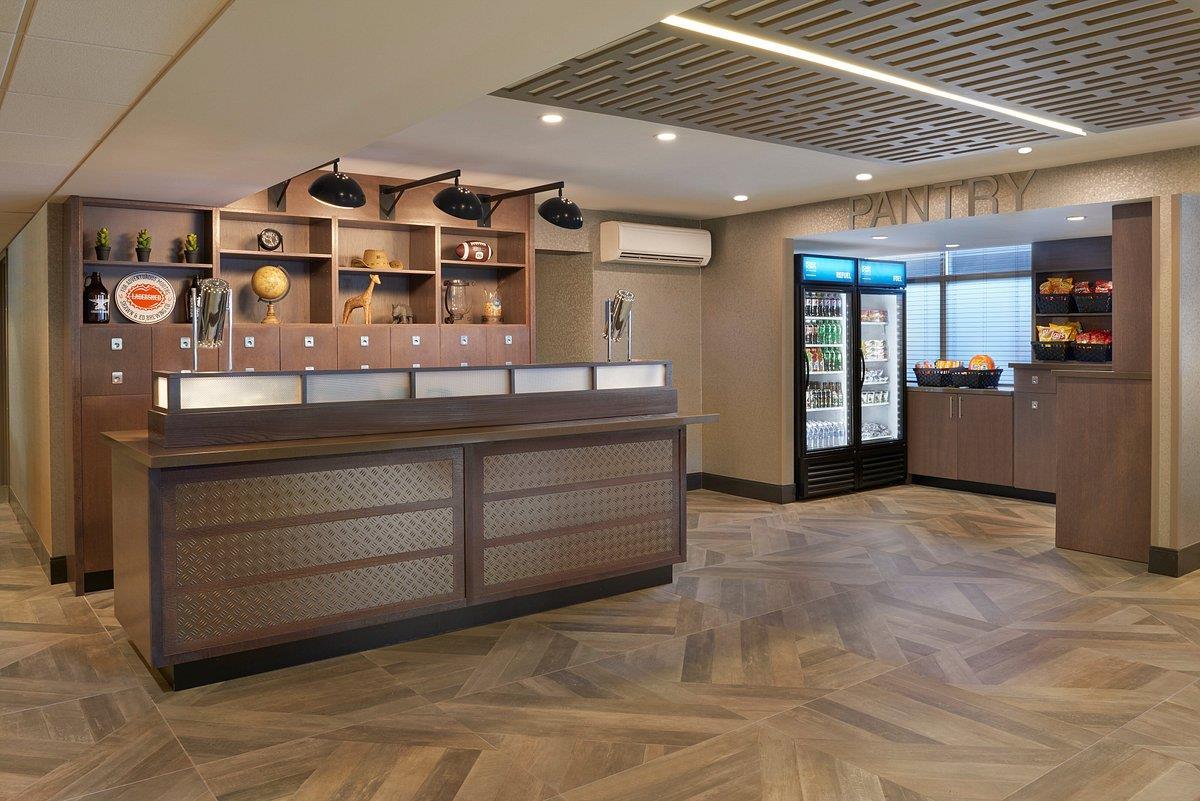

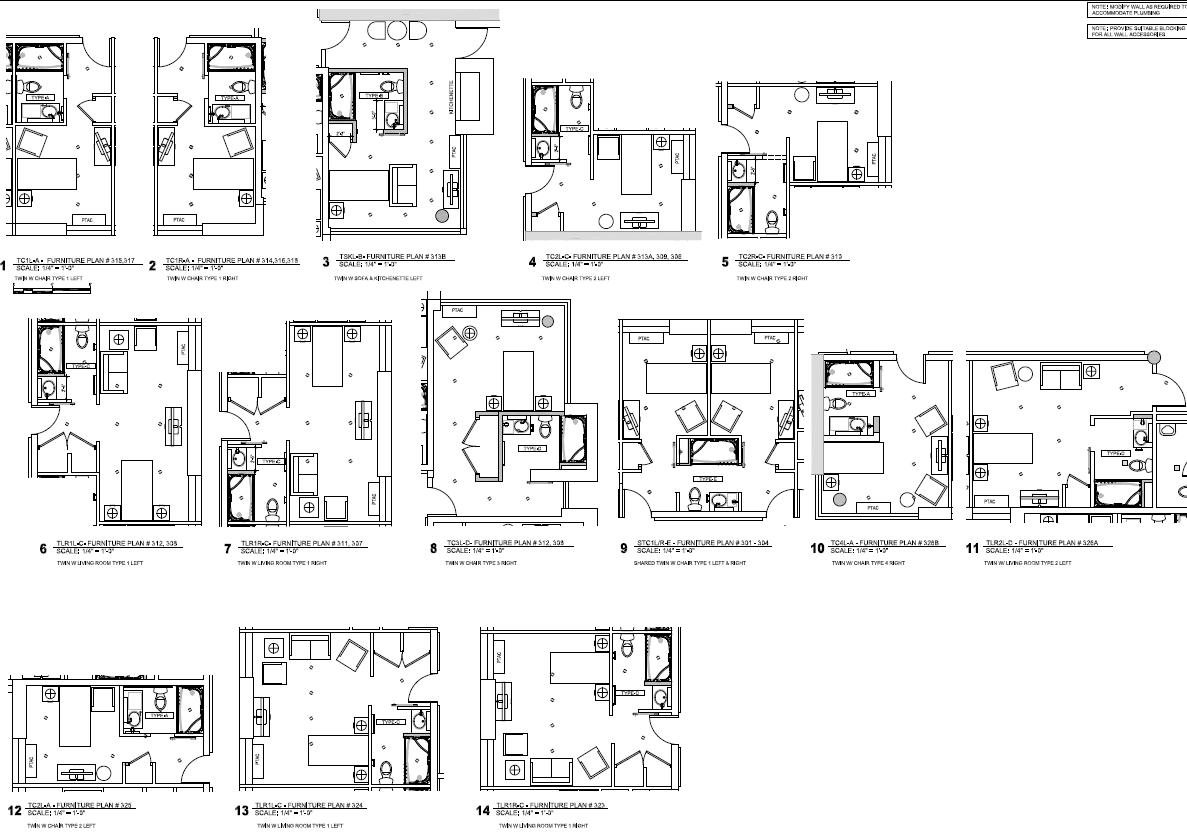

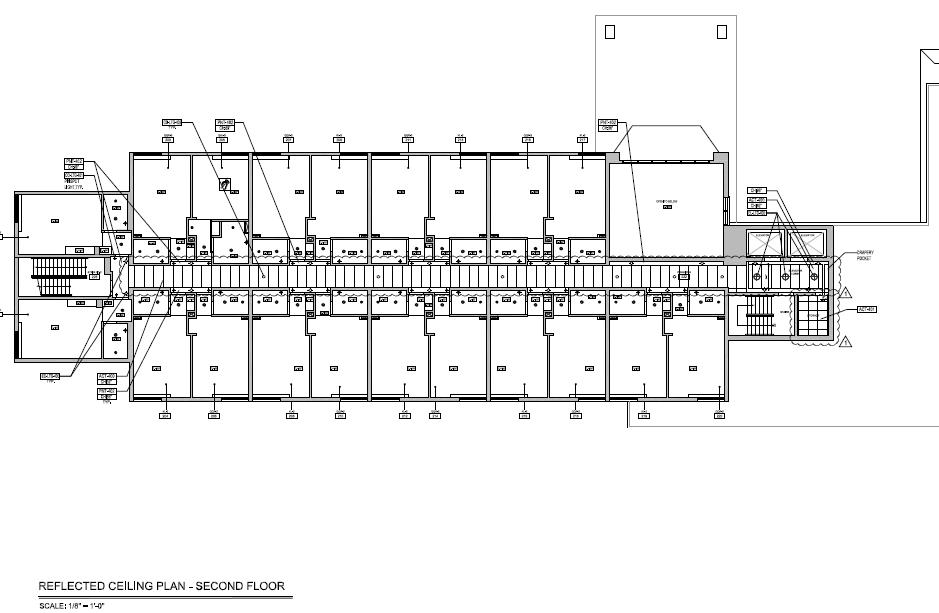

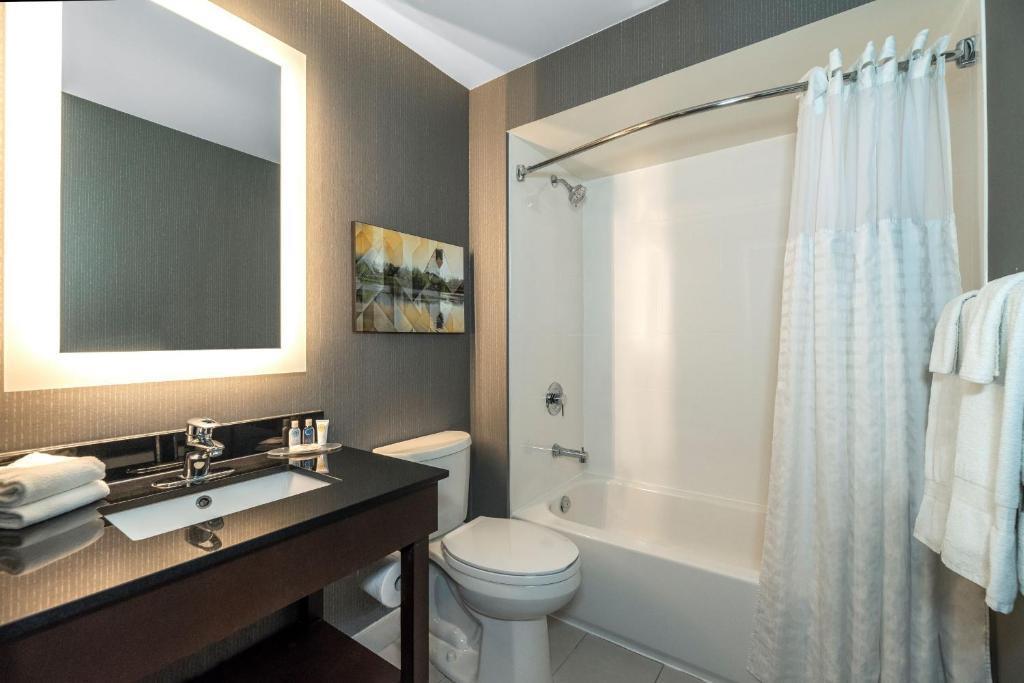

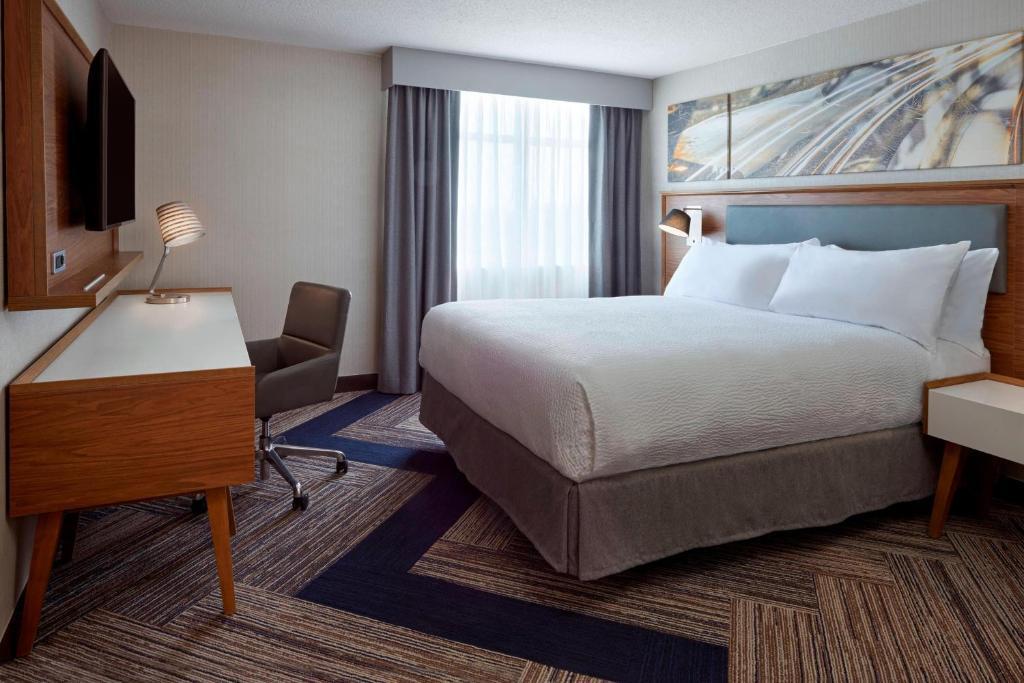

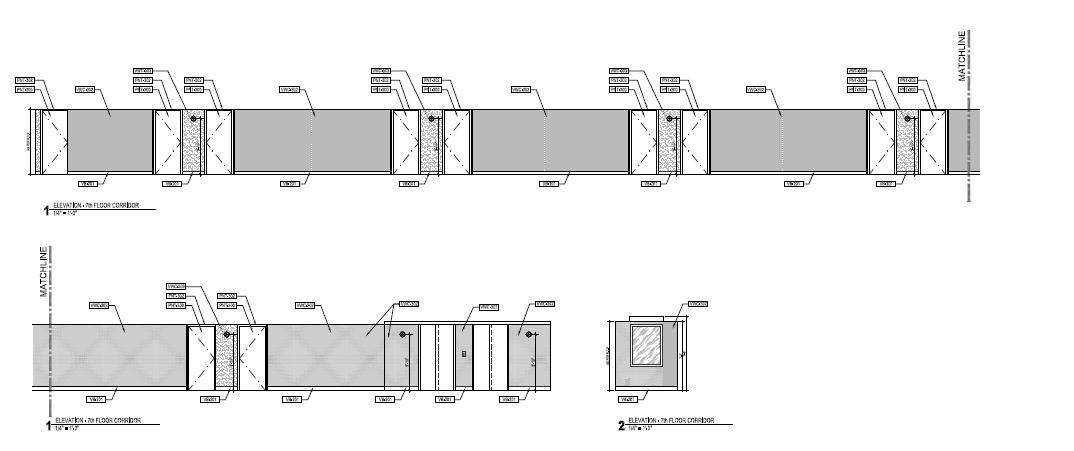

In this extensive renovation project for the 2nd and 3rd floors of Four Points by Sheraton Hamilton - Stoney Creek, meticulous attention is dedicated to enhancing the guest experience. From revitalizing guestrooms to refreshing bathrooms, every aspect is meticulously addressed. The installation of LVT floor finishes and vinyl base, coupled with the replacement of wall vinyl, promises a rejuvenated aesthetic Additionally, the project includes carpet installation and various repairs to fixtures and furnishings, ensuring both functionality and comfort. Specific attention is given to details such as painting entrance doors and addressing maintenance issues, further elevating the overall guest impression. With a commitment to quality and excellence, this project aims to uphold the esteemed reputation of the Four Points by Sheraton brand while offering guests a delightful stay experience.
SCOPE OF WORK

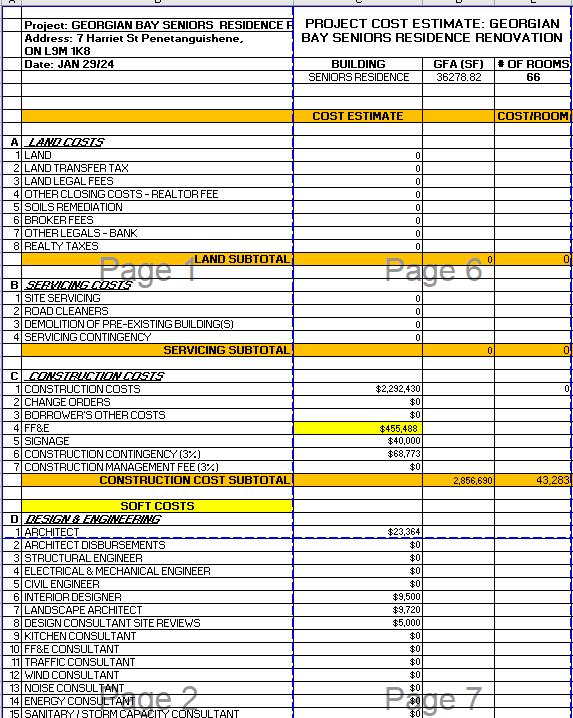

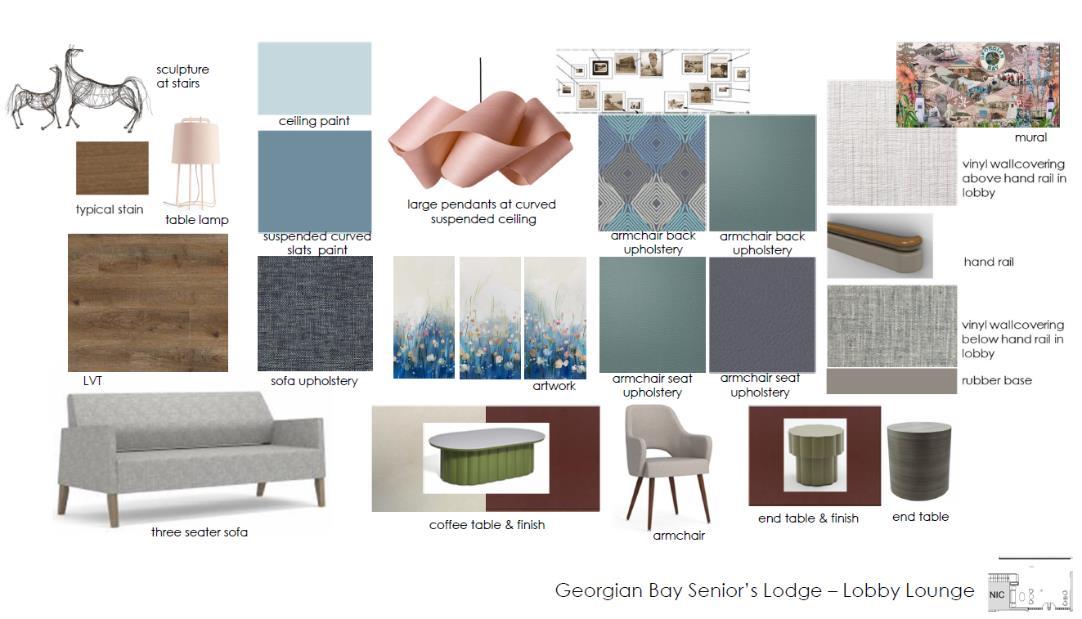

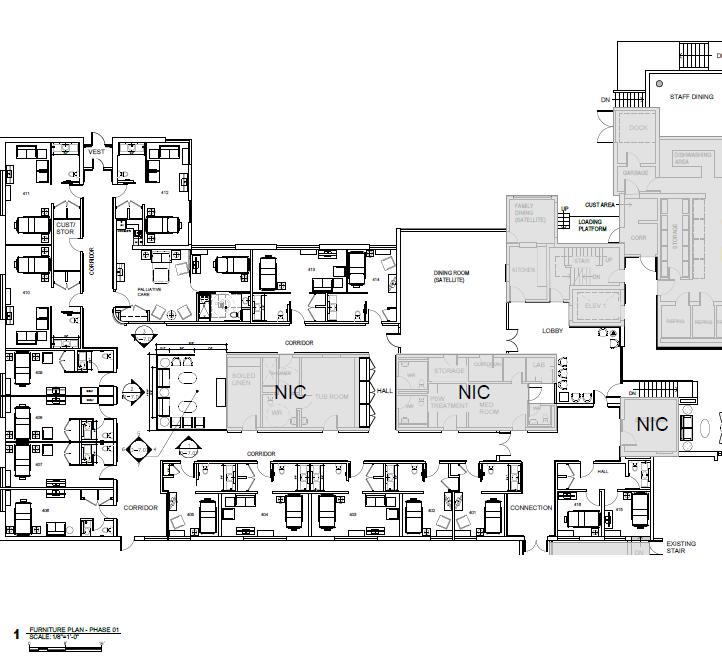

GEORGIAN BAY SENIOR’S RESIDENCE
LOCATION: 7 Harriet St, Penetanguishene, ON ROLE:
•INTERIOR LAYOUT
•PROJECT MANAGEMENT
•SOFTWARE: AutoCad, MS-Project

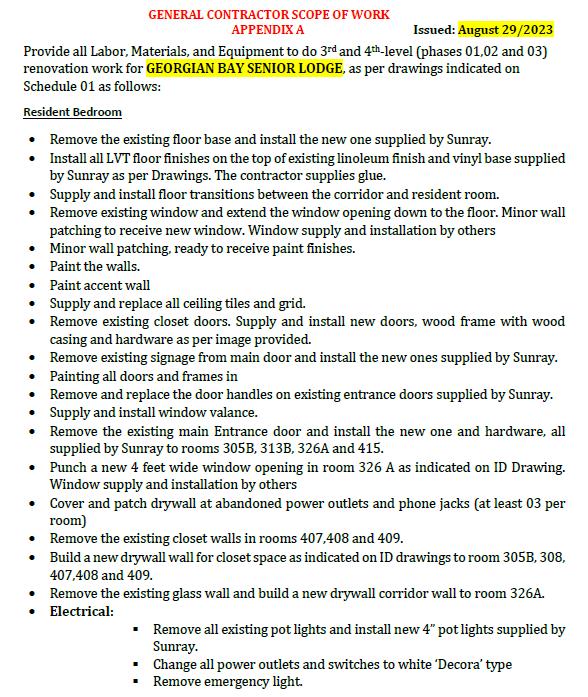

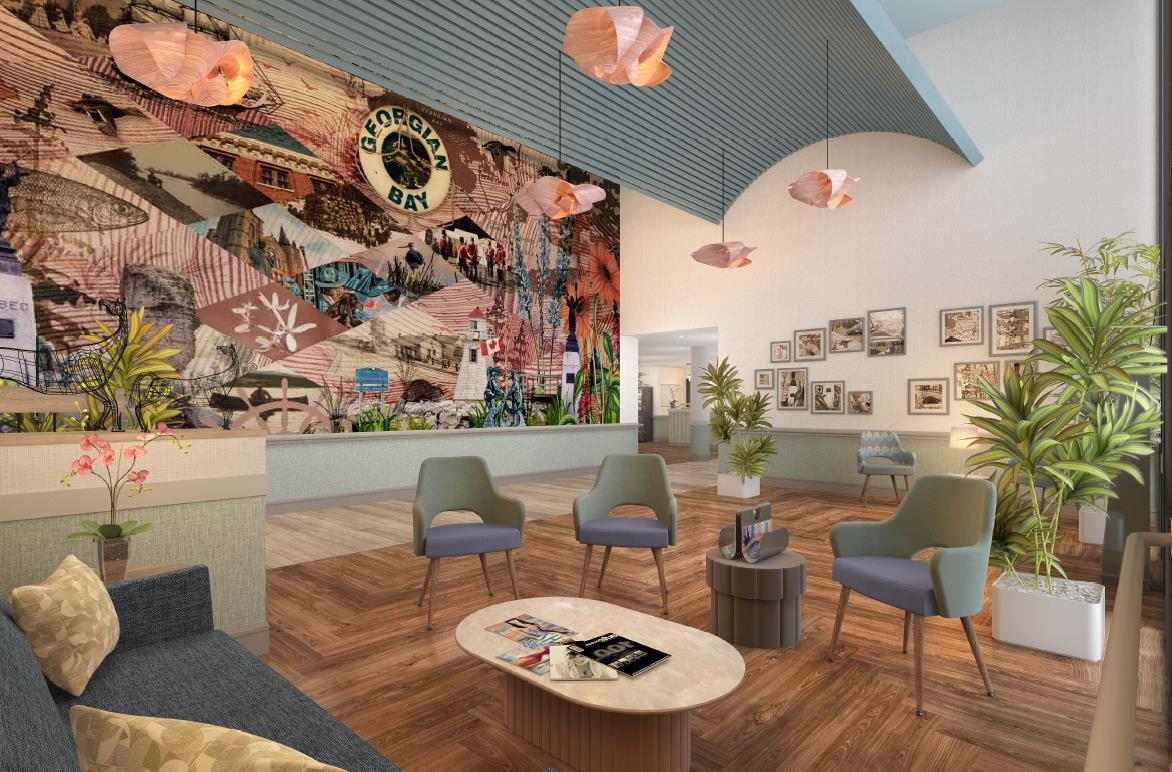

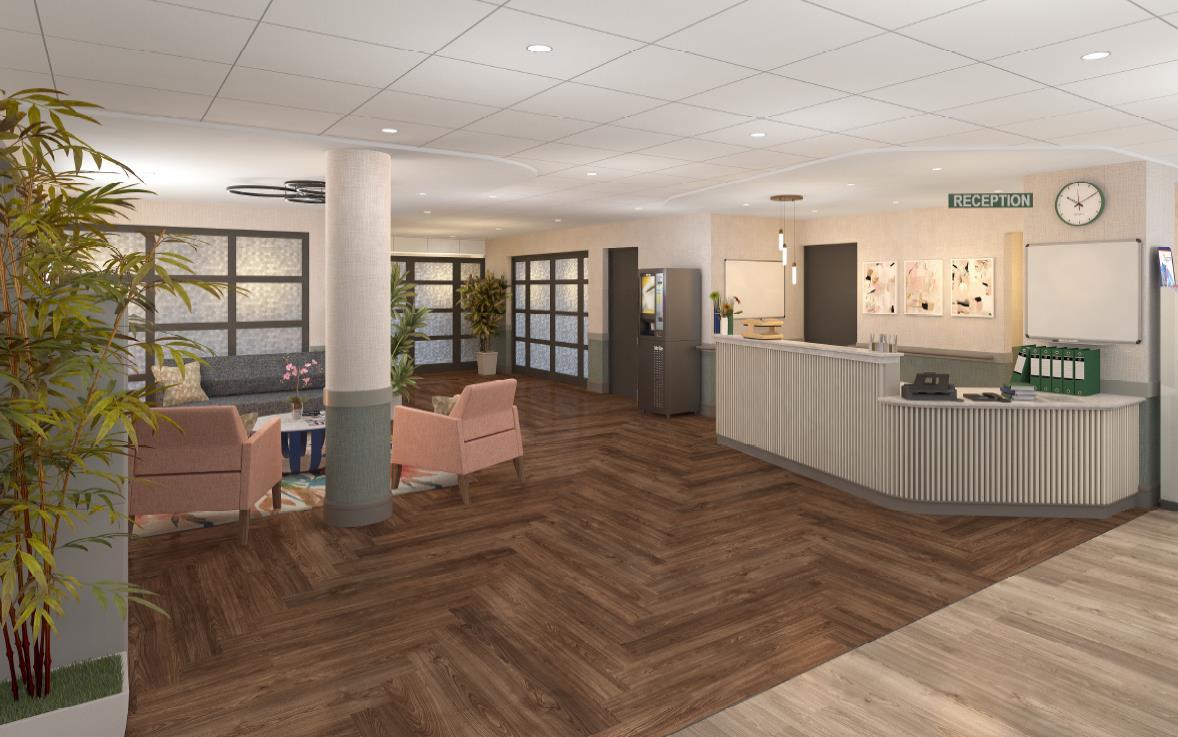

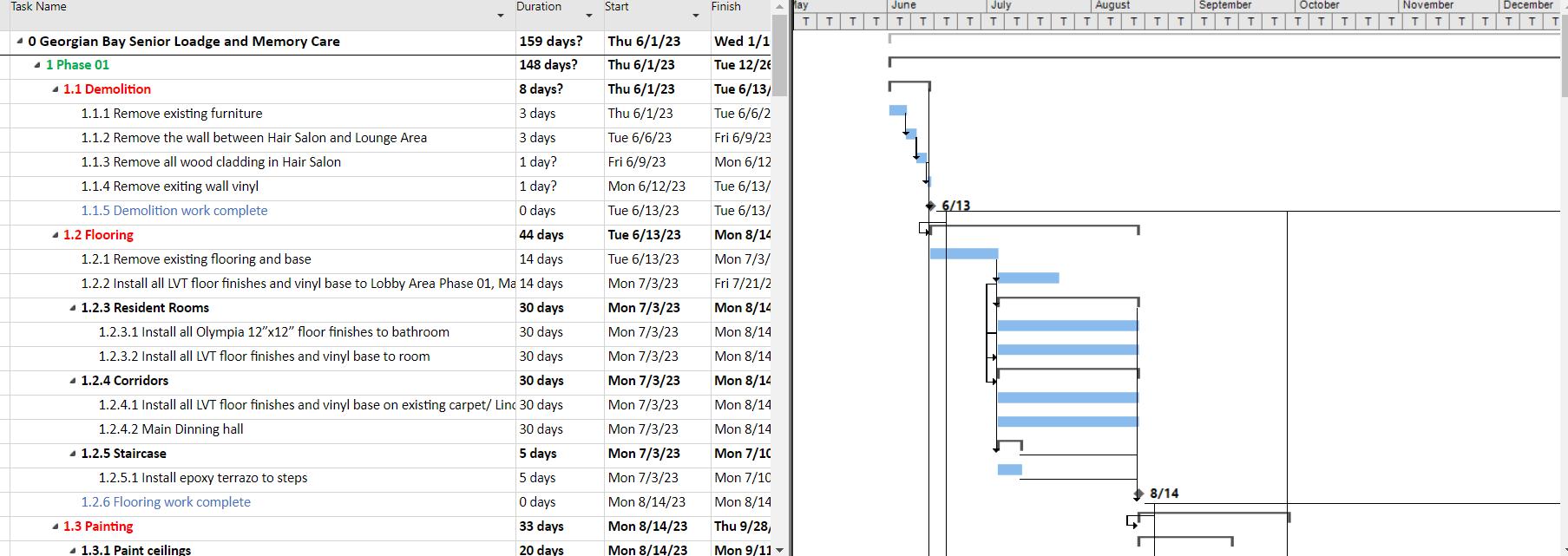

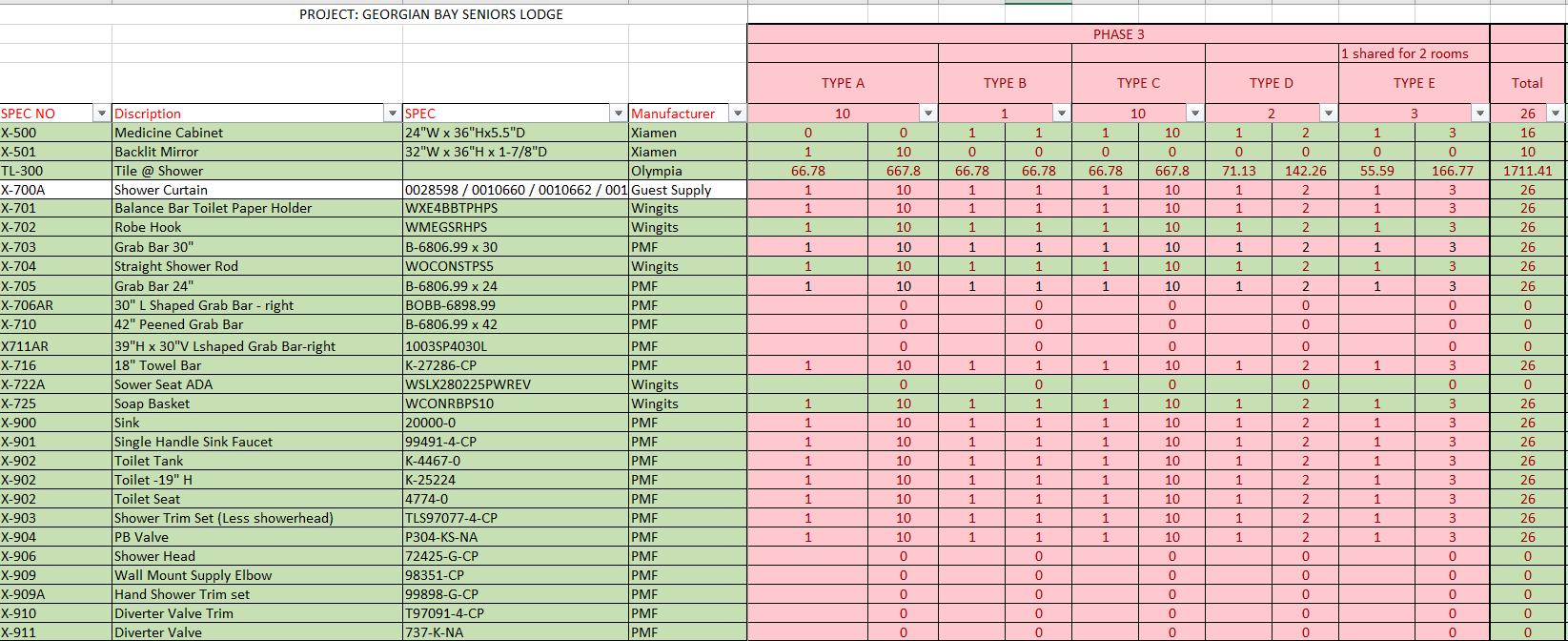

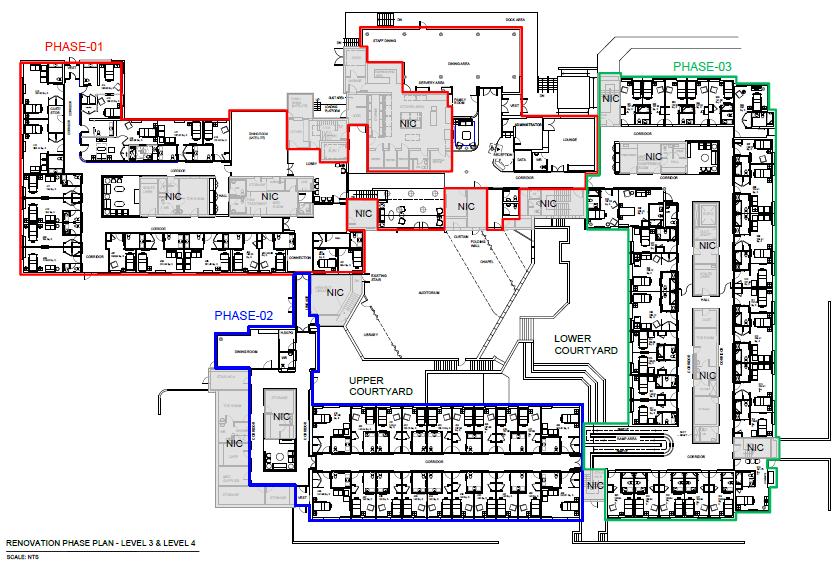

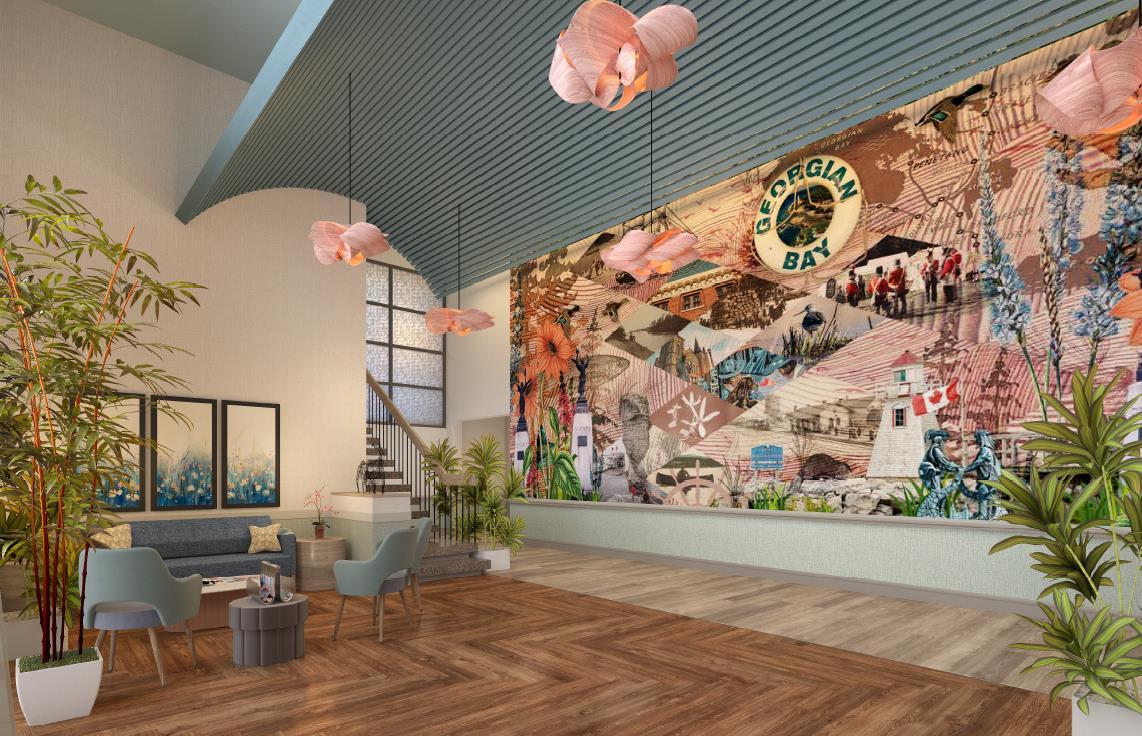

Georgian Bay Seniors Lodge property improvement project. Located at 7 Harriet St, Penetanguishene, ON, is the comprehensive interior renovations across multiple phases. From resident bedrooms to public washrooms and palliative care areas, the scope covers extensive tasks such as floor installations, wall patching, painting, and electrical works.

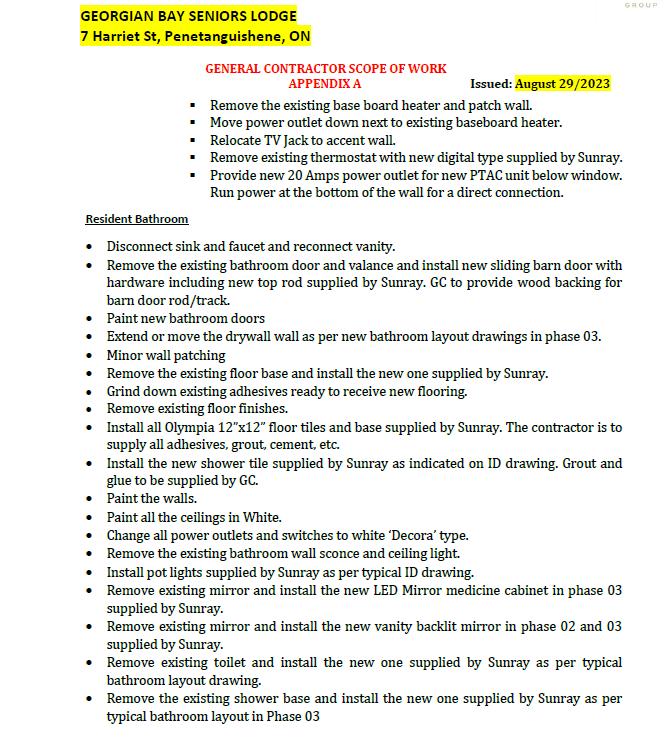

With a meticulous breakdown of responsibilities outlined in the issued Appendix prospective contractors were invited to provide labor, materials, and equipment for a thorough overhaul. The project aimed to enhance the living spaces and facilities for the residents, ensuring comfort, safety, and aesthetic appeal. Detailed specifications and exclusions guide the proposal process, emphasizing the need for precision and adherence to quality standards.
CONCEPT & DRAWINGS

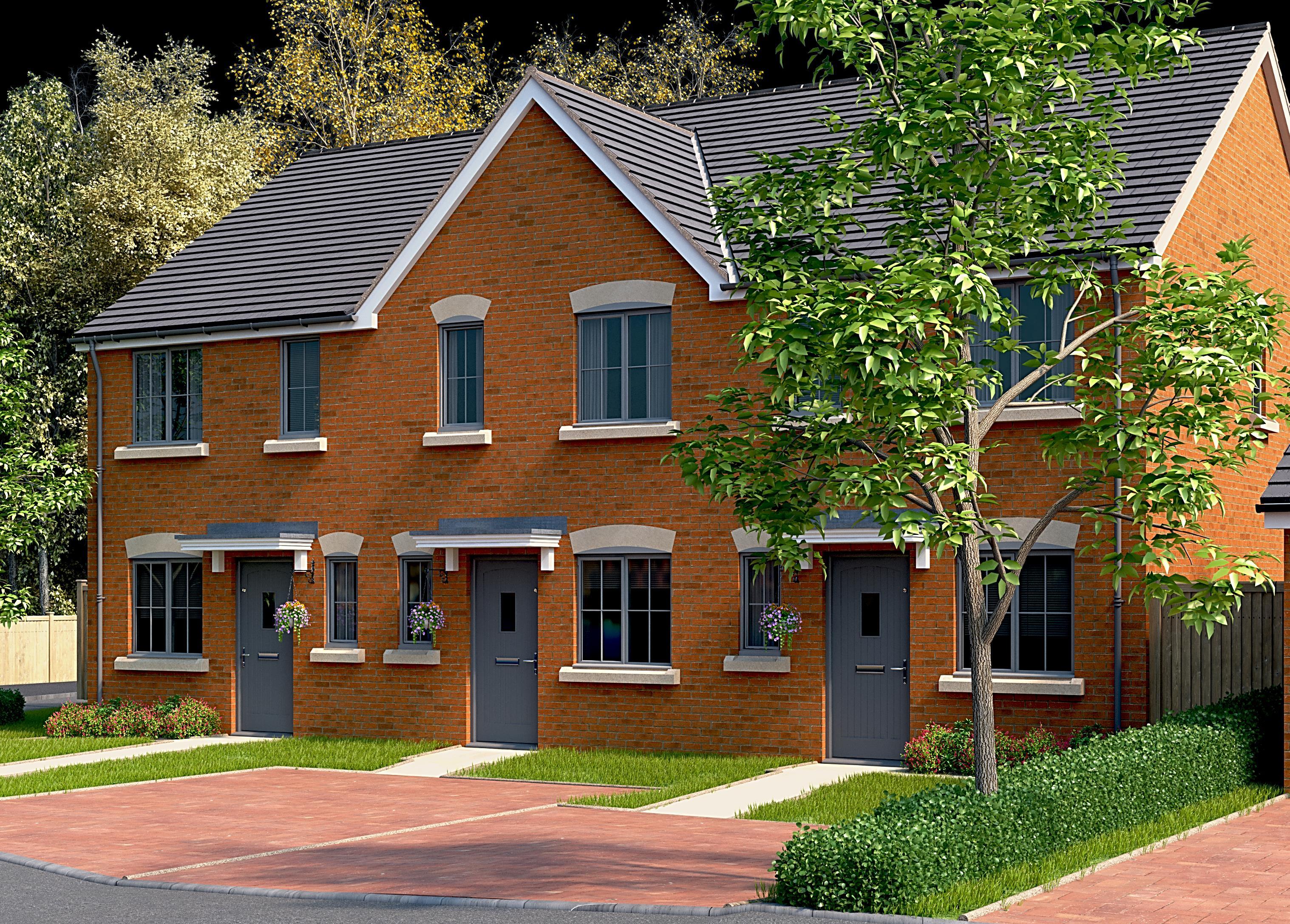

HT BEWDLEY Plot 27-28
HT YATE Plot 29-30
Low cost
home. Lounge/ dining room with French doors to rear garden.
Separate fitted kitchen. Two double bedrooms. Family bathroom with bath & shower. Downstairs W/C.
Two off road parking spaces.
Detached property. Large lounge with French doors to rear garden. Kitchen with dining area. En-suite to main double bedroom. Further double bedroom. Detached garage with 2 additional parking spaces.

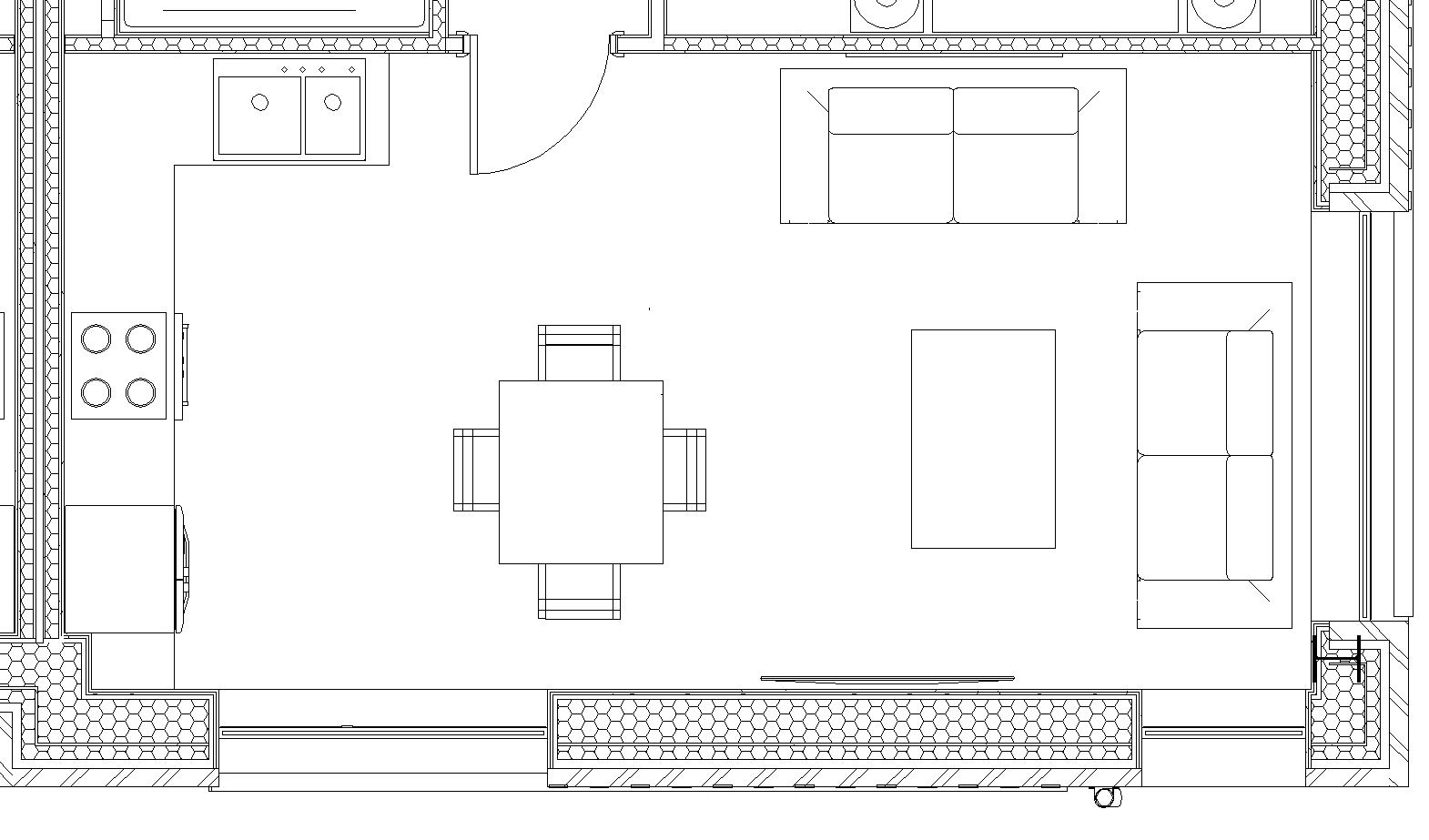

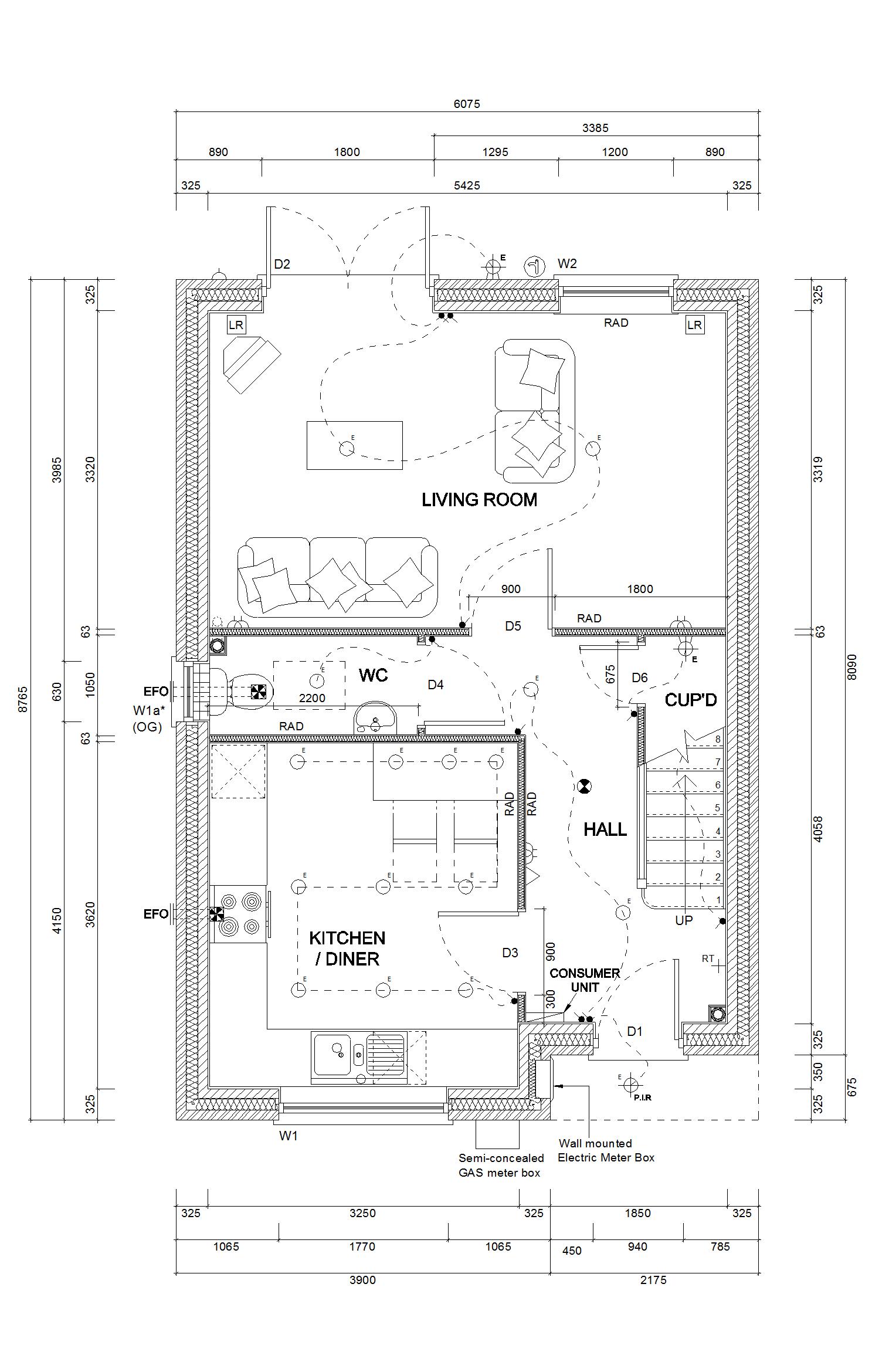

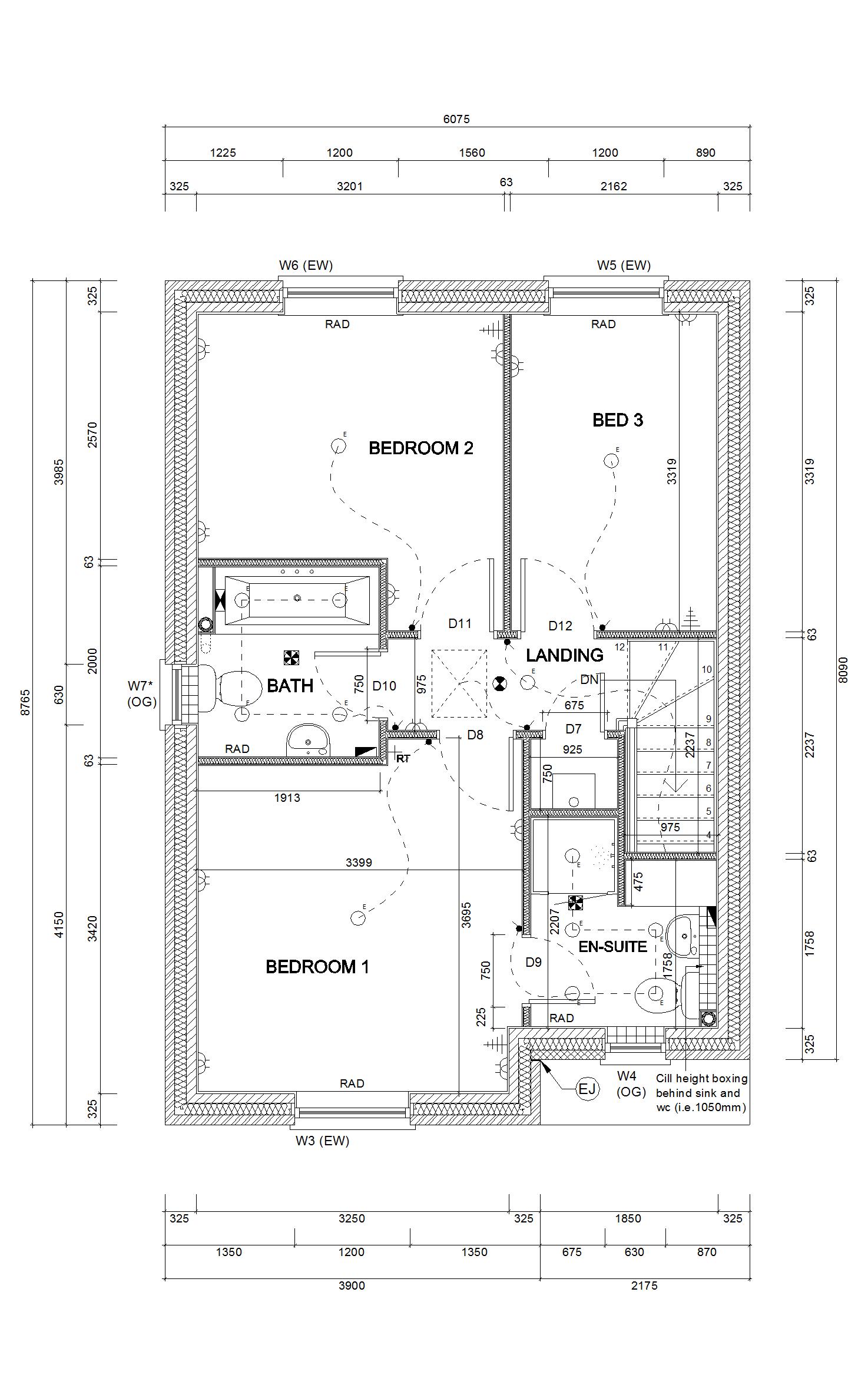

HT Bewdley 6075mmx8765mm
Hall:1850x4058 mm
Kitchen:3250x3620mm
WC:2200X1050 mm
Living:5425x3320 mm
Bedroom 1:3250x3420mm
En-Suite:1758x2162mm
Bedroom 2:3201x2570
Bath:1913x2000mm
Bedroom 3:2162x3319mm

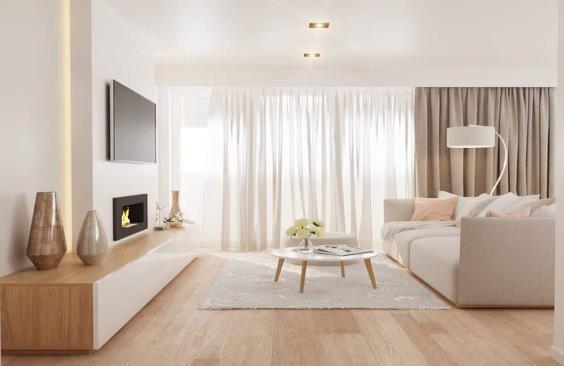

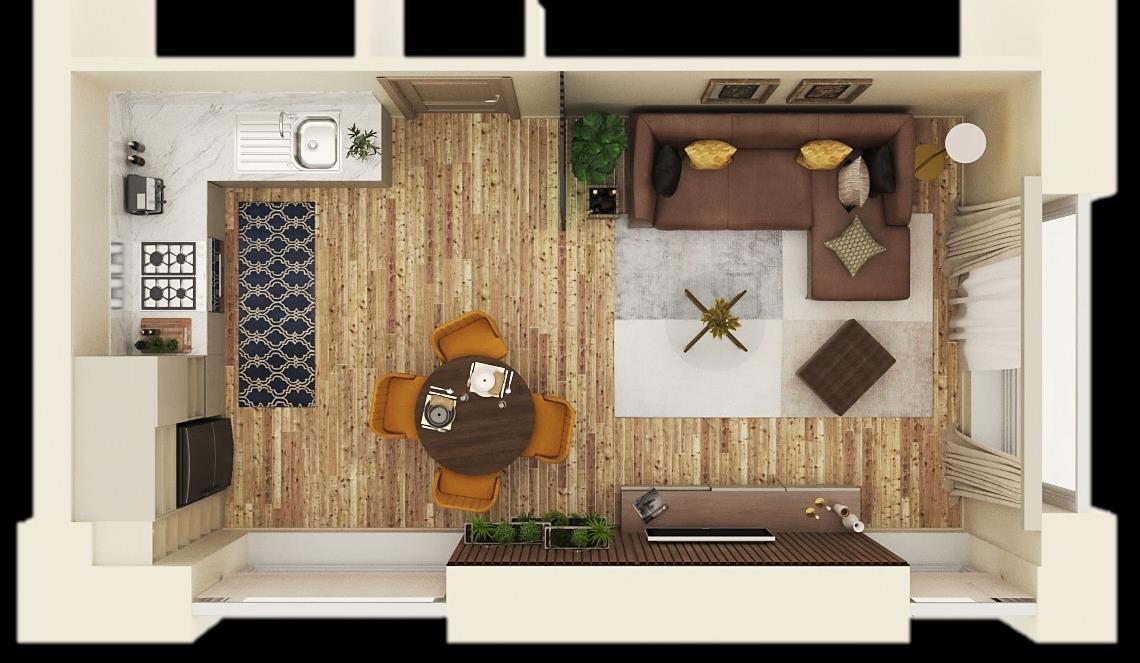

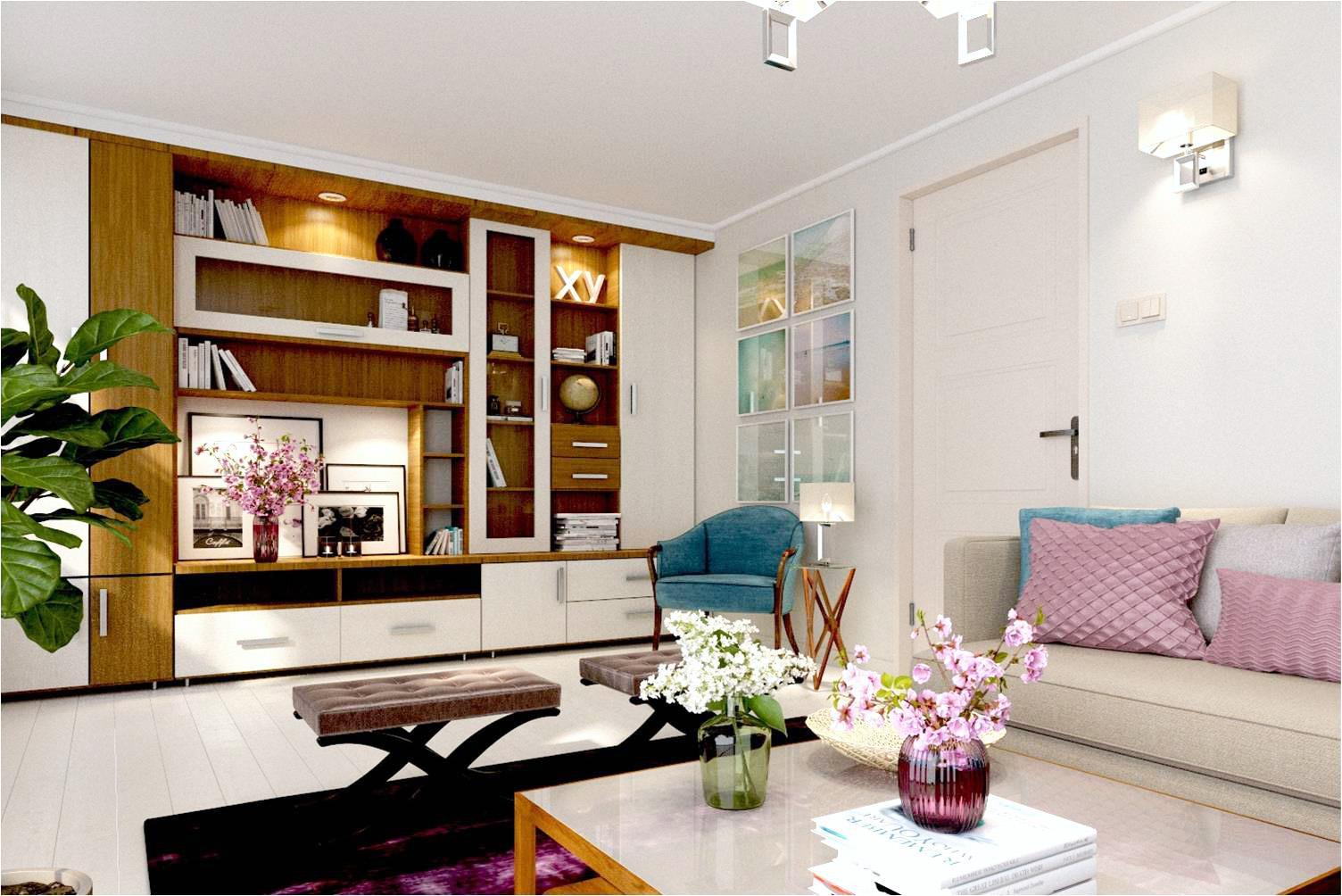

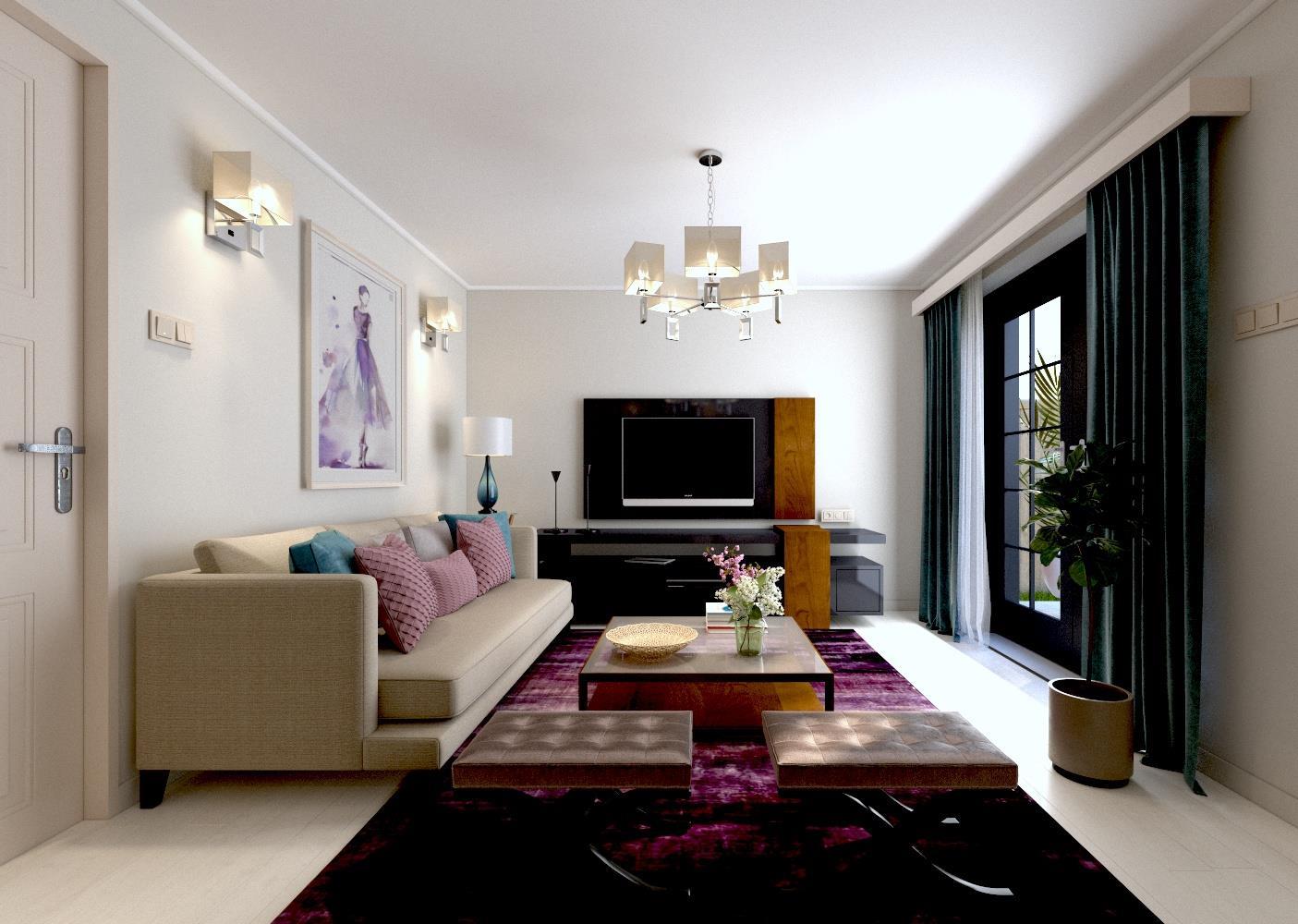

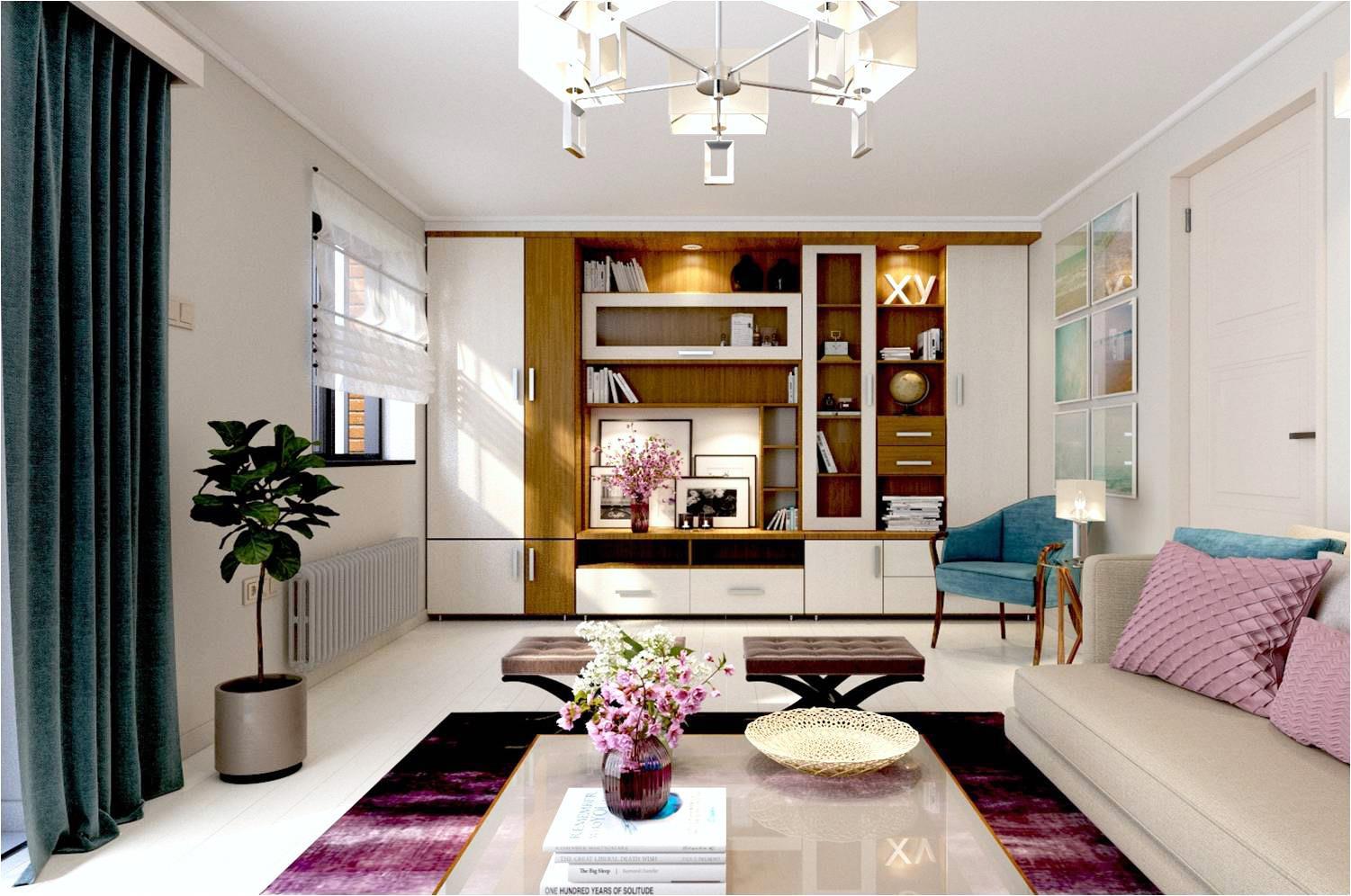

Living Room
5425mmx3320mm

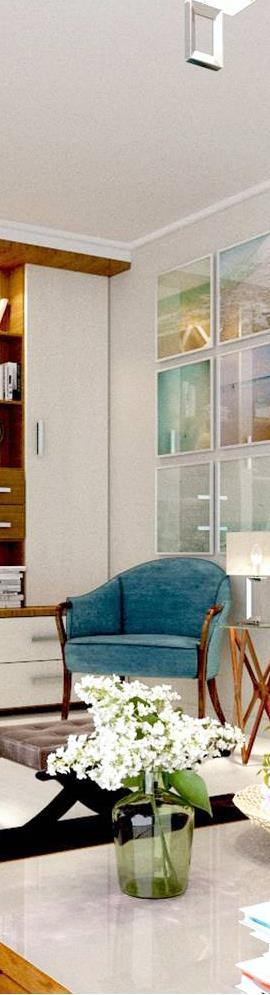

This living room design adapts a minimalist modern style with calm color combination . The most prominent colors in the room are purple, blue and gray. The purple is never outdated gives a soft and calm atmosphere

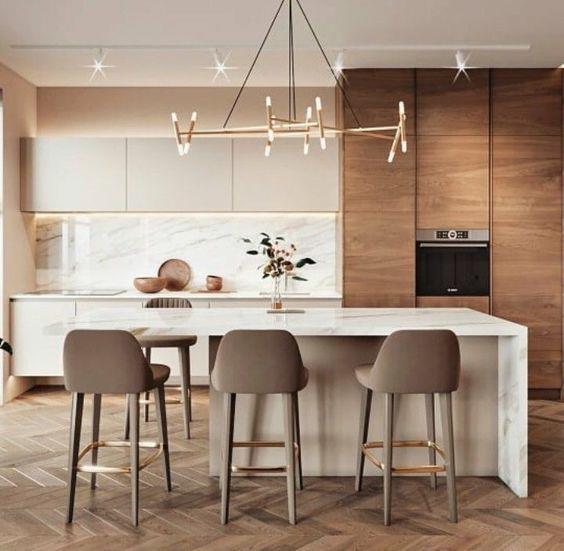

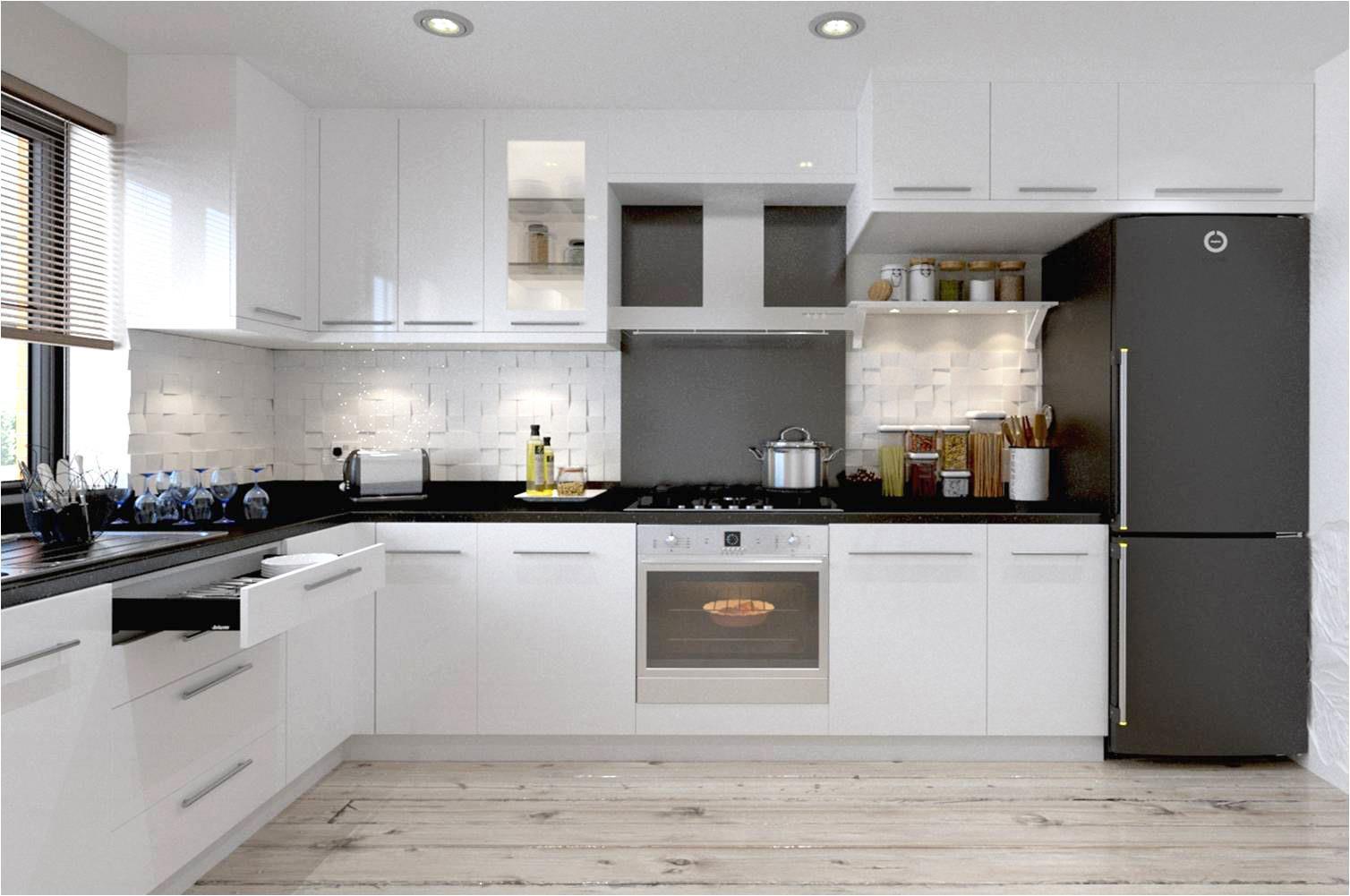

Kitchen
3250mmx3620mm

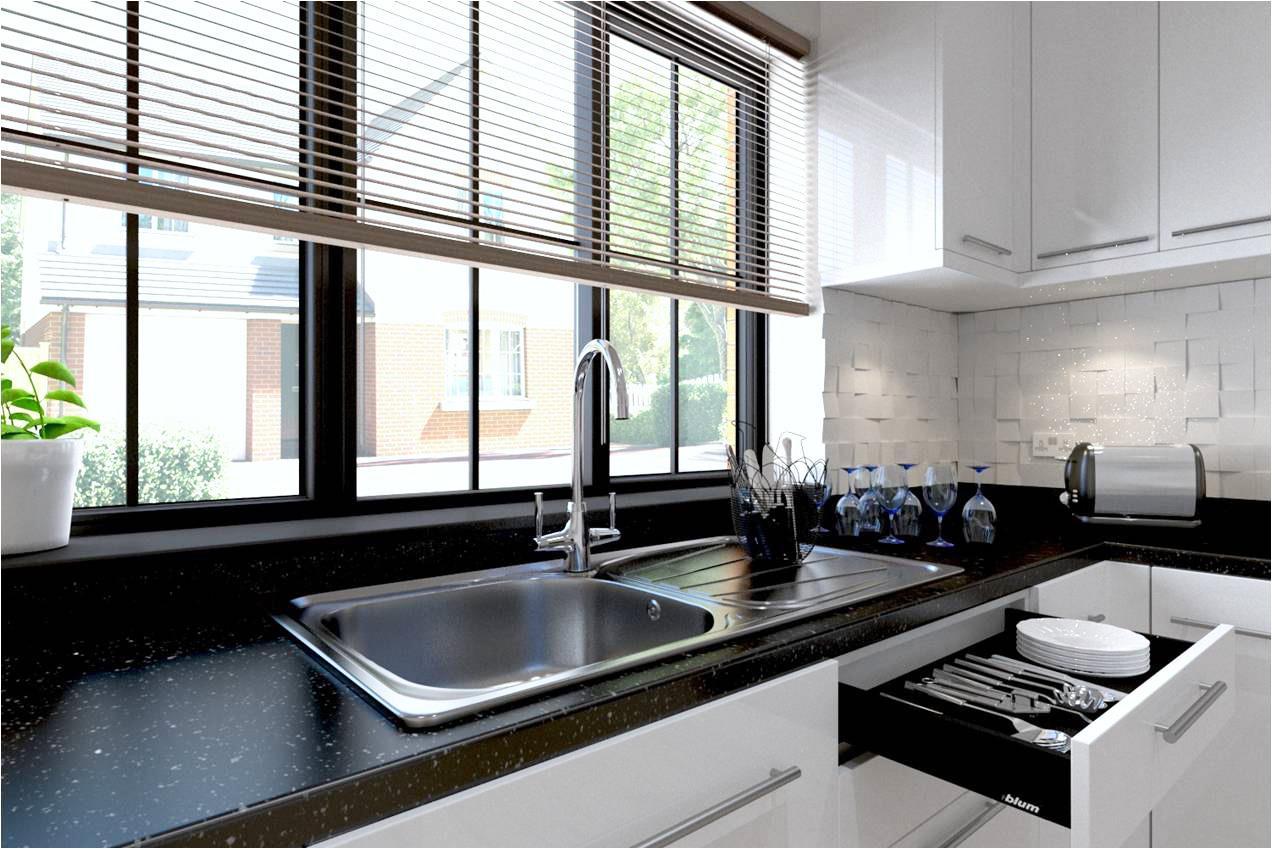

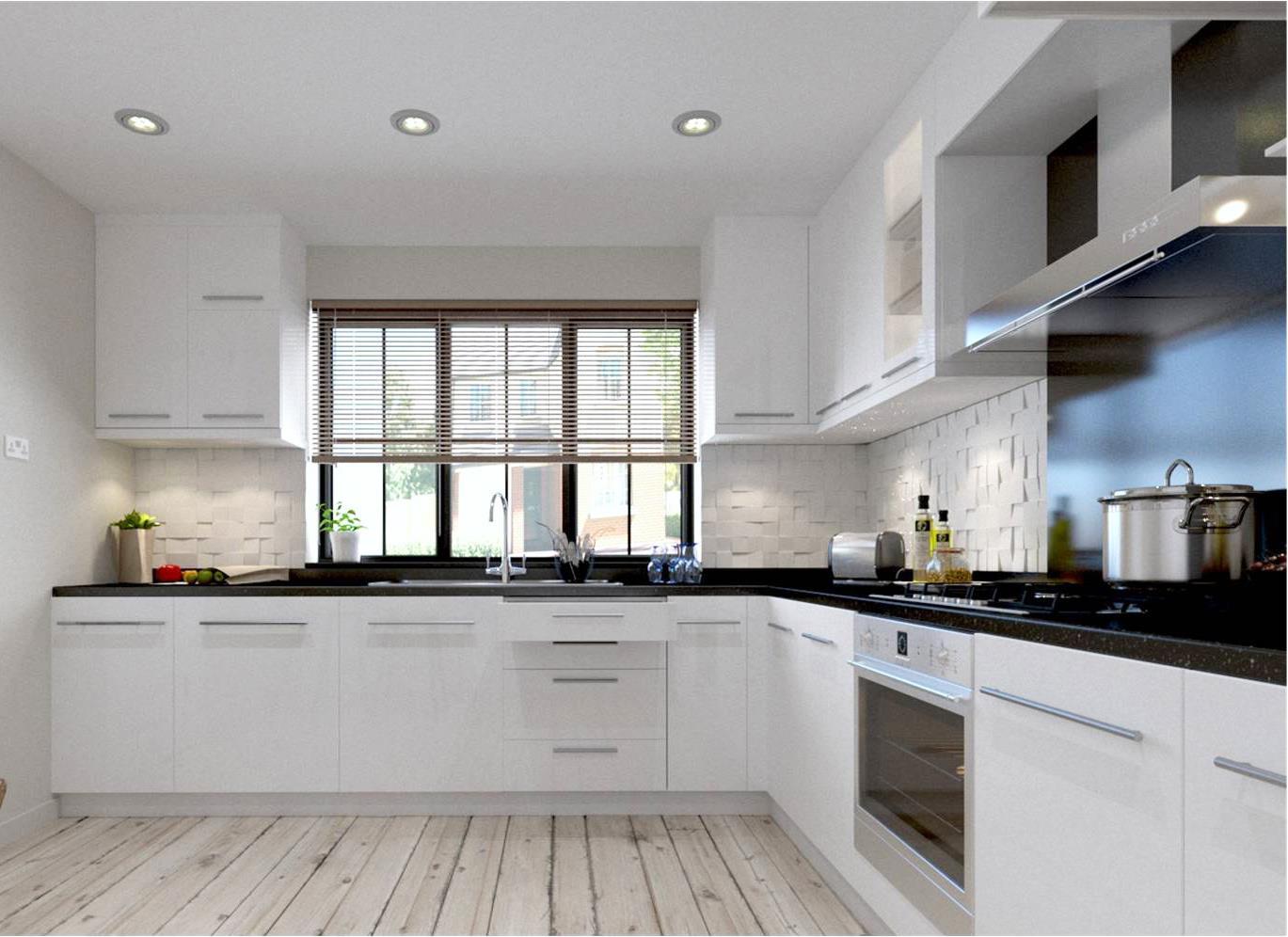

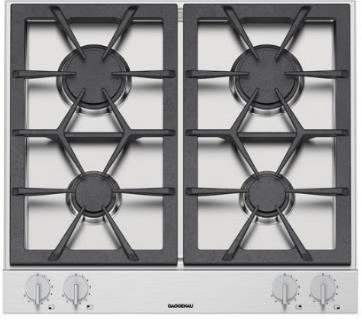

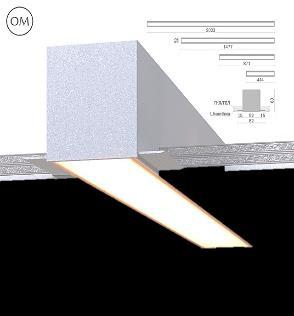

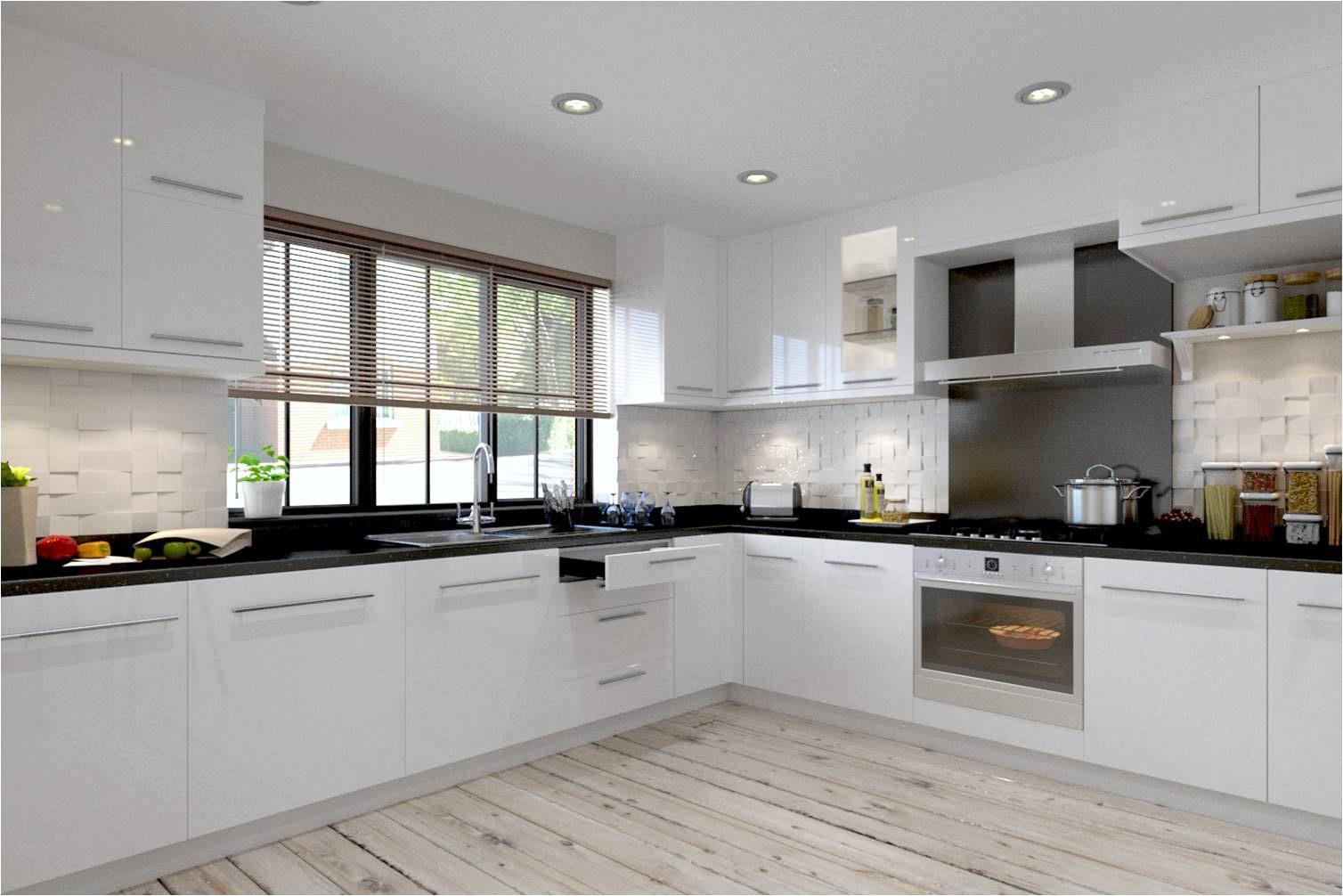

For Kitchen opted for a minimalist design. Outfitted the space with white cabinets, stainless steel appliances, and sleek recessed from Circa Lighting and wooden flooring bring an earthy feel to the design.

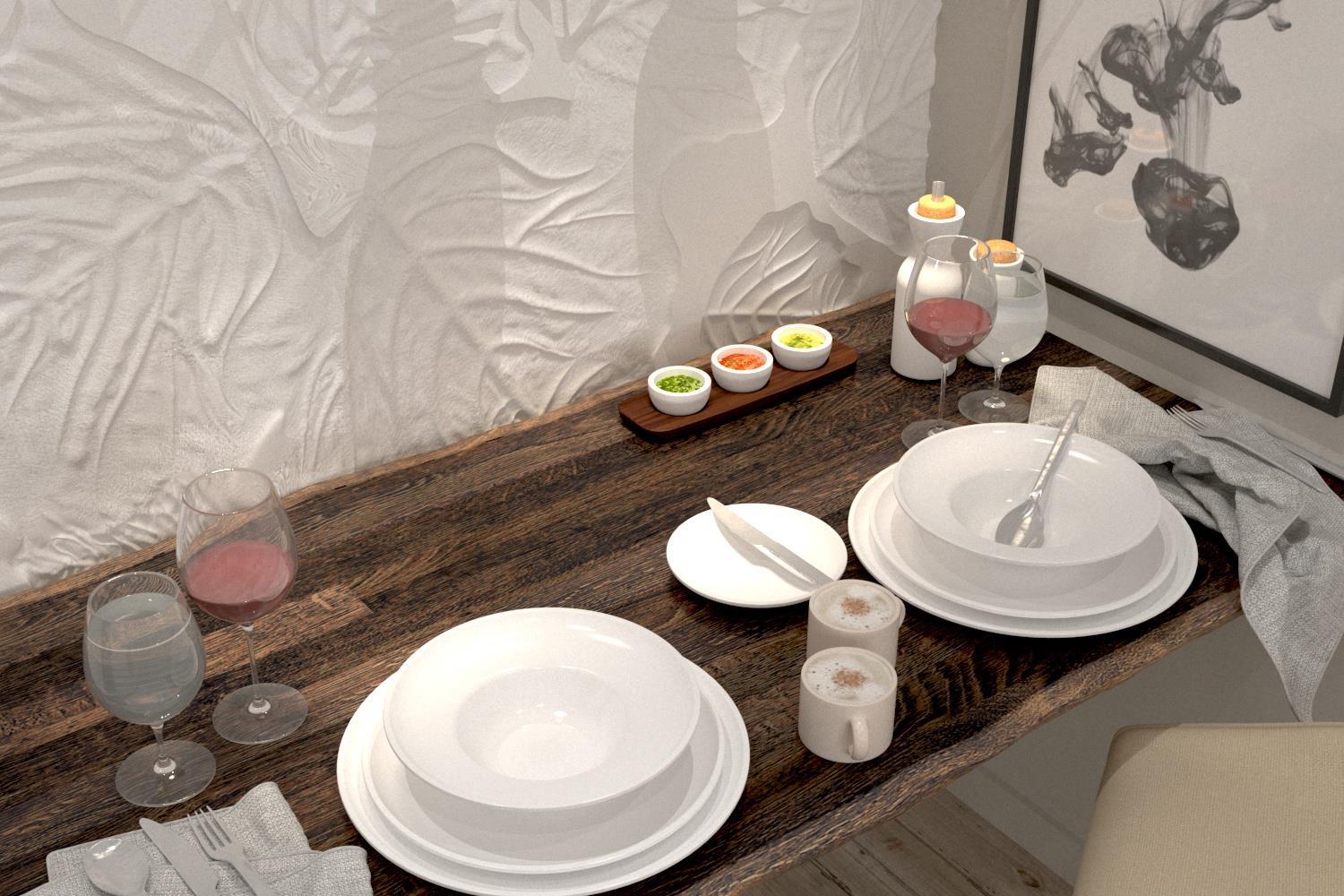

Kitchen
3250mmx3620mm
A mix of black marble and white cabinets, along with dark wooden timber dinning table and cream stools, industrial style pendant, GRP panel made for a sleek design.

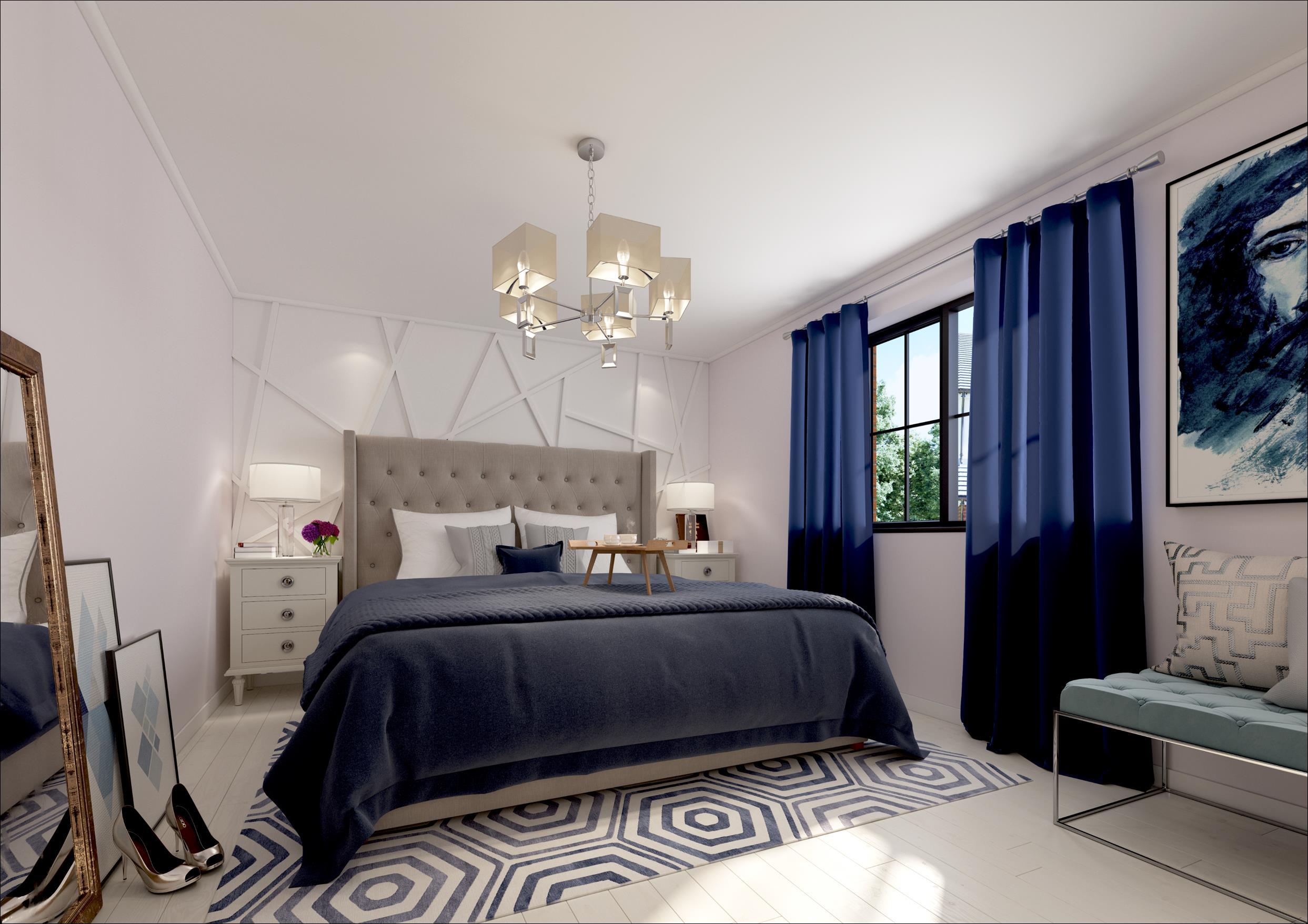

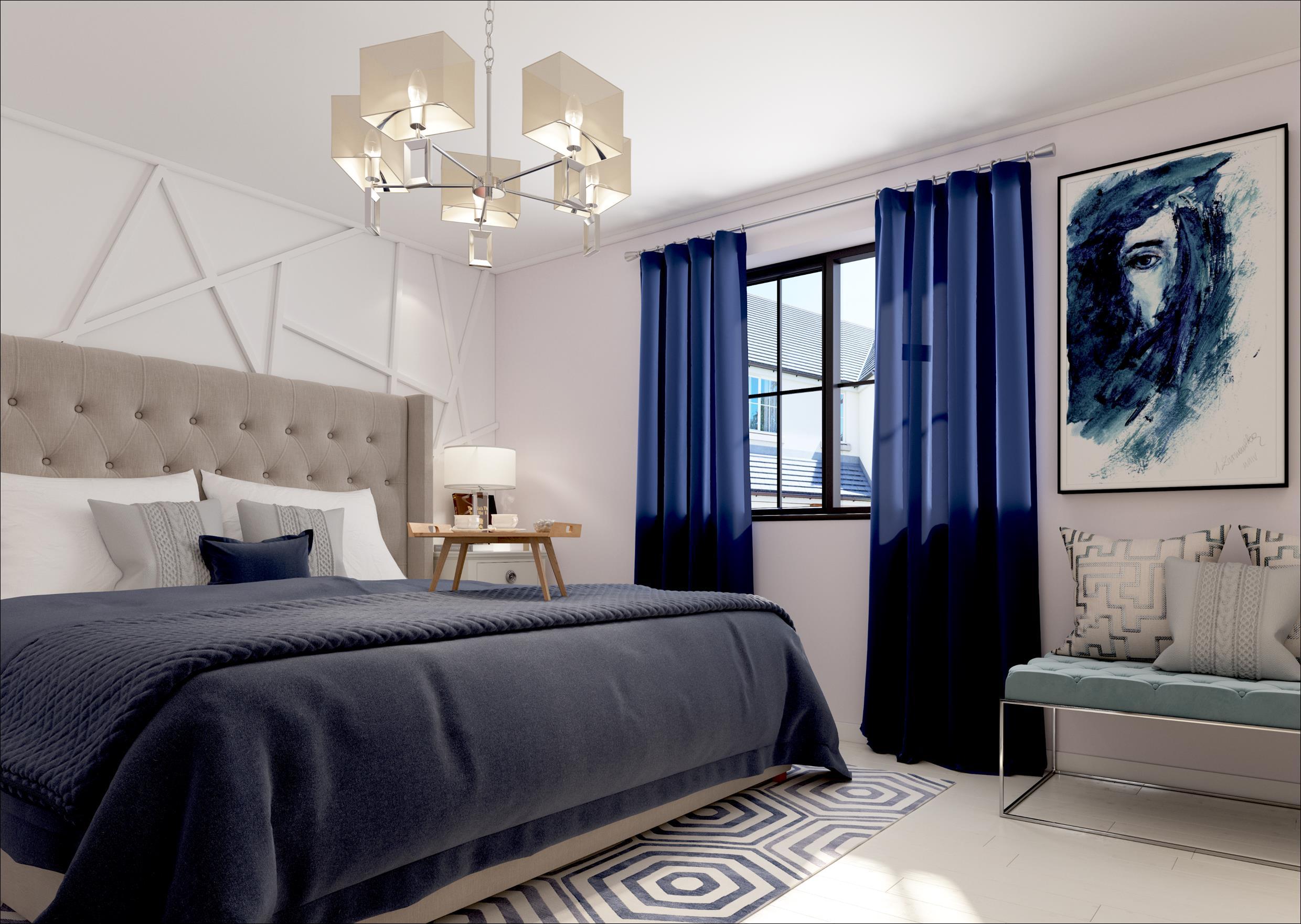

Bedroom 2
3200mmx3620mm
Blush, millennial, bubble gum, rose gold . Balanced powder pink walls with an equal amount of soft white and touches of navy blue, coral and pale brown. Bold curtain and painting along with quilt to break the line
Spring Shot
As an antidote to pastel tones, this Living room manages to look open and ethereal while also being grounded, formal and versatile. Timber side board and Floor, marble center table all of which contrasts nicely with dreamy pink sheers and vase.

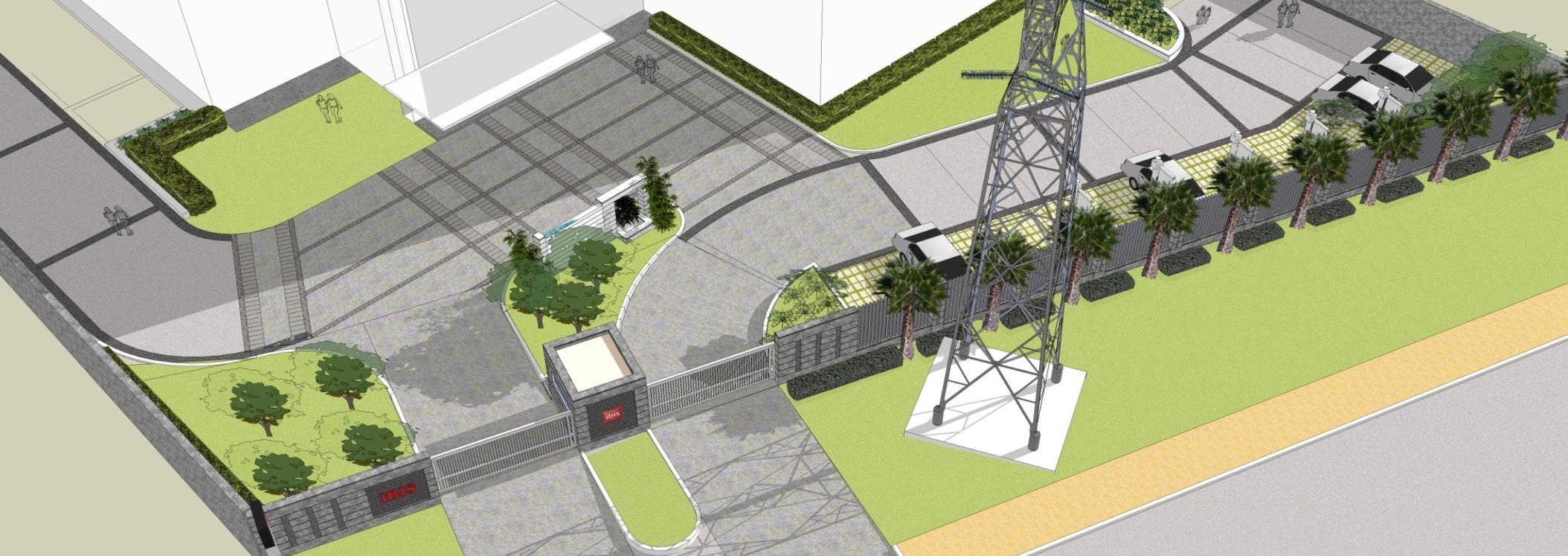

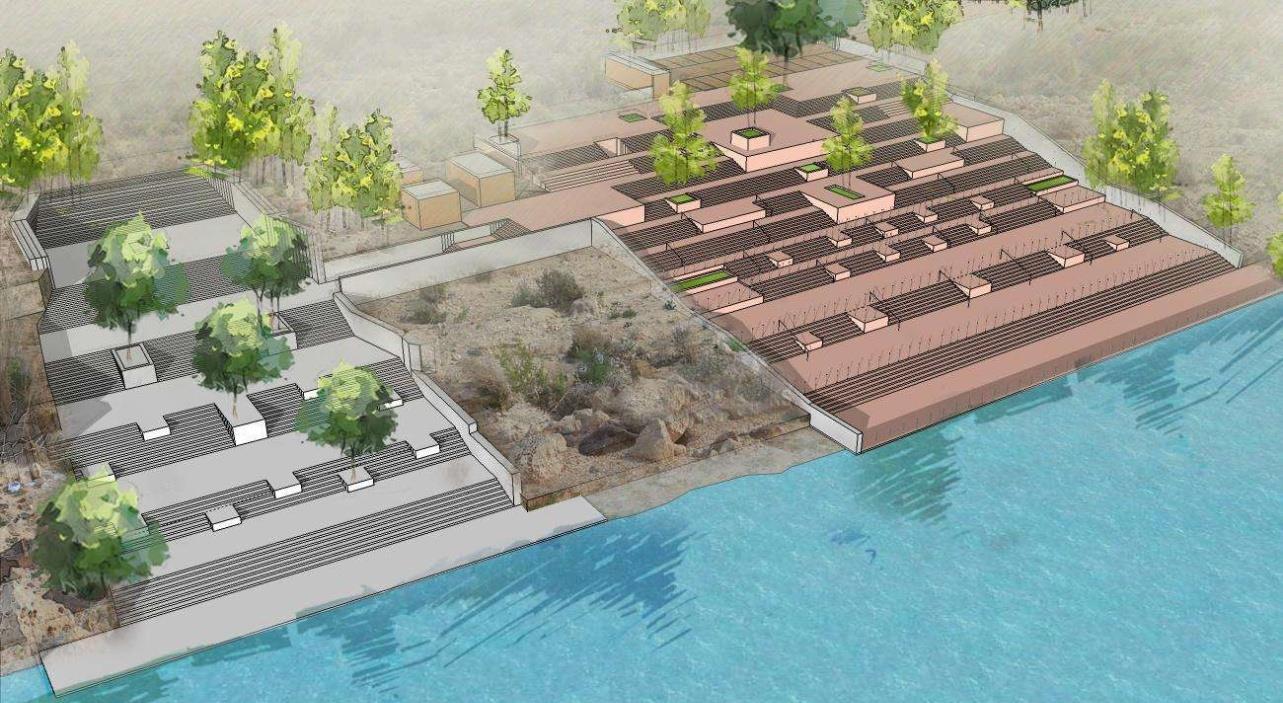

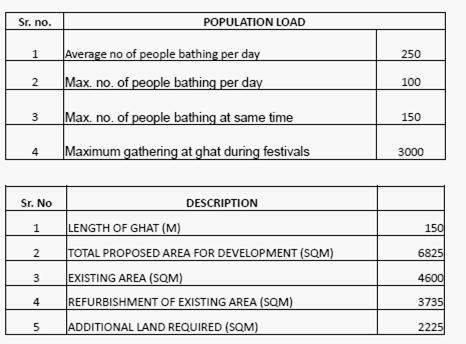

NAMAMI GANGEGhats and Crematorium

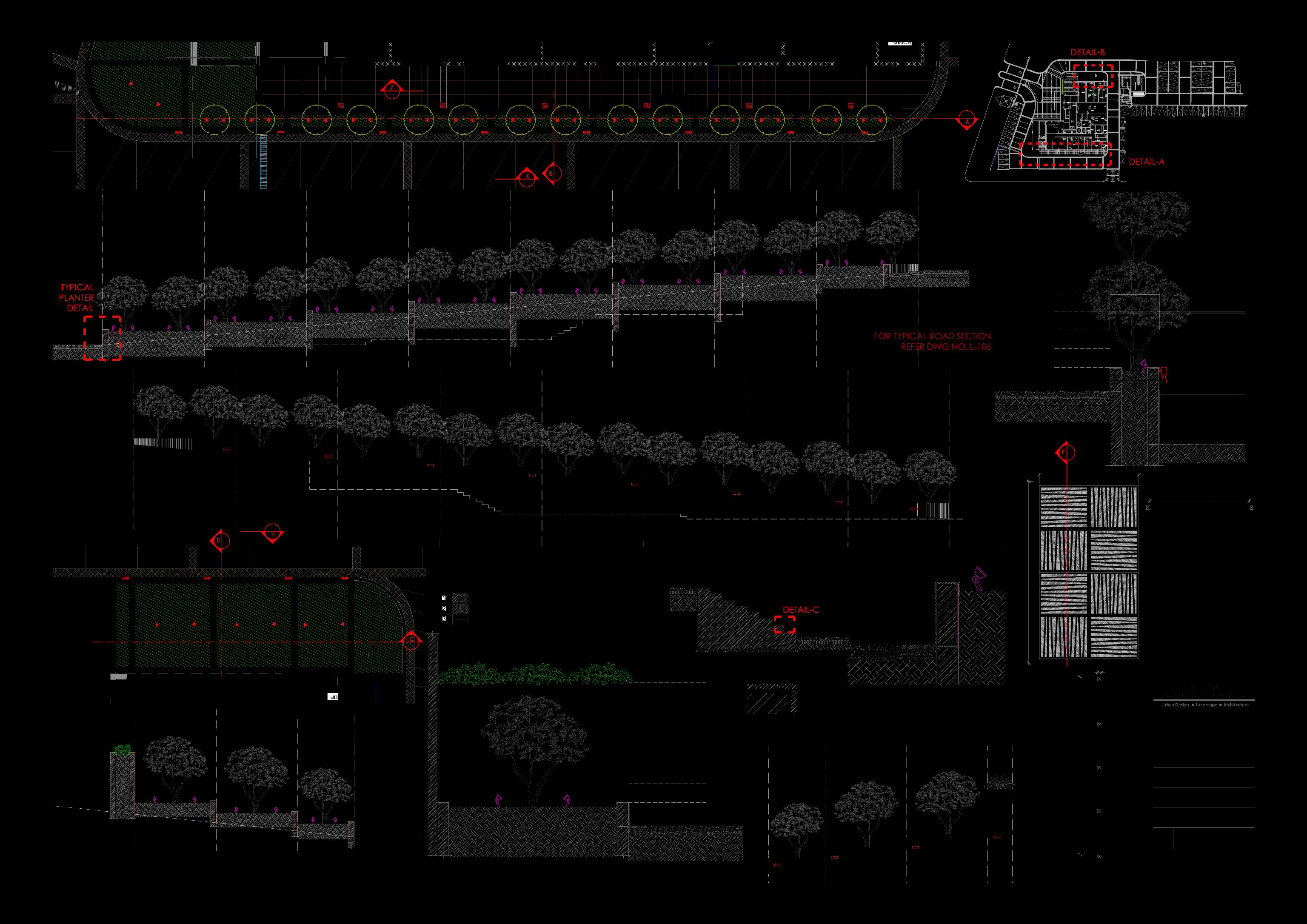

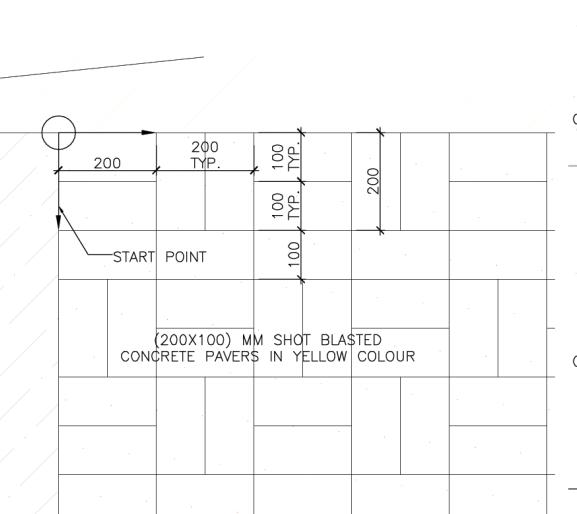

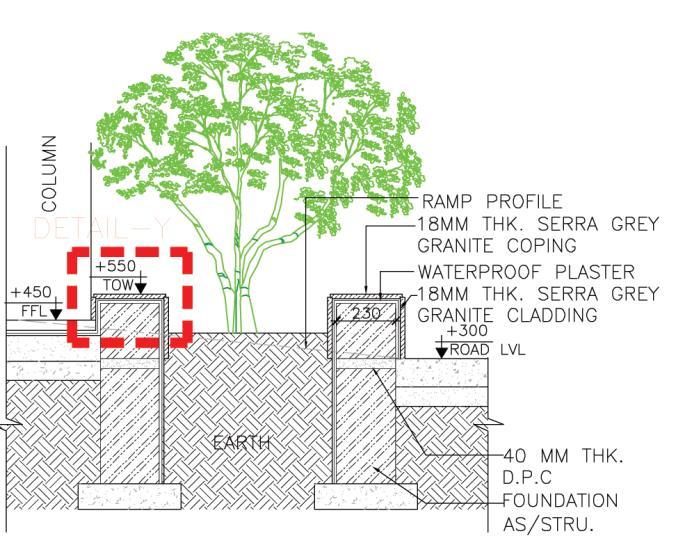

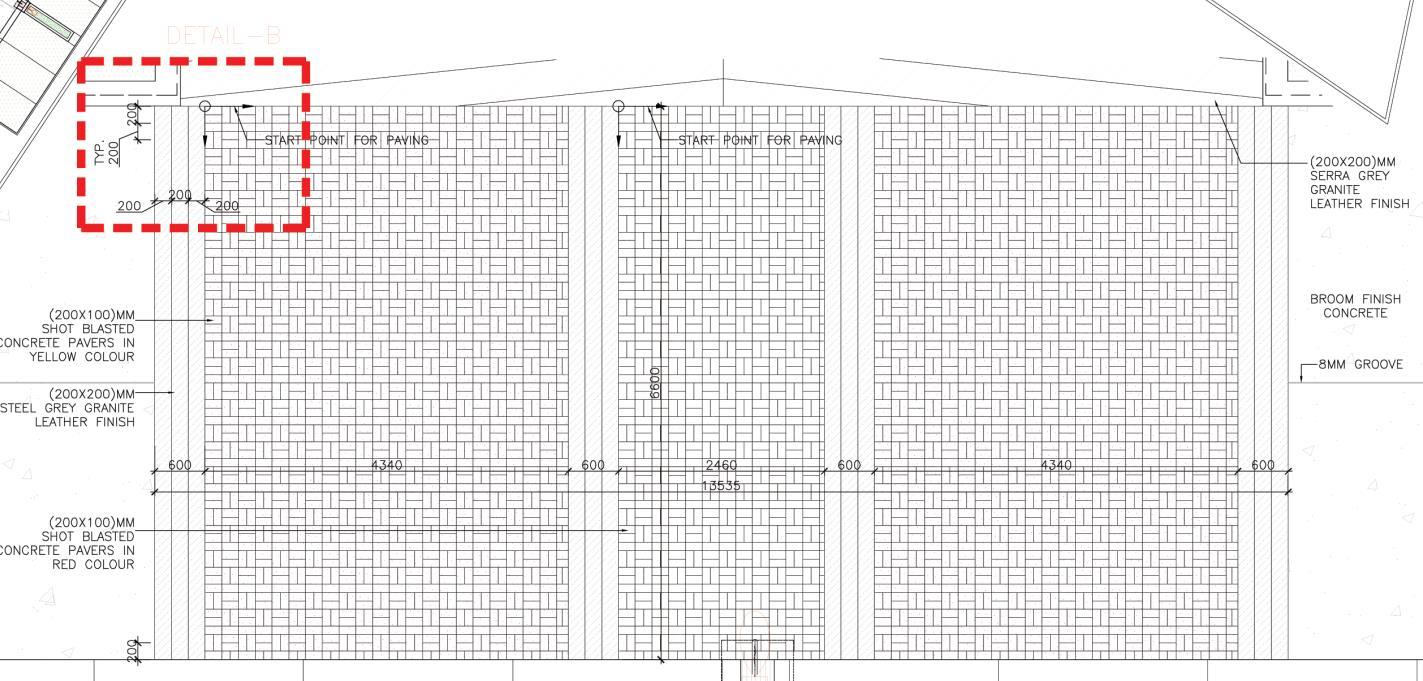

• Site Setting-out And Grading Plan
• Module Setting-out and Working Plans
SOFTWARE: AutoCAD, Sketchup,Photoshop
PROPOSAL
•Finishing of the dilapidated ghat steps.
• Reorganize the facilities and amenities in the existing situation.

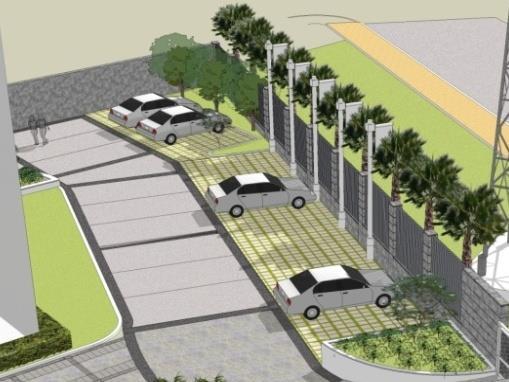

• Provision of Parking Space
• Addition of platforms, shading space, chain fencing, handrails, bathing-platform,

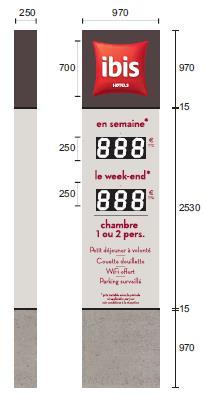

• signage, lighting, garbage bins and etc.

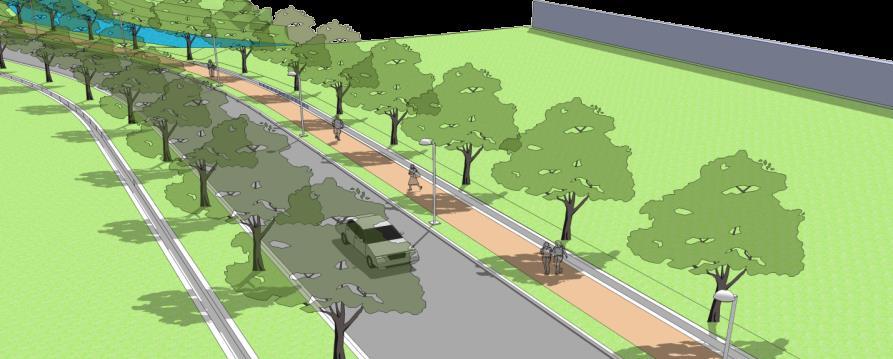

• Landscape Development, Beautification along with Parking Space

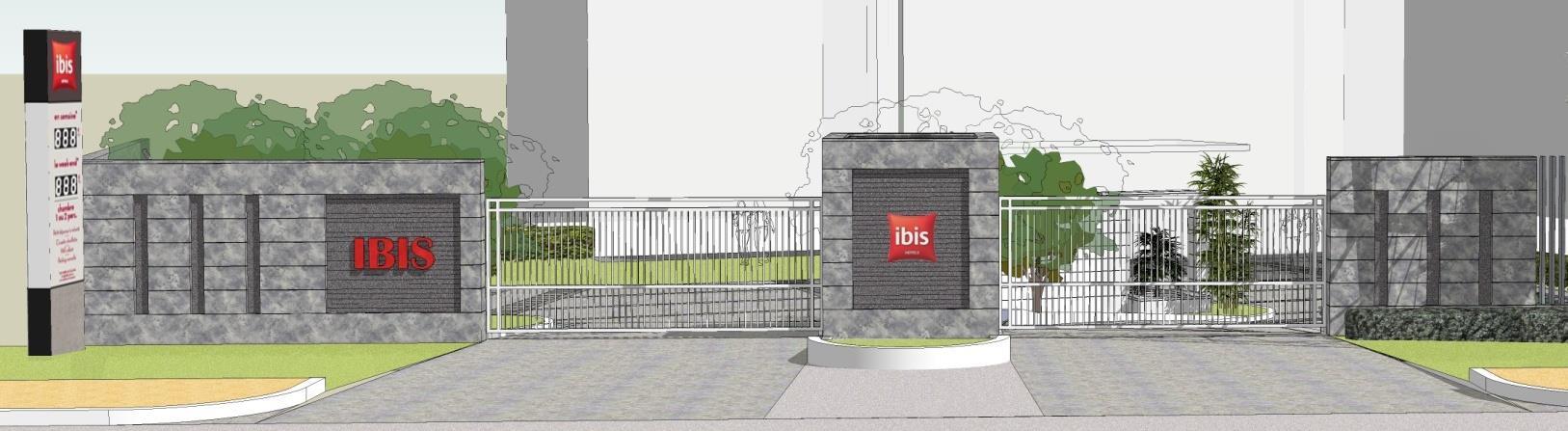

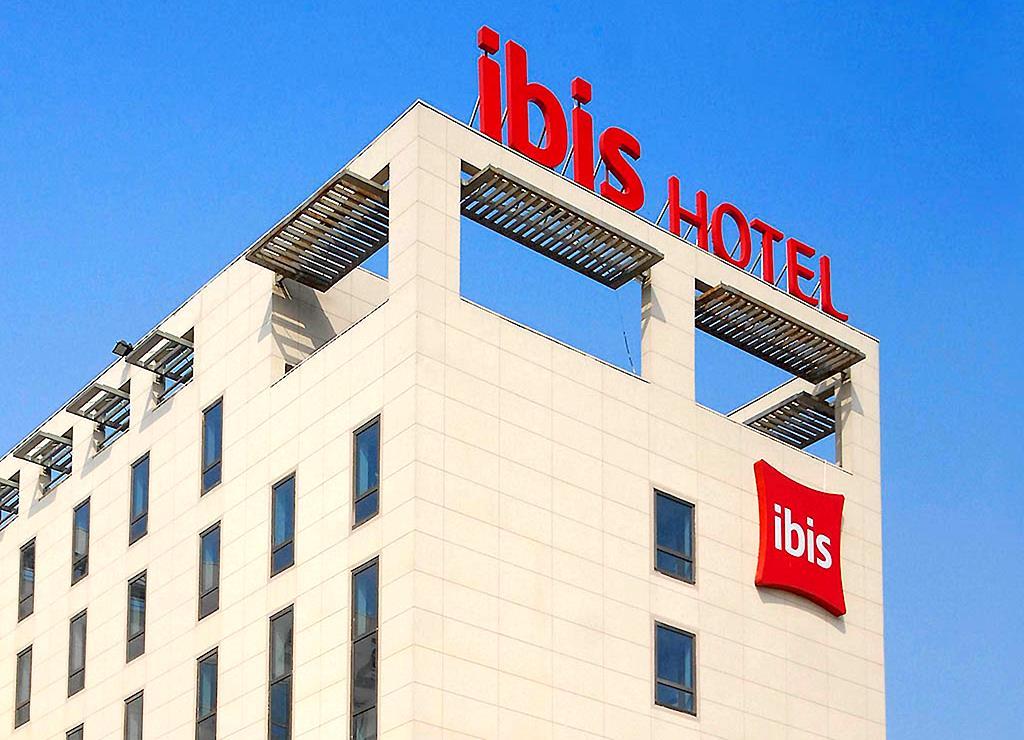

IBIS HOTELHinjewadi
TOTAL SITE AREA = 240558 sqm or 59.45 acres

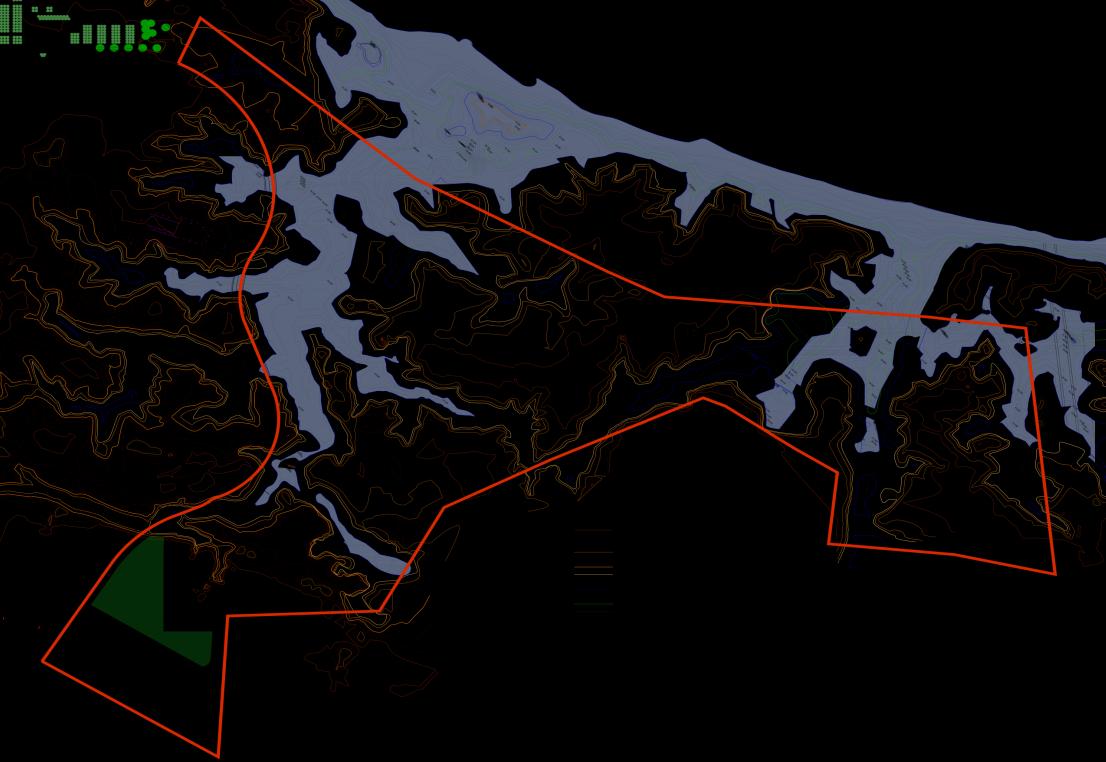

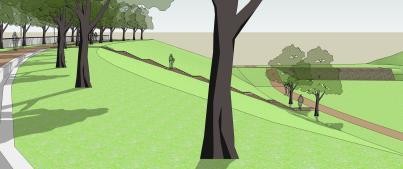

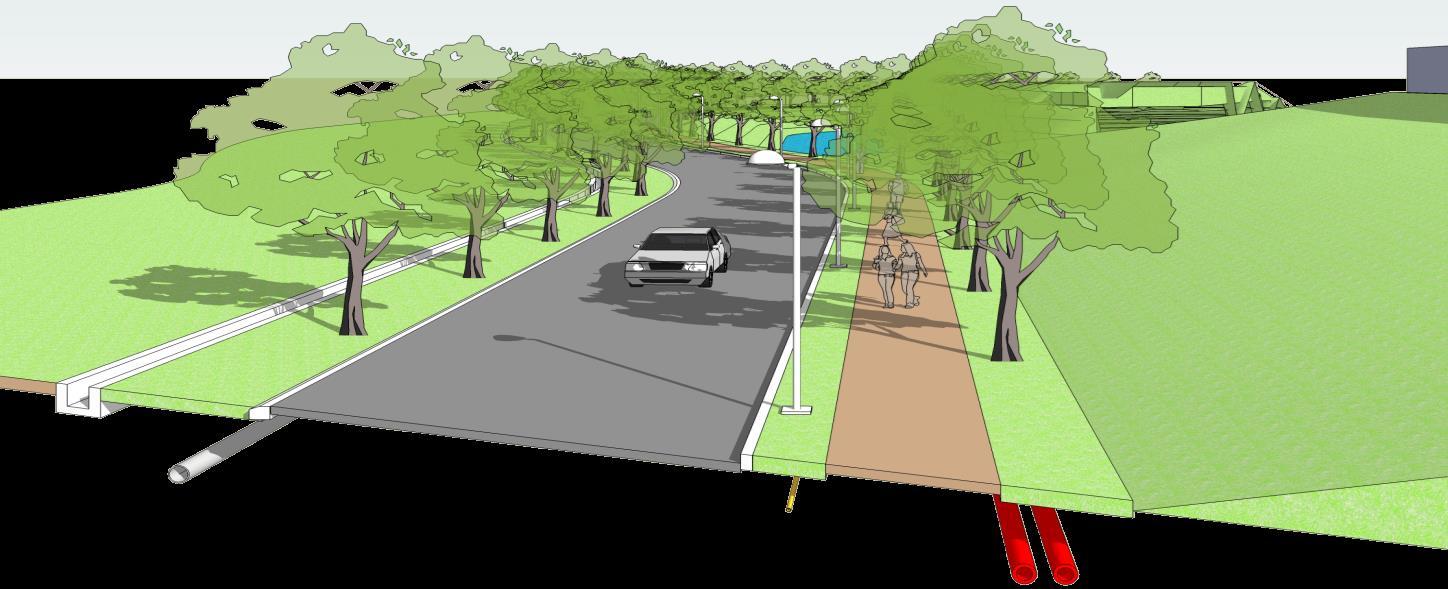

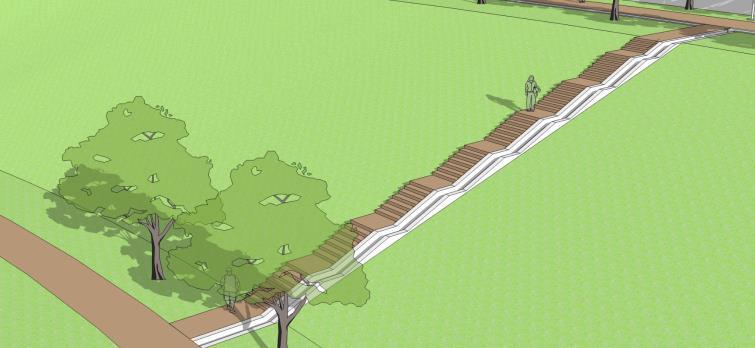

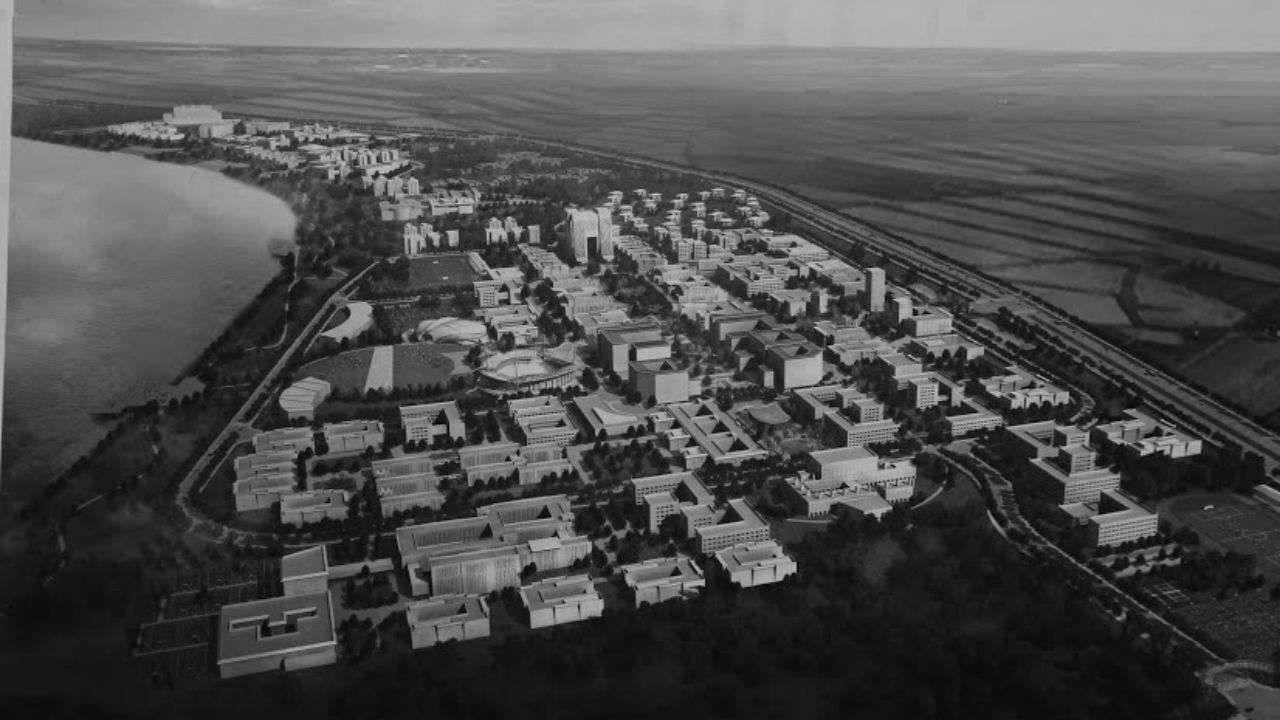

About the Site Site Planning and landscape works for north side of the scenic drive from the main IITGN entrance till the end of the scenic drive and the village road on the north. This includes around 59 45 acres land comprising of ravine areas, flat lands and existing storm water channels, roads and structures.
Approved layout
- Access from existing junction of Scenic Road
- Building on stabilized plateau, soil
- Road along ravine slopes and on earth fill
- Connection across ravines through bridges.
-Ravines connecting run-off from the village to the river retained
-Other Ravines filled up and land reclaimed for landscape development
-Plots at level +75.0m, 72.0m and 69.5m

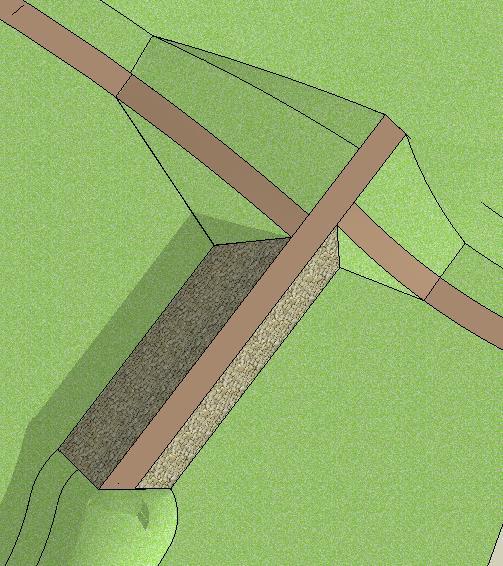

Final Layout
- As per above approved layout, Option 3
- Connection across ravines is through stabilized earth embankments
- Proposed plot level of +69.50m after balancing earth cut and earth fill calculations

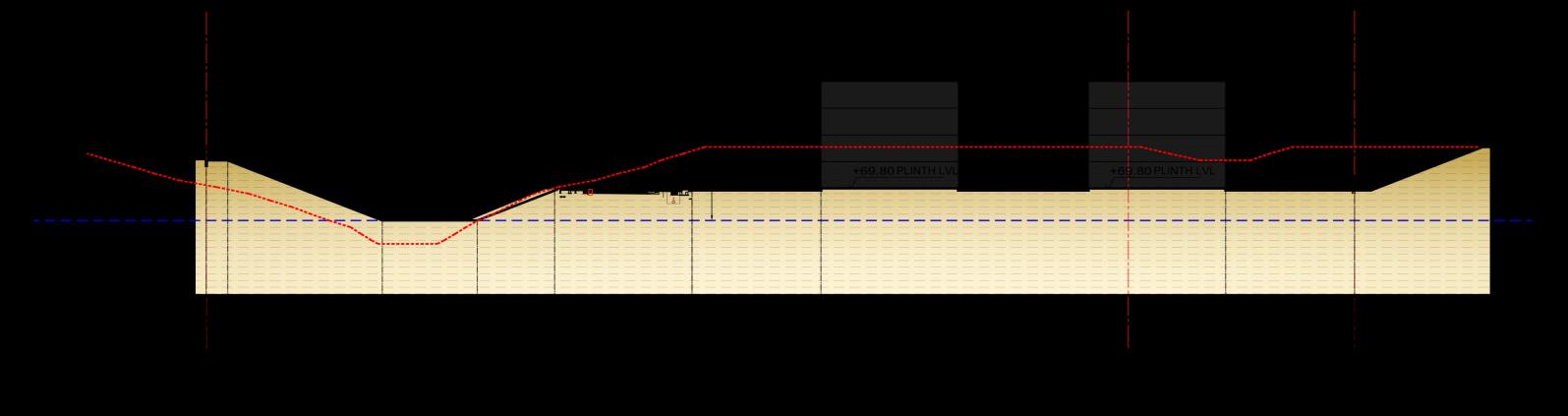

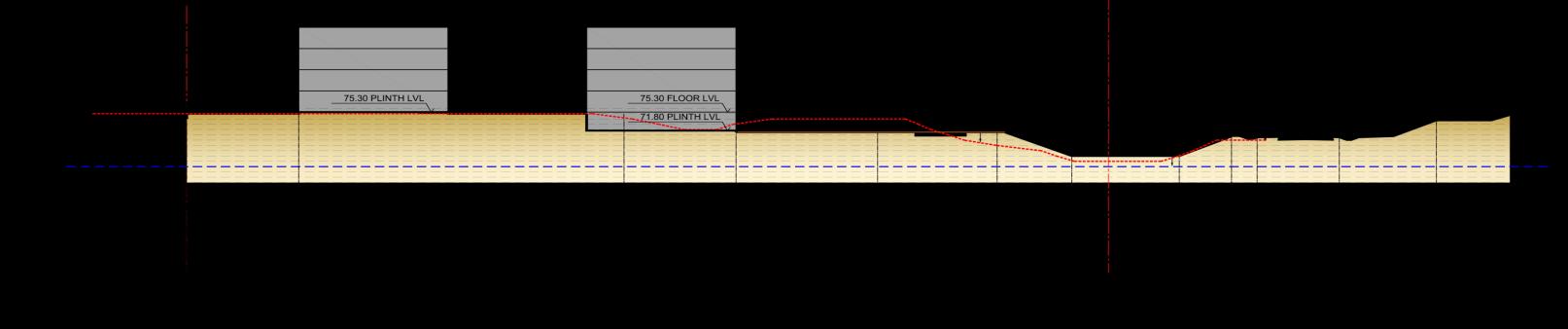

EARTHWORK CALCULATIONS

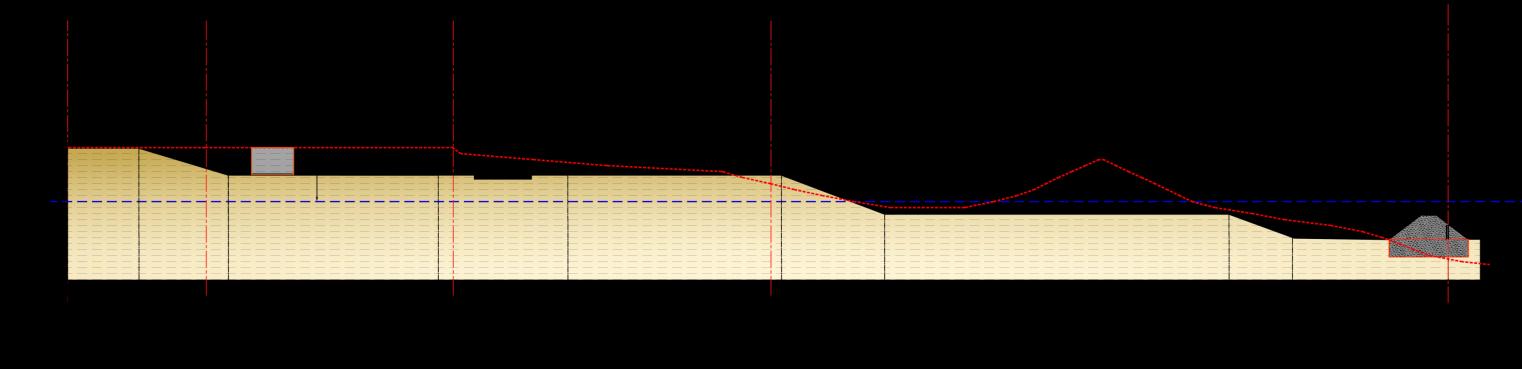

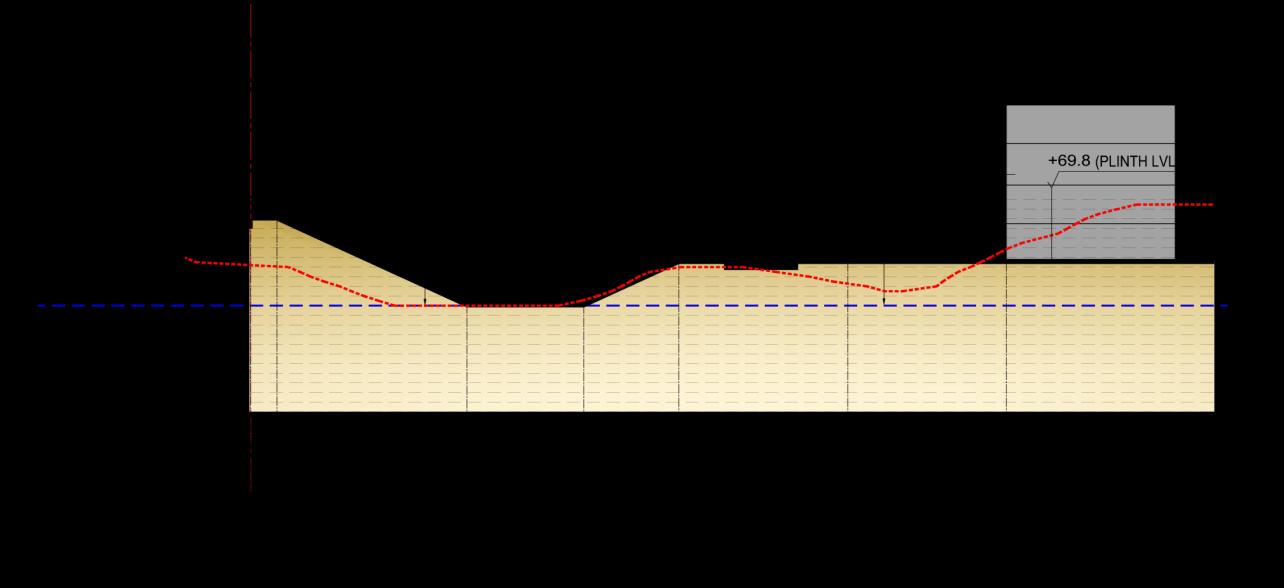

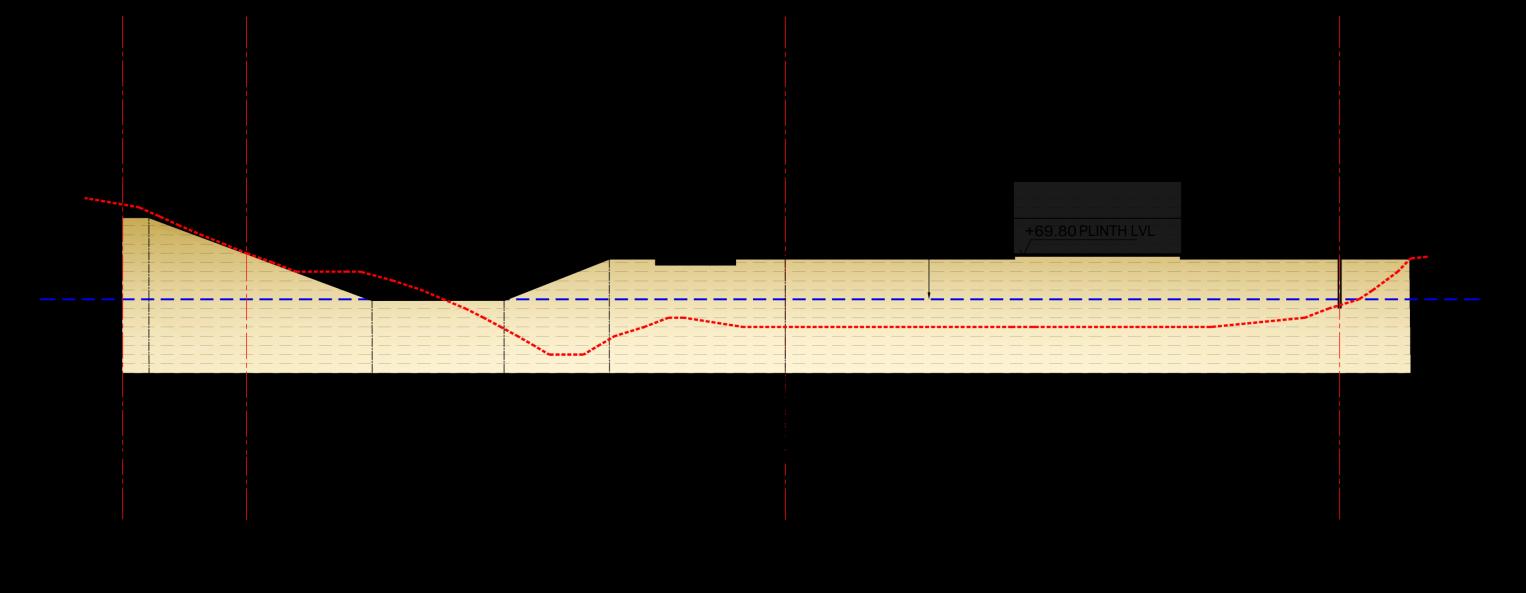

CUT AND FILL CALCULATIONS AT + 69.5m, +70.0m and +70.5m
Detailed Area Breakup

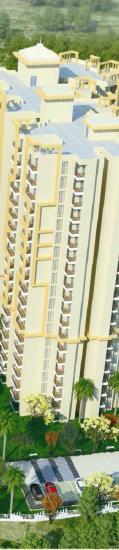

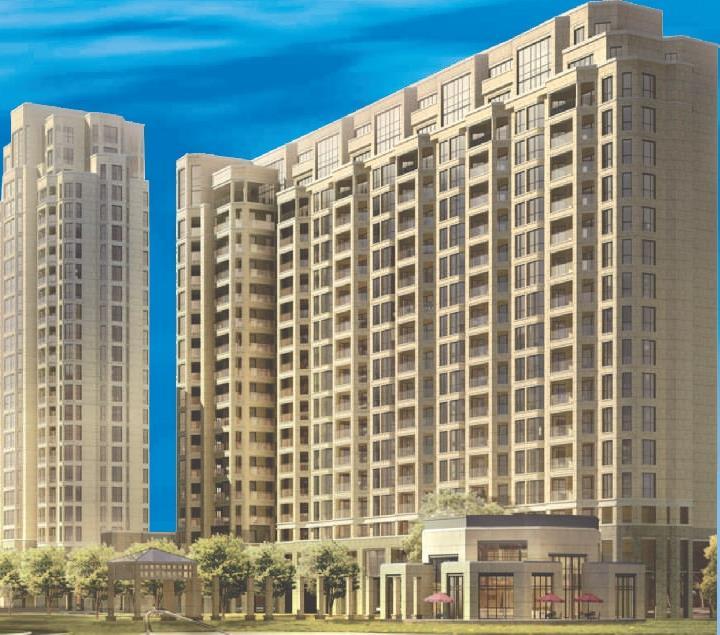

INDOSAM-75 HOUSING
LOCATION: SECTOR-75 NOIDA ROLE:

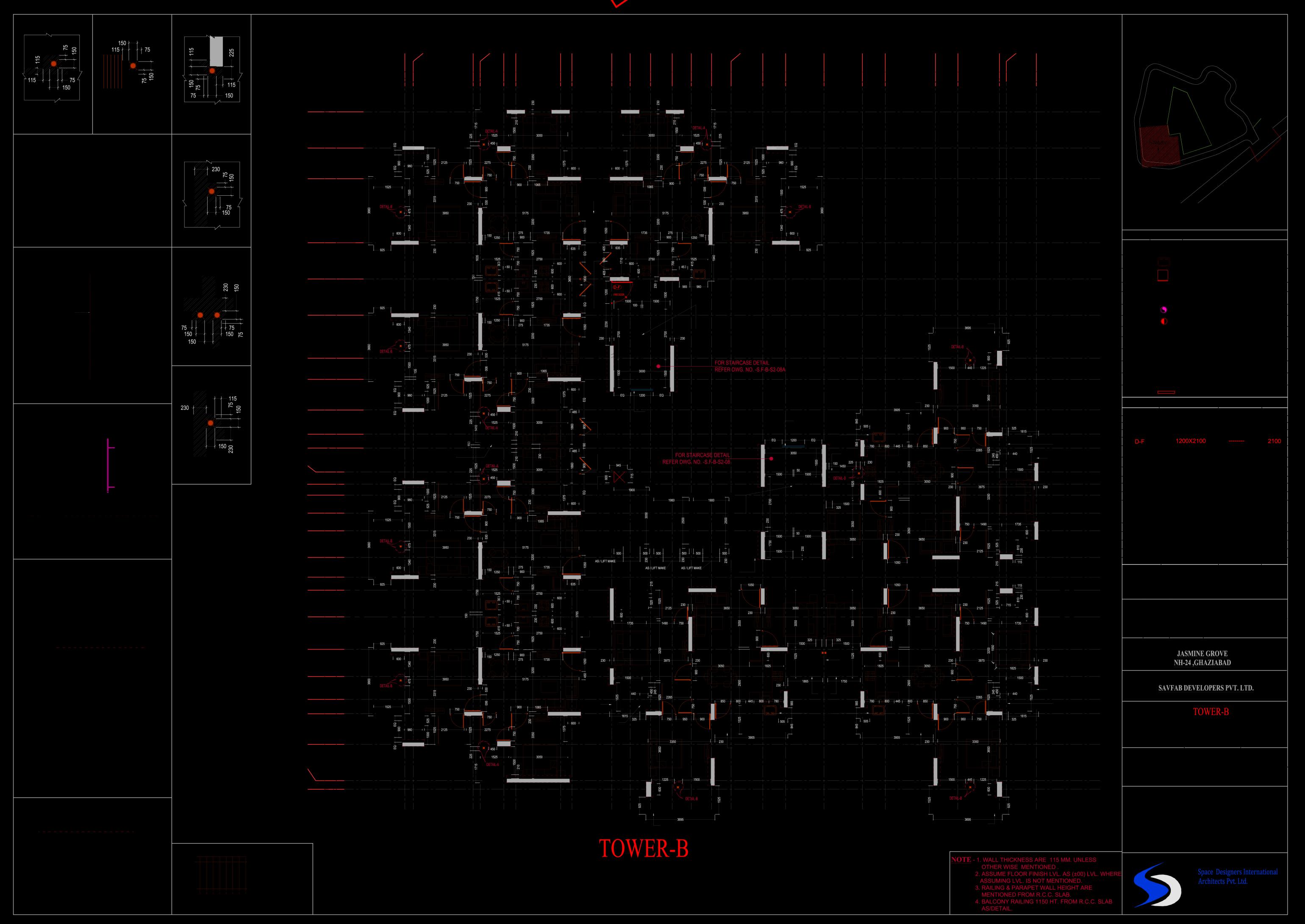

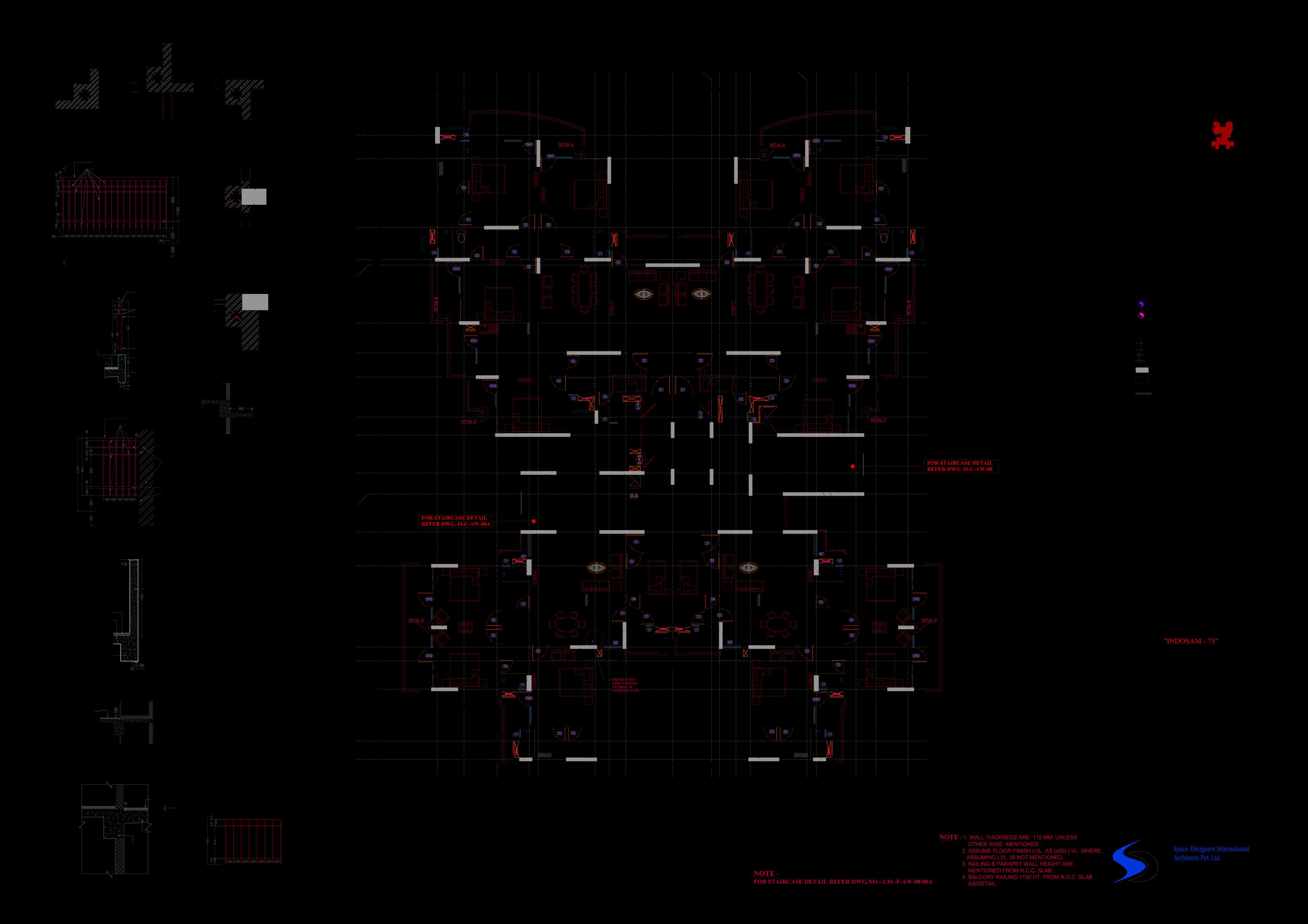

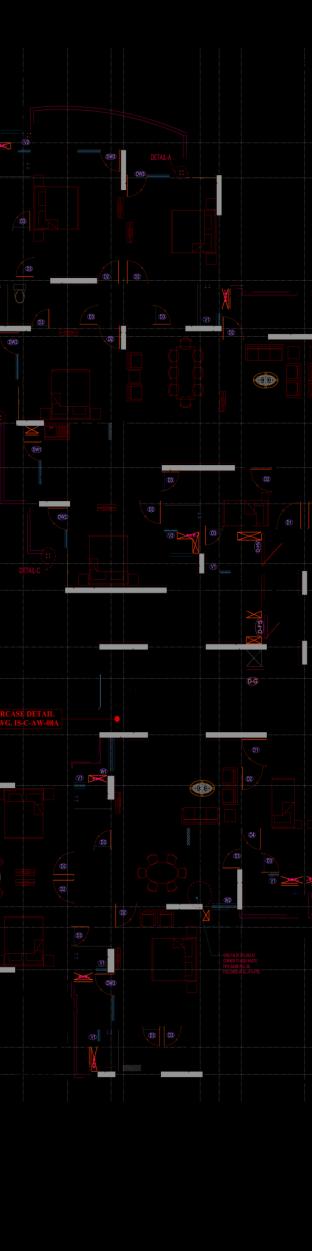

•WORKING DRAWINGS OF TOWER

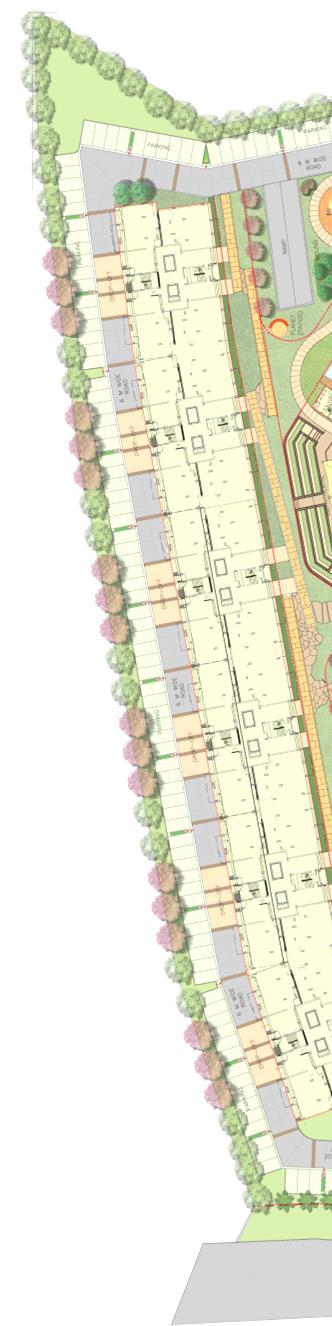

•TENTATIVE SITE PLAN FOR FUTURE
EXTENSION

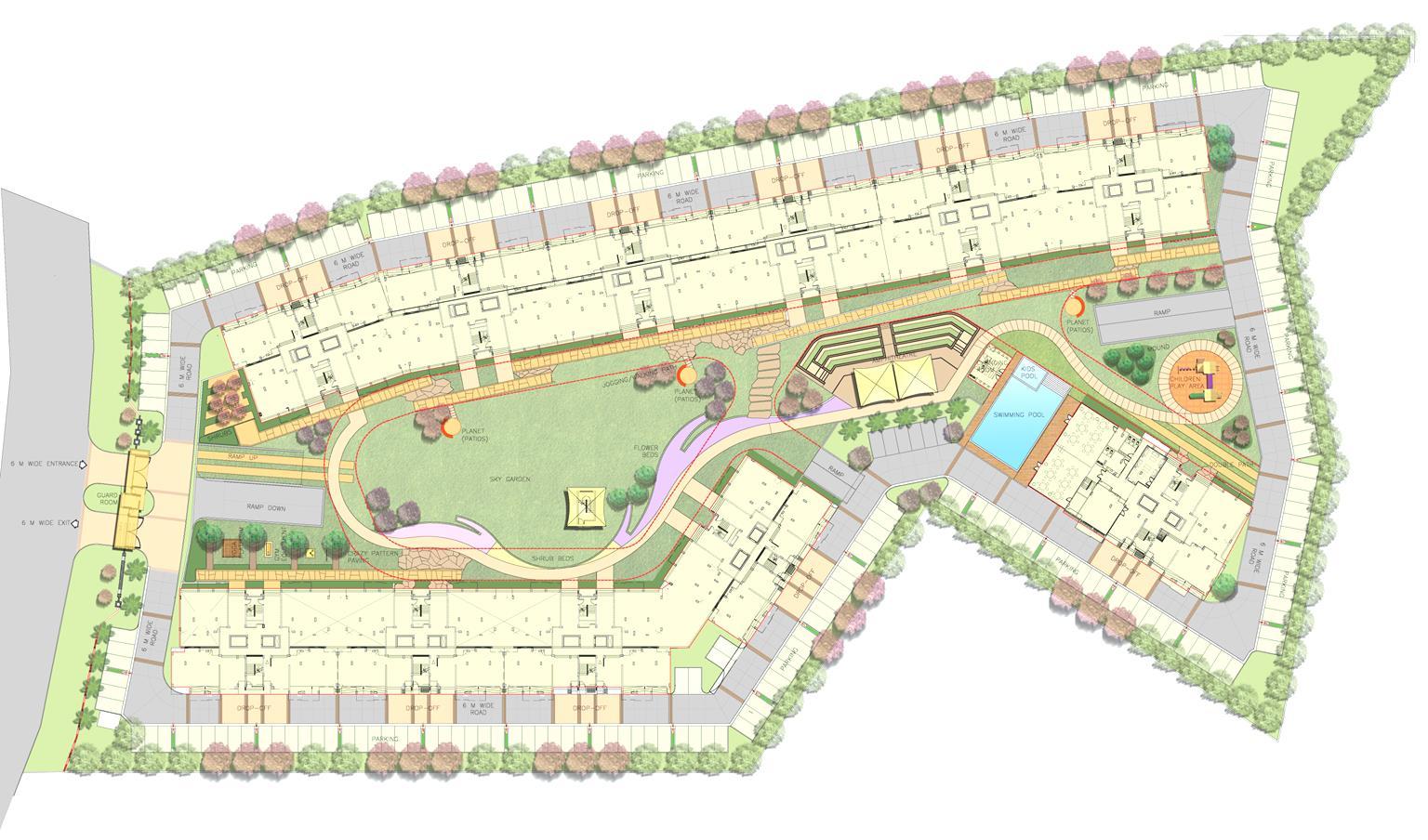

•CLUSTER PLAN OF TOWER F & G
SOFTWARE: AutoCAD, Photoshop

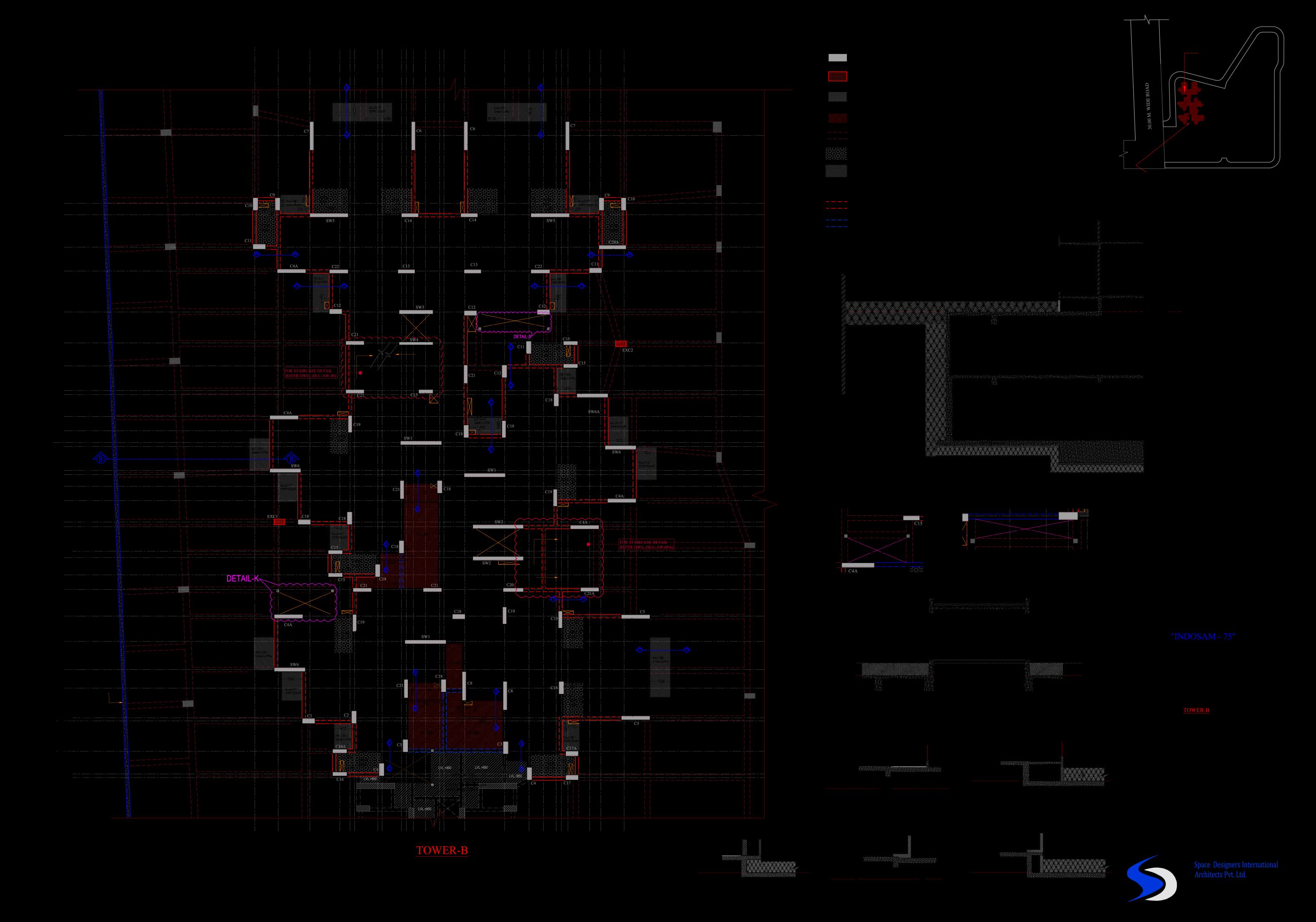

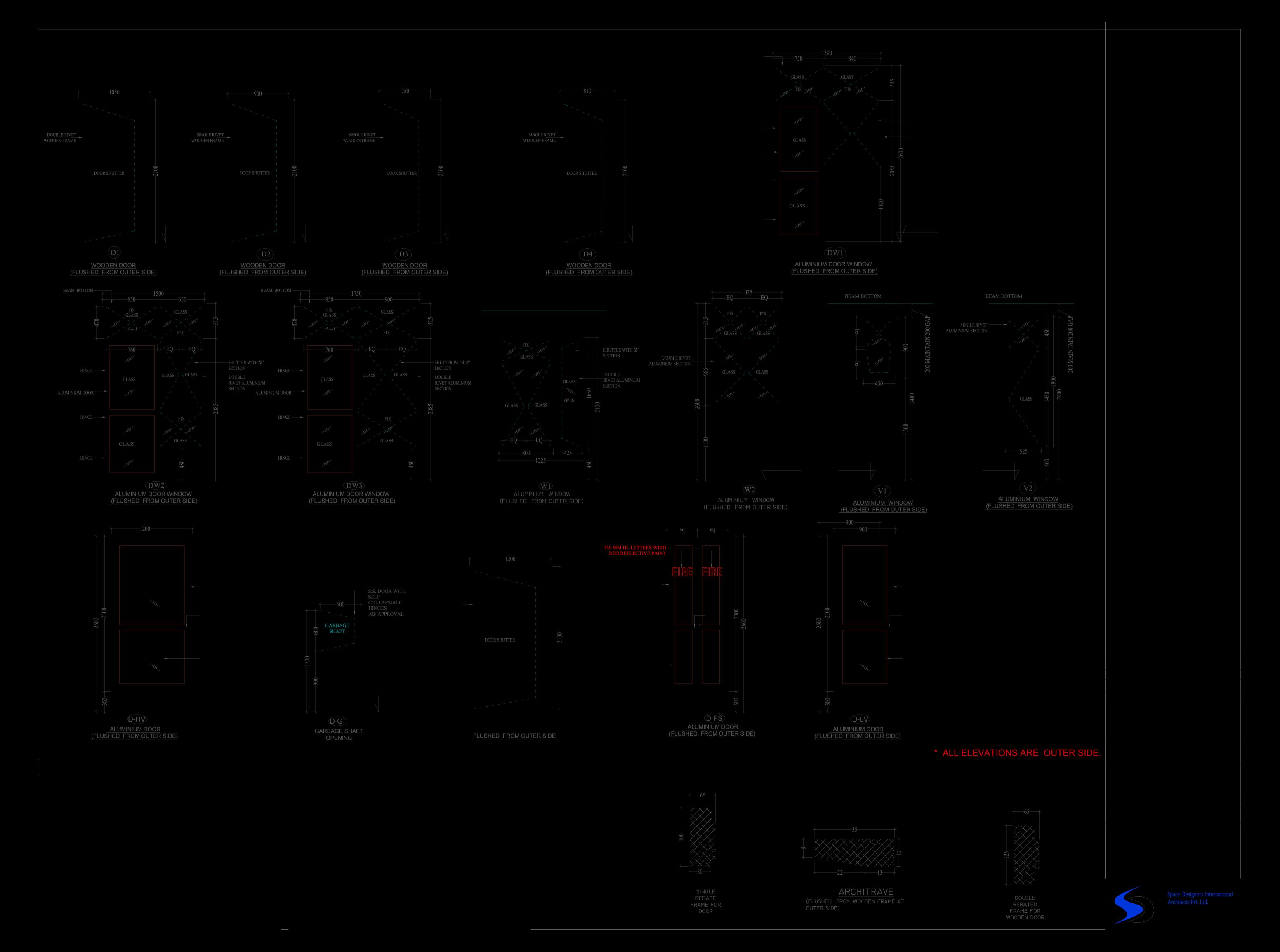

•WORKING DRAWINGS OF TOWER

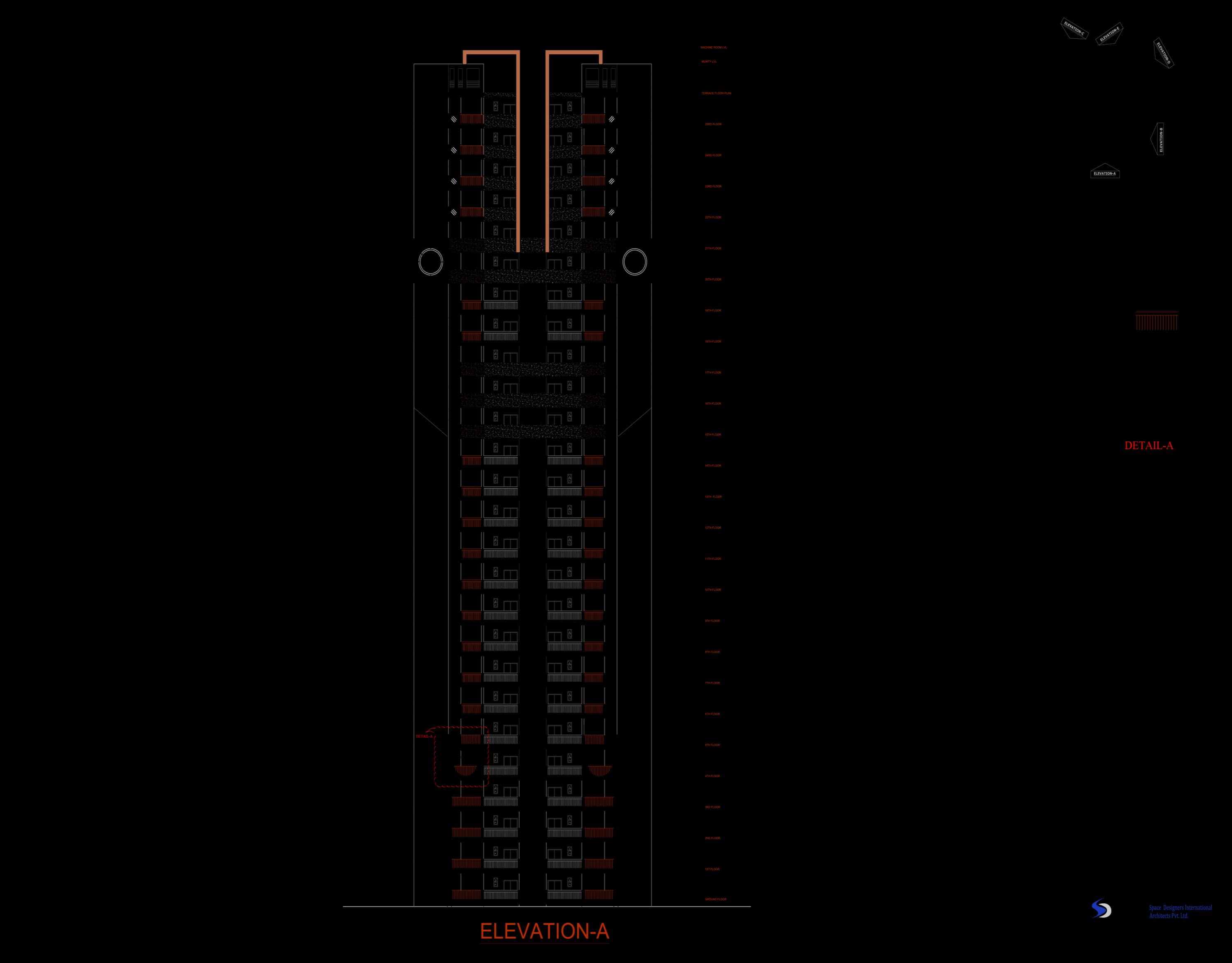

•ELEVATIONS SOFTWARE: AutoCAD, Photoshop

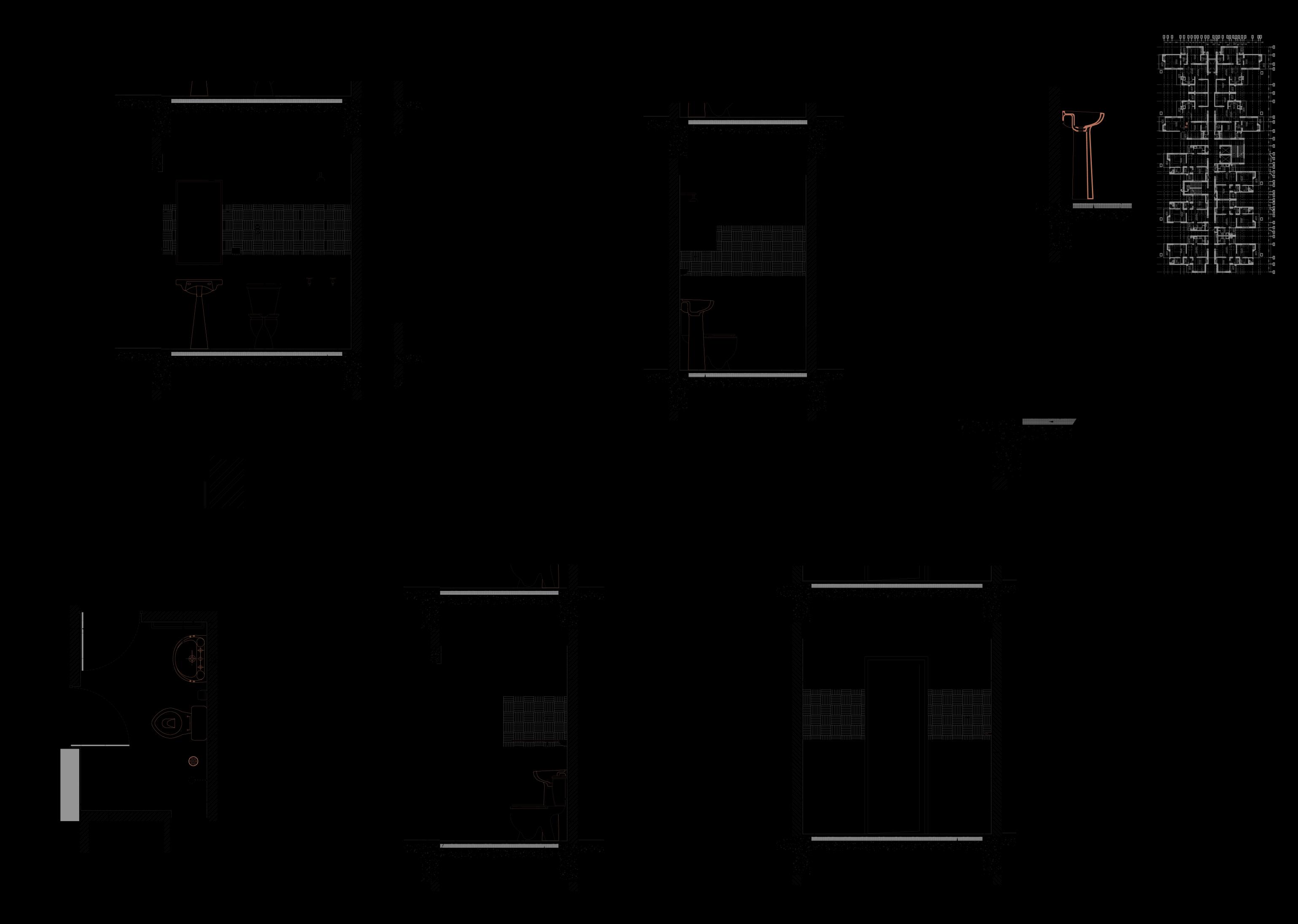

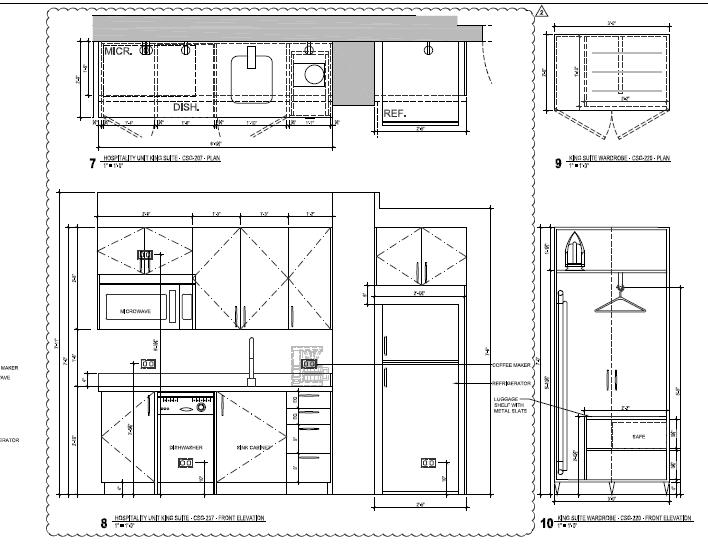

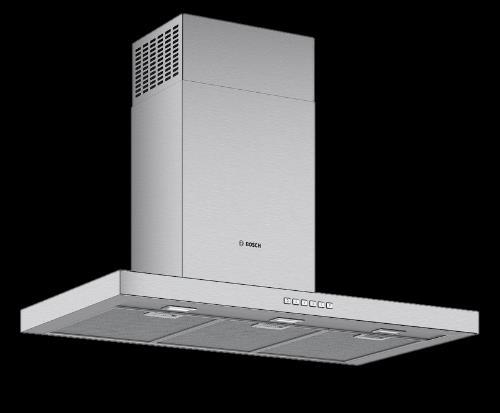

KITCHEN DETAIL

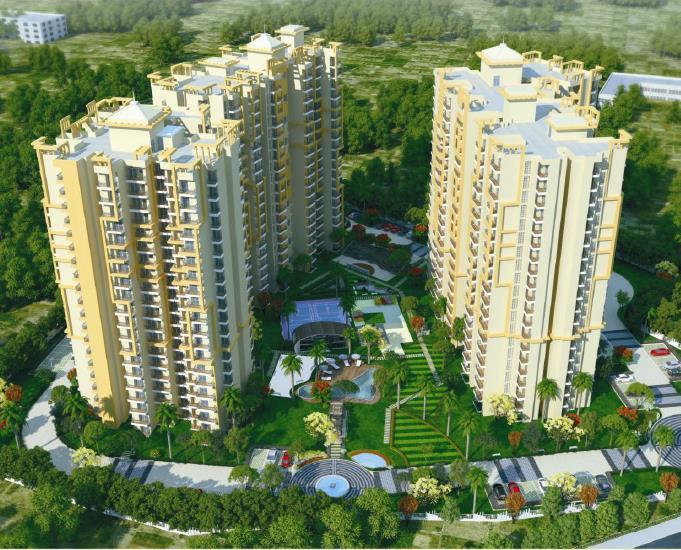

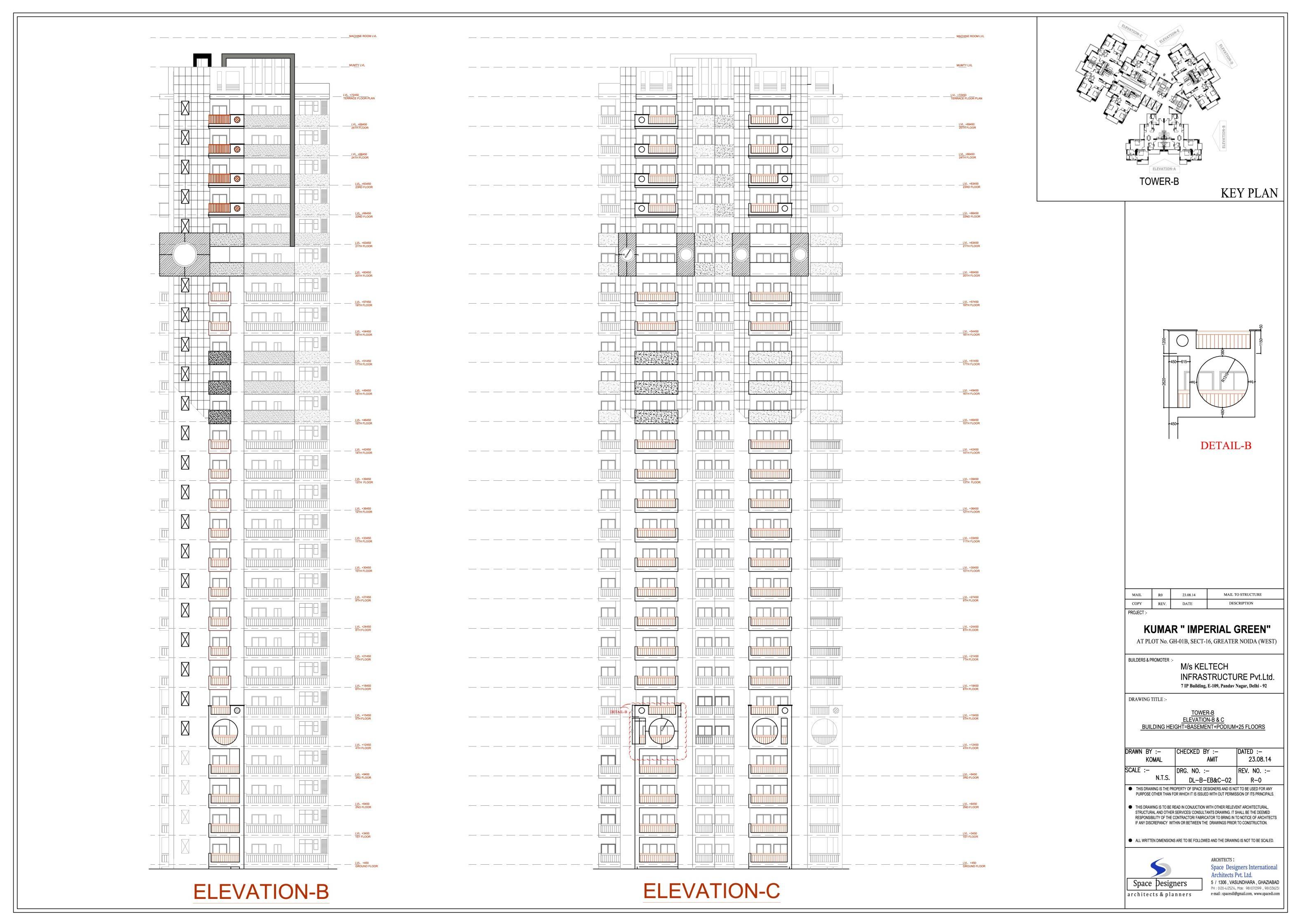

DREAMLANDKUMAR IMPERIAL
LOCATION: Noida Extension
ROLE:
•WORKING DRAWINGS OF TOWER
•ELEVATIONS
SOFTWARE: AutoCAD, Photoshop
