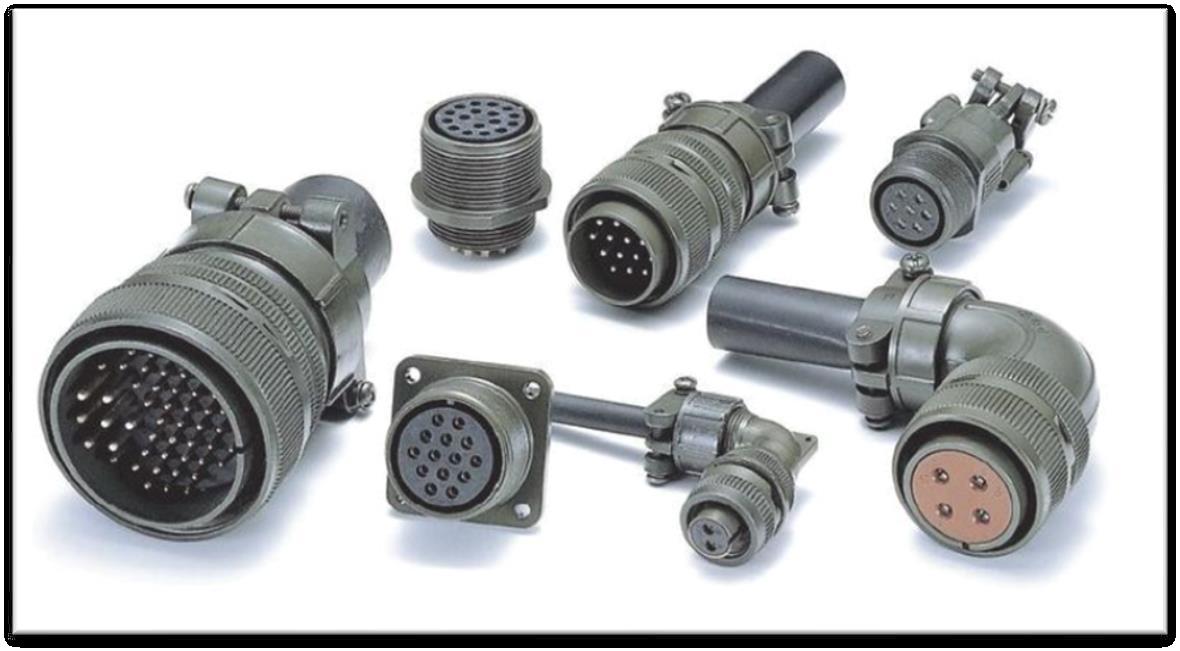

REVERSE BAYONET COUPLING CONNECTORS

This connector series is an enhanced version of the MIL-5015 threaded connectors. They are completely inter-mountable with the MS 5015 reverse bayonet connectors.

An interfacial seal is present on the male inserts to extend the creepage distance and to have a better sealing when the connector is mated.. They have an audible, tactile and visual confirmation of full coupling. Reverse Bayonet connectors also have high shock and vibration capabilities.

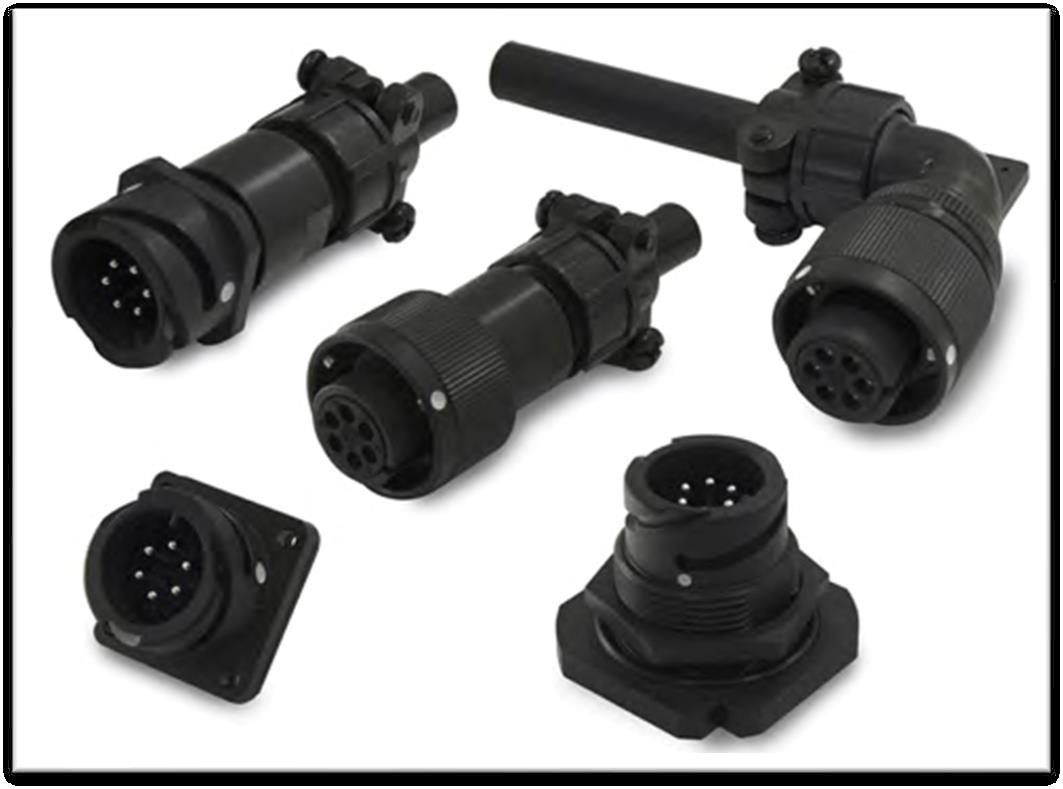

MIL-DTL-26482 SERIES I CONNECTORS

26482 Series I connectors are environmentally resistant, miniature circular connectors. They are available in a variety of sizes and configurations as per the needs of the project.

These quick-disconnect circular connectors use bayonet coupling and are environmentally sealed. MIL-DTL-26482 connectors were originally designed for defense and military use and are now commonly found in industrial, telecommunications, and aerospace applications requiring performance of rugged connectors in demanding harsh environments and extreme conditions.
