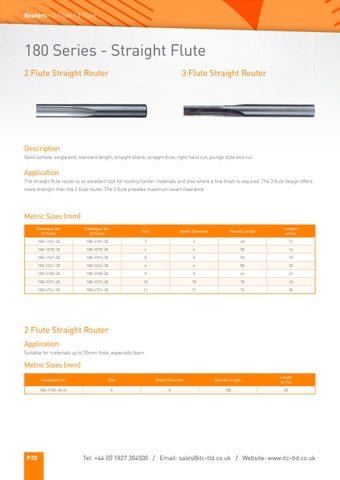

Page 20

Routers - 2 Flute / 3 Flute

180 Series - Straight Flute 2 Flute Straight Router

3 Flute Straight Router

Description Solid carbide, single end, standard length, straight shank, straight flute, right hand cut, plunge style end cut.

Application The straight flute router is an excellent tool for routing harder materials and also where a fine finish is required. The 3 flute design offers more strength than the 2 flute router. The 2 flute provides maximum swarf clearance.

Metric Sizes (mm) Catalogue No. (2 Flute)

Catalogue No. (3 Flute)

Size

Shank Diameter

Overall Length

Length of Cut

180-1181-20

180-1181-30

3

3

40

12

180-1575-20

180-1575-30

4

4

50

16

180-1969-20

180-1969-30

5

5

50

18

180-2362-20

180-2362-30

6

6

58

20

180-3150-20

180-3150-30

8

8

64

22

180-3937-20

180-3937-30

10

10

70

25

180-4724-20

180-4724-30

12

12

76

30

2 Flute Straight Router Application Suitable for materials up to 55mm thick, especially foam.

Metric Sizes (mm)

P20

Catalogue No.

Size

Shank Diameter

Overall Length

Length of Cut

180-3150-20-XL

8

8

100

55

Tel: +44 (0) 1827 304500 / Email: sales@itc-ltd.co.uk / Website: www.itc-ltd.co.uk
