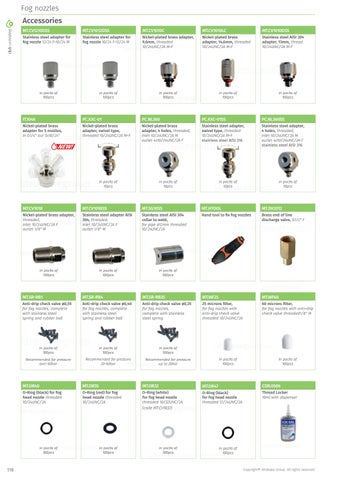

The Catalogue of Solutions 2017/18

Page 518

Fog nozzles Accessories MT.CV1210DSS

MT.CV1012DSS

MT.CV1010C

MT.CV1010LC

MT.CV1010DSS

Stainless steel adapter for fog nozzle 12/24 F-10/24 M

Stainless steel adapter for fog nozzle 10/24 F-12/24 M

Nickel-plated brass adapter, 9,6mm, threaded 10/24UNC/2A M-F

Nickel-plated brass adapter, 14,6mm, threaded 10/24UNC/2A M-F

Stainless steel AISI 304 adapter, 13mm, thread 10/24UNC/2A M-F

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

IT.1046

PC.KXC-01

PC.NL360

PC.KXC-01SS

PC.NL360SS

Nickel-plated brass adapter for 5 nozzles, in G1/4" out 5x10/24"

Nickel-plated brass adapter, swivel type, threaded 10/24UNC/2A M-F

Nickel-plated brass adapter, 4 holes, threaded, inlet 10/24UNC/2A M outlet 4x10/24UNC/2A F

Stainless steel adapter, swivel type, threaded 10/24UNC/2A M-F stainless steel AISI 316

Stainless steel adapter, 4 holes, threaded, inlet 10/24UNC/2A M outlet 4x10/24UNC/2A F stainless steel AISI 316

in packs of 10pcs

in packs of 10pcs

in packs of 10pcs

in packs of 10pcs

MT.CV1018

MT.CV1018SS

MT.SG10SS

MT.HTOOL

Nickel-plated brass adapter, threaded, inlet 10/24UNC/2A F outlet 1/8" M

Stainless steel adapter AISI 304, threaded, inlet 10/24UNC/2A F outlet 1/8" M

Stainless steel AISI 304 collar to weld, for pipe ø12mm threaded 10/24UNC/2A

Hand tool to fix fog nozzles

in packs of 100pcs

in packs of 100pcs

MT.DV2012 Brass end of line discharge valve, G1/2" F

in packs of 100pcs

MT.SR-RB1

MT.SR-RB4

MT.SR-RB35

MT.WF25

MT.WF60

Anti-drip check valve ø0,55 for fog nozzles, complete with stainless steel spring and rubber ball

Anti-drip check valve ø0,40 for fog nozzles, complete with stainless steel spring and rubber ball

Anti-drip check valve ø0,35 for fog nozzles, complete with stainless steel spring

25 microns filter, for fog nozzles with anti-drip check valve threaded 10/24UNC/2A

60 microns filter, for fog nozzles with anti-drip check valve threaded1/8" M

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

Recommended for pressure over 60bar

Recommended for pressure 20-60bar

Recommended for pressure up to 20bar

MT.OR40

MT.OR35

MT.OR32

O-Ring (black) for fog head nozzle threaded 10/24UNC/2A

O-Ring (red) for fog head nozzle threaded 10/24UNC/2A

O-Ring (white) for fog head nozzle threaded 10/32UNC/2A (code MT.CV1032)

in packs of 100pcs

518

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

in packs of 100pcs

CDR.0586

MT.OR47 O-Ring (black) for fog head nozzle threaded 12/24UNC/2A

Thread Locker 10ml with dispenser

in packs of 100pcs

Copyright© Idrobase Group. All rights reserved.
