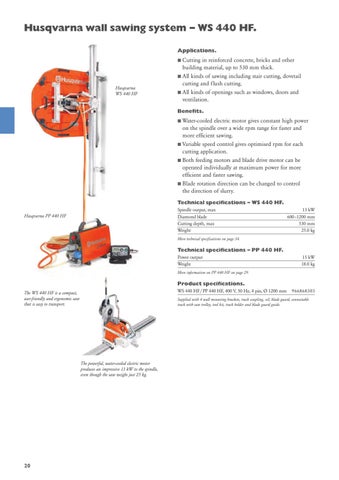

Husqvarna wall sawing system – WS 440 HF. Applications.
Cutting in reinforced concrete, bricks and other building material, up to 530 mm thick. ■ All kinds of sawing including stair cutting, dovetail cutting and flush cutting. ■ All kinds of openings such as windows, doors and ventilation. ■
Husqvarna WS 440 HF
Benefits.
Water-cooled electric motor gives constant high power on the spindle over a wide rpm range for faster and more efficient sawing. ■ Variable speed control gives optimised rpm for each cutting application. ■ Both feeding motors and blade drive motor can be operated individually at maximum power for more efficient and faster sawing. ■ Blade rotation direction can be changed to control the direction of slurry. ■
Technical specifications – WS 440 HF. Spindle output, max Diamond blade Cutting depth, max Weight
Husqvarna PP 440 HF
13 kW 600 –1200 mm 530 mm 25.0 kg
More technical specifications on page 34.
Technical specifications – PP 440 HF. Power output Weight
15 kW 18.0 kg
More information on PP 440 HF on page 29.
Product specifications. WS 440 HF / PP 440 HF, 400 V, 50 Hz, 4 pin, Ø 1200 mm
The WS 440 HF is a compact, user-friendly and ergonomic saw that is easy to transport.
The powerful, water-cooled electric motor produces an impressive 13 kW to the spindle, even though the saw weighs just 25 kg.
20
966868303
Supplied with 4 wall mounting brackets, track coupling, oil, blade guard, connectable track with saw trolley, tool kit, track holder and blade guard guide.
