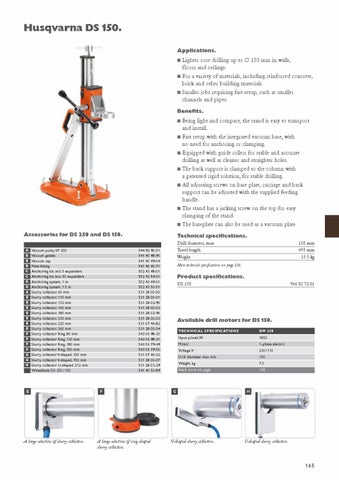

Husqvarna DS 150. Applications. ■■Lighter
core drilling up to Ø 150 mm in walls, floors and ceilings. ■■For a variety of materials, including reinforced concrete, brick and other building materials. ■■Smaller jobs requiring fast setup, such as smaller channels and pipes. Benefits. ■■Being
light and compact, the stand is easy to transport and install. ■■Fast setup with the integrated vacuum base, with no need for anchoring or clamping. ■■Equipped with guide rollers for stable and accurate drilling as well as cleaner and straighter holes. ■■The back support is clamped to the column with a patented rigid solution, for stable drilling. ■■All adjusting screws on base plate, carriage and back support can be adjusted with the supplied feeding handle. ■■The stand has a jacking screw on the top for easy clamping of the stand. ■■The baseplate can also be used as a vacuum plate. Accessories for DS 250 and DS 150. A B B B C C D D E E E E E E E E F F F F G G H
Vacuum pump,VP 200 Vacuum gasket Vacuum cap Male fitting Anchoring kit, incl. 5 expanders Anchoring kit, box 50 expanders Anchoring system, 1 m Anchoring system, 1.5 m Slurry collector, 65 mm Slurry collector, 110 mm Slurry collector, 132 mm Slurry collector, 160 mm Slurry collector, 180 mm Slurry collector, 210 mm Slurry collector, 220 mm Slurry collector, 260 mm Slurry collector Ring, 80 mm Slurry collector Ring, 130 mm Slurry collector Ring, 180 mm Slurry collector Ring, 250 mm Slurry collector V-shaped, 350 mm Slurry collector V-shaped, 700 mm Slurry collector U-shaped, 212 mm Wheelbase DS 250 / 150
A large selection of slurry collectors.
Technical specifications. 544 92 90-01 541 40 48-91 541 40 49-04 541 40 40-71 502 43 48-01 502 43 54-01 502 43 49-01 502 43 50-01 531 28 00-00 531 28 00-01 531 28 02-95 531 28 00-02 531 28 02-96 531 28 00-03 531 07 46-82 531 28 00-04 543 06 98-30 543 06 98-31 543 06 79-49 543 06 79-50 531 07 46-22 531 28 00-07 531 28 03-29 541 40 50-89
A large selection of ring shaped slurry collectors.
Drill diameter, max Travel length Weight
150 mm 495 mm 15.5 kg
More technical specifications on page 186.
Product specifications. DS 150
966 82 72-01
Available drill motors for DS 150. TECHNICAL SPECIFICATIONS
DM 230
Input power, W
1850
Motor
1-phase electric
Voltage,V
230 / 110
Drill diameter, max mm
150
Weight, kg
7.0
Read more on page
158
V-shaped slurry collectors.
U-shaped slurry collectors.
165
