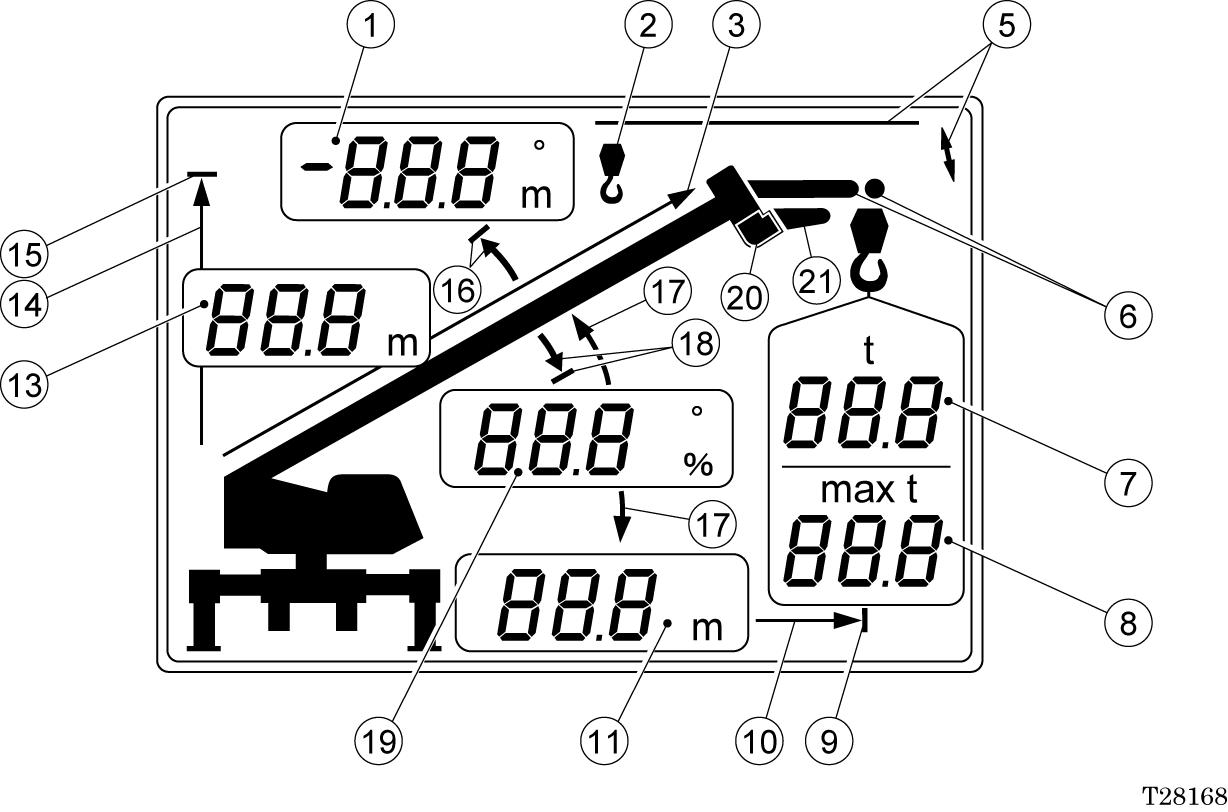

Functions of and How to Us e User Mode (TL-300E-3)

1. Jib angle display

When jib lift is selected, the jib offset angle is displayed.

When the number of parts of line select key or the display alteration key is pressed, the number of parts of line is displayed. Also, when an upper boom angle limit has been registered, the registered upper boom angle limit value is displayed while the register key is pressed.

2. Number of parts of line symbol

This symbol indicates that the jib angle display [1] is showing the number of parts of line.

3. Boom length symbol

This symbol indicates that the boom length display [13] is showing the boom length.

5. Jib angle symbol

This symbol indicates that the jib angle display [1] is showing the jib offset angle.

6. Jib lift symbol

This symbol indicates that the jib lift is selected. Its also indicates the condition of the jib.

7. Actual load display

Displays the actual load.

8. Rated lifting capacity display

Displays the rated lifting capacity.

9. Load radius limit symbol

This symbol indicates that the load radius display [11] is showing the registered load radius limit value.

The load radius symbol [10] is also displayed at the same time.

10. Load radius symbol

This symbol indicates that the load radius display [11] is showing the load radius.

11. Load radius display

Normally displays the crane's load radius. Displays the boom swing angle while the display alteration key is pressed.

When a load radius limit has been registered, the registered load radius limit value is displayed while the register key is pressed.

13. Boom length display

Normally displays the boom length. Displays the lifting height while the display alteration key is pressed.

When a lifting height limit has been registered, the registered lifting height limit value is displayed while the register key is pressed.

14. Lifting height symbol

This symbol indicates the boom length display [13] is showing the lifting height.
