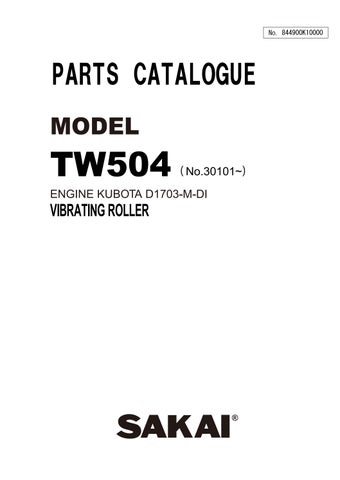

Sakai Vibrating Roller TW504 Parts Catalogue Manual – PDF DOWNLOAD

844900K10000

MODEL

TW504

(

30101~)

ENGINE KUBOTA D1703-M-DI

VIBRATING ROLLER

☞ 1TW74 - 00000 製造番号

東 京 都 港 区 芝 大 門 1 丁 目 4 番 8 号

TW504 ☞ 1TW74

目次 CONTENTS 装置名称

Group Name (Description)

消耗部品 ｴﾝｼﾞﾝ関係 燃料装置

Spare Parts Engine System Fuel System

冷却装置 吸気装置 排気装置 電装品関係(1-2) 電装品関係(2-2)

Cooling System Intake System Exhaust System Electrical Equipment (1-2) Electrical Equipment (2-2)

ﾜｲﾔﾊｰﾈｽ(1-2) ﾜｲﾔﾊｰﾈｽ(2-2) ｺﾝﾄ ﾛｰﾙ関係(ｽﾛｯﾄ ﾙ) ｺﾝﾄ ﾛｰﾙ関係(前後進) 銘板(国内仕様)

Wiring Harness (1-2) Wiring Harness (2-2) Control System (Throttle) Control System (Reversing) Name Plate (Dom.)

銘板(海外仕様) ﾘﾔﾎｲｰﾙ ｼｰﾄ 操向装置(ﾊﾝﾄ ﾞﾙ) 操向油圧装置 Assy(ｵｰﾋ ﾞｯﾄ ﾛｰﾙ)

Name Plate (Exp.) Rear Wheel Seat Steering System (Wheel) Steering Hydraulic System Assy(Orbitrol)

油圧装置(ﾎﾟﾝﾌﾟ取付) Assy(ﾎﾟﾝﾌﾟ1-3) Assy(ﾎﾟﾝﾌﾟ2-3) Assy(ﾎﾟﾝﾌﾟ3-3) 油圧装置(ﾌﾛﾝﾄ ﾄ ﾞﾗｲﾌﾞ)

Hydraulic System (Pump Mounting) Assy(Pump1-3) Assy(Pump2-3) Assy(Pump3-3) Hydraulic System (Front Drive)

Assy(ﾀﾝｸ) Assy(ﾌﾛﾝﾄ ﾓｰﾀ1-2) Assy(ﾌﾛﾝﾄ ﾓｰﾀ2-2) 油圧装置(ﾘﾔﾄ ﾞﾗｲﾌﾞ) Assy(ﾘﾔﾓｰﾀ1-2)

Assy(Tank) Assy(Front Motor 1-2) Assy(Front Motor 2-2) Hydraulic System (Rear Drive) Assy(Rear Motor 1-2)

Assy(ﾘﾔﾓｰﾀ2-2) Assy(ﾊﾞﾙﾌﾞ) 油圧装置(振動) 振動ﾛｰﾙ 制動装置

Assy(Rear Motor 2-2) Assy(Valve) Hydraulic System (Vibrating) Vibrating Roll Brake System

ﾌﾚｰﾑ(ｾﾝﾀｰﾋ ﾟﾝ) ﾌﾚｰﾑ(1-2) ﾌﾚｰﾑ(2-2) 泥除装置

Frame(Center Pin) Frame(1-2) Frame(2-2) Scraper System

Page 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

目次 CONTENTS 装置名称 散水装置 Assy(ﾎﾟﾝﾌﾟ) 液剤噴霧装置

Group Name (Description) Sprinkler System Assy(Pump) Liquid Spray System

ｼｰﾄ ﾍﾞﾙﾄ (ｵﾌﾟｼｮ ﾝ) Seat Belt (Option) ｷｬﾉﾋ ﾟｨ (ｵﾌﾟｼｮ ﾝ) Canopy (Option) ﾛｰﾙﾊﾞｰﾛﾌ ﾟｽ(国内仕様)(ｵﾌﾟｼｮ ﾝ)Roll Bar Rops (Dom.)(Option) ﾛﾌﾟｽ(海外仕様)(ｵﾌ ﾟｼｮ ﾝ) Rops (Exp.)(Option) ｿﾆｯｸﾚｰﾀ ﾞｰ(ｵﾌ ﾟｼｮ ﾝ) Sonic Radar (Option) 散水装置(不凍液ﾀﾝｸ)(国内仕様Sprinkler System (Antifreeze Tank)(Dom.)(Option)

Page 38 39 40 41 42 43 44 45 46

1 3 17

2

19

21 20

18

16 6 23

7

15 9

13

14 11

12

10

22

8

4 5

00消耗部品 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4424-26000-0 2 4417-10001-0 3 4415-44001-0

部品名称

Parts Name

ｴｱｸﾘｰﾅ ｴﾚﾒﾝﾄ ｴﾚﾒﾝﾄ

AIR CLEANER ELEMENT ELEMENT

数量 Q'ty 1 INC.2.3 1 Inner 1 Outer

備考 Remarks

4 5 6 7 8

4031-33006-0 4032-12013-0 4213-46001-0 4205-50000-0 4420-78000-0

ｴﾚﾒﾝﾄ ｴﾚﾒﾝﾄ ｴﾚﾒﾝﾄ ﾌｨ ﾙﾀ ﾀﾞﾝﾊﾟ

ELEMENT ELEMENT ELEMENT FILTER DAMPER

1 1 1 1 2

Oil Fuel Line Suction

9 10 11 12 13

4710-41000-0 4710-41001-0 4710-41002-0 4710-41003-0 4710-41004-0

ﾉｽﾞﾙ ﾎﾞﾃﾞｨ ｷｬｯﾌﾟ Oﾘﾝｸ ﾞ ﾉｽﾞﾙ

NOZZLE BODY CAP O-RING NOZZLE

4 1 1 1 1

INC.10-14

14 15 16 17 18

4710-41005-0 4703-68015-0 4710-38002-0 4716-22000-0 4715-86002-0

ｽﾄ ﾚｰﾅ ｴﾚﾒﾝﾄ ｴﾚﾒﾝﾄ ﾉｽﾞﾙ Oﾘﾝｸ ﾞ

STRAINER ELEMENT ELEMENT NOZZLE O-RING

1 1 1 4 1

19 20 21 22 23

4710-41004-0 4710-41002-0 4715-86001-0 1448-71001-0 1518-71003-0

ﾉｽﾞﾙ ｷｬｯﾌﾟ ﾎﾞﾃﾞｨ ﾌﾞﾚｰﾄ ﾞ ﾌﾞﾚｰﾄ ﾞ

NOZZLE CAP BODY BLADE BLADE

1 1 1 2 4

0-1

Sprinkler Liquid INC.18-21

34 35 32

31

33 38

39 37

15

36

17

18

43

16

14

31 32

13

33

34 35

28 41

27

40 30

41

1

42

16

2

29

19

3

20

18

17

9 8

7 7

10 11

4

8

5

20

6

10

24

21

9 12

25

12

26

11 23 22

0449-01804-0-10227-0

01ｴﾝｼﾞﾝ関係 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2100-12030-1 2 2170-12025-0 3 1446-01017-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ

BOLT WASHER BRACKET

数量 Q'ty 3 3 1

4 5 6 7 8

2100-12030-1 2170-12025-0 1446-01016-0 3120-01108-0 2170-12032-2

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾅｯﾄ ﾜｯｼｬ

BOLT WASHER BRACKET NUT WASHER

3 3 1 2 2

9 10 11 12 13

4031-24000-0 2100-10020-1 2170-10020-0 1446-01032-0 3100-01142-0

ﾎﾞｳｼﾝｺ ﾞﾑ ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾍﾟ ｰｻ ﾎﾞﾙﾄ

RUBBER ISOLATOR BOLT WASHER SPACER BOLT

2 4 4 2 1

14 15 16 17 18

2170-10032-2 4033-42000-0 1446-01019-0 2101-12030-1 2170-12025-0

ﾜｯｼｬ ｴﾝｼﾞﾝ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ

WASHER ENGINE BRACKET BOLT WASHER

1 1 2 4 4

19 20 21 22 23 24

2298-12035-1 3291-01029-0 2292-03127-0 4027-59002-0 4027-59003-0 2100-10035-1

ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾌﾟ ﾗｸﾞ ﾊﾟ ｯｷﾝ ﾎﾞﾙﾄ

HOSE HOSE CLAMP HOSE NIPPLE PLUG PACKING BOLT

1 2 1 1 1 1

25 26 27 28 29

2170-10020-0 1446-01024-0 1446-01029-0 1446-01026-0 3100-12230-0

ﾜｯｼｬ ｼﾞｮ ｲﾝﾄ ﾌﾞﾗｹｯﾄ ﾍﾞｰｽ ﾎﾞﾙﾄ

WASHER JOINT BRACKET BASE BOLT

1 1 1 1 4

30 31 32 33 34

2170-12032-2 3120-01108-0 2170-12032-2 4031-24000-0 2100-10020-1

ﾜｯｼｬ ﾅｯﾄ ﾜｯｼｬ ﾎﾞｳｼﾝｺ ﾞﾑ ﾎﾞﾙﾄ

WASHER NUT WASHER RUBBER ISOLATOR BOLT

4 2 2 2 4

35 36 37 38 39

2170-10020-0 1446-01030-0 1446-01027-0 3100-12230-0 2170-12032-2

ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾍﾞｰｽ ﾎﾞﾙﾄ ﾜｯｼｬ

WASHER BRACKET BASE BOLT WASHER

4 1 1 5 5

1-1

備考 Remarks

INC.40-43

01ｴﾝｼﾞﾝ関係 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 4032-12001-0 41 4032-12002-0 42 4032-12003-0 43

4031-33006-0

部品名称

Parts Name

ｼﾞｮ ｲﾝﾄ ﾊﾟ ｯｷﾝ ﾌﾟ ﾗｸﾞ

JOINT PACKING PLUG

数量 Q'ty 1 2 1

ｴﾚﾒﾝﾄ

ELEMENT

1

1-2

備考 Remarks

メモ ---memo---

14 13 17 39 38 39

41 47 24

24

42 5

46

18

54 55 56

5

43 44

49 20 7

8

9

45

19

10 4

1

2

3

50

58

34 35 36

6

32 33

22

15 16 30

53 52

23

24 57

37 24

21 28 31 11 12

27 25 26

29

40

0448-02802-0-10108-E 4420-54000-1-21945-A

02燃料装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2291-00015-0 2 2293-07064-5 3 1446-02014-0

部品名称

Parts Name

ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ｰｽ ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ

HOSE CLAMP HOSE CORRUGATED TUBE

数量 Q'ty 1 1 1

4 5 6 7 8

4420-53000-0 2120-10080-0 4420-54000-1 4032-12005-0 4030-11002-0

ﾊﾞﾝﾄ ﾞ ﾅｯﾄ ﾀﾝｸ ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ｰｽ

BAND NUT TANK HOSE CLAMP HOSE

1 2 1 1 1

9 10 11 12 13

1446-02013-0 2898-00103-0 2293-07080-5 1446-02015-0 4032-12011-0

ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ ﾊﾞﾝﾄ ﾞ ﾎ ｰｽ ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ ﾊﾟ ｲﾌﾟ

CORRUGATED TUBE BAND HOSE CORRUGATED TUBE PIPE

1 1 1 1 1

14 15 16 17 18

4032-12005-0 1446-02011-0 2293-07132-5 2291-00015-0 4911-19000-0

ﾎ ｰｽﾊﾞﾝﾄ ﾞ ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ ﾎ ｰｽ ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ

HOSE CLAMP CORRUGATED TUBE HOSE HOSE CLAMP BAND

1 1 1 1 1

19 20 21 22 23 24

2100-08020-1 2170-08016-0 1446-02017-0 2100-10035-1 2170-10020-0 1307-02004-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾗﾊﾞｰ

BOLT WASHER BRACKET BOLT WASHER RUBBER

1 1 1 2 2 4

25 26 27 28 29

2100-06016-1 2171-06015-0 2170-08016-0 4031-33001-0 4030-11004-0

ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌｭｰｴﾙﾎﾟ ﾝﾌﾟ ﾀﾞﾝﾊﾟ

BOLT SPRING WASHER WASHER FUEL PUMP DAMPER

2 2 2 1 1

30 31 32 33 34

2291-00015-0 2291-00015-0 2291-00015-0 2291-00015-0 2100-08020-1

ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ｰｽﾊﾞﾝﾄ ﾞ ﾎ ﾞﾙﾄ

HOSE CLAMP HOSE CLAMP HOSE CLAMP HOSE CLAMP BOLT

1 1 1 1 2

35 36 37 38 39

2171-08020-0 2170-08016-0 4032-12004-0 4032-12010-0 4032-12005-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌｨ ﾙﾀ ﾊﾞﾙﾌﾞ ﾎ ｰｽﾊﾞﾝﾄ ﾞ

SPRING WASHER WASHER FILTER VALVE HOSE CLAMP

2 2 1 1 2

2-1

備考 Remarks

INC.5 INC.24.50-56

INC.57

02燃料装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2898-00103-0 41 1446-02022-0 42 3416-02001-1

部品名称

Parts Name

ﾊﾞﾝﾄ ﾞ ﾗﾊﾞｰ ｸﾗﾝﾌﾟ

BAND RUBBER CLAMP

数量 Q'ty 1 1 1

43 44 45 46 47

2100-08020-1 2170-08016-0 2120-08065-0 1446-02023-0 1446-02024-1

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ ﾗﾊﾞｰ ｶﾊﾞｰ

BOLT WASHER NUT RUBBER COVER

1 1 1 1 1

49 50 52 53 54

2170-08016-0 4417-05000-0 4400-03004-1 4400-03003-0 4416-66001-0

ﾜｯｼｬ ﾌｭｰｴﾙｹﾞｰｼﾞﾕﾆｯﾄ ﾌﾟ ﾗｸﾞ ﾊﾟ ｯｷﾝ ｷｬｯﾌﾟ

WASHER FUEL GAUGE UNIT PLUG PACKING CAP

1 1 1 1 1

55 56 57 58

4215-76000-0 4419-62000-0 4032-12013-0 4415-89001-0

ﾌｨ ﾗｰ ｽﾄ ﾚｰﾅ ｴﾚﾒﾝﾄ ﾊﾟ ｯｷﾝ

FILLER STRAINER ELEMENT PACKING

1 1 1 1

2-2

備考 Remarks

INC.58

メモ ---memo---

31

32

28 33 66

30 23

6 7 8

24

29

34

37

35

38

23

27 26

5

9

25

10 4

36

3

65

11

64

63

59

62

61

60

40 67

58

1

56 57

2

41 13 12

39

43

20

42 45

14 46

47

15

44 21

19 22 48 49

18 50 68 54 53

55

17

16

52

51

0449-03804-0-10246-A

03冷却装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2100-10020-1 2 2170-10020-0 3 2100-10020-1

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ

BOLT WASHER BOLT

数量 Q'ty 2 2 3

4 5 6 7 8

2170-10030-1 1449-03014-0 2100-08020-1 2171-08020-0 2170-08016-0

ﾜｯｼｬ ｶﾊﾞｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

WASHER COVER BOLT SPRING WASHER WASHER

3 1 2 2 2

9 10 11 12 13

2100-10020-1 2170-10030-1 4424-37000-0 1446-03018-0 2215-02002-3

ﾎﾞﾙﾄ ﾜｯｼｬ ﾗｼﾞｴｰﾀ ｼﾞｮ ｲﾝﾄ ﾌﾟ ﾗｸﾞ

BOLT WASHER RADIATOR JOINT PLUG

2 2 1 1 1

14 15 16 17 18

2100-10035-1 2170-10020-0 2100-10020-1 2170-10020-0 4424-38000-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ

BOLT WASHER BOLT WASHER BRACKET

1 1 4 4 1

19 20 21 22 23 24

2291-00016-0 2292-02095-0 2291-00016-0 2293-09026-5 2291-00046-0 1446-03027-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ

HOSE CLAMP HOSE NIPPLE HOSE CLAMP HOSE HOSE CLAMP HOSE

1 1 1 1 4 1

25 26 27 28 29

2291-00040-0 1446-03028-1 2291-00046-0 4421-18000-0 1446-03031-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾊﾟ ｲﾌﾟ ﾍﾞｰｽ

HOSE CLAMP HOSE HOSE CLAMP PIPE BASE

2 1 2 1 1

30 31 32 33 34

1449-03016-0 2100-08020-1 2171-08020-0 2170-08016-0 2100-10050-1

ｶﾊﾞｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎﾞﾙﾄ

COVER BOLT SPRING WASHER WASHER BOLT

1 2 2 2 1

35 36 37 38 39

2170-10020-0 1449-03018-0 2100-10020-1 2170-10020-0 2291-00046-0

ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎｰｽﾊﾞﾝﾄ ﾞ

WASHER BRACKET BOLT WASHER HOSE CLAMP

1 1 2 2 2

3-1

備考 Remarks

INC.66

03冷却装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2293-07080-2 41 2898-00103-0 42 1449-03013-0

部品名称

Parts Name

ﾎｰｽ ﾊﾞﾝﾄ ﾞ ﾎｰｽ

HOSE BAND HOSE

数量 Q'ty 1 2 1

43 44 45 46 47

2291-00040-0 4424-39000-0 2100-06020-1 2171-06015-0 2170-06016-1

ﾎｰｽﾊﾞﾝﾄ ﾞ ﾌｧﾝ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

HOSE CLAMP FAN BOLT SPRING WASHER WASHER

1 1 4 4 4

48 49 50 51 52

2100-06050-1 2171-06015-0 2170-06016-0 3100-51045-0 2170-10020-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

BOLT SPRING WASHER WASHER BOLT WASHER

1 1 1 2 2

53 54 55 56 57

1446-03045-0 4224-24000-0 4224-24001-0 3680-12029-0 4032-12008-0

ｶｯﾌﾟ ﾘﾝｸﾞ ﾓｰﾀ ｷｰ ﾊﾟ ｯｷﾝ ﾘｻﾞｰﾊﾞ

COUPLING MOTOR KEY PACKING RESERVOIR

1 1 1 1 1

58 59 60 61 62 63

1446-03046-0 4032-12007-0 2100-06016-1 2171-06015-0 2170-06016-0 2100-08020-1

ﾌﾞﾗｹｯﾄ ｽﾃｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎﾞﾙﾄ

BRACKET STAY BOLT SPRING WASHER WASHER BOLT

1 1 2 2 2 2

64 65 66 67 68

2171-08020-0 2170-08016-0 4415-70003-0 4032-12015-0 4224-24002-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｷｬｯﾌﾟ ｷｬｯﾌﾟ ｼｰﾙｷｯﾄ

SPRING WASHER WASHER CAP CAP SEAL KIT

2 2 1 1 1

3-2

備考 Remarks

INC.55

INC.67

メモ ---memo---

7

5

6 16 15 14

4

3

2

8

1

13 12

9

10 11 0449-04803-0-10247-0

04吸気装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1446-04015-0 2 1446-04009-0 3 2291-00080-0

部品名称

Parts Name

ﾎｰｽ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ

HOSE HOSE HOSE CLAMP

数量 Q'ty 1 1 1

4 5 6 7 8

2291-00065-0 4424-26000-0 4417-10001-0 4415-44001-0 2291-00065-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ｴｱｸﾘｰﾅ ｴﾚﾒﾝﾄ ｴﾚﾒﾝﾄ ﾎｰｽﾊﾞﾝﾄ ﾞ

HOSE CLAMP AIR CLEANER ELEMENT ELEMENT HOSE CLAMP

1 1 1 1 1

9 10 11 12 13

2291-00065-0 2291-00065-0 1446-04016-0 2291-00070-0 4424-44000-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾊﾟ ｲﾌﾟ

HOSE CLAMP HOSE CLAMP HOSE HOSE CLAMP PIPE

1 1 1 1 1

14 15 16

2100-08020-1 2171-08020-0 2170-08016-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

BOLT SPRING WASHER WASHER

2 2 2

4-1

備考 Remarks

INC.6.7 Inner Outer

15

17 16

18

29

11 14 12 7 8

24 25

23 25 26

7

27

8

9

12

28

14 22

13

21

20

22 19 10 5 4 3 6

1

22

21

3 2 0449-05803-0-10229-0

05排気装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4408-84000-0 2 2100-08060-1 3 2170-08016-0

部品名称

Parts Name

ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ

CLAMP BOLT WASHER

数量 備考 Q'ty Remarks 1 INC.2-5 1 2

4 5 6 7 8

2171-08020-0 2120-08065-0 4424-42000-0 3100-11178-0 2170-12032-2

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾊﾟ ｲﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ

SPRING WASHER NUT PIPE BOLT WASHER

1 1 1 5 5

9 10 11 12 13

1446-05009-2 4420-60000-1 2120-10080-0 2170-10020-0 2120-10080-0

ﾌﾞﾗｹｯﾄ ﾊﾞﾝﾄ ﾞ ﾅｯﾄ ﾜｯｼｬ ﾅｯﾄ

BRACKET BAND NUT WASHER NUT

1 1 2 2 1

14 15 16 17 18

2171-10025-0 2121-10080-0 2171-10025-0 4031-33004-0 4420-61000-1

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ｶﾞｽｹｯﾄ ﾊﾟ ｲﾌﾟ

SPRING WASHER NUT SPRING WASHER GASKET PIPE

2 2 2 1 1

19 20 21 22 23 24

4424-41000-0 4424-43000-0 4421-62000-0 1448-05010-0 4408-84000-0 2100-08060-1

ﾏﾌﾗ ﾋｰﾄ ｶﾊﾞｰ ﾋｰﾄ ｶﾊﾞｰ ﾃｰﾌﾟ ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ

MUFFLER HEAT COVER HEAT COVER TAPE CLAMP BOLT

1 1 2 3 1 1

25 26 27 28 29

2170-08016-0 2171-08020-0 2120-08065-0 2120-08065-0 1559-05008-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾅｯﾄ ﾃｰﾌﾟ

WASHER SPRING WASHER NUT NUT TAPE

2 1 1 1 1

5-1

INC.11

INC.24-27

42

30 45

127 46 125

44

117 119

47

49 50 51

126

38

43

120

30 37

118

31

42

46 2

1

121

48

8 36 37

45

52

44

43

26 27 28

19

29

16 5

52 15

4 17

18

56

55

54

53 14

10 21

13

25

6

12 129 7

11

22

130 52

3

24

20 9

21

130

22

129

40 29

113 114 115

1

41

116

117

19

23

39

24

25 28

23

31

26

124 32

126 122

27

123 128 127

35

34

33

0449-09807-0-10237-A

06電装品関係(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4914-03000-0 2 3881-03004-0 3 4911-31000-0

部品名称

Parts Name

ﾀｰﾝｼｸﾞﾅﾙﾗﾝﾌﾟ ｸﾞﾛﾒｯﾄ ｻﾎﾟ ｰﾄ

TRUN SIGNAL LAMP GROMMET SUPPORT

数量 備考 Q'ty Remarks 1 INC.122-124 2 1

4 5 6 7 8

2891-00017-3 4917-81000-0 2891-01025-0 2891-00001-5 4910-59000-0

ﾊﾞｯﾃﾘﾀｰﾐﾅﾙ ﾀｰﾐﾅﾙｶﾊﾞｰ ﾊﾞｯﾃﾘｺｰﾄ ﾞ ﾀｰﾐﾅﾙｶﾊﾞｰ ｻｰﾓﾕﾆｯﾄ

TERMINAL ASSY TERMINAL COVER CORD TERMINAL COVER THERMO SENDING UNIT

1 1 1 1 1

(+)

9 10 11 12 13

4906-11000-1 2891-00016-3 1446-09064-0 2100-08016-1 2171-08020-0

ﾊﾞｯﾃﾘ ﾊﾞｯﾃﾘﾀｰﾐﾅﾙ ｺｰﾄ ﾞ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

BATTERY TERMINAL ASSY CORD BOLT SPRING WASHER

1 1 1 1 1

(-)

14 15 16 17 18

2170-08016-0 4710-96000-0 1446-09029-1 2100-10020-1 2170-10020-0

ﾜｯｼｬ ﾐﾗｰ ｽﾃｰ ﾎﾞﾙﾄ ﾜｯｼｬ

WASHER MIRROR STAY BOLT WASHER

1 1 1 2 2

19 20 21 22 23 24

4914-03000-0 2891-00030-1 2100-10020-1 2170-10020-0 3899-54054-0 2891-00001-5

ﾀｰﾝｼｸﾞﾅﾙﾗﾝﾌﾟ ﾊﾞｯﾃﾘｺｰﾄ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ ｺｰﾄ ﾞ ﾀｰﾐﾅﾙｶﾊﾞｰ

TRUN SIGNAL LAMP CORD BOLT WASHER CORD TERMINAL COVER

1 1 2 2 1 2

25 26 27 28 29

4710-93000-0 2100-08016-1 2171-08020-0 2170-08016-0 2898-00107-0

ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ

CLAMP BOLT SPRING WASHER WASHER BAND

2 2 2 2 2

30 31 32 33 34

4913-92000-0 4913-93000-0 2891-12004-9 2100-08025-1 2171-08020-0

ｺﾝﾋ ﾞﾈｰｼｮ ﾝﾗﾝﾌﾟ ｺﾝﾋ ﾞﾈｰｼｮ ﾝﾗﾝﾌﾟ ﾊﾞｯﾃﾘﾘﾚｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

COMBINATION LAMP COMBINATION LAMP BATTERY RELAY BOLT SPRING WASHER

1 1 1 2 2

35 36 37 38 39

2170-08016-0 4719-67000-0 3881-03026-0 4719-79000-0 1446-09030-0

ﾜｯｼｬ ﾊﾄ ﾞﾒ ｸﾞﾛﾒｯﾄ ﾌﾟ ﾗｸﾞ ﾍﾞｰｽ

WASHER HOLD FAST GROMMET PLUG BASE

2 2 2 4 1

6-1

INC.122-124

RH INC.125-127 LH INC.126-128

06電装品関係(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2101-12030-1 41 2170-12025-0 42 4913-74000-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ﾘﾌﾚｸﾀ

BOLT WASHER REFLECTOR

数量 Q'ty 1 1 2

43 44 45 46 47

2170-06016-0 2171-06015-0 2120-06050-0 4710-50000-0 4710-48000-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾐﾗｰ ｽﾃｰ

WASHER SPRING WASHER NUT MIRROR STAY

2 2 2 2 1

48 49 50 51 52

4710-49000-0 2100-08016-1 2171-08020-0 2170-08016-0 4911-24000-0

ｽﾃｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾍｯﾄ ﾞﾗﾝﾌﾟ

STAY BOLT SPRING WASHER WASHER HEAD LAMP

1 8 8 8 2

53 54 55 56 113

4908-86000-0 2100-08016-1 2171-08020-0 2170-08016-0 1446-09081-0

ﾎｰﾝ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ

HORN BOLT SPRING WASHER WASHER BRACKET

1 1 1 1 1

114 115 116 117 118 119

2100-10016-1 2170-10020-0 1446-75038-0 4911-24000-0 1441-09017-0 2100-08025-1

ﾎﾞﾙﾄ ﾜｯｼｬ ﾗﾊﾞｰ ﾍｯﾄ ﾞﾗﾝﾌﾟ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ

BOLT WASHER RUBBER HEAD LAMP BRACKET BOLT

3 3 2 1 1 2

120 121 122 123 124

2170-08016-0 2171-08020-0 4913-68002-0 2849-11007-5 4913-68001-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾚﾝｽﾞ ﾊﾞﾙﾌﾞ ﾚﾝｽﾞ

WASHER SPRING WASHER LENS BULB LENS

2 2 2 2 2

125 126 127 128 129

4913-92003-0 4913-92001-0 4913-92002-0 4913-93001-0 4908-85001-0

ﾚﾝｽﾞ ﾊﾞﾙﾌﾞ ﾊﾞﾙﾌﾞ ﾚﾝｽﾞ ﾊﾞﾙﾌﾞ

LENS BULB BULB LENS BULB

1 2 2 1 3

130

4911-24001-0

ﾚﾝｽﾞ

LENS

3

6-2

備考 Remarks

INC.129.130

INC.129.130

FRONT 12V21W REAR TURN SIGNAL 12V21W TAIL̲STOP 12V21̲5W 12V55W

メモ ---memo---

74 135

77 70

86

71

84 87

72

79 85

73

78

88 80

83 89 90

76 75

106

105

105

104

91

92 104

102 104

106

81

103

93 104

131

103 108

102 97 102

60

58 65

107

110 97

111

97

96

82 100

95 96

97

112

99

61

57

94

96

59

107

101

109

96

95 66 64

134 69

98

68

63

62

67 132

133

0449-09807-0-10237-A 0446-09810-0-20880-0 0446-09803-0-20596-C

07電装品関係(2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 57 1446-09084-0 58 2100-08025-1 59 2171-08020-0

部品名称

Parts Name

ﾌﾞﾗｹｯﾄ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

BRACKET BOLT SPRING WASHER

数量 Q'ty 1 2 2

備考 Remarks

60 61 62 63 64

2170-08016-0 2853-00003-0 2100-08016-1 2171-08020-0 2170-08016-0

ﾜｯｼｬ ﾌﾞｻﾞｰ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

WASHER BUZZER BOLT SPRING WASHER WASHER

2 1 2 2 2

65 66 67 68 69

1449-09003-0 4910-32000-0 2182-06016-2 2171-06015-0 2170-06016-0

ｶﾊﾞｰ ﾘﾚｰ ﾅﾍﾞｺﾈｼﾞ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

COVER RELAY SCREW SPRING WASHER WASHER

1 1 2 2 2

70 71 72 73 74

3180-20029-0 3171-01009-0 3171-93037-0 2828-01002-2 4917-52000-0

ｺﾈｼﾞ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｽｲｯﾁ ｺﾝﾋ ﾞﾈｰｼｮ ﾝﾒｰﾀ

SCREW SPRING WASHER WASHER SWITCH COMBINATION METER

6 6 6 1 1

75 76 77 78 79 80

2182-05008-2 2171-05013-0 1441-61143-0 2828-01006-2 1446-09083-0 2828-00002-0

ﾅﾍﾞｺﾈｼﾞ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ｸｯｼｮ ﾝﾗﾊﾞｰ ｽｲｯﾁ ﾊﾟ ﾈﾙ ｽｲｯﾁ

SCREW SPRING WASHER CUSHION RUBBER SWITCH PANEL SWITCH

4 4 1 1 1 1

81 82 83 84 85

2826-00015-1 4710-37000-0 3881-03028-0 2828-00004-1 2828-01001-2

ｽｲｯﾁ ﾌﾟ ﾗｸﾞ ｸﾞﾛﾒｯﾄ ｽｲｯﾁ ｽｲｯﾁ

SWITCH PLUG GROMMET SWITCH SWITCH

1 1 1 1 1

LIQUIDSPRAY

86 87 88 89 90

2826-11111-2 4910-56000-0 4917-41000-0 4713-47000-0 4216-00000-0

ｽｲｯﾁ ｽｲｯﾁ ﾊﾟ ｲﾛｯﾄ ﾗﾝﾌﾟ ﾌﾟ ﾗｸﾞ ﾌﾟ ﾗｸﾞ

SWITCH SWITCH PILOT LAMP PLUG PLUG

1 1 1 4 2

PARKING HAZARD GREEN

91 92 93 94 95

2827-00002-0 4916-09000-0 2820-00003-1 4911-77000-0 2182-06020-2

ﾀｰﾝｼｸﾞﾅﾙｽｲｯﾁ ｿｹｯﾄ ｽｲｯﾁ ﾋｭｰｽﾞﾎﾞｯｸｽ ﾅﾍﾞｺﾈｼﾞ

TURN SIGNAL SWITCH SOCKET SWITCH FUSE BOX SCREW

1 1 1 1 3

7-1

WATER SPRAY

VIBRATING INC.135

SPRINKLER

SPEED SHIFT LIGHT

INC.131

07電装品関係(2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 96 2171-06015-0 97 2170-06016-0 98 2100-08016-1

部品名称

Parts Name

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎ ﾞﾙﾄ

SPRING WASHER WASHER BOLT

数量 Q'ty 6 6 2

備考 Remarks

99 100 101 102 103

2171-08020-0 2170-08016-0 1446-09068-0 4910-20000-0 2100-06020-1

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾘﾚｰ ﾎ ﾞﾙﾄ

SPRING WASHER WASHER BRACKET RELAY BOLT

2 2 1 3 2

104 105 106 107 108

2170-06016-0 2171-06015-0 2120-06050-0 4908-91000-0 2182-06010-2

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾘﾚｰ ﾅﾍﾞｺﾈｼﾞ

WASHER SPRING WASHER NUT RELAY SCREW

4 2 2 2 2

109 110 111 112 131

4911-27000-0 4029-68001-0 2182-06016-2 4912-02000-0 2820-00003-0

ﾌﾗｯｼｬﾕﾆｯﾄ ﾀｲﾏ ﾅﾍﾞｺﾈｼﾞ ﾘﾚｰ ｷｰ

FLASHER UNIT TIMER SCREW RELAY KEY

1 1 1 1 1

FLASHER GLOW LAMP

132 133 134 135

1446-09080-0 1446-09075-0 2828-00004-1 4910-39002-0

ﾊｰﾈｽ ﾊｰﾈｽ ｽｲｯﾁ ｶﾊﾞｰ

HARNESS HARNESS SWITCH COVER

1 1 1 1

Exp. Dom. Dom.

7-2

VIB.LAMP̲HORN̲P-INTERLOCK

INTERLOCK̲BRAKE LAMP

VIB.

メモ ---memo---

8

8

8 8 8 23

30

30

30

4

30 4

21 6 7

22

39

38

20

42 40 4

5

43

41

1 32

3 2

23

44

31

0449-09808-0-10248-A

08ﾜｲﾔﾊｰﾈｽ(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4911-19000-0 2 2100-08016-1 3 2170-08016-0

部品名称

Parts Name

ﾊﾞﾝﾄ ﾞ ﾎ ﾞﾙﾄ ﾜｯｼｬ

BAND BOLT WASHER

数量 Q'ty 6 6 6

4 5 6 7 8

1449-09004-0 4911-22000-0 2101-10025-1 2170-10020-0 2898-00103-0

ﾊｰﾈｽ ﾊﾞﾝﾄ ﾞ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ

HARNESS BAND BOLT WASHER BAND

1 1 1 1 5

20 21 22 23 30

4911-20000-0 2101-10025-1 2170-10020-0 1446-09085-0 2898-00103-0

ﾊﾞﾝﾄ ﾞ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾊｰﾈｽ ﾊﾞﾝﾄ ﾞ

BAND BOLT WASHER HARNESS BAND

1 1 1 1 10

31 32 38 39 40

2898-00103-0 2898-00107-0 4911-33000-0 4911-34000-0 1446-09069-0

ﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ ﾋｭｰｽﾞ ﾋｭｰｽﾞ ﾎ ﾙﾀﾞ

BAND BAND FUSE FUSE HOLDER

1 2 1 2 1

41 42 43 44

2182-06010-2 2170-06016-0 2171-06015-0 1446-09073-0

ﾅﾍﾞｺﾈｼﾞ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ

SCREW WASHER SPRING WASHER CORRUGATED TUBE

2 2 2 1

8-1

備考 Remarks

FRONT FRAME

ENGINE

RED 45A BLACK 65A

48

10 54

12

55

62

47

11

63

64

56 46

59

9

49

57 58

46 61 60

53

46

46 45

50 52

50

51

53

61 60

15 17 16 25

25

19

27 18

25

34

53

35

29

28

33 25 36 37 25

26

4

26

25 14

13

13 18

13 24 13 13

13 0449-09808-0-10248-A

09ﾜｲﾔﾊｰﾈｽ(2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 4 1449-09004-0 9 3416-02060-0 10 2100-08016-1

部品名称

Parts Name

ﾊｰﾈｽ ｸﾗﾝﾌﾟ ﾎ ﾞﾙﾄ

HARNESS CLAMP BOLT

数量 備考 Q'ty Remarks 1 FRONT FRAME 1 1

11 12 13 14 15

2170-08016-0 2171-08020-0 2898-00107-0 1447-09002-0 4911-19000-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾊﾞﾝﾄ ﾞ ｺﾈｸﾀ ﾊﾞﾝﾄ ﾞ

WASHER SPRING WASHER BAND CONNECTOR BAND

1 1 7 1 1

16 17 18 19 24

2100-08016-1 2170-08016-0 2898-00103-0 1447-09003-1 1446-09042-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ ﾊｰﾈｽ ｺﾙｹﾞｲﾄ ﾁｭｰﾌﾞ

BOLT WASHER BAND HARNESS CORRUGATED TUBE

1 1 2 1 1

25 26 27 28 29

2898-00103-0 1446-09087-0 1418-09034-0 1446-70015-0 1445-09042-0

ﾊﾞﾝﾄ ﾞ ﾊｰﾈｽ ｺﾈｸﾀ ﾊｰﾈｽ ｺﾈｸﾀｰ

BAND HARNESS CONNECTOR HARNESS CONNECTER

9 1 1 1 1

33 34 35 36 37 45

2100-08016-1 2170-08016-0 2171-08020-0 2120-06050-0 2171-06015-0 1446-09027-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾊｰﾈｽ

BOLT WASHER SPRING WASHER NUT SPRING WASHER HARNESS

1 1 1 2 2 1

46 47 48 49 50

2898-00107-0 4710-93000-0 2120-08065-0 2898-00107-0 4911-19000-0

ﾊﾞﾝﾄ ﾞ ｸﾗﾝﾌﾟ ﾅｯﾄ ﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ

BAND CLAMP NUT BAND BAND

5 1 1 1 5

51 52 53 54 55

2100-08016-1 2170-08016-0 1446-09086-0 1446-09062-0 1634-09078-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾊｰﾈｽ ﾊｰﾈｽ ﾊｰﾈｽ

BOLT WASHER HARNESS HARNESS HARNESS

5 5 1 1 1

56 57 58 59 60

1446-09028-0 1446-09063-0 1442-09001-0 1448-09005-0 1039-92176-0

ﾊｰﾈｽ ﾊｰﾈｽ ﾊｰﾈｽ ﾊｰﾈｽ ﾀｰﾐﾅﾙ

HARNESS HARNESS HARNESS HARNESS TERMINAL

1 1 1 1 4

9-1

LIQUID SPRAY

REAR FRAME Mihaalu5

STARTER SW.

DASHBOARD INC. P-BRAKE SW. HAZARD SW. LIGHT SW. SPEED CHG.SW. WATER SPRAY SW. VIB.SW. LIQUID SPRAY SW. VIB.HI-LOW SW.

09ﾜｲﾔﾊｰﾈｽ(2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 61 4913-30000-0 62 4905-51001-0 63 4911-30001-0 64

4909-55003-0

部品名称

Parts Name

ｷｬｯﾌﾟ ﾋｭｰｽﾞ ﾋｭｰｽﾞ

CAP FUSE FUSE

ﾋｭｰｽﾞ

FUSE

9-2

数量 備考 Q'ty Remarks 4 1 BLUE 15A 1 ORANGE 5A 1

RED 10A

メモ ---memo---

26 31 14

36

15

27

35

2 30 35 1

28 34

1 13 33

29

28

1 18 19

1

32 21

20 21 2

24

23

17 16

21

22

25

3

11 12

4 5

12

6

8

9 7 12 10

3

0446-12806-0-10917-A

10ｺﾝﾄ ﾛｰﾙ関係(ｽﾛｯﾄ ﾙ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3120-01136-0 2 3823-10011-0 3 3400-41022-0

部品名称

Parts Name

ﾅｯﾄ ﾏｲｸﾛｽｲｯﾁ ｺﾝﾄ ﾛｰﾙｹｰﾌ ﾞﾙ

NUT MICRO SWITCH CONTROL CABLE

数量 備考 Q'ty Remarks 4 2 1 INC.8.25

4 5 6 7 8

2100-08016-1 2171-08020-0 2170-08016-0 3416-02056-0 2120-06050-0

ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｸﾗﾝﾌﾟ ﾅｯﾄ

BOLT SPRING WASHER WASHER CLAMP NUT

1 1 1 1 1

9 10 11 12 13

2405-06030-0 3120-00070-0 2100-06030-1 2170-06016-0 1446-12043-0

ﾛｯﾄ ﾞｴﾝﾄ ﾞ ﾅｯﾄ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾍﾞｰｽ

ROD END NUT BOLT WASHER BASE

1 1 1 3 1

14 15 16 17 18

2100-10020-1 2170-10020-0 3100-02060-0 2120-08065-0 3100-02060-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾎ ﾞﾙﾄ ﾅｯﾄ ﾎ ﾞﾙﾄ

BOLT WASHER BOLT NUT BOLT

2 2 1 1 1

19 20 21 22 23 24

2120-08065-0 3100-02087-0 2170-06016-0 3120-00070-0 2405-06030-0 2120-06050-0

ﾅｯﾄ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ ﾛｯﾄ ﾞｴﾝﾄ ﾞ ﾅｯﾄ

NUT BOLT WASHER NUT ROD END NUT

1 1 3 1 1 1

25 26 27 28 29

2120-06050-0 3424-00023-0 1446-12028-0 3171-92030-0 2196-05016-1

ﾅｯﾄ ﾉ ﾌﾞ ﾚﾊﾞｰ ﾜｯｼｬ ｷｰ

NUT KNOB LEVER WASHER SUNK KEY

1 1 1 2 1

30 31 32 33 34

2461-14001-0 4716-03000-0 1446-12044-0 2580-14010-1 2580-14015-1

ｻﾗﾊﾞﾈ ﾌﾟ ﾗｸﾞ ｼｬﾌﾄ ﾌﾞｯｼｭ ﾌﾞｯｼｭ

CONED DISC SPRING PLUG SHAFT BUSH BUSH

4 1 1 1 1

35 36

2170-14045-2 3120-01126-0

ﾜｯｼｬ ﾅｯﾄ

WASHER NUT

2 1

10-1

27 15 16 17

28

69

67

14

75 73

40 13

74 72 68 27 69

66

29

37

54 36

38

36

36

55

53

76

70

59

71

35 26 61

39 65

64

43

40 44

52 42

46

45 27

63

47

48

60

52

49

52

18

52

57

28

56 50

58

62

51 29

32 31

8

33

30 5

18

2 3

7

6

41 23

33 33 11

19

1

34

10

20 21 22

12 9

4

25 25 24

0446-12807-0-10939-A 0446-12001-1-20712-A

11ｺﾝﾄ ﾛｰﾙ関係(前後進) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1446-12031-0 2 2100-08025-1 3 2170-08016-0

部品名称

Parts Name

ｱｰﾑ ﾎ ﾞﾙﾄ ﾜｯｼｬ

ARM BOLT WASHER

数量 Q'ty 1 2 2

4 5 6 7 8

3120-00093-0 1446-12032-0 2100-10025-1 2170-10020-0 2898-00103-0

Uﾅｯﾄ ﾌﾞﾗｹｯﾄ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ

U-NUT BRACKET BOLT WASHER BAND

2 1 2 2 1

9 10 11 12 13

3416-02068-0 2100-08016-1 2171-08020-0 2170-08016-0 1446-12033-0

ｸﾗﾝﾌﾟ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾍﾞｰｽ

CLAMP BOLT SPRING WASHER WASHER BASE

1 1 1 1 1

14 15 16 17 18

3416-02068-0 2100-08016-1 2171-08020-0 2170-08016-0 3400-42021-0

ｸﾗﾝﾌﾟ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｺﾝﾄ ﾛｰﾙｹｰﾌ ﾞﾙ

CLAMP BOLT SPRING WASHER WASHER CONTROL CABLE

1 1 1 1 1

19 20 21 22 23 24

3416-02019-0 2100-08016-1 2171-08020-0 2170-08016-0 2898-00107-0 1446-12039-0

ｸﾗﾝﾌﾟ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ ﾌｴﾙﾄ

CLAMP BOLT SPRING WASHER WASHER BAND FELT

1 1 1 1 1 1

25 26 27 28 29

2898-00104-0 1446-12046-0 0446-12001-1 1446-12013-0 2150-06050-0

ﾊﾞﾝﾄ ﾞ ｼｬﾌﾄ ｸﾞﾘｯﾌﾟ ﾚﾊﾞｰ ｽﾌﾟ ﾘﾝｸﾞﾋﾟ ﾝ

BAND SHAFT GRIP LEVER SPRING PIN

4 1 2 2 2

30 31 32 33 34

2405-06030-0 2120-06050-0 2100-06030-1 2170-06016-0 3120-00070-0

ﾛｯﾄ ﾞｴﾝﾄ ﾞ ﾅｯﾄ ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ

ROD END NUT BOLT WASHER NUT

1 1 1 3 1

35 36 37 38 39

3120-00070-0 2170-06016-0 2100-06030-1 2405-06030-0 2120-06050-0

ﾅｯﾄ ﾜｯｼｬ ﾎ ﾞﾙﾄ ﾛｯﾄ ﾞｴﾝﾄ ﾞ ﾅｯﾄ

NUT WASHER BOLT ROD END NUT

1 3 1 1 1

11-1

備考 Remarks

INC.31.39

INC.67-76

11ｺﾝﾄ ﾛｰﾙ関係(前後進) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 3180-20023-0 41 2898-00107-0 42 1446-12036-2

部品名称

Parts Name

ｺﾈｼﾞ ﾊﾞﾝﾄ ﾞ ﾌﾞﾗｹｯﾄ

SCREW BAND BRACKET

数量 Q'ty 4 1 1

43 44 45 46 47

2100-10025-1 2170-10020-0 2100-08025-1 2120-08065-0 2100-08035-1

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾎ ﾞﾙﾄ ﾅｯﾄ ﾎ ﾞﾙﾄ

BOLT WASHER BOLT NUT BOLT

2 2 2 2 2

48 49 50 51 52

2171-08020-0 2170-08016-0 1446-12037-0 3823-10011-0 3120-01136-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾏ ｲｸﾛｽｲｯﾁ ﾅｯﾄ

SPRING WASHER WASHER BRACKET MICRO SWITCH NUT

2 2 1 2 4

53 54 55 56 57

3910-20009-1 2120-12100-0 2180-12022-0 2180-12022-0 2120-12100-0

ｽﾌﾟ ﾘﾝｸﾞ ﾅｯﾄ ﾄ ﾒﾈｼﾞ ﾄ ﾒﾈｼﾞ ﾅｯﾄ

SPRING NUT SET SCREW SET SCREW NUT

1 1 1 1 1

58 59 60 61 62 63

2461-07003-0 2598-14000-0 2580-20025-1 3931-00324-0 1550-12013-0 2100-08016-1

ｻﾗﾊﾞﾈ ｽﾁｰﾙﾎﾞｰﾙ ﾌﾞｯｼｭ ﾌﾘｸｼｮ ﾝﾌﾟ ﾚｰﾄ ﾎ ﾙﾀﾞ ﾎ ﾞﾙﾄ

CONED DISC SPRING STEEL BALL BUSH FRICTION PLATE HOLDER BOLT

6 1 1 1 1 2

64 65 66 67 68

2171-08020-0 2170-08016-0 4710-28000-0 4423-08000-0 4423-08002-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾍﾞｱﾘﾝｸﾞﾕﾆｯﾄ ｸﾞﾘｯﾌﾟ ｶﾊﾞｰ

SPRING WASHER WASHER BEARING UNIT GRIP COVER

2 2 1 2 2

69 70 71 72 73

4423-08005-0 1539-12013-0 2826-00005-1 4423-08003-0 4423-08001-0

ｺﾈｼﾞ ﾊｰﾈｽ ｽｲｯﾁ ﾌﾟ ﾚｰﾄ ｶﾊﾞｰ

SCREW HARNESS SWITCH PLATE COVER

8 2 2 2 2

74 75 76

4423-08004-0 4423-08006-0 4423-08007-0

ﾊﾟ ｲﾌﾟ ｺﾈｼﾞ ﾅｯﾄ

PIPE SCREW NUT

2 2 2

11-2

備考 Remarks

INC.68.69.72-76

メモ ---memo---

50

52

54

53

49

56 51 55 58 57

59 51

37

60

4 39

61 63

62 64

40

38

3 65

6

41 8 1 17

2 9

7

5

6

16

15

18 14

42

13

43 43 44 29

28 45

6

21 24

9 48

7

26 27

46 47

35

6

5 25

17 30

36 16

33 31 32

22

34

16

18 19 20 0449-19810-0-10249-B

12銘板(国内仕様) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3998-14249-0 2 3998-14548-0 3 3998-16732-0

部品名称

Parts Name

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL

数量 備考 Q'ty Remarks 1 作動油 1 作動油銘柄 1 工具保管場所

4 5 6 7 8

3998-04031-0 1450-19018-0 3998-17215-0 3998-19734-0 3998-16487-0

ｽﾃｯｶ ｼｰﾄ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL SHEET DECAL DECAL DECAL

1 2 4 2 1

エンジンオイル 滑リ止めシート 吊り位置 スーパー超低5 取扱説明書保管場所

9 13 14 15 16

3998-19697-0 1449-19014-0 2998-00140-6 1449-19011-0 3998-04030-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｼｰﾙ

DECAL DECAL DECAL DECAL SEAL

2 1 1 1 5

ECOマーク ギヤオイル 警告：排ガス吸込、火傷 SAKAI TW504 グリス

17 18 19 20 21

1441-19027-0 3998-10692-0 1448-19007-0 1441-19003-0 3998-13554-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶｰ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

2 2 1 1 1

吊り方法 けん引位置 最大積載量 ブレーキ解除方法 水

22 24 25 26 27 28

1447-19011-0 3998-10148-0 2998-00009-6 2998-96001-0 3998-14298-0 1446-19008-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1 1

注意：スクレーパ スロットル 燃料補給時の注意 指定燃料外給油禁止 軽油 注意：水かけ

29 30 31 32 33

1446-19009-0 1447-19016-0 3998-16296-0 3998-11618-0 3998-11015-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ﾒｲﾊﾞﾝ

DECAL DECAL DECAL DECAL NAME PLATE

1 1 1 1 1

フード開閉注意 液剤噴霧量調整 被ケン引時取扱い アンローダバルブ操作 アンローダ

34 35 36 37 38

1449-19011-0 3998-14606-0 1441-19003-0 3998-14518-0 1441-19007-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1

SAKAI TW504 作動油ドレーン ブレーキ解除方法 クーラント混合割合 切り替えバルブ

39 40 41 42 43

1446-19029-0 1446-19035-0 3998-13197-0 1442-19016-0 2998-00107-6

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 2

散水取り扱い注意 寒冷時の水抜方法 後方散水バルブ 液剤ポンプ取扱 挟まれ注意

12-1

12銘板(国内仕様) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 44 2998-01004-6 45 2998-00161-6 46 3998-10549-0

部品名称

Parts Name

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL

数量 備考 Q'ty Remarks 1 巻き込み注意 1 巻き込み・高温注意 1 エンジン ドレーン

47 48 49 50 51

3998-04030-0 3998-10553-0 1418-19005-0 3998-12017-0 3998-11621-0

ｼｰﾙ ｽﾃｯｶ ｽﾃｯｶ ﾒｲﾊﾞﾝ ｽﾃｯｶ

SEAL DECAL DECAL NAME PLATE DECAL

1 1 1 1 2

グリース ラジエータ ドレーン 振動スイッチ 方向指示 前後進

52 53 54 55 56

3998-16694-0 1308-19032-0 3998-16454-2 1446-19012-0 3998-22029-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1

パワー 12V120W エンジン始動 ネッパラン推奨 注意：車両停止時 スタータースイッチ

57 58 59 60 61

1039-99049-1 3998-16483-0 3998-16477-0 2998-01001-6 2998-01005-6

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1

警告：ホース交換 警告：使用における注意点 警告：騒音・振動の注意 警告：取説書を読む 転倒防止

62 63 64 65

3998-06139-0 1446-19020-0 3998-14439-0 1442-19005-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL

1 1 1 1

マスク着用 ヒューズボックス・容量 液剤 注意：液剤取扱

12-2

メモ ---memo---

44 43 47 45 49 50

46 48 45

56

31

51

4 33

52 54

53 57

34

32

3 58

6

35 7 1 14

2 8

5

6 55

13

12 15 11 10

36 37 37

23

22 38

39

6

17 18

8 42

20 21

41 40

29

6

5

28 19

14 24

30 13

27 25 26

13

15 16 0449-19811-0-10250-A

13銘板(海外仕様) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3998-14250-0 2 3998-14239-0 3 3998-16733-0

部品名称

Parts Name

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL

数量 備考 Q'ty Remarks 1 Hydraulic oil 1 Class Of HYD. Oil 1 TOOL BOX

4 5 6 7 8

3998-04094-0 1450-19018-0 3998-17215-0 3998-16494-0 3998-19698-0

ｽﾃｯｶ ｼｰﾄ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

STICKER SHEET DECAL DECAL DECAL

1 2 4 1 2

Engine Oil Nonslip Lift Point MANUAL BOX ECO MODE

10 11 12 13 14

1449-19015-0 3998-16500-0 1449-19012-0 3998-04098-0 1441-19027-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

VINYL CHLORIDE DECAL DECAL STICKER DECAL

1 1 1 5 2

GEAR OIL WARNING:Toxic Gas̲Burn SAKAI TW504 GREASE Lift

15 16 17 18 19

3998-10693-0 1445-19014-0 3998-14449-1 3998-10395-0 3998-16501-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

2 1 1 1 1

TOW POINT How To Release Brake WATER THROTTLE DANGER:No Open Flames

20 21 22 23 24 25

3998-14299-0 2998-96001-1 1446-19018-0 1446-19017-0 1447-19017-0 3998-16297-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1 1

DIESEL FUEL CAUTION:Fuel Only CAUTION:Not Spray Water CAUTION:Close The Food Liquid Adjust TOWING

26 27 28 29 30

3998-11620-0 3998-11231-0 1449-19012-0 3998-15564-0 1445-19014-0

ｽﾃｯｶ ﾒｲﾊﾞﾝ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL NAME PLATE DECAL DECAL DECAL

1 1 1 1 1

UNLOADER VALVE UNLOADER SAKAI TW504 HYDRAULIC OIL DRAIN How To Release Brake

31 32 33 34 35

3998-14521-0 1441-19020-0 1446-19030-0 1446-19036-0 3998-13257-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ﾒｲﾊﾞﾝ

DECAL DECAL DECAL DECAL NAME PLATE

1 1 1 1 1

Mixture Percentage TANK DRAIN VALVE Sprinkler Pump Water Drain SPRINKLER VALVE

36 37 38 39 40

1442-19017-0 3998-36002-0 3998-16499-0 3998-16502-0 1445-19001-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 2 1 1 1

About Liquid Pump Crushing WARNING:Open The Hood DANGER:Involution̲Burn ENGINE OIL DRAIN

13-1

13銘板(海外仕様) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 41 3998-04098-0 42 3998-10585-0 43 1418-19005-0

部品名称

Parts Name

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

STICKER DECAL DECAL

数量 備考 Q'ty Remarks 1 GREASE 1 COOLANT DRAIN 1 VIB.SW

44 45 46 47 48

3998-12017-0 3998-11621-0 3998-16694-0 3998-22030-0 3998-16489-0

ﾒｲﾊﾞﾝ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

NAME PLATE DECAL DECAL DECAL DECAL

1 2 1 1 1

Turn Signal Reversing POWER OUTLET 12V120W Starter SW WARNING:CALIFORNIA

49 50 51 52 53

1620-19028-0 3998-16504-0 3998-16505-0 3998-16491-2 3998-06139-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1

Starting Engine WARNING:How To Operate DANGER:Roll Over WARNING:Read Manual Wear Dust Mask

54 55 56 57 58

1446-19020-0 2998-02308-0 1446-19039-0 3998-14440-0 1442-19013-0

ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ ｽﾃｯｶ

DECAL DECAL DECAL DECAL DECAL

1 1 1 1 1

Fuse Box SAKAI SERVICING CHART LIQUID CAUTION:About Liquid

13-2

メモ ---memo---

4 8

2

7

3

6

4

5

9

1

11 10

3

0449-27801-0-10001-A

14ﾘﾔﾎｲｰﾙ 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4420-46000-0 2 3148-00008-0 3 9420-47000-0

部品名称

Parts Name

ﾊﾌﾞﾎﾞﾙﾄ ﾅｯﾄ ﾊﾌﾞ ﾀｲﾔASSY

HUB BOLT NUT HUB TIRE ASSY

数量 備考 Q'ty Remarks 12 12 4 INC.10.11

4 5 6 7 8

4420-47000-0 2100-14050-3 2170-14045-2 1449-27002-0 4420-46000-0

ﾃﾞｨ ｽｸﾎｲｰﾙ ﾎﾞﾙﾄ ﾜｯｼｬ ﾃﾞｨ ｽｸ ﾊﾌﾞﾎﾞﾙﾄ

DISC WHEEL BOLT WASHER DISC HUB BOLT

4 24 24 2 12

9 10 11

3148-00008-0 4423-38000-0 4423-39000-0

ﾅｯﾄ ﾊﾌﾞ ﾀｲﾔ ﾊﾞﾙﾌﾞ

NUT HUB TIRE VALVE

12 4 4

14-1

8 9 10 7

8

9

10

13

1

5

12 8

3

9

14 11

4

13 6

13

2

5

8

9

10

4 3

0449-31801-0-20263-0

15ｼｰﾄ 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1448-31004-0 2 1448-31005-0 3 2100-10050-1

部品名称

Parts Name

ｽﾃｰ ｽﾃｰ ﾎﾞﾙﾄ

STAY STAY BOLT

数量 Q'ty 1 1 4

4 5 6 7 8

2170-10032-2 1449-31001-0 4710-53000-3 4716-04001-0 2100-08020-1

ﾜｯｼｬ ﾍﾞｰｽ ｼｰﾄ ﾊﾞｯｸ ｼｰﾄ ﾎﾞﾙﾄ

WASHER BASE SEAT BACK SEAT BOLT

4 2 1 1 13

9 10 11 12 13

2171-08020-0 2170-08023-2 4710-56000-1 4710-57000-1 4710-58000-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾗﾊﾞｰ ﾗﾊﾞｰ

SPRING WASHER WASHER BRACKET RUBBER RUBBER

13 10 3 3 7

14

2170-08020-1

ﾜｯｼｬ

WASHER

3

15-1

備考 Remarks

INC.6.11-13

10

2 3 8

1

9

13 4

16 15 14

12

17 16

5 6 7

11 18

0446-32803-0-20620-A

16操向装置(ﾊﾝﾄ ﾞﾙ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4421-38000-0 2 2121-12100-2 3 2171-12030-0

部品名称

Parts Name

ｽﾃｱﾘﾝｸ ﾞﾎ ｲｰﾙ ﾅｯﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

STEERING WHEEL NUT SPRING WASHER

数量 備考 Q'ty Remarks 1 INC.9.10 1 1

4 5 6 7 8

4421-64000-0 2100-10035-1 2171-10025-0 2170-10032-2 2170-12025-0

ｺﾗﾑｼｬﾌﾄ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾜｯｼｬ

COLUMN SHAFT BOLT SPRING WASHER WASHER WASHER

1 4 4 4 1

9 10 11 12 13

4421-38002-0 4421-38004-0 4409-05012-0 4421-64001-0 4416-03005-0

ﾉ ﾌﾞASSY ﾊﾟ ｯﾄ ﾞASSY ｺﾗﾑ ｼｬﾌﾄ ﾌﾞｯｼｭ

KNOB ASSY PAD ASSY COLUMN SHAFT BUSH

1 1 1 1 1

14 15 16 17 18

4409-05011-0 2194-03715-1 2194-02012-0 4409-05014-0 4409-05005-0

ﾎ ﾞｰﾙﾍﾞｱﾘﾝｸ ﾞ Cｽﾅｯﾌ ﾟ ﾘﾝｸ ﾞ Cｽﾅｯﾌ ﾟ ﾘﾝｸ ﾞ ｽﾄ ｯﾊﾟ ﾌﾞｯｼｭ

BALL BEARING C-RETAINING RING C-RETAINING RING STOPPER BUSH

1 1 2 1 1

16-1

INC.2.3.11-18

47 67

68 38

36 37

34 39

66 39 30

32

35

40

40

24

16

17 21

3 60

28 61

29 32 1

31

33

63

62 64

2 16

7

44

6

45 46 5

4

18

8

41

13 10

9

12

17 18

62 19

61 63 64

14 19

42

43

11 55 59 58

56 57 49

65 20

50 51

48

54

52 53 27

15

26 23 22 24

21

25

0449-32802-0-10251-0

17操向油圧装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3260-32024-0 2 2630-02029-0 3 2341-36095-1

部品名称

Parts Name

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ

ADAPTER O-RING HOSE

数量 Q'ty 1 INC.2 1 1

4 5 6 7 8

3260-31060-0 2630-02018-0 4225-40000-0 4215-14001-0 3100-31007-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎﾟ ﾝﾌﾟ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ

ADAPTER O-RING PUMP O-RING BOLT

1 1 1 1 2

9 10 11 12 13

2171-10025-0 2170-10032-2 4221-49000-0 2630-02011-0 3260-31039-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｶｯﾌﾟ ﾘﾝｸﾞ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

SPRING WASHER WASHER COUPLING O-RING ADAPTER

2 2 1 1 1

14 15 16 17 18

2630-02018-0 2898-00107-0 2341-11102-4 2341-12102-2 2341-11234-4

Oﾘﾝｸ ﾞ ﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽ ﾎｰｽ

O-RING BAND HOSE HOSE HOSE

1 2 1 1 1

19 20 21 22 23 24

2341-12288-2 4220-02000-0 2341-11146-4 2265-03003-3 2630-02014-0 2341-11150-4

ﾎｰｽ ﾊﾟ ﾜｰｼﾘﾝﾀﾞ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ

HOSE POWER CYLINDER HOSE ADAPTER O-RING HOSE

1 1 1 1 1 1

25 26 27 28 29

2265-03003-3 2630-02014-0 2898-00107-0 3934-11106-0 1445-32009-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾊﾞﾝﾄ ﾞ ｸﾗﾝﾌﾟ ｸﾗﾝﾌﾟ

ADAPTER O-RING BAND CLAMP CLAMP

1 1 1 2 2

30 31 32 33 34

2100-08080-1 2171-08020-0 2170-08016-0 2120-08065-0 3260-62062-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾅｯﾄ ｱﾀﾞﾌﾟ ﾀ

BOLT SPRING WASHER WASHER NUT ADAPTER

2 2 4 2 1

35 36 37 38 39

2632-00008-0 3260-62049-1 2632-00008-0 4216-96000-0 2265-19003-1

Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｵｰﾋ ﾞｯﾄ ﾛｰﾙ ｱﾀﾞﾌﾟ ﾀ

O-RING ADAPTER O-RING ORBITROL ADAPTER

1 1 1 1 2

17-1

INC.5

INC.12 INC.14

INC.65 INC.23

INC.26

INC.35 INC.37

INC.40

備考 Remarks

17操向油圧装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2632-00008-0 41 1446-32007-1 42 2100-10025-1

部品名称

Parts Name

Oﾘﾝｸ ﾞ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ

O-RING BRACKET BOLT

数量 Q'ty 2 1 2

43 44 45 46 47

2170-10020-0 2100-08020-1 2171-08020-0 2170-08016-0 4213-46000-0

ﾜｯｼｬ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌｨ ﾙﾀ

WASHER BOLT SPRING WASHER WASHER FILTER

2 4 4 4 1

48 49 50 51 52

2472-01002-0 4703-14000-0 2100-10020-1 2170-10020-0 1508-32008-1

ｸﾞﾘｰｽﾆｯﾌ ﾟ ﾙ ｷｬｯﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ ﾋﾟ ﾝ

GREASE NIPPLE CAP BOLT WASHER PIN

1 1 1 1 1

53 54 55 56 57

1508-32005-0 1508-32005-0 2100-10020-1 2170-10020-0 1508-32008-1

ｽﾍﾟ ｰｻ ｽﾍﾟ ｰｻ ﾎﾞﾙﾄ ﾜｯｼｬ ﾋﾟ ﾝ

SPACER SPACER BOLT WASHER PIN

2 2 1 1 1

58 59 60 61 62 63

2472-01002-0 4703-14000-0 3416-02060-0 2265-03003-3 2630-02014-0 2265-04004-3

ｸﾞﾘｰｽﾆｯﾌ ﾟ ﾙ ｷｬｯﾌﾟ ｸﾗﾝﾌﾟ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

GREASE NIPPLE CAP CLAMP ADAPTER O-RING ADAPTER

1 1 1 2 2 2

64 65 66 67 68

2630-02018-0 4216-55001-0 4213-46001-0 4213-46002-0 4208-98005-0

Oﾘﾝｸ ﾞ ｼｰﾙｷｯﾄ ｴﾚﾒﾝﾄ ｼｰﾙﾜｯｼｬ ｽｲｯﾁ

O-RING SEAL KIT ELEMENT SEAL WASHER SWITCH

2 1 1 1 1

17-2

備考 Remarks

INC.66-68

INC.62 INC.64

メモ ---memo---

64

19

15

7

17 20 16

24 22

21 18

14

13

62

8

63

23 60

5 4 33

37

38

31

32

1 63

4216-96000-0-31692-0

18Assy(ｵｰﾋﾞｯﾄ ﾛｰﾙ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4216-95002-0 4 4216-95003-0 5 4216-95004-0

部品名称

Parts Name

ﾀﾞｽﾄ ｼｰﾙ Oﾘﾝｸ ﾞ ﾍﾞｱﾘﾝｸﾞ

DUST SEAL O-RING BEARING

数量 Q'ty 1 1 1

7 8 13 14 15

4216-95005-0 4216-95006-0 4216-95007-0 4216-95008-0 4216-96001-0

ｽﾌﾟﾘﾝｸﾞ ﾋﾟﾝ ｼｬﾌﾄ ﾌﾟﾚｰﾄ ﾎｲﾙｷﾞﾔｾｯﾄ

SPRING PIN SHAFT PLATE GEAR WHELL SET

1 1 1 1 1

16 17 18 19 20

4216-95010-0 4216-96002-0 4216-96003-0 4216-96004-0 4216-95014-0

ｶﾊﾞｰ ﾎﾞﾙﾄ ｽﾍﾟｰｻ ﾎﾞﾙﾄ ﾜｯｼｬ

COVER SCREW SPACER BOLT WASHER

1 6 1 1 7

21 22 23 24 31

4216-95015-0 4216-95016-0 4216-95017-0 4216-95018-0 4216-95019-0

Oﾘﾝｸ ﾞ ﾌﾞｯｼﾝｸﾞ ﾁｪ ｯｸﾊﾞﾙﾌﾞ ﾎﾞｰﾙ ﾌﾟﾗｸﾞ

O-RING BUSHING CHECK VALVE BALL PLUG

2 1 1 1 1

32 33 37 38 60 62

4216-95020-0 4216-95021-0 4216-95022-0 4216-95023-0 4216-95024-0 4216-95025-0

ﾜｯｼｬ ﾌﾟﾗｸﾞ ｽﾌﾟﾘﾝｸﾞ ﾌﾟﾗﾝｼﾞｬ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ

WASHER PLUG SPRING PLUNGER O-RING O-RING

1 1 1 1 1 1

63 64

4216-95001-0 4216-95000-0

ｼｰﾙｷｯﾄ ｵｰﾋﾞｯﾄ ﾛｰﾙ

SEAL KIT ORBITROL

1 1

18-1

備考 Remarks

INC.1.4.20.21.32.62

11

7 1

9

10

8

4

3 5

6

2

0446-36804-0-20215-B

19油圧装置(ﾎﾟ ﾝﾌﾟ 取付) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1446-36012-0 2 2101-10035-1 3 2170-10020-0

部品名称

Parts Name

ｶﾊﾞｰ ﾎﾞﾙﾄ ﾜｯｼｬ

COVER BOLT WASHER

数量 Q'ty 1 7 7

4 5 6 7 8

4218-25000-0 2100-12040-3 2170-12032-2 4215-85000-0 3100-00058-0

ﾎﾟ ﾝﾌﾟ ASSY ﾎﾞﾙﾄ ﾜｯｼｬ ｶｯﾌﾟ ﾘﾝｸﾞ ﾎﾞﾙﾄ

PUMP ASSY BOLT WASHER COUPLING BOLT

1 2 2 1 6

9 10 11

2171-08020-0 2170-08016-0 4032-15002-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾋﾟ ﾝ

SPRING WASHER WASHER PIN

6 6 2

19-1

備考 Remarks

11 6 5 4

2 3 1

16 15

7

12

9 10 8

13

14

4218-25000-0

20Assy(ﾎ ﾟ ﾝﾌﾟ 1-3) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4218-25001-0 2 4223-40048-0 3 4223-40049-0

部品名称

Parts Name

ｼｬﾌﾄ Cｽﾅｯﾌ ﾟ ﾘﾝｸ ﾞ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ

SHAFT C-RETAINING RING ROLLER BEARING

数量 Q'ty 1 1 1

4 5 6 7 8

4215-84002-0 4223-40050-0 4223-40051-0 4218-25015-0 4216-44096-0

Oﾘﾝｸ ﾞ ｼｰﾙ ｼｰﾙ ﾋﾟ ﾝ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ

O-RING SEAL SEAL PIN HEAD CAP SCREW

1 1 1 1 2

9 10 11 12 13

4215-84014-0 4223-40041-0 4223-40054-0 4218-25029-0 4218-25036-0

ｶﾞｽｹｯﾄ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ ﾘﾃｰﾆﾝｸ ﾞﾘﾝｸﾞ ｶﾊﾞｰASSY ｼﾘﾝﾀﾞﾌﾞﾛｯｸｷｯﾄ

GASKET HEAD CAP SCREW RETAINING RING COVER ASSY CYLINDER BLOCK KIT

1 4 1 1 1

14 15 16

4218-25034-0 4218-25047-0 4215-84011-0

ﾌﾟ ﾚｰﾄ ｽﾜｯｼｭﾌﾟ ﾚｰﾄ ﾍﾞｱﾘﾝｸﾞASSY

PLATE SWASHPLATE BEARING ASSY

1 1 1

20-1

備考 Remarks

INC.20

22

9 1 2 4 8 5 6 10 11

3 7 15

16 18

15

14 19 20

12 13

17

21

4218-25000-0

21Assy(ﾎﾟ ﾝﾌﾟ 2-3) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4215-84034-0 2 4218-25031-0 3 4223-40041-0

部品名称

Parts Name

ｶﾞｽｹｯﾄ ｶﾊﾞｰ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ

GASKET COVER HEAD CAP SCREW

数量 Q'ty 1 1 5

4 5 6 7 8

4223-40007-0 4218-25033-0 4215-84034-0 4223-40041-0 4223-40007-0

ﾌﾟ ﾗｸﾞASSY ｶﾊﾞｰ ｶﾞｽｹｯﾄ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ ﾌﾟ ﾗｸﾞASSY

PLUG ASSY COVER GASKET HEAD CAP SCREW PLUG ASSY

1 1 1 5 1

9 10 11 12 13

4218-25039-0 4215-84025-0 4218-25054-0 4215-84015-0 4218-25035-0

Oﾘﾝｸ ﾞ ﾘﾝｸﾞ ﾅｯﾄ Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞ

O-RING RING NUT O-RING PLUG

2 1 1 1 1

14 15 16 17 18

4218-25049-0 4201-77059-0 4218-25050-0 4218-25051-0 4218-25052-0

ｶｯﾌﾟ ﾘﾝｸﾞ ﾋﾟ ﾝ ｶﾞｽｹｯﾄ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ ｶﾊﾞｰ

COUPLING 9 TOOTH PIN GASKET HEAD CAP SCREW COVER

1 2 1 7 1

19 20 21 22

4215-84031-0 4218-25053-0 4216-44071-0 4218-25056-0

ｼｰﾙ ｶﾊﾞｰ ﾎﾞﾙﾄ ﾋﾟ ｽﾄ ﾝASSY

SEAL COVER SCREW PISTON ASSY

1 1 2 1

21-1

備考 Remarks

INC.9

10 8

1

9

16

15

21 18

44 23

22

24

3

2

7 6

4

25

5

12 20

19

11

17

32

28 29

23

28 29

34

40

35

26 27

24

43

33

13 14

41

38 39

42 37 36 4218-25000-0

22Assy(ﾎﾟ ﾝﾌﾟ 3-3) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4223-40041-0 2 4223-40069-0 3 4215-84004-0

部品名称

Parts Name

ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ ｺﾝﾄ ﾛｰﾙﾘﾝｸ

HEAD CAP SCREW HEAD CAP SCREW CONTROL LINK

数量 Q'ty 7 1 1

4 5 6 7 8

4215-84005-0 4223-40070-0 4223-40071-0 4223-40030-0 4218-25005-0

ｺﾝﾄ ﾛｰﾙﾘﾝｸ ｱｼﾞｬｽﾀ ﾎﾞﾙﾄ ﾅｯﾄ ﾜｯｼｬ

CONTROL LINK ADJUSTER BOLT NUT WASHER

1 1 1 1 1

9 10 11 12 13

4218-25006-0 4216-44180-0 4218-25011-0 4223-40073-0 4216-44176-0

ｱｰﾑ ﾅｯﾄ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞASSY

ARM NUT PLUG O-RING PLUG ASSY

1 1 1 1 1

14 15 16 17 18

4223-40073-0 4218-25012-0 4218-25013-0 4218-25014-0 4218-25055-0

Oﾘﾝｸ ﾞ ｿﾚﾉ ｲﾄ ﾞﾊﾞﾙﾌﾞ ｺﾈｸﾀ ｽﾌﾟ ｰﾙ ｺﾝﾄ ﾛｰﾙ ASSY

O-RING SOLENOID VALVE CONNECTOR SPOOL CONTROL ASSY

1 2 2 1 1

19 20 21 22 23 24

4223-40077-0 4223-40078-0 4215-84010-0 4218-25027-0 4216-44009-0 4218-38002-0

ｽﾌﾟ ﾘﾝｸﾞ ｱﾀﾞﾌﾟ ﾀ ｶﾞｽｹｯﾄ ﾌﾟ ﾗｸﾞASSY ﾌﾟ ﾗｸﾞASSY Oﾘﾝｸ ﾞ

SPRING ADAPTOR GASKET PLUG ASSY PLUG ASSY O-RING

1 1 1 2 2 2

25 26 27 28 29

4223-40007-0 4216-44009-0 4218-38002-0 4218-25030-0 4216-44032-0

ﾌﾟ ﾗｸﾞASSY ﾌﾟ ﾗｸﾞASSY Oﾘﾝｸ ﾞ ﾊﾞﾙﾌﾞ ｽﾌﾟ ﾘﾝｸﾞ

PLUG ASSY PLUG ASSY O-RING VALVE SPRING

1 1 1 2 2

32 33 34 35 36

4222-00067-0 4218-25037-0 4223-40073-0 4223-40007-0 4206-60012-0

ﾊﾞﾙﾌﾞASSY ﾌﾟ ﾗｸﾞASSY Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞASSY ﾌﾟ ﾗｸﾞASSY

VAVLE ASSY PLUG ASSY O-RING PLUG ASSY PLUG ASSY

2 1 1 1 1

37 38 39 40 41

4202-53062-0 4216-47022-0 4216-44161-0 4216-47023-0 4216-44160-0

Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞASSY ﾅｯﾄ ｽﾌﾟ ﾘﾝｸﾞ ﾎﾟ ﾍﾟ ｯﾄ

O-RING PLUG ASSY NUT SPRING POPPET

1 1 1 1 1

22-1

備考 Remarks

INC.12 INC.14

INC.24

INC.27

INC.34

INC.37

22Assy(ﾎﾟ ﾝﾌﾟ 3-3) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 42 4202-08018-0 43 4222-00064-0 44 4223-40061-0

部品名称 Oﾘﾝｸ ﾞ ﾊﾞﾙﾌﾞASSY ﾌﾞﾗｹｯﾄ

Parts Name O-RING VALVE ASSY BRACKET

22-2

数量 備考 Q'ty Remarks 1 1 INC.38-42 1

メモ ---memo---

51

52

53

54

36 37

38 39

1

3 42 41 6

64 2

4 35

5 43 40

67

66 65

12 11

50

13 10 68 9 55

44

54

34 45

46

33

57

56

58

47

49

48

60

28 30 29 16

32 31

59 26

27

7 8

17

20

44

62

22

61

15

23 24

25 18

45 14 63

21

19

56

55 0449-36806-0-10252-0

23油圧装置(ﾌﾛﾝﾄ ﾄ ﾞﾗｲﾌ ﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1448-36020-0 2 2898-00107-0 3 0449-36002-0

部品名称

Parts Name

ﾌｴﾙﾄ ﾊﾞﾝﾄ ﾞ ﾀﾝｸASSY

FELT BAND TANK ASSY

数量 Q'ty 1 2 1

備考 Remarks

4 5 6 7 8

2100-10020-1 2170-10020-0 2341-14066-1 3260-62104-0 2632-00012-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

BOLT WASHER HOSE ADAPTER O-RING

2 2 1 1 1

9 10 11 12 13

3260-31050-0 2630-02018-0 2341-12050-2 1447-36012-0 2898-00107-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ ﾌｴﾙﾄ ﾊﾞﾝﾄ ﾞ

ADAPTER O-RING HOSE FELT BAND

1 1 1 1 2

INC.10

14 15 16 17 18

2265-14002-0 2632-00006-0 3260-62087-0 2632-00006-0 1448-36017-1

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

ADAPTER O-RING ADAPTER O-RING ADAPTER

1 1 1 1 1

INC.15

19 20 21 22 23 24

2632-00012-0 2265-04004-3 2630-02018-0 1448-36017-1 2632-00012-0 2265-04004-3

Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

O-RING ADAPTER O-RING ADAPTER O-RING ADAPTER

1 1 1 1 1 1

25 26 27 28 29

2630-02018-0 2215-06001-2 2630-02024-0 2100-08020-1 2170-08016-0

Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ

O-RING PLUG O-RING BOLT WASHER

1 1 1 2 2

30 31 32 33 34

2171-08020-0 1446-36021-1 2292-06200-0 2291-00032-0 2340-14050-1

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ｼﾞｮ ｲﾝﾄ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ

SPRING WASHER JOINT HOSE NIPPLE HOSE CLAMP HOSE

2 1 1 1 1

35 36 37 38 39

2340-12060-1 2100-10040-1 2170-10020-0 2100-10040-1 2170-10020-0

ﾎｰｽ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

HOSE BOLT WASHER BOLT WASHER

1 1 1 1 1

23-1

INC.8

INC.17 INC.19 INC.21 INC.23 INC.25 INC.27

23油圧装置(ﾌﾛﾝﾄ ﾄ ﾞﾗｲﾌ ﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 3934-01758-0 41 2340-32060-1 42 3291-00017-0

部品名称

Parts Name

ｽﾍﾟ ｰｻ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ

SPACER HOSE HOSE CLAMP

数量 Q'ty 1 1 1

43 44 45 46 47

3291-00017-0 2341-10196-2 2341-10204-2 2265-02002-6 2630-02011-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

HOSE CLAMP HOSE HOSE ADAPTER O-RING

1 1 1 1 1

48 49 50 51 52

2265-02002-3 2630-02011-0 1448-36007-0 1446-36022-0 2100-08012-1

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｸﾗﾝﾌﾟ ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ

ADAPTER O-RING CLAMP CLAMP BOLT

1 1 1 1 2

53 54 55 56 57

2170-08023-2 2341-32080-1 2341-12208-6 2341-12214-6 2265-04004-6

ﾜｯｼｬ ﾎｰｽ ﾎｰｽ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ

WASHER HOSE HOSE HOSE ADAPTER

2 1 1 1 1

58 59 60 61 62 63

2630-02018-0 3260-36150-0 2630-02018-0 3260-31156-0 2630-02018-0 4218-30000-0

Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾓｰﾀ

O-RING ADAPTER O-RING ADAPTER O-RING MOTOR

1 1 1 1 1 1

64 65 66 67 68

1448-36016-0 2100-08012-1 2170-08016-0 1446-36039-0 1448-36016-0

ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ｸﾗﾝﾌﾟ

CLAMP BOLT WASHER BRACKET CLAMP

1 1 1 1 1

23-2

備考 Remarks

INC.47 INC.49

INC.58 INC.60 INC.62

メモ ---memo---

30 32 33 8 7

31 35 34

9

1 3 2 6

25 37

38

36

5

38

39 4

19

28

20 29 23 24 21 22

18

27 10

26

17

16 12 11

14 15 13

0449-36002-0-20231-0

24Assy(ﾀﾝｸ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3100-00065-0 2 2170-08016-0 3 2171-08020-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

BOLT WASHER SPRING WASHER

数量 Q'ty 12 12 12

備考 Remarks

4 5 6 7 8

1446-36054-0 1446-36042-0 1446-36051-0 4423-93000-0 2182-06020-0

ﾀﾝｸ ﾊﾟ ｯｷﾝ ｶﾊﾞｰ ﾌｨ ﾗｰ ｺﾈｼﾞ

TANK PACKING COVER FILLER SCREW

1 1 1 1 3

9 10 11 12 13

4406-43005-0 4205-50000-0 2215-06001-2 2630-02024-0 2265-03003-6

ﾊﾟ ｯｷﾝ ﾌｨ ﾙﾀ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

PACKING FILTER PLUG O-RING ADAPTER

1 1 1 1 1

14 15 16 17 18

2630-02014-0 2265-06006-6 2630-02024-0 3260-31154-0 2630-02014-0

Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

O-RING ADAPTER O-RING ADAPTER O-RING

1 1 1 1 1

19 20 21 22 23 24

2265-02002-3 2630-02011-0 2265-04004-3 2630-02018-0 2265-04004-6 2630-02018-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

ADAPTER O-RING ADAPTER O-RING ADAPTER O-RING

1 1 1 1 1 1

INC.20

25 26 27 28 29

4221-65000-1 2265-06006-6 2630-02024-0 2265-04004-2 2630-02018-0

ﾚﾍﾞﾙｹﾞｰｼﾞASSY ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

LEVEL GAUGE ASSY ADAPTER O-RING ADAPTER O-RING

1 1 1 1 1

INC.36-39 INC.27

30 31 32 33 34

4423-93001-0 4406-43003-0 4406-43004-0 2194-05620-1 4406-43007-0

ｷｬｯﾌﾟ ﾌｨ ﾙﾀ ﾊﾟ ｯｷﾝ C-ｽﾅｯﾌ ﾟ ﾘﾝｸﾞ ﾁｪ ｰﾝ

CAP FILTER PACKING C-RETAINING-RING CHAIN

1 1 1 1 1

INC.32.34

35 36 37 38 39

2157-30030-0 4221-65005-0 4221-65002-0 2179-10016-0 4221-65004-0

ﾜﾘﾋﾟ ﾝ ﾚﾍﾞﾙｹﾞｰｼﾞ ﾎﾞﾙﾄ ｼｰﾙﾜｯｼｬ ﾌﾛｰﾄ

SPLIT PIN LEVEL GAUGE BOLT SEAL WASHER FLOAT

2 1 2 4 1

24-1

INC.8.9.20-35

INC.12 INC.14 INC.16 INC.18

INC.22 INC.24

INC.29

INC.35

6

2

3

5

4

7

9

12

10

8

4218-30000-0

25Assy(ﾌﾛﾝﾄ ﾓｰﾀ1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 2 4218-30002-0 3 4218-30003-0 4 4218-30004-0

部品名称

Parts Name

ｼｬﾌﾄ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ

SHAFT ROLLER BEARING ROLLER BEARING

数量 Q'ty 1 1 1

5 6 7 8 9

4218-30005-0 4218-30006-0 4218-30007-0 4218-30008-0 4218-30009-0

ｵｲﾙｼｰﾙ ﾀﾞｽﾄ ｼｰﾙ ﾜｯｼｬ ｼﾑｾｯﾄ Cｽﾅｯﾌ ﾟﾘﾝｸ ﾞ

OIL SEAL DUST SEAL WASHER SHIM SET C-RETAINING RING

1 1 1 1 1

10 12

4218-30010-0 4218-30012-0

ｼﾘﾝﾀﾞﾌﾞﾛｯｸ Oﾘﾝｸ ﾞ

CYLINDER BLOCK O-RING

1 2

25-1

備考 Remarks

4

5

56

6

55

51

52

53

49

48 17

11

54

12

46

3

57 9

10

8

19

58 40

2

20

45 42

44

43

7

41 22 47

21 18

16

24

37

39

23

13

34 30 14

31

28

29

27

26

36 33 25 35

15

32

4218-30000-0

26Assy(ﾌﾛﾝﾄ ﾓｰﾀ2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 2 4218-30014-0 3 4218-30015-0 4 4218-30016-0

部品名称

Parts Name

ﾃﾞｲｽﾄ ﾘﾋ ﾞｭｰﾀ ｼｰﾙﾘﾝｸﾞ ｼｰﾙﾘﾝｸﾞ

DISTRIBUTOR SEAL RING SEAL RING

数量 Q'ty 1 1 1

5 6 7 8 9

4218-30017-0 4215-82004-0 4218-30018-0 4218-30019-0 4218-30020-0

ｼｰﾙﾘﾝｸﾞ ｼｰﾙﾘﾝｸﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ

SEAL RING SEAL RING O-RING O-RING O-RING

1 1 1 1 1

10 11 12 13 14

4215-82008-0 4201-77017-0 4218-29013-0 4218-29015-0 4218-29014-0

Oﾘﾝｸ ﾞ ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ

O-RING PIN SPRING PLUG O-RING

1 1 8 3 4

15 16 17 18 19

4218-30021-0 4218-30022-0 4216-45018-0 4218-30023-0 4218-30024-0

ﾌﾟﾗｸﾞ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ Oﾘﾝｸ ﾞ ｽﾌﾟｰﾙ ｽﾌﾟﾘﾝｸﾞ

PLUG HEAD CAP SCREW O-RING SPOOL SPRING

1 12 1 1 1

20 21 22 23 24 25

4218-30025-0 4218-30026-0 4218-30027-0 4218-29024-0 4215-82014-0 4218-29037-0

ﾘﾝｸﾞ ｽﾅｯﾌ ﾟﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ ｽﾌﾟｰﾙ

RING RETAINING RING O-RING PLUG O-RING SPOOL

1 1 1 1 1 1

26 27 28 29 30

4218-29038-0 4216-47019-0 4218-29039-0 4218-29040-0 4223-55008-0

ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ ﾌﾟﾗｸﾞ

PLUG O-RING WASHER SPRING PLUG

2 2 2 2 2

31 32 33 34 35

4218-38004-0 4216-44160-0 4216-47023-0 4216-47022-0 4215-84022-0

Oﾘﾝｸ ﾞ ﾎ ﾟﾍﾟｯﾄ ｽﾌﾟﾘﾝｸﾞ ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ

O-RING POPPET SPRING PLUG O-RING

2 1 1 1 1

36 37 38 39 40

4216-44161-0 4218-30028-0 4218-30029-0 4218-30030-0 4218-30031-0

ﾅｯﾄ ﾊｳｼﾞﾝｸﾞ ｶﾊﾞｰ ﾋﾟｽﾄ ﾝ ｼｬﾌﾄ

NUT HOUSING COVER PISTON SHAFT

1 1 1 1 1

26-1

備考 Remarks

26Assy(ﾌﾛﾝﾄ ﾓｰﾀ2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 41 4218-30032-0 42 4218-30033-0 43 4218-30034-0

部品名称

Parts Name

ｽﾌﾟﾘﾝｸﾞ ﾌﾘｸｼｮ ﾝﾌﾟﾚｰﾄ ﾌﾟﾚｰﾄ

SPRING FRICTION PLATE PLATE

数量 Q'ty 1 14 15

44 45 46 47 48

4218-30035-0 4218-29031-0 4218-29032-0 4205-01123-0 4218-30036-0

ｼﾑｾｯﾄ ｽﾌﾟﾘﾝｸﾞ ｽﾁｰﾙﾎﾞｰﾙ ﾋﾟﾝ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ

SHIM SET SPRING STEEL BALL PIN HEAD CAP SCREW

1 1 1 1 13

49 50 51 52 53

4218-30037-0 4218-30038-0 4218-30039-0 4218-30040-0 4218-30041-0

ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ

HEAD CAP SCREW O-RING O-RING O-RING O-RING

8 1 1 1 13

54 55 56 57 58

4218-30042-0 4218-31003-0 4215-82014-0 4218-29016-0 4218-29017-0

ｼﾞｬｰﾅﾙ ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ ﾌﾟﾗｸﾞ Oﾘﾝｸ ﾞ

JOURNAL PLUG O-RING PLUG O-RING

1 2 2 1 1

26-2

備考 Remarks

メモ ---memo---

20

20

52

53 50 56

51

55 59 47

54

57

58

48

20

61 49

20

36

60 30

27 28

33 34

29

35

44 69 68 67

31 45 64

72

40

62

73

65

54

57

66 100

101

99 20

71

92 93

17

80

4

18

15

19

19

5 105

2 21 83

5 22

1 10 9

16

29

91

94

84

17

33

95 81

18

15

16

103

82

79 78 76 75

36

96 98 97

102

50

104

77

39 42

43

41 74

70

3

37

46 63

4

38 32

85

23 25 24

2 86

26

51

87 89 106 88

15 16

30

108

1 6

90

107 11

12 14 13

7 8

0449-36807-0-10261-0

27油圧装置(ﾘﾔﾄ ﾞﾗｲﾌ ﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2341-10158-2 2 2341-10188-2 3 1446-36048-0

部品名称

Parts Name

ﾎｰｽ ﾎｰｽ ﾌｴﾙﾄ

HOSE HOSE FELT

数量 Q'ty 1 1 1

4 5 6 7 8

2898-00107-0 2341-12156-1 2100-10020-1 2170-10020-0 1446-36036-1

ﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎﾞﾙﾄ ﾜｯｼｬ ﾍﾞｰｽ

BAND HOSE BOLT WASHER BASE

2 1 3 3 1

9 10 11 12 13

3260-62103-1 2632-00008-0 1447-36010-0 2100-08020-1 2170-08016-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ

ADAPTER O-RING BRACKET BOLT WASHER

1 1 1 2 2

14 15 16 17 18

2171-08020-0 1447-36012-0 2898-00103-0 2341-12258-6 2341-12269-6

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾌｴﾙﾄ ﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽ

SPRING WASHER FELT BAND HOSE HOSE

2 3 6 1 1

19 20 21 22 23 24

2898-00107-0 2898-00107-0 1446-36048-0 2898-00107-0 2100-08020-1 2170-08016-0

ﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ ﾌｴﾙﾄ ﾊﾞﾝﾄ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ

BAND BAND FELT BAND BOLT WASHER

2 5 1 3 2 2

25 26 27 28 29

2171-08020-0 1446-36030-0 1413-36001-1 2898-00107-0 2341-30078-2

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾍﾞｰｽ ﾗﾊﾞｰ ﾊﾞﾝﾄ ﾞ ﾎｰｽ

SPRING WASHER BASE RUBBER BAND HOSE

2 1 1 2 1

30 31 32 33 34

2341-31100-6 2265-02002-3 2630-02011-0 2341-31094-1 3260-31060-0

ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ

HOSE ADAPTER O-RING HOSE ADAPTER

1 1 1 1 1

35 36 37 38 39

2630-02018-0 2341-31106-6 3260-31157-0 2630-02014-0 3260-31060-0

Oﾘﾝｸ ﾞ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

O-RING HOSE ADAPTER O-RING ADAPTER

1 1 1 1 1

27-1

備考 Remarks

INC.10

INC.32

INC.35

INC.38 INC.40

27油圧装置(ﾘﾔﾄ ﾞﾗｲﾌ ﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2630-02018-0 41 4218-34000-0 42 2100-16040-3

部品名称

Parts Name

Oﾘﾝｸ ﾞ ﾓｰﾀ ﾎﾞﾙﾄ

O-RING MOTOR BOLT

数量 Q'ty 1 1 6

43 44 45 46 47

2170-16045-2 1449-36003-0 2100-20080-3 2170-20060-2 2100-16040-3

ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ

WASHER BRACKET BOLT WASHER BOLT

6 1 4 4 6

48 49 50 51 52

2170-16045-2 4218-34000-0 2341-30078-2 2341-31100-6 2265-02002-3

ﾜｯｼｬ ﾓｰﾀ ﾎｰｽ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ

WASHER MOTOR HOSE HOSE ADAPTER

6 1 1 1 1

53 54 55 56 57

2630-02011-0 2341-31097-1 3260-31060-0 2630-02018-0 2341-31106-6

Oﾘﾝｸ ﾞ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ

O-RING HOSE ADAPTER O-RING HOSE

1 1 1 1 1

58 59 60 61 62 63

3260-31157-0 2630-02014-0 3260-31060-0 2630-02018-0 2100-08020-1 2170-08016-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ

ADAPTER O-RING ADAPTER O-RING BOLT WASHER

1 1 1 1 2 2

64 65 66 67 68

2171-08020-0 3380-01023-0 3417-03002-0 2170-08016-0 2171-08020-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾊﾞﾙﾌﾞ Uﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

SPRING WASHER VALVE U-BOLT WASHER SPRING WASHER

2 1 1 2 2

69 70 71 72 73

2120-08065-0 2261-03003-2 2341-31083-6 1447-36011-1 2261-03003-2

ﾅｯﾄ ｱﾀﾞﾌﾟ ﾀ ﾎｰｽ ﾌﾞﾗｹｯﾄ ｱﾀﾞﾌﾟ ﾀ

NUT ADAPTER HOSE BRACKET ADAPTER

2 1 1 1 1

74 75 76 77 78

2341-31078-6 1448-36012-0 3934-11105-0 2100-08080-1 2170-08016-0

ﾎｰｽ ｸﾗﾝﾌﾟ ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ

HOSE CLAMP CLAMP BOLT WASHER

1 1 1 1 1

27-2

備考 Remarks

INC.53

INC.56

INC.59 INC.61

27油圧装置(ﾘﾔﾄ ﾞﾗｲﾌ ﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 79 2171-08020-0 80 2100-08080-1 81 2170-08016-0

部品名称

Parts Name

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

SPRING WASHER BOLT WASHER

数量 Q'ty 1 2 2

82 83 84 85 86

2171-08020-0 1448-36009-0 3934-12120-0 2265-14002-5 2632-00006-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ｸﾗﾝﾌﾟ ｸﾗﾝﾌﾟ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

SPRING WASHER CLAMP CLAMP ADAPTER O-RING

2 1 1 1 1

87 88 89 90 91

3100-06127-0 2170-08016-0 2171-08020-0 4218-35000-0 1449-36004-1

ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾊﾞﾙﾌﾞ ﾌﾞﾗｹｯﾄ

BOLT WASHER SPRING WASHER VALVE BRACKET

2 2 2 1 1

92 93 94 95 96

3260-31161-0 2632-00008-0 3260-31108-0 2630-02014-0 2100-08020-1

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ

ADAPTER O-RING ADAPTER O-RING BOLT

1 1 1 1 2

97 98 99 100 101 102

2170-08016-0 2171-08020-0 3260-31034-0 2630-02014-0 2265-03003-3 2630-02014-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾃｨ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

WASHER SPRING WASHER TEE O-RING ADAPTER O-RING

2 2 1 1 1 1

103 104 105 106 107

2265-02002-3 2630-02011-0 2265-19003-0 2632-00008-0 2265-19003-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

ADAPTER O-RING ADAPTER O-RING ADAPTER

1 1 1 1 1

108

2632-00008-0

Oﾘﾝｸ ﾞ

O-RING

1

27-3

備考 Remarks

INC.86

INC.93 INC.95

INC.100 INC.102 INC.104 INC.106 INC.108

6

3

2

5

4

7

9

12

10

8

4218-34000-0

28Assy(ﾘﾔﾓｰﾀ1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 2 4218-32001-0 3 4218-29003-0 4 4218-29004-0

部品名称

Parts Name

ｼｬﾌﾄ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ

SHAFT ROLLER BEARING ROLLER BEARING

数量 Q'ty 1 1 1

5 6 7 8 9

4215-82021-0 4215-82022-0 4218-29005-0 4218-29006-0 4218-29007-0

ｵｲﾙｼｰﾙ ﾀﾞｽﾄ ｼｰﾙ ﾜｯｼｬ ｼﾑｾｯﾄ Cｽﾅｯﾌ ﾟﾘﾝｸ ﾞ

OIL SEAL DUST SEAL WASHER SHIM SET C-RETAINING RING

1 1 1 1 1

10 12

4218-32003-0 4215-82003-0

ｼﾘﾝﾀﾞﾌﾞﾛｯｸｷｯﾄ Oﾘﾝｸ ﾞ

CYLINDER BLOCK KIT O-RING

1 2

28-1

備考 Remarks

4

38

5

37

33

35 31 30 9

16

34

36

32

27

28

10 3

37

38 2 22

20

24

26

25

6

23

15

7

29

8

19

21

12 11

14

18

17 13

4218-32000-0

29Assy(ﾘﾔﾓｰﾀ2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 2 4218-29012-0 3 4215-82004-0 4 4215-82005-0

部品名称

Parts Name

ﾃﾞｨ ｽﾄ ﾘﾋ ﾞｭｰﾀ ｼｰﾙﾘﾝｸﾞ ｼｰﾙﾘﾝｸﾞ

DISTRIBUTOR SEAL RING SEAL RING

数量 Q'ty 1 1 1

5 6 7 8 9

4215-82007-0 4215-82008-0 4215-82009-0 4215-82010-0 4201-77017-0

ｼｰﾙﾘﾝｸﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ ﾋﾟ ﾝ

SEAL RING O-RING O-RING O-RING PIN

1 1 1 2 1

10 11 12 13 14

4218-29013-0 4218-29014-0 4218-29015-0 4218-29016-0 4218-29017-0

ｽﾌﾟ ﾘﾝｸﾞ Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ

SPRING O-RING PLUG PLUG O-RING

6 2 2 1 1

15 16 17 18 19

4218-29018-0 4215-82011-0 4218-29035-0 4215-82014-0 4218-29025-0

ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ Oﾘﾝｸ ﾞ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ ﾊｳｼﾞﾝｸﾞ

HEAD CAP SCREW O-RING PLUG O-RING HOUSING

12 1 1 1 1

20 21 22 23 24 25

4218-29026-0 4218-29027-0 4218-29028-0 4218-29029-0 4215-82015-0 4215-82016-0

ｶﾊﾞｰ ﾋﾟ ｽﾄ ﾝ ｼｬﾌﾄ ｽﾌﾟ ﾘﾝｸﾞ ﾌﾘｸｼｮ ﾝﾌﾟ ﾚｰﾄ ﾌﾟ ﾚｰﾄ

COVER PISTON SHAFT SPRING FRICTION PLATE PLATE

1 1 1 1 14 15

26 27 28 29 30

4218-29030-0 4218-29031-0 4218-29032-0 4205-01123-0 4218-29033-0

ｼﾑｷｯﾄ ｽﾌﾟ ﾘﾝｸﾞ ｽﾁｰﾙﾎﾞｰﾙ ﾋﾟ ﾝ ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ

SHIM KIT SPRING STEEL BALL PIN HEAD CAP SCREW

1 1 1 1 12

31 32 33 34 35

4216-44096-0 4215-82017-0 4215-82018-0 4215-82019-0 4215-82020-0

ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ

HEAD CAP SCREW O-RING O-RING O-RING O-RING

8 1 1 1 12

36 37 38

4218-29034-0 4218-29035-0 4215-82014-0

ｼﾞｬｰﾅﾙ ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ

JOURNAL PLUG O-RING

1 3 3

29-1

備考 Remarks

7

4

2

1

3

5

6

4218-35000-0

30Assy(ﾊﾞﾙﾌﾞ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4218-35003-0 2 4218-35002-0 3 4218-35005-0 4 5 6 7

4218-35004-0 4218-35006-0 4218-35007-0 4218-35000-0

部品名称

Parts Name

ﾊﾞﾙﾌﾞ ﾁｪ ｯｸﾊﾞﾙﾌﾞ ｵﾘﾌｨ ｽ

VALVE CHECK VALVE ORIFICE

ﾎﾞﾃﾞｨ ﾌﾟ ﾗｸﾞ ﾌﾟ ﾗｸﾞ ﾊﾞﾙﾌﾞ

BODY PLUG PLUG VALVE

30-1

数量 Q'ty 1 2 1 1 1 3 1

備考 Remarks

INC.1-6

2

3

52

24

52

21 22 23 1

50 37

15

14

36

13

35

12

4

20

5 19 8

26

7 5

6 16

17

18

40 39 9 34

10

16

41

38

11

51

53 31

49

25

1

44 33

26 32

48 43

47

45

42

46 25

28 30 27 29

34

0449-49804-0-10254-0 0449-49805-0-10255-0

31油圧装置(振動) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2341-12134-2 2 1449-49006-0 3 2898-00107-0

部品名称

Parts Name

ﾎｰｽ ﾌﾞﾗｹｯﾄ ﾊﾞﾝﾄ ﾞ

HOSE BRACKET BAND

数量 Q'ty 1 1 Dom. 1 Dom.

4 5 6 7 8

2100-10100-1 2170-10032-2 2120-10080-0 1447-49003-0 4028-40004-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ ｶﾊﾞｰ ﾊﾟ ｯｷﾝ

BOLT WASHER NUT COVER PACKING

2 4 2 1 1

9 10 11 12 13

2100-06020-1 2171-06015-0 2170-06016-0 2100-08012-1 2170-08023-2

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

BOLT SPRING WASHER WASHER BOLT WASHER

4 4 4 2 2

14 15 16 17 18

1446-49001-0 1446-36022-0 2341-12056-5 2265-04004-3 2630-02018-0

ｸﾗﾝﾌﾟ ｸﾗﾝﾌﾟ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

CLAMP CLAMP HOSE ADAPTER O-RING

1 1 1 1 1

19 20 21 22 23 24

2265-12012-2 2630-02038-0 2341-30062-2 3260-31189-0 2632-00010-0 1449-49003-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｵﾘﾌｨ ｽ

ADAPTER O-RING HOSE ADAPTER O-RING ORIFICE

1 1 1 1 1 1

25 26 27 28 29

2341-22085-5 2341-11140-1 2265-22004-1 2632-00010-0 3260-61091-0

ﾎｰｽ ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

HOSE HOSE ADAPTER O-RING ADAPTER

1 1 1 1 1

30 31 32 33 34

2632-00006-0 4217-54000-1 2265-22004-1 2632-00010-0 2341-12086-5

Oﾘﾝｸ ﾞ ﾓｰﾀ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎｰｽ

O-RING MOTOR ADAPTER O-RING HOSE

1 1 1 1 1

35 36 37 38 39

2341-12036-1 1449-49001-0 2632-00012-0 2100-10020-1 2170-10020-0

ﾎｰｽ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ

HOSE ADAPTER O-RING BOLT WASHER

1 1 1 3 3

31-1

INC.18 INC.20 Dom. INC.23

INC.28 INC.30 INC.53 INC.33

INC.37

備考 Remarks

31油圧装置(振動) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 3260-62029-0 41 2632-00008-0 42 3260-62062-0

部品名称

Parts Name

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｱﾀﾞﾌﾟ ﾀ

ADAPTER O-RING ADAPTER

数量 Q'ty 1 INC.41 1 1 INC.43

43 44 45 46 47

2632-00008-0 1449-49005-0 4225-41000-0 3260-62013-0 2632-00008-0

Oﾘﾝｸ ﾞ ﾍﾞｰｽ ﾊﾞﾙﾌﾞ ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ

O-RING BASE VALVE ADAPTER O-RING

1 1 1 1 1

48 49 50 51 52

3260-62062-0 2632-00008-0 3416-02055-0 1449-49007-0 3215-13024-0

ｱﾀﾞﾌﾟ ﾀ Oﾘﾝｸ ﾞ ｸﾗﾝﾌﾟ ﾗﾊﾞｰ ﾌﾟ ﾗｸﾞ

ADAPTER O-RING CLAMP RUBBER PLUG

1 1 1 1 2

53

4217-54001-0

ｼｰﾙｷｯﾄ

SEAL KIT

1

31-2

INC.47 INC.49

Exp.

備考 Remarks

メモ ---memo---

24 3

7

1

10

8

4

2

9

26

11

22

5

25

27

23

21

20

6

28 34

15

33 14

16 17

19

12

32

13 58

18 30

31

57

29 48

36 44

43

35

59 41 63

40

41

50

53

42 54

60 61 62

49

38

45

37 39

52

51

56

55

44

47 43

46

65

64

48 47

46 0449-43802-0-10253-0

32振動ﾛｰﾙ 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2100-16050-3 2 2170-16045-2 3 4716-03000-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾟ ﾗｸﾞ

BOLT WASHER PLUG

数量 Q'ty 7 7 7

4 5 6 7 8

1448-43018-3 2100-18040-3 2170-18045-2 2100-12030-3 2170-12032-2

ﾌﾟ ﾚｰﾄ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

PLATE BOLT WASHER BOLT WASHER

1 6 6 8 8

9 10 11 12 13

4710-23000-0 2100-12050-3 2170-12032-2 2100-12030-3 2170-12032-2

ﾀﾞﾝﾊﾟ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

DAMPER BOLT WASHER BOLT WASHER

2 8 8 1 1

14 15 16 17 18

4710-23000-0 2100-12050-3 2170-12032-2 2100-12030-3 2170-12032-2

ﾀﾞﾝﾊﾟ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ

DAMPER BOLT WASHER BOLT WASHER

1 4 4 4 4

19 20 21 22 23 24

1443-43015-0 2194-05020-0 1449-43013-0 2100-18050-3 2170-18045-2 2100-16040-3

ﾃﾞｨ ｽｸ C-ｽﾅｯﾌ ﾟ ﾘﾝｸﾞ ﾎﾙﾀﾞ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞﾙﾄ

DISC RETAINING RING HOLDER BOLT WASHER BOLT

1 1 1 6 6 8

25 26 27 28 29

2170-16045-2 2630-01300-1 2630-01190-1 3511-41038-0 1449-43006-0

ﾜｯｼｬ Oﾘﾝｸ ﾞ Oﾘﾝｸ ﾞ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ ｼｬﾌﾄ

WASHER O-RING O-RING ROLLER BEARING SHAFT

8 1 1 1 1

30 31 32 33 34

3511-41038-0 2630-01300-1 2100-16040-3 2170-16045-2 1446-43025-0

ﾛｰﾗﾍﾞｱﾘﾝｸﾞ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾞｽ

ROLLER BEARING O-RING BOLT WASHER BOSS

1 1 8 8 1

35 36 37 38 39

2215-03001-2 2630-02014-0 2100-16050-3 2170-16045-2 4716-03000-0

ﾌﾟ ﾗｸﾞ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾟ ﾗｸﾞ

PLUG O-RING BOLT WASHER PLUG

3 3 7 7 7

32-1

備考 Remarks

INC.36

32振動ﾛｰﾙ 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 1448-43017-3 41 2513-32018-2 42 3479-02007-0

部品名称

Parts Name

ﾌﾟ ﾚｰﾄ ﾛｰﾗﾍﾞｱﾘﾝｸﾞ ﾌﾞﾘｰｻﾞ

PLATE ROLLER BEARING BREATHER

数量 Q'ty 1 2 1

43 44 45 46 47

2100-12030-3 2170-12032-2 2630-01080-1 2100-12050-3 2170-12032-2

ﾎﾞﾙﾄ ﾜｯｼｬ Oﾘﾝｸ ﾞ ﾎﾞﾙﾄ ﾜｯｼｬ

BOLT WASHER O-RING BOLT WASHER

8 8 1 8 8

48 49 50 51 52

4710-23000-0 1446-43019-1 2150-06032-0 2100-10035-3 2170-10032-2

ﾀﾞﾝﾊﾟ ｽﾘｰﾌ ﾞ ｽﾌﾟ ﾘﾝｸﾞﾋﾟ ﾝ ﾎﾞﾙﾄ ﾜｯｼｬ

DAMPER SLEEVE SPRING PIN BOLT WASHER

2 1 2 4 4

53 54 55 56 57

1446-43009-0 1446-43011-2 2100-10025-1 2170-10020-0 1448-43021-1

ｶﾊﾞｰ ｶﾊﾞｰ ﾎﾞﾙﾄ ﾜｯｼｬ ﾛｰﾙ

COVER COVER BOLT WASHER ROLL

1 1 6 6 1

58 59 60 61 62 63

2603-04498-0 1448-43010-0 2932-05108-0 2932-10108-0 2932-30108-0 2630-01140-1

ｵｲﾙｼｰﾙ ﾃﾞｨ ｽｸ ｼﾑ ｼﾑ ｼﾑ Oﾘﾝｸ ﾞ

OIL SEAL DISC SHIM SHIM SHIM O-RING

1 1 0 0 0 1

64 65

3100-52044-0 2170-10032-2

ﾎﾞﾙﾄ ﾜｯｼｬ

BOLT WASHER

2 2

32-2

備考 Remarks

AR (t0.05) AR (t0.1) AR (t0.3)

メモ ---memo---

1

2

3 3

2 1

12

4 5 4 5 9 8

10 13 11

26

24

25

6

18 16

26

17 15

22

14

21

20 19

17 18

7 23

0446-51802-0-10194-A

33制動装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2157-30020-0 2 2170-10020-0 3 1445-51002-0

部品名称

Parts Name

ﾜﾘﾋﾟ ﾝ ﾜｯｼｬ ﾛｯﾄ ﾞ

SPLIT PIN WASHER ROD

数量 Q'ty 2 2 2

4 5 6 7 8

2120-10080-0 2405-10043-0 0446-51002-0 3823-10011-0 3120-01073-0

ﾅｯﾄ ﾛｯﾄ ﾞｴﾝﾄ ﾞ ﾍﾟ ﾀﾞﾙASSY ﾏｲｸﾛｽｲｯﾁ ﾅｯﾄ

NUT ROD END PEDAL ASSY MICRO SWITCH NUT

2 2 1 1 1

9 10 11 12 13

2170-10020-0 2100-10025-1 2120-10080-0 2100-10050-1 3910-04014-0

ﾜｯｼｬ ﾎ ﾞﾙﾄ ﾅｯﾄ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞ

WASHER BOLT NUT BOLT SPRING

1 1 1 1 1

14 15 16 17 18

2100-10020-1 2170-10020-0 1446-51004-1 2119-10025-0 2121-10080-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎ ﾞﾙﾄ ﾅｯﾄ

BOLT WASHER BRACKET BOLT NUT

2 2 1 2 2

19 20 21 22 23 24

2100-08020-1 2171-08020-0 2170-08016-0 1441-51004-0 3120-01136-0 4416-54000-0

ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾋﾟ ﾝ ﾅｯﾄ ﾍﾟ ﾀﾞﾙｶﾊﾞｰ

BOLT SPRING WASHER WASHER PIN NUT PEDAL COVER

1 1 1 1 2 1

25 26

1446-51003-0 2580-20020-1

ﾍﾟ ﾀﾞﾙ ﾌﾞｯｼｭ

PEDAL BUSH

1 2

33-1

備考 Remarks

INC.24-26

17

1 2

3

24

25

4

22

5 16

6

14 13

15 12

11 23

8

27 18

26

19

9

20

10

7

21

0445-61801-0-10043-C

34ﾌﾚｰﾑ(ｾﾝﾀｰﾋ ﾟﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2100-16050-3 2 2170-16045-2 3 1445-61067-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ

BOLT WASHER BRACKET

数量 Q'ty 4 4 1

4 5 6 7 8

2472-01003-0 2100-16060-3 2170-16045-2 1445-61068-0 2472-01003-0

ｸﾞﾘｰｽﾆｯﾌ ﾟﾙ ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ｸﾞﾘｰｽﾆｯﾌ ﾟﾙ

GREASE NIPPLE BOLT WASHER BRACKET GREASE NIPPLE

1 12 12 1 1

9 10 11 12 13

2100-16050-3 2170-16045-2 1445-61066-0 4417-63000-1 2100-16060-3

ﾎﾞﾙﾄ ﾜｯｼｬ ﾖｰｸ ﾍﾞｱﾘﾝｸﾞ ﾎﾞﾙﾄ

BOLT WASHER YOKE BEARING BOLT

4 4 1 1 11

14 15 16 17 18

2170-16045-2 4417-92000-0 2501-06210-4 2215-01002-3 4216-00000-0

ﾜｯｼｬ ｶﾊﾞｰ ﾎﾞｰﾙﾍﾞｱﾘﾝｸ ﾞ ｱﾅﾂｷﾌﾟﾗｸﾞ ﾌﾟﾗｸﾞ

WASHER COVER BALL BEARING PLUG PLUG

11 1 2 1 1

19 20 21 22 23 24

4417-92000-0 2501-06210-4 2215-01002-3 4703-14000-0 4703-14000-0 2472-01003-0

ｶﾊﾞｰ ﾎﾞｰﾙﾍﾞｱﾘﾝｸ ﾞ ｱﾅﾂｷﾌﾟﾗｸﾞ ｷｬｯﾌﾟ ｷｬｯﾌﾟ ｸﾞﾘｰｽﾆｯﾌ ﾟﾙ

COVER BALL BEARING PLUG CAP CAP GREASE NIPPLE

1 2 1 1 1 1

25 26 27

4703-14000-0 2472-01003-0 4703-14000-0

ｷｬｯﾌﾟ ｸﾞﾘｰｽﾆｯﾌ ﾟﾙ ｷｬｯﾌﾟ

CAP GREASE NIPPLE CAP

1 1 1

34-1

備考 Remarks

34 35 36

107

108

28

104

115 37 118

117

116

114 109 75 34 37

36

35

73 71

9 10 11

79 74

73 8

70 72 70 69 60

27

19 98 76

118

97 119

117

63

116

115

77

64

113

67

38

112 39

30 31

62 80

61

68 64

40

66

65

105

32

106 78

124

98

48

83

97

49 81

5 6 7

60

33 29

32

51 32

33

113

29

82

112

84

4

111

32

110 1

31 30

120 50

3

122

2

123

121

24 25 26

23 20 22 21

18 0449-61806-0-10256-B

35ﾌﾚｰﾑ(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1446-61146-1 2 2100-10025-1 3 2170-10032-2

部品名称

Parts Name

ﾋﾟ ﾝ ﾎﾞﾙﾄ ﾜｯｼｬ

PIN BOLT WASHER

数量 Q'ty 1 2 2

4 5 6 7 8

1449-61060-0 2100-08016-1 2171-08020-0 2170-08020-1 1446-61280-0

ｶﾊﾞｰ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎﾞｯｸｽ

COVER BOLT SPRING WASHER WASHER BOX

1 3 3 3 1

9 10 11 18 19

2100-08016-1 2171-08020-0 2170-08016-0 1449-61075-0 1446-61149-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾌﾚｰﾑ ｼｰﾙ

BOLT SPRING WASHER WASHER FRAME SEAL

2 2 2 1 1

20 21 22 23 24

1446-61145-1 2100-10025-1 2170-10032-2 1449-61061-0 2100-08016-1

ﾋﾟ ﾝ ﾎﾞﾙﾄ ﾜｯｼｬ ｶﾊﾞｰ ﾎﾞﾙﾄ

PIN BOLT WASHER COVER BOLT

1 2 2 1 3

25 26 27 28 29 30

2171-08020-0 2170-08020-1 1448-61101-0 1449-61051-0 4716-06000-0 2182-04016-2

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｼｰﾙ ﾌｰﾄ ﾞ ﾗｯﾁ ｺﾈｼﾞ

SPRING WASHER WASHER SEAL HOOD LATCH SCREW

3 3 1 1 2 8

31 32 33 34 35

2171-04010-0 2170-04008-0 2120-04032-0 4706-20000-0 2182-06020-2

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾅｯﾄ ﾊﾝﾄ ﾞﾙ ﾅﾍﾞｺﾈｼﾞ

SPRING WASHER WASHER NUT HANDLE SCREW

8 16 8 2 4

36 37 38 39 40

2171-06015-0 2170-06016-0 1446-61142-0 2100-10020-1 2170-10020-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｶﾊﾞｰ ﾎﾞﾙﾄ ﾜｯｼｬ

SPRING WASHER WASHER COVER BOLT WASHER

4 4 1 2 2

48 49 50 51 60

2100-10020-1 2170-10020-0 1406-61097-0 1446-61152-0 2170-10020-0

ﾎﾞﾙﾄ ﾜｯｼｬ ｼｰﾙ ｼｰﾙ ﾜｯｼｬ

BOLT WASHER SEAL SEAL WASHER

1 1 1 1 2

35-1

備考 Remarks

35ﾌﾚｰﾑ(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 61 3120-01073-0 62 3931-02360-0 63 2170-16045-2

部品名称

Parts Name

ﾅｯﾄ ｶﾗｰ ﾜｯｼｬ

NUT COLLAR WASHER

数量 Q'ty 1 1 1

64 65 66 67 68

2170-10020-0 2100-10030-1 2171-10025-0 2170-16045-2 3931-02360-0

ﾜｯｼｬ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｶﾗｰ

WASHER BOLT SPRING WASHER WASHER COLLAR

2 1 1 1 1

69 70 71 72 73

3956-00018-0 2170-08016-0 4420-78000-0 3956-00018-0 2170-08016-0

Rﾋ ﾟ ﾝ ﾜｯｼｬ ﾀﾞﾝﾊﾟ Rﾋ ﾟ ﾝ ﾜｯｼｬ

R-PIN WASHER DAMPER R-PIN WASHER

2 4 2 2 4

74 75 76 77 78

1449-61080-0 1449-61079-0 2100-10020-1 2170-10020-0 1446-61152-0

ﾌｫｰﾑ ﾌｫｰﾑ ﾎﾞﾙﾄ ﾜｯｼｬ ｼｰﾙ

FOAM FOAM BOLT WASHER SEAL

1 1 1 1 1

79 80 81 82 83 84

1449-61081-0 1446-61148-0 1449-61082-0 1446-61152-0 1449-61083-0 1446-61167-0

ﾌｫｰﾑ ｱｰﾑ ﾌｫｰﾑ ｼｰﾙ ﾌｫｰﾑ ﾌｫｰﾑ

FOAM ARM FOAM SEAL FOAM FOAM

1 1 1 1 1 1

97 98 104 105 106

2439-25009-0 2182-05016-2 1449-61084-0 2100-10020-1 2170-10020-0

ｸｯｼｮ ﾝﾗﾊﾞｰ ﾅﾍﾞｺﾈｼﾞ ﾌｫｰﾑ ﾎﾞﾙﾄ ﾜｯｼｬ

CUSHION RUBBER SCREW FOAM BOLT WASHER

2 2 1 2 2

107 108 109 110 111

1449-61085-0 1449-61086-0 1449-61087-0 1449-61088-0 1448-61116-1

ﾌｫｰﾑ ﾌｫｰﾑ ﾌｫｰﾑ ﾌｫｰﾑ ｶﾊﾞｰ

FOAM FOAM FOAM FOAM COVER

1 1 1 1 1

112 113 114 115 116

2100-10020-1 2170-10020-0 1446-61151-0 4711-15000-2 2100-08020-1

ﾎﾞﾙﾄ ﾜｯｼｬ ｼｰﾙ ｷｬｯﾁ ﾎﾞﾙﾄ

BOLT WASHER SEAL CATCH BOLT

4 4 1 1 4

35-2

備考 Remarks

35ﾌﾚｰﾑ(1-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 117 2171-08020-0 118 2170-08020-1 119 1449-61053-1 120 121 122 123 124

1446-61143-0 2100-08020-1 2170-08016-0 2171-08020-0 1449-61089-0

部品名称

Parts Name

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｶﾊﾞｰ

SPRING WASHER WASHER COVER

数量 Q'ty 4 4 1

ｶﾊﾞｰ ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾌｫｰﾑ

COVER BOLT WASHER SPRING WASHER FOAM

1 2 2 2 1

35-3

備考 Remarks

90

44

96 56

57

86 95 12

58

96

87 89 85

59 88 91 92

43

93

42

41

15 94

16

45

14

99

46

100

47

101

99 100 101

101 17

101 13

54

53

102 103 55

102 103

54

53

52 0449-61806-0-10256-B

36ﾌﾚｰﾑ(2-2) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 12 4710-37000-0 13 1449-61059-0 14 1449-61047-0

部品名称

Parts Name

ﾌﾟ ﾗｸﾞ ﾌﾛｱﾎ ﾞｰﾄ ﾞ ｶﾊﾞｰ

PLUG FLOOR BOARD COVER

数量 Q'ty 2 1 1

15 16 17 41 42

2100-08020-1 2170-08016-0 1449-61078-1 3100-02162-0 2171-08020-0

ﾎ ﾞﾙﾄ ﾜｯｼｬ ﾌﾚｰﾑ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

BOLT WASHER FRAME BOLT SPRING WASHER

4 4 1 9 9

43 44 45 46 47

2170-08016-0 1446-61117-0 1446-61246-1 2100-12020-1 2170-12032-2

ﾜｯｼｬ ｶﾊﾞｰ ﾀﾞｯｼｭﾎ ﾞｰﾄ ﾞ ﾎ ﾞﾙﾄ ﾜｯｼｬ

WASHER COVER DASH BOARD BOLT WASHER

9 1 1 4 4

52 53 54 55 56

1446-61144-0 3100-01145-0 2170-10032-2 1449-61019-0 2100-08020-1

ﾋﾟ ﾝ ﾎ ﾞﾙﾄ ﾜｯｼｬ ｶﾊﾞｰ ﾎ ﾞﾙﾄ

PIN BOLT WASHER COVER BOLT

1 3 3 1 1

57 58 59 85 86 87

2171-08020-0 2170-08016-0 1446-61135-0 2100-10035-1 3171-11025-0 2170-10030-1

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ｶﾊﾞｰ ﾎ ﾞﾙﾄ ｻﾗﾊﾞﾈ ﾜｯｼｬ

SPRING WASHER WASHER COVER BOLT CONED DISC SPRING WASHER

1 1 1 2 4 2

88 89 90 91 92

2120-10080-0 2170-10020-0 1446-61072-1 2100-08020-1 2171-08020-0

ﾅｯﾄ ﾜｯｼｬ ｶﾊﾞｰ ﾎ ﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

NUT WASHER COVER BOLT SPRING WASHER

2 4 1 2 2

93 94 95 96 99

2170-08016-0 1445-61099-0 1301-61129-0 1301-61129-0 2100-10060-1

ﾜｯｼｬ ｶﾊﾞｰ ｸｯｼｮ ﾝﾗﾊﾞｰ ｸｯｼｮ ﾝﾗﾊﾞｰ ﾎ ﾞﾙﾄ

WASHER COVER CUSHION RUBBER CUSHION RUBBER BOLT

2 1 1 2 4

100 101 102 103

2170-10030-1 3460-49079-0 2170-10032-2 3120-01073-0

ﾜｯｼｬ ﾀﾞﾝﾊﾟ ﾜｯｼｬ ﾅｯﾄ

WASHER DAMPER WASHER NUT

4 8 4 4

36-1

備考 Remarks

64

57

58

67 68

65

59

71

66

72

51 52

73

69 63

60

62

61 50

54 53 55 19

18

29 30

22

21

74

70 15

14

72

73

56

20 70

33

28 32

4

71

5

15

14

7 31

17

16

15

6

17

11 12

13

16

10

15 8

2

39

25

40 23

1

3

9

35 34

26

36 3

43

27

44

24

49

47

48 40

39 40

41

1 42 45

2

46

37 38 40

41

42

0449-71805-0-10228-0

37泥除装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3100-02062-0 2 2120-10080-0 3 3934-02760-0

部品名称

Parts Name

ﾎﾞﾙﾄ ﾅｯﾄ ｽﾍﾟ ｰｻ

BOLT NUT SPACER

数量 Q'ty 2 2 2

4 5 6 7 8

2100-10025-1 2170-10020-0 3910-04026-0 3910-04026-0 2100-10025-1

ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞ ｽﾌﾟ ﾘﾝｸﾞ ﾎﾞﾙﾄ

BOLT WASHER SPRING SPRING BOLT

2 2 1 1 2

9 10 11 12 13

2170-10020-0 1446-71016-2 3100-02062-0 2120-10080-0 1446-71023-0

ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾅｯﾄ ｱｰﾑ

WASHER BRACKET BOLT NUT ARM

2 1 1 1 1

14 15 16 17 18

2100-10045-1 2170-10030-1 2171-10025-0 2120-10080-0 2100-10035-1

ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾎﾞﾙﾄ

BOLT WASHER SPRING WASHER NUT BOLT

2 4 2 2 4

19 20 21 22 23 24

2170-10030-1 2170-10020-0 2171-10025-0 2120-10080-0 2100-10035-1 2170-10030-1

ﾜｯｼｬ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ

WASHER WASHER SPRING WASHER NUT BOLT WASHER

4 4 4 4 4 4

25 26 27 28 29

2170-10020-0 2171-10025-0 2120-10080-0 1446-71015-2 3100-02062-0

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ

WASHER SPRING WASHER NUT BRACKET BOLT

4 4 4 1 1

30 31 32 33 34

2120-10080-0 1446-71023-0 1517-71003-0 1448-71001-0 2100-10045-1

ﾅｯﾄ ｱｰﾑ ﾌﾟ ﾚｰﾄ ﾌﾞﾚｰﾄ ﾞ ﾎﾞﾙﾄ

NUT ARM PLATE BLADE BOLT

1 1 1 1 2

35 36 37 38 39

2170-10020-0 1446-71011-3 1517-71003-0 1448-71001-0 2100-10045-1

ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾌﾟ ﾚｰﾄ ﾌﾞﾚｰﾄ ﾞ ﾎﾞﾙﾄ

WASHER BRACKET PLATE BLADE BOLT

2 1 1 1 2

37-1

備考 Remarks

37泥除装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 2170-10030-1 41 2171-10025-0 42 2120-10080-0

部品名称

Parts Name

ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ

WASHER SPRING WASHER NUT

数量 Q'ty 4 2 2

43 44 45 46 47

1446-71023-0 3910-04027-0 3910-04027-0 1446-71023-0 1446-71012-3

ｱｰﾑ ｽﾌﾟ ﾘﾝｸﾞ ｽﾌﾟ ﾘﾝｸﾞ ｱｰﾑ ﾌﾞﾗｹｯﾄ

ARM SPRING SPRING ARM BRACKET

1 1 1 1 1

48 49 50 51 52

2100-10045-1 2170-10020-0 1446-71015-2 3100-02062-0 2120-10080-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾅｯﾄ

BOLT WASHER BRACKET BOLT NUT

2 2 1 1 1

53 54 55 56 57

1446-71023-0 1444-71006-0 2100-10035-1 1518-71002-0 2170-10020-0

ｱｰﾑ ﾌﾟ ﾚｰﾄ ﾎﾞﾙﾄ ｻﾎﾟ ｰﾄ ﾜｯｼｬ

ARM PLATE BOLT SUPPORT WASHER

1 1 8 4 8

58 59 60 61 62 63

2171-10025-0 2120-10080-0 2100-10025-1 2170-10020-0 3910-04026-0 3910-04026-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞ ｽﾌﾟ ﾘﾝｸﾞ

SPRING WASHER NUT BOLT WASHER SPRING SPRING

8 8 2 2 1 1

64 65 66 67 68

2100-10025-1 2170-10020-0 1446-71016-2 3100-02062-0 2120-10080-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾅｯﾄ

BOLT WASHER BRACKET BOLT NUT

2 2 1 1 1

69 70 71 72 73

1446-71023-0 2100-10030-1 2170-10030-1 2171-10025-0 2120-10080-0

ｱｰﾑ ﾎﾞﾙﾄ ﾜｯｼｬ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ

ARM BOLT WASHER SPRING WASHER NUT

1 2 2 2 2

74

1518-71003-0

ﾌﾞﾚｰﾄ ﾞ

BLADE

4

37-2

備考 Remarks

メモ ---memo---

66

64

65

63

68

67

4 4

77

53 54 55

55

12

52 86

13

51

10 11

35

9

8 49 37 38 39

43

42

41

36

50 50

44

46

5

69

71

48

8

25

47

57

6

2 75

57

73

17

16 26

85

73 76

19

31

33 60

28 27

33

32

69

34

73 69

59

18 1

75

72

84

23 24

74

14

30

29

7

56

70

40

32

74

15

9

6

1

14

58

45

5 3

70

71

20 21 22

82

80

81

79

62

83 78

61

0449-75807-0-10230-A

38散水装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 3209-02007-0 2 1448-75004-0 3 2292-02127-0

部品名称

Parts Name

ｷｬｯﾌﾟ ﾊﾟ ｲﾌﾟ ﾎｰｽﾆｯﾌ ﾟ ﾙ

CAP PIPE HOSE NIPPLE

数量 Q'ty 2 1 1

4 5 6 7 8

2898-00107-0 2293-12250-0 2291-00018-0 2898-00107-0 2293-15096-0

ﾊﾞﾝﾄ ﾞ ﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ ﾋﾞﾆｰﾙﾎｰｽ

BAND HOSE HOSE CLAMP BAND VINYL HOSE

8 1 2 1 1

9 10 11 12 13

2291-00022-0 4715-91000-0 1446-75019-0 3201-01011-0 3380-61018-0

ﾎｰｽﾊﾞﾝﾄ ﾞ ｱﾀﾞﾌﾟ ﾀ ﾊﾟ ｲﾌﾟ ﾊﾞﾚﾙﾆｯﾌﾟ ﾙ ｺｯｸ

HOSE CLAMP ADAPTER PIPE BARREL NIPPLE COCK

2 1 1 1 1

14 15 16 17 18

3209-02007-0 1449-75006-0 3292-10046-0 3292-11022-1 2292-03127-0

ｷｬｯﾌﾟ ﾊﾟ ｲﾌﾟ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾆｯﾌ ﾟ ﾙ

CAP PIPE HOSE NIPPLE HOSE NIPPLE HOSE NIPPLE

2 1 1 1 1

19 20 21 22 23 24

1446-75036-0 2100-08016-1 2171-08020-0 2170-08016-0 3201-21006-0 4213-09000-0

ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾊﾞﾚﾙﾆｯﾌﾟ ﾙ ﾎﾞｰﾙﾊﾞﾙﾌﾞ

BRACKET BOLT SPRING WASHER WASHER BARREL NIPPLE BALL VALVE

1 1 1 1 1 1

25 26 27 28 29

3292-12053-0 4719-68000-0 4719-69000-0 2179-12016-0 2100-10025-1

ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾌｨ ﾙﾀ ｺｯｸ ｼｰﾙﾜｯｼｬ ﾎﾞﾙﾄ

HOSE NIPPLE FILTER COCK SEAL WASHER BOLT

1 1 1 1 2

30 31 32 33 34

2170-10020-0 2292-04127-0 2293-12152-0 2291-00018-0 2898-00107-0

ﾜｯｼｬ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾋﾞﾆｰﾙﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ

WASHER HOSE NIPPLE VINYL HOSE HOSE CLAMP BAND

2 1 1 2 1

35 36 37 38 39

1446-75020-1 3416-02078-0 2100-08020-1 2171-08020-0 2170-08016-0

ﾗﾊﾞｰ ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

RUBBER CLAMP BOLT SPRING WASHER WASHER

4 1 1 1 1

38-1

備考 Remarks

INC.27.28.84.85

38散水装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 3416-02078-0 41 2100-08016-1 42 2171-08020-0

部品名称

Parts Name

ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

CLAMP BOLT SPRING WASHER

数量 Q'ty 1 1 1

43 44 45 46 47

2170-08016-0 3416-02078-0 2100-10025-1 2170-10020-0 0446-75006-6

ﾜｯｼｬ ｸﾗﾝﾌﾟ ﾎﾞﾙﾄ ﾜｯｼｬ ﾎﾟ ﾝﾌﾟ ASSY

WASHER CLAMP BOLT WASHER PUMP ASSY

1 1 2 2 1

48 49 50 51 52

2898-00107-0 2293-12045-0 2291-00018-0 1448-75008-0 1441-75010-0

ﾊﾞﾝﾄ ﾞ ﾜｲﾔｲﾘﾋﾞﾆｰﾙﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾗﾊﾞｰ ﾌﾞﾗｹｯﾄ

BAND VINYL HOSE HOSE CLAMP RUBBER BRACKET

1 1 2 1 2

53 54 55 56 57

2100-10030-1 2170-10020-0 2934-10050-0 2293-12038-0 2291-00018-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾍﾞｰｽ ﾋﾞﾆｰﾙﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ

BOLT WASHER BASE VINYL HOSE HOSE CLAMP

4 4 2 1 2

58 59 60 61 62 63

2292-03127-0 2293-09016-2 2898-00103-0 2100-08020-1 2120-08065-0 1039-75008-1

ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽ ﾊﾞﾝﾄ ﾞ ﾎﾞﾙﾄ ﾅｯﾄ ｷｬｯﾌﾟ

HOSE NIPPLE HOSE BAND BOLT NUT CAP

1 1 1 1 1 1

64 65 66 67 68

4703-26003-0 4719-48000-0 3180-20035-0 4719-49000-0 4716-25000-0

ﾜｲﾔ ｹﾞｰｼﾞ ｺﾈｼﾞ ｽﾄ ﾚｰﾅ ﾀﾝｸ

WIRE GAUGE SCREW STRAINER TANK

1 1 4 1 1

69 70 71 72 73

4710-41000-0 2100-10025-1 2170-10020-0 2384-02002-0 4710-41000-0

ﾉｽﾞﾙ ﾎﾞﾙﾄ ﾜｯｼｬ ｺｯｸ ﾉｽﾞﾙ

NOZZLE BOLT WASHER COCK NOZZLE

4 2 2 1 5

74 75 76 77 78

2100-10025-1 2170-10020-0 2384-02002-0 1446-75034-0 4706-82016-0

ﾎﾞﾙﾄ ﾜｯｼｬ ｺｯｸ ｸｯｼｮ ﾝ ｷｬｯﾌﾟ

BOLT WASHER COCK CUSION CAP

2 2 1 1 1

38-2

備考 Remarks

INC.78.86 INC.79-83

INC.79-83

38散水装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 79 4710-41001-0 80 4710-41002-0 81 4710-41003-0 82 83 84 85 86

4710-41004-0 4710-41005-0 4703-68015-0 4703-68013-0 4706-82020-0

部品名称

Parts Name

ﾎﾞﾃﾞｨ ｷｬｯﾌﾟ Oﾘﾝｸ ﾞ

BODY CAP O-RING

数量 Q'ty 9 9 9

ﾉｽﾞﾙ ｽﾄ ﾚｰﾅ ｴﾚﾒﾝﾄ ｹｰｽ ﾌｨ ｯﾃｨ ﾝｸﾞ

NOZZLE STRAINER ELEMENT CASE FITTING

9 9 1 1 1

38-3

備考 Remarks

22 3

5 23

6 6

2

4 23

24

30

20 1

18

21

17

12

11

10

16 14

19

13

9 8 7 15 1

29

25

27

26

28 0446-75006-5-20391-F

39Assy(ﾎﾟ ﾝﾌﾟ ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4718-18000-2 2 1446-75024-0 3 2292-03127-0

部品名称

Parts Name

ﾎﾟ ﾝﾌﾟ ﾌﾞﾗｹｯﾄ ﾎｰｽﾆｯﾌ ﾟ ﾙ

PUMP BRACKET HOSE NIPPLE

数量 備考 Q'ty Remarks 1 INC.25-29 1 1

4 5 6 7 8

2292-03127-0 2293-12023-0 2291-00018-0 2100-08020-1 2171-08020-0

ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾜｲﾔｲﾘﾋﾞﾆｰﾙﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ

HOSE NIPPLE VINYL HOSE HOSE CLAMP BOLT SPRING WASHER

1 1 2 2 2

9 10 11 12 13

2170-08020-1 2100-06010-1 2171-06015-0 2170-06016-0 3292-11022-1

ﾜｯｼｬ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎｰｽﾆｯﾌ ﾟ ﾙ

WASHER BOLT SPRING WASHER WASHER HOSE NIPPLE

2 4 4 4 1

14 15 16 17 18

1446-75025-0 2384-03002-0 3201-21007-0 4715-90000-0 3260-21171-0

ﾌﾞﾗｹｯﾄ ｺｯｸ ﾊﾞﾚﾙﾆｯﾌﾟ ﾙ ﾊﾞﾙﾌﾞ ﾌﾞｯｼﾝｸﾞ

BRACKET COCK BARREL NIPPLE VALVE BUSHING

1 1 1 1 1

19 20 21 22 23 24

2384-03002-0 1446-75025-0 3292-11022-1 2293-12036-0 2291-00018-0 2384-03002-0

ｺｯｸ ﾌﾞﾗｹｯﾄ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾋﾞﾆｰﾙﾎｰｽ ﾎｰｽﾊﾞﾝﾄ ﾞ ｺｯｸ

COCK BRACKET HOSE NIPPLE VINYL HOSE HOSE CLAMP COCK

1 1 1 1 2 1

25 26 27 28 29

4718-18008-0 4718-18005-0 4718-18004-0 4718-18002-0 4710-43003-0

ｺｯｸASSY ﾀﾞｲﾔﾌﾗﾑｷｯﾄ ﾊﾞﾙﾌﾞｷｯﾄ ﾎﾟ ﾝﾌﾟ ﾍｯﾄ ﾞASSY ﾆｯﾌﾟ ﾙ

COCK ASSY DIAPHRAGM KIT VALVE KIT PUMP HEAD ASSY NIPPLE

1 1 1 1 1

INC.25-27 2PIECE SET

30

0446-75006-6

ﾎﾟ ﾝﾌﾟ ASSY

PUMP ASSY

1

INC.1-29

39-1

13

63

64

65

62

12 3

6

1

16 4

11

17

2 8

18 19

35 20

5

21

55 23 22

7

14 12

9

54

13 34

47

24

10

15

38

25 26

40

37 56

27 61

28 29 32

31

60

39 33 36 53

45

30

46 51

52 48 49 50

41 42 43 57

44

58 59

0449-75804-0-10035-F

40液剤噴霧装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2298-09105-1 2 2298-09150-1 3 2898-00107-0

部品名称

Parts Name

ﾎｰｽ ﾎｰｽ ﾊﾞﾝﾄ ﾞ

HOSE HOSE BAND

数量 Q'ty 1 1 1

4 5 6 7 8

2898-00107-0 3380-60019-0 3291-00026-0 3292-10041-0 3291-00026-0

ﾊﾞﾝﾄ ﾞ ｺｯｸ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ

BAND COCK HOSE CLAMP HOSE NIPPLE HOSE CLAMP

1 1 1 1 1

9 10 11 12 13

2100-10020-1 2170-10020-0 4911-20000-0 3209-02007-0 4716-22000-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ ｷｬｯﾌﾟ ﾉｽﾞﾙ

BOLT WASHER BAND CAP NOZZLE

1 1 1 2 4

14 15 16 17 18

2100-10020-1 2170-10020-0 1449-75005-0 2384-02002-0 2298-09110-1

ﾎﾞﾙﾄ ﾜｯｼｬ ﾊﾟ ｲﾌﾟ ｺｯｸ ﾎｰｽ

BOLT WASHER PIPE COCK HOSE

2 2 1 1 1

19 20 21 22 23 24

2100-08020-1 2171-08020-0 2170-08016-0 3292-10041-0 3291-00026-0 2384-02002-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ｺｯｸ

BOLT SPRING WASHER WASHER HOSE NIPPLE HOSE CLAMP COCK

2 2 2 1 1 1

25 26 27 28 29

1442-75013-0 3201-20008-0 4710-38000-0 3292-10041-0 3291-00026-0

ﾌﾞﾗｹｯﾄ ﾊﾞﾚﾙﾆｯﾌﾟ ﾙ ﾌｨ ﾙﾀ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ

BRACKET BARREL NIPPLE FILTER HOSE NIPPLE HOSE CLAMP

1 1 1 1 1

30 31 32 33 34

2298-09028-1 3292-10042-0 3291-00026-0 2179-14020-0 1442-75012-0

ﾎｰｽ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ｼｰﾙﾜｯｼｬ ﾍﾞﾙﾄ

HOSE HOSE NIPPLE HOSE CLAMP SEAL WASHER BELT

1 1 1 1 1

35 36 37 38 39

2898-00107-0 4710-34000-0 3292-10041-0 3291-00026-0 2179-14020-0

ﾊﾞﾝﾄ ﾞ ﾀﾝｸ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ｼｰﾙﾜｯｼｬ

BAND TANK HOSE NIPPLE HOSE CLAMP SEAL WASHER

1 1 1 1 1

40-1

備考 Remarks

INC.62-65

INC.61

40液剤噴霧装置 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 40 1508-75012-0 41 4710-35000-0 42 1447-75012-0

部品名称

Parts Name

ﾍﾞﾙﾄ ﾎﾟ ﾝﾌﾟ ﾌﾞﾗｹｯﾄ

BELT PUMP BRACKET

数量 Q'ty 1 1 1

43 44 45 46 47

2100-10020-1 2170-10020-0 3292-10041-0 3291-00026-0 4911-20000-0

ﾎﾞﾙﾄ ﾜｯｼｬ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ ﾊﾞﾝﾄ ﾞ

BOLT WASHER HOSE NIPPLE HOSE CLAMP BAND

2 2 1 1 1

48 49 50 51 52

2182-06012-2 2171-06015-0 2170-06016-0 3292-10041-0 3291-00026-0

ﾅﾍﾞｺﾈｼﾞ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾎｰｽﾆｯﾌ ﾟ ﾙ ﾎｰｽﾊﾞﾝﾄ ﾞ

SCREW SPRING WASHER WASHER HOSE NIPPLE HOSE CLAMP

4 4 4 1 1

53 54 55 56 57

1442-75011-0 2100-10020-1 2170-10020-0 3931-00380-0 2100-08012-1

ﾗﾊﾞｰ ﾎﾞﾙﾄ ﾜｯｼｬ ﾜｯｼｬ ﾎﾞﾙﾄ

RUBBER BOLT WASHER WASHER BOLT

2 1 1 2 1

58 59 60 61 62 63

2171-08020-0 2170-08016-0 3931-00380-0 4710-38002-0 4715-86002-0 4710-41004-0

ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ ﾜｯｼｬ ｴﾚﾒﾝﾄ Oﾘﾝｸ ﾞ ﾉｽﾞﾙ

SPRING WASHER WASHER WASHER ELEMENT O-RING NOZZLE

1 1 1 1 4 4

64 65

4710-41002-0 4715-86001-0

ｷｬｯﾌﾟ ﾎﾞﾃﾞｨ

CAP BODY

4 4

40-2

備考 Remarks

メモ ---memo---

1

1

3 4 4

5 5

4 4

3

0446-31804-0-10931-0

41ｼｰﾄ ﾍﾞ ﾙﾄ (ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4420-99000-0 3 2100-10030-1 4 2170-10020-0 5

2120-10080-0

部品名称

Parts Name

ｼｰﾄ ﾍﾞ ﾙﾄ ﾎﾞ ﾙﾄ ﾜｯｼｬ

SEAT BELT BOLT WASHER

ﾅｯﾄ

NUT

41-1

数量 Q'ty 1 2 4 2

備考 Remarks

18 20

7

11

8

12

17 13

8 9

1 14 19

10

21 6 3

16

22 13

16 4

17

8

18

9 23 22

21

14 20

5

10 2

4

3

5

0448-63801-0-10219-A

42ｷｬﾉﾋﾟ ｨ (ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1508-63005-0 2 1443-63002-1 3 2100-16030-1

部品名称

Parts Name

ｷｬﾉﾋﾟ ｨ ｽﾃｰ ﾎﾞﾙﾄ

CANOPY STAY BOLT

数量 Q'ty 1 1 LH 6

4 5 6 7 8

2170-16030-0 1515-63002-0 1443-63003-1 2120-12100-0 3931-00259-0

ﾜｯｼｬ ｷｬｯﾌﾟ ｽﾃｰ ﾅｯﾄ ﾜｯｼｬ

WASHER CAP STAY NUT WASHER

6 2 1 4 4

9 10 11 12 13

3460-49023-0 2100-12100-1 2120-12100-0 3931-00259-0 3460-49023-0

ﾎﾞｳｼﾝｺ ﾞﾑ ﾎﾞﾙﾄ ﾅｯﾄ ﾜｯｼｬ ﾎﾞｳｼﾝｺ ﾞﾑ

RUBBER ISOLATOR BOLT NUT WASHER RUBBER ISOLATOR

2 2 4 2 2

14 16 17 18 19

2100-12100-1 2100-08025-1 2171-08020-0 2120-08065-0 1441-63001-0

ﾎﾞﾙﾄ ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾊﾞｰ

BOLT BOLT SPRING WASHER NUT BAR

2 4 4 4 1

20 21 22 23

2100-08025-1 2171-08020-0 2120-08065-0 1441-63001-0

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾅｯﾄ ﾊﾞｰ

BOLT SPRING WASHER NUT BAR

4 4 4 1

42-1

RH

備考 Remarks

1

3 4

4 3

2

7

8

8

9

2

9

8 8

7 0448-63802-0-10220-0

43ﾛｰﾙﾊﾞｰﾛﾌ ﾟ ｽ(国内仕様)(ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 1448-63002-0 2 4420-99000-0 3 2100-18070-3 4 7 8 9

2170-18045-2 2100-10030-1 2170-10020-0 2120-10080-0

部品名称

Parts Name

ﾊﾞｰ ｼｰﾄ ﾍ ﾞﾙﾄ ﾎﾞﾙﾄ

BAR SEAT BELT BOLT

数量 Q'ty 1 1 10

ﾜｯｼｬ ﾎﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ

WASHER BOLT WASHER NUT

10 2 4 2

43-1

備考 Remarks

1

5

5

6

8 9

9

10

10

6

9 9

8 0448-63803-0-10453-B 0448-63803-0-10454-A

44ﾛﾌﾟ ｽ(海外仕様)(ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 4718-60000-0 5 4718-60004-0 6 4420-99000-0 8 9 10

2100-10030-1 2170-10020-0 2120-10080-0

部品名称

Parts Name

ﾛﾌﾟ ｽ ﾎﾞﾙﾄ ASSY ｼｰﾄ ﾍ ﾞﾙﾄ

ROPS BOLT ASSY SEAT BELT

ﾎﾞﾙﾄ ﾜｯｼｬ ﾅｯﾄ

BOLT WASHER NUT

44-1

数量 備考 Q'ty Remarks 1 10 WASHER̲SP WASHER̲SET 1 2 4 2

1 2 3

4

8 6

7

5

0446-70806-0-10950-0

45ｿﾆｯｸﾚｰﾀ ﾞｰ(ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 1 2100-08014-1 2 2171-08020-0 3 2170-08016-0 4 5 6 7 8

4916-05000-0 1446-70017-0 2100-10025-1 2170-10020-0 2898-00103-0

部品名称

Parts Name

ﾎﾞﾙﾄ ｽﾌﾟ ﾘﾝｸﾞﾜｯｼｬ ﾜｯｼｬ

BOLT SPRING WASHER WASHER

数量 Q'ty 4 4 4

ｺﾝﾄ ﾛｰﾗ ﾌﾞﾗｹｯﾄ ﾎﾞﾙﾄ ﾜｯｼｬ ﾊﾞﾝﾄ ﾞ

CONTROLLER BRACKET BOLT WASHER BAND

1 1 4 4 1

45-1

備考 Remarks

Mihaalu5

9 8

11

4

6

10 5

6 12 7 14 7

16 14

15

13

0446-75802-0-10187-F

46散水装置(不凍液ﾀﾝｸ)(国内仕様)(ｵﾌﾟ ｼｮ ﾝ) 1SW73 30101〜39999 記号 部品番号 Key No. Parts No. 4 2291-00014-0 5 1441-75018-1 6 2293-07160-5

部品名称

Parts Name

ﾎｰｽﾊﾞﾝﾄ ﾞ ｽﾃｯｶ ﾎｰｽ

HOSE CLAMP DECAL HOSE

数量 備考 Q'ty Remarks 1 1 不凍液タンク使用上の注意 1

7 8 9 10 11

2898-00103-0 4707-71000-0 4710-64000-0 4717-09000-0 1446-75041-0

ﾊﾞﾝﾄ ﾞ ｸﾗﾝﾌﾟ ｴﾙﾎﾞ ﾀﾝｸ ﾌﾞﾗｹｯﾄ

BAND CLAMP ELBOW TANK BRACKET

2 1 1 1 1

12 13 14 15 16

2100-12025-1 1446-75030-1 1442-75011-0 1442-75012-0 1508-75012-0

ﾎﾞﾙﾄ ｽﾃｯｶ ﾗﾊﾞｰ ﾍﾞﾙﾄ ﾍﾞﾙﾄ

BOLT DECAL RUBBER BELT BELT

2 1 3 1 1

46-1

不凍液操作方法

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

0446-12001-1 0446-51002-0 0446-75006-6

11-1 33-1

1443-63002-1 1443-63003-1 1444-71006-0

42-1 42-1

1446-05009-2 1446-09027-0 1446-09028-0

5-1 9-1

0446-75006-6 0449-36002-0 1039-75008-1 1039-92176-0 1039-99049-1 1301-61129-0 1307-02004-0 1308-19032-0 1406-61097-0 1413-36001-1 1418-09034-0 1418-19005-0 1418-19005-0 1441-09017-0 1441-19003-0 1441-19007-0 1441-19020-0 1441-19027-0 1441-19027-0 1441-51004-0 1441-61143-0 1441-63001-0 1441-75010-0 1441-75018-1 1442-09001-0 1442-19005-0 1442-19013-0 1442-19016-0 1442-19017-0 1442-75011-0 1442-75011-0 1442-75012-0 1442-75012-0 1442-75013-0 1443-43015-0

38-2 39-1 23-1 38-2 9-1 12-2 36-1 2-1 12-2 35-1 27-1 9-1 12-2 13-2 6-2 12-1 12-1 13-1 12-1 13-1 33-1 7-1 42-1 38-2 46-1 9-1 12-2 13-2 12-1 13-1 40-2 46-1 40-1 46-1 40-1 32-1

1445-09042-0 1445-19001-0 1445-19014-0 1445-32009-0 1445-51002-0 1445-61066-0 1445-61067-0 1445-61068-0 1445-61099-0 1446-01016-0 1446-01017-0 1446-01019-0 1446-01024-0 1446-01026-0 1446-01027-0 1446-01029-0 1446-01030-0 1446-01032-0 1446-02011-0 1446-02013-0 1446-02014-0 1446-02015-0 1446-02017-0 1446-02022-0 1446-02023-0 1446-02024-1 1446-03018-0 1446-03027-0 1446-03028-1 1446-03031-0 1446-03045-0 1446-03046-0 1446-04009-0 1446-04015-0 1446-04016-0 I-1

37-2 9-1 13-1 13-1 17-1 33-1 34-1 34-1 34-1 36-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 2-1 2-1 2-1 2-1 2-1 2-2 2-2 2-2 3-1 3-1 3-1 3-1 3-2 3-2 4-1 4-1 4-1

1446-09029-1 1446-09030-0 1446-09042-0 1446-09062-0 1446-09063-0 1446-09064-0 1446-09068-0 1446-09069-0 1446-09073-0 1446-09075-0 1446-09080-0 1446-09081-0 1446-09083-0 1446-09084-0 1446-09085-0 1446-09086-0 1446-09087-0 1446-12013-0 1446-12028-0 1446-12031-0 1446-12032-0 1446-12033-0 1446-12036-2 1446-12037-0 1446-12039-0 1446-12043-0 1446-12044-0 1446-12046-0 1446-19008-0 1446-19009-0 1446-19012-0 1446-19017-0 1446-19018-0 1446-19020-0 1446-19020-0

9-1 6-1 6-1 9-1 9-1 9-1 6-1 7-2 8-1 8-1 7-2 7-2 6-2 7-1 7-1 8-1 9-1 9-1 11-1 10-1 11-1 11-1 11-1 11-2 11-2 11-1 10-1 10-1 11-1 12-1 12-1 12-2 13-1 13-1 12-2 13-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

1446-19029-0 1446-19030-0 1446-19035-0

12-1 13-1

1446-61246-1 1446-61280-0 1446-70015-0

36-1 35-1

1448-36009-0 1448-36012-0 1448-36016-0

27-3 27-2

1446-19036-0 1446-19039-0 1446-32007-1 1446-36012-0 1446-36021-1 1446-36022-0 1446-36022-0 1446-36030-0 1446-36036-1 1446-36039-0 1446-36042-0 1446-36048-0 1446-36051-0 1446-36054-0 1446-43009-0 1446-43011-2 1446-43019-1 1446-43025-0 1446-49001-0 1446-51003-0 1446-51004-1 1446-61072-1 1446-61117-0 1446-61135-0 1446-61142-0 1446-61143-0 1446-61144-0 1446-61145-1 1446-61146-1 1446-61148-0 1446-61149-0 1446-61151-0 1446-61152-0 1446-61152-0 1446-61167-0

12-1 13-1 13-2 17-2 19-1 23-1 23-2 31-1 27-1 27-1 23-2 24-1 27-1 24-1 24-1 32-2 32-2 32-2 32-1 31-1 33-1 33-1 36-1 36-1 36-1 35-1 35-3 36-1 35-1 35-1 35-2 35-1 35-2 35-1 35-2 35-2

1446-70017-0 1446-71011-3 1446-71012-3 1446-71015-2 1446-71015-2 1446-71016-2 1446-71016-2 1446-71023-0 1446-71023-0 1446-75019-0 1446-75020-1 1446-75024-0 1446-75025-0 1446-75030-1 1446-75034-0 1446-75036-0 1446-75038-0 1446-75041-0 1447-09002-0 1447-09003-1 1447-19011-0 1447-19016-0 1447-19017-0 1447-36010-0 1447-36011-1 1447-36012-0 1447-36012-0 1447-49003-0 1447-75012-0 1448-05010-0 1448-09005-0 1448-19007-0 1448-31004-0 1448-31005-0 1448-36007-0 I-2

9-1 45-1 37-1 37-2 37-1 37-2 37-1 37-2 37-1 37-2 38-1 38-1 39-1 39-1 46-1 38-2 38-1 6-2 46-1 9-1 9-1 12-1 12-1 13-1 27-1 27-2 23-1 27-1 31-1 40-2 5-1 9-1 12-1 15-1 15-1 23-2

1448-36017-1 1448-36020-0 1448-43010-0 1448-43017-3 1448-43018-3 1448-43021-1 1448-61101-0 1448-61116-1 1448-63002-0 1448-71001-0 1448-71001-0 1448-75004-0 1448-75008-0 1449-03013-0 1449-03014-0 1449-03016-0 1449-03018-0 1449-09003-0 1449-09004-0 1449-09004-0 1449-19011-0 1449-19012-0 1449-19014-0 1449-19015-0 1449-27002-0 1449-31001-0 1449-36003-0 1449-36004-1 1449-43006-0 1449-43013-0 1449-49001-0 1449-49003-0 1449-49005-0 1449-49006-0 1449-49007-0

23-2 23-1 23-1 32-2 32-2 32-1 32-2 35-1 35-2 43-1 0-1 37-1 38-1 38-2 3-2 3-1 3-1 3-1 7-1 8-1 9-1 12-1 13-1 12-1 13-1 14-1 15-1 27-2 27-3 32-1 32-1 31-1 31-1 31-2 31-1 31-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

1449-61019-0 1449-61047-0 1449-61051-0

36-1 36-1

1634-09078-0 2100-06010-1 2100-06016-1

9-1 39-1

2100-08020-1 2100-08020-1 2100-08020-1

35-2 35-3

1449-61053-1 1449-61059-0 1449-61060-0 1449-61061-0 1449-61075-0 1449-61078-1 1449-61079-0 1449-61080-0 1449-61081-0 1449-61082-0 1449-61083-0 1449-61084-0 1449-61085-0 1449-61086-0 1449-61087-0 1449-61088-0 1449-61089-0 1449-75005-0 1449-75006-0 1450-19018-0 1450-19018-0 1508-32005-0 1508-32008-1 1508-63005-0 1508-75012-0 1508-75012-0 1515-63002-0 1517-71003-0 1518-71002-0 1518-71003-0 1518-71003-0 1539-12013-0 1550-12013-0 1559-05008-0 1620-19028-0

35-1 35-3 36-1 35-1 35-1 35-1 36-1 35-2 35-2 35-2 35-2 35-2 35-2 35-2 35-2 35-2 35-2 35-3 40-1 38-1 12-1 13-1 17-2 17-2 42-1 40-2 46-1 42-1 37-1 37-2 0-1 37-2 11-2 11-2 5-1 13-2

2100-06016-1 2100-06020-1 2100-06020-1 2100-06020-1 2100-06030-1 2100-06030-1 2100-06050-1 2100-08012-1 2100-08012-1 2100-08012-1 2100-08014-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08016-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 I-3

2-1 3-2 3-2 7-2 31-1 10-1 11-1 3-2 23-2 31-1 40-2 45-1 6-1 6-2 7-1 7-2 8-1 9-1 10-1 11-1 11-2 35-1 38-1 38-2 2-1 2-2 3-1 3-2 4-1 15-1 17-2 23-1 27-1 27-2 27-3 33-1

2100-08020-1 2100-08020-1 2100-08020-1 2100-08020-1 2100-08025-1 2100-08025-1 2100-08025-1 2100-08025-1 2100-08025-1 2100-08025-1 2100-08035-1 2100-08060-1 2100-08080-1 2100-08080-1 2100-08080-1 2100-10016-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10020-1 2100-10025-1 2100-10025-1 2100-10025-1 2100-10025-1 2100-10025-1 2100-10025-1

36-1 38-1 38-2 39-1 40-1 6-1 6-2 7-1 11-1 11-2 42-1 11-2 5-1 17-1 27-2 27-3 6-2 1-1 3-1 6-1 10-1 17-2 23-1 27-1 31-1 33-1 35-1 35-2 40-1 40-2 11-1 11-2 17-2 32-2 33-1 35-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

2100-10025-1 2100-10025-1 2100-10025-1

37-1 37-2

2100-16040-3 2100-16040-3 2100-16050-3

27-2 32-1

2120-10080-0 2120-12100-0 2120-12100-0

44-1 11-2

2100-10025-1 2100-10025-1 2100-10030-1 2100-10030-1 2100-10030-1 2100-10030-1 2100-10030-1 2100-10030-1 2100-10035-1 2100-10035-1 2100-10035-1 2100-10035-1 2100-10035-1 2100-10035-1 2100-10035-1 2100-10035-3 2100-10040-1 2100-10045-1 2100-10045-1 2100-10050-1 2100-10050-1 2100-10050-1 2100-10060-1 2100-10100-1 2100-12020-1 2100-12025-1 2100-12030-1 2100-12030-3 2100-12030-3 2100-12040-3 2100-12050-3 2100-12050-3 2100-12100-1 2100-14050-3 2100-16030-1

38-1 38-2 45-1 35-2 37-2 38-2 41-1 43-1 44-1 1-1 2-1 3-1 16-1 36-1 37-1 37-2 32-2 23-1 37-1 37-2 3-1 15-1 33-1 36-1 31-1 36-1 46-1 1-1 32-1 32-2 19-1 32-1 32-2 42-1 14-1 42-1

2100-16050-3 2100-16060-3 2100-18040-3 2100-18050-3 2100-18070-3 2100-20080-3 2101-10025-1 2101-10035-1 2101-12030-1 2101-12030-1 2119-10025-0 2120-04032-0 2120-06050-0 2120-06050-0 2120-06050-0 2120-06050-0 2120-06050-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-08065-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 2120-10080-0 I-4

32-1 34-1 34-1 32-1 32-1 43-1 27-2 8-1 19-1 1-1 6-2 33-1 35-1 6-2 7-2 9-1 10-1 11-1 2-2 5-1 9-1 10-1 11-2 17-1 27-2 38-2 42-1 2-1 5-1 31-1 33-1 36-1 37-1 37-2 41-1 43-1

2121-10080-0 2121-10080-0 2121-12100-2 2150-06032-0 2150-06050-0 2157-30020-0 2157-30030-0 2170-04008-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-0 2170-06016-1 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0

42-1 5-1 33-1 16-1 32-2 11-1 33-1 24-1 35-1 3-2 6-2 7-1 7-2 8-1 10-1 11-1 31-1 35-1 39-1 40-2 3-2 2-1 2-2 3-1 3-2 4-1 5-1 6-1 6-2 7-1 7-2 8-1 9-1 10-1 11-1 11-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

2170-08016-0 2170-08016-0 2170-08016-0

17-1 17-2

2170-10020-0 2170-10020-0 2170-10020-0

19-1 23-1

2170-12032-2 2170-12032-2 2170-14045-2

32-2 36-1

2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08016-0 2170-08020-1 2170-08020-1 2170-08020-1 2170-08020-1 2170-08023-2 2170-08023-2 2170-08023-2 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0

19-1 23-1 23-2 24-1 27-1 27-2 27-3 33-1 35-1 35-2 35-3 36-1 38-1 38-2 40-1 40-2 45-1 15-1 35-1 35-3 39-1 15-1 23-2 31-1 1-1 2-1 3-1 3-2 5-1 6-1 6-2 8-1 10-1 11-1 11-2 17-2

2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10020-0 2170-10030-1 2170-10030-1 2170-10030-1 2170-10030-1 2170-10032-2 2170-10032-2 2170-10032-2 2170-10032-2 2170-10032-2 2170-10032-2 2170-10032-2 2170-10032-2 2170-12025-0 2170-12025-0 2170-12025-0 2170-12032-2 2170-12032-2 2170-12032-2 2170-12032-2 I-5

27-1 31-1 32-2 33-1 35-1 35-2 36-1 37-1 37-2 38-1 38-2 40-1 40-2 41-1 43-1 44-1 45-1 3-1 36-1 37-1 37-2 1-1 15-1 16-1 17-1 31-1 32-2 35-1 36-1 1-1 6-2 16-1 1-1 5-1 19-1 32-1

2170-14045-2 2170-16030-0 2170-16045-2 2170-16045-2 2170-16045-2 2170-16045-2 2170-18045-2 2170-18045-2 2170-20060-2 2171-04010-0 2171-05013-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-06015-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0

10-1 14-1 42-1 27-2 32-1 34-1 35-2 32-1 43-1 27-2 35-1 7-1 2-1 3-2 6-2 7-1 7-2 8-1 9-1 31-1 35-1 39-1 40-2 2-1 3-1 3-2 4-1 5-1 6-1 6-2 7-1 7-2 9-1 10-1 11-1 11-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

2171-08020-0 2171-08020-0 2171-08020-0

15-1 17-1

2182-06016-2 2182-06020-0 2182-06020-2

7-2 24-1

2265-22004-1 2291-00014-0 2291-00015-0

31-1 46-1

2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-08020-0 2171-10025-0 2171-10025-0 2171-10025-0 2171-10025-0 2171-10025-0 2171-10025-0 2171-12030-0 2179-10016-0 2179-12016-0 2179-14020-0 2180-12022-0 2182-04016-2 2182-05008-2 2182-05016-2 2182-06010-2 2182-06010-2 2182-06012-2 2182-06016-2

17-2 19-1 23-1 24-1 27-1 27-2 27-3 33-1 35-1 35-3 36-1 38-1 38-2 39-1 40-1 40-2 42-1 45-1 5-1 16-1 17-1 35-2 37-1 37-2 16-1 24-1 38-1 40-1 11-2 35-1 7-1 35-2 7-2 8-1 40-2 7-1

2182-06020-2 2194-02012-0 2194-03715-1 2194-05020-0 2194-05620-1 2196-05016-1 2215-01002-3 2215-02002-3 2215-03001-2 2215-06001-2 2215-06001-2 2261-03003-2 2265-02002-3 2265-02002-3 2265-02002-3 2265-02002-3 2265-02002-3 2265-02002-6 2265-03003-3 2265-03003-3 2265-03003-3 2265-03003-6 2265-04004-2 2265-04004-3 2265-04004-3 2265-04004-3 2265-04004-3 2265-04004-6 2265-04004-6 2265-06006-6 2265-12012-2 2265-14002-0 2265-14002-5 2265-19003-0 2265-19003-1 I-6

7-1 35-1 16-1 16-1 32-1 24-1 10-1 34-1 3-1 32-1 23-1 24-1 27-2 23-2 24-1 27-1 27-2 27-3 23-2 17-1 17-2 27-3 24-1 24-1 17-2 23-1 24-1 31-1 23-2 24-1 24-1 31-1 23-1 27-3 27-3 17-1

2291-00016-0 2291-00018-0 2291-00018-0 2291-00018-0 2291-00022-0 2291-00032-0 2291-00040-0 2291-00040-0 2291-00046-0 2291-00065-0 2291-00070-0 2291-00080-0 2292-02095-0 2292-02127-0 2292-03127-0 2292-03127-0 2292-03127-0 2292-03127-0 2292-04127-0 2292-06200-0 2293-07064-5 2293-07080-2 2293-07080-5 2293-07132-5 2293-07160-5 2293-09016-2 2293-09026-5 2293-12023-0 2293-12036-0 2293-12038-0 2293-12045-0 2293-12152-0 2293-12250-0 2293-15096-0 2298-09028-1

2-1 3-1 38-1 38-2 39-1 38-1 23-1 3-1 3-2 3-1 4-1 4-1 4-1 3-1 38-1 1-1 38-1 38-2 39-1 38-1 23-1 2-1 3-2 2-1 2-1 46-1 38-2 3-1 39-1 39-1 38-2 38-2 38-1 38-1 38-1 40-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

2298-09105-1 2298-09110-1 2298-09150-1

40-1 40-1

2341-31100-6 2341-31106-6 2341-31106-6

27-2 27-1

2630-02014-0 2630-02014-0 2630-02014-0

27-2 27-3

2298-12035-1 2340-12060-1 2340-14050-1 2340-32060-1 2341-10158-2 2341-10188-2 2341-10196-2 2341-10204-2 2341-11102-4 2341-11140-1 2341-11146-4 2341-11150-4 2341-11234-4 2341-12036-1 2341-12050-2 2341-12056-5 2341-12086-5 2341-12102-2 2341-12134-2 2341-12156-1 2341-12208-6 2341-12214-6 2341-12258-6 2341-12269-6 2341-12288-2 2341-14066-1 2341-22085-5 2341-30062-2 2341-30078-2 2341-30078-2 2341-31078-6 2341-31083-6 2341-31094-1 2341-31097-1 2341-31100-6

40-1 1-1 23-1 23-1 23-2 27-1 27-1 23-2 23-2 17-1 31-1 17-1 17-1 17-1 31-1 23-1 31-1 31-1 17-1 31-1 27-1 23-2 23-2 27-1 27-1 17-1 23-1 31-1 31-1 27-1 27-2 27-2 27-2 27-1 27-2 27-1

2341-32080-1 2341-36095-1 2384-02002-0 2384-02002-0 2384-03002-0 2405-06030-0 2405-06030-0 2405-10043-0 2439-25009-0 2461-07003-0 2461-14001-0 2472-01002-0 2472-01003-0 2501-06210-4 2513-32018-2 2580-14010-1 2580-14015-1 2580-20020-1 2580-20025-1 2598-14000-0 2603-04498-0 2630-01080-1 2630-01140-1 2630-01190-1 2630-01300-1 2630-02011-0 2630-02011-0 2630-02011-0 2630-02011-0 2630-02011-0 2630-02011-0 2630-02014-0 2630-02014-0 2630-02014-0 2630-02014-0 I-7

27-2 23-2 17-1 38-2 40-1 39-1 10-1 11-1 33-1 35-2 11-2 10-1 17-2 34-1 34-1 32-2 10-1 10-1 33-1 11-2 11-2 32-2 32-2 32-2 32-1 32-1 17-1 23-2 24-1 27-1 27-2 27-3 17-1 17-2 24-1 27-1

2630-02018-0 2630-02018-0 2630-02018-0 2630-02018-0 2630-02018-0 2630-02018-0 2630-02018-0 2630-02018-0 2630-02024-0 2630-02024-0 2630-02029-0 2630-02038-0 2632-00006-0 2632-00006-0 2632-00006-0 2632-00008-0 2632-00008-0 2632-00008-0 2632-00008-0 2632-00008-0 2632-00010-0 2632-00012-0 2632-00012-0 2820-00003-0 2820-00003-1 2826-00005-1 2826-00015-1 2826-11111-2 2827-00002-0 2828-00002-0 2828-00004-1 2828-00004-1 2828-01001-2 2828-01002-2 2828-01006-2

32-1 17-1 17-2 23-1 23-2 24-1 27-1 27-2 31-1 23-1 24-1 17-1 31-1 23-1 27-3 31-1 17-1 17-2 27-1 27-3 31-2 31-1 23-1 31-1 7-2 7-1 11-2 7-1 7-1 7-1 7-1 7-1 7-2 7-1 7-1 7-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

2849-11007-5 2853-00003-0 2891-00001-5

6-2 7-1

2998-00161-6 2998-01001-6 2998-01004-6

12-2 12-2

3180-20023-0 3180-20029-0 3180-20035-0

11-2 7-1

2891-00016-3 2891-00017-3 2891-00030-1 2891-01025-0 2891-12004-9 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00103-0 2898-00104-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2898-00107-0 2932-05108-0 2932-10108-0 2932-30108-0 2934-10050-0 2998-00009-6 2998-00107-6 2998-00140-6

6-1 6-1 6-1 6-1 6-1 6-1 2-1 2-2 3-2 8-1 9-1 11-1 27-1 38-2 45-1 46-1 11-1 6-1 8-1 9-1 11-1 11-2 17-1 23-1 27-1 31-1 38-1 38-2 40-1 32-2 32-2 32-2 38-2 12-1 12-1 12-1

2998-01005-6 2998-02308-0 2998-96001-0 2998-96001-1 3100-00058-0 3100-00065-0 3100-01142-0 3100-01145-0 3100-02060-0 3100-02062-0 3100-02062-0 3100-02087-0 3100-02162-0 3100-06127-0 3100-11178-0 3100-12230-0 3100-31007-0 3100-51045-0 3100-52044-0 3120-00070-0 3120-00070-0 3120-00093-0 3120-01073-0 3120-01073-0 3120-01073-0 3120-01108-0 3120-01126-0 3120-01136-0 3120-01136-0 3120-01136-0 3148-00008-0 3171-01009-0 3171-11025-0 3171-92030-0 3171-93037-0 I-8

12-2 12-2 13-2 12-1 13-1 19-1 24-1 1-1 36-1 10-1 37-1 37-2 10-1 36-1 27-3 5-1 1-1 17-1 3-2 32-2 10-1 11-1 11-1 33-1 35-2 36-1 1-1 10-1 10-1 11-2 33-1 14-1 7-1 36-1 10-1 7-1

3201-01011-0 3201-20008-0 3201-21006-0 3201-21007-0 3209-02007-0 3209-02007-0 3215-13024-0 3260-21171-0 3260-31034-0 3260-31039-0 3260-31050-0 3260-31060-0 3260-31060-0 3260-31060-0 3260-31108-0 3260-31154-0 3260-31156-0 3260-31157-0 3260-31157-0 3260-31161-0 3260-31189-0 3260-32024-0 3260-36150-0 3260-61091-0 3260-62013-0 3260-62029-0 3260-62049-1 3260-62062-0 3260-62062-0 3260-62087-0 3260-62103-1 3260-62104-0 3291-00017-0 3291-00026-0 3291-00026-0

38-2 38-1 40-1 38-1 39-1 38-1 40-1 31-2 39-1 27-3 17-1 23-1 17-1 27-1 27-2 27-3 24-1 23-2 27-1 27-2 27-3 31-1 17-1 23-2 31-1 31-2 31-2 17-1 17-1 31-2 23-1 27-1 23-1 23-2 40-1 40-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

3291-01029-0 3292-10041-0 3292-10041-0

1-1 40-1

3910-04026-0 3910-04027-0 3910-20009-1

37-2 37-2

3998-13554-0 3998-14239-0 3998-14249-0

12-1 13-1

3292-10042-0 3292-10046-0 3292-11022-1 3292-11022-1 3292-12053-0 3380-01023-0 3380-60019-0 3380-61018-0 3400-41022-0 3400-42021-0 3416-02001-1 3416-02019-0 3416-02055-0 3416-02056-0 3416-02060-0 3416-02060-0 3416-02068-0 3416-02078-0 3416-02078-0 3417-03002-0 3424-00023-0 3460-49023-0 3460-49079-0 3479-02007-0 3511-41038-0 3680-12029-0 3823-10011-0 3823-10011-0 3823-10011-0 3881-03004-0 3881-03026-0 3881-03028-0 3899-54054-0 3910-04014-0 3910-04026-0

40-2 40-1 38-1 38-1 39-1 38-1 27-2 40-1 38-1 10-1 11-1 2-2 11-1 31-2 10-1 9-1 17-2 11-1 38-1 38-2 27-2 10-1 42-1 36-1 32-2 32-1 3-2 10-1 11-2 33-1 6-1 6-1 7-1 6-1 33-1 37-1

3931-00259-0 3931-00324-0 3931-00380-0 3931-02360-0 3934-01758-0 3934-02760-0 3934-11105-0 3934-11106-0 3934-12120-0 3956-00018-0 3998-04030-0 3998-04030-0 3998-04031-0 3998-04094-0 3998-04098-0 3998-04098-0 3998-06139-0 3998-06139-0 3998-10148-0 3998-10395-0 3998-10549-0 3998-10553-0 3998-10585-0 3998-10692-0 3998-10693-0 3998-11015-0 3998-11231-0 3998-11618-0 3998-11620-0 3998-11621-0 3998-11621-0 3998-12017-0 3998-12017-0 3998-13197-0 3998-13257-0 I-9

11-2 42-1 11-2 40-2 35-2 23-2 37-1 27-2 17-1 27-3 35-2 12-1 12-2 12-1 13-1 13-1 13-2 12-2 13-2 12-1 13-1 12-2 12-2 13-2 12-1 13-1 12-1 13-1 12-1 13-1 12-2 13-2 12-2 13-2 12-1 13-1

3998-14250-0 3998-14298-0 3998-14299-0 3998-14439-0 3998-14440-0 3998-14449-1 3998-14518-0 3998-14521-0 3998-14548-0 3998-14606-0 3998-15564-0 3998-16296-0 3998-16297-0 3998-16454-2 3998-16477-0 3998-16483-0 3998-16487-0 3998-16489-0 3998-16491-2 3998-16494-0 3998-16499-0 3998-16500-0 3998-16501-0 3998-16502-0 3998-16504-0 3998-16505-0 3998-16694-0 3998-16694-0 3998-16732-0 3998-16733-0 3998-17215-0 3998-17215-0 3998-19697-0 3998-19698-0 3998-19734-0

12-1 13-1 12-1 13-1 12-2 13-2 13-1 12-1 13-1 12-1 12-1 13-1 12-1 13-1 12-2 12-2 12-2 12-1 13-2 13-2 13-1 13-1 13-1 13-1 13-1 13-2 13-2 12-2 13-2 12-1 13-1 12-1 13-1 12-1 13-1 12-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

3998-22029-0 3998-22030-0 3998-36002-0

12-2 13-2

4208-98005-0 4213-09000-0 4213-46000-0

17-2 38-1

4215-84031-0 4215-84034-0 4215-85000-0

21-1 21-1

4027-59002-0 4027-59003-0 4028-40004-0 4029-68001-0 4030-11002-0 4030-11004-0 4031-24000-0 4031-33001-0 4031-33004-0 4031-33006-0 4031-33006-0 4032-12001-0 4032-12002-0 4032-12003-0 4032-12004-0 4032-12005-0 4032-12007-0 4032-12008-0 4032-12010-0 4032-12011-0 4032-12013-0 4032-12013-0 4032-12015-0 4032-15002-0 4033-42000-0 4201-77017-0 4201-77017-0 4201-77059-0 4202-08018-0 4202-53062-0 4205-01123-0 4205-01123-0 4205-50000-0 4205-50000-0 4206-60012-0

13-1 1-1 1-1 31-1 7-2 2-1 2-1 1-1 2-1 5-1 0-1 1-2 1-2 1-2 1-2 2-1 2-1 3-2 3-2 2-1 2-1 0-1 2-2 3-2 19-1 1-1 26-1 29-1 21-1 22-2 22-1 26-2 29-1 0-1 24-1 22-1

4213-46001-0 4213-46001-0 4213-46002-0 4215-14001-0 4215-76000-0 4215-82003-0 4215-82004-0 4215-82004-0 4215-82005-0 4215-82007-0 4215-82008-0 4215-82008-0 4215-82009-0 4215-82010-0 4215-82011-0 4215-82014-0 4215-82014-0 4215-82014-0 4215-82015-0 4215-82016-0 4215-82017-0 4215-82018-0 4215-82019-0 4215-82020-0 4215-82021-0 4215-82022-0 4215-84002-0 4215-84004-0 4215-84005-0 4215-84010-0 4215-84011-0 4215-84014-0 4215-84015-0 4215-84022-0 4215-84025-0 I-10

17-2 0-1 17-2 17-2 17-1 2-2 28-1 26-1 29-1 29-1 29-1 26-1 29-1 29-1 29-1 29-1 26-1 26-2 29-1 29-1 29-1 29-1 29-1 29-1 29-1 28-1 28-1 20-1 22-1 22-1 22-1 20-1 20-1 21-1 26-1 21-1

4216-00000-0 4216-00000-0 4216-44009-0 4216-44032-0 4216-44071-0 4216-44096-0 4216-44096-0 4216-44160-0 4216-44160-0 4216-44161-0 4216-44161-0 4216-44176-0 4216-44180-0 4216-45018-0 4216-47019-0 4216-47022-0 4216-47022-0 4216-47023-0 4216-47023-0 4216-55001-0 4216-95000-0 4216-95001-0 4216-95002-0 4216-95003-0 4216-95004-0 4216-95005-0 4216-95006-0 4216-95007-0 4216-95008-0 4216-95010-0 4216-95014-0 4216-95015-0 4216-95016-0 4216-95017-0 4216-95018-0

19-1 7-1 34-1 22-1 22-1 21-1 20-1 29-1 22-1 26-1 22-1 26-1 22-1 22-1 26-1 26-1 22-1 26-1 22-1 26-1 17-2 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1 18-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

4216-95019-0 4216-95020-0 4216-95021-0

18-1 18-1

4218-25053-0 4218-25054-0 4218-25055-0

21-1 21-1

4218-29040-0 4218-30000-0 4218-30002-0

26-1 23-2

4216-95022-0 4216-95023-0 4216-95024-0 4216-95025-0 4216-96000-0 4216-96001-0 4216-96002-0 4216-96003-0 4216-96004-0 4217-54000-1 4217-54001-0 4218-25000-0 4218-25001-0 4218-25005-0 4218-25006-0 4218-25011-0 4218-25012-0 4218-25013-0 4218-25014-0 4218-25015-0 4218-25027-0 4218-25029-0 4218-25030-0 4218-25031-0 4218-25033-0 4218-25034-0 4218-25035-0 4218-25036-0 4218-25037-0 4218-25039-0 4218-25047-0 4218-25049-0 4218-25050-0 4218-25051-0 4218-25052-0

18-1 18-1 18-1 18-1 18-1 17-1 18-1 18-1 18-1 18-1 31-1 31-2 19-1 20-1 22-1 22-1 22-1 22-1 22-1 22-1 20-1 22-1 20-1 22-1 21-1 21-1 20-1 21-1 20-1 22-1 21-1 20-1 21-1 21-1 21-1 21-1

4218-25056-0 4218-29003-0 4218-29004-0 4218-29005-0 4218-29006-0 4218-29007-0 4218-29012-0 4218-29013-0 4218-29013-0 4218-29014-0 4218-29014-0 4218-29015-0 4218-29015-0 4218-29016-0 4218-29016-0 4218-29017-0 4218-29017-0 4218-29018-0 4218-29024-0 4218-29025-0 4218-29026-0 4218-29027-0 4218-29028-0 4218-29029-0 4218-29030-0 4218-29031-0 4218-29031-0 4218-29032-0 4218-29032-0 4218-29033-0 4218-29034-0 4218-29035-0 4218-29037-0 4218-29038-0 4218-29039-0 I-11

22-1 21-1 28-1 28-1 28-1 28-1 28-1 29-1 26-1 29-1 26-1 29-1 26-1 29-1 26-2 29-1 26-2 29-1 29-1 26-1 29-1 29-1 29-1 29-1 29-1 29-1 26-2 29-1 26-2 29-1 29-1 29-1 29-1 26-1 26-1 26-1

4218-30003-0 4218-30004-0 4218-30005-0 4218-30006-0 4218-30007-0 4218-30008-0 4218-30009-0 4218-30010-0 4218-30012-0 4218-30014-0 4218-30015-0 4218-30016-0 4218-30017-0 4218-30018-0 4218-30019-0 4218-30020-0 4218-30021-0 4218-30022-0 4218-30023-0 4218-30024-0 4218-30025-0 4218-30026-0 4218-30027-0 4218-30028-0 4218-30029-0 4218-30030-0 4218-30031-0 4218-30032-0 4218-30033-0 4218-30034-0 4218-30035-0 4218-30036-0 4218-30037-0 4218-30038-0 4218-30039-0

25-1 25-1 25-1 25-1 25-1 25-1 25-1 25-1 25-1 25-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-1 26-2 26-2 26-2 26-2 26-2 26-2 26-2 26-2

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

4218-30040-0 4218-30041-0 4218-30042-0

26-2 26-2

4223-40070-0 4223-40071-0 4223-40073-0

22-1 22-1

4420-54000-1 4420-60000-1 4420-61000-1

2-1 5-1

4218-31003-0 4218-32001-0 4218-32003-0 4218-34000-0 4218-35000-0 4218-35000-0 4218-35002-0 4218-35003-0 4218-35004-0 4218-35005-0 4218-35006-0 4218-35007-0 4218-38002-0 4218-38004-0 4220-02000-0 4221-49000-0 4221-65000-1 4221-65002-0 4221-65004-0 4221-65005-0 4222-00064-0 4222-00067-0 4223-40007-0 4223-40007-0 4223-40030-0 4223-40041-0 4223-40041-0 4223-40041-0 4223-40048-0 4223-40049-0 4223-40050-0 4223-40051-0 4223-40054-0 4223-40061-0 4223-40069-0

26-2 26-2 28-1 28-1 27-2 27-3 30-1 30-1 30-1 30-1 30-1 30-1 30-1 22-1 26-1 17-1 17-1 24-1 24-1 24-1 24-1 22-2 22-1 21-1 22-1 22-1 20-1 21-1 22-1 20-1 20-1 20-1 20-1 20-1 22-2 22-1

4223-40077-0 4223-40078-0 4223-55008-0 4224-24000-0 4224-24001-0 4224-24002-0 4225-40000-0 4225-41000-0 4400-03003-0 4400-03004-1 4406-43003-0 4406-43004-0 4406-43005-0 4406-43007-0 4408-84000-0 4409-05005-0 4409-05011-0 4409-05012-0 4409-05014-0 4415-44001-0 4415-44001-0 4415-70003-0 4415-89001-0 4416-03005-0 4416-54000-0 4416-66001-0 4417-05000-0 4417-10001-0 4417-10001-0 4417-63000-1 4417-92000-0 4419-62000-0 4420-46000-0 4420-47000-0 4420-53000-0 I-12

22-1 22-1 22-1 26-1 3-2 3-2 3-2 17-1 31-2 2-2 2-2 24-1 24-1 24-1 24-1 5-1 16-1 16-1 16-1 16-1 0-1 4-1 3-2 2-2 16-1 33-1 2-2 2-2 0-1 4-1 34-1 34-1 2-2 14-1 14-1 2-1

4420-78000-0 4420-78000-0 4420-99000-0 4420-99000-0 4420-99000-0 4421-18000-0 4421-38000-0 4421-38002-0 4421-38004-0 4421-62000-0 4421-64000-0 4421-64001-0 4423-08000-0 4423-08001-0 4423-08002-0 4423-08003-0 4423-08004-0 4423-08005-0 4423-08006-0 4423-08007-0 4423-38000-0 4423-39000-0 4423-93000-0 4423-93001-0 4424-26000-0 4424-26000-0 4424-37000-0 4424-38000-0 4424-39000-0 4424-41000-0 4424-42000-0 4424-43000-0 4424-44000-0 4703-14000-0 4703-14000-0

5-1 0-1 35-2 41-1 43-1 44-1 3-1 16-1 16-1 16-1 5-1 16-1 16-1 11-2 11-2 11-2 11-2 11-2 11-2 11-2 11-2 14-1 14-1 24-1 24-1 0-1 4-1 3-1 3-1 3-2 5-1 5-1 5-1 4-1 17-2 34-1

索引 INDEX 部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

部品番号 Parts No.

頁 Page.

4703-26003-0 4703-68013-0 4703-68015-0

38-2 38-3

4710-57000-1 4710-58000-0 4710-64000-0

15-1 15-1

4908-86000-0 4908-91000-0 4909-55003-0

6-2 7-2

4703-68015-0 4706-20000-0 4706-82016-0 4706-82020-0 4707-71000-0 4710-23000-0 4710-23000-0 4710-28000-0 4710-34000-0 4710-35000-0 4710-37000-0 4710-37000-0 4710-38000-0 4710-38002-0 4710-38002-0 4710-41000-0 4710-41000-0 4710-41001-0 4710-41001-0 4710-41002-0 4710-41002-0 4710-41002-0 4710-41003-0 4710-41003-0 4710-41004-0 4710-41004-0 4710-41004-0 4710-41005-0 4710-41005-0 4710-43003-0 4710-48000-0 4710-49000-0 4710-50000-0 4710-53000-3 4710-56000-1

0-1 38-3 35-1 38-2 38-3 46-1 32-1 32-2 11-2 40-1 40-2 7-1 36-1 40-1 0-1 40-2 0-1 38-2 0-1 38-3 0-1 38-3 40-2 0-1 38-3 0-1 38-3 40-2 0-1 38-3 39-1 6-2 6-2 6-2 15-1 15-1

4710-93000-0 4710-93000-0 4710-96000-0 4711-15000-2 4713-47000-0 4715-86001-0 4715-86001-0 4715-86002-0 4715-86002-0 4715-90000-0 4715-91000-0 4716-03000-0 4716-03000-0 4716-04001-0 4716-06000-0 4716-22000-0 4716-22000-0 4716-25000-0 4717-09000-0 4718-18000-2 4718-18002-0 4718-18004-0 4718-18005-0 4718-18008-0 4718-60000-0 4718-60004-0 4719-48000-0 4719-49000-0 4719-67000-0 4719-68000-0 4719-69000-0 4719-79000-0 4905-51001-0 4906-11000-1 4908-85001-0 I-13

46-1 6-1 9-1 6-1 35-2 7-1 0-1 40-2 0-1 40-2 39-1 38-1 10-1 32-1 15-1 35-1 0-1 40-1 38-2 46-1 39-1 39-1 39-1 39-1 39-1 44-1 44-1 38-2 38-2 6-1 38-1 38-1 6-1 9-2 6-1 6-2

4910-20000-0 4910-32000-0 4910-39002-0 4910-56000-0 4910-59000-0 4911-19000-0 4911-19000-0 4911-19000-0 4911-20000-0 4911-20000-0 4911-20000-0 4911-22000-0 4911-24000-0 4911-24001-0 4911-27000-0 4911-30001-0 4911-31000-0 4911-33000-0 4911-34000-0 4911-77000-0 4912-02000-0 4913-30000-0 4913-68001-0 4913-68002-0 4913-74000-0 4913-92000-0 4913-92001-0 4913-92002-0 4913-92003-0 4913-93000-0 4913-93001-0 4914-03000-0 4916-05000-0 4916-09000-0 4917-41000-0

9-2 7-2 7-1 7-2 7-1 6-1 2-1 8-1 9-1 8-1 40-1 40-2 8-1 6-2 6-2 7-2 9-2 6-1 8-1 8-1 7-1 7-2 9-2 6-2 6-2 6-2 6-1 6-2 6-2 6-2 6-1 6-2 6-1 45-1 7-1 7-1

索引 INDEX 部品番号 Parts No.

頁 Page.

4917-52000-0 4917-81000-0 9420-47000-0

7-1 6-1

部品番号 Parts No.

14-1

I-14

頁 Page.

部品番号 Parts No.

頁 Page.

TW504 February - 2016

2016.2 ⓪
