ENGINE LUBRICATION

Engine Oil Selection

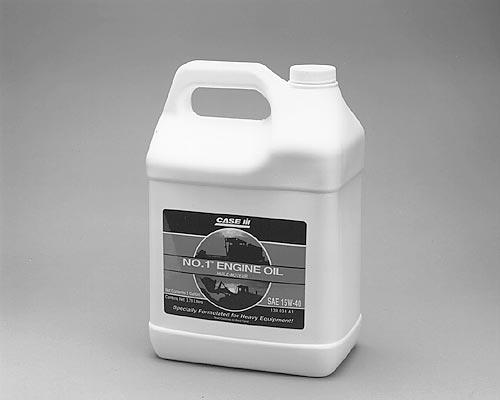

Case No. 1 Engine Oil is recommended for use in your Case engine. Case engine oil will lubricate your engine correctly under all operating conditions.

See the chart on the following page for recommended viscosity at ambient air temperature ranges.

If Case No. 1 Multi-Viscosity or Single Viscosity Engine Oil is not available, use only oil meeting API engine oil service category CE.

BI96H018 BP97H064

NOTE: Do not put Performance Additives or other oil additive products in the engine crankcase. The oil change intervals given in this manual are according to tests with Case lubricants.

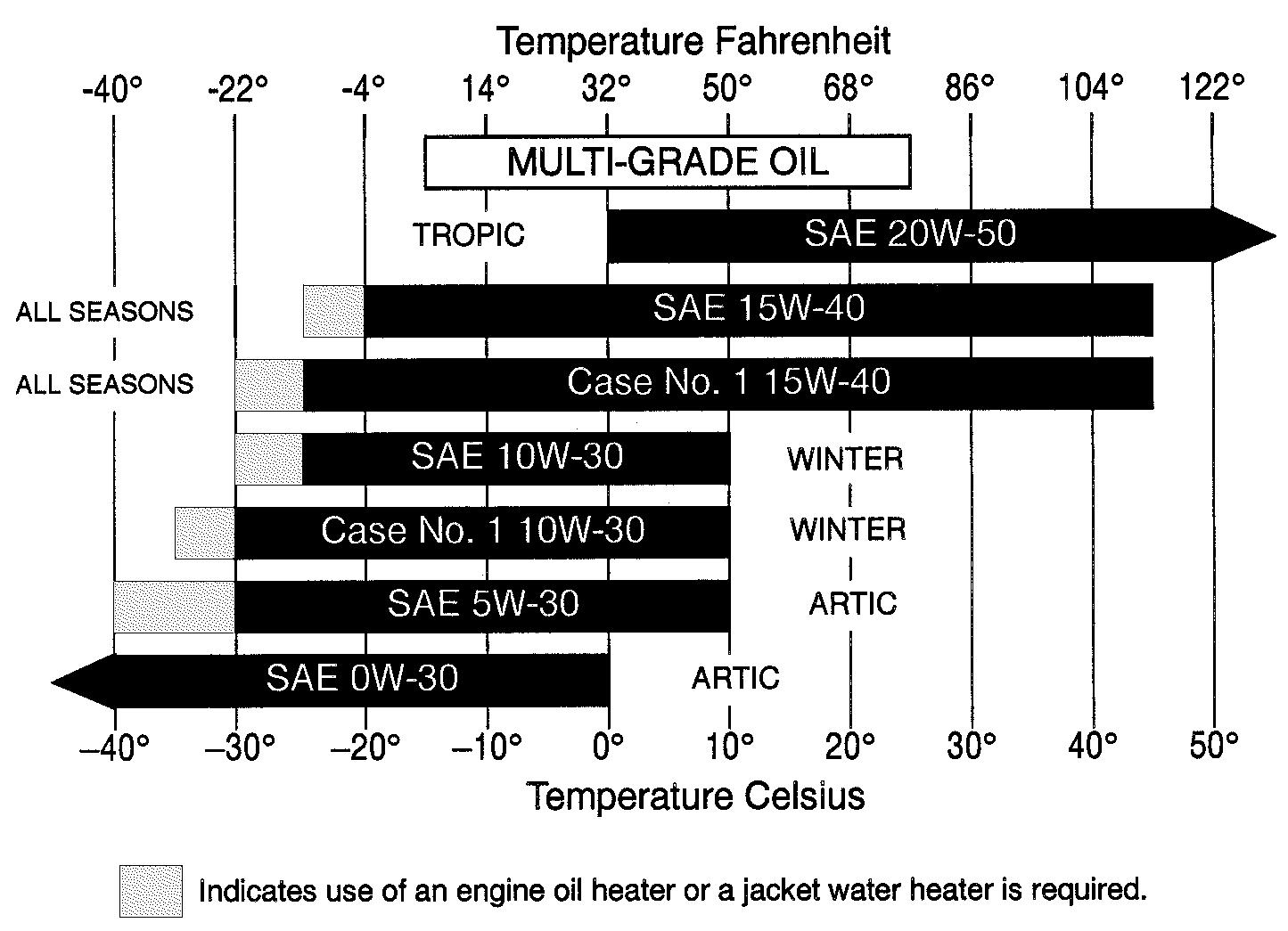

Oil Viscosity/TemperatureRanges

BS99E068

Engine Service Specifications

Oil Capacity - with Filter Change...............................10.4 litres (2.3U.K. gallons) Oil Level Check Interval.....Every 10 Hours of Operation or One Time Each Day Oil Change and Filter Replacement Interval..........Every 250 Hours of Operation Oil Type.............................................................See Engine Lubrication, page 98

Engine Oil Level

Check the engine oil level before you start the engine each day or before the start of each 10 hour shift. Make sure the engine is not running and the machine is parked on a level surface when you check the oil level.

NOTE: If the engine has been running, wait two or three minutes before you check the oil level. 1.Remove the dipstick and wipe with a clean cloth. 2.Push the dipstick completely in and remove. 3.The oil level must be between the FULL and LOW marks on the dipstick. 4.If the oil level is below the LOW mark, add oil to the fill pipe. Raise the oil level to the FULL mark. Do not raise the oil level above the FULL mark.

NOTE: See Engine Oil Selection, page 98 for the engine oil specifications. 5.Install the dipstick.

1

1.ENGINE OIL LEVEL DIPSTICK 1

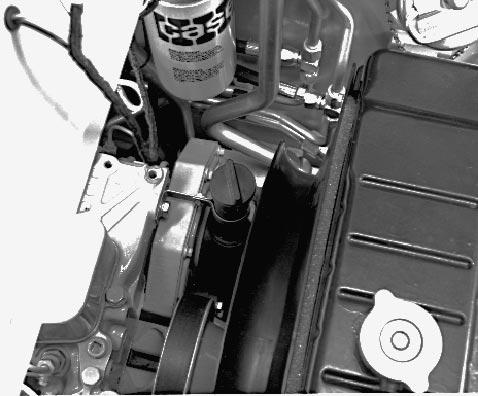

A19227 1.ENGINE OIL FILL PIPE

B4025790

Oil Change and Filter Replacement

Change the engine oil and replace the engine oil filter every 250 hours of operation.

If possible, change the oil when the oil is still warm from operation.

IMPORTANT: You must shorten the oil change interval if you use diesel fuel with a sulphur content of more than 0.5%.

Change the engine oil more frequently when the engine operating conditions are severe (frequent stopping and starting and high or low engine temperatures). 1.Remove drain plug cover from skid plate to gain access to drain plug.

1

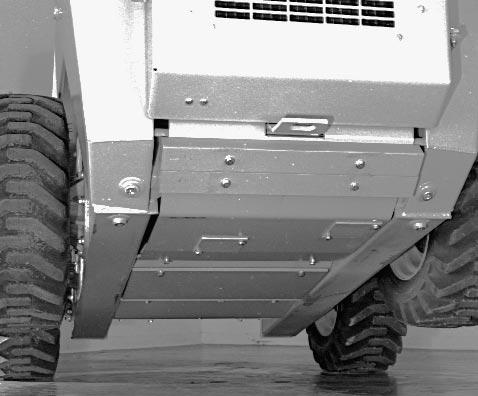

1.DRAIN PLUG COVER

B4026990

2.Remove the drain plug and drain the oil into a container that will hold 11.3 litres (2.5 gallons). 1

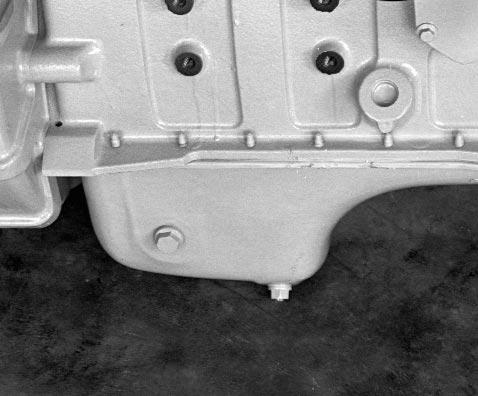

1.DRAIN PLUG

B4140688

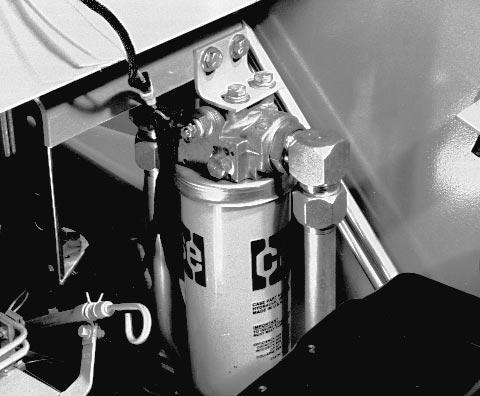

3.Remove the oil filter by turning counterclockwise. Discard the filter.

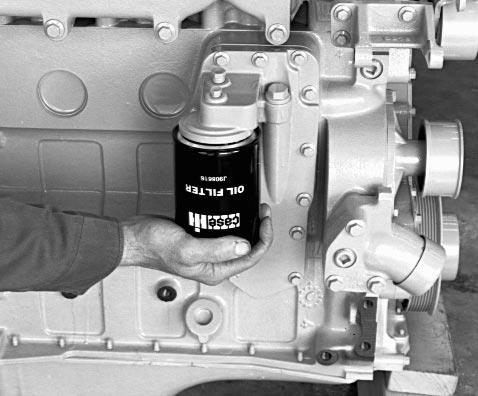

B4140988 4.Clean the gasket surface on the filter head with a clean cloth. 5.Apply a thin layer of clean grease or oil to the gasket of the new oil filter. 6.Install the new oil filter. Use your hands to tighten the filter 3/4 turn after the filter gasket makes contact with the filter head.

IMPORTANT: DO NOT use a filter strap wrench to install the oil filter. An oil filter strap wrench can cause a leak if the filter is dented. 7.Install the drain plug. Tighten the drain plug to a torque of 68-82 Nm (50 to 60 lb ft). Overtightening can damage the oil pan. Install drain plug cover to skid plate. 8.Put 10.4 litres (2.3 U.K. gallons) of new engine oil into the engine oil fill pipe. See Engine Lubrication, page 98 for the correct type of oil.

Systemgard Lubricant Analysis Program

The normal engine oil change interval is every 250 hours of operation. Operating conditions, quality of the engine oil and sulphur content of the fuel, can change this interval. It is recommended to use the Systemgard Lubricant Analysis program. See your Case dealer for details.

1

1.ENGINE OIL FILL PIPE

B4025790

9.Install the fill cap. 10.Start the engine. Run the engine at idle for approximately 2 minutes.

Check for oil leaks. 11.Stop the engine. Wait for 2 or 3 minutes, check the oil level. If the oil level is below the LOW mark, add oil to raise the oil level to the

Full mark. Do not fill the crankcase above the FULL mark. 12.Dispose of oil in accordance with local regulations. Do not drain on ground or into a drain. Be responsible for the environment.
