CASE COUPLER

OPERATING INSTRUCTIONS

CASE COUPLER Installing a Bucket or Attachment

IMPORTANT: Read the manufacturers instruction manual for attachments not included in this manual. DO NOT use attachments that are not approved by CASE. The use of additional equipment or accessories that are not authorized by CASE will invalidate CE certification to safety requirements. Any modification of the machine with a view to adapting any such equipment or accessory that is not authoriized in this manual must receive CASE approval. IMPORTANT: Before installing a bucket or attachment, make sure the mounting area of the bucket and Case Coupler is clean. 1.Pull both Case Coupler levers up to the vertical position. Start the engine and tilt the Case Coupler forward. 3.Push both Case Coupler levers down to hold the bucket or attachment in place. Make suere the two wedges are completely down and engaged.

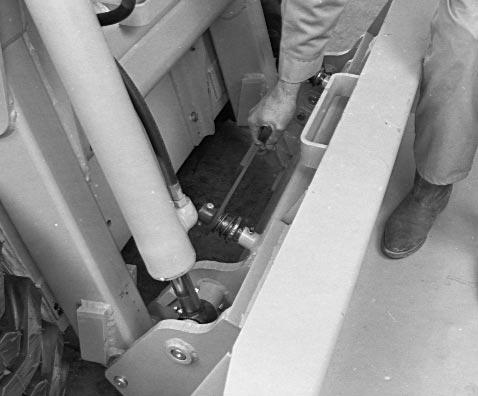

CASE COUPLER LEVERS

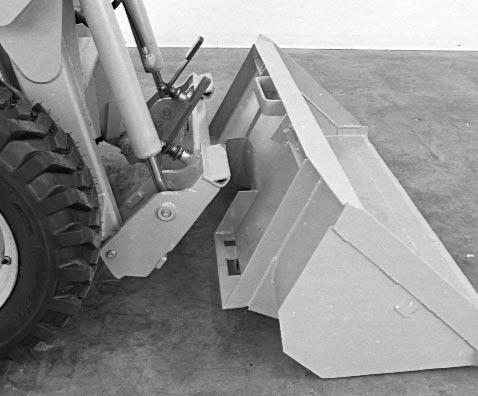

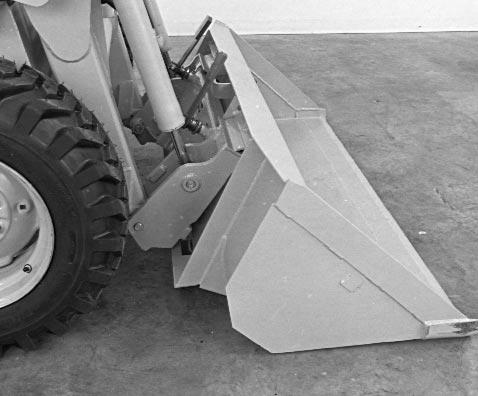

B4132188 2.Move the machine forward and pick up the bucket or attachment. Tilt the bucket or attachment back.

B4132388

Removing a Bucket or Attachment

1.Lift both Case Coupler levers up to the vertical position to disengage the wedges. 2.Fasten seat belt, lower seat bar, start the engine and rotate the bucket or attachment out. 3.Lower the bucket or attachment to the ground and slowly back machine/Case Coupler away from the bucket or attachment.
