INSTRUMENTS/CONTROLS

INSTRUMENTS/CONTROLS

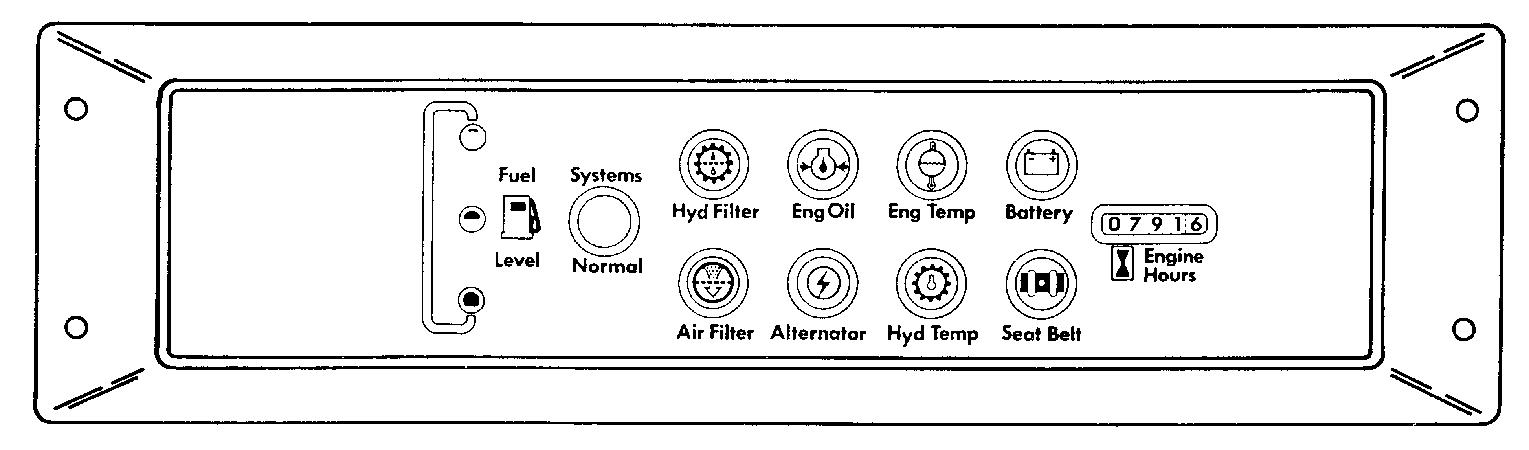

INSTRUMENT CLUSTER

1 3

2

BS99B073 NOTE: When the key switch is turned to ON, the warning lamps will illuminate for 2 seconds. If the warning lamps do not illuminate, see the service manual for this machine or see your dealer. If all systems are normal, the green systems normal lamp is illuminated. If a yellow warning lamp illuminates, stop at the end of the day or shift and correct the problem. If a red warning lamp illuminates, stop the machine and correct the problem.

BS98M034 1. Systems Normal Indicator Lamp (Green) - This lamp illuminates and stays illuminated during machine operation until one or more of the following conditions occur (1) low engine oil pressure, (2) high hydraulic fluid temperature, (3) low alternator output, (4) system voltage below 11 volts, or (5) there is high engine coolant temperature. 2. Fuel Level Gauge - This gauge illuminates to indicate the amount of fuel in the fuel tank when the key switch is in the ON position. The symbols indicate full fuel tank, half full fuel tank, or empty fuel tank. The bottom lamp will start to flash when there is 14.4 litres (3.8 U.S. gallons) of fuel remaining in the fuel tank. The machine can be operated for approximately 1 hour before the fuel tank will be empty.

BS99D058

3. Hydraulic Filter Warning Lamp (Yellow) - This lamp illuminates when the engine is started and the hydraulic fluid is cold or when the engine is running and the hydraulic filter is in need of service. If the lamp is illuminated after 15 minutes of machine operation, or if the lamp illuminates during machine operation, stop the engine and service the hydraulic filter. If this lamp illuminates the systems normal indicator lamp will stay illuminated and the warning alarm will not actuate. NOTE: If you have a problem, correct the problem. After you correct the problem, start the engine. The warning lamps will stop illuminating, the warning alarm will stop sounding and the systems normal indicator lamp will illuminate.

INSTRUMENTS/CONTROLS

INSTRUMENT CLUSTER

5 7

4 6

BS99B073 NOTE: When the key switch is turned to ON, the warning lamps will illuminate for 2 seconds. If the warning lamps do not illuminate, see the service manual for this machine or see your dealer. If all systems are normal, the green systems normal lamp is illuminated. If a yellow warning lamp illuminates, stop at the end of the day or shift and correct the problem. If a red warning lamp illuminates, stop the machine and correct the problem.

BS99D059 4. Air Filter Warning Lamp (Yellow) - This warning lamp illuminates when the engine is running and the air filter requires service.

BS99D060 5. Engine Oil Pressure Warning Lamp (Red) - This lamp illuminates when the engine is running and the engine oil pressure is too low. Then, the warning alarm will actuate and the systems normal indicator lamp will stop illuminating. Stop the engine and check for the problem.

BS98M031 6. Alternator Warning Lamp (Red) - This lamp illuminates when the engine is running and there is a problem with the alternator. The warning alarm will actuate and the systems normal lamp stops illuminating. Make sure the engine speed is at full throttle to check this warning lamp. Stop the machine and check the alternator charging system.

BS99D061

7. Engine Temperature Warning Lamp (Red) - This lamp illuminates when the engine is running and the engine temperature is too high. Then, the warning alarm will actuate and the systems normal indicator lamp will stop illuminating. Stop the engine and check for problem. NOTE: If you have a problem, correct the problem. After you correct the problem, start the engine. The warning lamps will stop illuminating, the warning alarm will stop sounding and the systems normal indicator lamp will illuminate.
