CONTENTS 01 PROJECT 1(A) - POP-UP KIOSK 04 PROJECT 1(B) - WIND + UNWIND 06 PROJECT 2 - BAYWATCH TOWER
P R O J E C T 1 ( A )
THIS PROJECT LOOKS INTO THE APPLICATION OF THE ANTHROPOMETRICS PROPORTION RELATED TO THE CULTURAL AND/OR LOCAL THEME IN ORDER TO CREATE A POP-UP KIOSK SELLING EITHER FOOD, SOUVENIRS, TITBITS AND ETC WHICH WILL BE LOCATED AT THE BEACH FRONT THE KIOSK SHOULD BE ABLE TO ACCOMMODATE STAFF IN SITTING AND/OR STANDING POSITIONS, AND IS MEANT FOR ONE (1) PERSON ONLY THE KIOSK IN FORM AND SPACE SHOULD REPRESENT THE LOCAL THEMES AND THE MAXIMUM AREA IS 4 SQM. IT WILL BE LOCATED AT ANY BEACH IN SARAWAK AND CAN ALSO BECOMES A MODULAR DESIGN WHERE IT CAN BE PLACE ANYWHERE THROUGHOUT SARAWAK
P O P - U P K I O S K 01

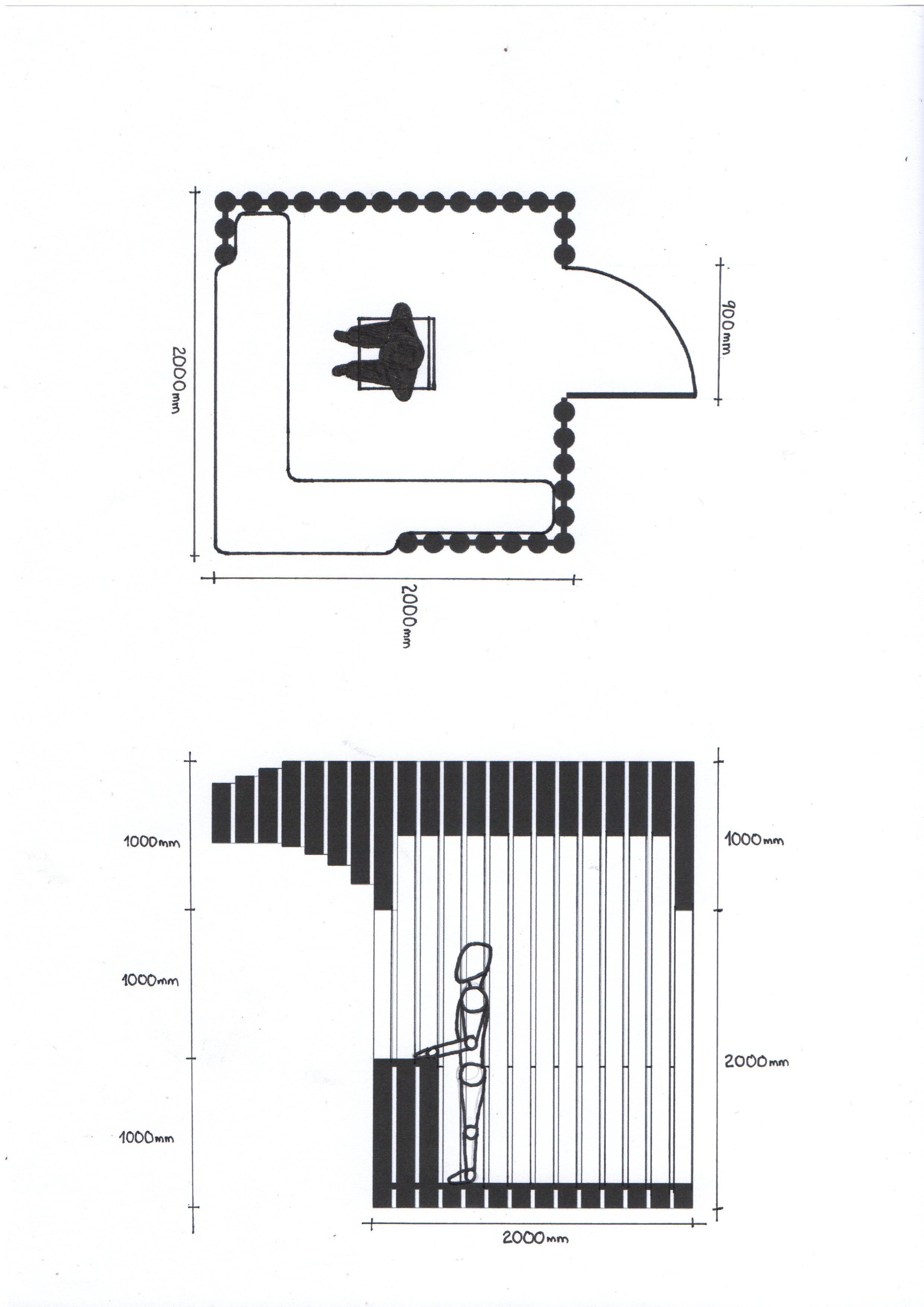

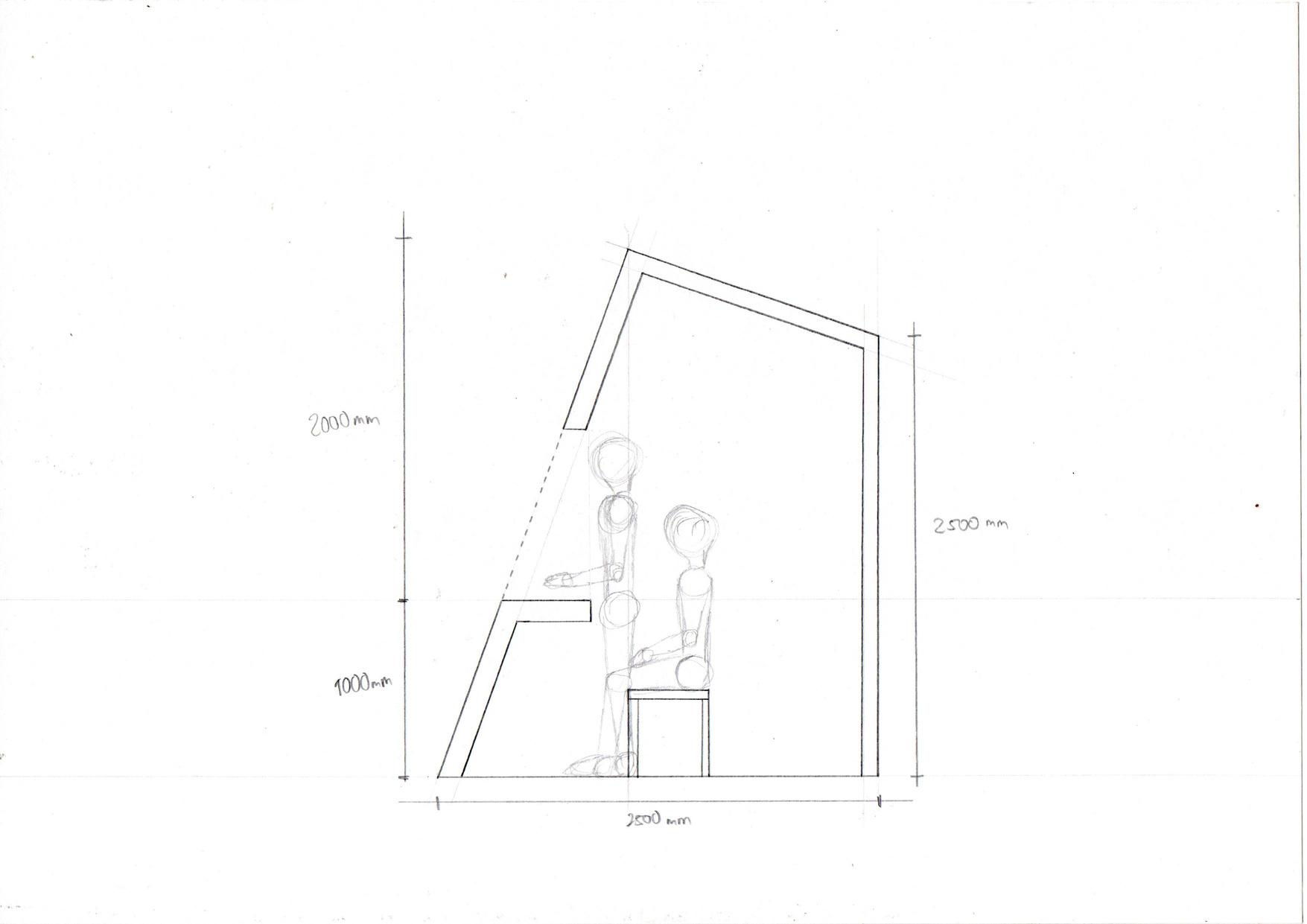

D E S I G N D E V E L O P M E N T I D E A 0 1 I D E A 0 2 I D E A 0 3 02

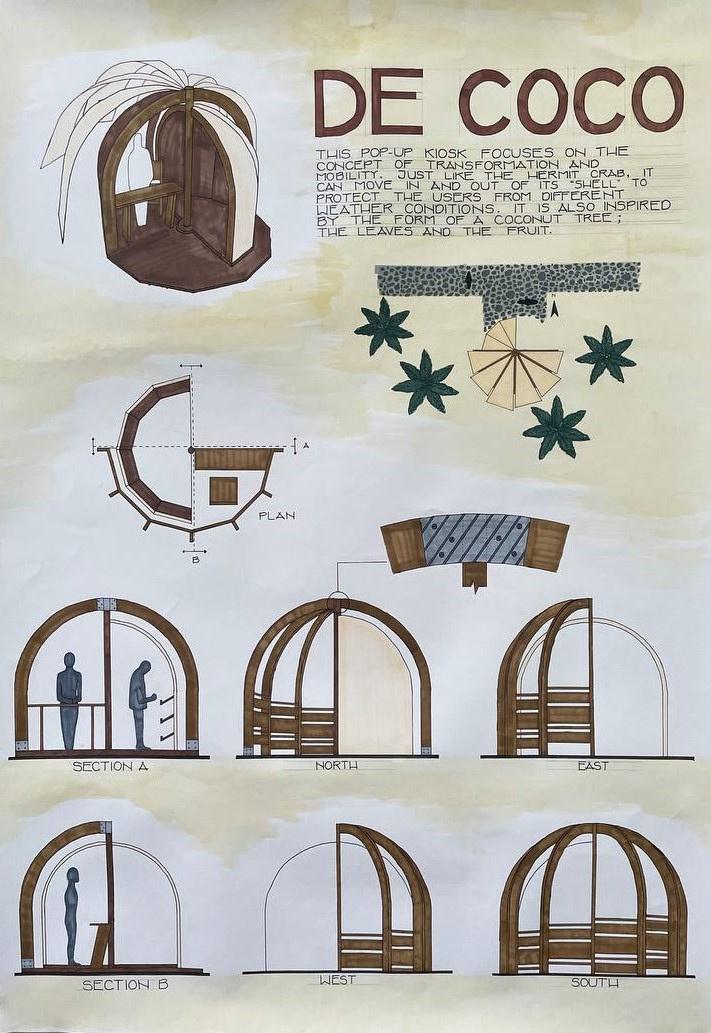

F I N A L B O A R D 03

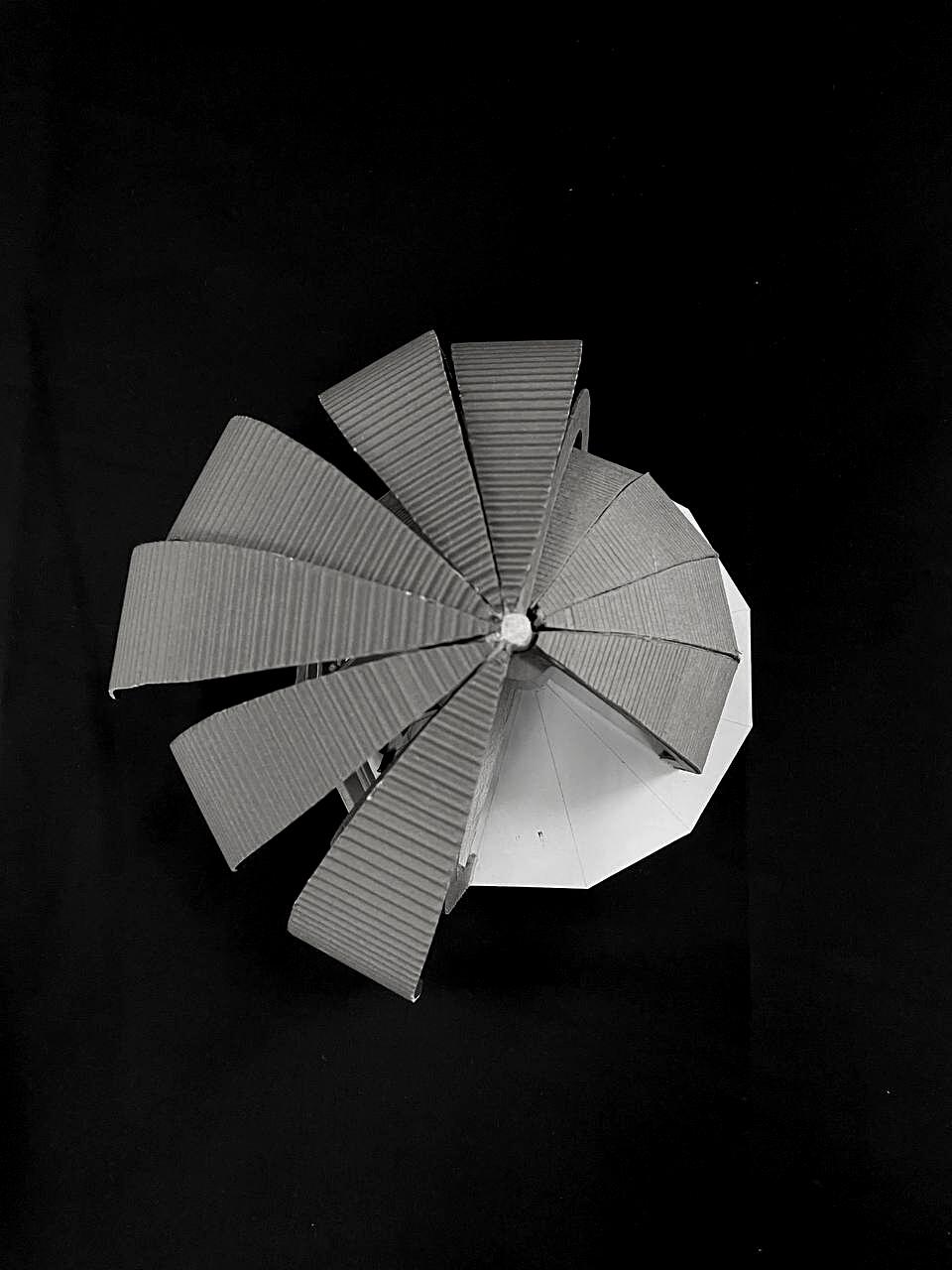

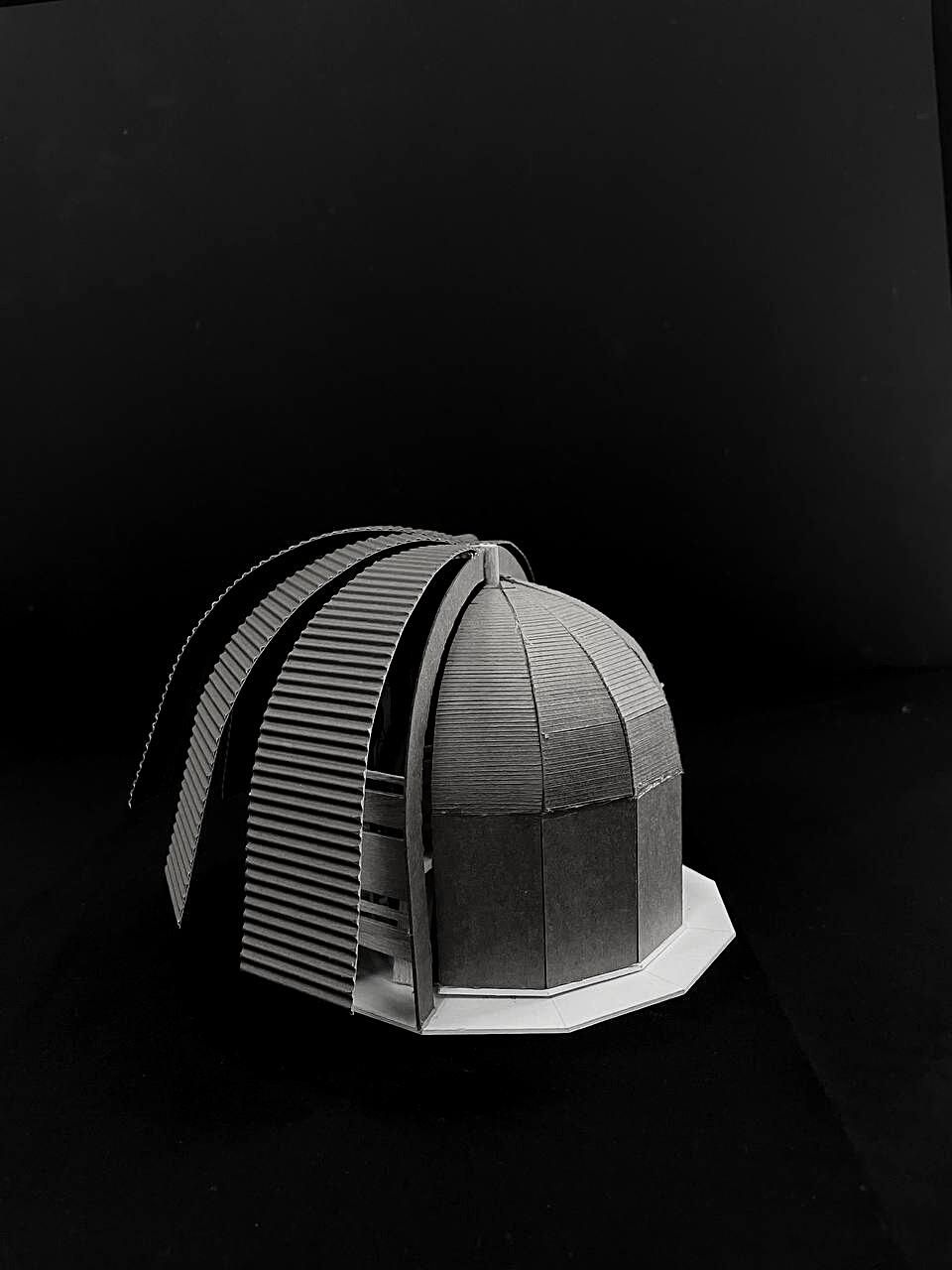

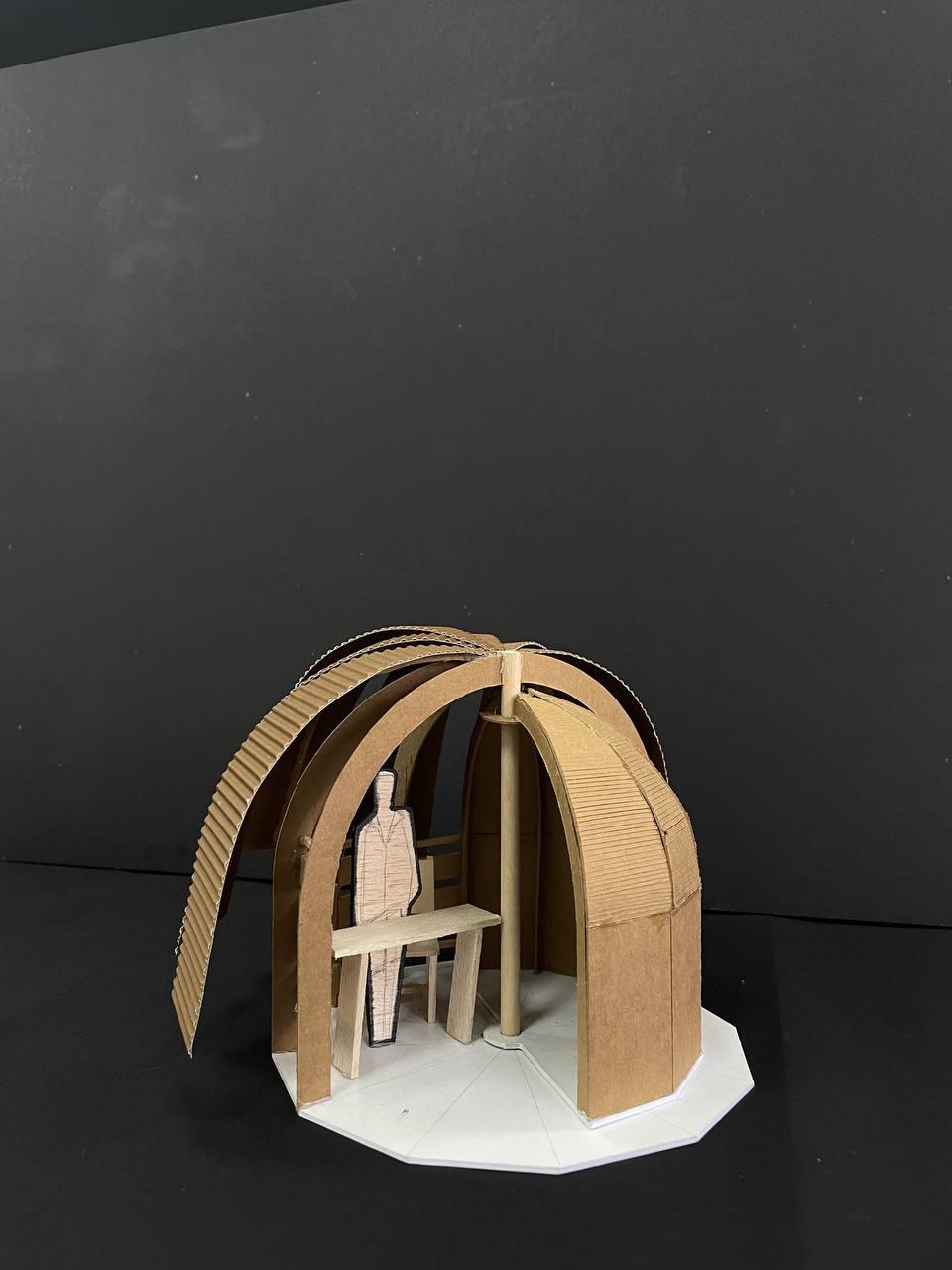

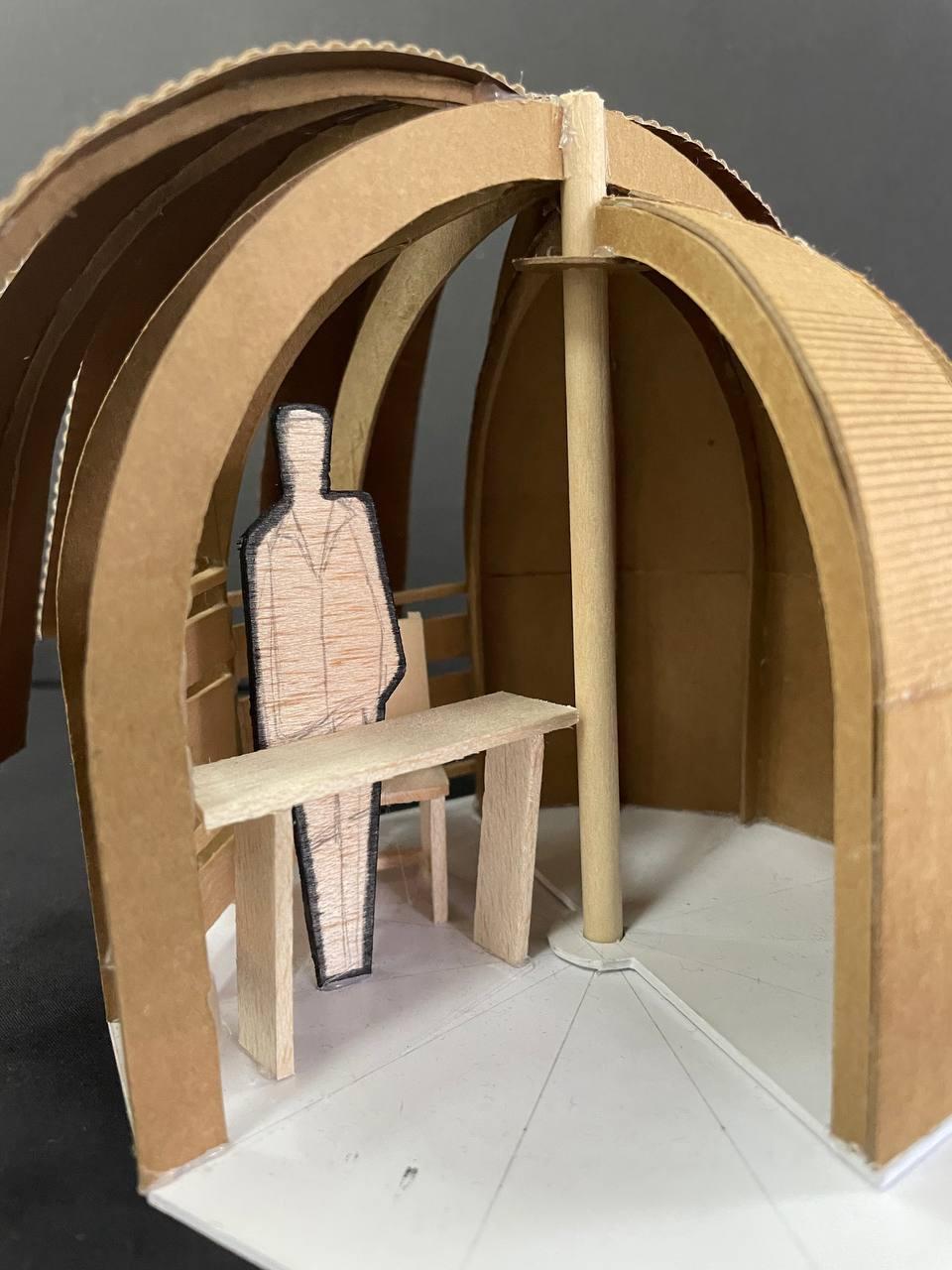

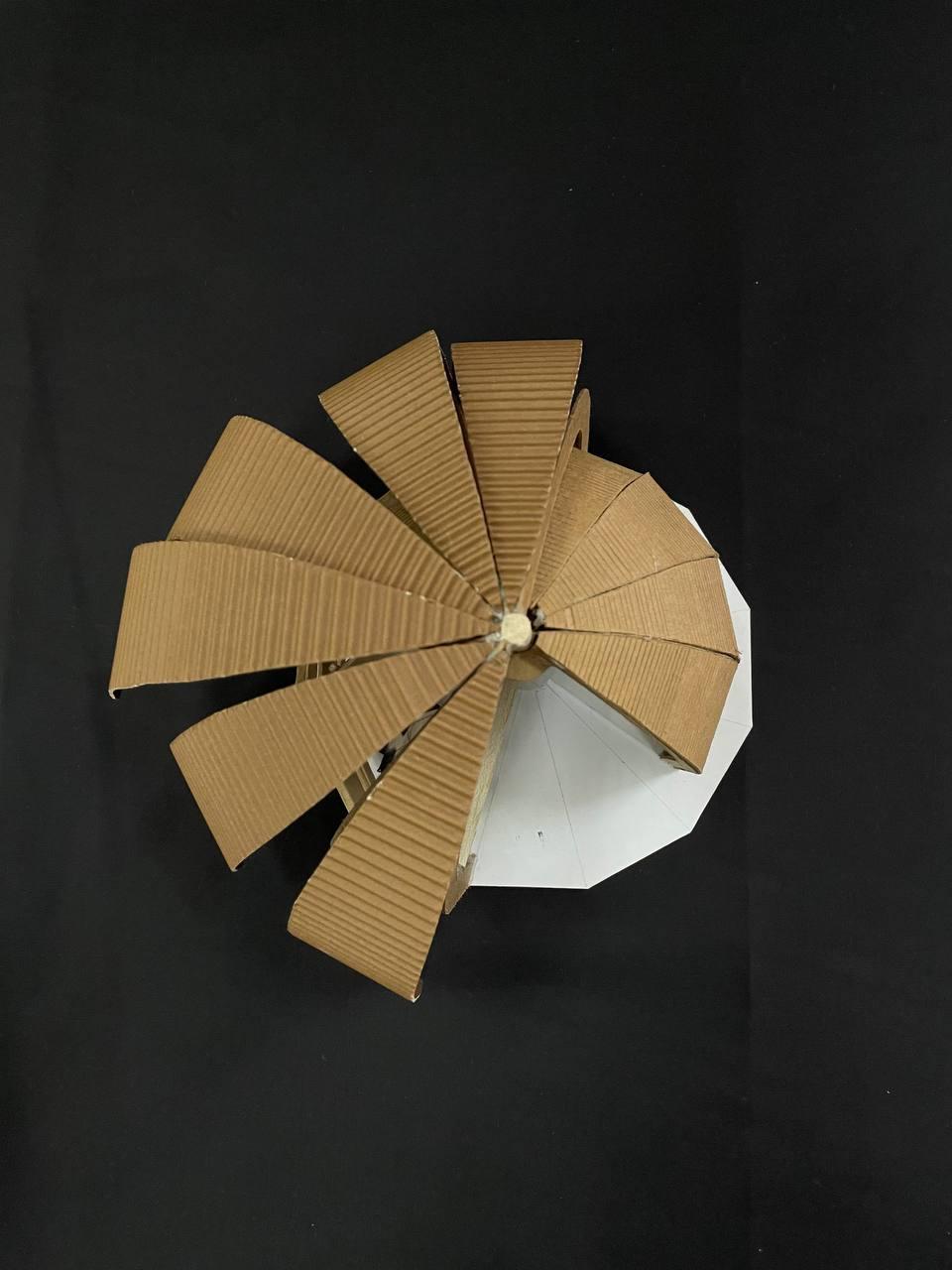

F I N A L M O D E L
P R O J E C T 1 ( B )
WHENEVER WE GO FOR A HOLIDAY, RELAXING, ENJOYING THE NATURE, ESPECIALLY AT THE BEACH SIDE, WE ALWAYS FIND A PLACE TO SIT. SOME PLACES ARE PROVIDED WITH GAZEBOS BUT MOST OF THE BEACH DO NOT PROVIDE PROPER SITTING ESPECIALLY FOR THE ELDERLY PEOPLE ITS HARD FOR THEM TO SIT ON THE GROUND, SO THE BEST WAY FOR THEM TO SIT IS ON SOMETHING HIGHER. A FOLDING AND PORTABLE CHAIR IS ONE OF THE BEST SOLUTION FOR THEM THEY ARE REQUESTED TO DESIGN A RELAX CHAIR THAT CAN BE USED AT THE BEACH AS WELL IN OTHER PLACES. THE DESIGN SHOULD BE COMPACT, AND ABLE TO BE FOLDED OR OTHER WAYS AS LONG IT MUST BE PORTABLE, LIGHT AND EASY TO ASSEMBLE/DIASSEMBLE.
W I N D + U N W I N D 04

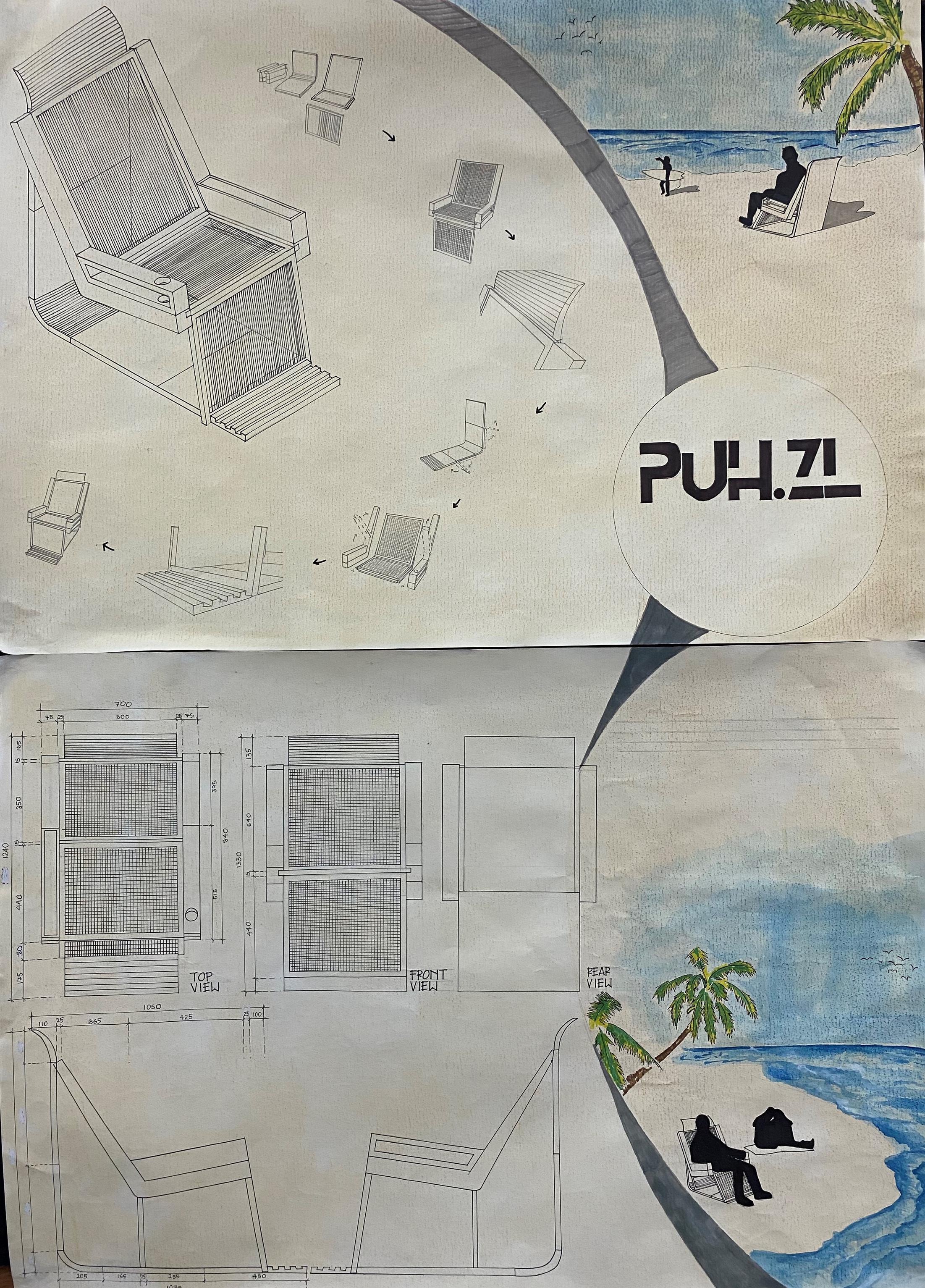

F I N A L B O A R D

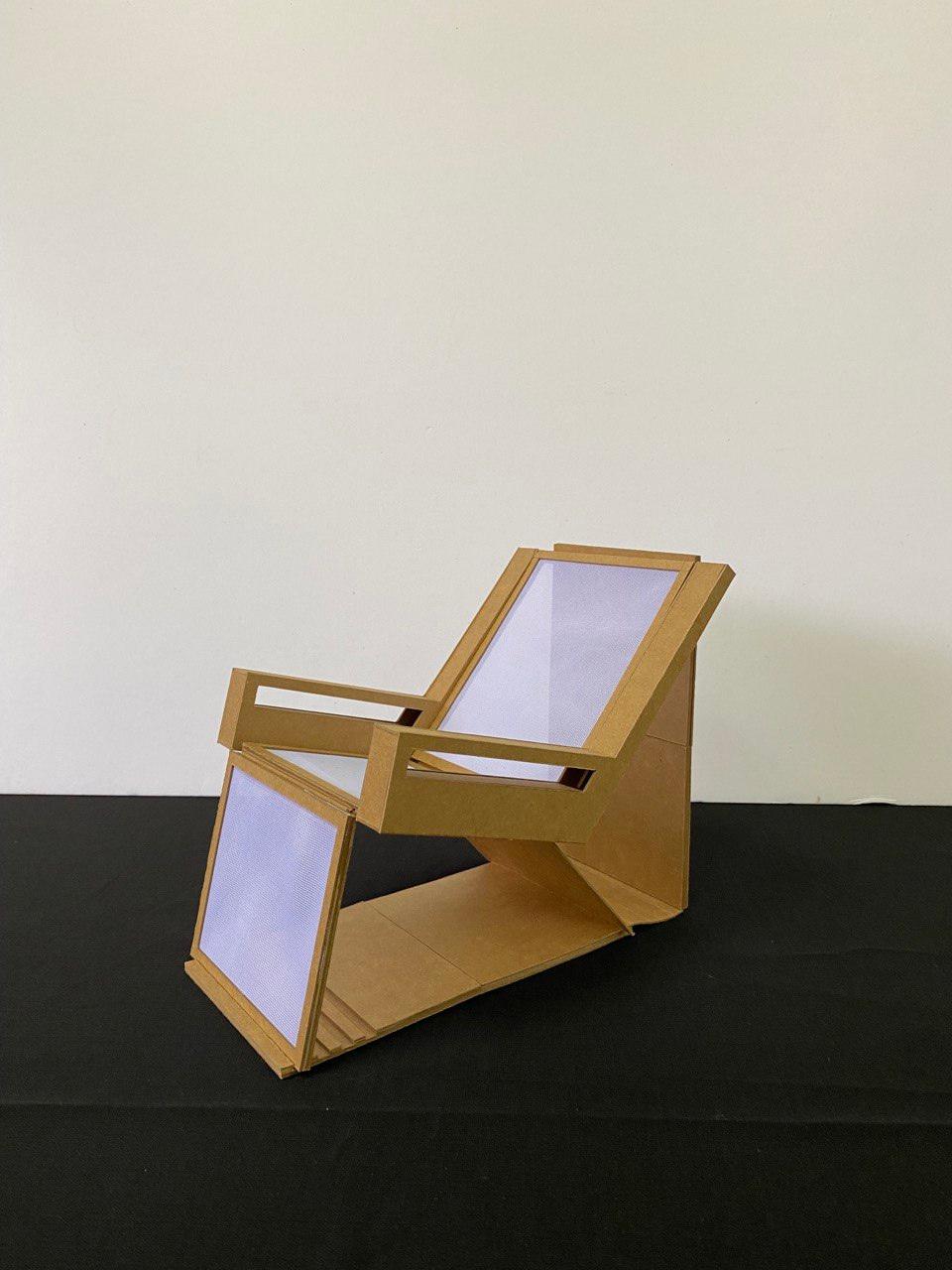

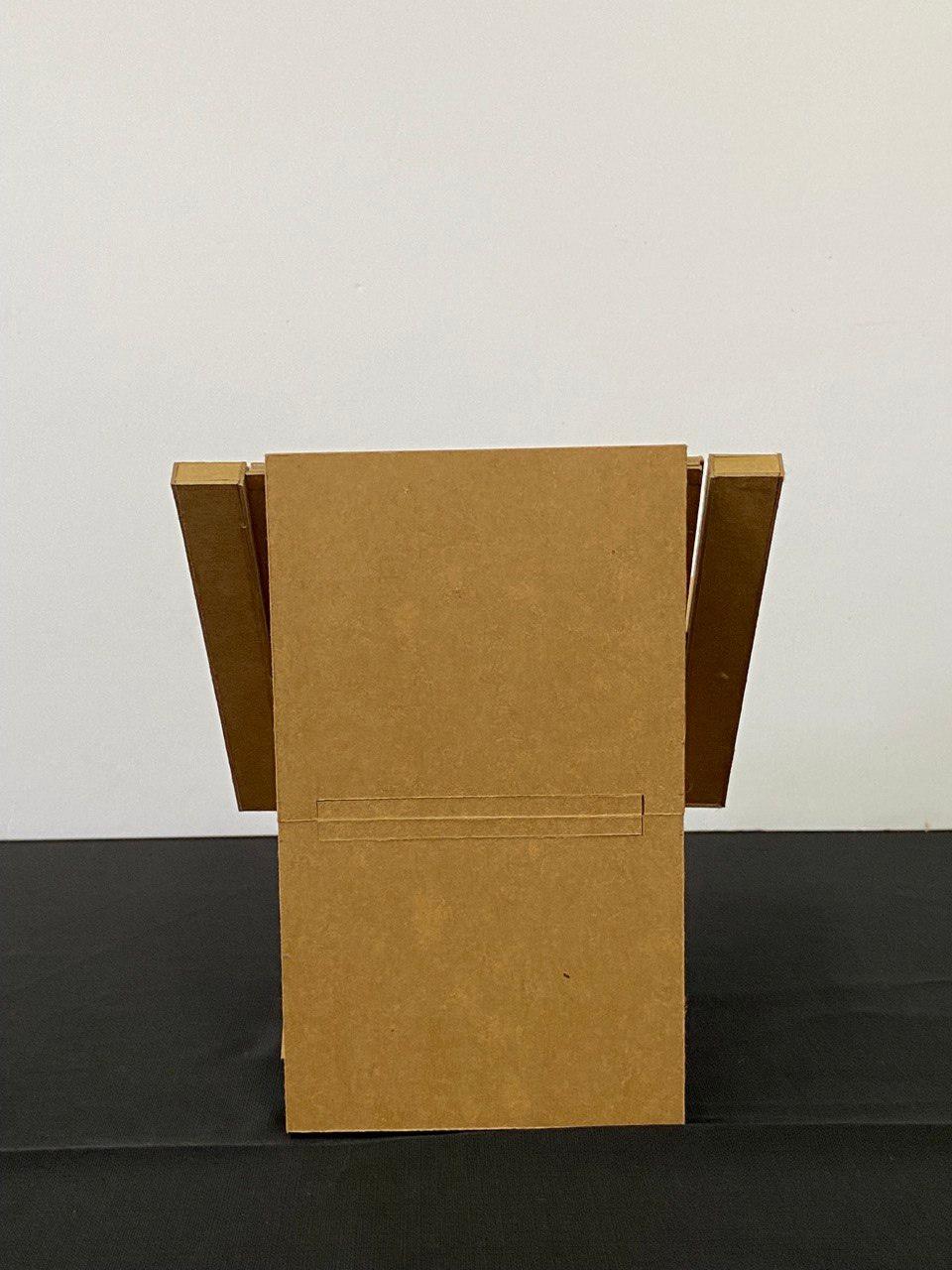

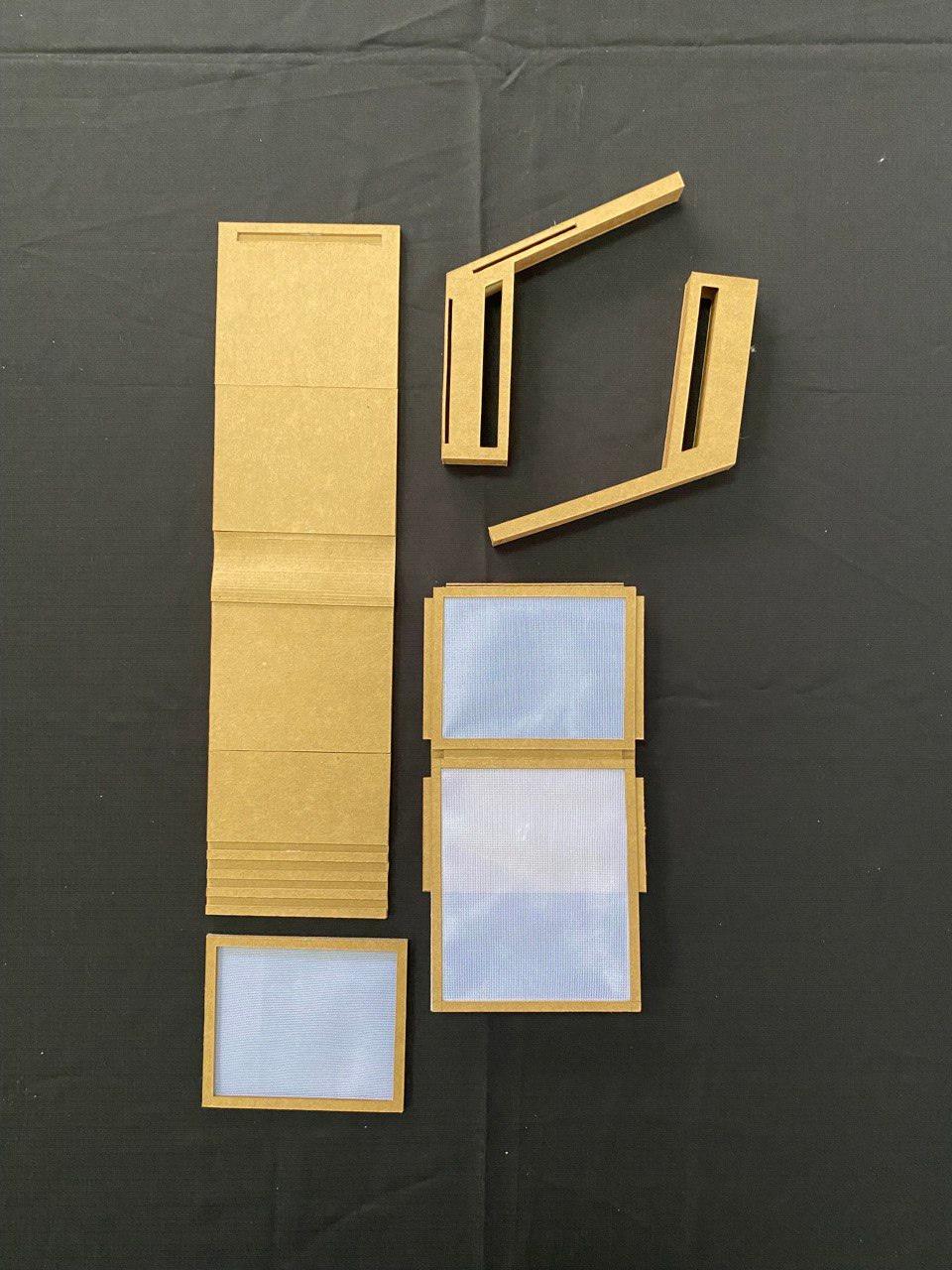

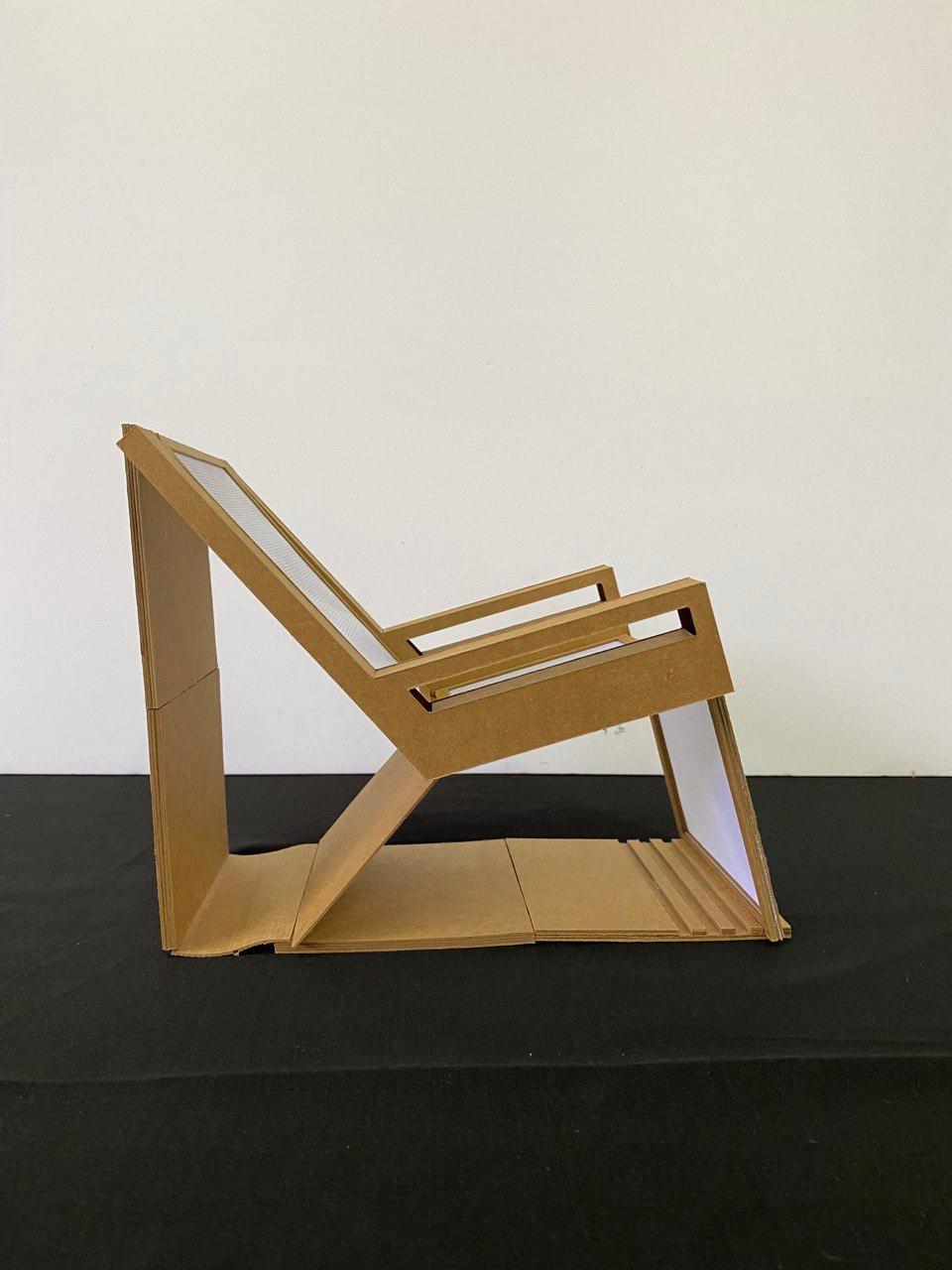

F I N A L M O D E L
05
P R O J E C T 2
THERE IS ONE OF RESCUER TOWER (MENARA PENYELAMAT) OWNED BY APMM IN KOTA KINABALU WHICH EQUIPPED WITH BASIC FACILITIES FOR THE APMM STAFF SUCH AS FOR COOKING, RESTING AND STORAGE AT THE GROUND FLOOR OF THE TOWER THE FLOOR LEVEL OF THE TOWER IS AROUND 10-15FT FROM THE GROUND LEVEL AND THE INTERIOR SPACES NEED TO CATER FOR MAXIMUM 3 PERSONS. THE SPACE SHOULD ALLOW FOR FLEXIBILITY OF USE, WHICH INCLUDE SUCH AS RESTING, SLEEPING, CHANGING, CLEANSING, EATING, WORKING AND PROVIDE PRIVACY AT A CERTAIN DEGREE. IT ALSO MUST BE AN EXTERNAL SPACE FOR THE RESCUER BOAT THAT IS ACCESSIBLE FROM THE TOWER BASE STUDENTS ARE TO ORGANIZE THE REQUIRED SPACES USING RELEVANT DESIGN APPROACH OR CONCEPT AND TO APPLY THE BASIC PRINCIPLES OF ANTHROPOMETRIC AND ERGONOMICS IN THE DESIGN.
B A Y W A T C H T O W E R 06

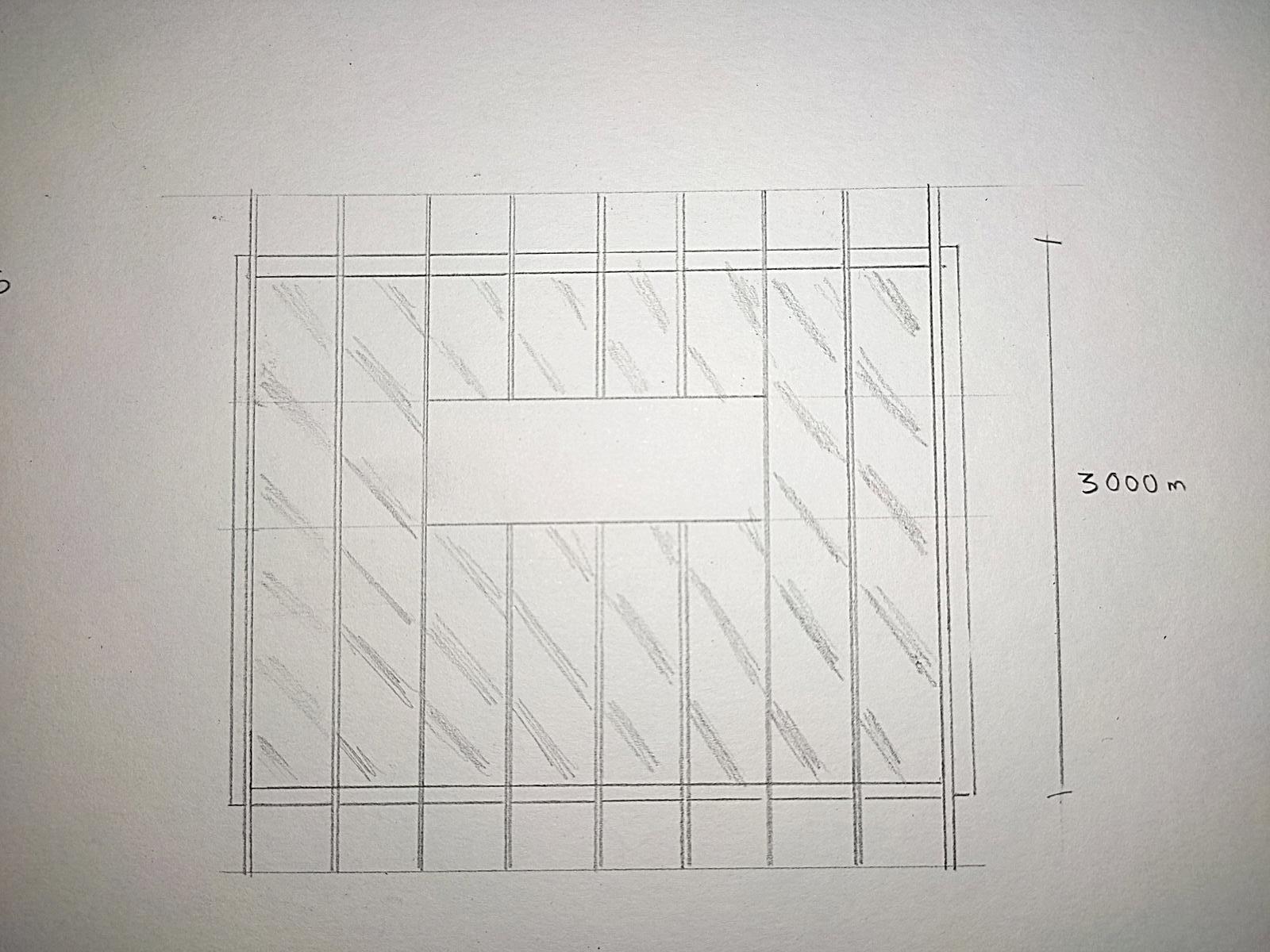

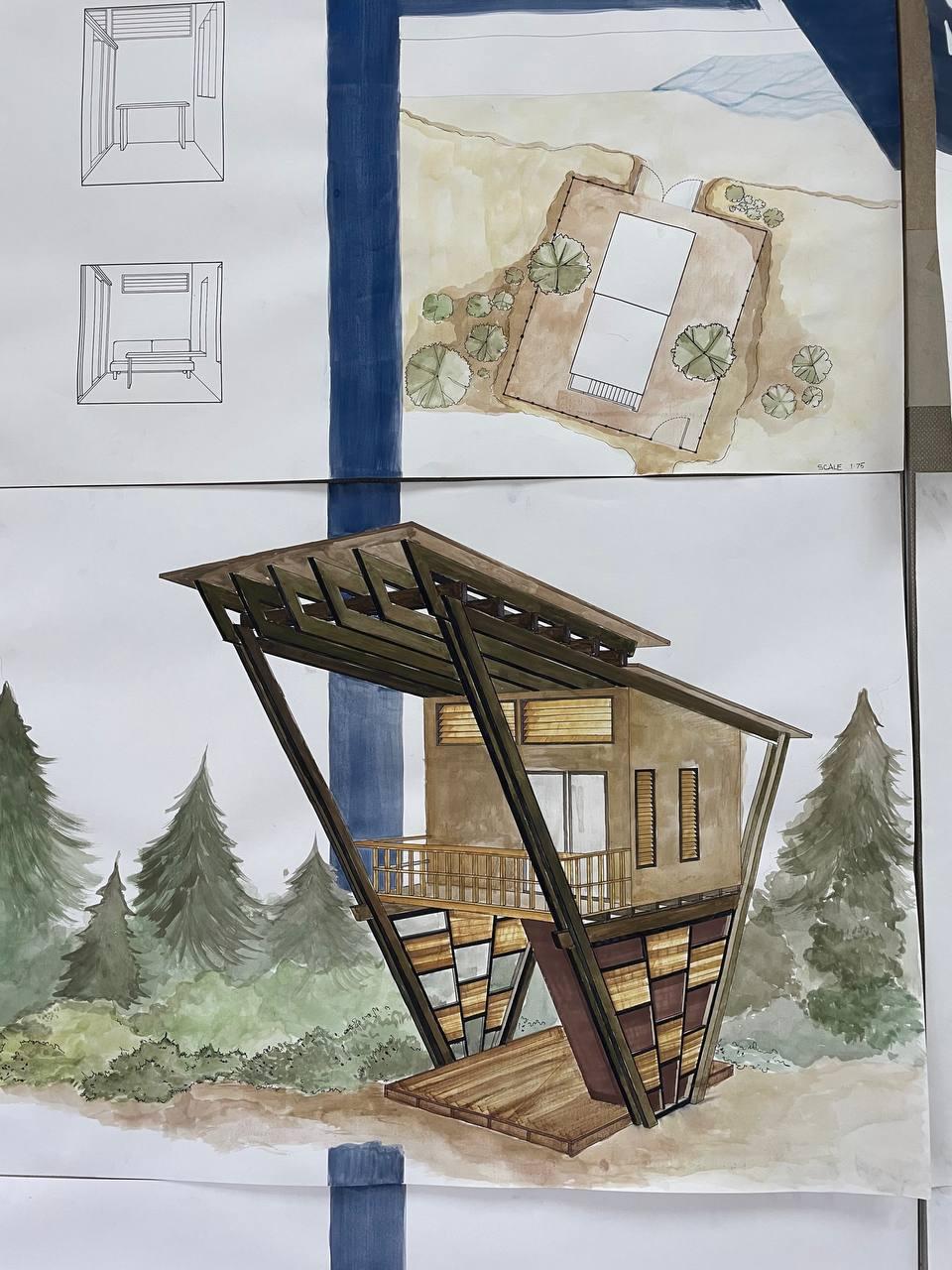

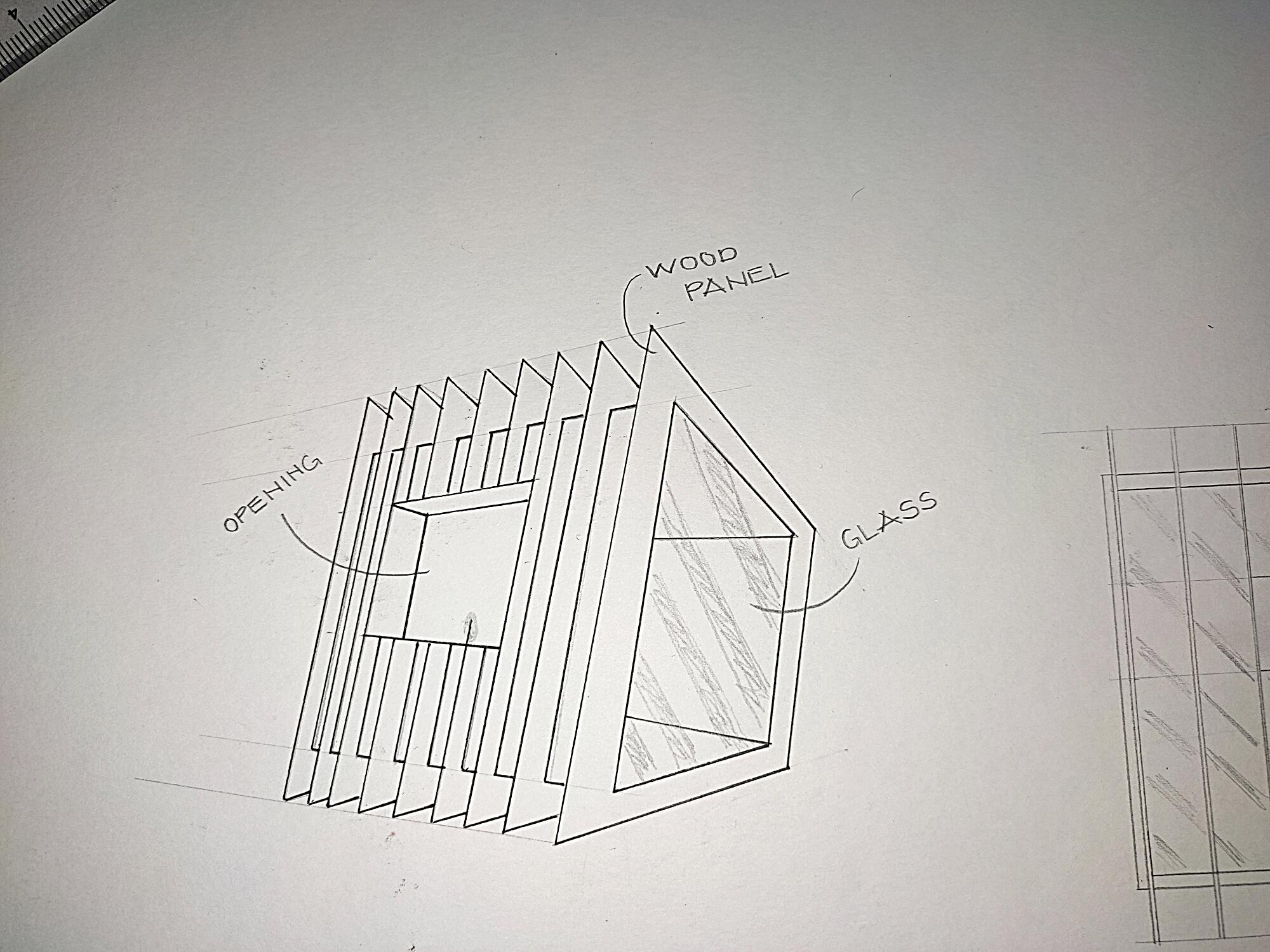

D E S I G N D E V E L O P M E N T & S K E T C H E S
07

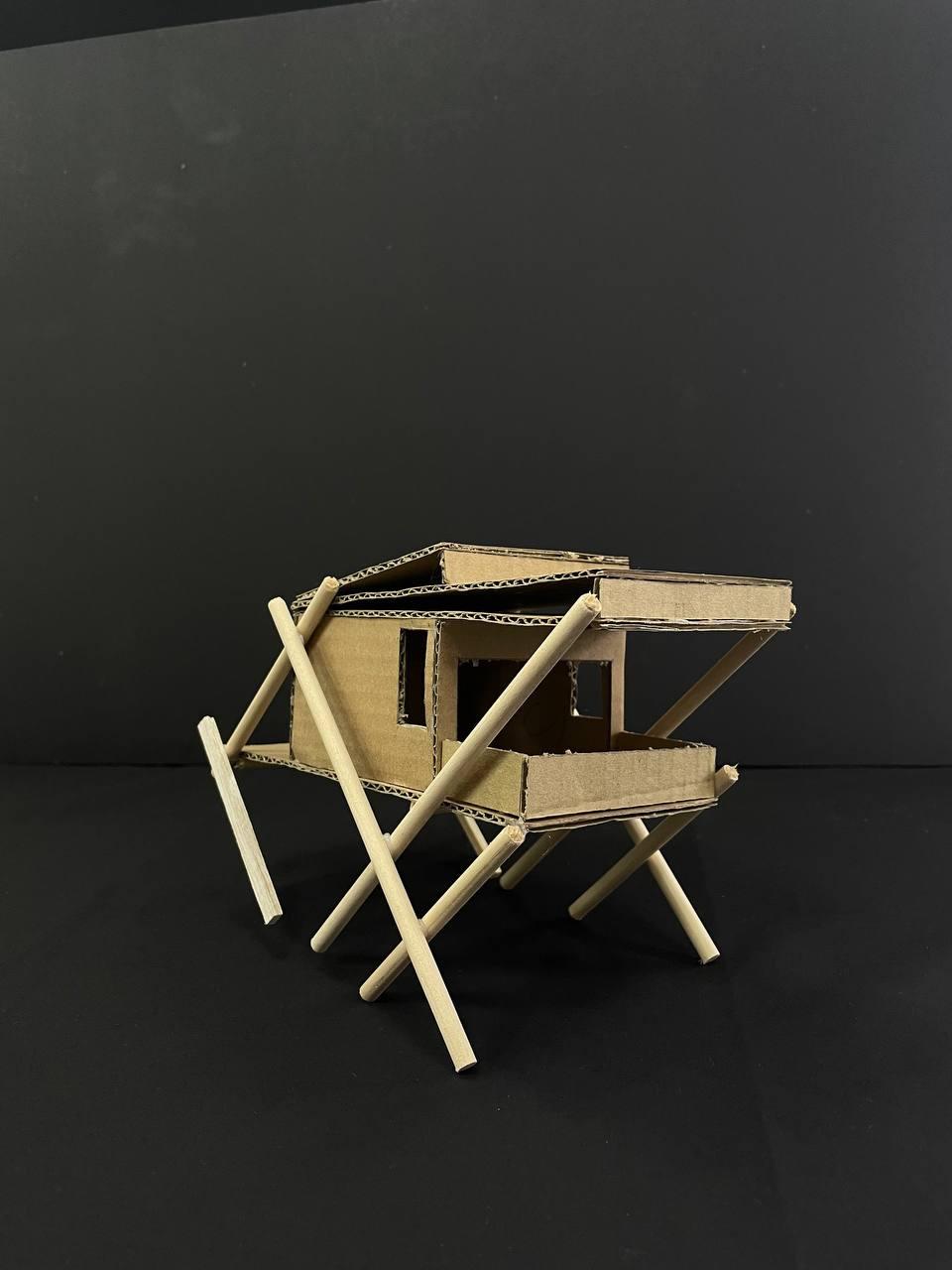

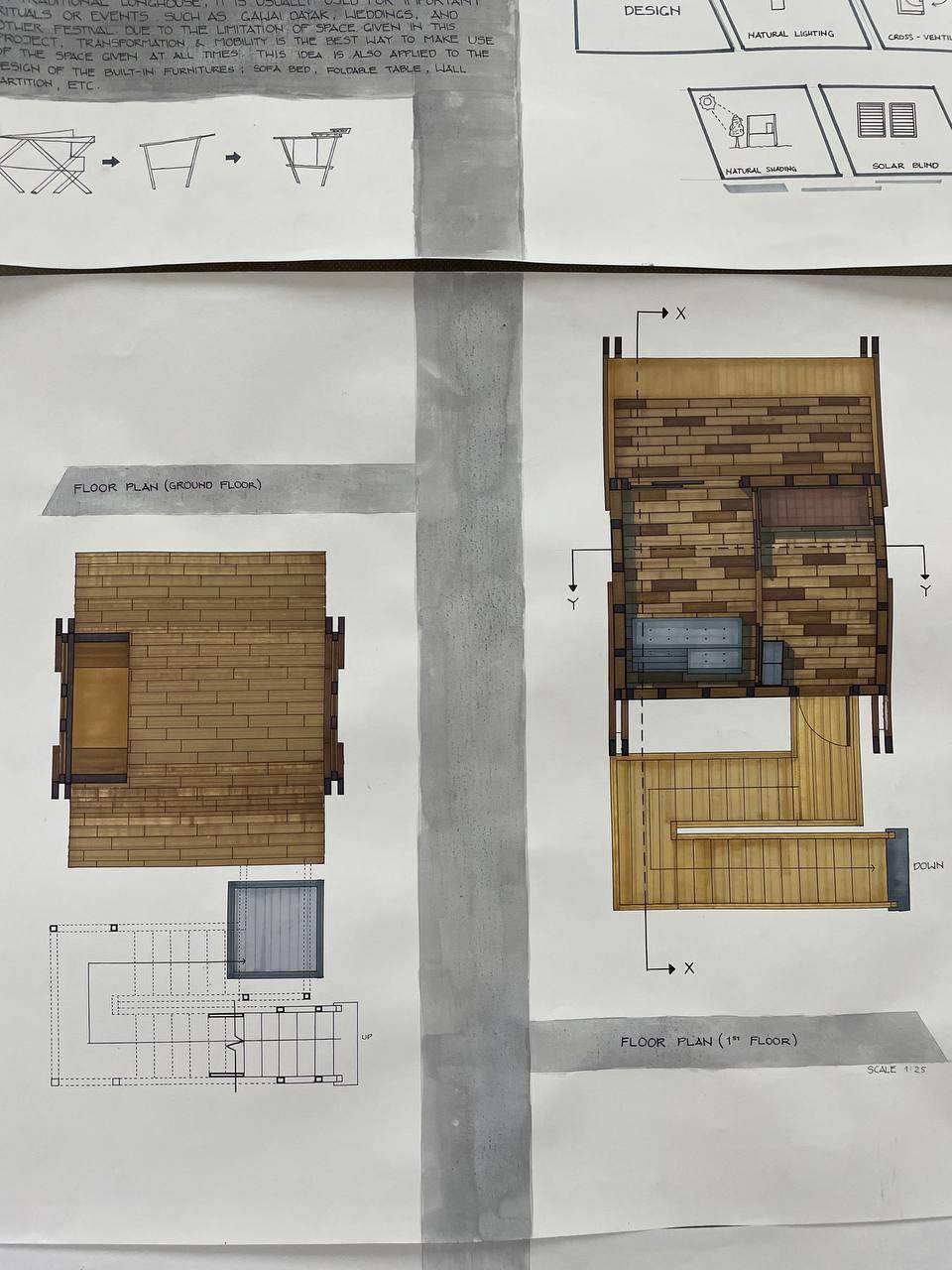

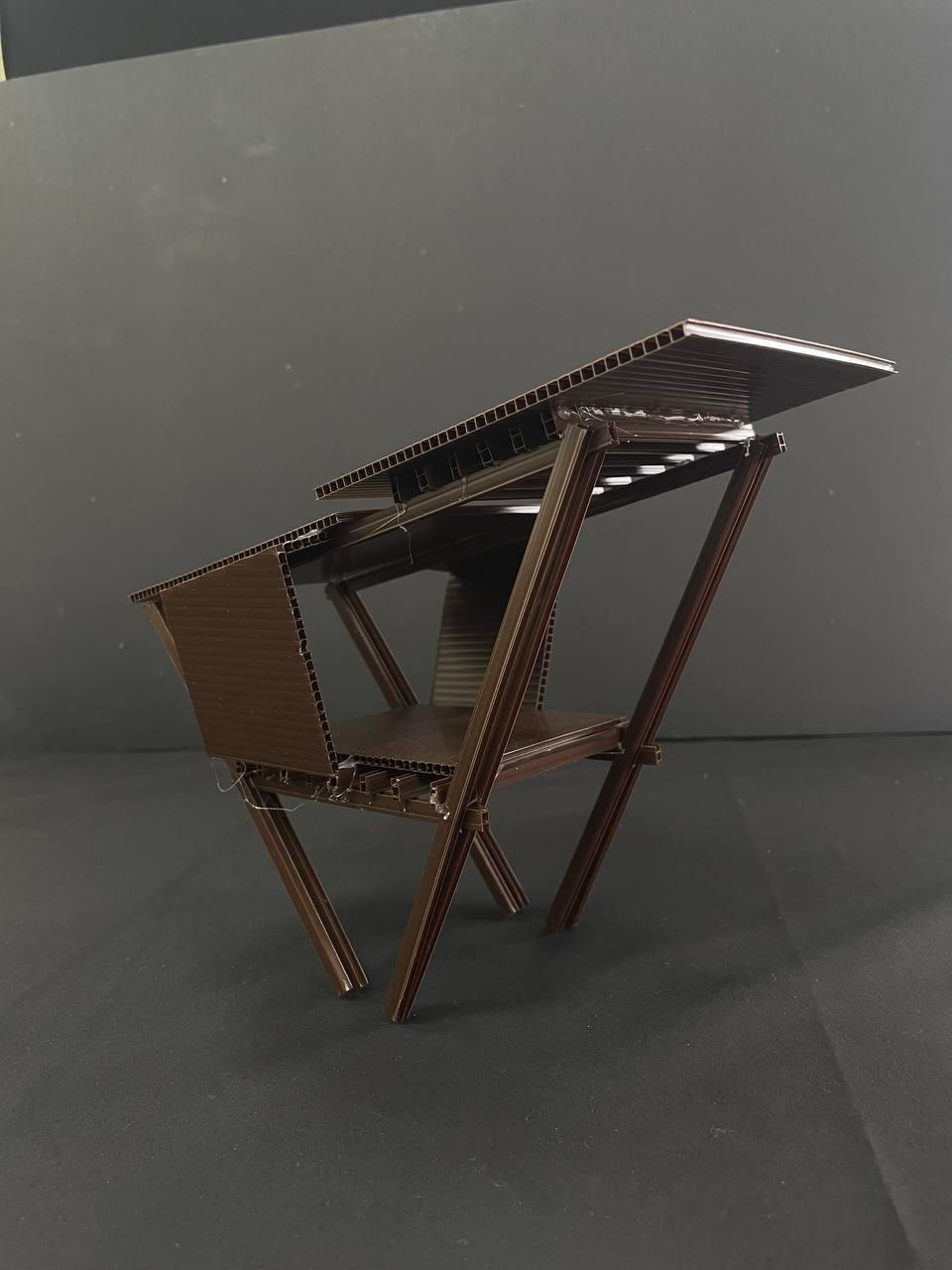

M O C K - U P S M O C K - U P 0 3 M O C K - U P 0 2 M O C K - U P 0 1 08

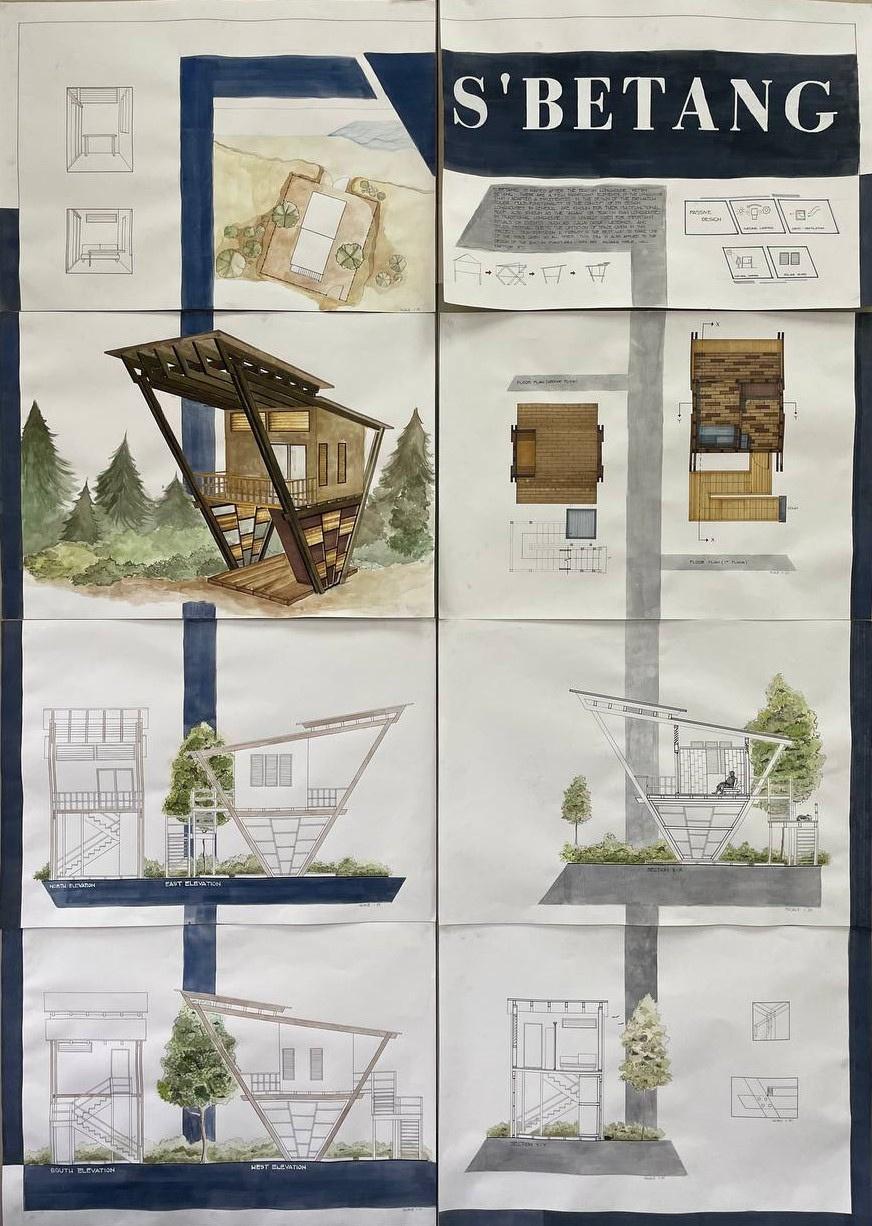

F I N A L B O A R D
14

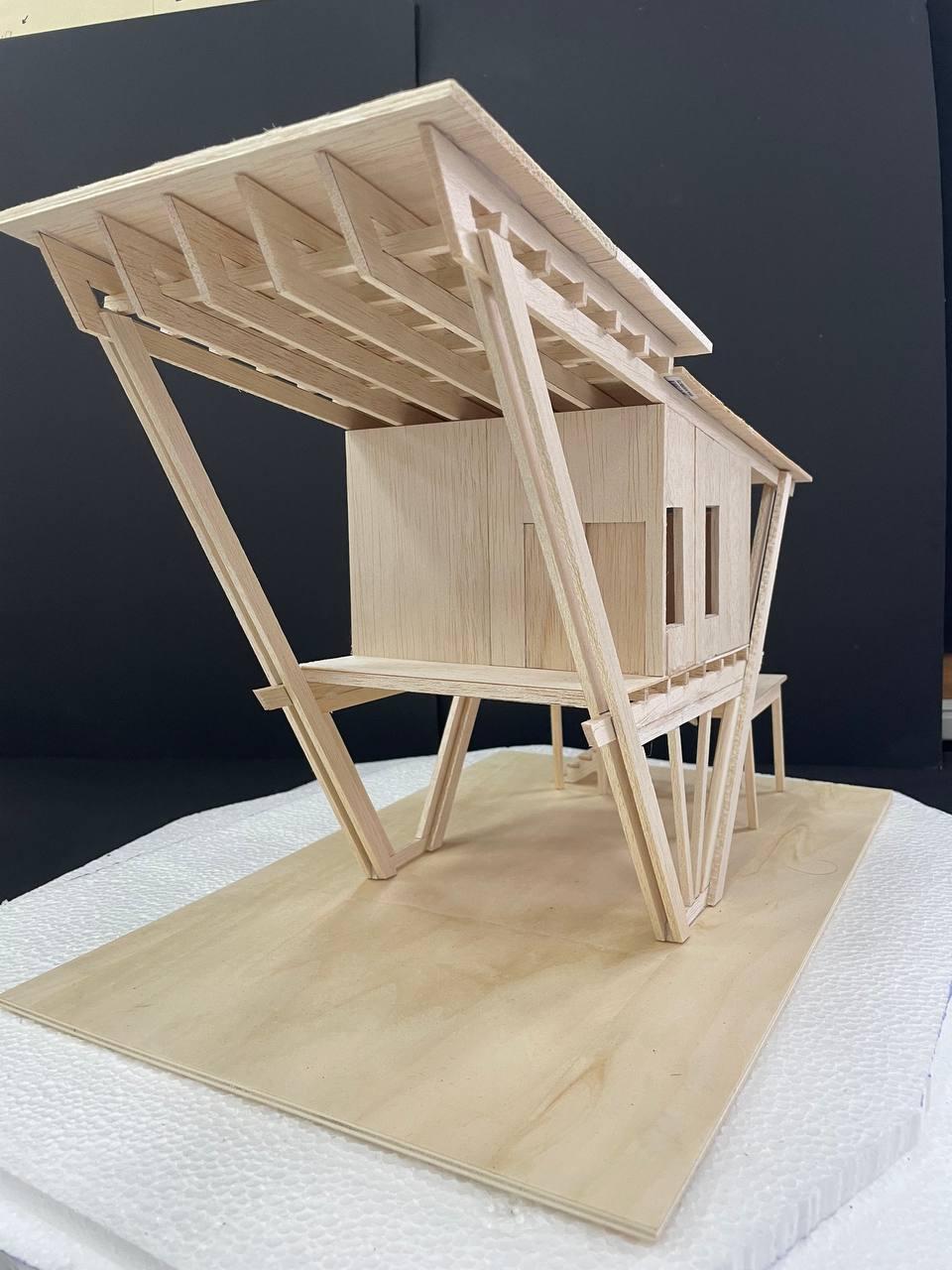

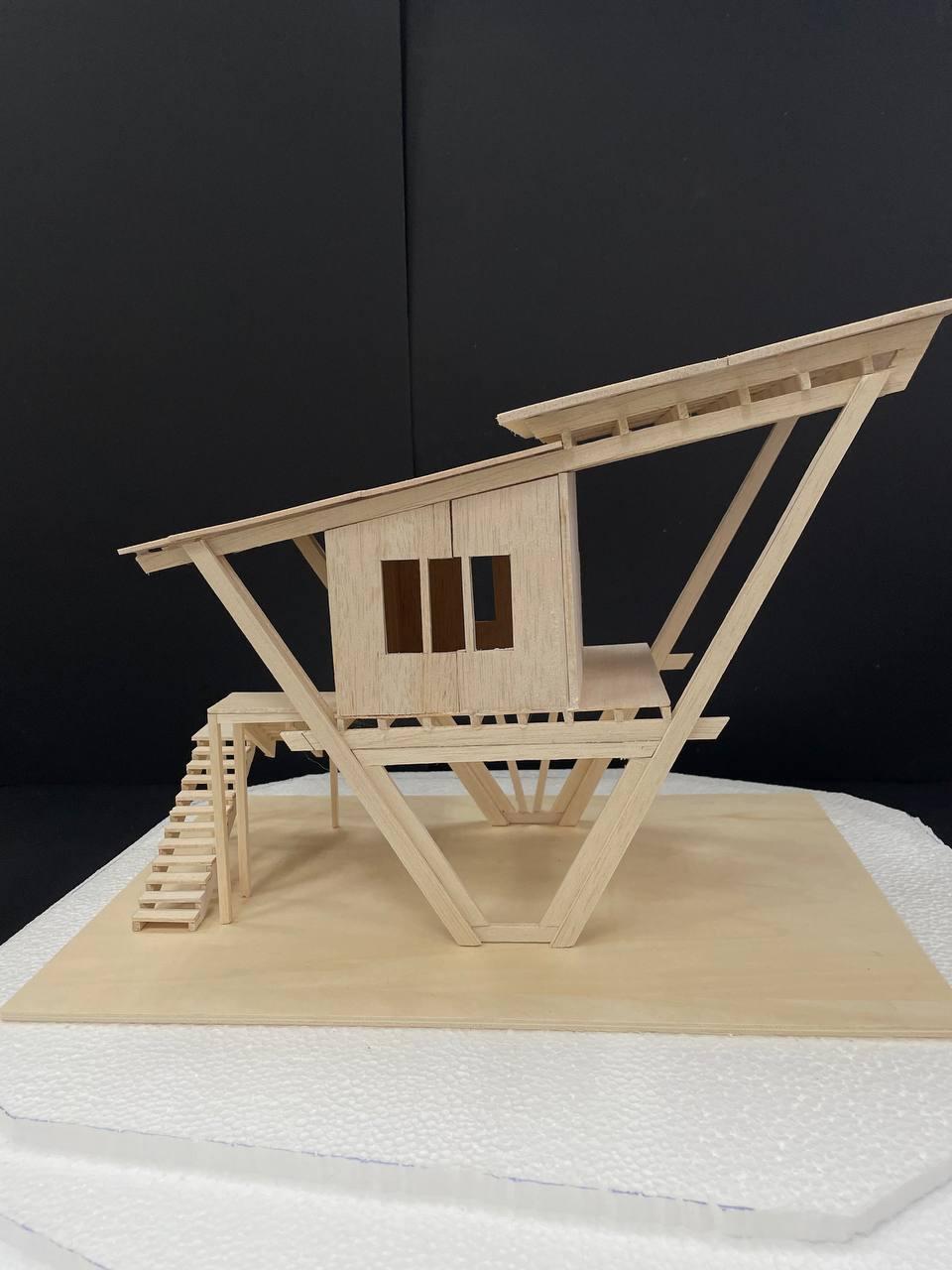

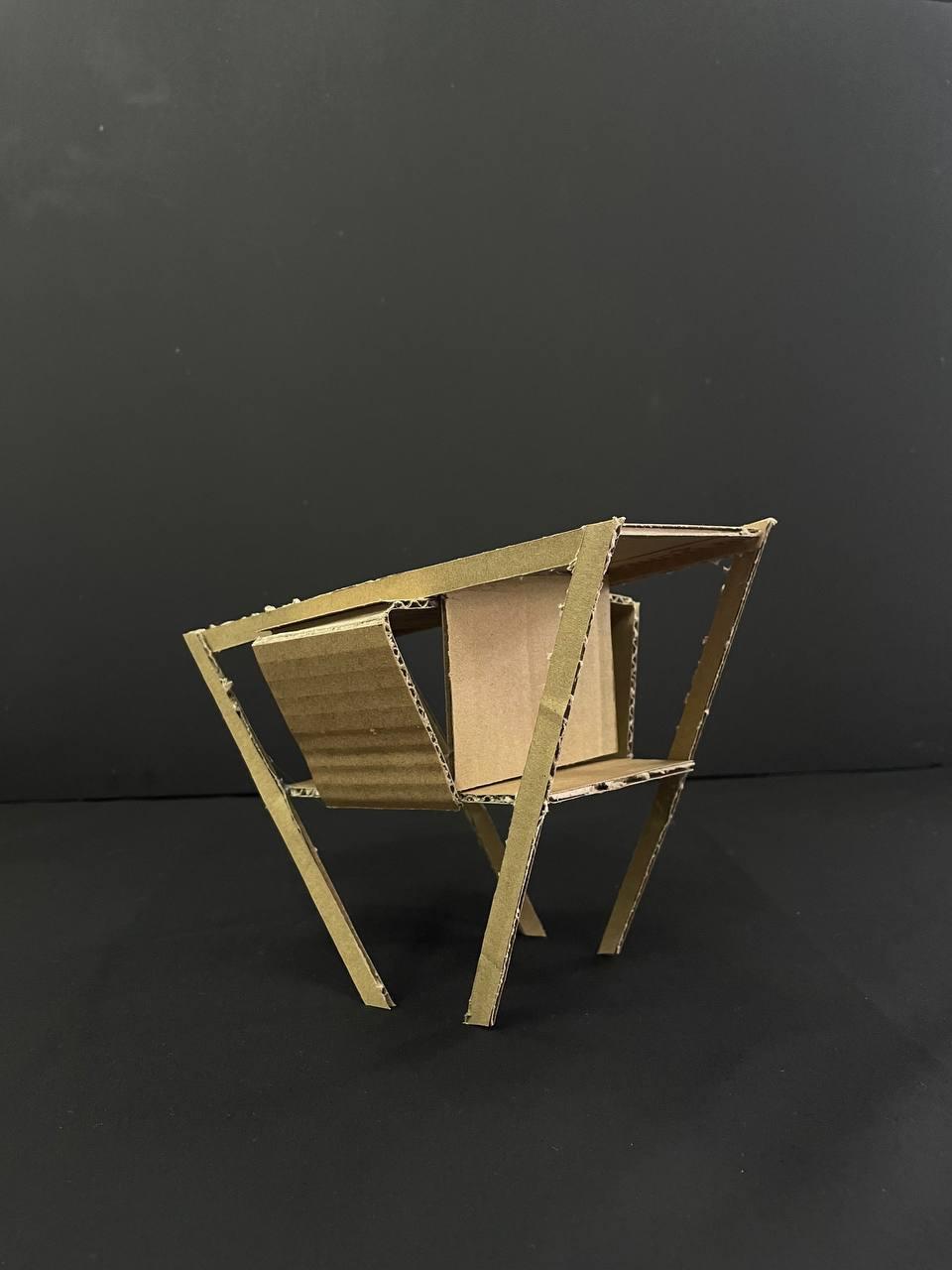

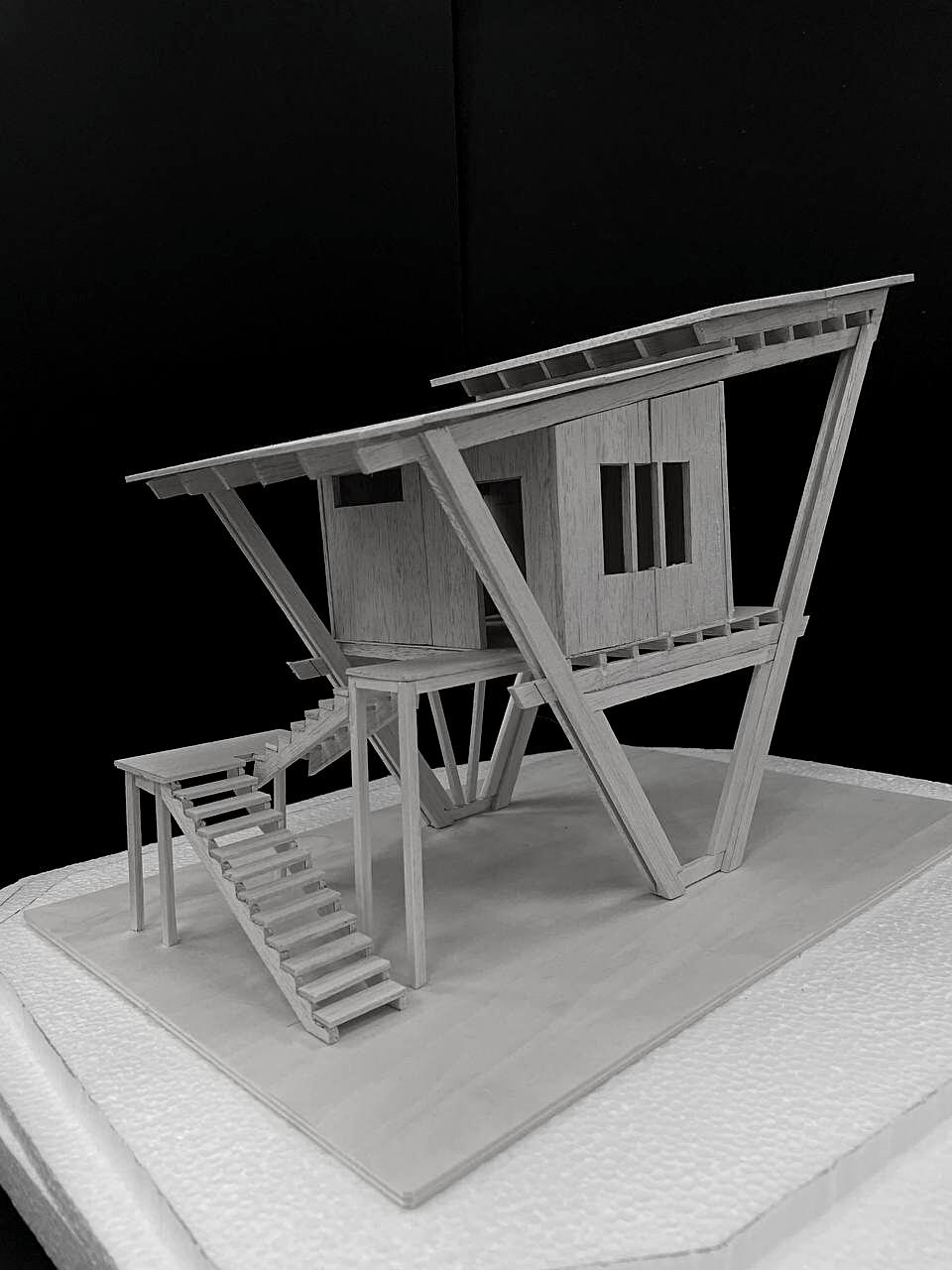

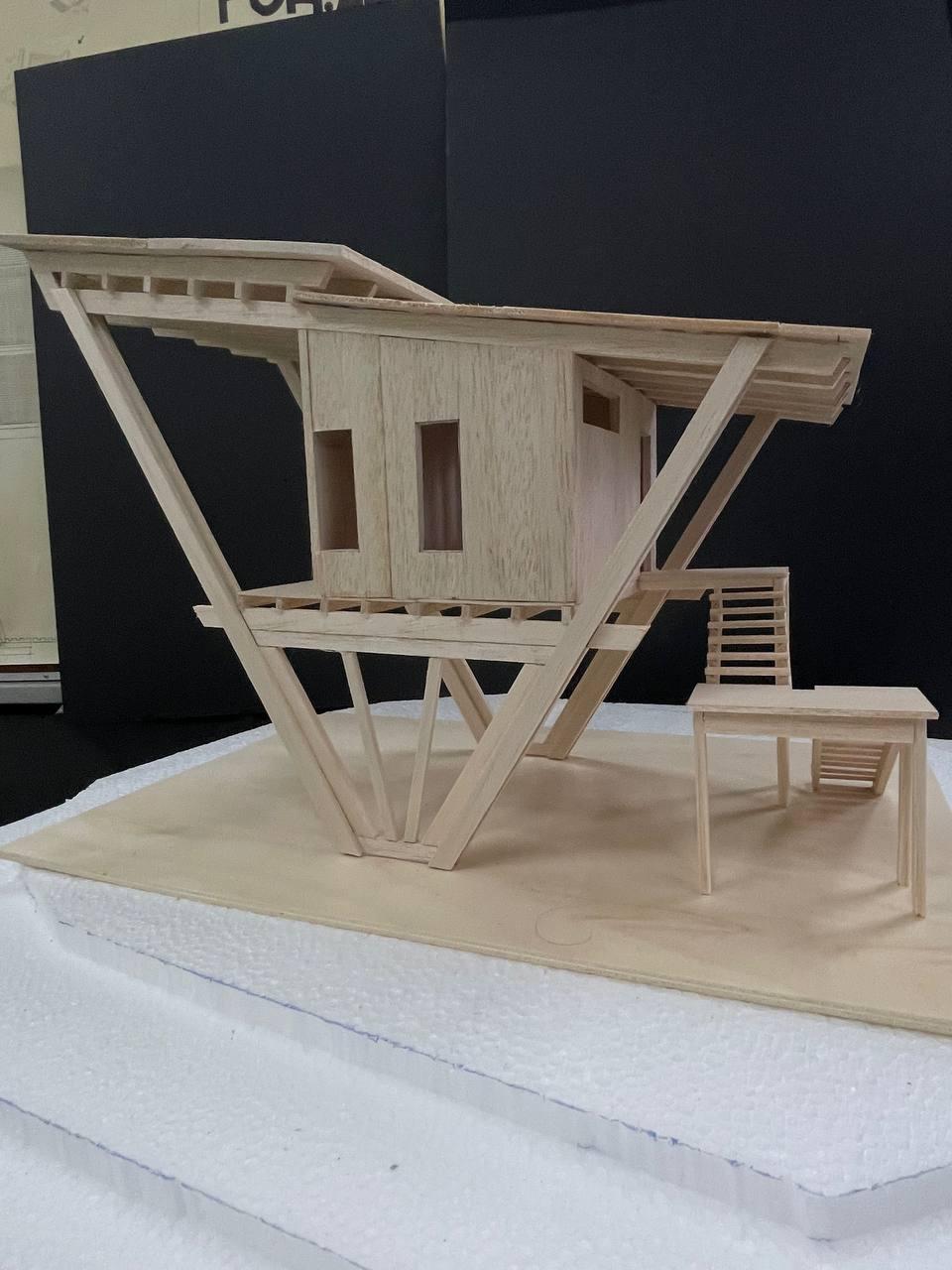

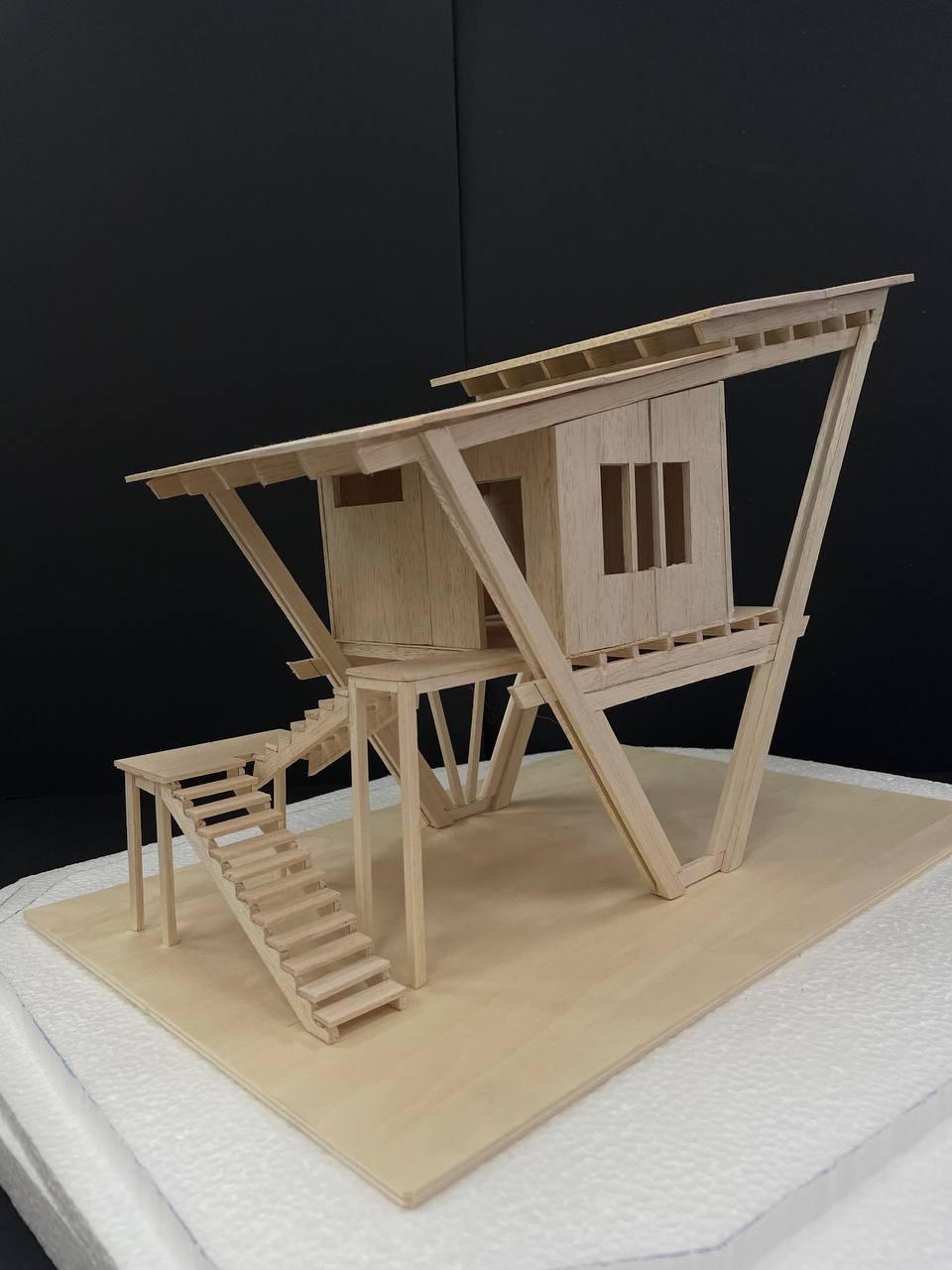

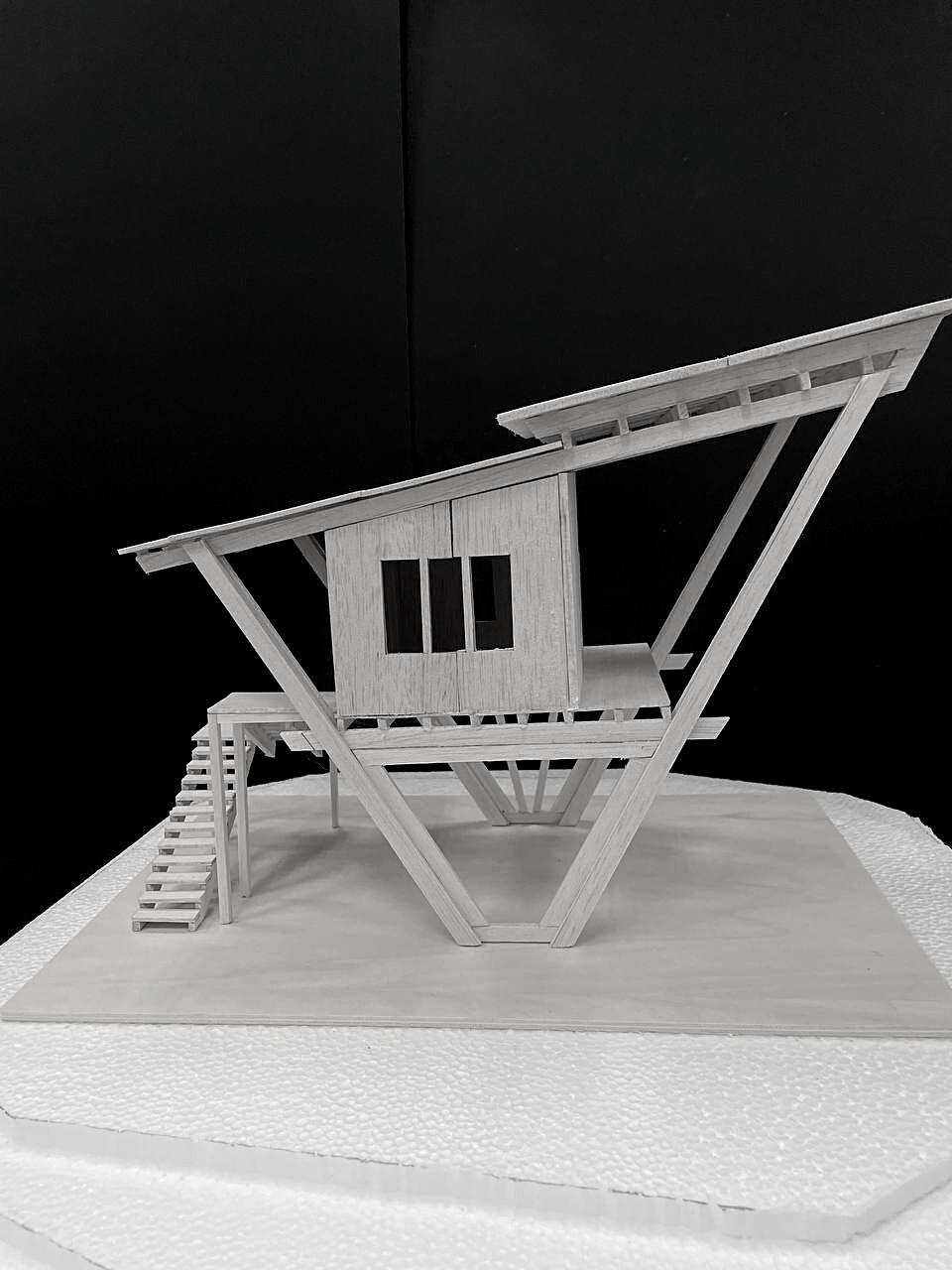

F I N A L M O D E L 15
