ISO/DIN MM MM IN.
P5 C 3
P4 P2 B A 0 00 ABMA
– AA 000
T C r
• Features to enhance spindle operation: – matched components – runout high points marked D
– bearing assembly adjustments tuning (setting)
Db db
da R
d
• Performance options:
Da
– high speed version (TSMA) CL
B
a

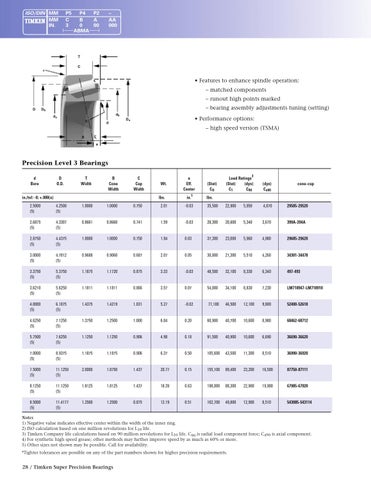

Precision Level 3 Bearings d Bore
D O.D.
T Width
B Cone Width
C Cup Width
in./tol: -0; +.000(x)
Wt. lbs.
a Eff. Center in.
1
3
(Stat) CO
Load Ratings (Stat) (dyn) C1 C90
(dyn) Ca90
cone-cup
lbs.
2.5000 (5)
4.2500 (5)
1.0000
1.0000
0.750
2.01
-0.03
35,500
22,900
5,950
4,670
29585-29520
2.6875 (5)
4.3307 (5)
0.8661
0.8660
0.741
1.59
-0.03
28,300
20,600
5,340
3,670
399A-394A
2.8750 (5)
4.4375 (5)
1.0000
1.0000
0.750
1.94
0.03
37,300
23,000
5,960
4,980
29685-29620
3.0000 (5)
4.7812 (5)
0.9688
0.9060
0.687
2.07
0.05
30,800
21,300
5,510
4,260
34301-34478
3.3750 (5)
5.3750 (5)
1.1875
1.1720
0.875
3.33
-0.03
48,500
32,100
8,330
6,340
497-493
3.6210 (5)
5.6250 (5)
1.1811
1.1811
0.866
3.57
0.07
54,000
34,100
8,830
7,230
LM718947-LM718910
4.0000 (5)
6.1875 (5)
1.4375
1.4219
1.031
5.27
-0.02
77,100
46,500
12,100
9,800
52400-52618
4.6250 (5)
7.1250 (5)
1.3750
1.2500
1.000
6.04
0.20
60,900
40,700
10,600
8,980
68462-68712
5.7500 (5)
7.6250 (5)
1.1250
1.1250
0.906
4.98
0.18
91,500
40,900
10,600
6,690
36690-36620
7.0000 (5)
8.9375 (5)
1.1875
1.1875
0.906
6.37
0.50
105,600
43,500
11,300
8,510
36990-36920
7.5000 (5)
11.1250 (5)
2.0000
1.8750
1.437
20.77
0.15
155,100
89,400
23,200
16,500
87750-87111
8.1250 (5)
11.1250 (5)
1.8125
1.8125
1.437
18.39
0.63
198,000
88,300
22,900
19,900
67985-67920
8.5000 (5)
11.4177 (5)
1.2500
1.2500
0.875
12.19
0.51
102,700
49,800
12,900
8,510
543085-543114
Notes 1) Negative value indicates effective center within the width of the inner ring. 2) ISO calculation based on one million revolutions for L10 life. 3) Timken Company life calculations based on 90 million revolutions for L10 life. C90 is radial load component force; Ca90 is axial component. 4) For synthetic high speed grease; other methods may further improve speed by as much as 60% or more. 5) Other sizes not shown may be possible. Call for availability. *Tighter tolerances are possible on any of the part numbers shown for higher precision requirements.
28 / Timken Super Precision Bearings
