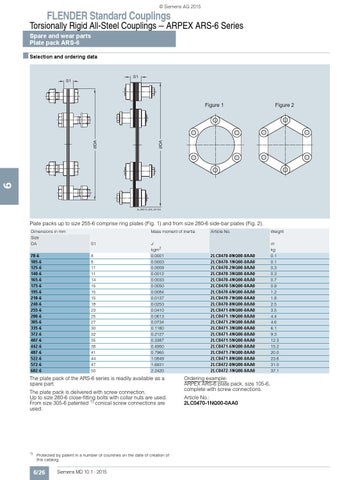

FLENDER Standard Couplings Torsionally Rigid All-Steel Couplings — ARPEX ARS-6 Series Spare and wear parts Plate pack ARS-6
■ Selection and ordering data S1 S1
ØDA
Figure 2
6
ØDA
Figure 1
G_MD10_EN_00153
Plate packs up to size 255-6 comprise ring plates (Fig. 1) and from size 280-6 side-bar plates (Fig. 2). Dimensions in mm Size DA
Mass moment of inertia S1
78-6 105-6 125-6 140-6 165-6 175-6 195-6 210-6 240-6 255-6 280-6 305-6 335-6 372-6 407-6 442-6 487-6 522-6 572-6 602-6
8 8 11 11 14 15 15 15 18 23 25 27 30 32 35 38 41 44 47 50
J kgm2 0.0001 0.0003 0.0009 0.0012 0.0033 0.0050 0.0084 0.0137 0.0253 0.0410 0.0613 0.0734 0.1180 0.2127 0.3387 0.4950 0.7965 1.0849 1.6931 2.2420
The plate pack of the ARS-6 series is readily available as a spare part. The plate pack is delivered with screw connection. Up to size 280-6 close-fitting bolts with collar nuts are used. From size 305-6 patented 1) conical screw connections are used.
1)
Protected by patent in a number of countries on the date of creation of this catalog.
6/26
Siemens MD 10.1 · 2015
Article No.
Weight
2LC0470-0NQ00-0AA0 2LC0470-1NQ00-0AA0 2LC0470-2NQ00-0AA0 2LC0470-3NQ00-0AA0 2LC0470-4NQ00-0AA0 2LC0470-5NQ00-0AA0 2LC0470-6NQ00-0AA0 2LC0470-7NQ00-0AA0 2LC0470-8NQ00-0AA0 2LC0471-0NQ00-0AA0 2LC0471-1NQ00-0AA0 2LC0471-2NQ00-0AA0 2LC0471-3NQ00-0AA0 2LC0471-4NQ00-0AA0 2LC0471-5NQ00-0AA0 2LC0471-6NQ00-0AA0 2LC0471-7NQ00-0AA0 2LC0471-8NQ00-0AA0 2LC0472-0NQ00-0AA0 2LC0472-1NQ00-0AA0
m kg 0.1 0.1 0.3 0.3 0.7 0.9 1.2 1.8 2.5 3.5 4.4 4.6 6.1 9.3 12.3 15.2 20.0 23.6 31.0 37.1
Ordering example: ARPEX ARS-6 plate pack, size 105-6, complete with screw connections. Article No.: 2LC0470-1NQ00-0AA0
