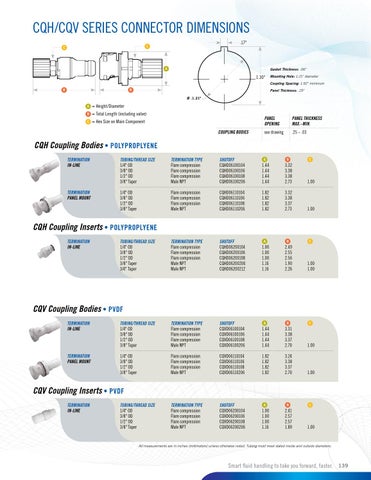

CQH/CQV SERIES CONNECTOR DIMENSIONS .17"
C
C
A
Gasket Thickness: .06" Mounting Hole: 1.21" diameter
1.30"
Coupling Spacing: 1.92" minimum B
B
Panel Thickness: .25" Ø .1.21"
A
= Height/Diameter
B
= Total Length (including valve)
C
= Hex Size on Main Component COUPLING BODIES
PANEL OPENING
PANEL THICKNESS MAX.–MIN.
see drawing
.25 – .03
CQH Coupling Bodies • POLYPROPLYENE TERMINATION IN-LINE
TERMINATION PANEL MOUNT
TUBING/THREAD SIZE 1/4" OD 3/8" OD 1/2" OD 3/8" Taper
TERMINATION TYPE Flare compression Flare compression Flare compression Male NPT
SHUTOFF CQHD06100104 CQHD06100106 CQHD06100108 CQHD06100206
1.44 1.44 1.44 1.44
3.32 3.38 3.38 2.73
1.00
1/4" OD 3/8" OD 1/2" OD 3/8" Taper
Flare compression Flare compression Flare compression Male NPT
CQHD06110104 CQHD06110106 CQHD06110108 CQHD06110206
1.82 1.82 1.82 1.82
3.32 3.38 3.37 2.73
1.00
TERMINATION TYPE Flare compression Flare compression Flare compression Male NPT Male NPT
SHUTOFF CQHD06200104 CQHD06200106 CQHD06200108 CQHD06200206 CQHD06200212
TUBING/THREAD SIZE 1/4" OD 3/8" OD 1/2" OD 3/8" Taper
TERMINATION TYPE Flare compression Flare compression Flare compression Male NPT
SHUTOFF CQVD06100104 CQVD06100106 CQVD06100108 CQVD06100206
1.44 1.44 1.44 1.44
3.31 3.38 3.37 2.70
1.00
1/4" OD 3/8" OD 1/2" OD 3/8" Taper
Flare compression Flare compression Flare compression Male NPT
CQVD06110104 CQVD06110106 CQVD06110108 CQVD06110206
1.82 1.82 1.82 1.82
3.24 3.38 3.37 2.70
1.00
TERMINATION TYPE Flare compression Flare compression Flare compression Male NPT
SHUTOFF CQVD06200104 CQVD06200106 CQVD06200108 CQVD06200206
A
B
C
CQH Coupling Inserts • POLYPROPLYENE TERMINATION IN-LINE
TUBING/THREAD SIZE 1/4" OD 3/8" OD 1/2" OD 3/8" Taper 3/4" Taper
A
1.00 1.00 1.00 1.16 1.16
B
2.49 2.55 2.56 1.90 2.26
C
1.00 1.00
CQV Coupling Bodies • PVDF TERMINATION IN-LINE
TERMINATION PANEL MOUNT
A
B
C
CQV Coupling Inserts • PVDF TERMINATION IN-LINE
TUBING/THREAD SIZE 1/4" OD 3/8" OD 1/2" OD 3/8" Taper
A
1.00 1.00 1.00 1.16
B
2.41 2.57 2.57 1.89
C
1.00
All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
