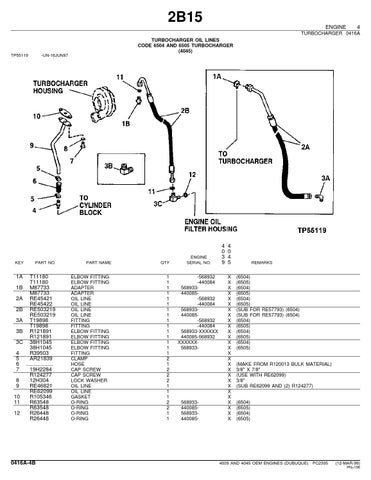

2B15 ENGINE
4
TURBOCHARGER 0416A TURBOCHARGER OIL LINES CODE 6504 AND 6505 TURBOCHARGER (4045) TP55119
-UN-16JUN97
KEY
PART NO.
1A
T11180 T11180 M87733 M87733 RE45421 RE45422 RE503219 RE503219 T19898 T19898 R121891 R121891 38H1045 38H1045 R39503 AR21839 .................. 19H2284 R124277 12H304 RE46821 RE62099 R105346 R63548 R63548 R26448 R26448
1B 2A 2B 3A 3B 3C 4 5 6 7 8 9 10 11 12
0416A-4B
PART NAME
ELBOW FITTING ELBOW FITTING ADAPTER ADAPTER OIL LINE OIL LINE OIL LINE OIL LINE FITTING FITTING ELBOW FITTING ELBOW FITTING ELBOW FITTING ELBOW FITTING FITTING CLAMP HOSE CAP SCREW CAP SCREW LOCK WASHER OIL LINE OIL LINE GASKET O-RING O-RING O-RING O-RING
QTY
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 2 2 1 1 1 2 2 1 1
ENGINE SERIAL NO.
-568932 -440084 568933440085-568932 -440084 568933440085-568932 -440084 568933-XXXXXX 440085-568932 XXXXXX568933-
568933440085568933440085-
4 0 3 9
4 0 4 5 X X X X X X X X X X X X X X X X X X X X X X X X X X X
REMARKS
(6504) (6505) (6504) (6505) (6504) (6505) (SUB FOR RE57793) (6504) (SUB FOR RE57793) (6504) (6504) (6505) (6504) (6505) (6504) (6505) (MAKE FROM R120013 BULK MATERIAL) 3/8" X 7/8" (USE WITH RE62099) 3/8" (SUB RE62099 AND (2) R124277) (6504) (6505) (6504) (6505)
4039 AND 4045 OEM ENGINES (DUBUQUE) PC2305
(12-MAR-99) PN=156
