BEARPARK TECHNICAL SCHOOL
STUDIO || Transect: Foot Notes on a Liminal Landscape
LOCATION || Bearpark, County Durham
DATE || Nov 2022 - June 2023
TUTOR || James Longfield
NOMINATION || RIBA North East Student Awards, AJ Student Prize 2023
This project is about engaging with semi-rural condition of Country Durham and pilgrim route ‘The Way of Light’ where I explore an interwoven set of themes illuminating our relationship to history, climate and local communities. My project engages with the archaeology of the ruin at Bearpark, leading to the identification of a need for space to preserve historic artefacts and make them available to local neighbourhood. Aiming to reveal the history of the site and increase people’s awareness in preserving heritage and culture. Inspired by the pilgrim walk of the studio theme, I design the building as a ‘journey’ slowly leading people travel back to the past within the site and centering historic preservation as an act of environmental conservation.
01 |

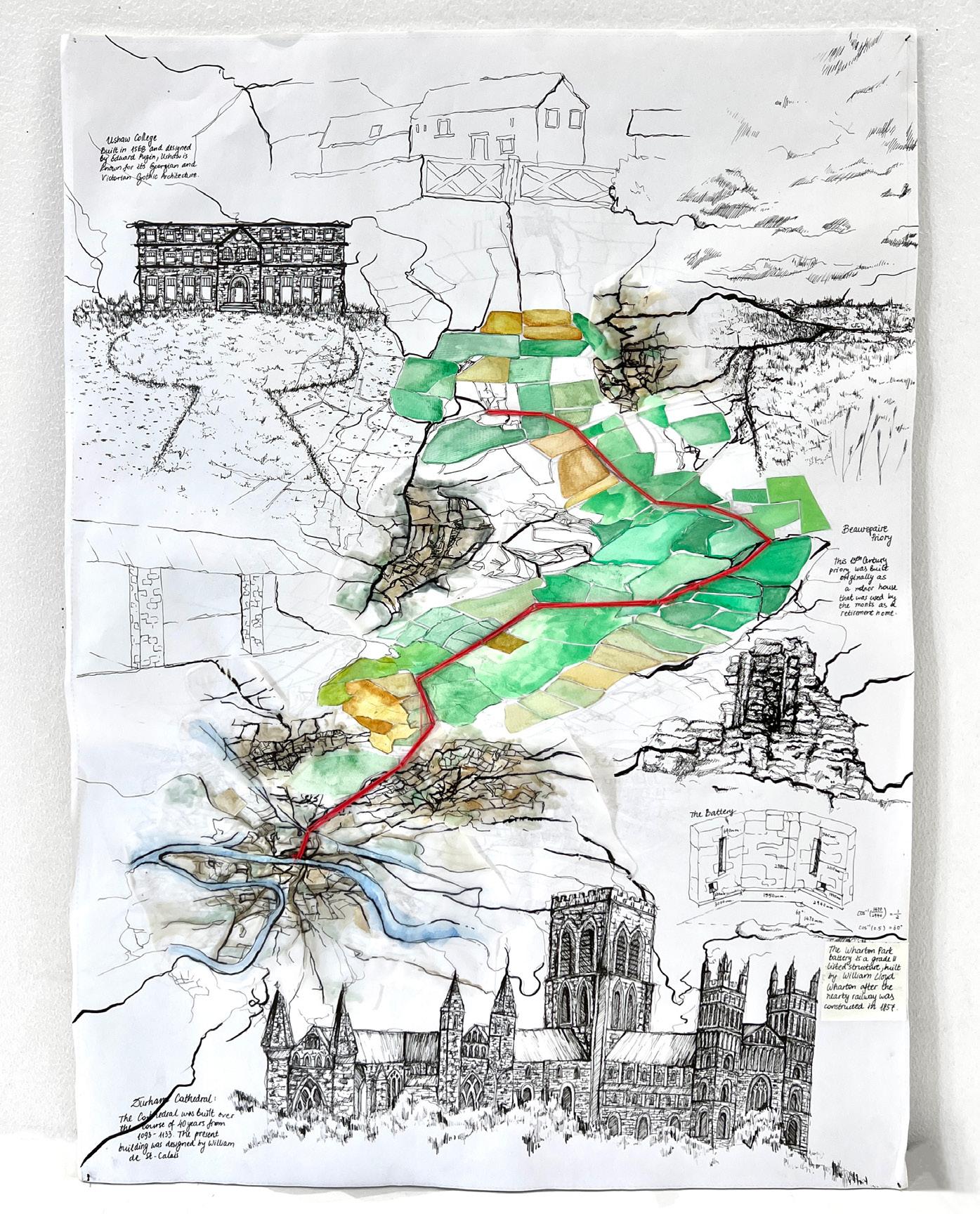

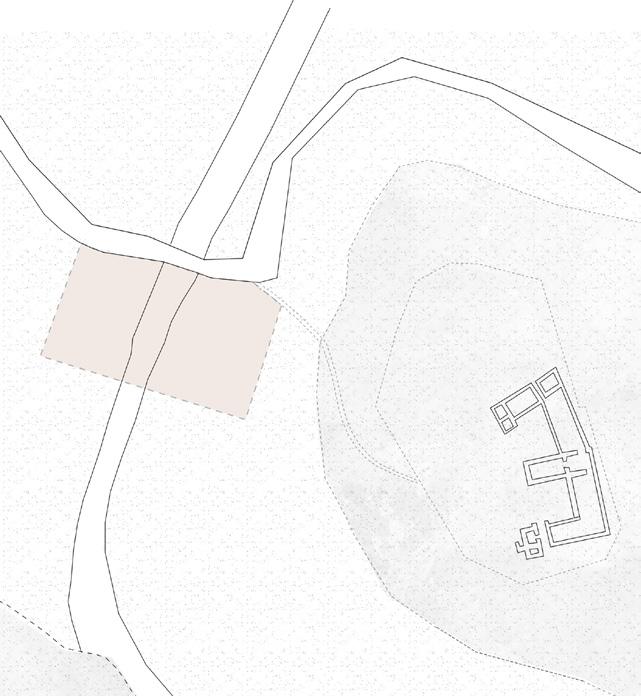

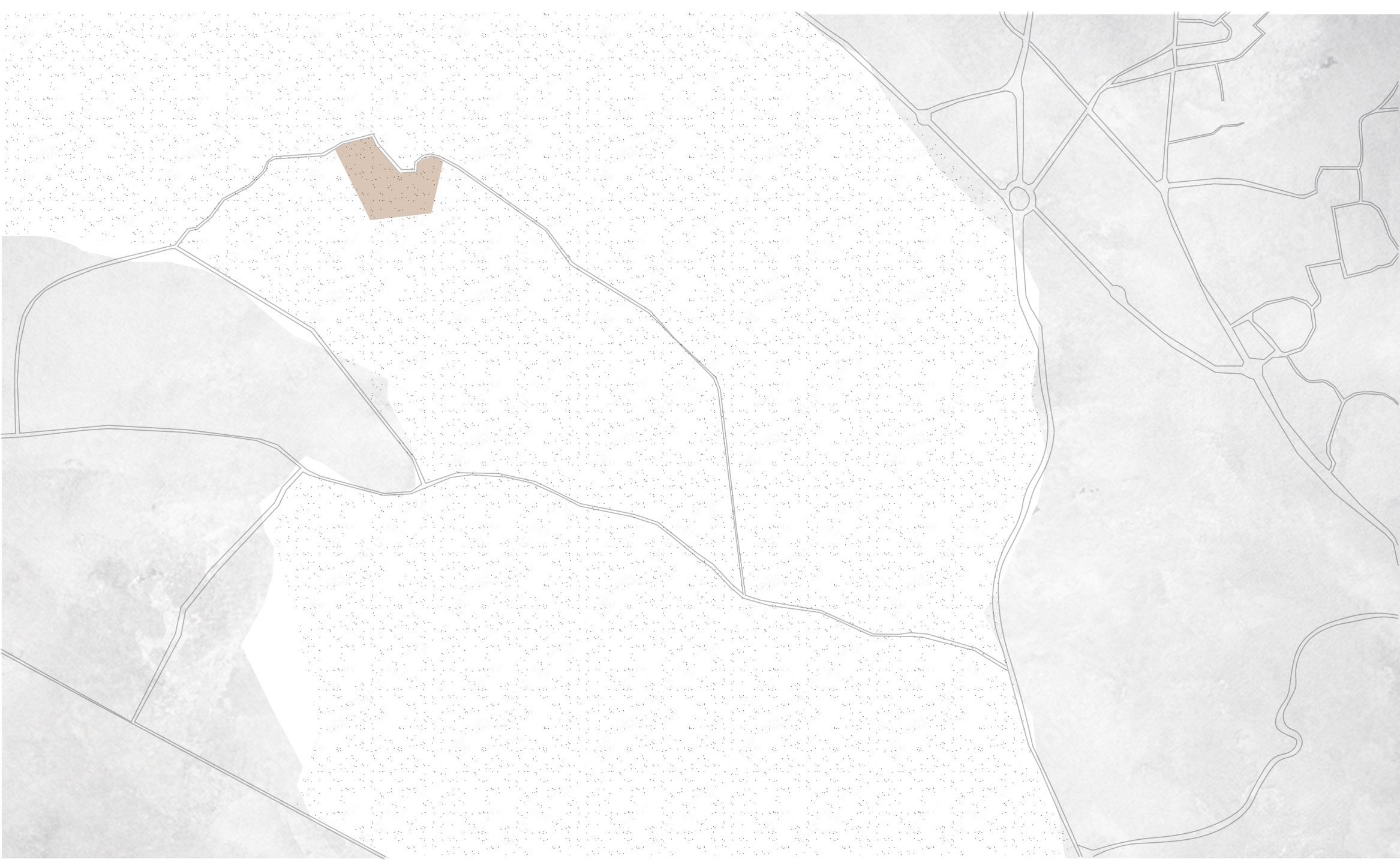

SITE ANALYSIS
BEARPARK
DURHAM

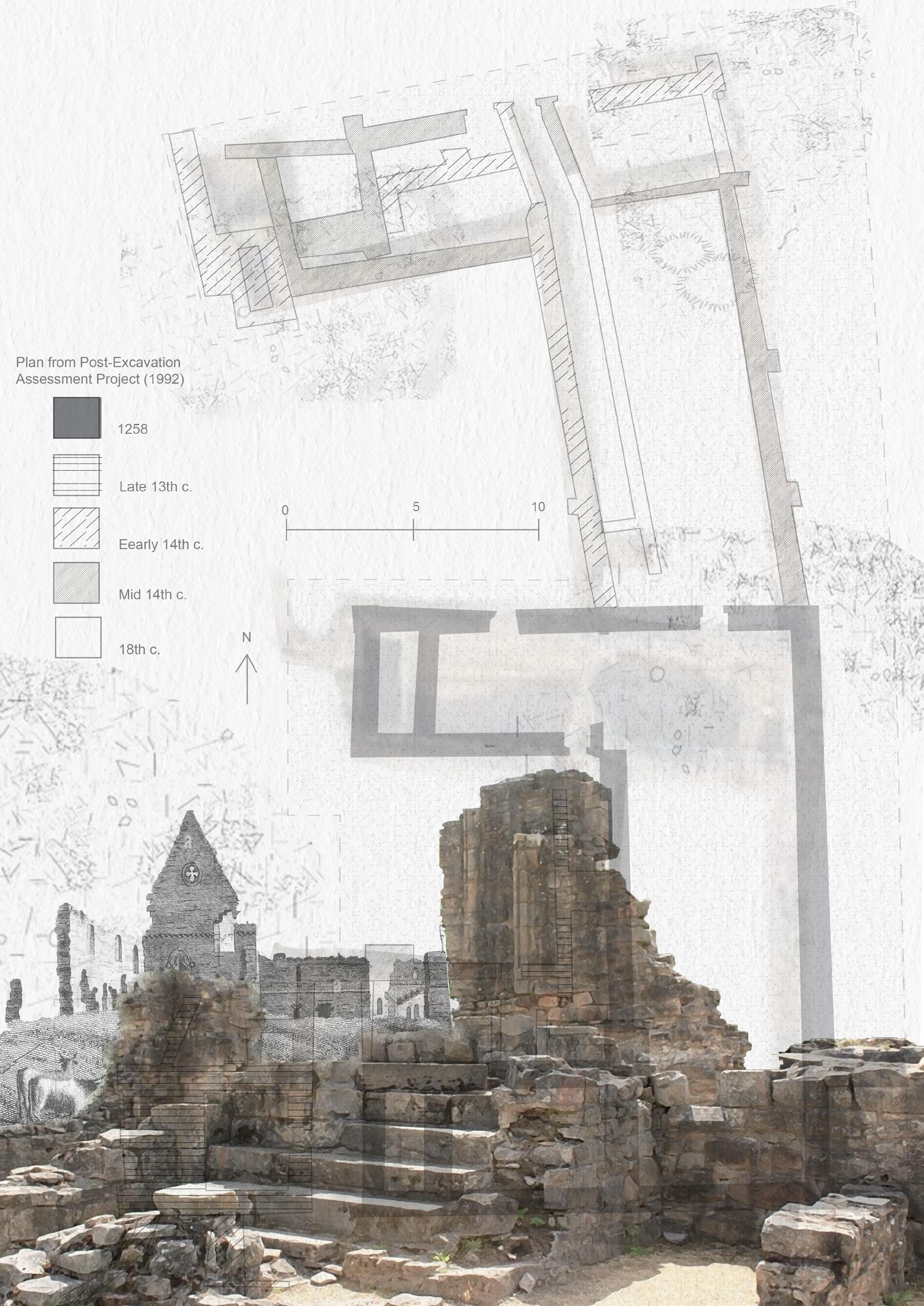

Key History Features - Beaurepaire Priory
Located next to the site. Translating as ‘beautiful retreat’ from the French by which it was originally known. A 13th century priory twixt manor house that was a retirement home and retreat for the Durham Monks. Unfortunately, the priory was badly damaged again by the Scots during the English Civil in the 1640s and has remained ruinous.
SITE

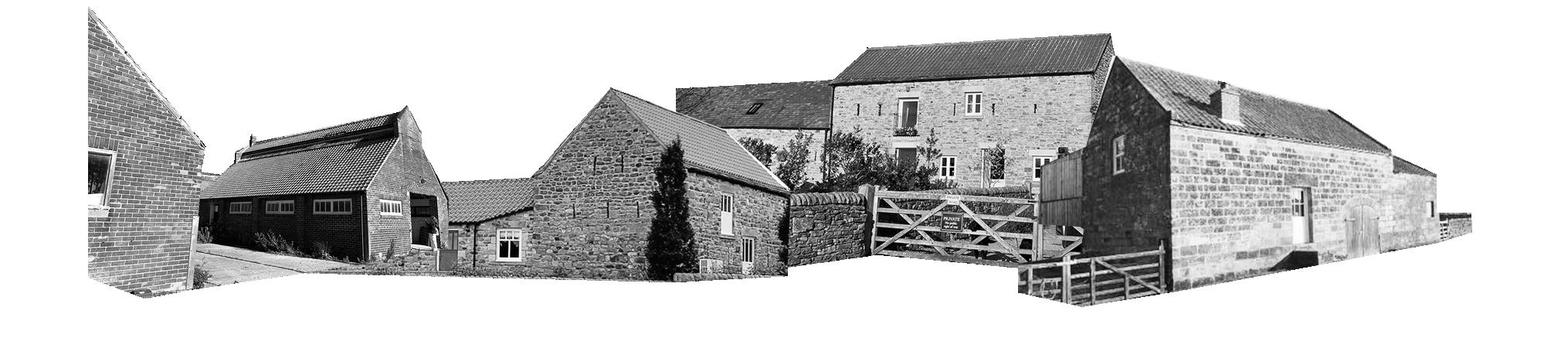

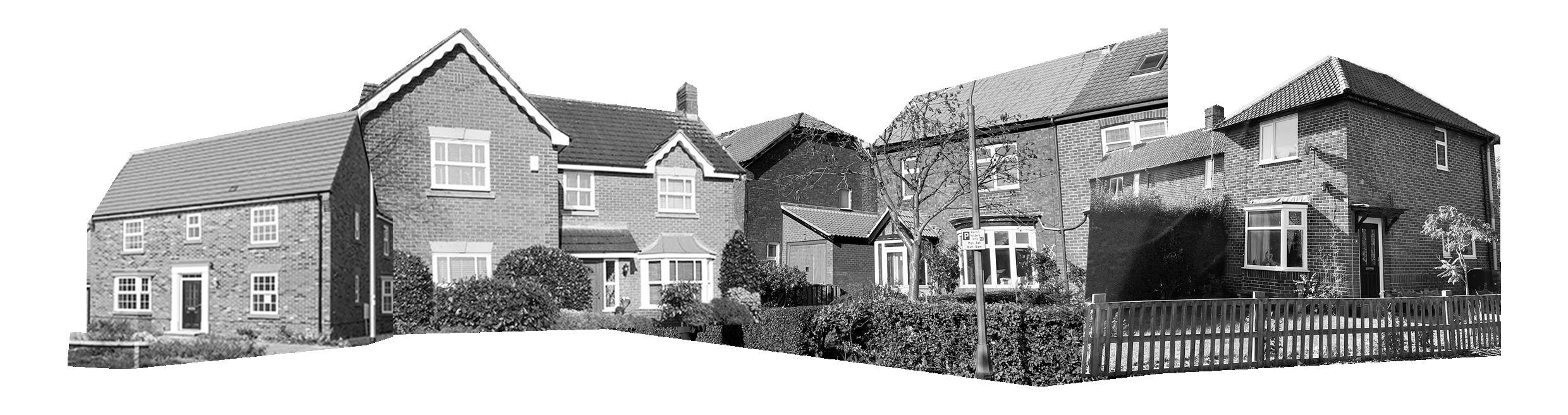

Building typologies Barn Residential
Considering building as a journey
HISTORY IS A PRESENT, RESPECT IT AND PRESERVE IT.
CONTINUE YOUR JOURNEY
Rejoin the Way of Light with better understanding the history of Beaurepaire Priory and importance of preserving history
BEAUREPAIRE PRIORY
Students learning technical skills: timber construction, ceramics and glass making Public visitors able to see students learning
Exhibit fragments from Beaurepaire Priory repaired by the students in technical school e.g. stones. Offering ceramics workshops for the communities to learn the history through making.
Visitors able to overview the whole site at the Priory. Understanding the building journey from showing students works from technical school to repairing the Priory.
01
03
05 EXHIBITION CENTRE TECHNICAL SCHOOL
02
04
INTERPRETATIVE CENTRE Exhibit students works from technical school: Timber sculpture, ceramics and glass. Public visitor can buy their works from the shop
Acommodation
BUILDING PROGRAMME
“ “
DESIGN CONCEPT
Removing barriers, extending to landscapes
Keeping the profile low to reflect on local typologies. The massing looks blocky in boarder landscape. I took inspiration from Barcelona Pavillion and Rohe's Bricks House by extending walls into the landscape. Breaking the clear boundary between the building and landscape. Users can weave within the landscape through walls. Extended walls can be designed for outdoor working spaces for technical school.
ITERATIONS: PUSH AND PULL

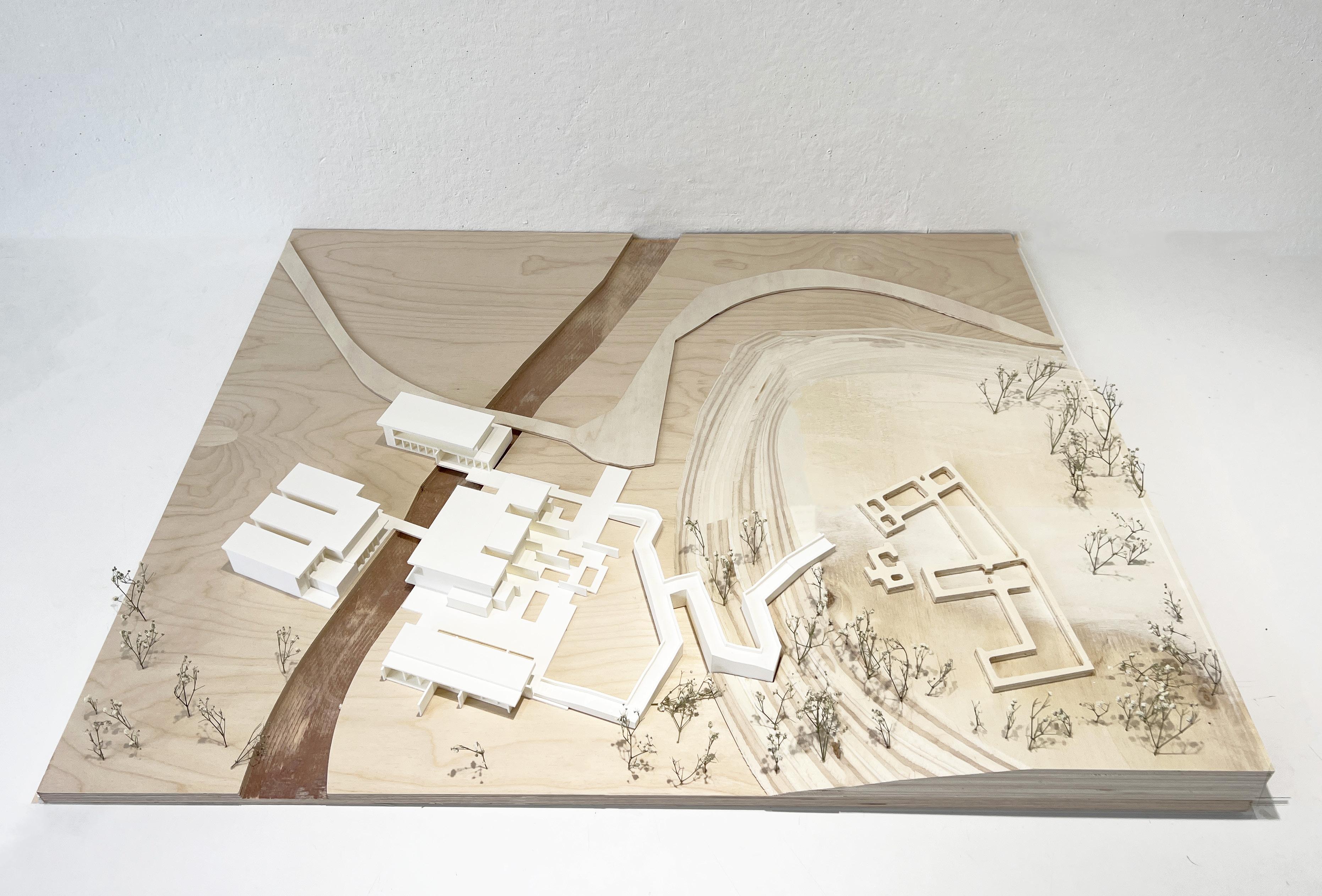

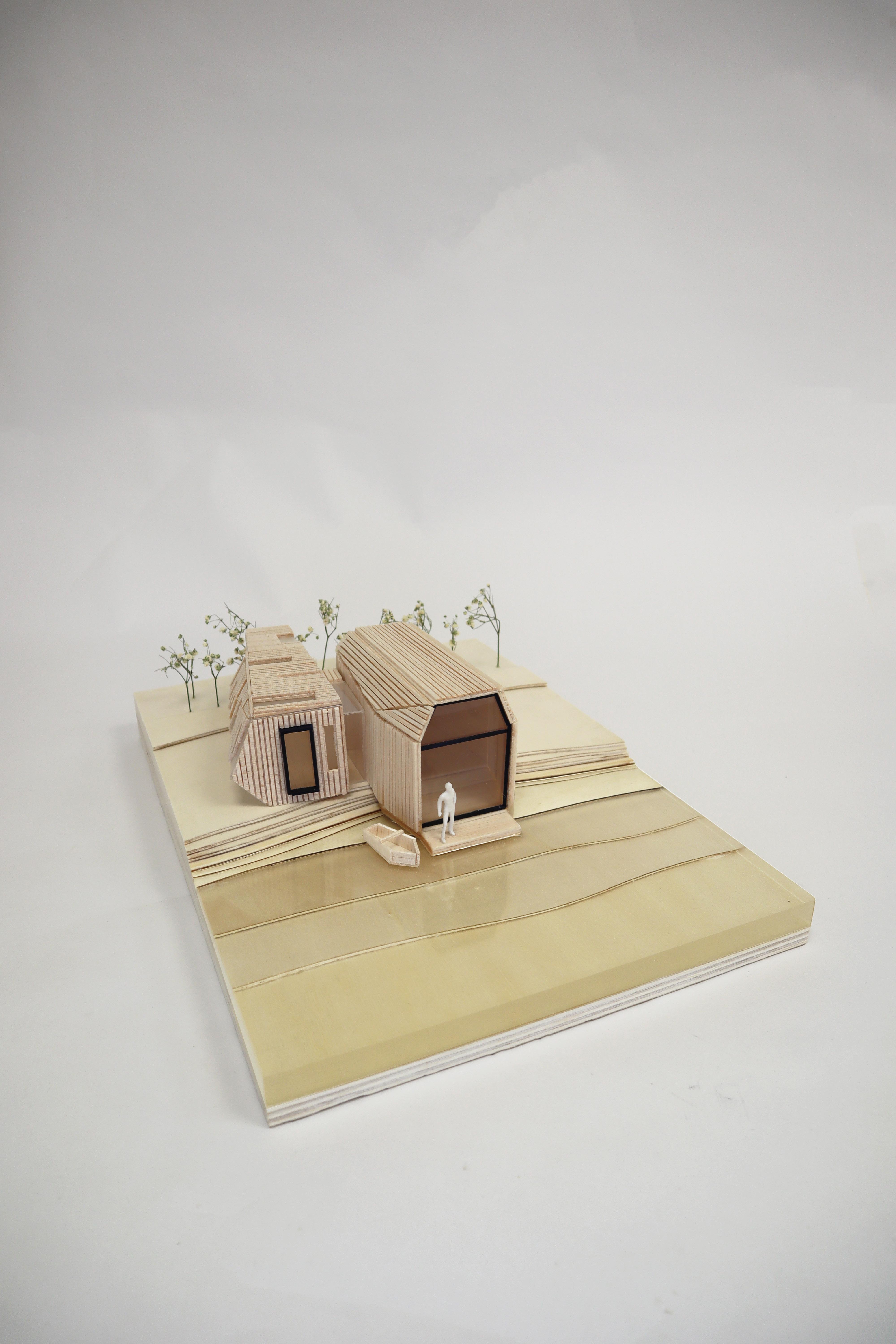

1:200 MASSING MODEL
3D print and CNC

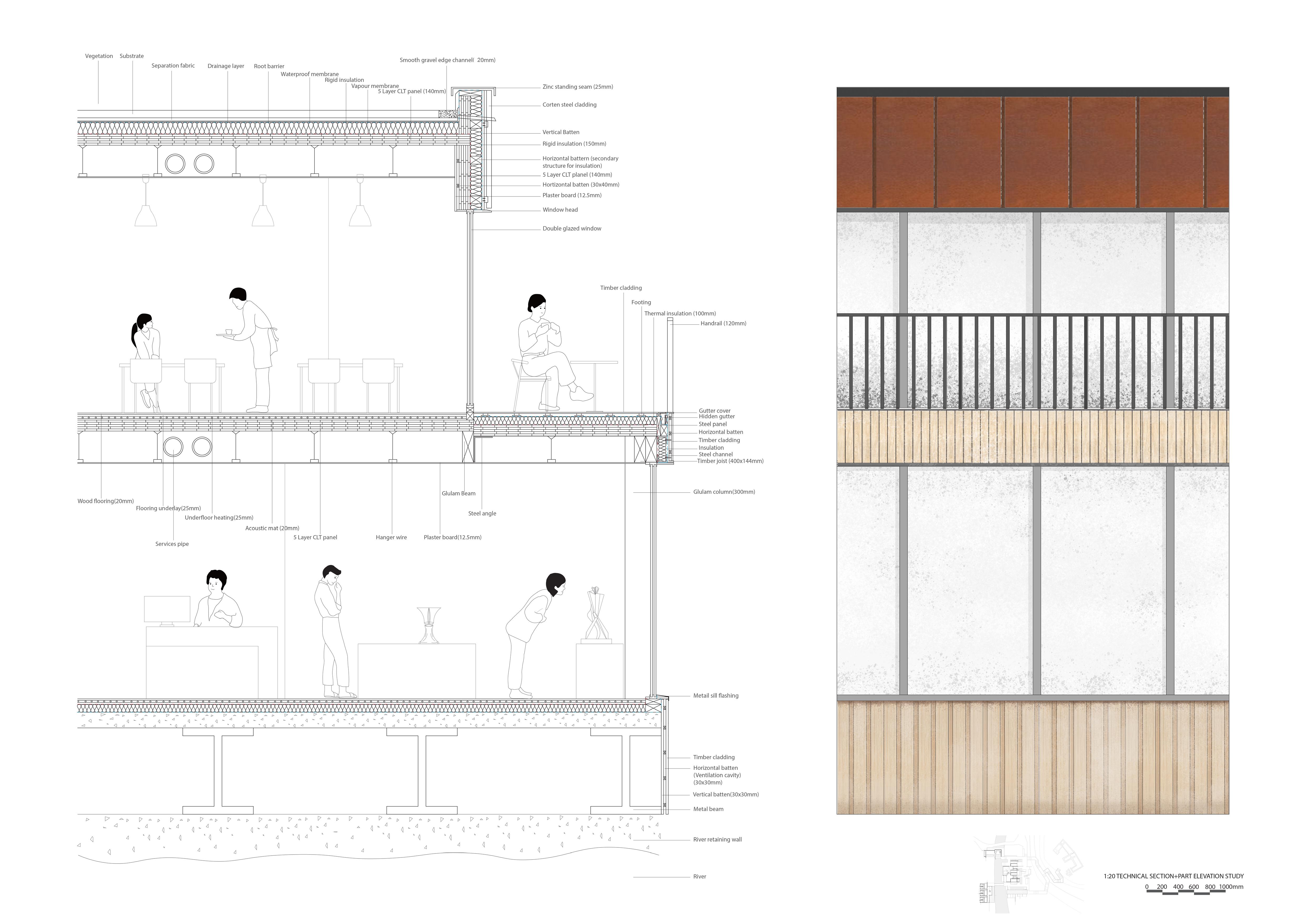

SECTION

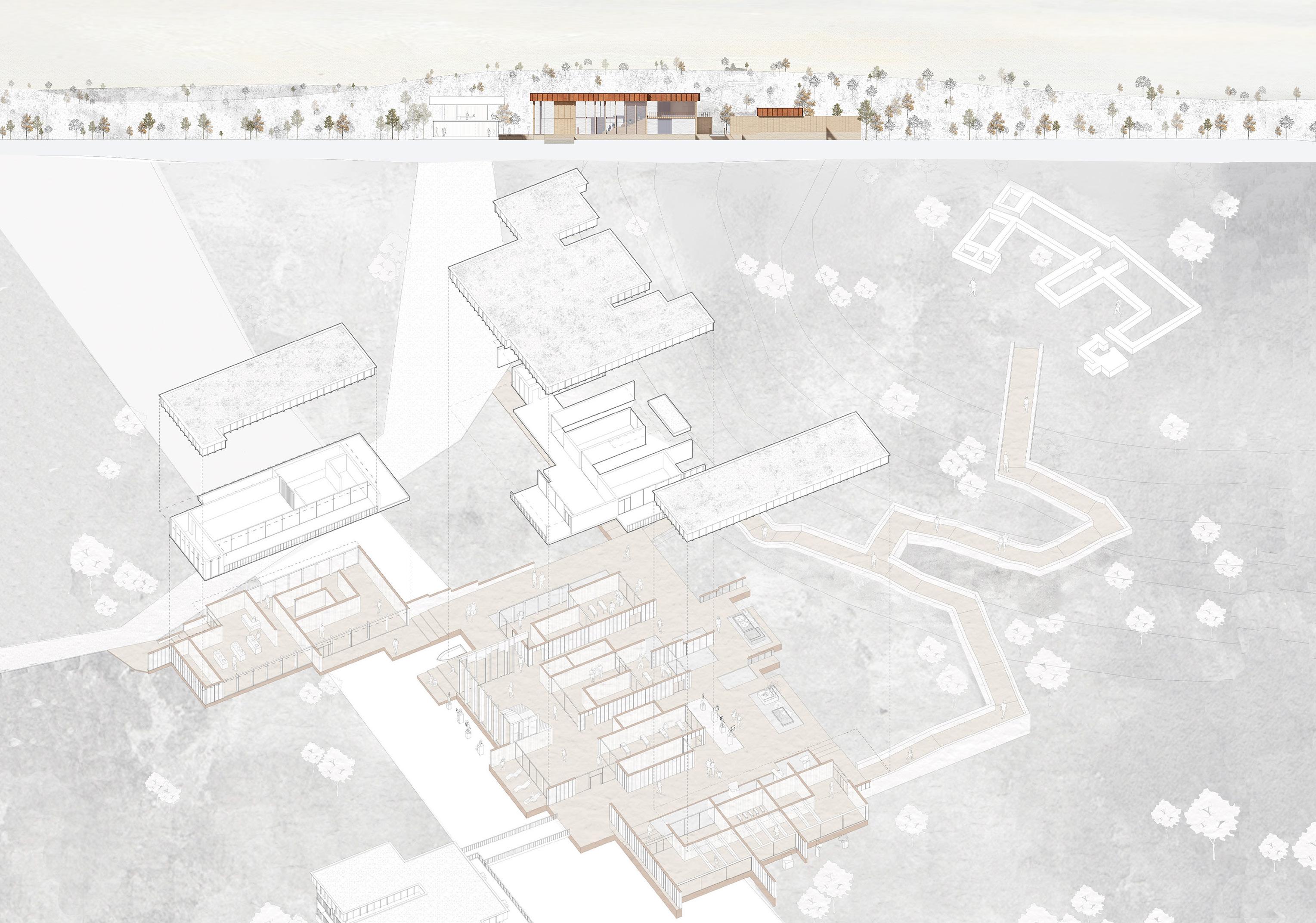

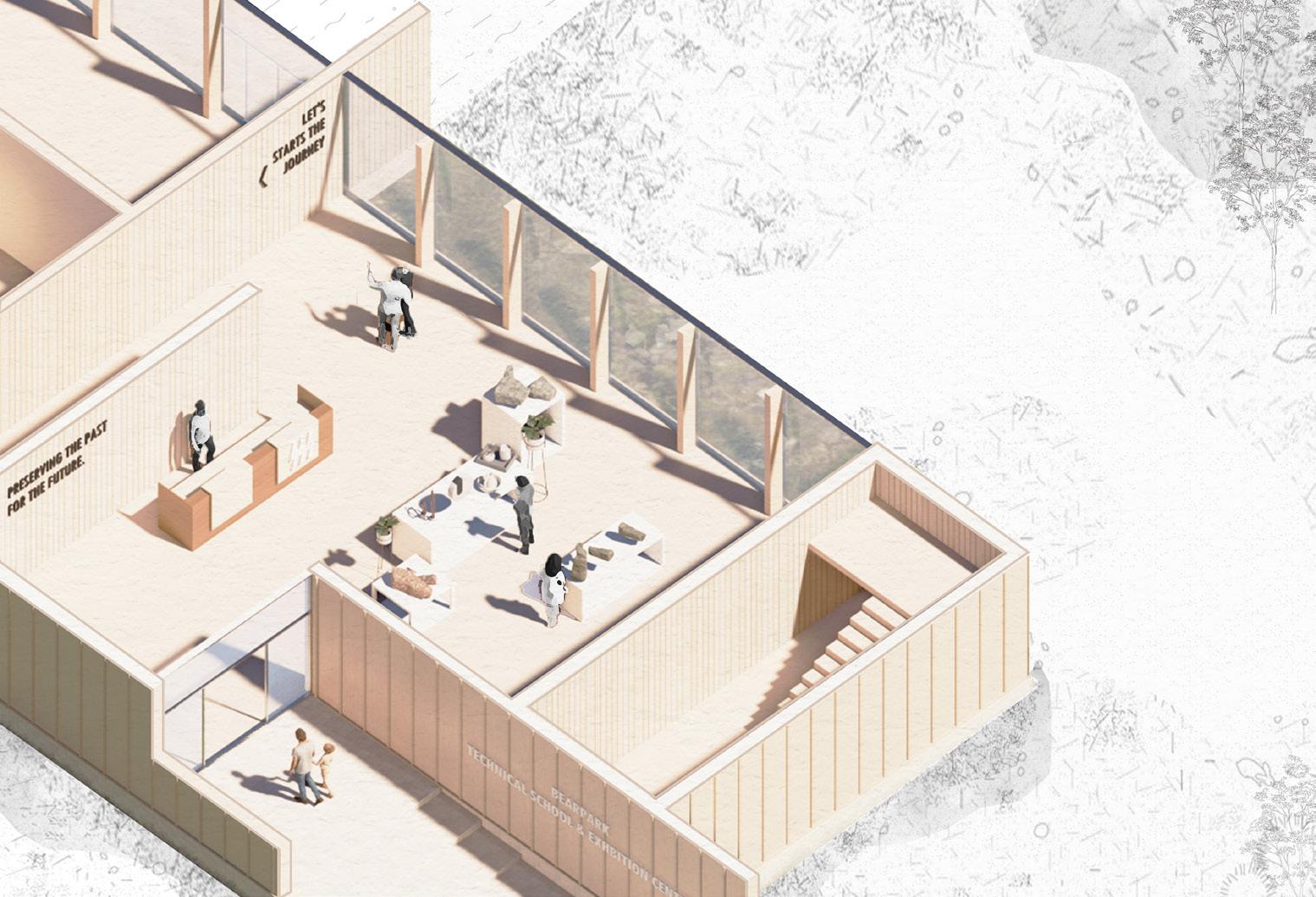

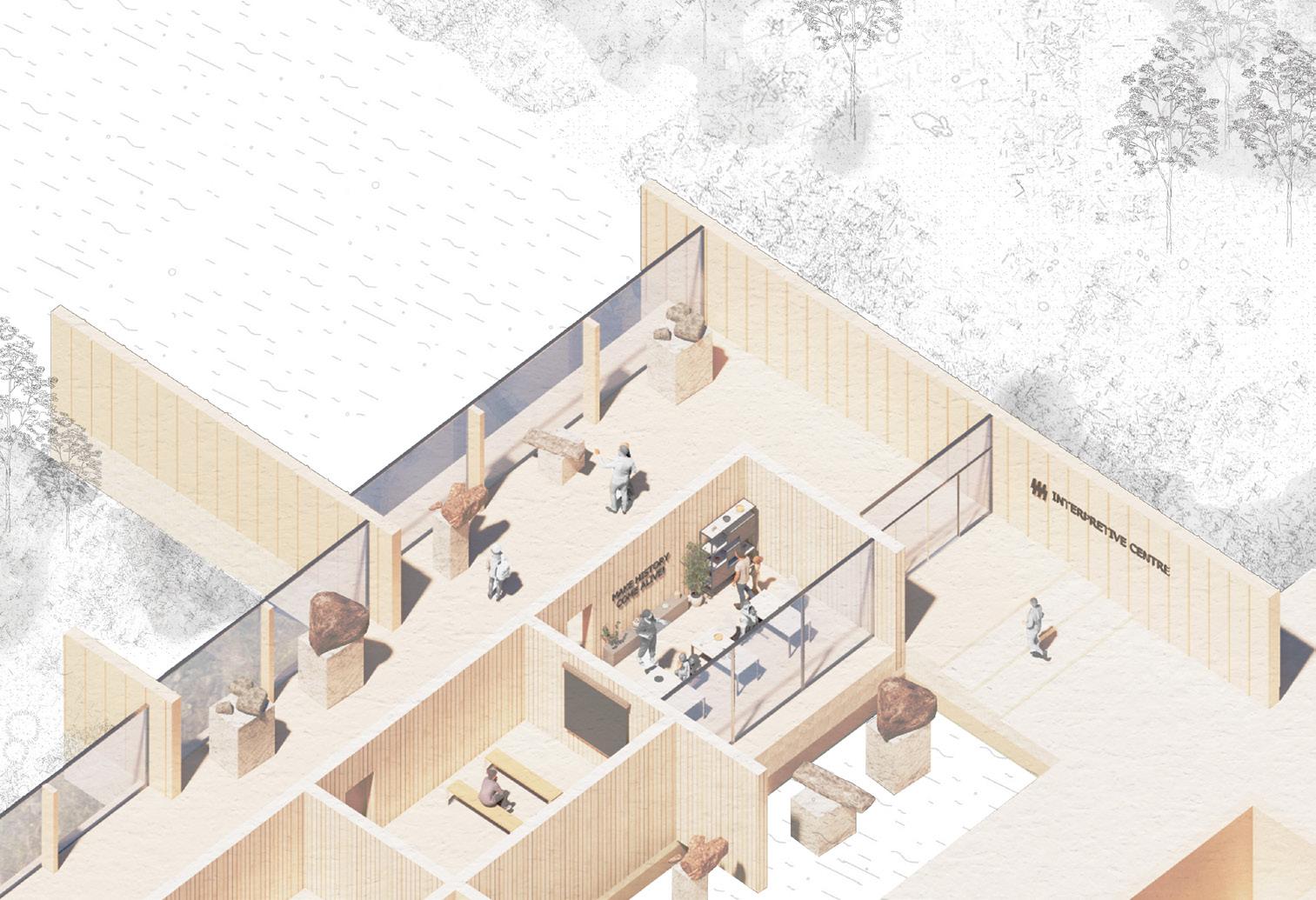

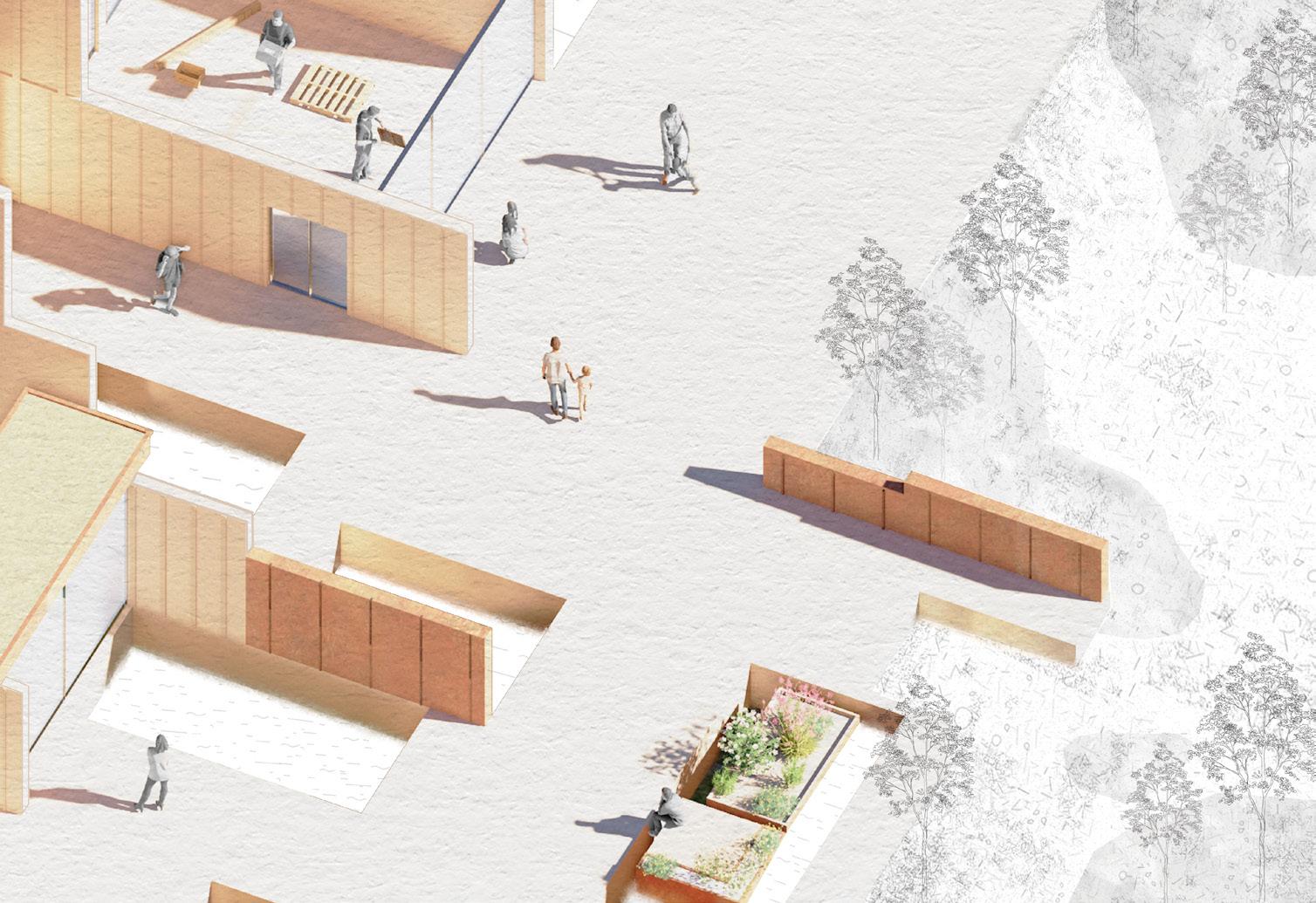

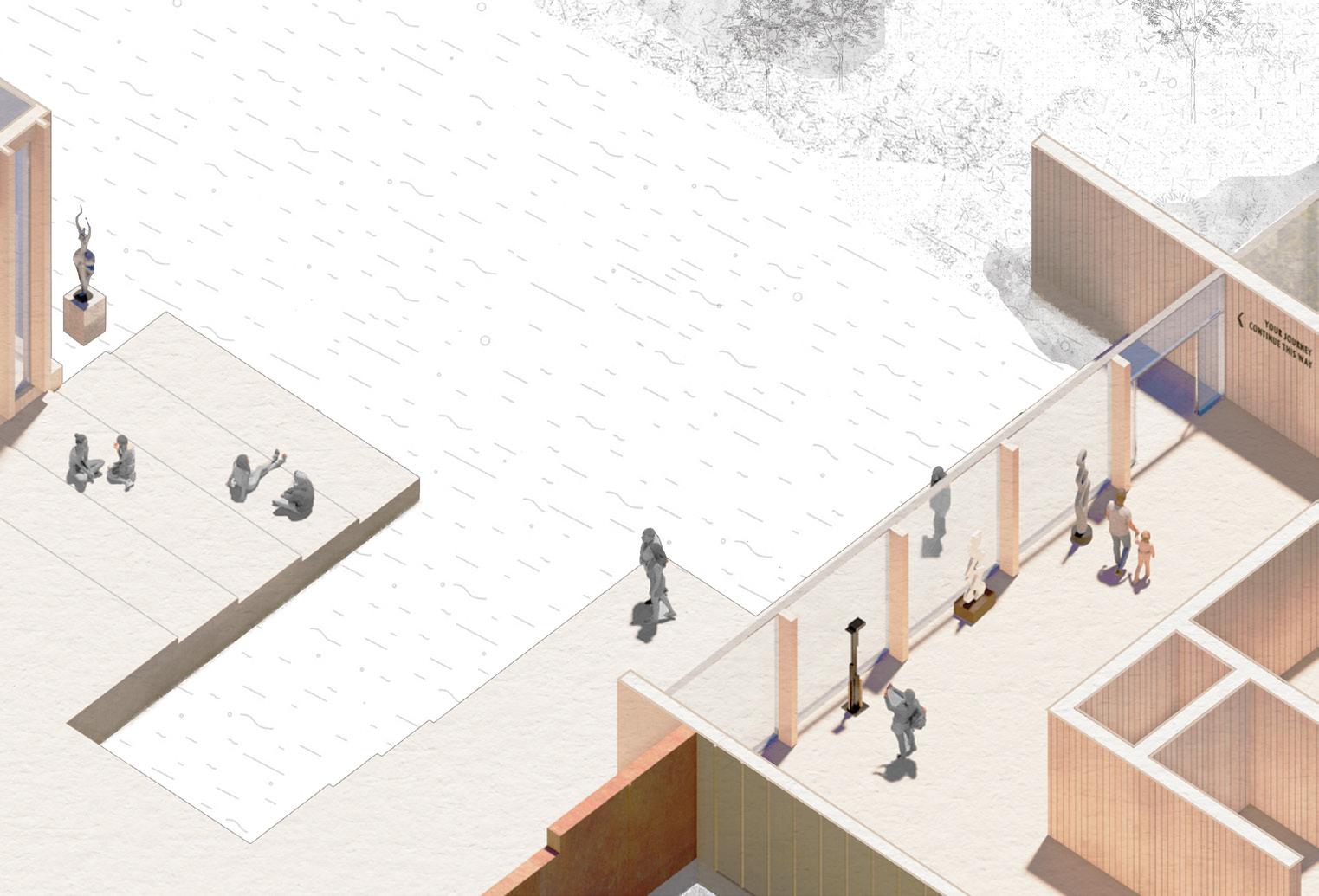

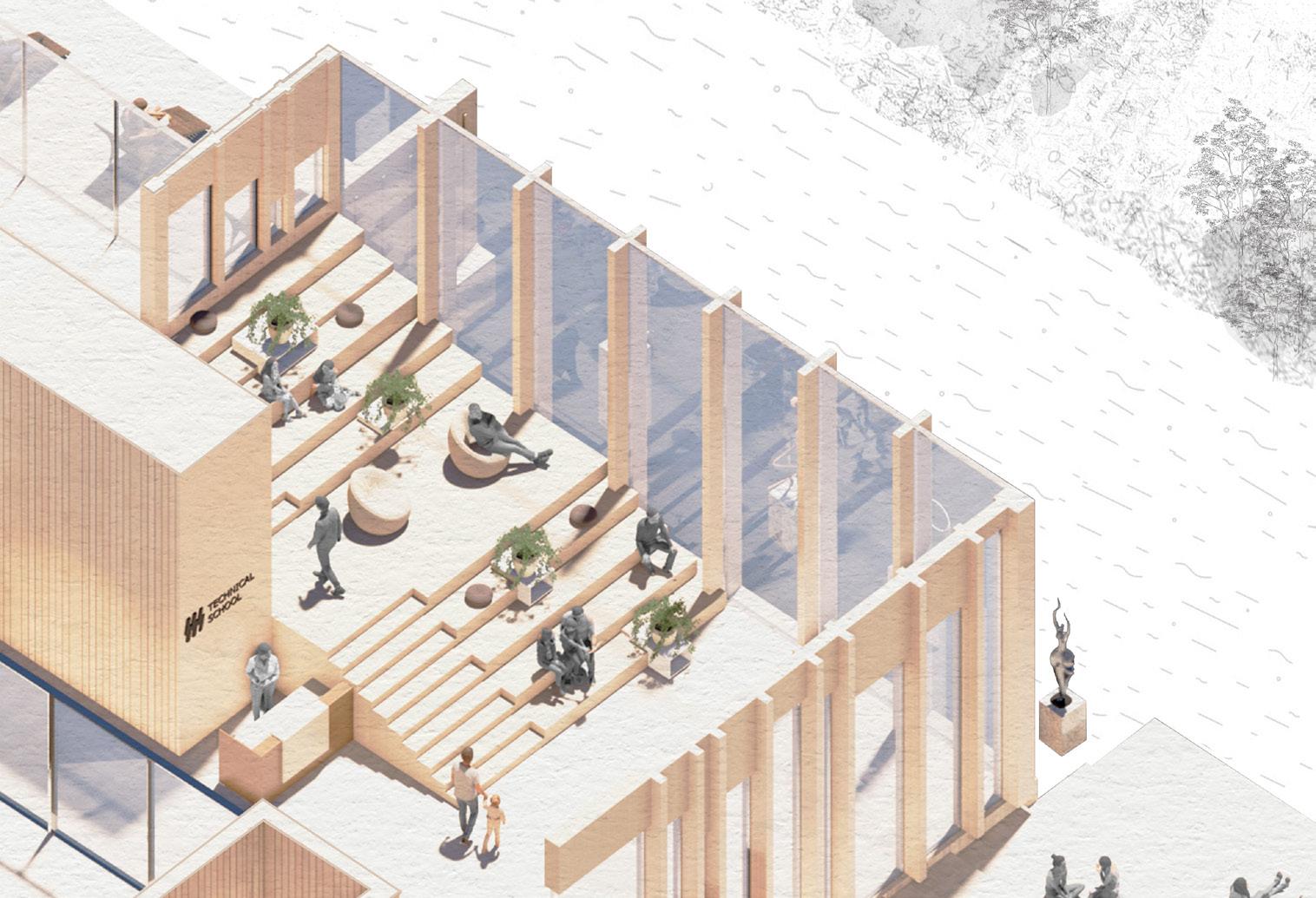

|| EXPLODED AXONOMETRIC
The relationship between overlapping walls and roofs
1 2 PUBLIC LOUNGE 3 WORKSHOP 4 PRIORY 5 EXIT 6 ENTRANCE EXHIBITION SPACE THE BUILDING JOURNEY: 1 2 3 4 5 6
KEY: 1. Reception 2. Shop 3. Exhibition 4. Toilet 5. Punting boat 6. Timber workshop (indoor)
Timber machine room
Storage room
Timber workshop (outdoor)
Public lounge
Ceramic workshop
Ceramic heating room
Outdoor casting space
Breakout space
Terrace
Glass workshop
heating room
Public workshop room
Screening room
Study room 21. Common kitchen 22. Laundry 23. Accomodtion room 24. Private terrace 25. Beaurepaire priory (ruins) 26. Bike parking GROUND FLOOR PLAN: ENTRANCES 1:200 G/F PLAN 0 2 10 A A B B 1 1 26 25 6 12 13 14 15 15 16 17 18 19 20 21 22 23 24 24 24 24 24 24 23 23 23 23 23 22 22 10 4 4 11
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.Glass
18.
19.
20.
KEY:
27. Cafe
28. Cafe terrace
29. Cafe counter
30. Classroom
31. Staff room
32. Studio
33. Accomodation room
34.Private terrace
35. Accessible green roof
36. Green roof
37. Beaurepaire Priory (Ruins)
FLOOR
1:200 1/F PLAN 4 6 8 10 27 28 28 28 33 34 34 34 34 34 35 36 37 34 33 33 33 33 33 29 30 31 32 A A B
FIRST
PLAN:

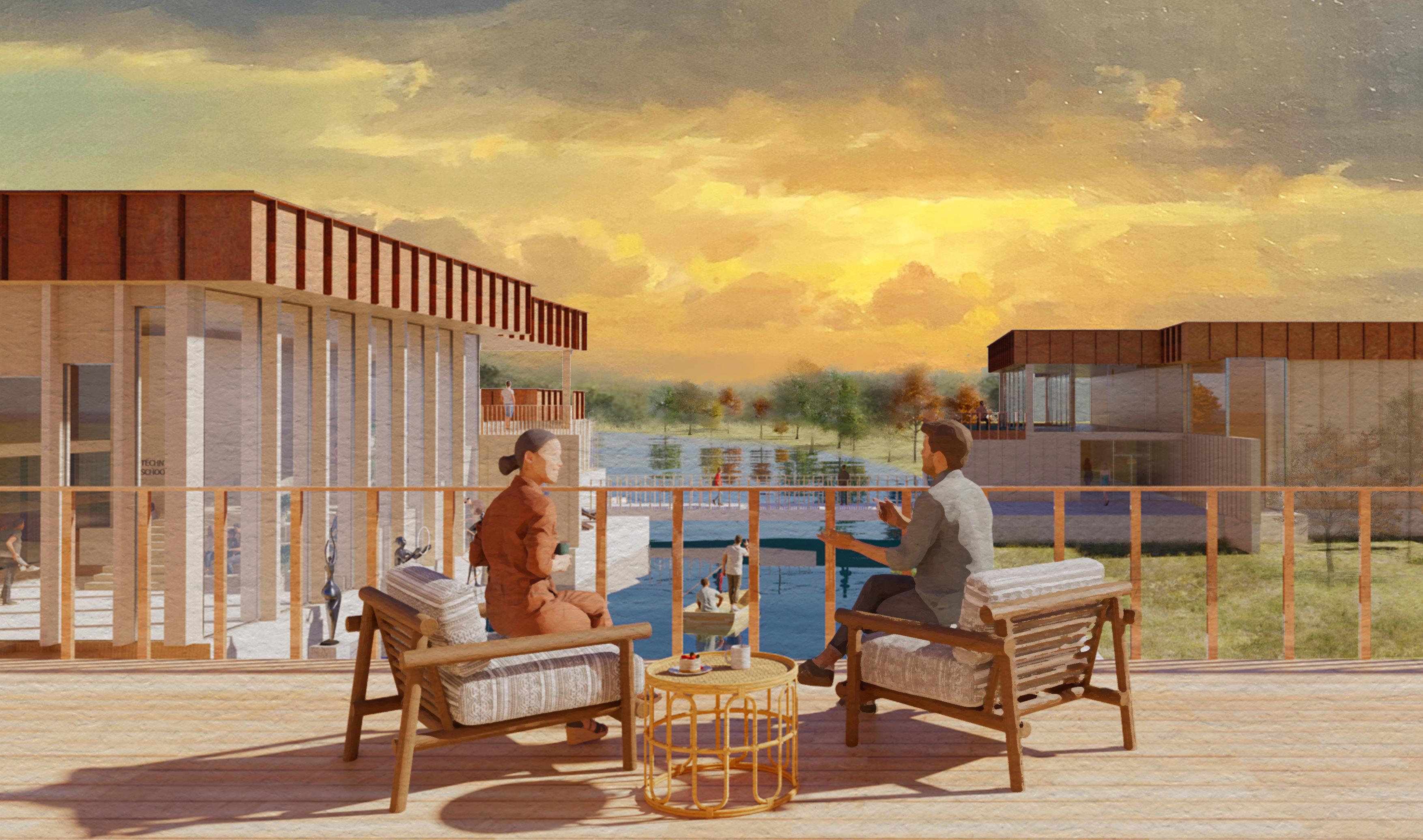

CAFE DURING SUNSET
Exterior render

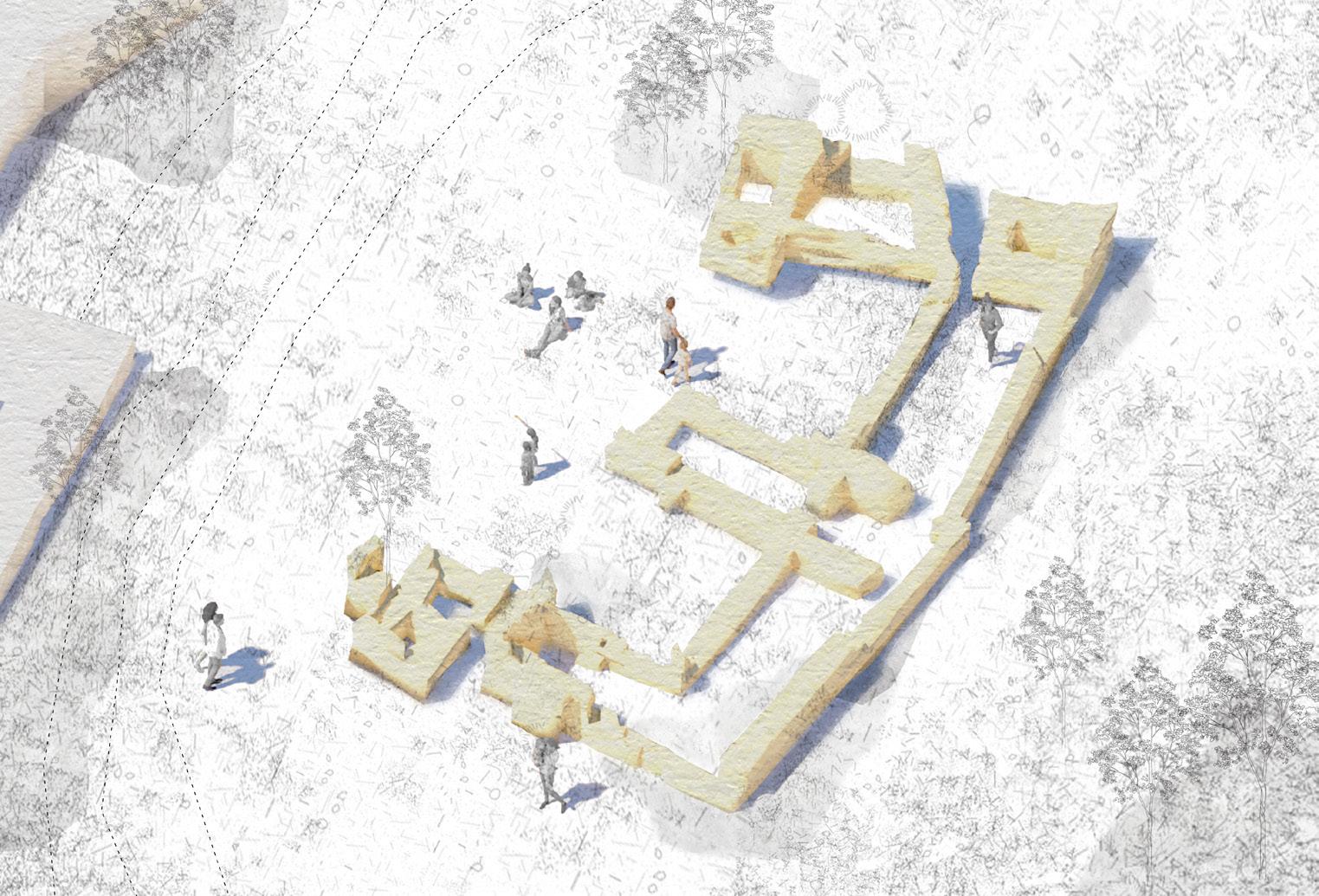

REPAIRING THE RUINS
The building relationship to the river during seasonal flooding

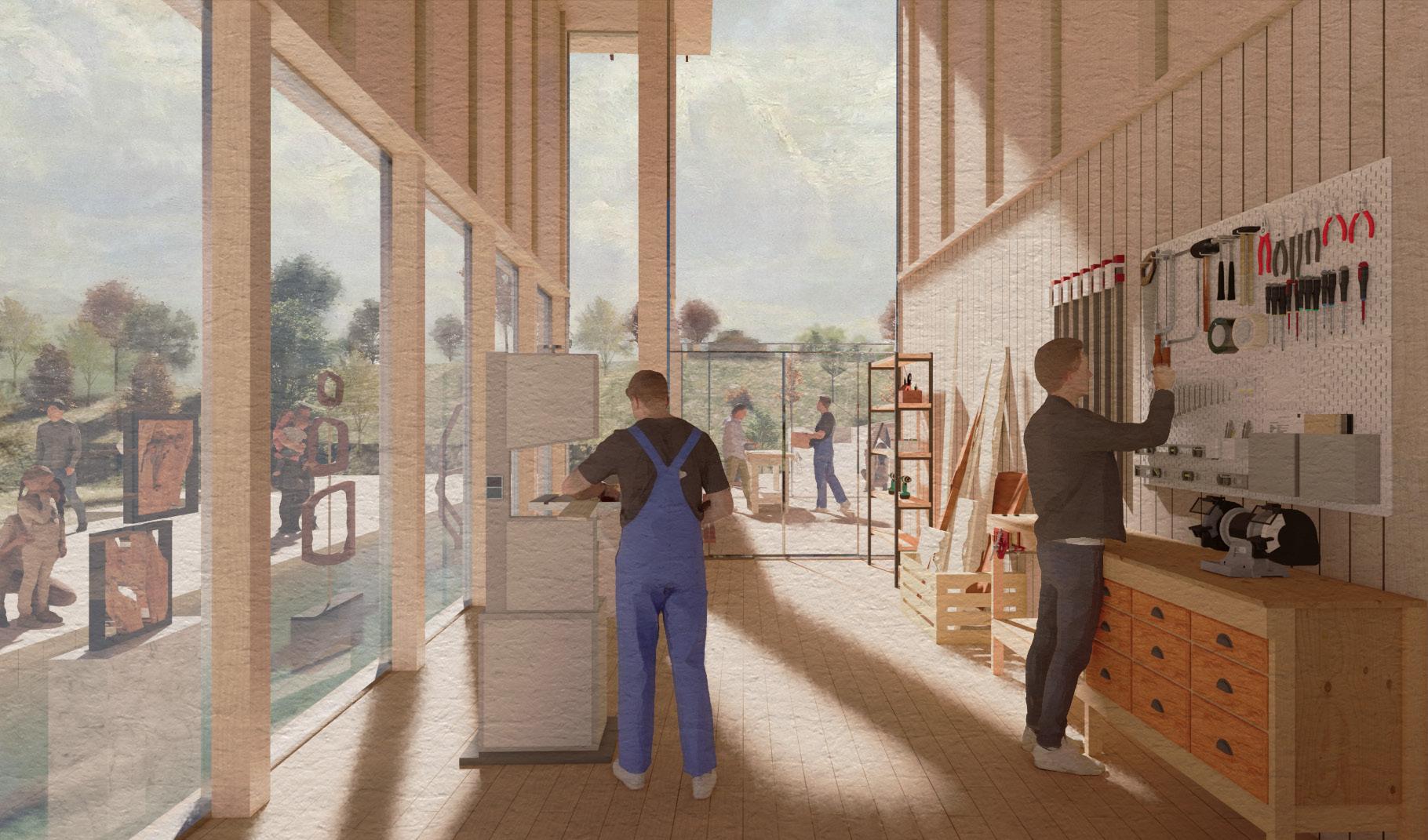

TIMBER WORKSHOP
Interior render
02
|
PAINTER’S BOTHY
Ushaw College Bearpark Durham
STUDIO || Transect: Foot Notes on a Liminal Landscape
LOCATION || Ushaw College, County Durham
DATE || Oct 2022
TUTOR || James Longfield
This project involves creating a bothy intended for hikers seeking overnight accommodation, offering a cozy refuge for a brief escape from the city. Fascinated by the peaceful of the landscape, the design aims to inspire users to coexist harmoniously with nature. Integrating with the topography, extending toward the pond and path, the structure encourages inhabitants to connect with their surroundings.
Named ‘Painter’s Bothy,’ this shelter also serves as a gallery. The hope is that people will capture the essence of the landscape through their drawings, leaving behind visual narratives for others to appreciate and share.

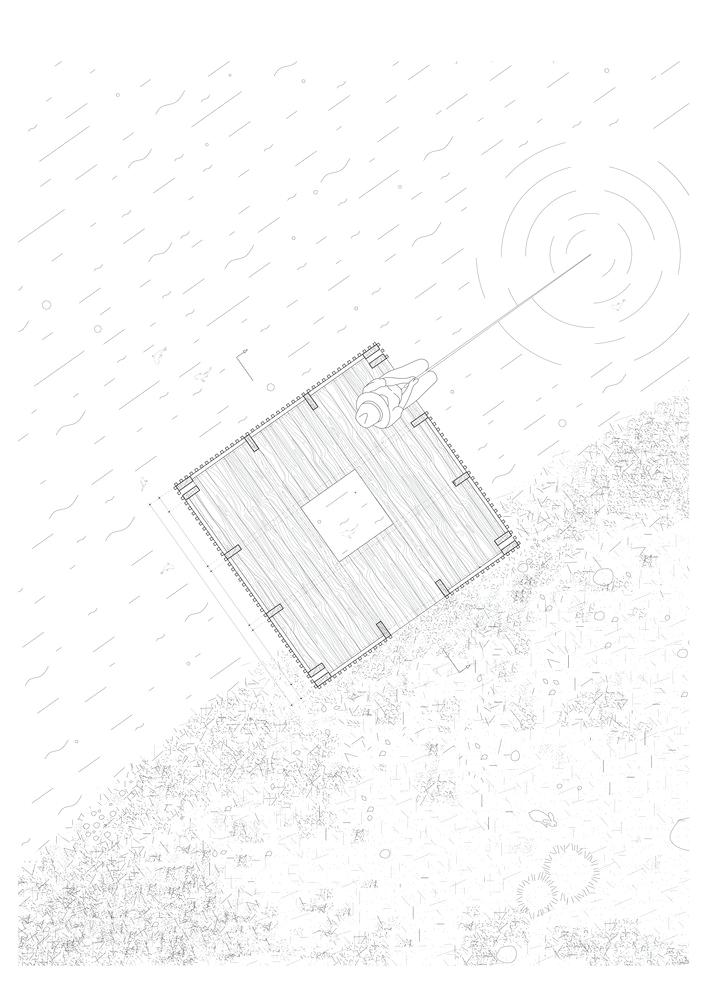

PAINTER’S BOTHY

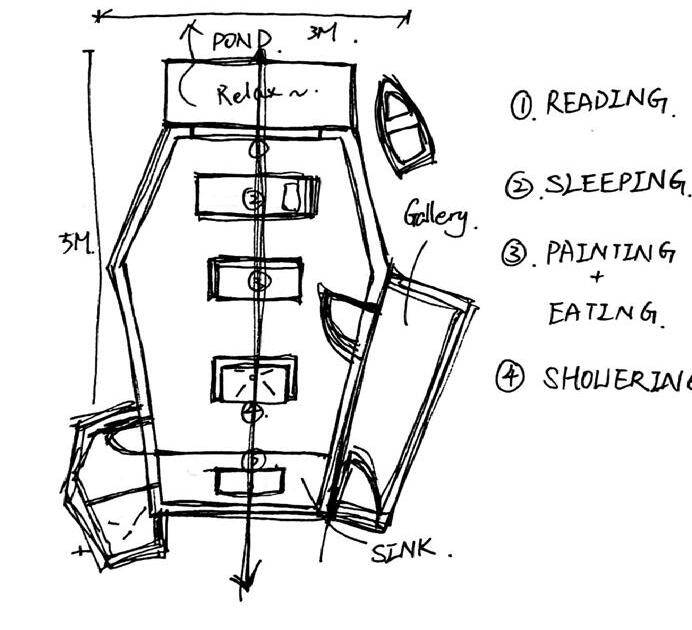

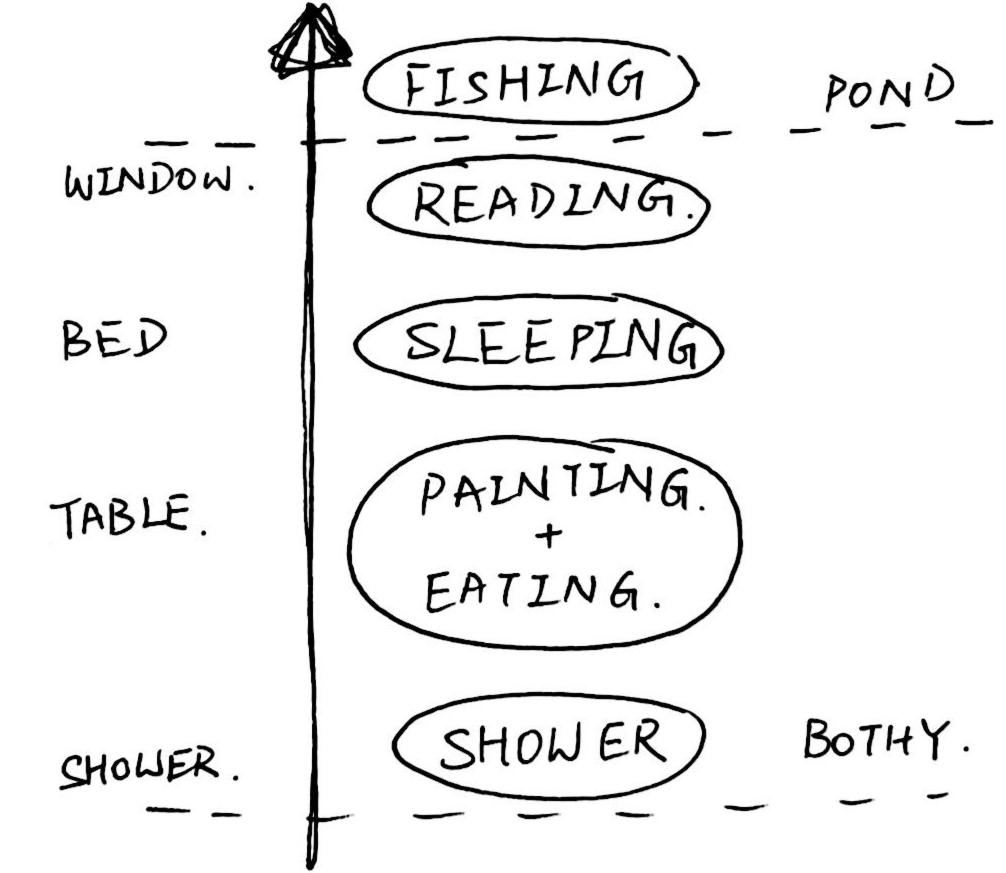

Designing from activities
1
GALLERY BOTHY 2 2
1
USHAW COLLEGE

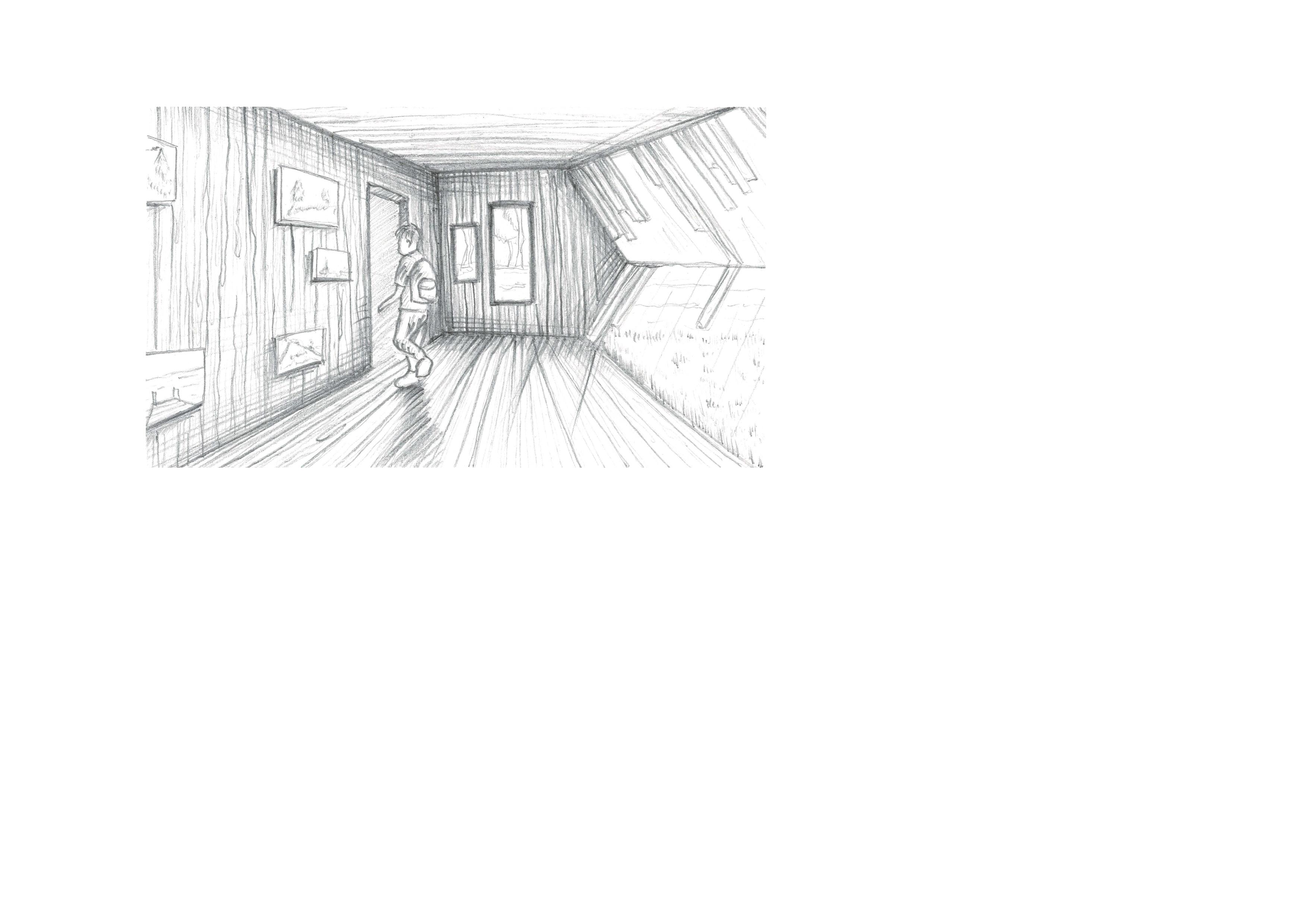

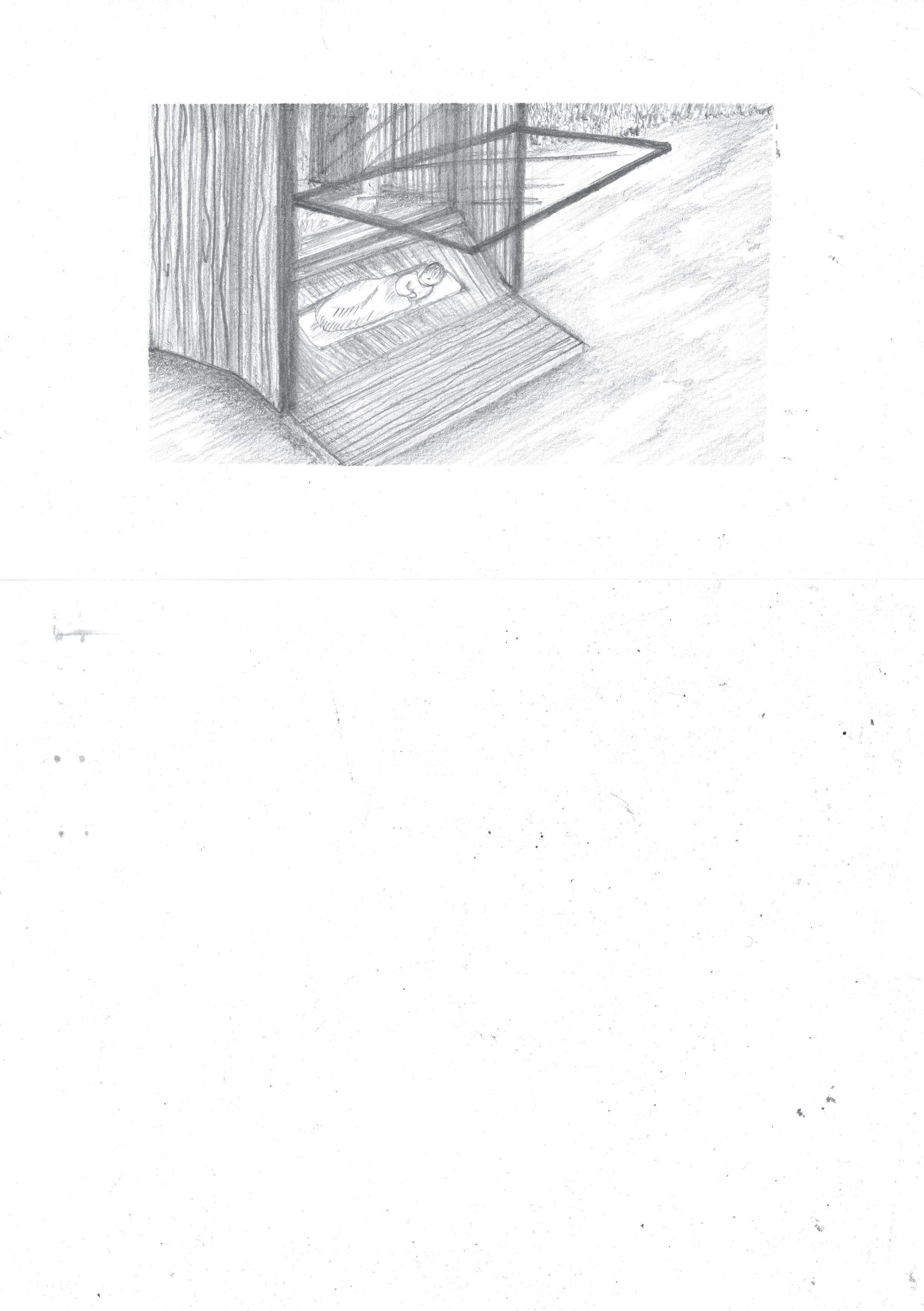

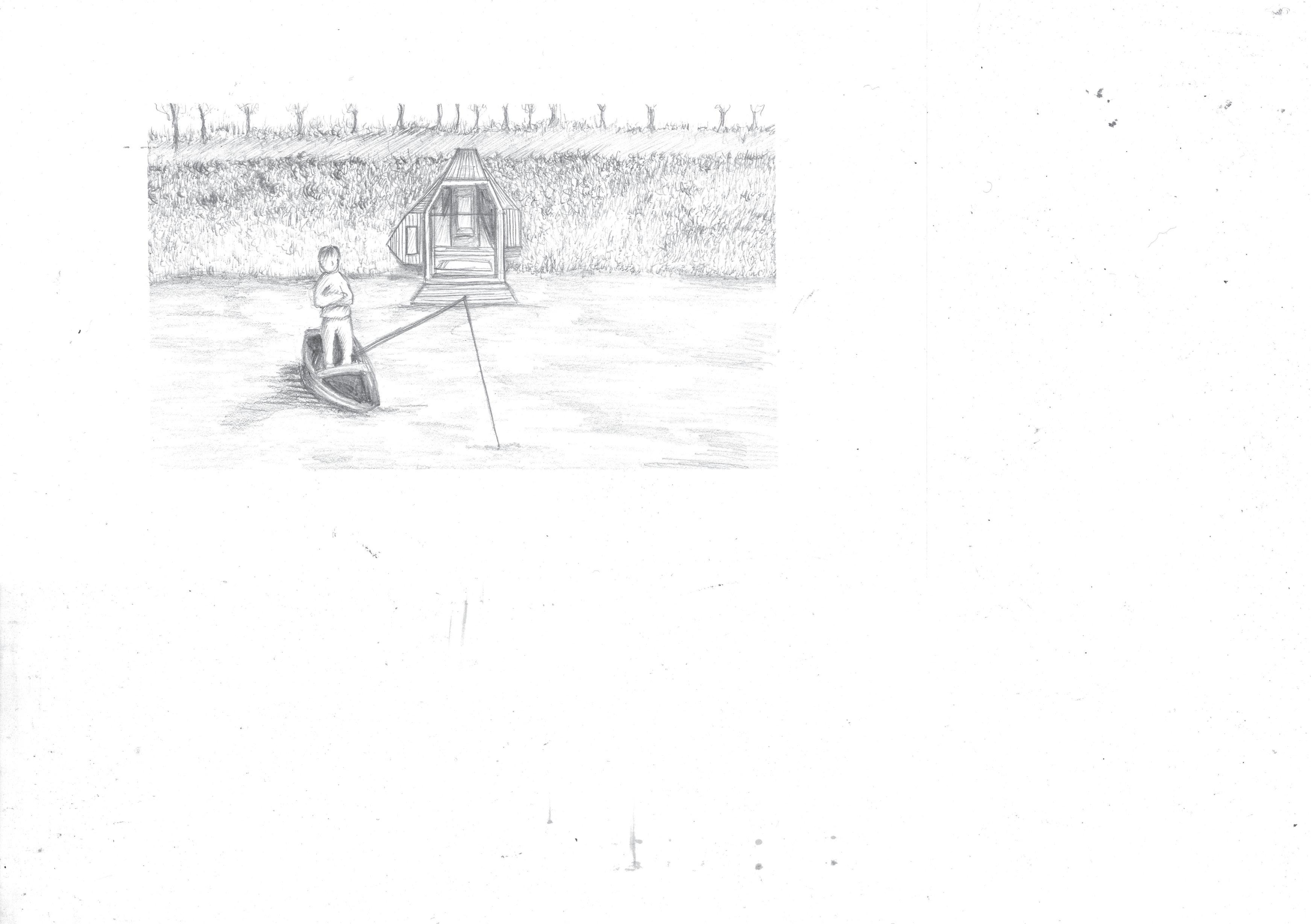

Bothy diary

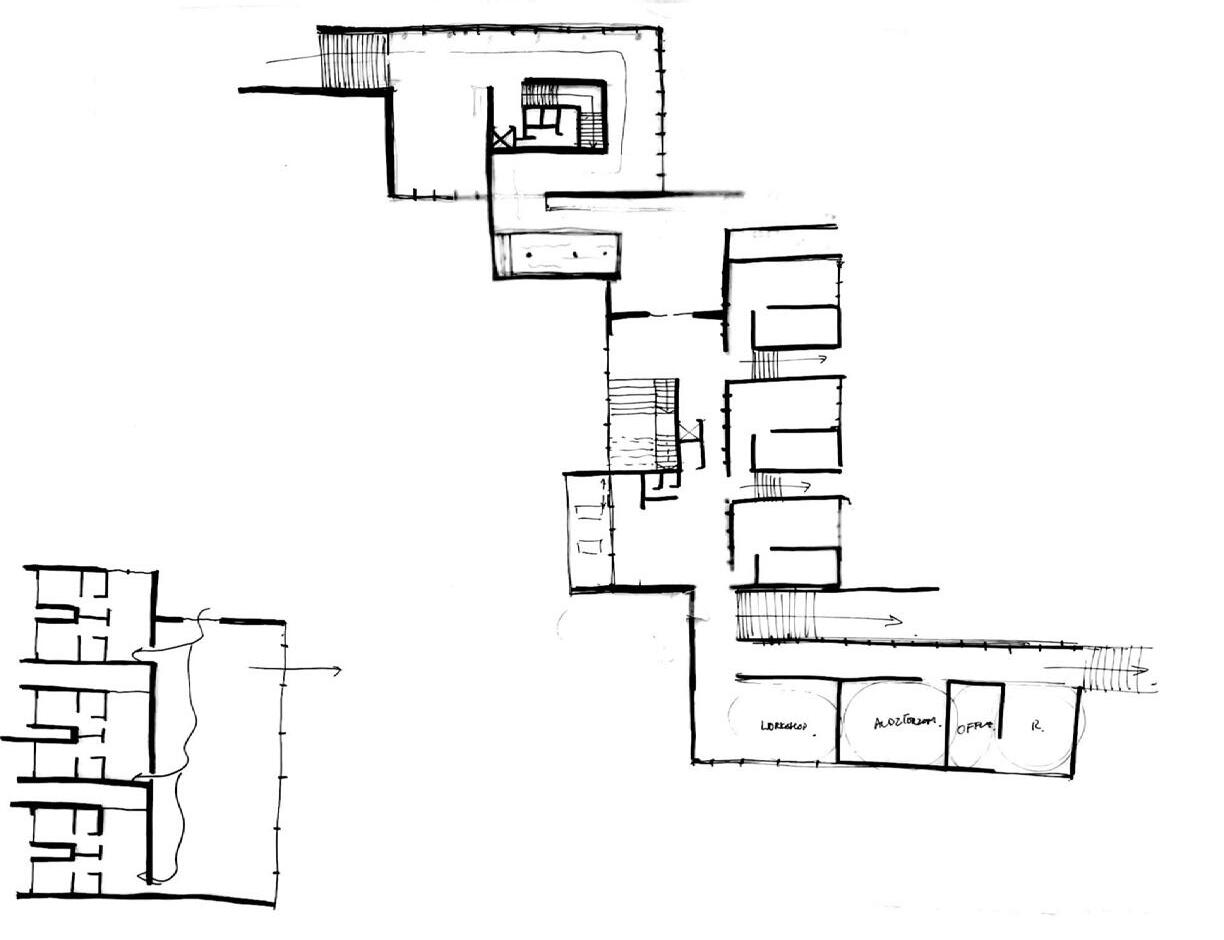

Spatial arrangement
| ST PAVATHERM’S REPOSE
COMPETITION || Warming Huts
SITE || Winnipeg, Canada
DATE || Oct 2023
TEAM || James Longfield, Tsz Ying Hui Ella
PERSONAL ROLE || Visualisation, Interior design
This project is about understanding the radical winter transformation of local rivers into routes for wandering the landscape. The shelter takes inspiration from structures of pilgrimage, nodes for pause on personal journeys, focal points that establish temporal communities of fellow travellers.

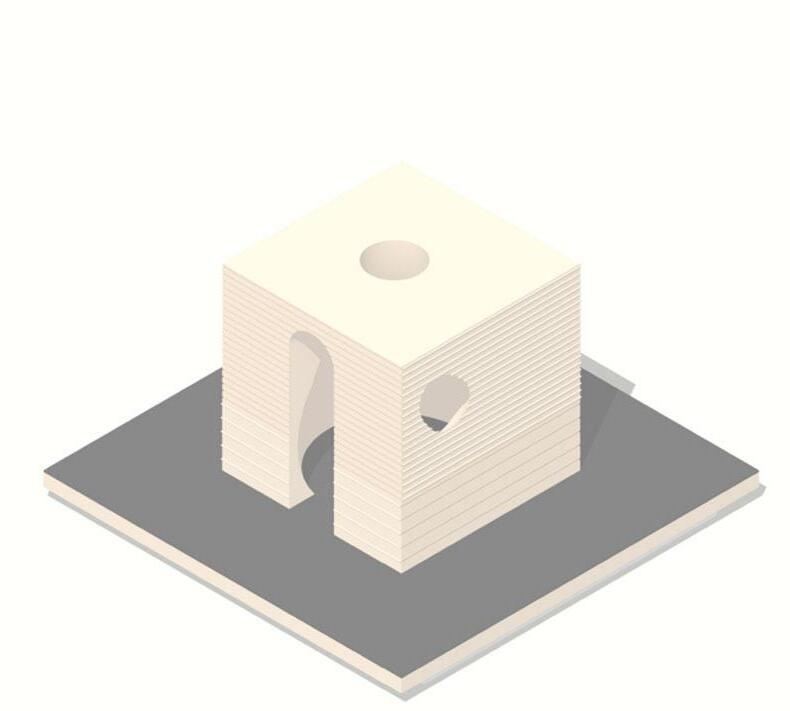

The shelter’s core comprises panels of wood fibre insulation stacked horizontally to create a cube. The centre of which is carved out to create organically enveloping interior. The spatial ambiguity of its interior inviting exploration.
filters light, and producing a liminal perimeter.
03
Above, an overhanging roof of clear corrugated sheet on a softwood timber frame

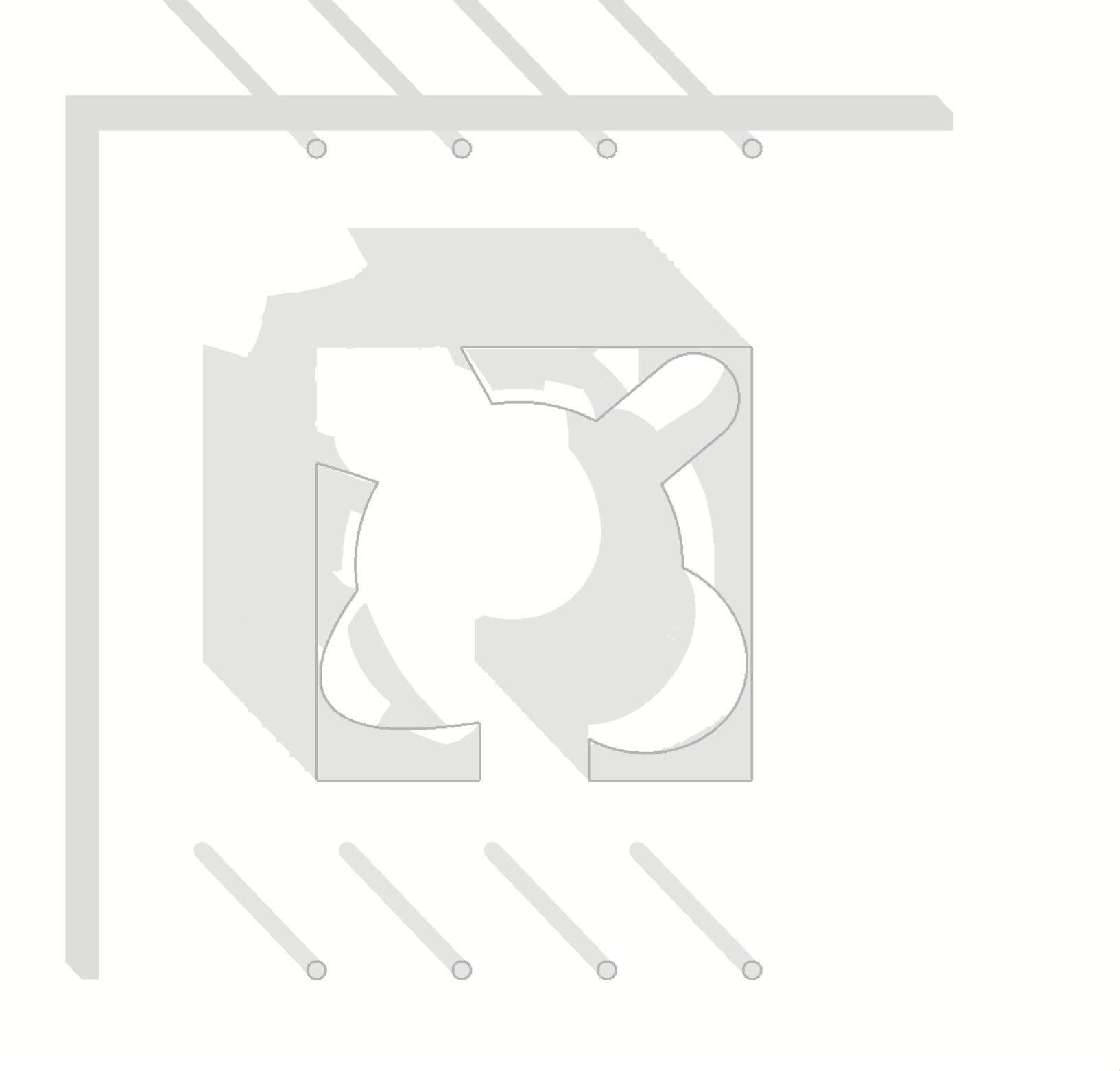

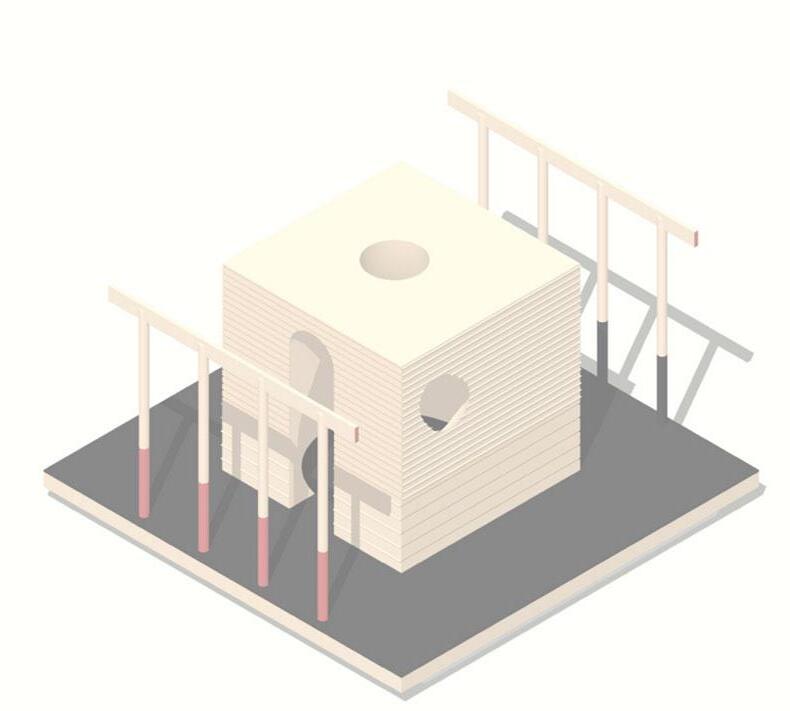

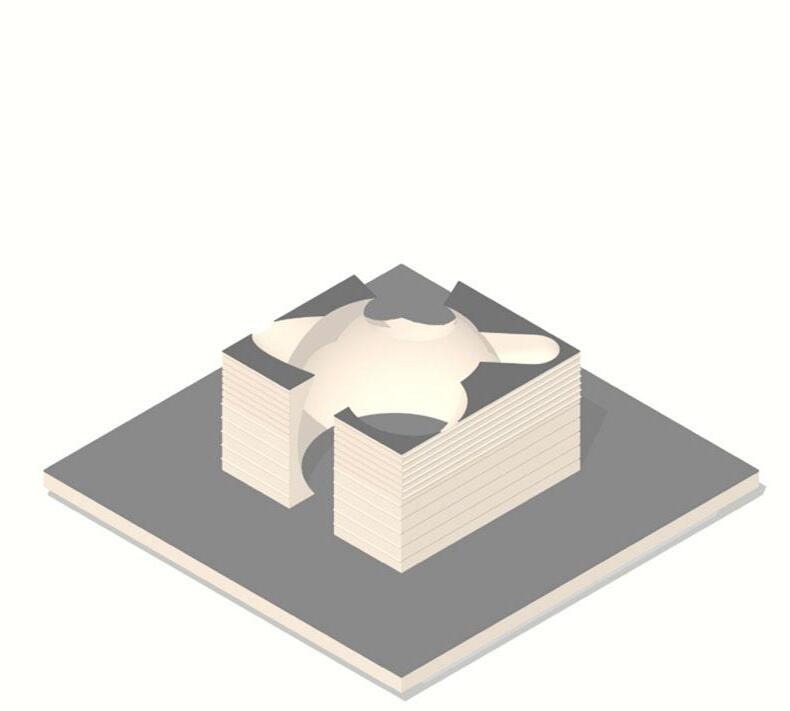

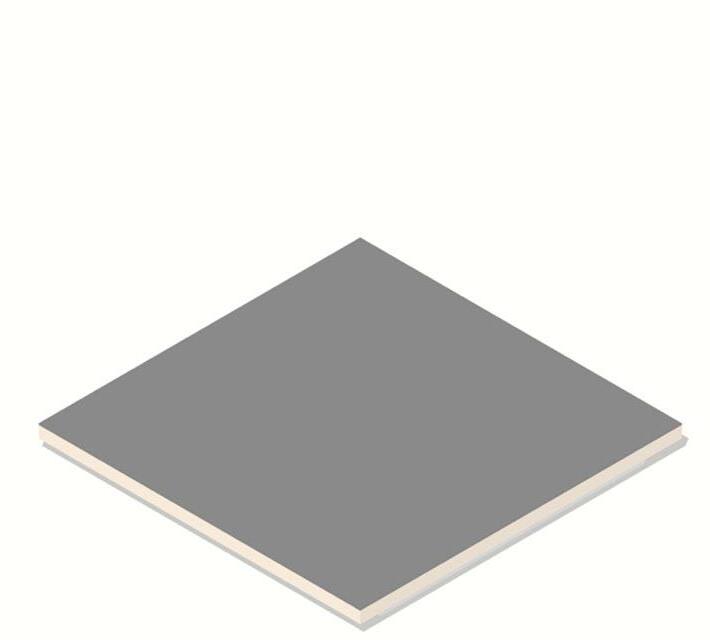

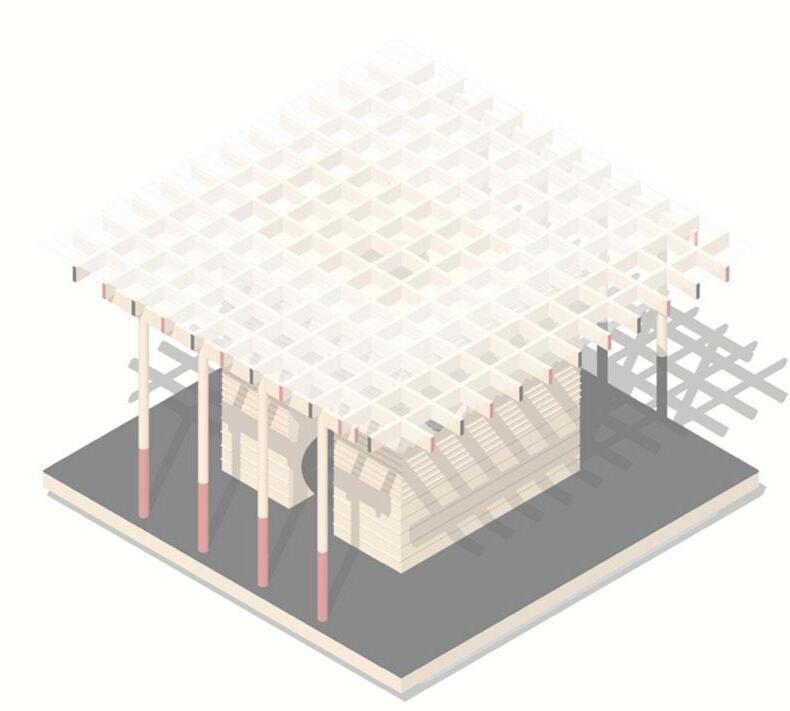

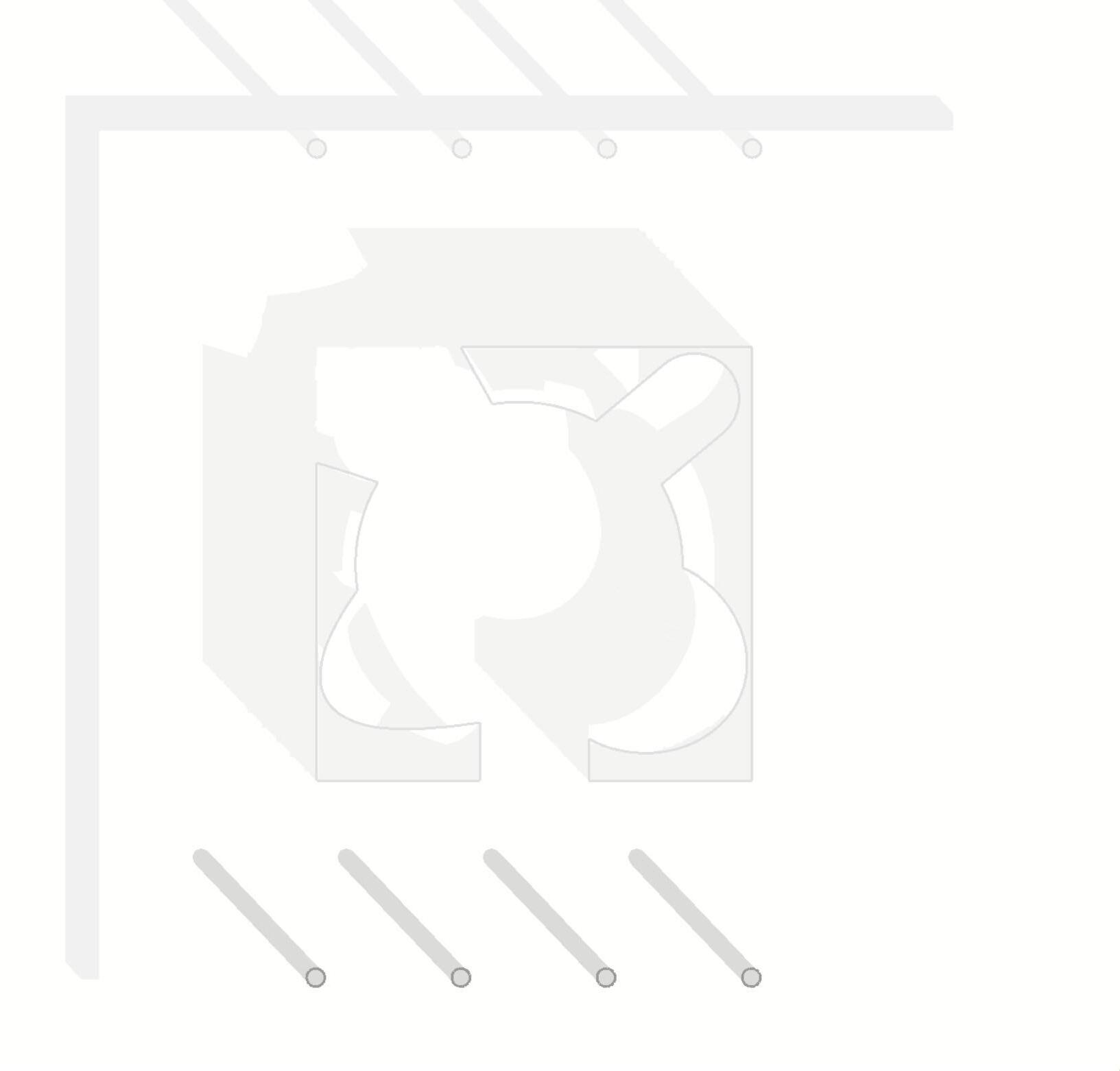

Construction sequence

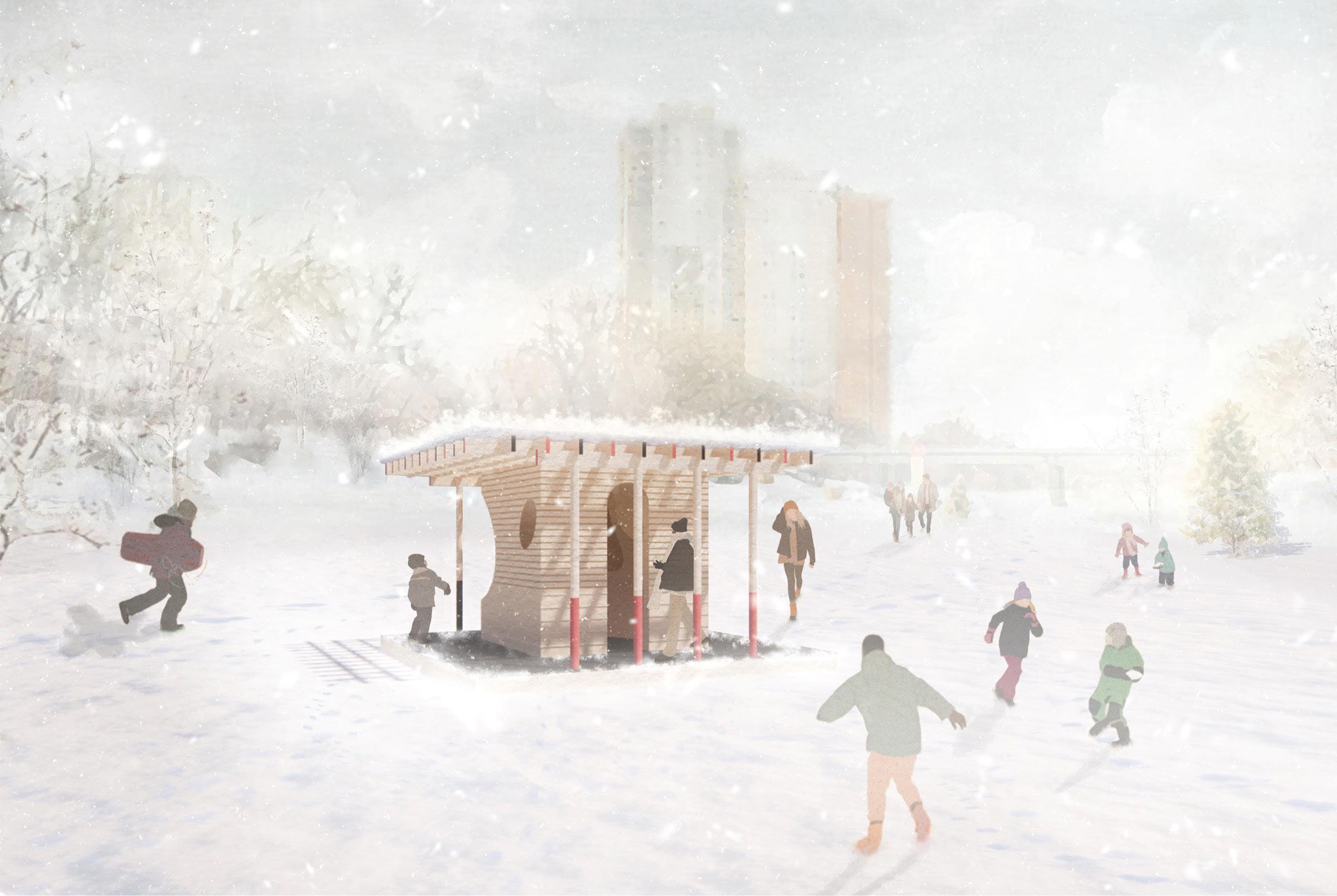

Exterior render

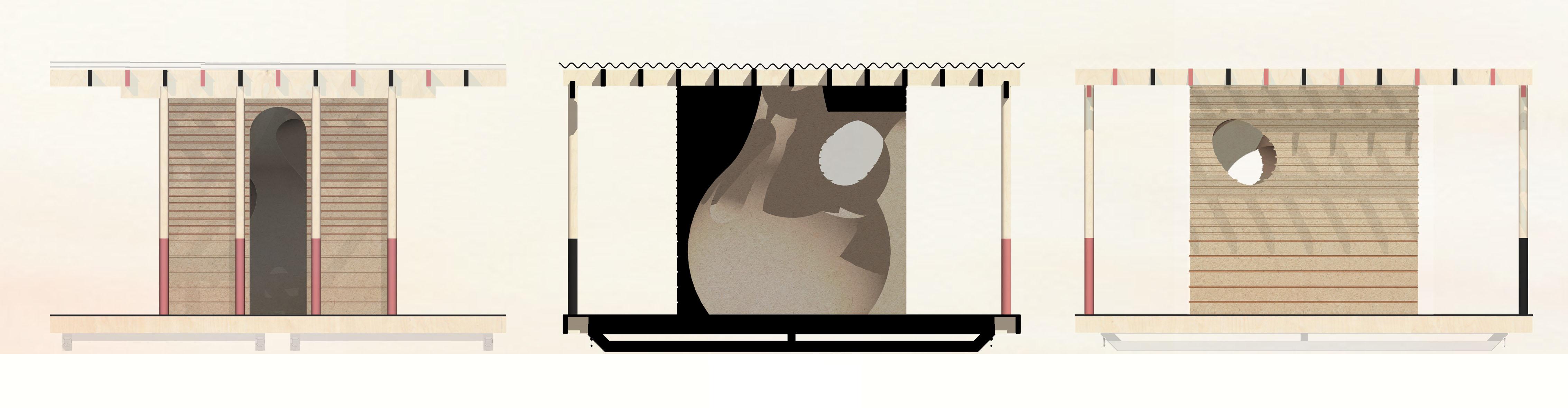

Sections and elevations

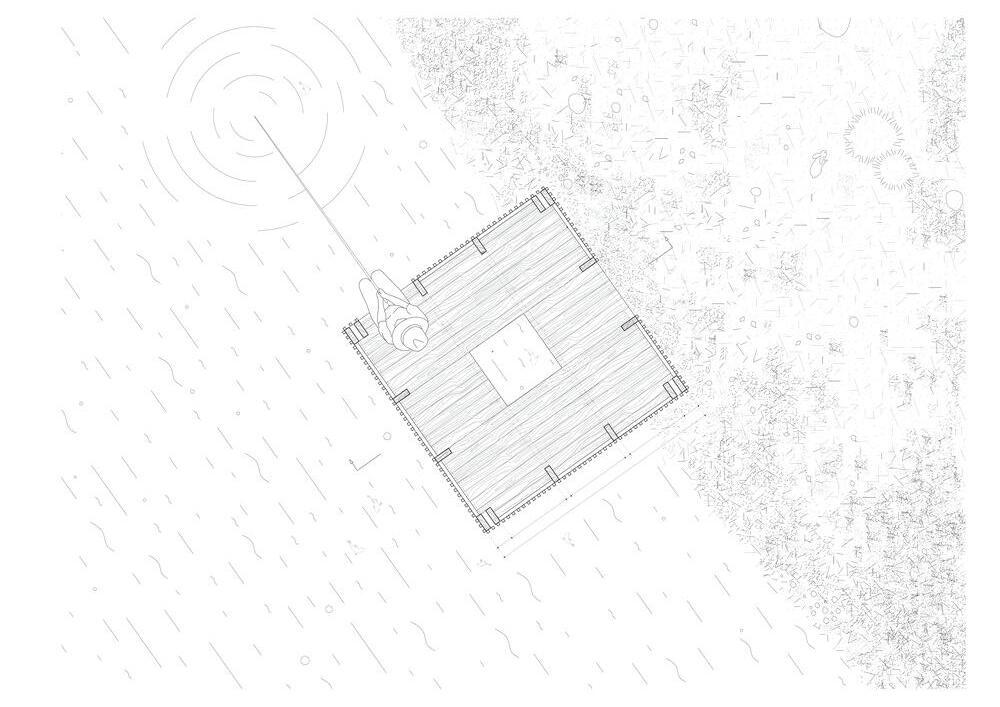

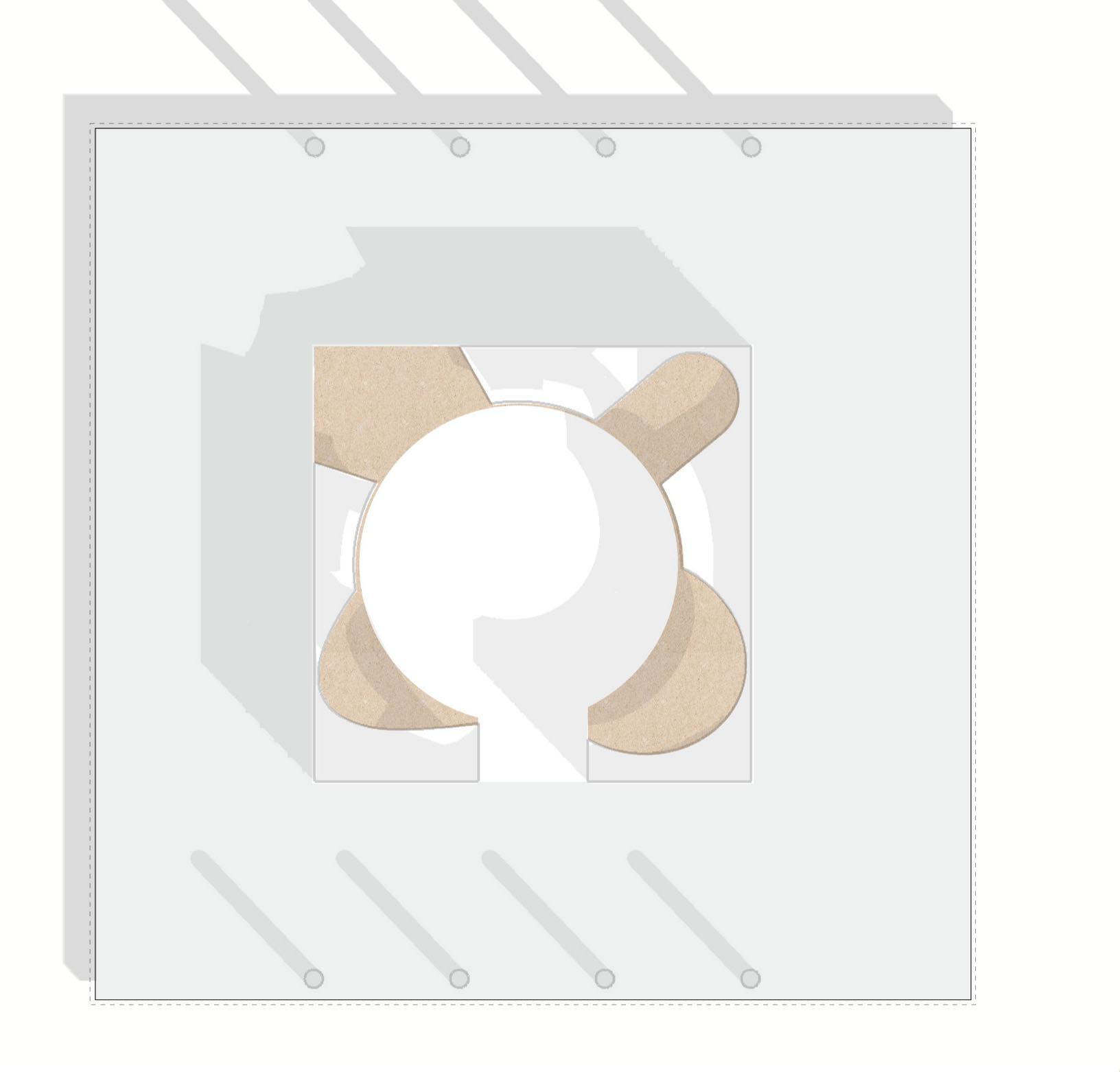

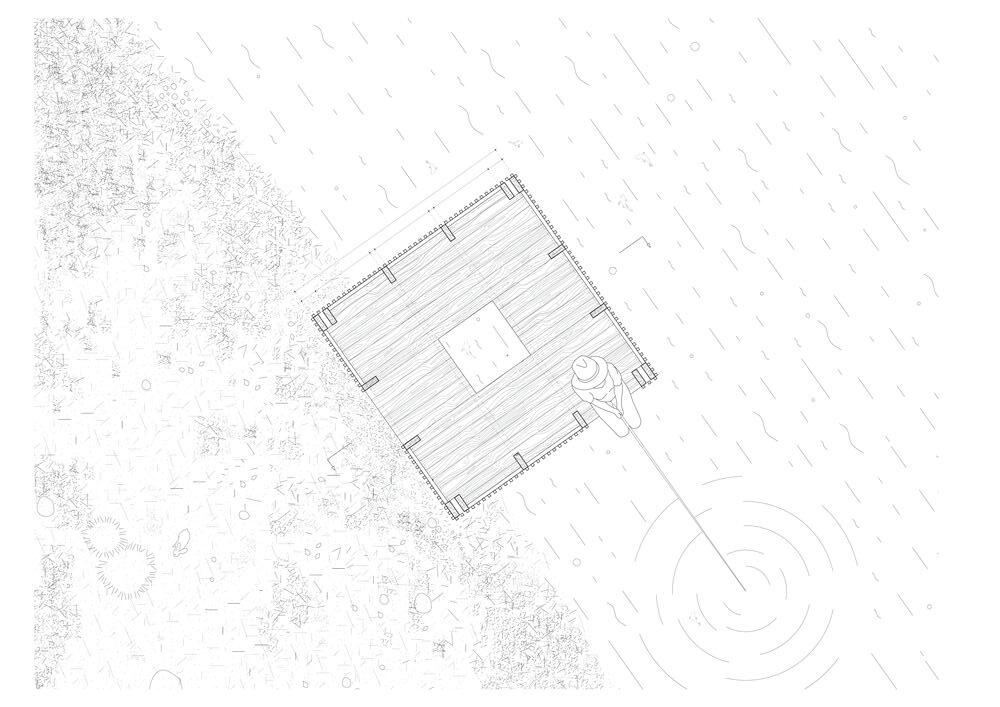

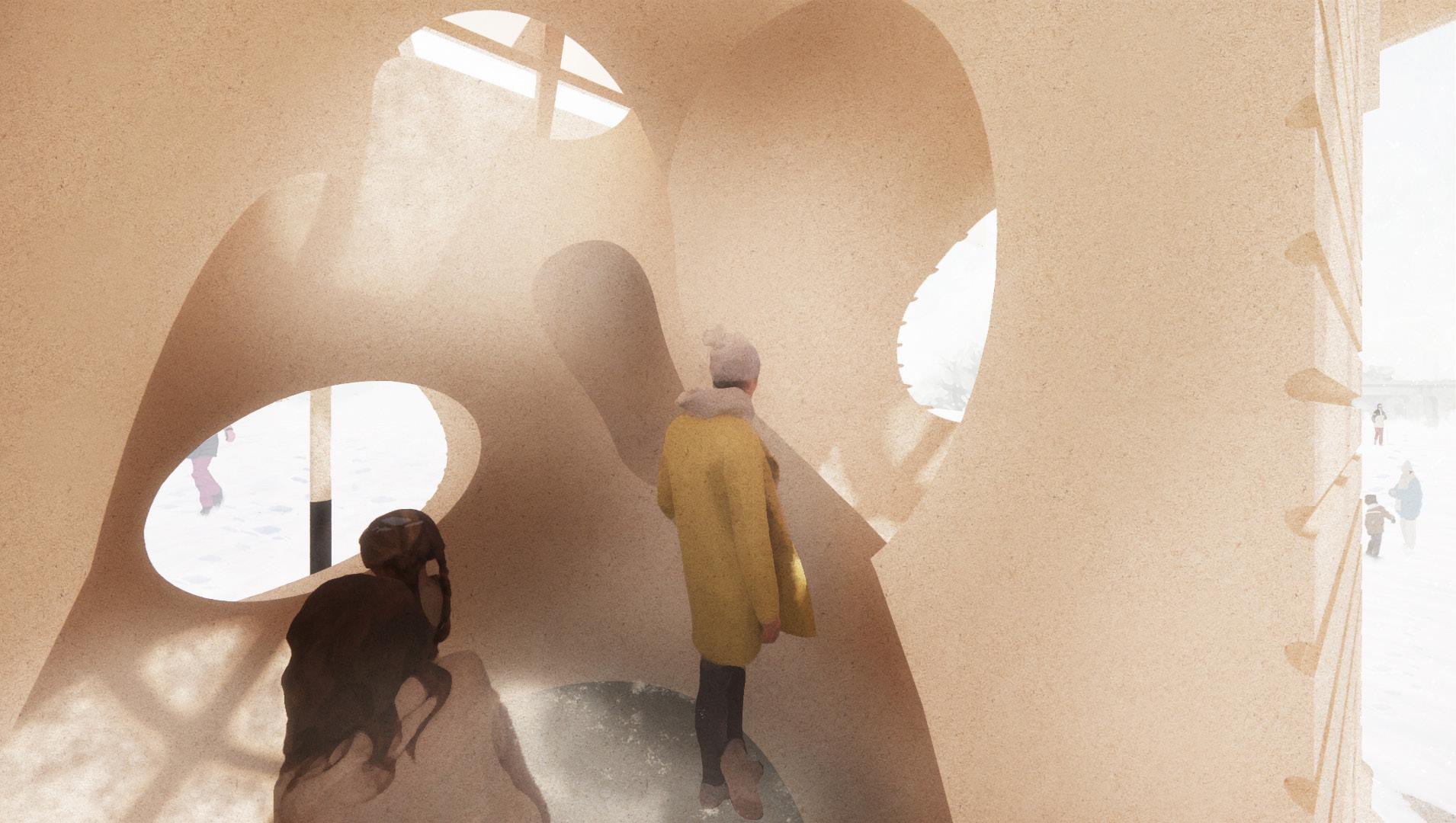

Plan Interior render
PRACTICE || BPTW, London
ROLE || Part 1 Architectural Assistant
SITE || Cambridge
DATE || Dec 2023
SECTOR || Residential, master plan
RIBA || Stage 3

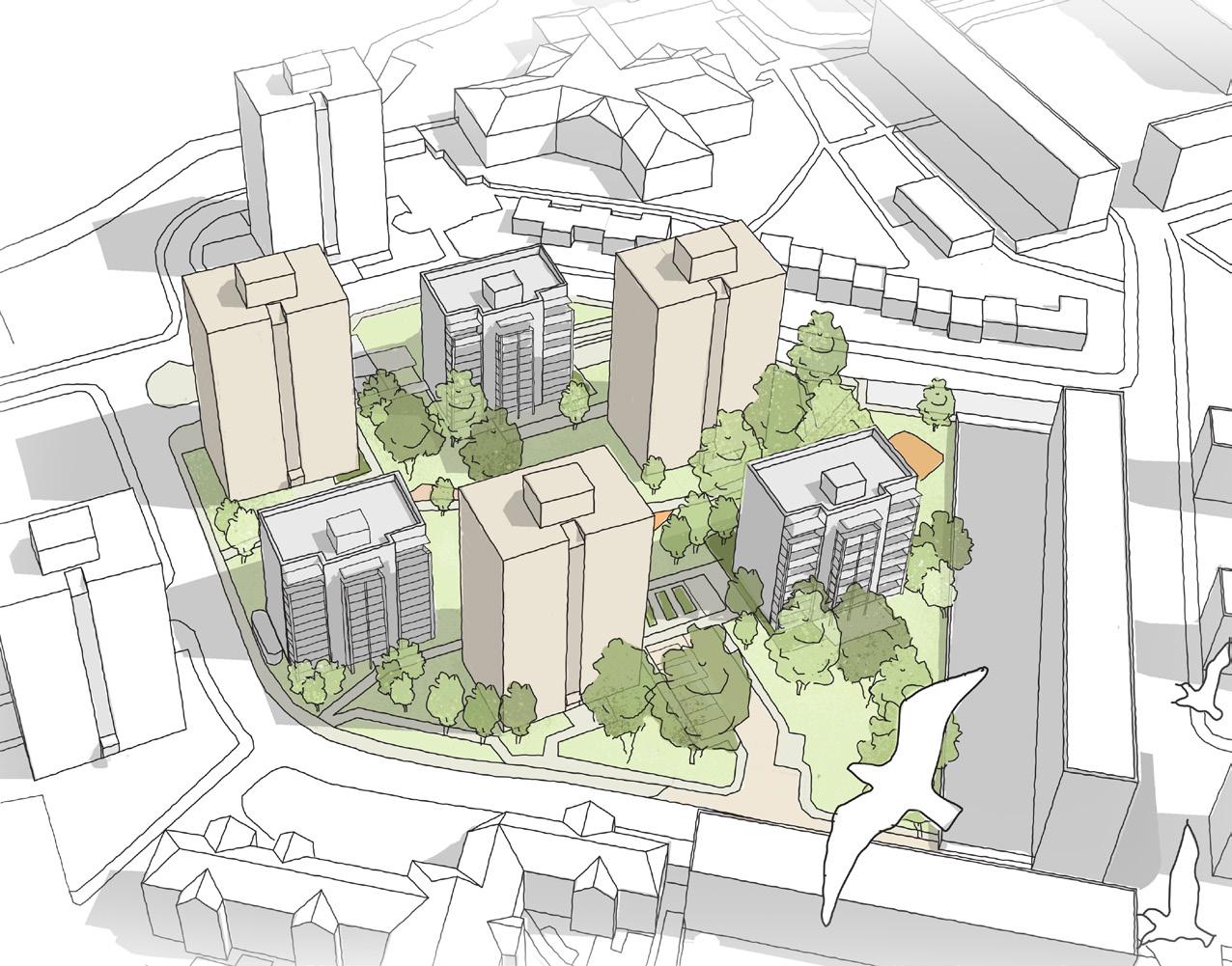

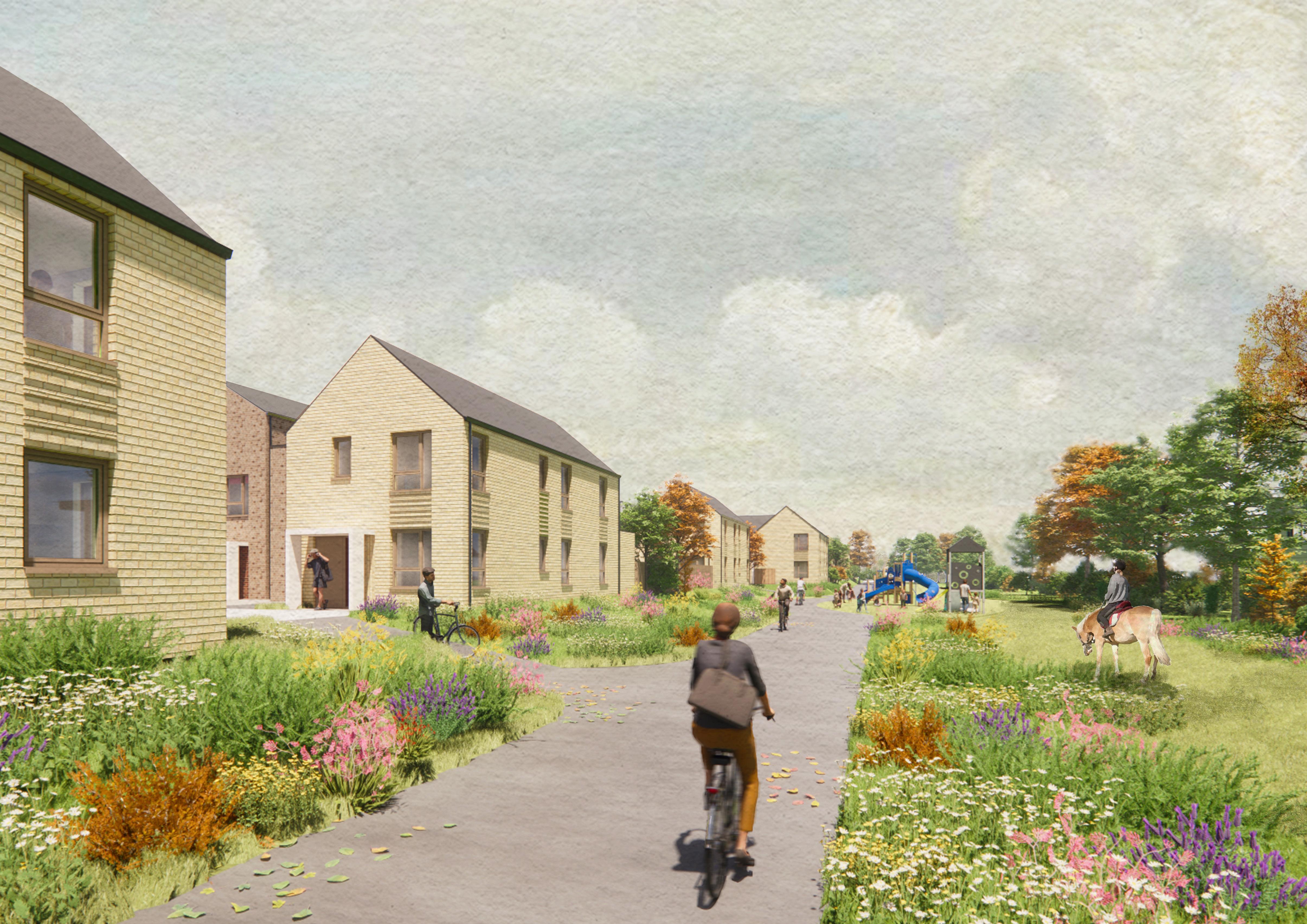

This project aims to provide 150 inclusive and accessible dwellings. Linking to existing infrastructure and creating new one to provide connectivity throughout the masterplan for different types of users such as pedestrians, cyclists and vehicles.

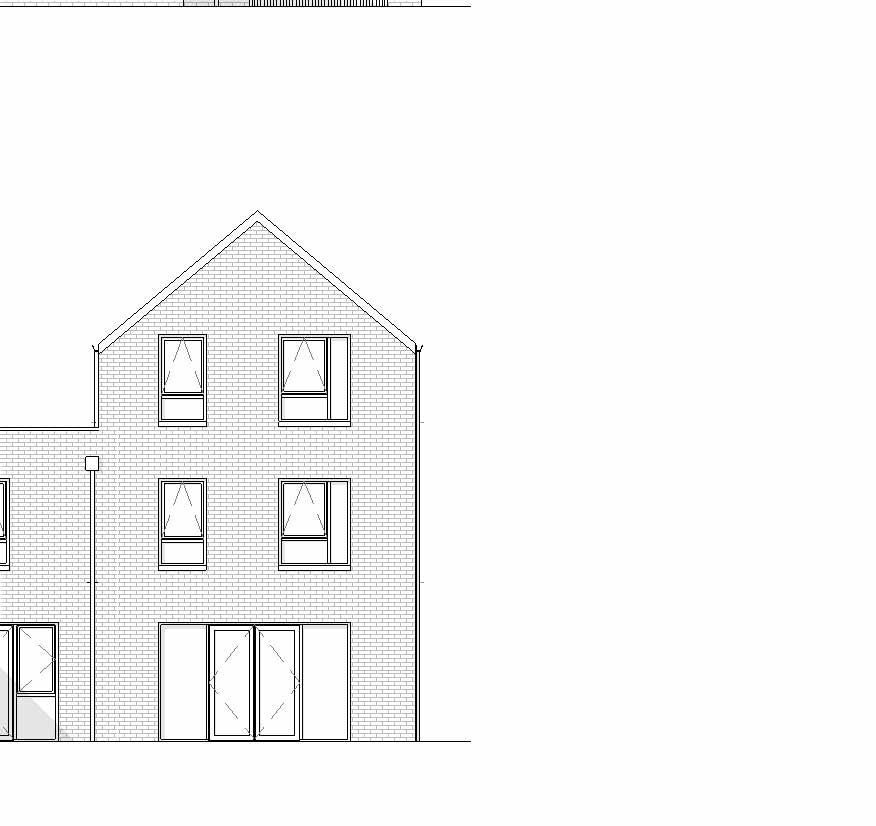

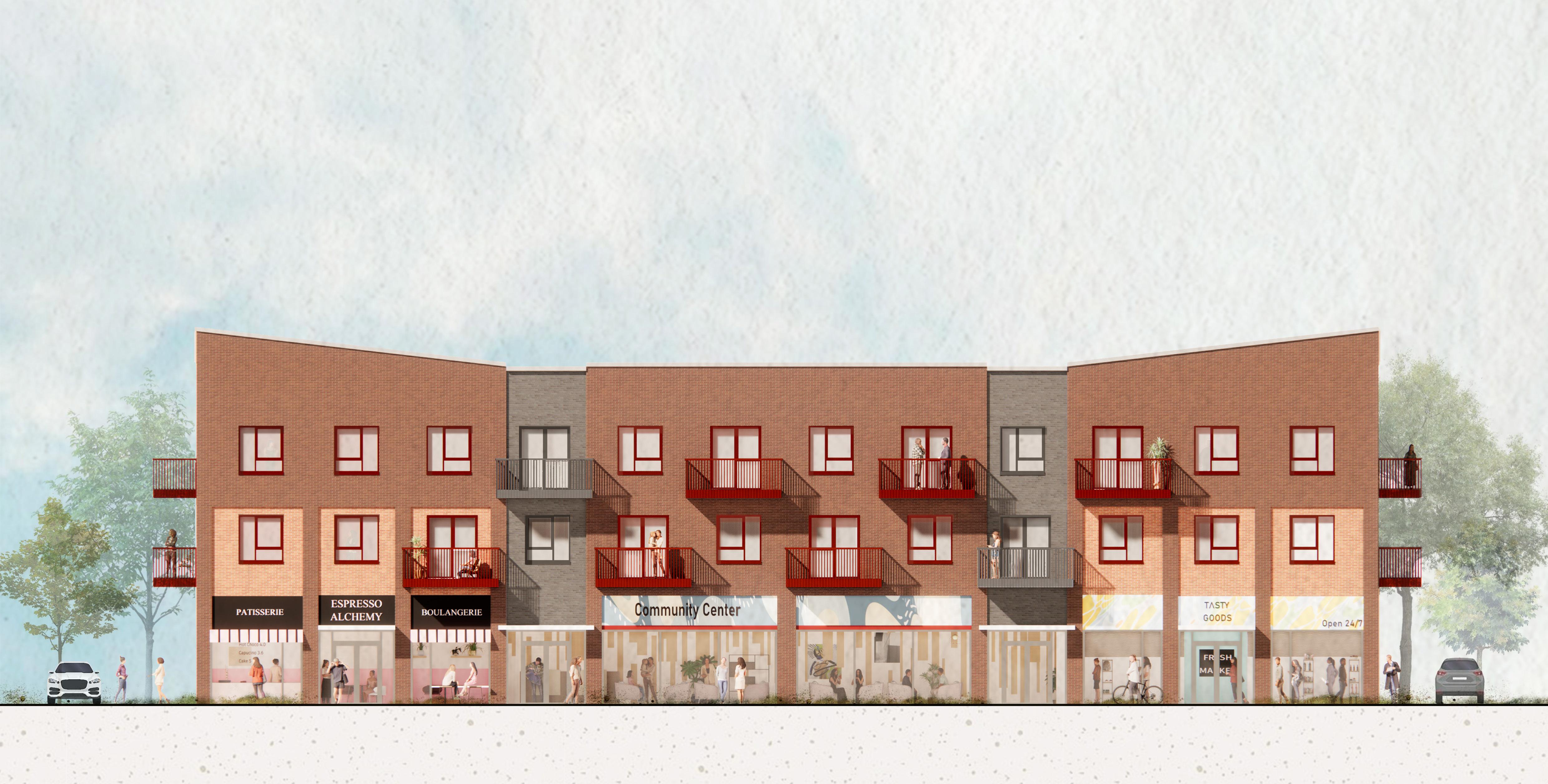

CONTRIBUTION || Elevation
I took responsibility of creating elevation visuals of the flat block for the clients. Aiming to vividly portray the chosen materials, textures and architectural elements intended for the building’s exterior. I also took responsibility to model the ground floor community area to express the project’s commitment of bringing the community together.
04 | NEWBURY FARM
Note: Preliminary Layouts, few confirmations pending from CIP Communal Entry Legend Private Entry Boundary Line 0.93 Store UC 11.87 Bedroom Bath LKD Store 14.49 m² Bedroom 0.93 Store 1.50 m² UC 11.87 Bedroom 4.30 m² Bath 24.64 m² LKD 2.70 m² Store 14.49 m² Bedroom Store 1.50 m² UC Bedroom Bath 24.64 2.70 m² 14.49 Bedroom Store 1.50 11.87 m² Bedroom Bath 24.64 LKD 2.70 m² Store 14.49 Bedroom 24.74 m² 15.44 m² Bedroom 1.35 m² UC Store Bathroom 24.74 m² LKD 15.44 m² Bedroom 1.35 m² UC 1.50 m² 4.30 Bathroom 24.74 LKD 15.44 Bedroom UC Store Bathroom 24.74 m² LKD 15.44 m² Bedroom 1.35 m² Store Bathroom 24.74 m² 15.44 m² Bedroom 1.35 m² UC Store Bathroom PLOT AREA 73.4 m² SIZE 1B2P SIZE 2B4P PLOT SIZE AREA54.0 m² 1B2P AREA54.0 m² SIZE 1B2P SIZE 1B2P AREA72.9 Core Balcony Balcony Balcony 5.0 Balcony Balcony Balcony 5.1 m² Balcony 9.4 Balcony Balcony Balcony 24.74 LKD 15.44 Bedroom UC Store Bathroom 2.5 m² Riser Room 2.4 m² Riser Room PRELIMINARY -FOR COMMENT Drawing Number: Drawing Name: not scale. dimensions are millimetres unl otherwise stated. This drawing should read in conjunction project information and contract documentation. dimensions checked prior fabrication and commencement works comply with relevant legal standards, building regulations and warranty provider requirements. Rep any 1:100 A1 RIBA Stage: S3 P02Newbury Farm HILL 23-087 NS NBF3-BPTW-B02-01-DR-A-1027 100 First Floor 1 P01S331.10.23Preliminary Issue Hill NS P02S307.12.23Preliminary Issue to Fire ConsultantNS First Floor Plan 16 // BPTW // FLAT BLOCK DRAWINGS 2.1 Flat Block B 1 4a ALWYNE ROAD Block elevation visual Ground floor plan First floor plan
TECHNICAL DETAILS

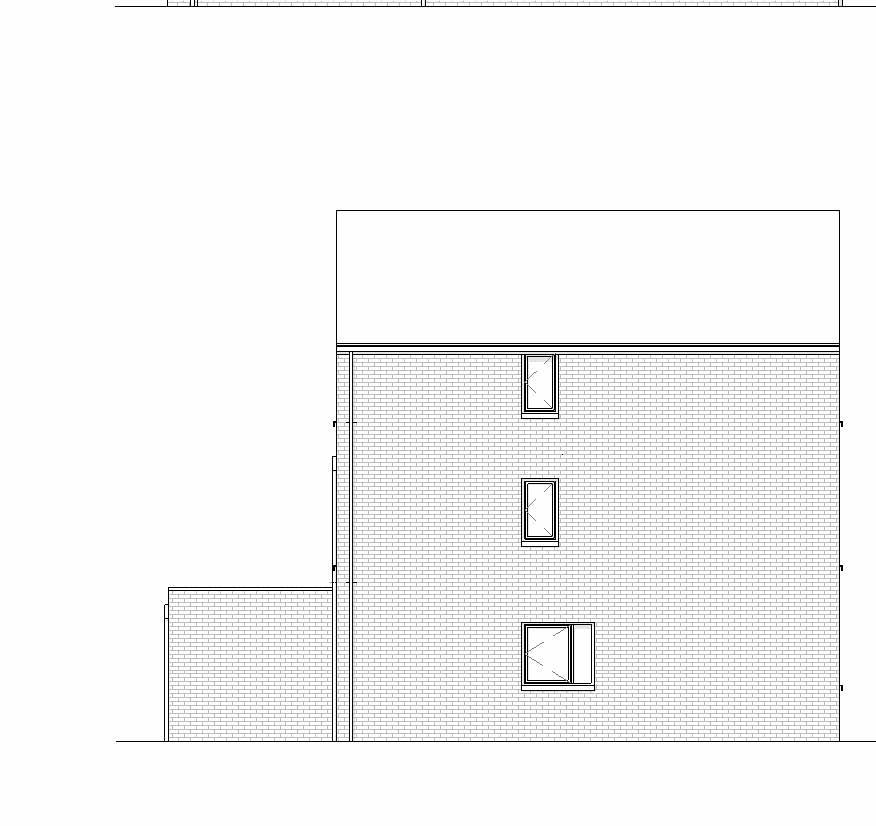

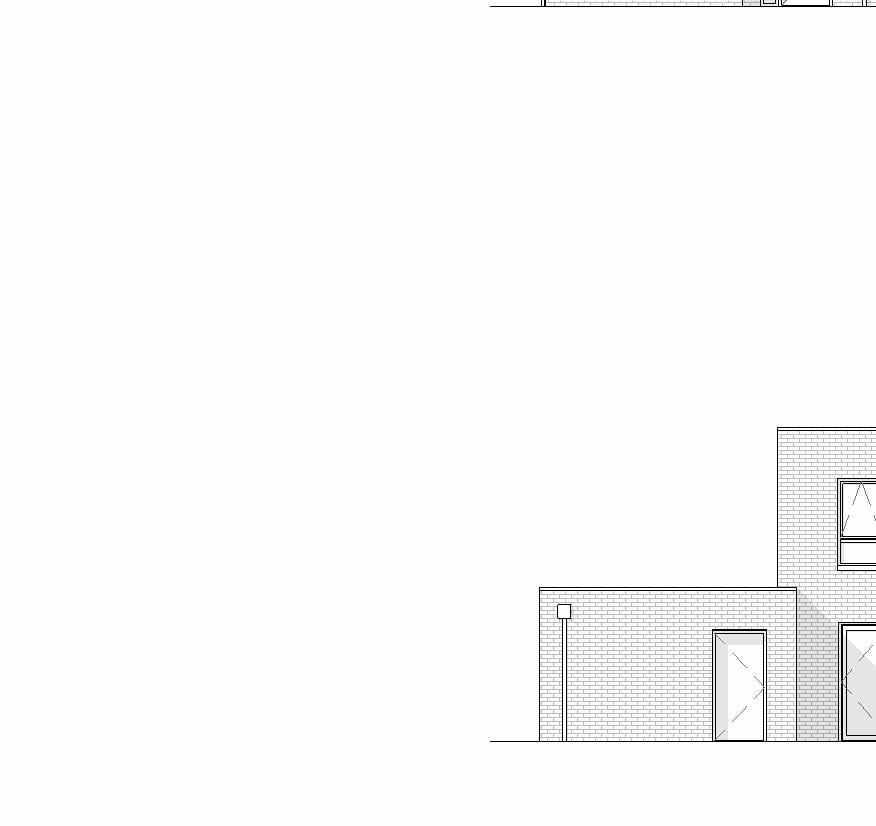

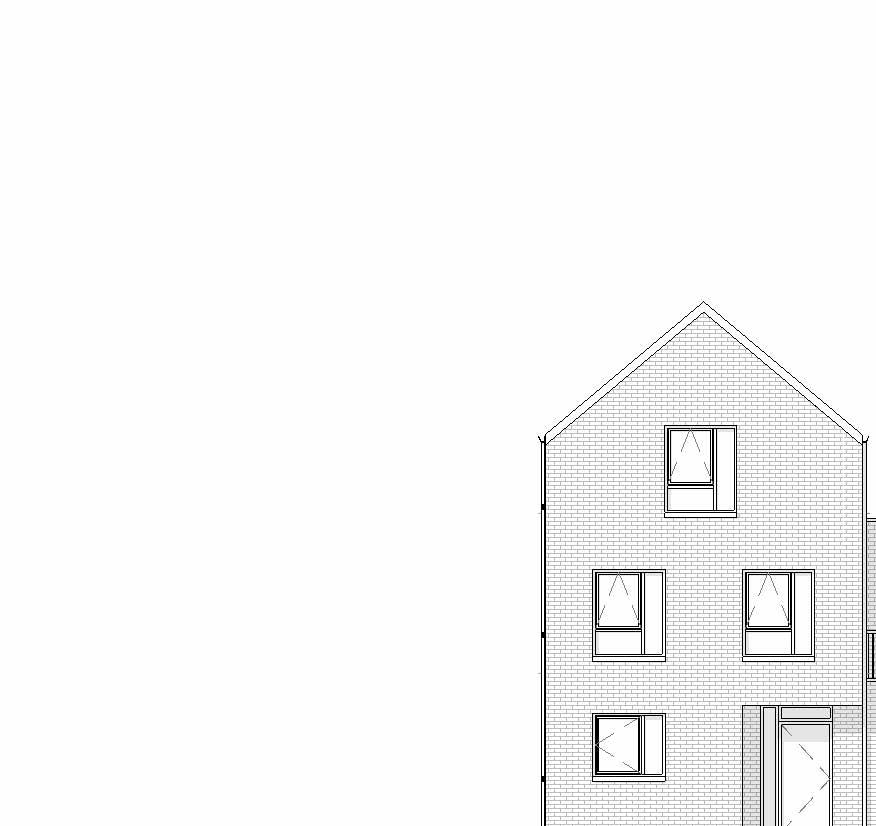

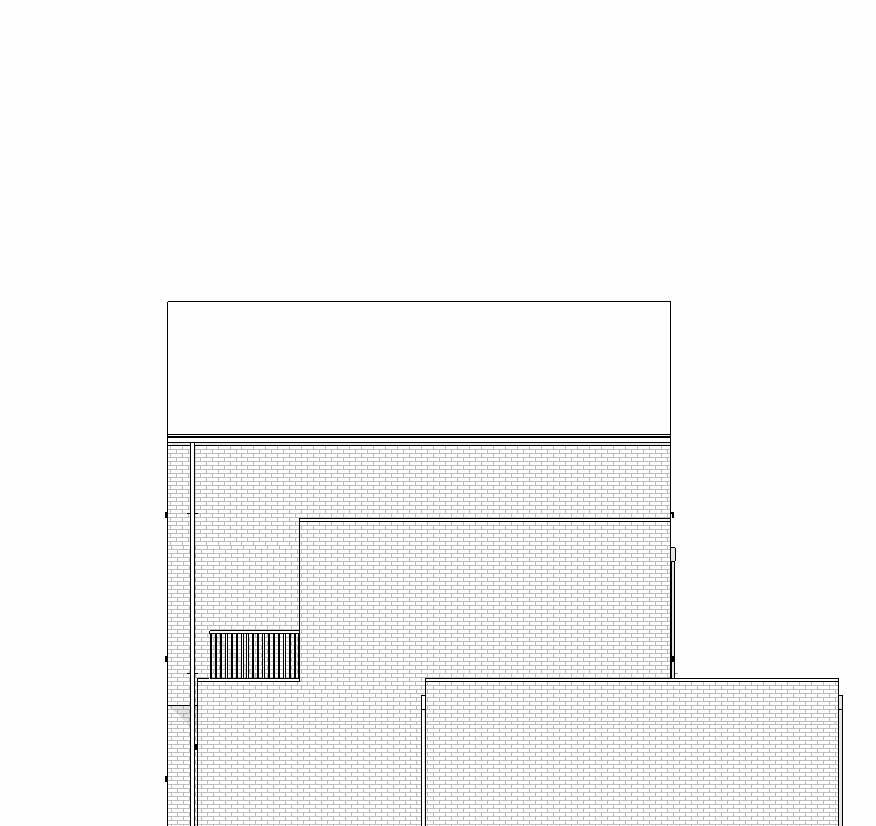

Brick dimensions
CONTRIBUTION || Brick dimensions and flat layout design
This project involves 14 different house types. My role is to design flat layouts based on building regulations and client’s comments. I have also taken charge of modifying plans and elevation to brick dimensions in Revit model. This involves modifying window sizes to ensure they integrate seamlessly within the brick layout without compromising structural integrity or aesthetics. Alongside window positioning, I have been responsible for adjusting wall lengths to fit brick dimensions while ensuring the interior layout functions effectively balance structural considerations with interior design needs.
35.4 m² Kitchen/ Living/ Dining 17.4 m² Living Room 4.5 m² Utility 2.7 m² WC 0.7 m² Store 1 2.0 m² UC 29.1 m² Garage Bin Bin Bin 1412.5 1450.0 Hall Cycle Space (x2) Cycle Space (x2) 1360.0 890.0 1452.5 9665.0 4477.5 1002.5 2260.0 1360.0 1002.5 2600.0 9440.0 3610.0 1880.0 2597.5 1227.5 4827.5 1022.5 7752.5 FFL 0.000 m 00-Ground Floor FFL 2.700 m 01-First Floor FFL 5.400 m 02-Second Floor FFL 9.968 m Ridge Height 4568.0 2700.0 2700.0 FFL 9.968 m Ridge Height FFL 9.968 m Ridge Height FFL 0.000 m 00-Ground Floor FFL 2.700 m 01-First Floor FFL 5.400 m 02-Second Floor FFL 9.968 m Ridge Height 4568.0 2700.0 2700.0 Location Plan Elevation 1 Elevation 2 3 CO + CO + Elevation CO Plan COPlan CO CO4 x CO 4 x CO4 x CO + Door or window opening
WEST BUFFER
CGI for Final Pre-Application
PRACTICE || BPTW, London
ROLE || Part 1 Architectural Assistant
SITE || Wimbledon
DATE || Nov 2023
SECTOR || Residential RIBA || Stage 3
This project aims to provide 38 new council rent homes within a high-quality sustainable scheme. The new homes will be for residents who are currently on the council’s housing waiting list and help to meet the needs of the residents now and for generations to come.
In addition to providing new homes, the proposals include significant landscape enhancements, new play space and shared amenities for residents of the estate.
CONTRIBUTION || Site context and levels
I collaborate with landscape architects to analyse the existing trees and organise the site levels for the proposal. My tasks extended to draft site sections based on the levels. The section aim to portray reality for planning application, ensuring a clear visualisation of proposed landscape and design within the site context.

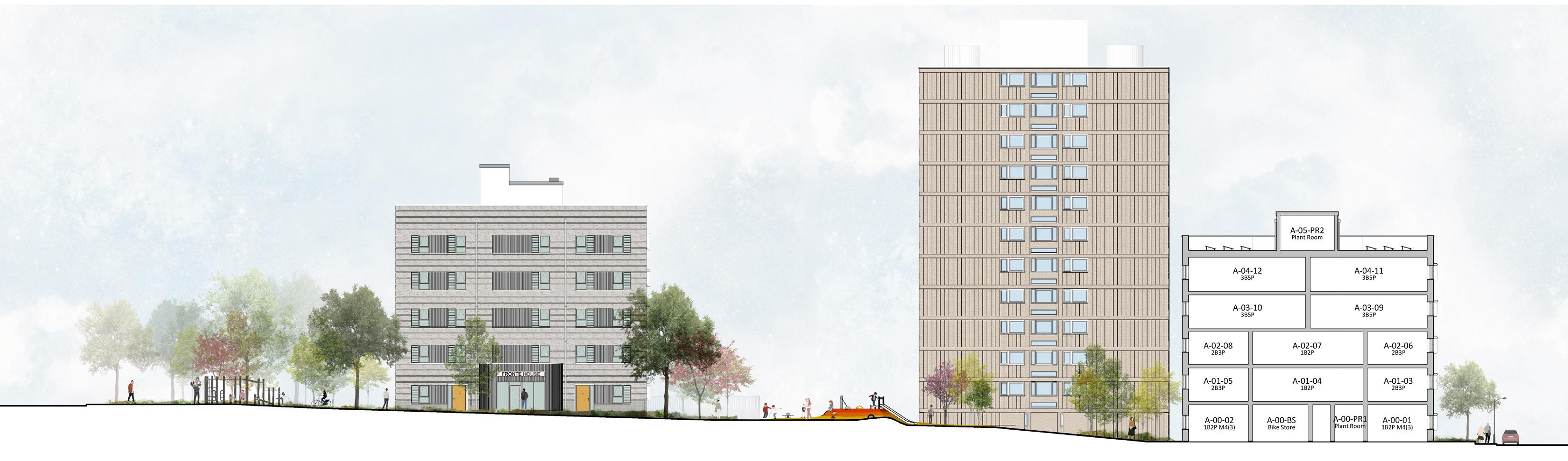

Landscape plan Site section
05 | FARNBOROUGH HOUSE Kitchen/Living/Dining Bedroom Bathroom UC/Storage 1B2PWCH FB01 1B2P 13.7 BikeStore Entrance Secon Entrance Store Evacuation AmenityPrivate Space Kitchen/Living/Dining Store Bedroom Plant Bathroom torage Kitchen/Living/Dining Store Bedroom Bathroom UC/Storage 1B2PWCH FB01 1B2P Plant Store Entrance Secondary Entrance Store AmenityPrivate Space Kitchen/Living/Dining Store Bedroom Plant Bathroom UC/Storage 1B2PWCH FB01 1B2PWCH FB02 Plant BikeStore Entrance Secondary Entrance Store Evacuation FONTLEY WAY IBSLEY GARDENS FONTLEY WAY Trees FFL +33.45 FFL +34.00 FFL +33.30 FFL +34.60 FFL +32.70 +33.00FFL FFL +31.00 FFL +31.15 FFL +30.35 FFL +30.75 FFL +30.80 FFL +33.15 FFL +34.00 FFL +33.30 FFL +34.30 FFL +33.60 FFL +33.50 FFL +33.30 FFL +30.80 Recycle FFL +30.60 FFL +30.80 FFL +32.50 FFL +33.41 FFL +33.99 FFL +33.50 FFL +33.60 BinCollectionarea Cycle Store FFL +31.00 +34.02FFL FFL +33.50 +33.00TOW FFL +32.90 FFL +33.30 FFL +34.20 FFL +33.80 FFL +33.84 FFL +34.30 FFL +33.61 FFL +33.45 FFL +34.62 FFL +34.15 +33.50FFL FFL +33.60 FFL +33.60 FFL +33.50 FFL +31.00 FFL +31.20 FFL +33.60 FFL +33.60 FFL +32.20 FFL +31.00 FFL +33.00 FFL +33.40 FFL +31.00 FFL +31.00 FFL +30.90 FFL +34.30 TOW +35.40 Recycle Recyc FFL +30.30 FFL +30.71 FFL +33.60 FFL +32.00 FFL +30.80 FFL +30.55 FFL +31.70 FFL +32.65 FFL +33.60 FFL +34.20 FFL +33.60 FFL +32.30 FFL +32.20 FFL +32.80 FFL +32.20 FFL +32.65 KEY PAVING PLANTING 30 60 Scale Bar in mm FOR PLANNING DRAWING NUMBER PAPER SIZE OVERALL LANDSCAPE WANDSWORTH BOROUGH FARNBOROUGH A1 Unit 2, Floor 2, Building Soames Walk, London (+44) 020 3909 E: studio@turkingtonmartin.com Turkington Martin 26/09/23 EN-1:300 NOTES: 1. This drawing to documentation from brought the attention before commencing 2. The contractor to construction. Any discrepancies Turkington Martin Landscape site. 3. All dimensions in mm, 4. Do not scale from 5. All sub base and concrete diagrams provided here 6. Waterproofing 7. All proprietary products manufacturers written 8. Plant numbers are site areas accordance 9. Any proposed plant architect prior to ordering WAF-TML-ZZ-ZZ-DR-L-0001 01/11/23 15/11/23
PRACTICE || BPTW, London
ROLE || Part 1 Architectural Assistant
Curie House
SITE || Wembley
DATE || Feb 2024
SECTOR || Residential
RIBA || Stage 2

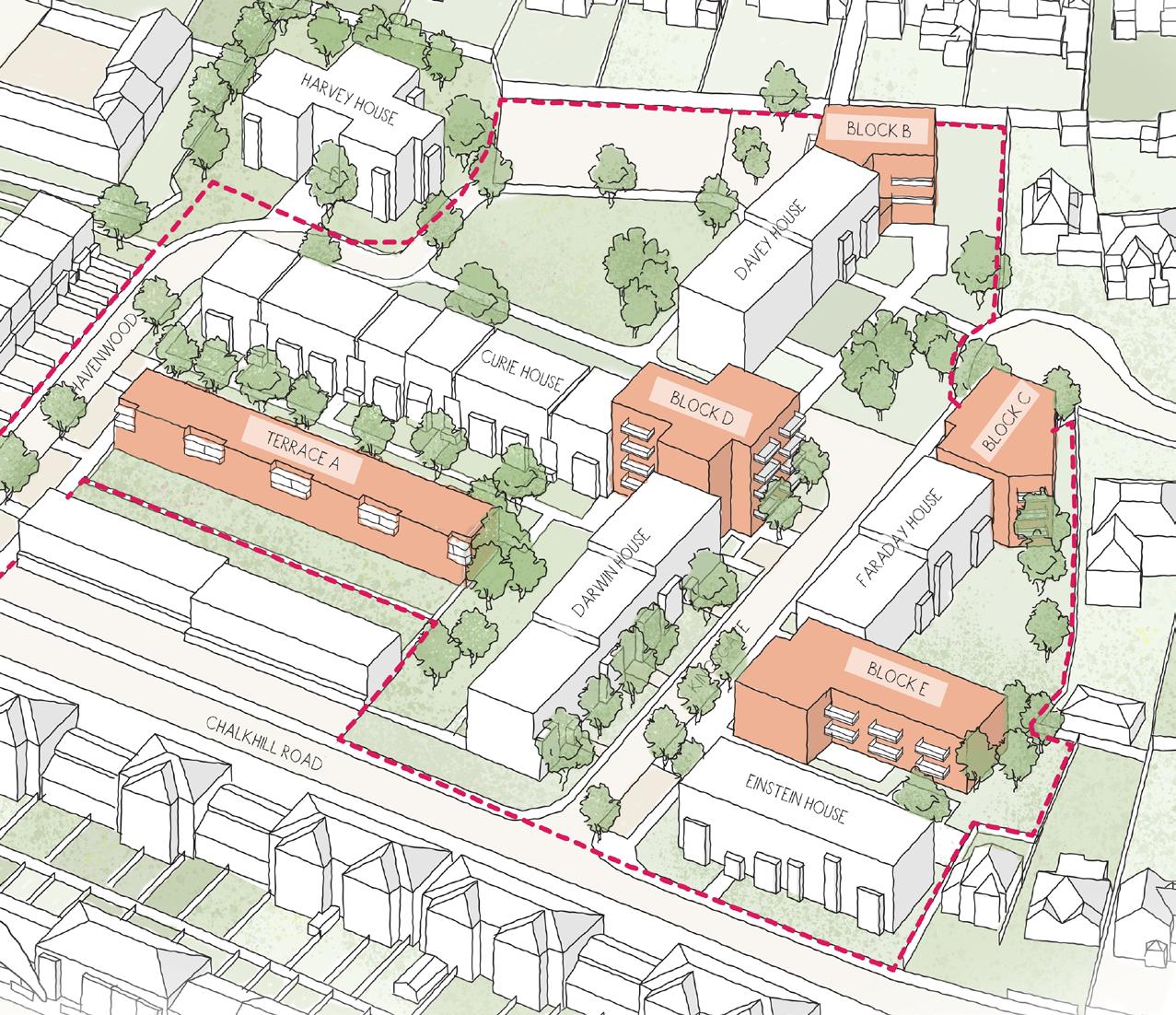

This scheme aims to provide 60 new high quality affordable residential accommodation within the Chalkhill Estate. The proposal seeks to enhance the existing public realm through improvement to the existing communal amenity and increased planting and biodiversity overall across the site.
CONTRIBUTION || Plan layout
I am tasked with creating flat layouts for the blocks, ensuring compliance with UK building regulations part M4(2) and M4(3), while also aligning with London Plan Guidance and nationally described space standard. Additionally, I am responsible for placing risers according their size and determining optimal locations to avoid disruptions within the internal flat layouts.
Darwin House
06 |
CHALKHILL ESTATE
W/M HIU W M MVHR 26 52 m Ki chen/L ving/D n ng 12.70 m² Bedroom 1.50 m² Store 4.13 m² Bathroom 1.44 m² Utility 0.98 m² Store
13.22 m² Bedroom 2 13.51 m² Bedroom 1 30.45 m² Living/Kitchen/Dining 5.72 m² Bathroom 1.39 m² Store 1.14 m² Store 1.44 m² Utility 0.82 m² Store 0.83 m² Store Po tboxes 87.9 m² 2B4P WCH 58.5 m² 1B2P 22.8 m² Bike Store 16.9 m² Terrace 11.9 m² Terrace 3.9 m² LV Switch Room 29.5 m² Terrace 1.8 m² AOV 29.8 m² Refuse Store 16.4 m² Terrace 10.9 m² Lobby 1.0 m² Risers 1.3 m² Risers 0.7 m² MAOV 1.1 m² Risers 5.9 m² Main Comms Room 3.9 m² EM LV Switch Room 500 Key PRELIMINARY 0 5 10 1:100m 1 N Rev Status Drawing Number: Drawing Name: Project Name: Client Name: Revisions: Notes: Do not scale. stated. This project information be checked works to comply regulations discrepancies, Project No: Block D Havenwood 23-001 HKG-BPTW-B03-00-DR-A-1004 P01S309.11.23Block P02S323.11.23Developed P03S316.02.23Block
