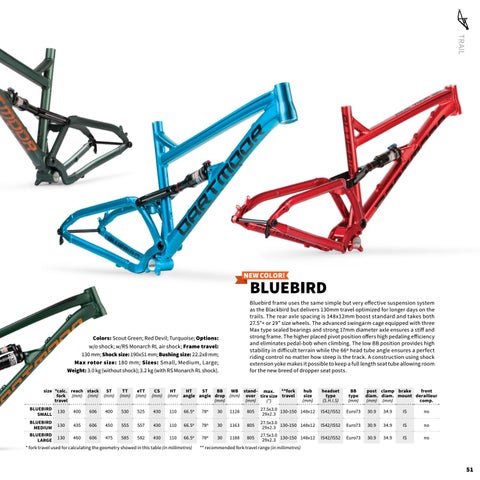

BLUEBIRD
Bluebird frame uses the same simple but very effective suspension system as the Blackbird but delivers 130mm travel optimized for longer days on the trails. The rear axle spacing is 148x12mm boost standard and takes both 27.5”+ or 29” size wheels. The advanced swingarm cage equipped with three Max type sealed bearings and strong 17mm diameter axle ensures a stiff and strong frame. The higher placed pivot position offers high pedaling efficiency and eliminates pedal-bob when climbing. The low BB position provides high stability in difficult terrain while the 66º head tube angle ensures a perfect riding control no matter how steep is the track. A construction using shock extension yoke makes it possible to keep a full length seat tube allowing room for the new breed of dropper seat posts.
Colors: Scout Green; Red Devil; Turquoise; Options: w/o shock; w/RS Monarch RL air shock; Frame travel: 130 mm; Shock size: 190x51 mm; Bushing size: 22.2x8 mm; Max rotor size: 180 mm; Sizes: Small, Medium, Large; Weight: 3.0 kg (without shock); 3.2 kg (with RS Monarch RL shock). size *calc. reach stack fork (mm) (mm) travel BLUEBIRD SMALL BLUEBIRD MEDIUM BLUEBIRD LARGE
ST (mm)
TT (mm)
eTT (mm)
CS (mm)
HT HT ST BB WB stand- max. **fork (mm) angle angle drop (mm) over tire size travel (mm) (mm) (”)
130
400
606
400
530
525
430
110
66.5o
78o
130
435
606
450
555
557
430
110
66.5
o
78
o
130
460
606
475
585
582
430
110
66.5
o
78
o
* fork travel used for calculating the geometry showed in this table (in millimetres)
30 30 30
1128 1163 1188
hub size (mm)
headset type (S.H.I.S)
BB type (mm)
post clamp brake front diam. diam. mount derailleur (mm) (mm) comp.
805
27.5x3.0 130-150 148x12 29x2.3
IS42/IS52
Euro73
30.9
34.9
IS
no
805
27.5x3.0 130-150 148x12 29x2.3
IS42/IS52
Euro73
30.9
34.9
IS
no
805
27.5x3.0 130-150 148x12 29x2.3
IS42/IS52
Euro73
30.9
34.9
IS
no
** recommended fork travel range (in millimetres)
