4050, 4250 AND 4450 TRACTORS

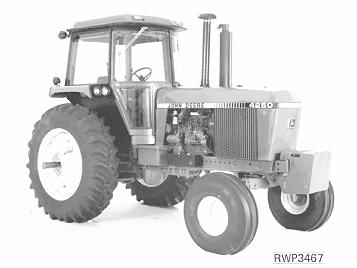

RWP3467 -UN-01JAN94
RWP3468 -UN-01JAN94

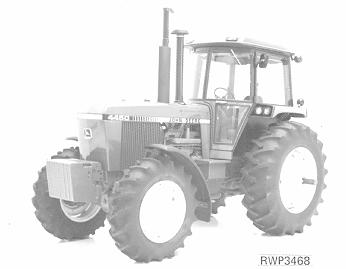

JOHN DEERE 4050, 4250, OR 4450 TRACTOR
(SPECIFICATIONS AND DESIGN SUBJECT TO CHANGE WITHOUT NOTICE)
COPYRIGHT (C) 1990. DEERE & COMPANY, MOLINE, ILLINOIS. ALL RIGHTS
DOWNLOAD
SERIAL NUMBERS
4050, 4250 AND 4450 TRACTORS
EACH 4050, 4250, OR 4450 TRACTOR HAS THE FOLLOWING SERIAL NUMBER PLATES: BASIC TRACTOR, ENGINE SHORT BLOCK, MECHANICAL FRONT WHEEL DRIVE, TRANSMISSION, HYDRUALIC PUMP, ROLL-GARD, AND SOUND-GARD BODY.
BASIC TRACTOR SERIAL NUMBER (PRODUCT IDENTIFICATION NUMBER)
RWP3471 -UN-01JAN94
1. DESIGNATES TRACTOR MANUFACTURER RW- JOHN DEERE TRACTOR WORKS
2. DESIGNATES TRACTOR MODEL 4050, 4250, OR 4450
3. DESIGNATES TRANSMISSION TYPE E - POWER SHIFT MEETING EUROPEAN REQUIREMENTS H - QUAD-RANGE P - POWER SHIFT
4. DESIGNATES TRACTOR SERIAL NUMBER
5. DESIGNATES UNIT TYPE TRACTOR
RWP3472 -UN-01JAN94

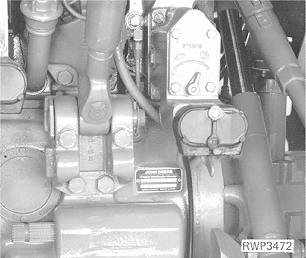

THE BASIC TRACTOR SERIAL NUMBER PLATE IS LOCATED AT REAR OF THE TRANSMISSION CASE.
THE DESIGNATION 4050E OR 4250E THROUGHOUT THIS CATALOG REFERS TO A MODEL CONFIGURATION THAT MEETS EUROPEAN REQUIREMENTS. THE "E" IS FOUND ON THE BASIC TRACTOR SERIAL NUMBER PLATE ONLY AND BEGAN AT 007162 AND 012779 RESPECTIVELY.
RWP3475 -UN-01JAN94
ENGINE SERIAL NUMBER
4050, 4250 AND 4450 TRACTORS

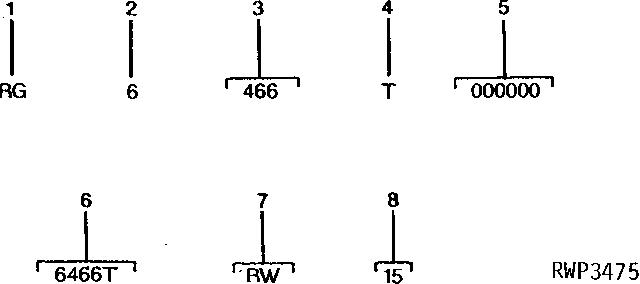

1. DESIGNATES ENGINE MANUFACTURER RG - JOHN DEERE ENGINE WORKS CD - JOHN DEERE SARAN
2. DESIGNATES NUMBER OF CYLINDERS 6
3. DESIGNATES CUBIC INCH DISPLACEMENT 466
4. DESIGNATES TYPE OF AIR INTAKE SYSTEM D - NATURALLY ASPIRATED T - TURBOCHARGED DIESEL
5. DESIGNATES ENGINE SERIAL NUMBER
6. DESIGNATES MODEL 6466D 6466T 6359T
7. DESIGNATES FACTORY USER RW - JOHN DEERE TRACTOR WORKS
8. DESIGNATES APPLICATION 06 - SIXTH (4050) 11 - ELEVENTH (4250) 15 - FIFTEENTH (4450)
RWP3476 -UN-01JAN94
THE ENGINE SERIAL NUMBER PLATE IS LOCATED ON THE RIGHT-HAND SIDE OF THE ENGINE BEHIND THE INJECTION PUMP ON 6466 ENGINES AND TO THE REAR OF THE FUEL TRANSFER PUMP ON 6359 ENGINES.
THE TERM 6466DR REFERS TO THE ENGINE MODEL NUMBER OF EARLY BUILD 4050 TRACTORS. ENGINE DESIGNATION 6359 REFERS TO THE 4050 ENGINE CURRENTLY SOLD IN THE U.S. AND CANADA. THROUGHOUT THE CATALOG, THESE TERMS MAY BE FOUND IN THE REMARKS COLUMN IN AN EFFORT TO CLARIFY THE EXPLANATION OF PARTS WHEN MORE THAN ONE ITEM IS LISTED UNDER A KEY NUMBER.
RGP2856 -UN-01JAN94

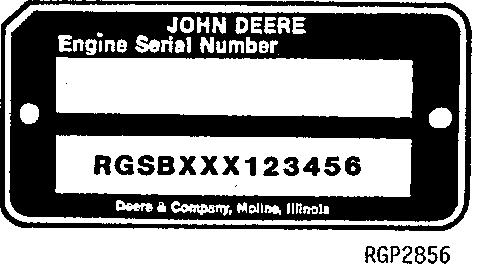

SHORT BLOCK SERIAL NUMBER PLATE
4050, 4250 AND 4450 TRACTORS
THE REPLACEMENT SHORT BLOCK ASSEMBLY HAS A SERIAL NUMBER PLATE ATTACHED. THE ORIGINAL ENGINE SERIAL NUMBER MUST BE STAMPED ONTO THE NEW PLATE IN THE BLANK SPACE PROVIDED, AS A REFERENCE FOR YOUR DEALER. THE PLATE CAN BE ATTACHED WITH (2) 37H44 DRIVE SCREWS.
1. DESIGNATES ENGINE MANUFACTURER RG - WATERLOO ENGINE WORKS
2. DESIGNATES REPLACEMENT SHORT BLOCK SB
3. DESIGNATES CUBIC INCH XXX- 466
4. DESIGNATES THE PRODUCTION DATE 1234
5. DESIGNATES COMPONENT SEQUENCE 56
4050, 4250 AND 4450 TRACTORS
RWP3478 -UN-01JAN94
TRANSMISSION SERIAL NUMBER
1. DESIGNATES TRANSMISSION MANUFACTURER RO- JOHN DEERE COMPONENT WORKS
2. DESIGNATES TYPE T - TRANSMISSION
3. DESIGNATES TRANSMISSION TYPE PF- POWER SHIFT SG- QUAD-RANGE (HI-LO)
4. DESIGNATES INPUT TORQUE (ROUNDED TO 01-99 - 10-990 NM (7-731 LB-FT) NEAREST 10 NEWTON METERS)
5. DESIGNATES TRANSMISSION SERIAL NUMBER
RP2006 -UN-01JAN94
THE TRANSMISSION SERIAL NUMBER PLATE IS LOCATED ON THE LEFT-HAND SIDE OF THE TRANSMISSION.
HYDRAULIC PUMP SERIAL NUMBER
4050, 4250 AND 4450 TRACTORS
RWP3221 -UN-23SEP94

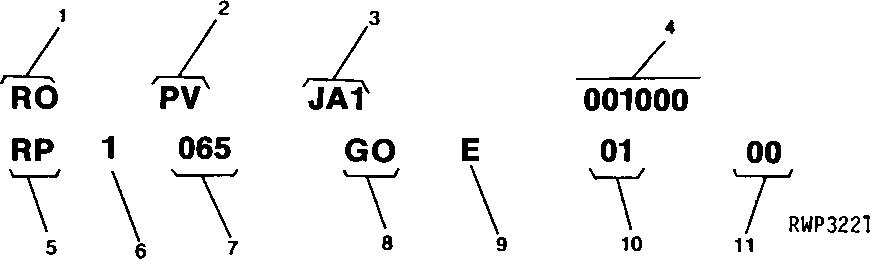

1. DESIGNATES MANUFACTURING FACTORY RO - JOHN DEERE COMPONENT WORKS
2. DESIGNATES COMPONENT PV - PUMP VARIABLE
3. DESIGNATES MODEL NUMBER JA1- 66 CM3 (4 IN3)
4. DESIGNATES COMPONENT NUMERIC NUMBER
5. DESIGNATES TYPE COMPONENT RP - RADIAL PISTON PUMP
6. DESIGNATES FAMILY 1 - FRAME SIZE
7. DESIGNATES SIZE 65 - 66 CM3 (1RW)
8. DESIGNATES PORT ARRANGEMENT GO - PRIMARY HOUSING
9. DESIGNATES E - EITHER
10. DESIGNATES STROKE CONTROL VALVE TYPE 01 - STROKE CONTROL VALVE CODE
11. NO SIGNIFICANCE 00 - NO SIGNIFICANCE
RWP3222 -UN-01JAN94
THE HYDRAULIC PUMP SERIAL NUMBER PLATE IS LOCATED ON THE TOP RIGHT-HAND SIDE OF THE PUMP.
RWP3482 -UN-01JAN94
4050, 4250 AND 4450 TRACTORS

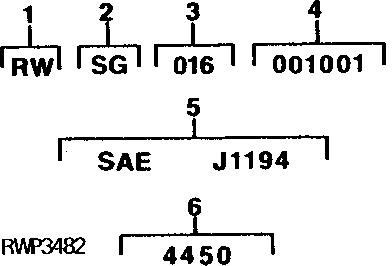

SOUND-GARD BODY OR ROLL-GARD SERIAL NUMBER
1. DESIGNATES SOUND-GARD BODY MANUFACTURERRW - JOHN DEERE TRACTOR WORKS
2. DESIGNATES TYPE SG - SOUND-GARD BODY RG - ROLL-GARD
3. DESIGNATES VERSION 016- SIXTEENTH 018- EIGHTEENTH (HI-CROP)
4. DESIGNATES SERIAL NUMBER
5. DESIGNATES CERTIFICATION CERTIFICATION DATE
6. DESIGNATES MODEL 4050, 4250, OR 4450
RWP3904 -UN-01JAN94

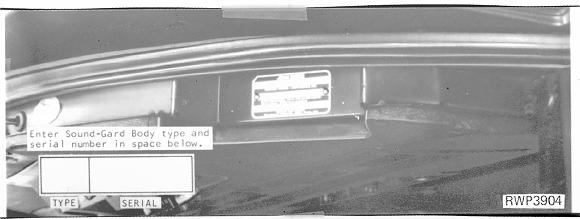

THE SOUND-GARD BODY SERIAL NUMBER PLATE IS LOCATED ON THE WINDSHIELD WIPER MOTOR ACCESS DOOR HEADER.
THE ROLL-GARD SERIAL NUMBER IS STAMPED ON A PLATE LOCATED ON THE RIGHT-HAND FRONT POST.
4050, 4250 AND 4450 TRACTORS
MECHANICAL FRONT WHEEL DRIVE SERIAL NUMBER (ZF)
RWP3492 -UN-01JAN94

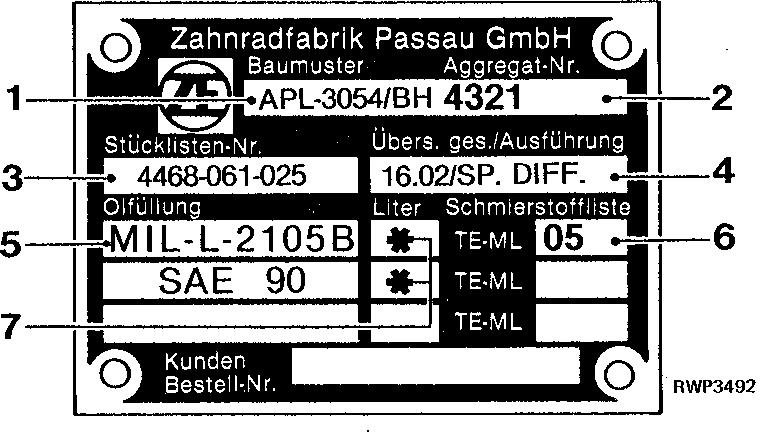

1. DESIGNATES THE AXLE TYPE APL 3054/BK
2. DESIGNATES THE AXLE SERIAL NUMBER
3. DESIGNATES THE ZF PART NUMBER 4468-061-025
4. DESIGNATES THE AXLE RATIO AND VERSION 16.02 LIMITED SLIP DIFFERENTIAL
5. DESIGNATES THE TYPE LUBRICANT
6. DESIGNATES THE CAPACITY OF LUBRICANT
7. DESIGNATES THE SPECIFICATION FOR LUBRICANT
SAE 85W/140
AXLE HOUSING 8.5L (2-1/4 GAL) PLANETARY GEAR ASSEMBLY EACH 1.9L (1/2 GAL)
JOHN DEERE MECHANICAL FRONT WHEEL DRIVE AXLES WERE FIRST USED AT THE FOLLOWING TRACTOR SERIAL NUMBERS. AN EXPLANATION OF THE SERIAL PLATE IS ON THE NEXT PAGE OR GRID.
4050 - 007907 (POWER SHIFT TRANSMISSION)
4050 - 008452 (QUAD-RANGE TRANSMISSION)
4250 - 013982 (POWER SHIFT TRANSMISSION)
4250 - 014591 (QUAD-RANGE TRANSMISSION)
4450 - 026618 (POWER SHIFT TRANSMISSION)
4450 - 028729 (QUAD-RANGE TRANSMISSION)
4050, 4250 AND 4450 TRACTORS

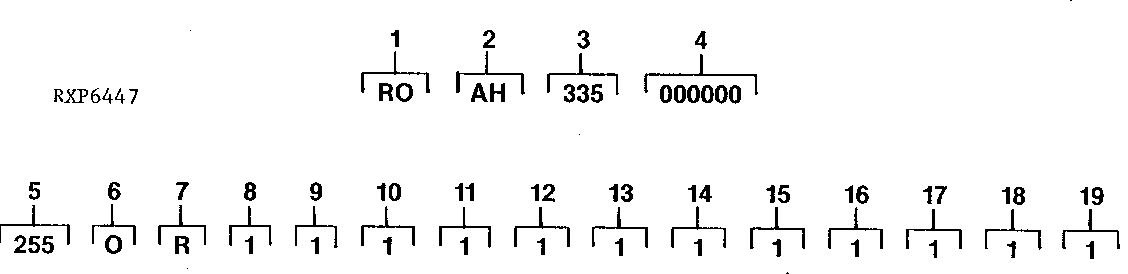

JOHN DEERE MECHANICAL FRONT WHEEL DRIVE SERIAL NUMBER
RXP6447 -UN-01JAN94
1. DESIGNATES MANUFACTURING UNIT RO - JOHN DEERE WATERLOO WORKS
2. DESIGNATES COMPONENT IDENTIFICATION AH - OUTBOARD AXLES
3. DESIGNATES CONFIGURATION IDENTITY 335 - WHEEL BOLT CIRCLE DIAMETER 425 - WHEEL BOLT CIRCLE DIAMETER
4. DESIGNATES SERIAL NUMBER
5. DESIGNATES MASTER MACHINE CODE 255 256
6. DESIGNATES FAMILY CODE 0
7. DESIGNATES MANUFACTURING UNIT R - JOHN DEERE WATERLOO WORKS
8. DESIGNATES PRIMARY INPUT ROTATION AND AXLE TRAVEL
9. DESIGNATES SPIRAL BEVEL REDUCTION
- CW AWAY FROM INPUT 4 - CCW AWAY FROM INPUT
10. DESIGNATES INPUT YOKE 2 - DANA 1480
11. DESIGNATES FLANGE TO FLANGE DIMENSION 1 - 1831MM
12. DESIGNATES STEERING SYSTEM 2 - STEERABLE STEERING ARMS ONLYINPUT SIDE-13 DEGREE CASTER
13. DESIGNATES MOUNTING TYPE 4 - OSCILLATING-TOP PIVOT-CENTER DRIVE
14. DESIGNATES BRAKE TYPE 1 - NO BRAKES
15. DESIGNATES DIFFERENTIAL TYPE 3 - LIMITED SLIP DIFFERENTIAL
16. DESIGNATES WHEEL MOUNTING CONFIGURATION 1 - TYPE 1
17. DESIGNATES FINAL DRIVE REDUCTION 1 - 5.2:1
18. DESIGNATES PAINT 2 - JOHN DEERE GREEN
19. DESIGNATES SHIPPING CONTAINER ^1 - PALLET
RXP6448 -UN-01JAN94
4050, 4250 AND 4450 TRACTORS
SERIAL NUMBER LISTING INFORMATION
SERIAL NUMBER INFORMATION IS LISTED TO SHOW ON WHICH MACHINES EACH PART CAN BE USED; FOR EXAMPLE:
- THE PART CAN BE USED ON ALL MACHINES.
000000- THE PART CAN BE USED ON ALL MACHINES BEGINNING WITH THE SERIAL NUMBER LISTED. -000000 THE PART CAN BE USED ON ALL MACHINES UP TO AND INCLUDING THE SERIAL NUMBER LISTED.
000000-000000 THE PART CAN BE USED ON ALL MACHINES BETWEEN AND INCLUDING THE SERIAL NUMBERS LISTED.
15BV1- WHEN A MODEL NUMBER BEGINS WITH 15BV, 14HA, 15PP, 25SC, 2RC, 4RC, 15RS, 3CY, 2SP, OR 31SV, IT REFERS TO THE MODEL NUMBER OF THE BRAKE VALVE, HYDRAULIC ACCUMULATOR, HYDRAULIC PUMP, REMOTE CYLINDER SELECTIVE CONTROL VALVE FOR NO ROCKSHAFT, REMOTE CYLINDER SELCTIVE CONTROL VALVES, REMOTE CYLINDERS, REMOTE CYLINDERS WITH MECHANICAL STOPS, ROCKSHAFT CONTROL VALVE, STEERING CYLINDER, STEERING METERING PUMP, OR STEERING VALVE.
WHEN XXXXXX’S ARE LISTED IN PLACE OF A SERIAL NUMBER, A SERIAL NUMBER CHANGE WAS MADE BUT THE EXACT SERIAL NUMBER WAS NOT AVAILABLE WHEN THE CATALOG WAS PRODUCED.
MODEL NUMBERS
THE FOLLOWING COMPONENTS HAVE MODEL NUMBERS:
BRAKE VALVE
HYDRAULIC ACCUMULATOR ................................................................................................................................................
REMOTE CYLINDER SELECTIVE CONTROL VALVE FOR NO ROCKSHAFT - SINGLE, DUAL OR TRIPLE
REMOTE CYLINDER SELECTIVE CONTROL VALVE FOR ROCKSHAFT - SINGLE, DUAL OR TRIPLE
REMOTE CYLINDER (76 X 203 MM (3" X 8"))
REMOTE CYLINDER WITH MECHANICAL STOP (76 X 203 MM (3" X 8"))
EACH OF THE ABOVE COMPONENTS HAS A MODEL NUMBER. WHEN THE DESIGN OF ONE OF THESE COMPONENTS IS CHANGED, THE MODEL NUMBER FOR THE NEWLY DESIGNED COMPONENT IS CHANGED.
4050, 4250 AND 4450 TRACTORS
DIRECTION ARROW
ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. "RIGHT-HAND" AND "LEFTHAND" SIDES ARE DETERMINED BY FACING IN THE DIRECTION OF MACHINE FORWARD TRAVEL.
BOX-ENCLOSED ILLUSTRATIONS
A KEY NUMBER, SHOWN IN THE PARTS LIST, IS ASSIGNED TO A BOX ENCLOSING ALL PARTS SOLD AS A SERVICE ASSEMBLY.
BOLT AND CAP SCREW STRENGTH IDENTIFICATION
U.S. CUSTOMARY DIMENSIONED PRODUCT: BOLTS AND CAP SCREWS REQUIRED TO HAVE HIGH-STRENGTH QUALITIES EQUIVALENT TO SAE GRADE 8 ARE IDENTIFIED THROUGHOUT THIS CATALOG BY THE DESCRIPTION HS SAE 8. ALL STANDARD BOLTS AND CAP SCREWS ARE SAE GRADE 5 OR LOWER.
METRIC DIMENSIONED PRODUCT: BOLTS AND CAP SCREWS REQUIRED TO HAVE HIGH-STRENGTH QUALITIES EQUIVALENT TO PROPERTY CLASS 10.9 ARE IDENTIFIED THROUGHOUT THIS CATALOG BY THE DESCRIPTION HS 10.9. ALL STANDARAD BOLTS AND CAP SCREWS ARE PROPERTY CLASS 8.8 OR LOWER.
JDM REMANUFACTURED COMPONENTS
THE SERVICE PARTS LISTED IN THIS CATALOG ARE INTENDED FOR THE REPAIR OF ORIGINAL EQUIPMENT COMPONENTS. ALTHOUGH MOST SERVICE PARTS MAY BE USED TO REPAIR REMANUFACTURED COMPONENTS, THE REMANUFACTURING PROCESS MAY CHANGE PARTS SUFFICIENTLY SO THAT SERVICE PARTS ARE INADEQUATE OR NOT USABLE.
TRADEMARKS
THROUGHOUT THIS PARTS CATALOG, YOU WILL FIND THE FOLLOWING DEERE AND COMPANY TRADEMARKS:
HYDRACUSHIONED™
INVESTIGATOR™ II
PERSONAL-POSTURE™
QUAD-RANGE™
PERFORMANCE TRAK™ II
ROLL-GARD®
SOUND-GARD®
TORQ-GARD SUPREME®
HY-GARD®
QUIK-TATCH®
CHANGE INDICATOR LINE (MICROFICHE CATALOGS ONLY)
CHANGES AFFECTING THE ORDERING OF PARTS ARE IDENTIFIED BY VERTICAL LINES MARKED IN THE LEFTHAND MARGIN OF REVISED PARTS LISTING IMAGES. A LINE IS ALSO AT THE LEFT-HAND EDGE OF THE SAME PART NUMBER IN THE NUMERICAL INDEX TO SHOW THE LOCATION OF REVISED INFORMATION.
6G13
2C5
6F10
8D1
4B22 DISK, CLUTCH (QRT)
4H17 DISK, PTO CLUTCH AND BRAKE (PST)
4D1 DISK, TRANSMISSION
5G9
6G5 FRONT
5D16
4E8
4B17
4G21
1B20
4D5
6F14
6F10
3G9
5H9
5G1
4D5
6D8
6C23
6I3
6C11
4G7
2F19
4D10
KIT, REMOTE
(REPLACEMENT)
6H11 KIT, SELECTIVE CONTROL VALVE OVERHAUL
6E11 KIT,
3E3 LIGHT RELAYS (NOT USED IN U.S. AND
CANADA) (EARLY
3G9
3G9
6I16
(QRT) (MFWD)
4D18 LINE, DIFFERENTIAL DRIVE SHAFT LUBE(QRT)
6C21 LINE, HYDRAULIC OIL RETURN FRONT
6C21 LINE, HYDRAULIC OIL RETURN REAR
6D4 LINE, HYDRAULIC PRESSURE PRIORITY (PST)
6D6 LINE,
6D6
4D18
4C9
4C11 LINE, OIL, HYDRAULIC OIL COOLER INLET
(QRT) (MFWD)
4C11 LINE, OIL, MFWD PRESSURE
(QRT)
4H20 LINE,
4H20 LINE, PTO
4H8
1C21
2F2
5G20
1B14
8G11
8H18 PANEL, INSTRUMENT
4F24
4F5 PINION, 1ST, 2ND, 3RD, 4TH PLANET (PST)
4F9 PINION, 1ST, 2ND, 3RD, 4TH
4F7 PINION, 1ST, 2ND, 3RD, 4TH PLANET (PST)
(4050E/4250E)
4E1
4C15
4B23
4E4
4C1
4H23
2D11
2E3
3E5
3C19
ALPHABETICAL INDEX - CONTINUED
6G23
6H1 SCV
8F24
1B25
4G19
4D1
4E2
5E1
2C20
5G15
7D19 STEP, FRONT (L.H.) (MFWD)
CANADA) (LATE
7D22 STEP, TRACTOR (HI-CROP)
7D15
8H16
6E25
7C17 WHEEL WEIGHT, REAR (34" OR 38" DISK)
7C8 WHEELS, DUAL REAR (ROW-CROP) (92MM)
7C4
7B19
7C5 WHEELS, REAR (ROW-CROP) (86MM)
7B21 WHEELS, REAR (86MM)
7C6
7C1 WHEELS, REAR (92MM)
PANEL (GAUGE CLUSTER)
3C1 WIPER SWITCH, R.H.
3H20 WIPER, REAR WINDSHIELD
3H22 WIPER, REAR WINDSHIELD
3H11 WIPER, WINDSHIELD (L.R.)
3H14
3I13 WIRING AND TERMINAL KIT
3I13
3B21
7D9
4E22 WIRING
3I13 WIRING
3C15 WIRING,

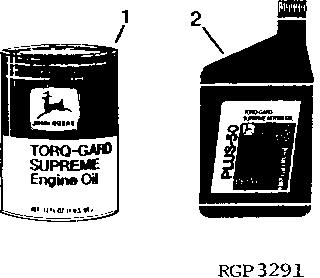

TORQ-GARD SUPREME AND PLUS-50 ENGINE OIL RGP3291 -UN-01JAN94
1 TY6359
X X X (SAE 5W/30), 0.9L (1 QUART) CAN TY6360
X (SAE 5W/30), 19L (5 GALLON) CAN
X (SAE 5W/30), 208L (55 GALLON) DRUM
X X (SAE 15W/40, 0.9L (1 QUART) CAN TY6298
X X X (SAE 15W/40), 19L (5 GALLON) CAN TY6300
X X X (SAE 15W/40), 114L (30 GALLON) DRUM
(SAE 15W/40), 208L (55 GALLON) DRUM
(SAE 10W), 0.9L (1 QUART) CAN
X X (SAE 10W), 19L (5 GALLON) CAN
X (SAE 10W), 208L (55 GALLON) DRUM
X X X (SAE 30), 0.2L (1 HALF PINT) CAN
(SAE 30), 0.9L (1 QUART) CAN
(SAE 30), 19L (5 GALLON) CAN
(SAE 30), 114L (30 GALLON) DRUM
(SAE 30), 208L (55 GALLON) DRUM
(SAE 15W/40), 0.9L (1 QUART)
(SAE 15W/40), 19L (5 GALLON)
(SAE 15W/40), 208L (55 GALLON)
(SAE 30), 0.9L (1 QUART)
(SAE 30), 19L (5 GALLON)
X (SAE 30), 208L (55 GALLON)
0.9 L (1 QT.) CAN OF INTERNAL CORROSION INHIBITOR, 1 ROLL OF TAPE, AND 6 PLASTIC BAGS
CAP / COVER KIT (NOT ILLUSTRATED)

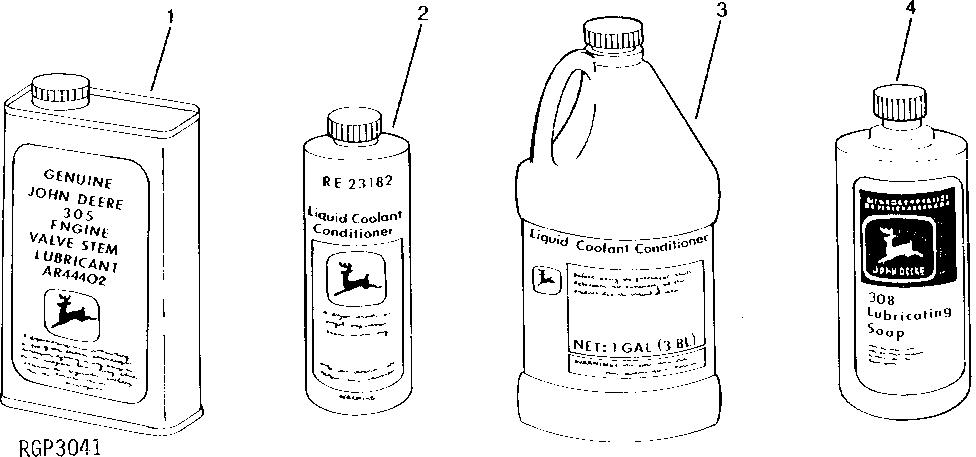

COOLANT CONDITIONER AND ENGINE PART LUBRICANTS
