Brenda Meloto de Oliveira

1

Best Selected Work 2020 -2023

2

CONTENTS

GULF ISLAND CABIN - DESIGN COMMUNICATION 2

TETRAMINE GALLERY - STUDIO IV

HANGAR OPEN WINGS - STUDIO V

OTHER WORKS 04.

3 4-7 8-15

16-27

01.

02.

03.

28-35

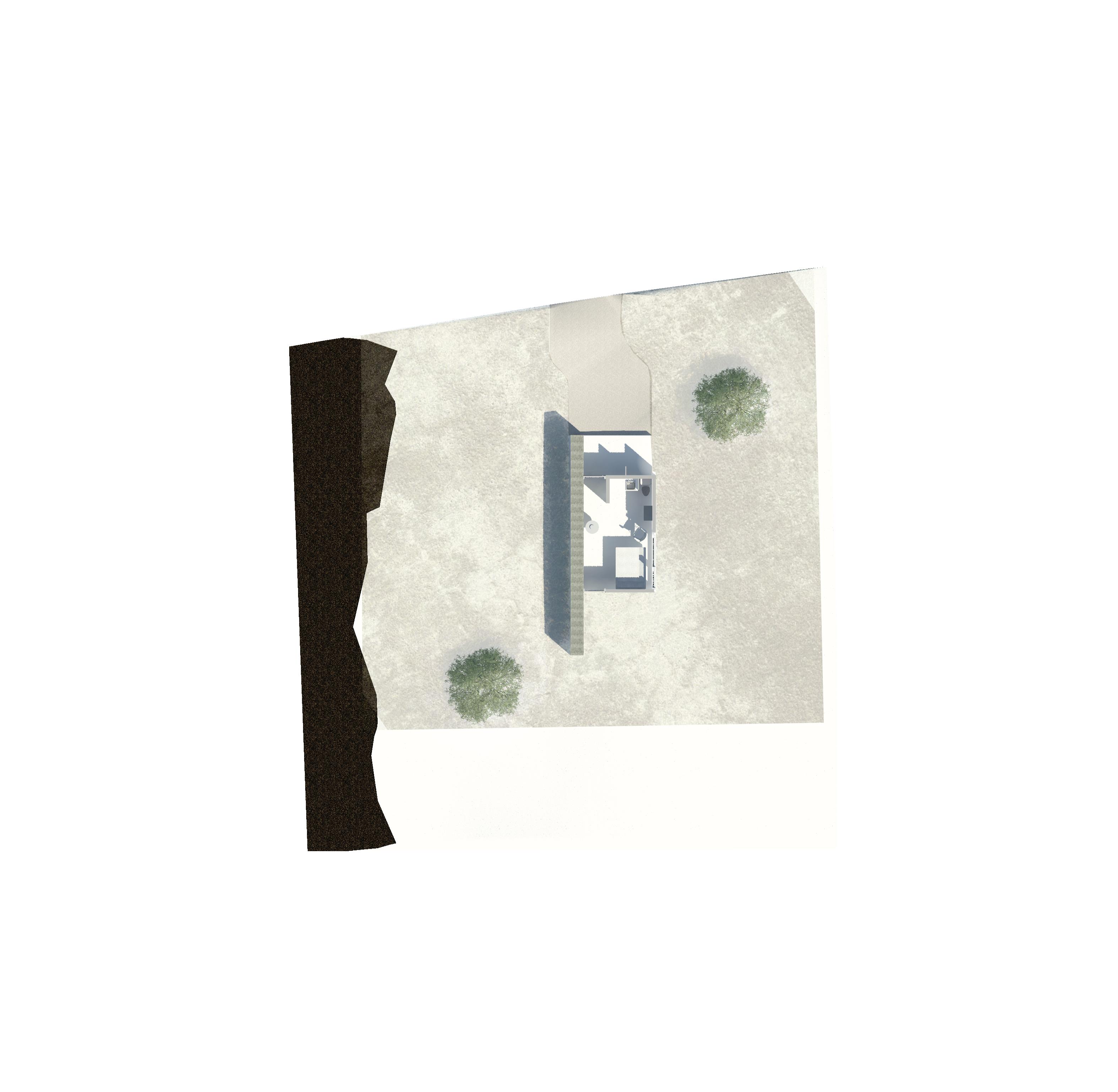

GULF ISLAND CABIN

T his project is a precedent study, where the work of the architect was represented through orthografic drawings, renderings, and detailed sections. - Studio II

4

01

insulated roof panel, slop to drain

pre-oxidized perimeter roof framing

cedar wood roof panelling

pre-oxidizing steel framing

1” insulated glass in aluminum storefront frame

raised cedar ooring on sleepers spaced 16” o.c.

cast in place concrete slab with turn down footing

grade

compacted ll

'

2' - 5" 3' - 10" 0' - 6" 0' - 5" 7'0" 1'0" 1

0 " 0

9 "

'

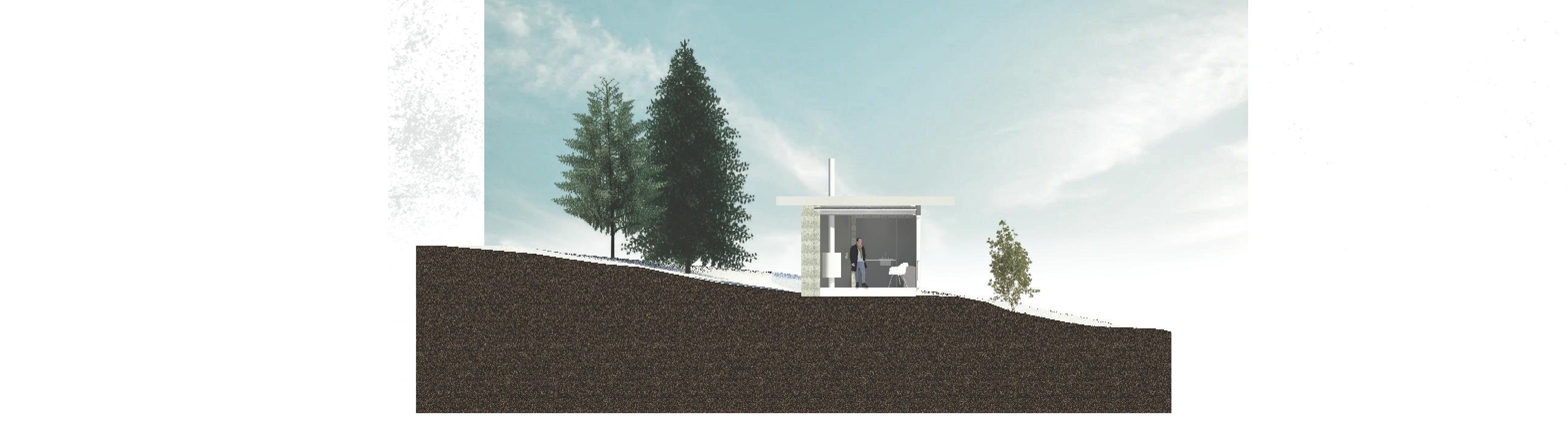

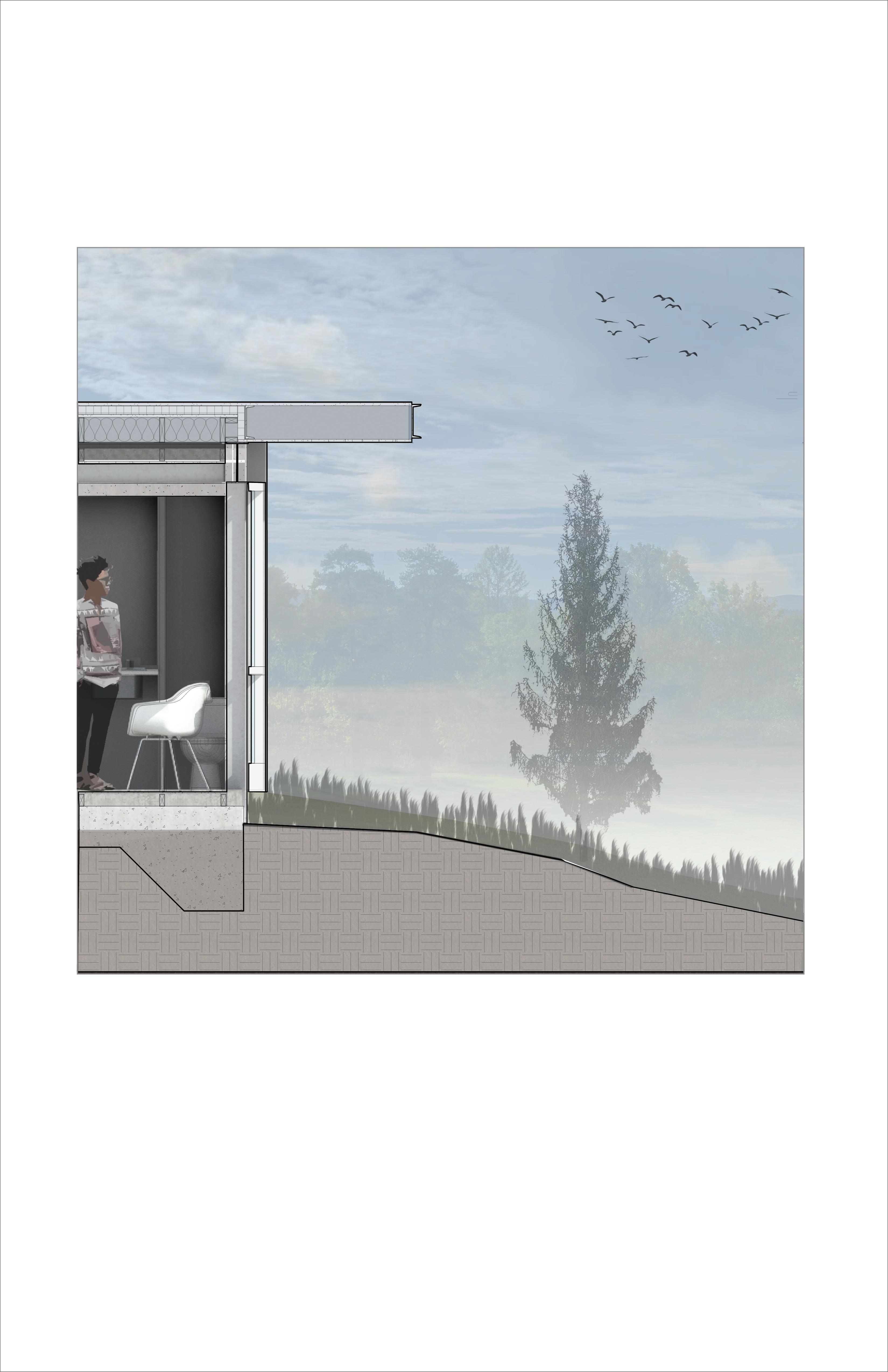

pre-oxidized wall panelling beyond Detailed Section

Floor plan

B 1. 5 A 1 2 85 " 87 " 98 " 64 " 1' - 0" 0' - 3" 3 30 " cab n stee co umn exter or wal sorefront g az ng and frame eas porch west porch 1 98 " west porch Level 1 0' - 0" Level 2 8' - 8" B A Level 3 13' - 8" 3' - 8" 11' - 6" 3' - 10" 19 - 0 5'0" 8'8" 13 '8 " roof wi h stee framing c p retaining wal grade line perimeter steel beam 1 insulated storefront glazinf c i p slab on grade building floor plan building section scale: 1/4 =1 -0 scale: 1/4" 1 -0" 0' 2' 4' 8' 16'

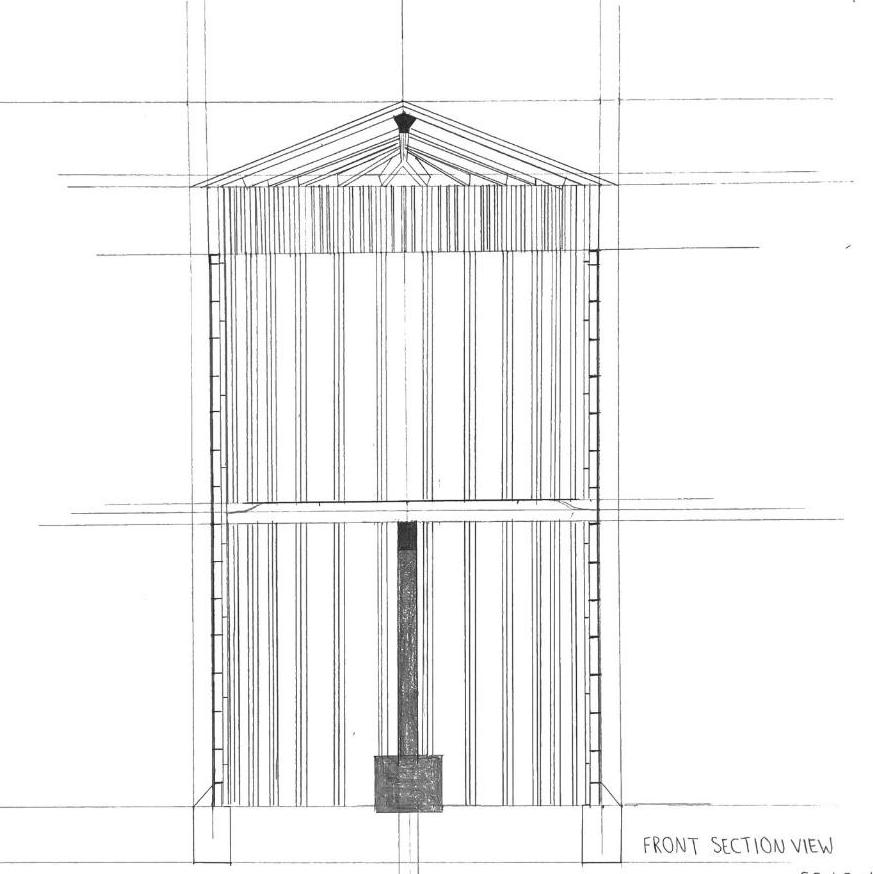

Section A

7

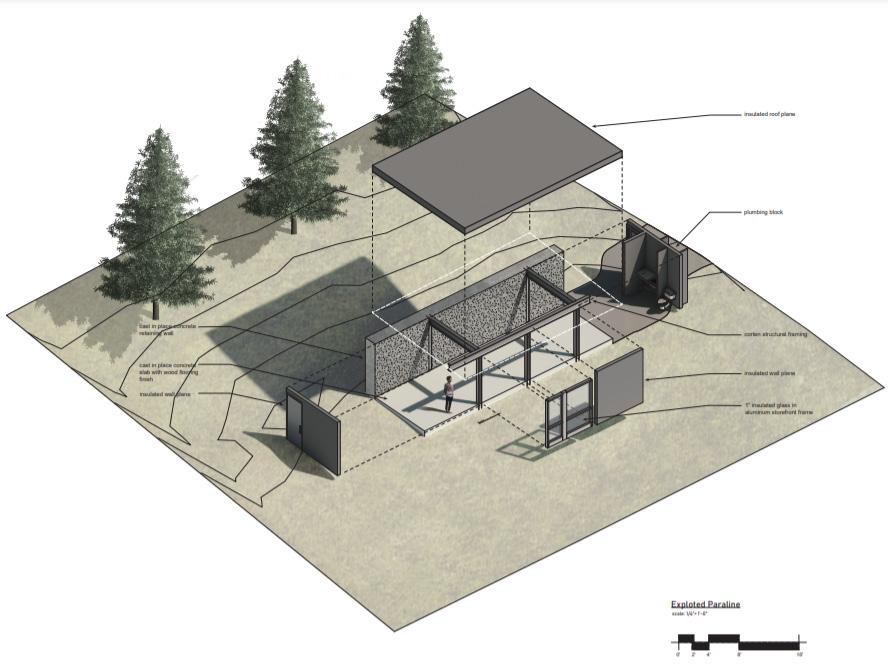

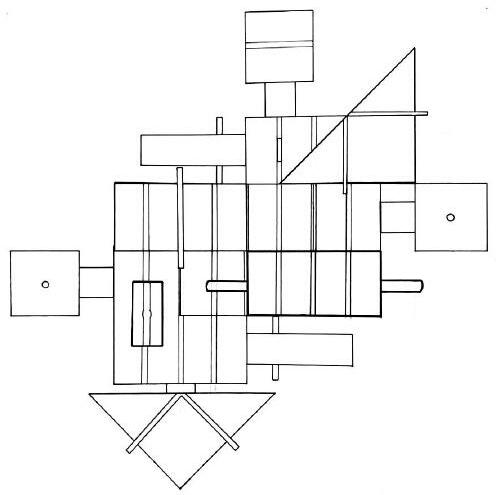

Exploted Axon

TETRIMINE GALLERY

The Tetramine Gallery was designed based on the game Tetris.

The ground floor has double height ceiling, allowing the cubes to be part of the exhibtion. The second floor is located the studio space, where the cubes are also part of the design. The artists can observe downstairs, while working through the voids on the floor. - Studio IV

8 02

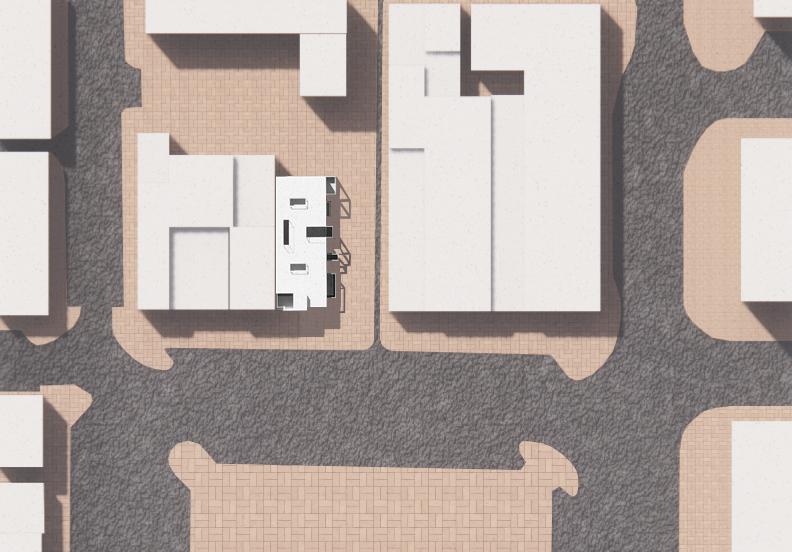

SITE: Marietta Square

10

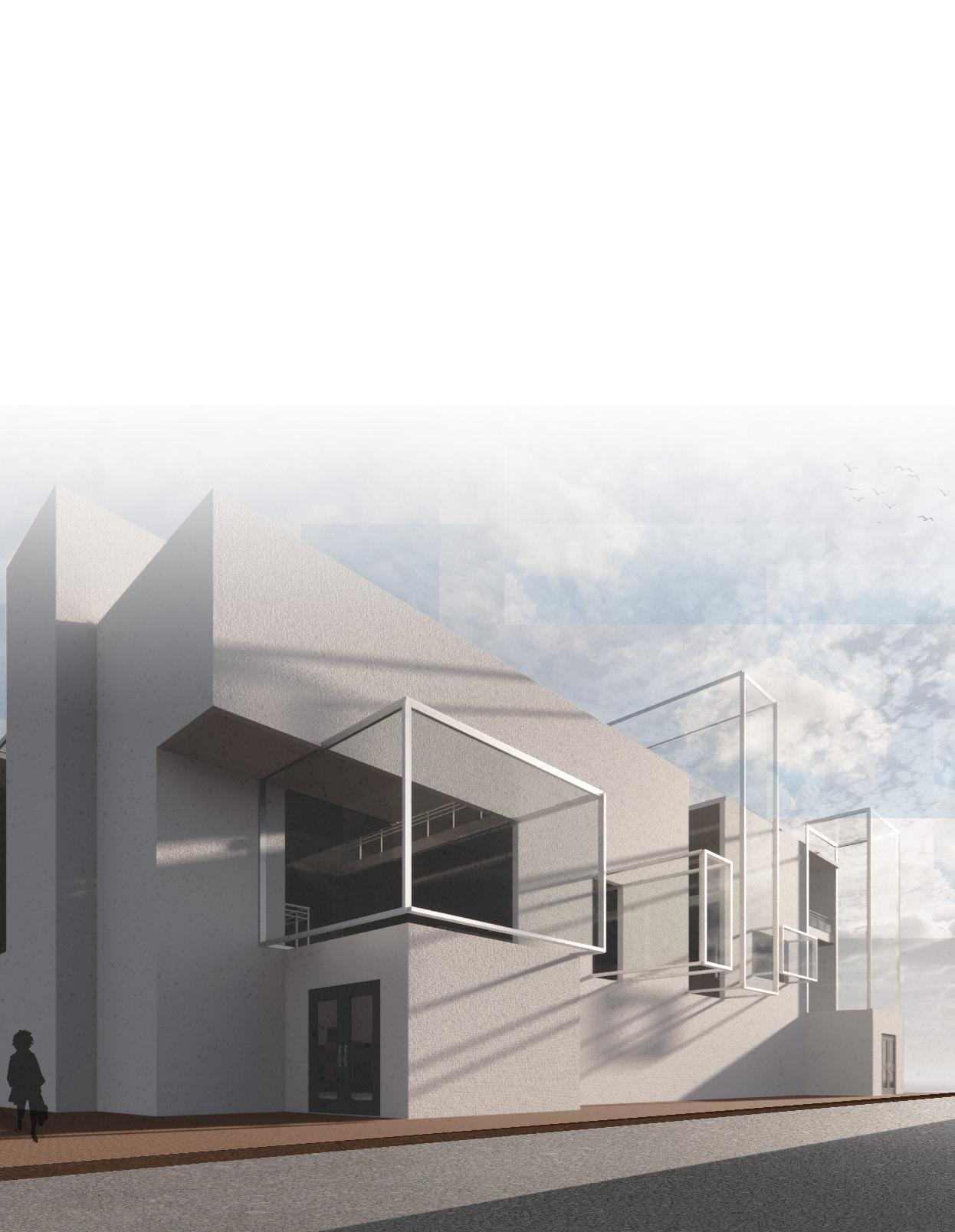

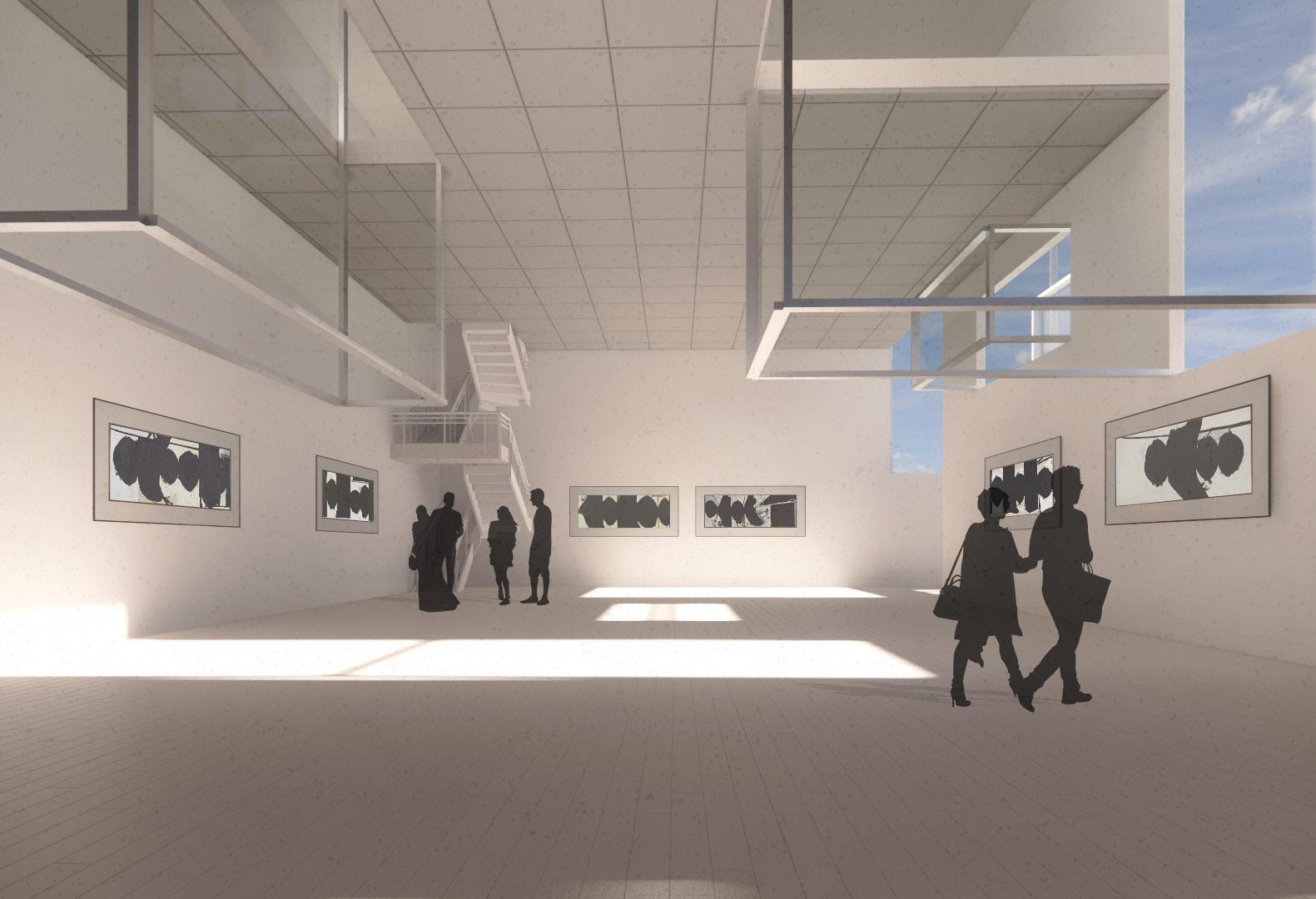

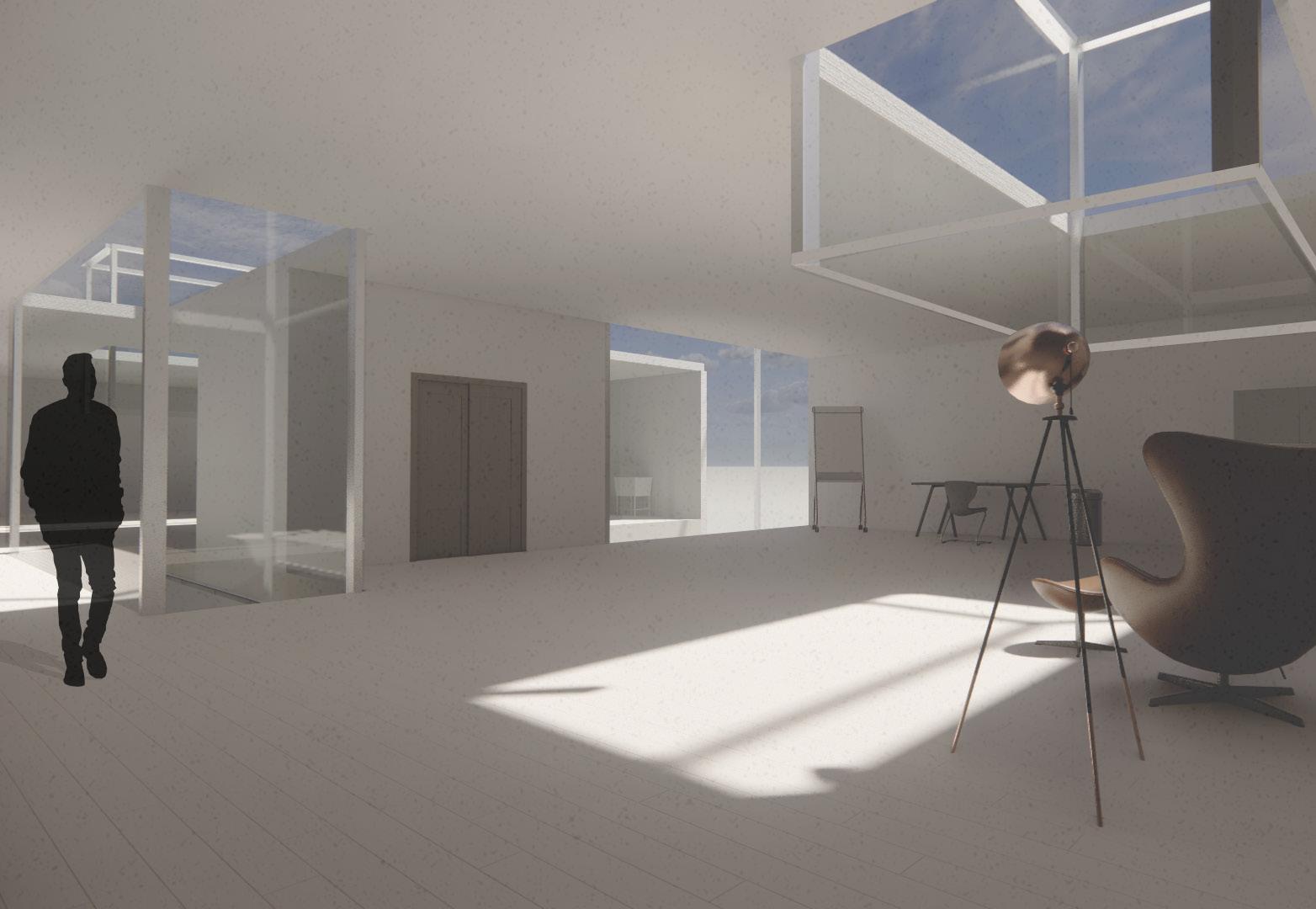

Glass cubes penetrates the building in order to create an ambient experience and bring natural light to the building.

11

12 1 3 2 7 7 5 4 3 3

Ground Floor Plan Second Floor Plan 1-Gallery Space (public)

2-Lobby 3-Storage 4-Restroom 5-Utilitity/Mechanical Room 6-Office 7-Studio Space

(private)

13 South Elevation East Elevation North Elevation

14

15

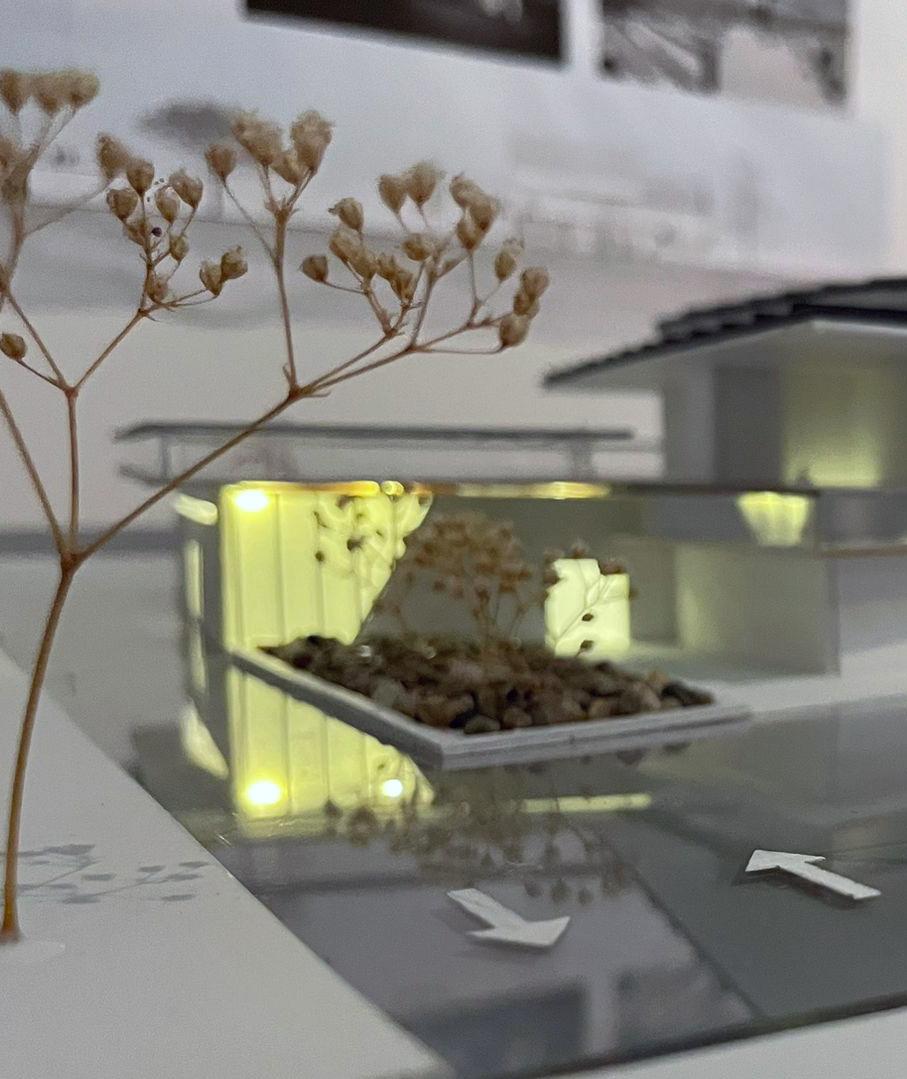

Physical model

03

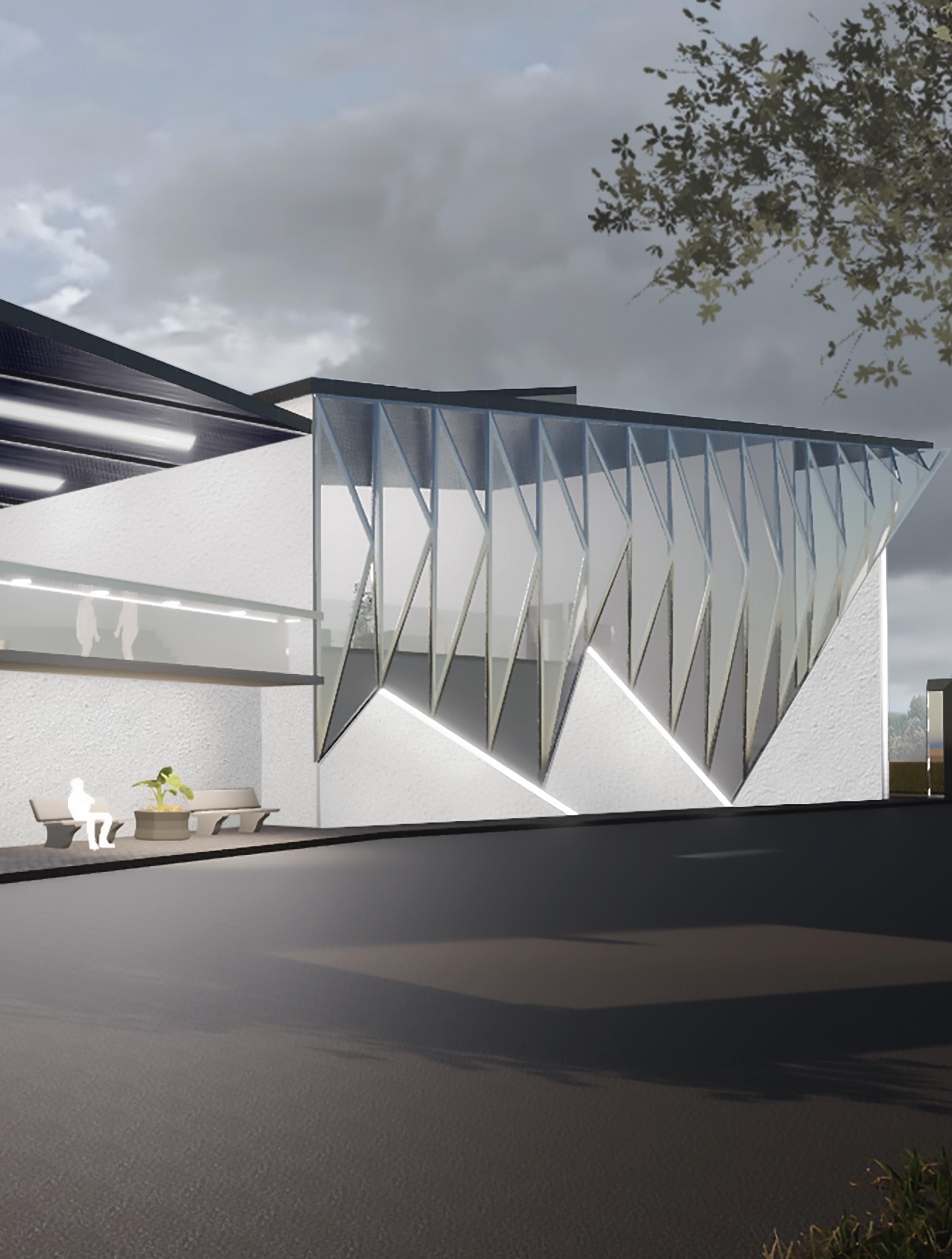

HANGAR OPEN WINGS

Open Wings is a public hangar located in the Gwinnett County Airport off of Briscoe Boulevard. This hangar is split between 3 programs: the plane hangar, wedding venue, and office spaces. These areas include event spaces, photography and reception areas. Both the facade and form took inspiration from my analysis of a butterfly wing which angular shape and delicacy was incorporated into the design. This project was qualified and selected to represent the studio class as a participant in the inaugural year of the new relationship between KSU Architecture and TVS. - Studio V

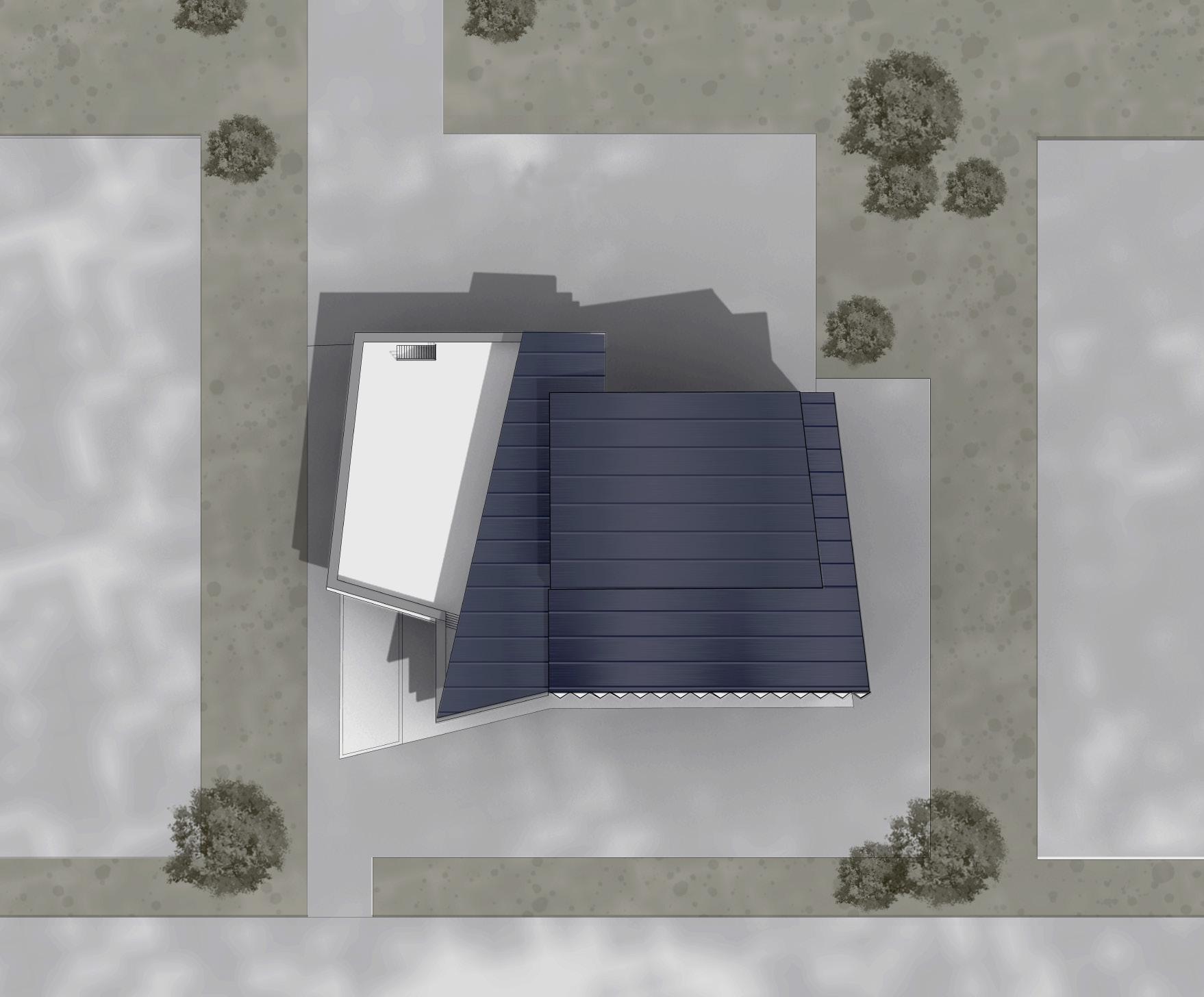

SITE: Gwinnett County Airport

19

Location I was given one of the lots found at the Gwinnet County Airport to reimagine the hangar with a public typology.

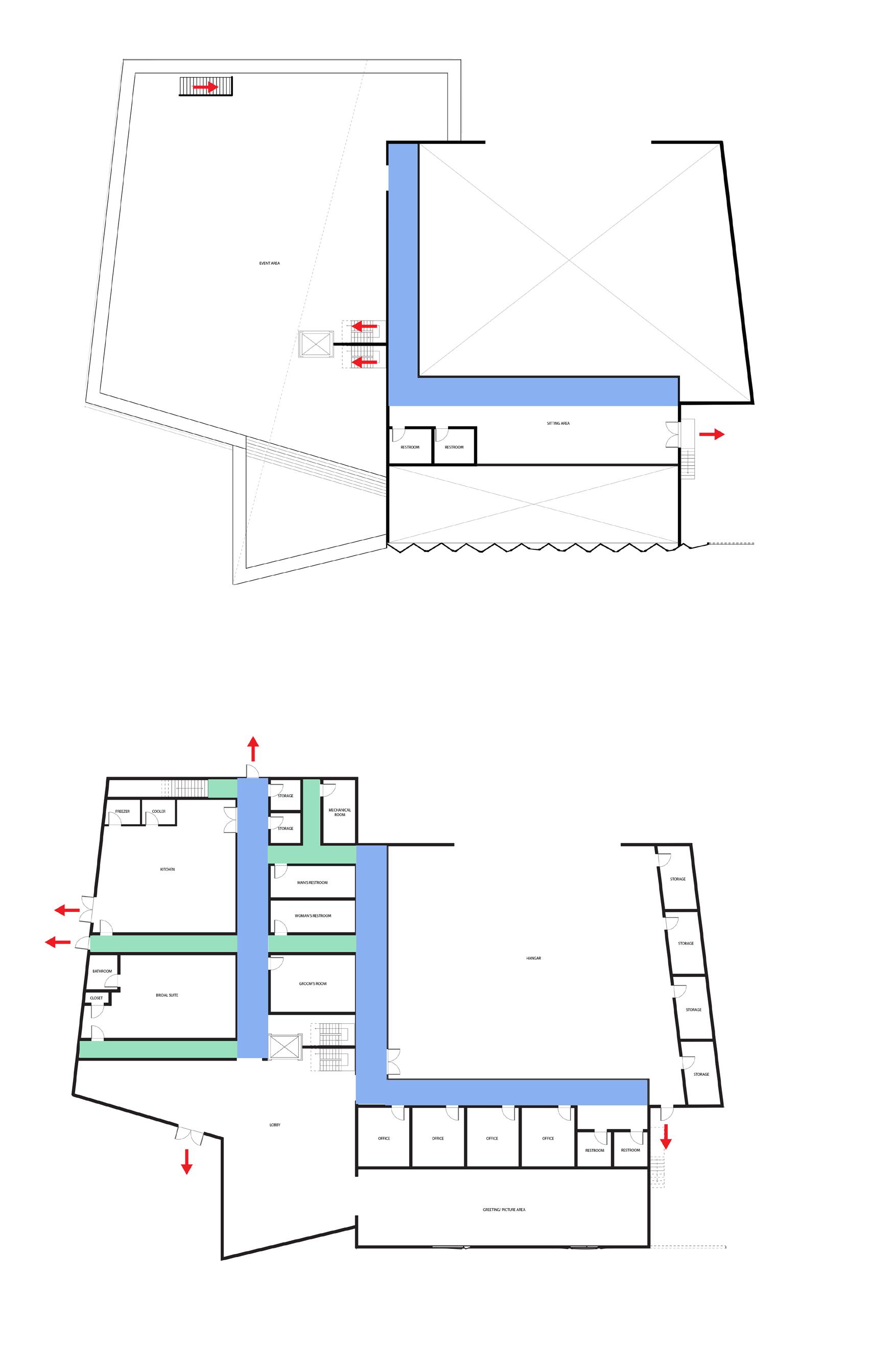

Primary corridor

Secondary corridor Exits

20

DIAGRAMS

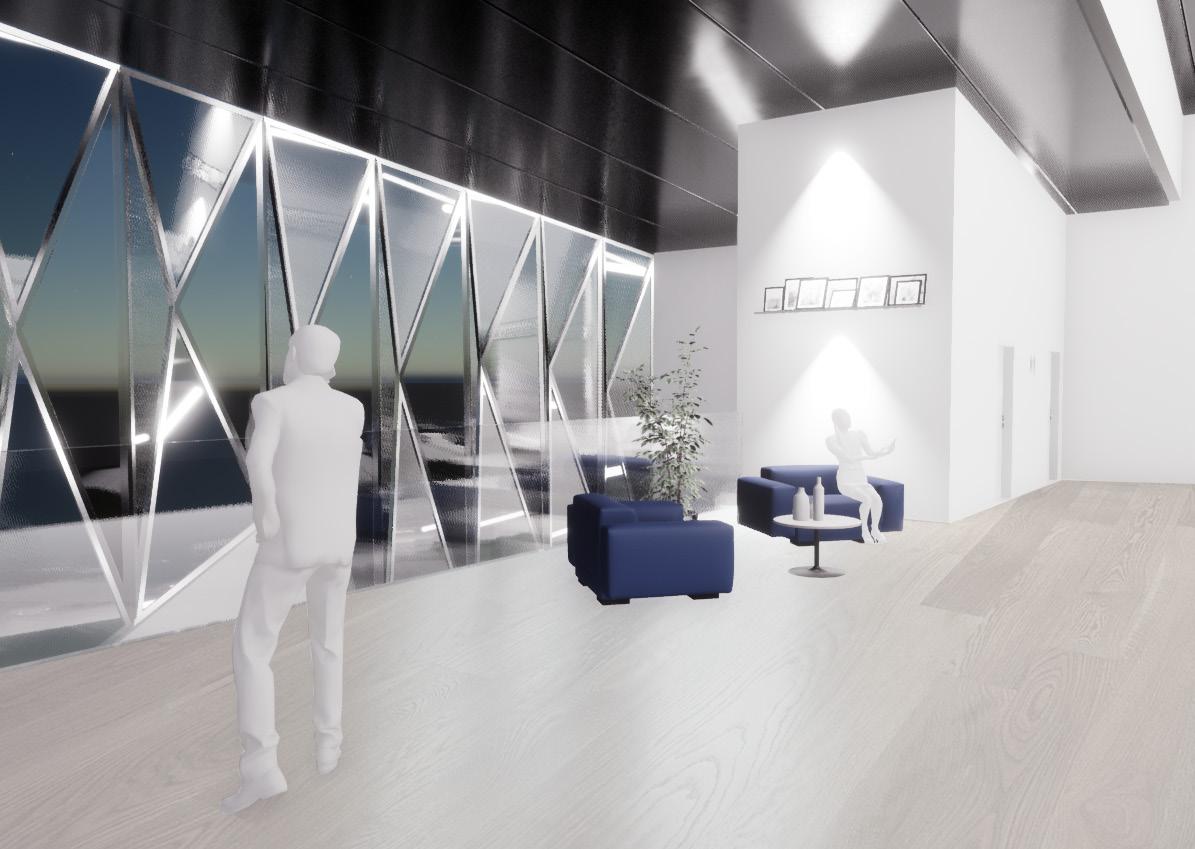

ETFE material has significant advantages over glass. In addition to being extremely light compared to glass, it transmits exceptional light, especially in the UV spectrum, has excellent self-cleaning properties, is elasticity and long-lasting.

Offices

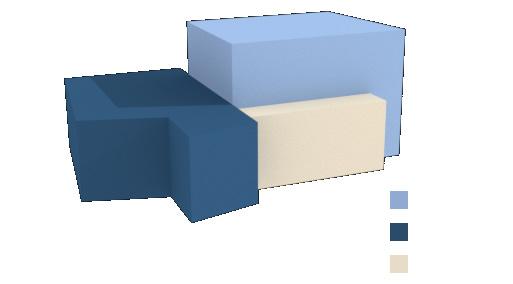

Programming Diagram

The building was designed by the creation of small, medium, and large programs, with the large being the hangar, medium the wedding venue and small the offices.

21

Hangar Wedding Venue ETFE facade

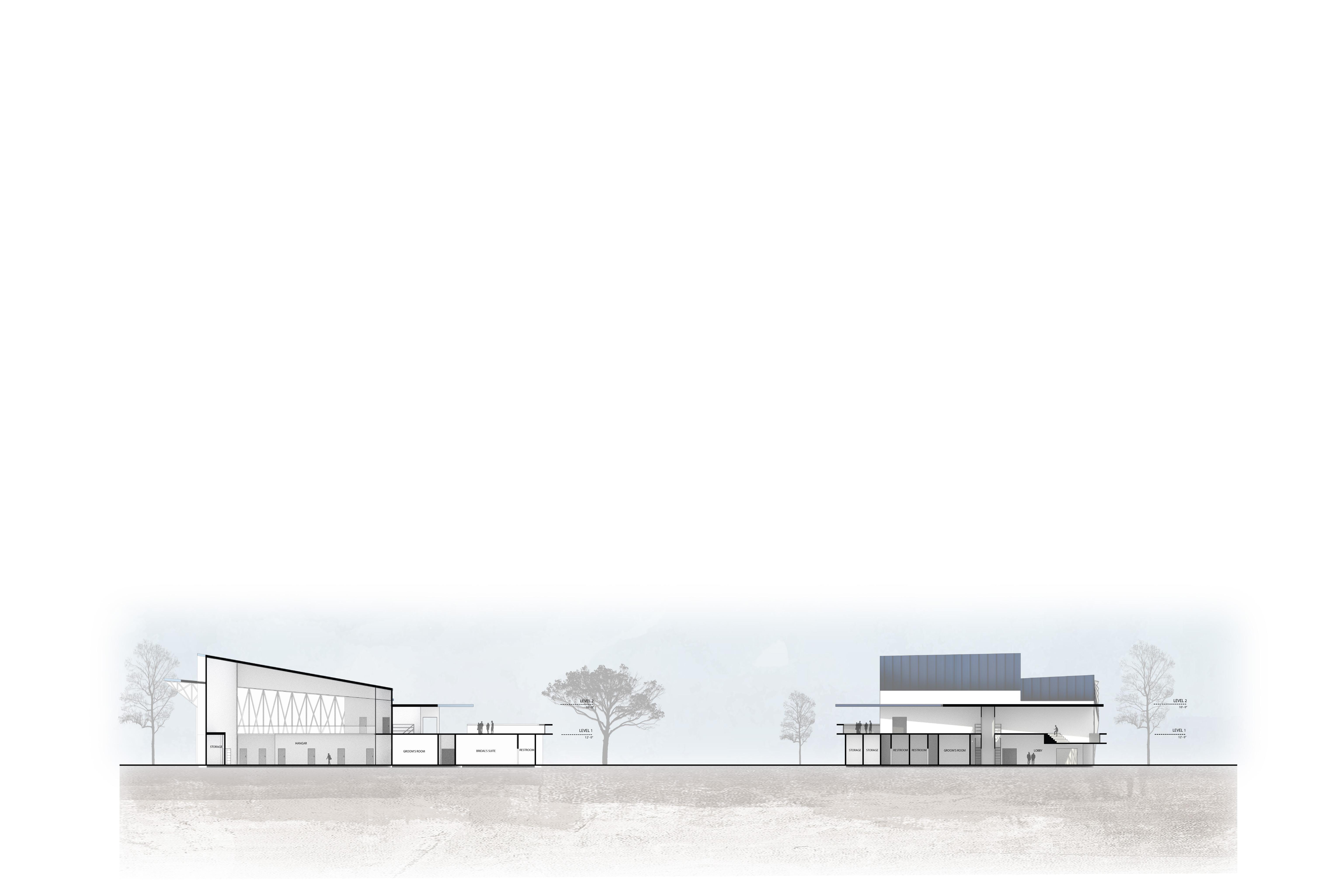

NORTH SECTION 152’- 6” 72’3” 109’8” 148’- 6” 64’- 8” 132’- 10” 57’- 0” 75’- 10” 37’5” 83’- 10” 59’10” 91’5” KITCHEN FREEZER COOLER BRIDAL SUITE BATHROOM CLOSET MAN’S RESTROOM WOMAN’S RESTROOM STORAGE STORAGE MECHANICAL ROOM GROOM’S ROOM OFFICE OFFICE OFFICE OFFICE RESTROOM RESTROOM STORAGE STORAGE STORAGE STORAGE GREETING/ PICTURE AREA LOBBY HANGAR FIRST FLOOR scale: 1’-0” = 3/32”

WEST SECTION 76’- 9” 119’7” 78’11” 40’7” 152’- 6” 84’- 7” 68’- 7” 136’ - 4” 59’- 6” 60’5” 31’6” 91’5” RESTROOM RESTROOM SITTING AREA EVENT AREA 72’3” 109’8” 132’- 10” 57’- 0” 75’- 10” 37’5” 59’10” 91’5” KITCHEN FREEZER COOLER BRIDAL SUITE BATHROOM CLOSET MAN’S RESTROOM WOMAN’S RESTROOM STORAGE STORAGE MECHANICAL ROOM GROOM’S ROOM OFFICE OFFICE OFFICE OFFICE RESTROOM RESTROOM STORAGE STORAGE STORAGE STORAGE LOBBY HANGAR SECOND FLOOR scale: 1’-0” = 3/32”

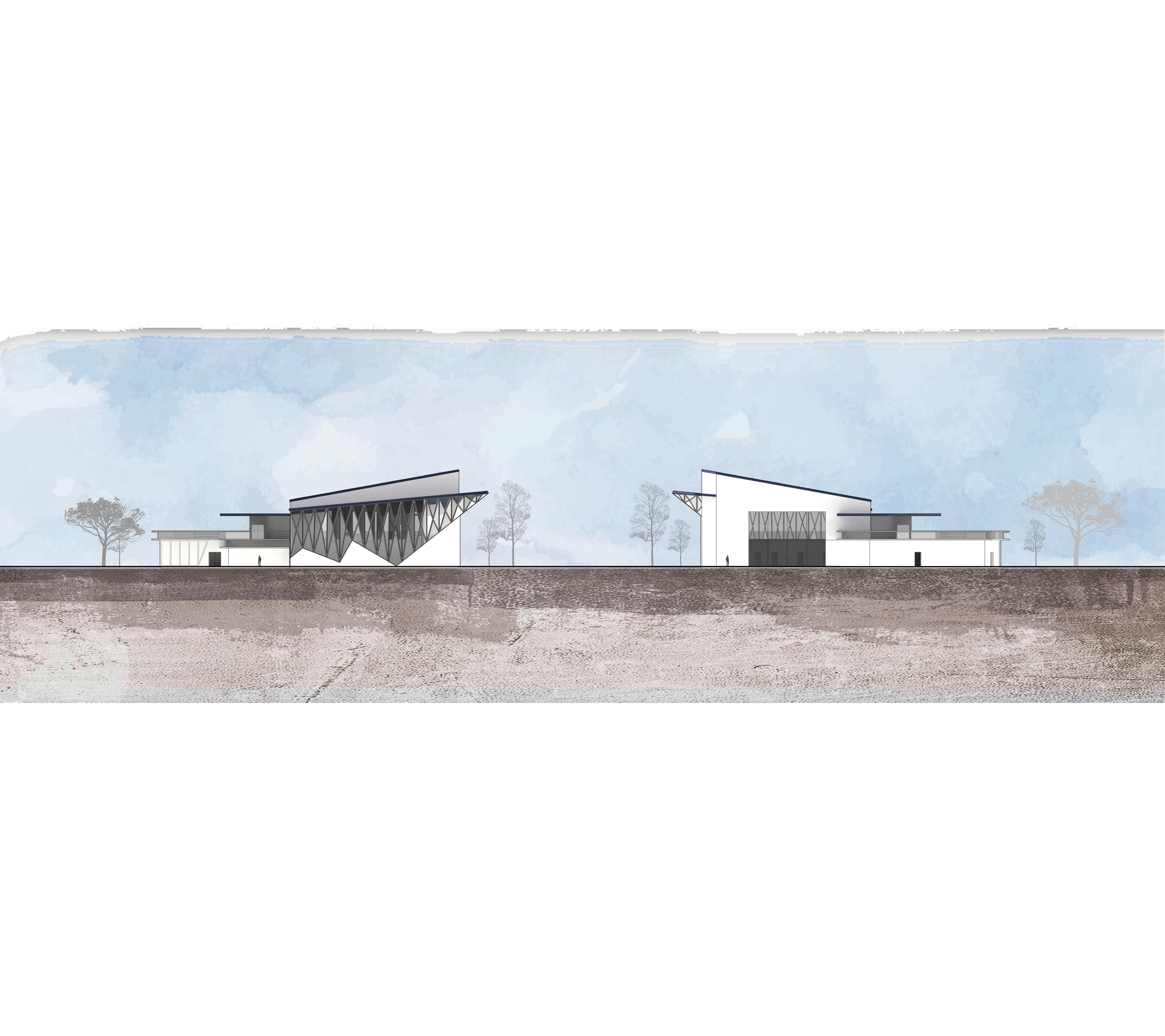

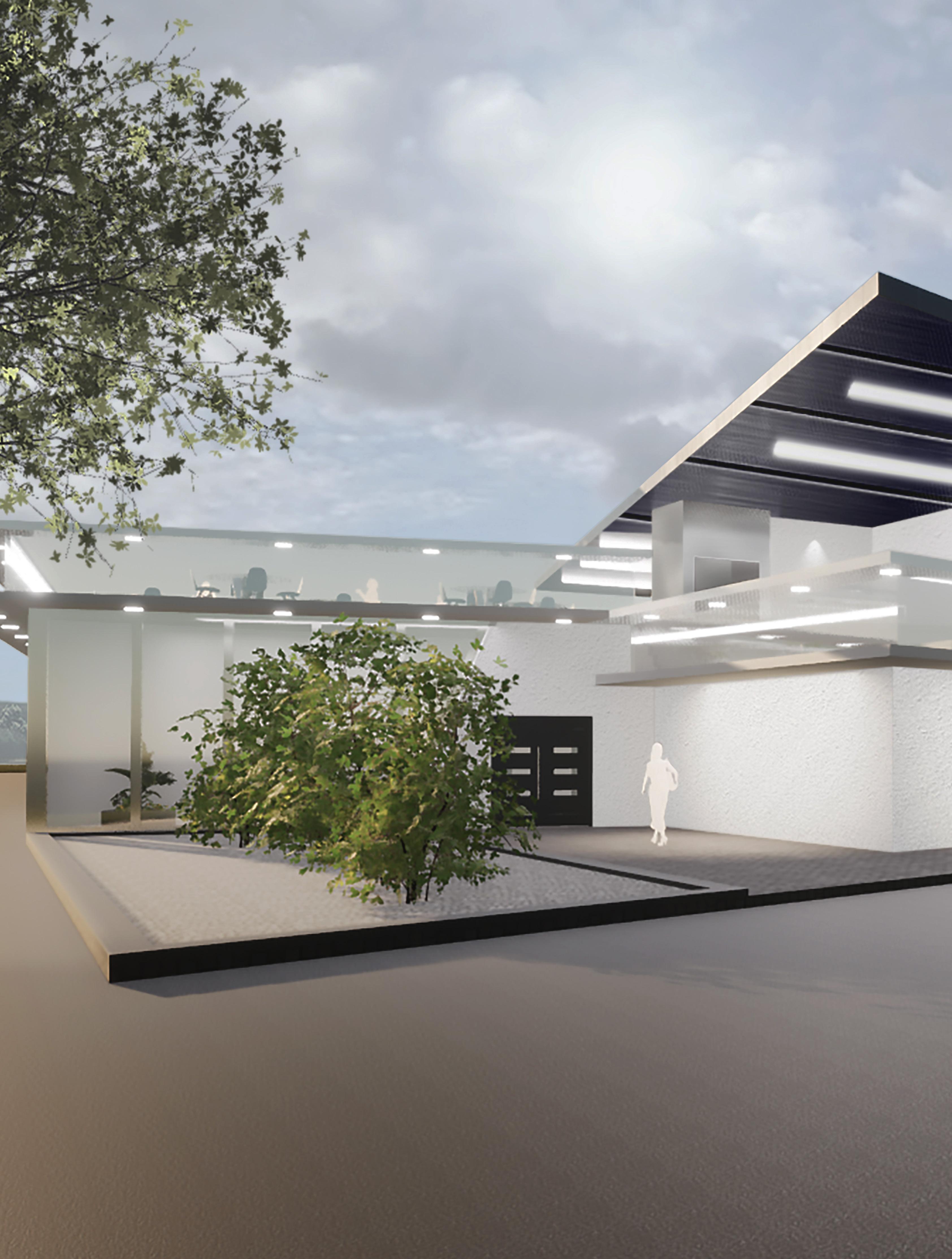

FRONT ELEVATION

BACK ELEVATION

26

27

28

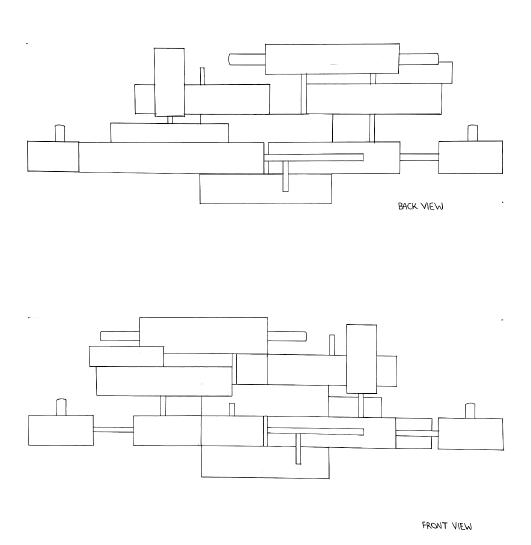

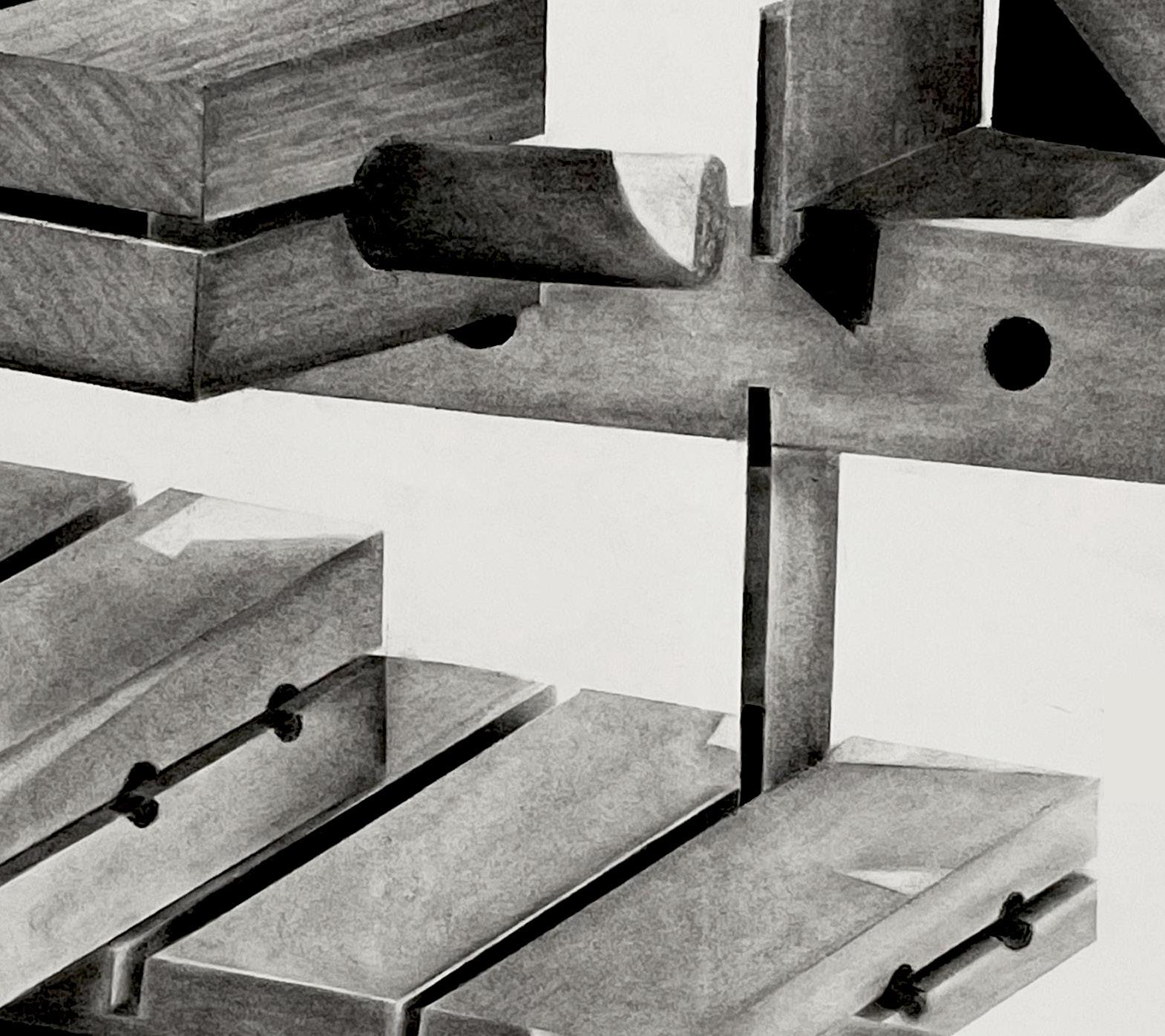

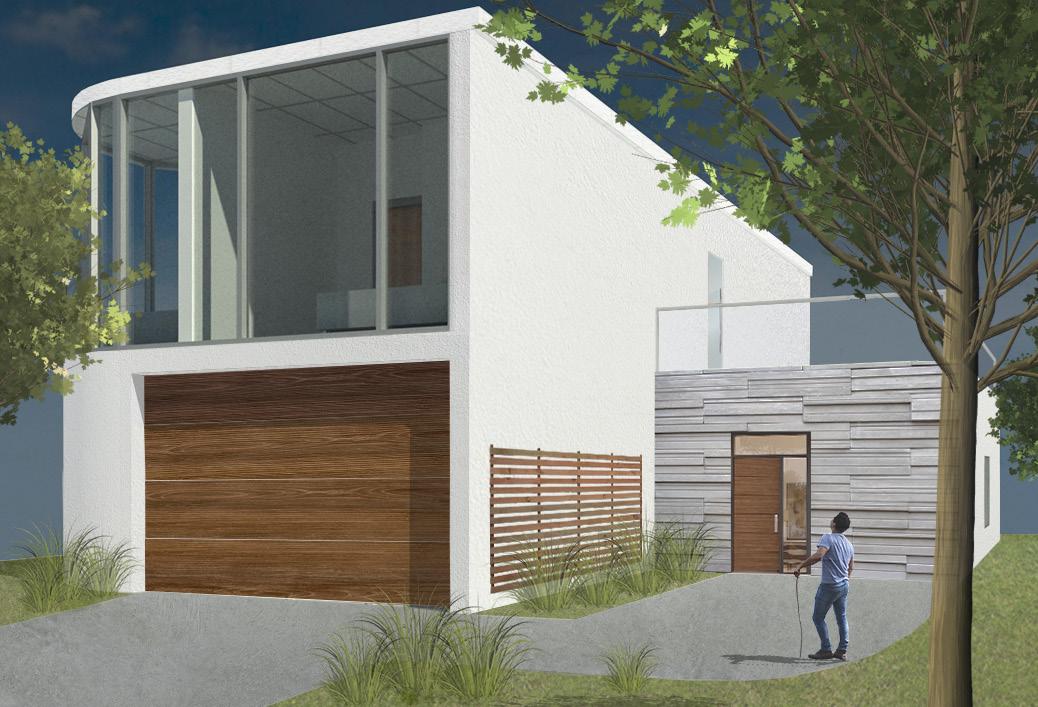

OTHER WORKS

29

Pavillion - Studio IV

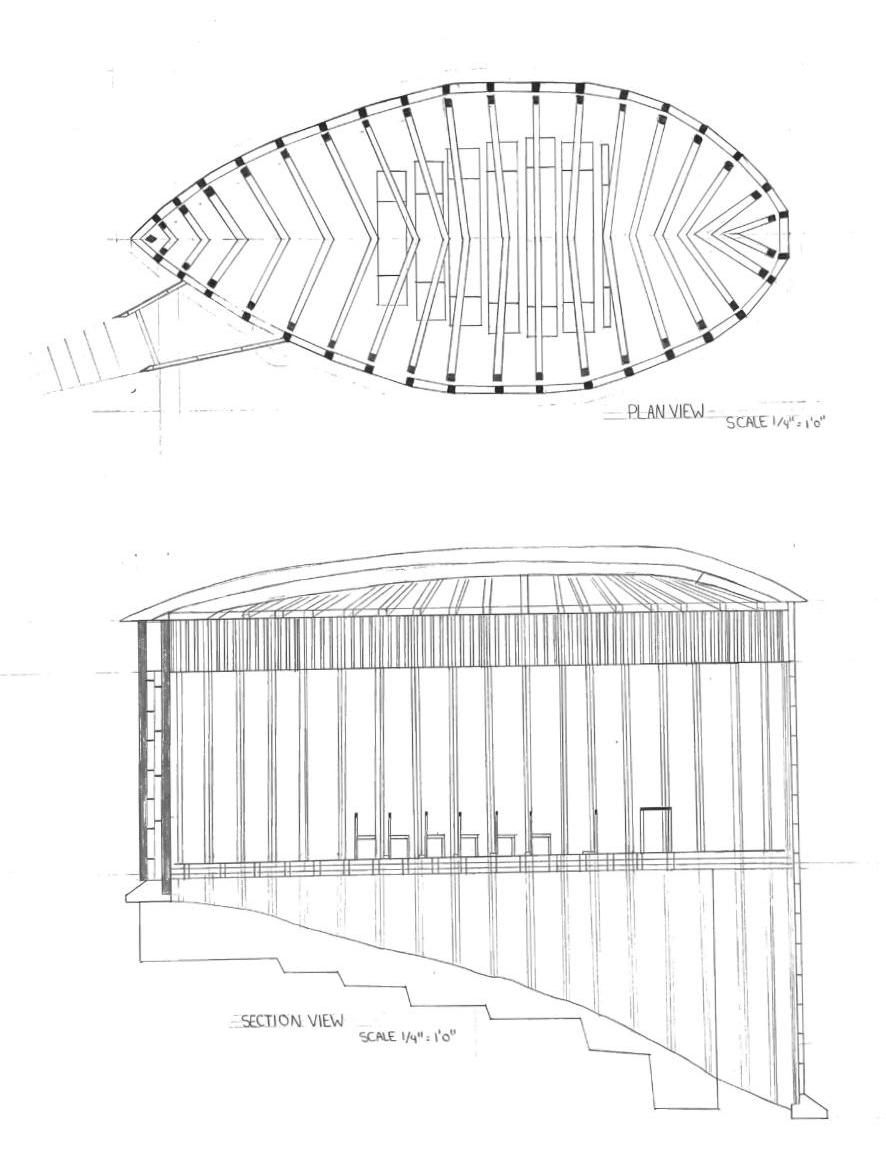

The brief was to design a pavillion that can be used during the day and night as entretainment or shelter, located at the heart of the Marietta Square.For my design i wanted to use direction as my concept, so i added 3 main steal angled C shapes which allows the roof to create this arrow form.
