INE302 PROJECT2

St.Joseph’s Church

Bre Crysler

HISTORY

Tableof Contents- CASESTUDIES - PROGRAMMING - SKETCHRENDERINGS

HISTORY

108FranklinSt., Rochester,NewYork

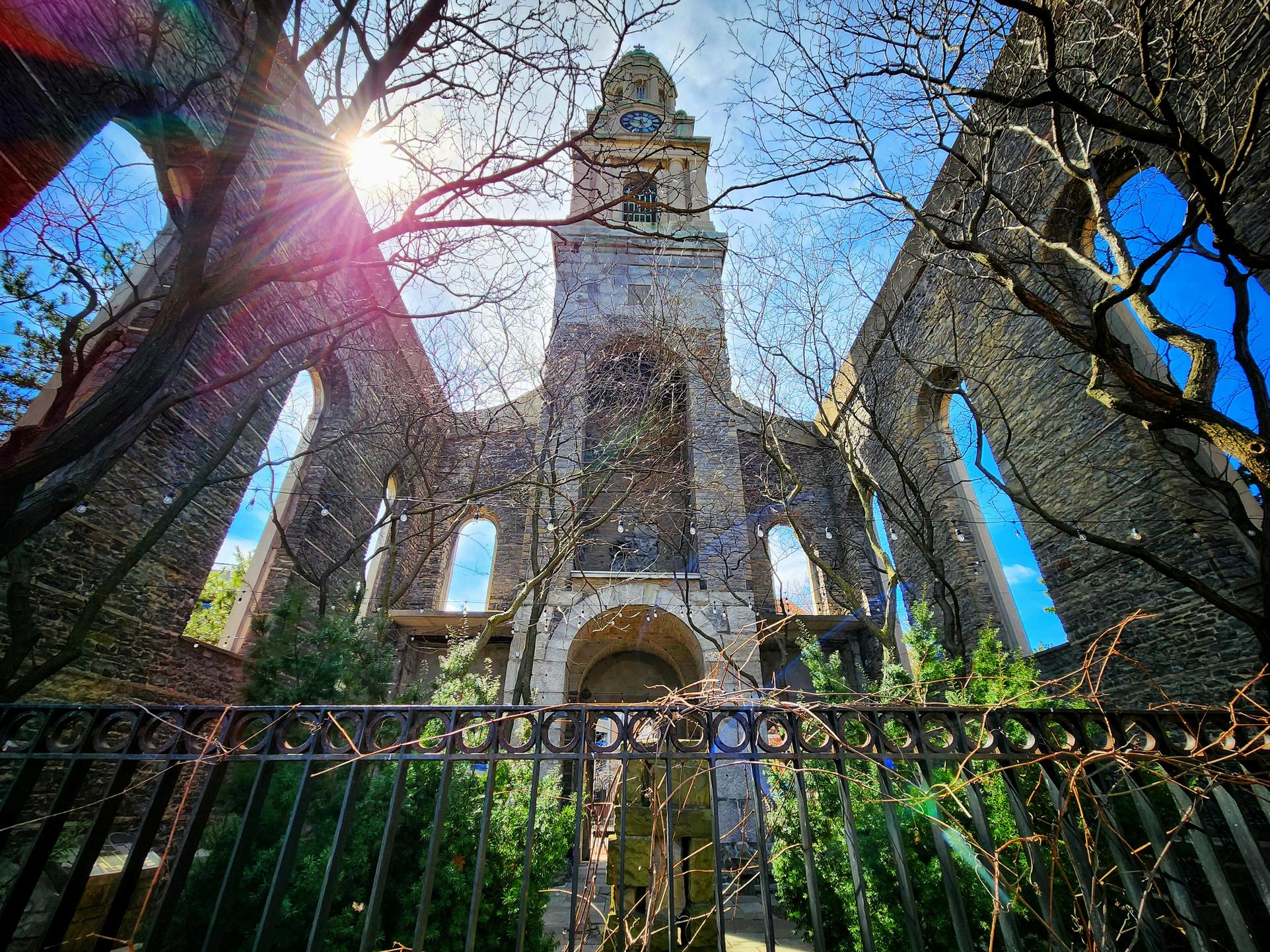

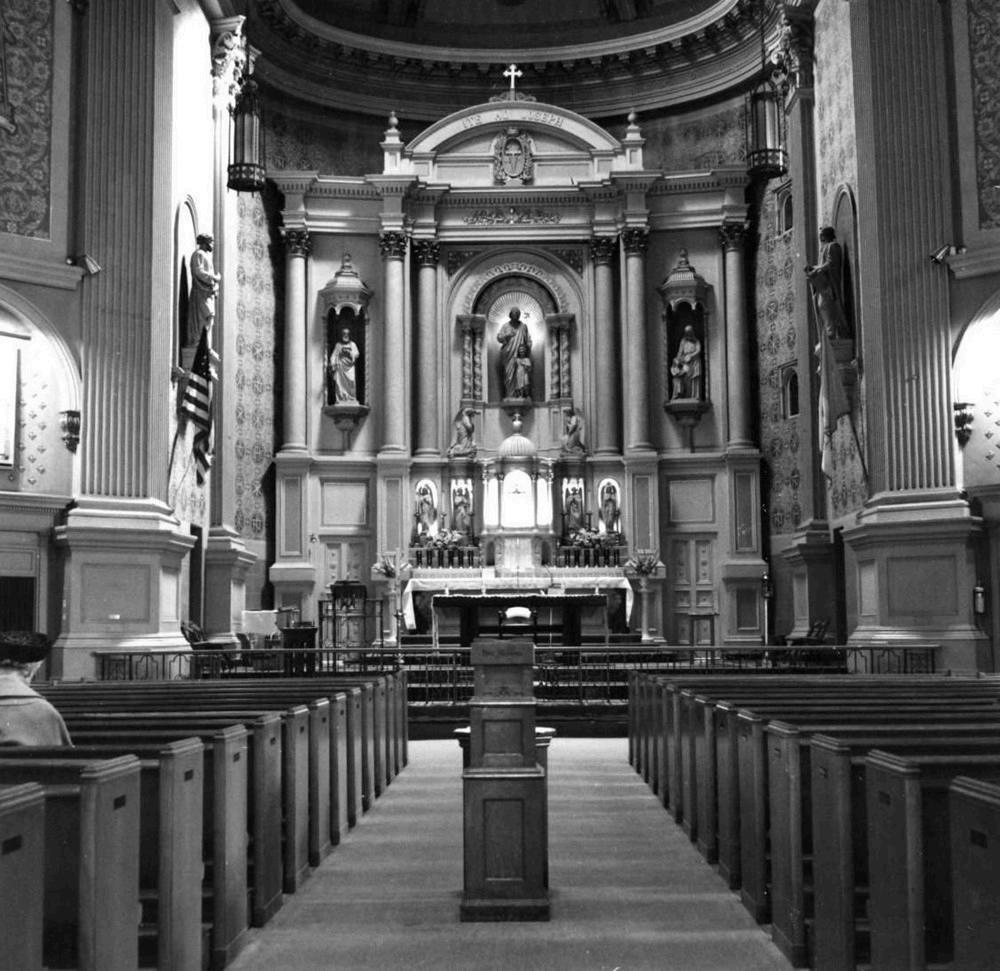

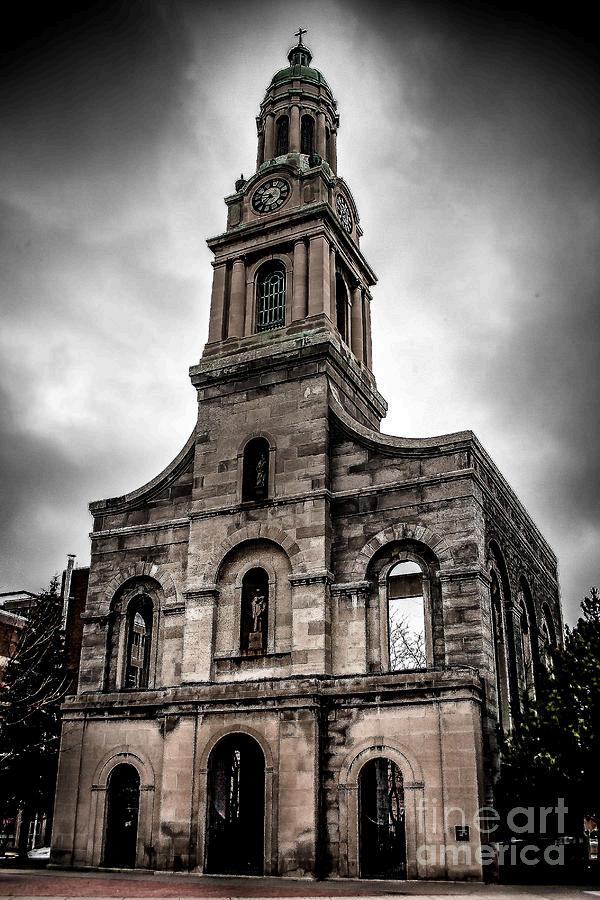

St. Joseph’s Roman Catholic Church in Rochester, NY, built in 1843 in the Greek Revival style, symbolized the German immigrant community's values and aspirations for stability and civic virtue. Over the years, significant renovations expanded the church's capacity and architectural grandeur, making it a focal point for cultural and social activities within the German community. However, tragedy struck in 1974 when a massive fire severely damaged the church. Collaborative efforts involving various organizations and preservationists led to the transformation of the surviving portions into a garden park, inspired by similar restoration projects like Coventry Cathedral in England. The restoration process faced challenges such as structural assessment, fundraising, and community engagement to balance preservation with modern functionality. Despite losing much of its original grandeur, St. Joseph's reopening as a park in 1980 signified a symbolic rebirth and highlighted its enduring cultural and historical significance for the Rochester community, showcasing resilience, faith, and the collective commitment to preserving heritage.

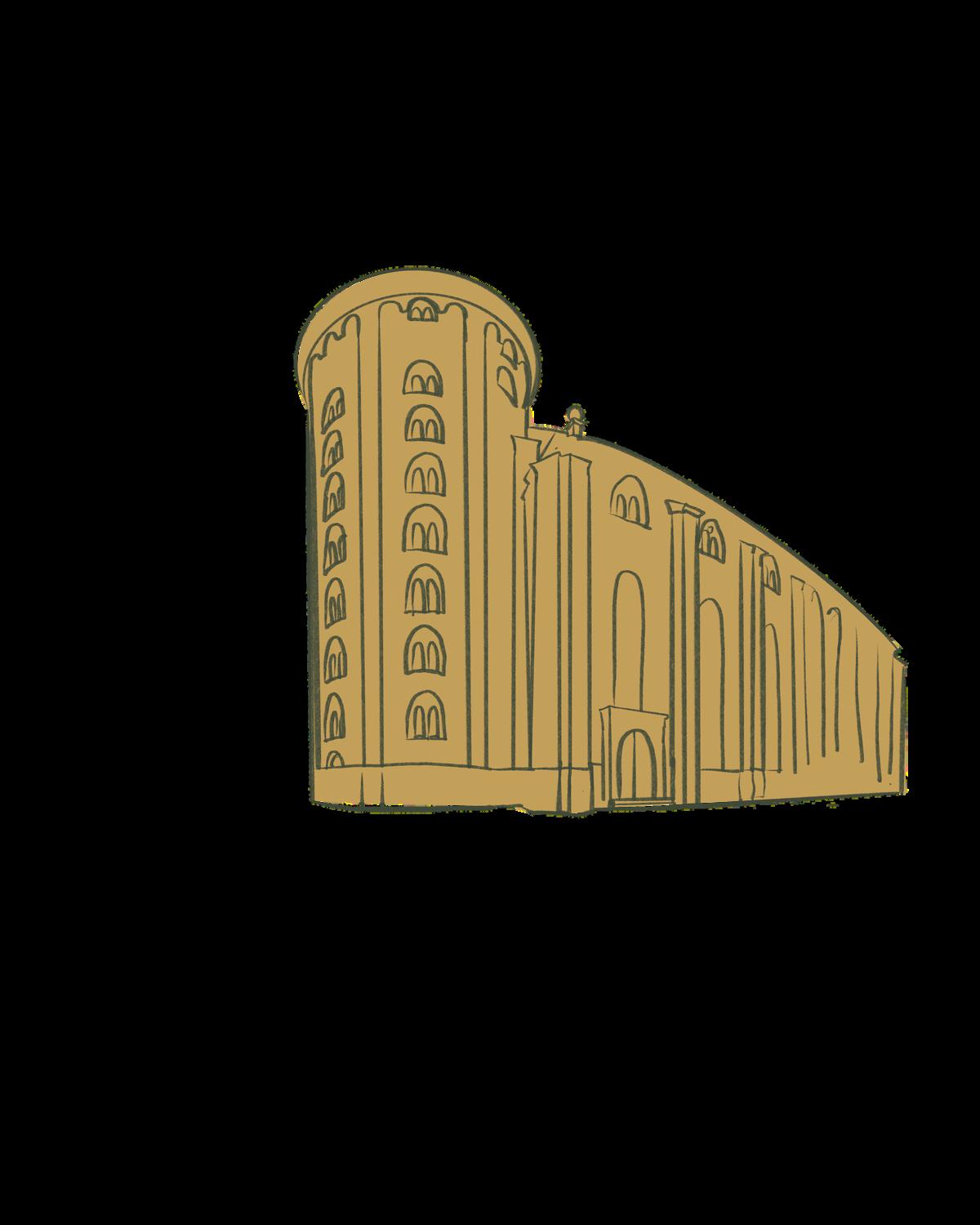

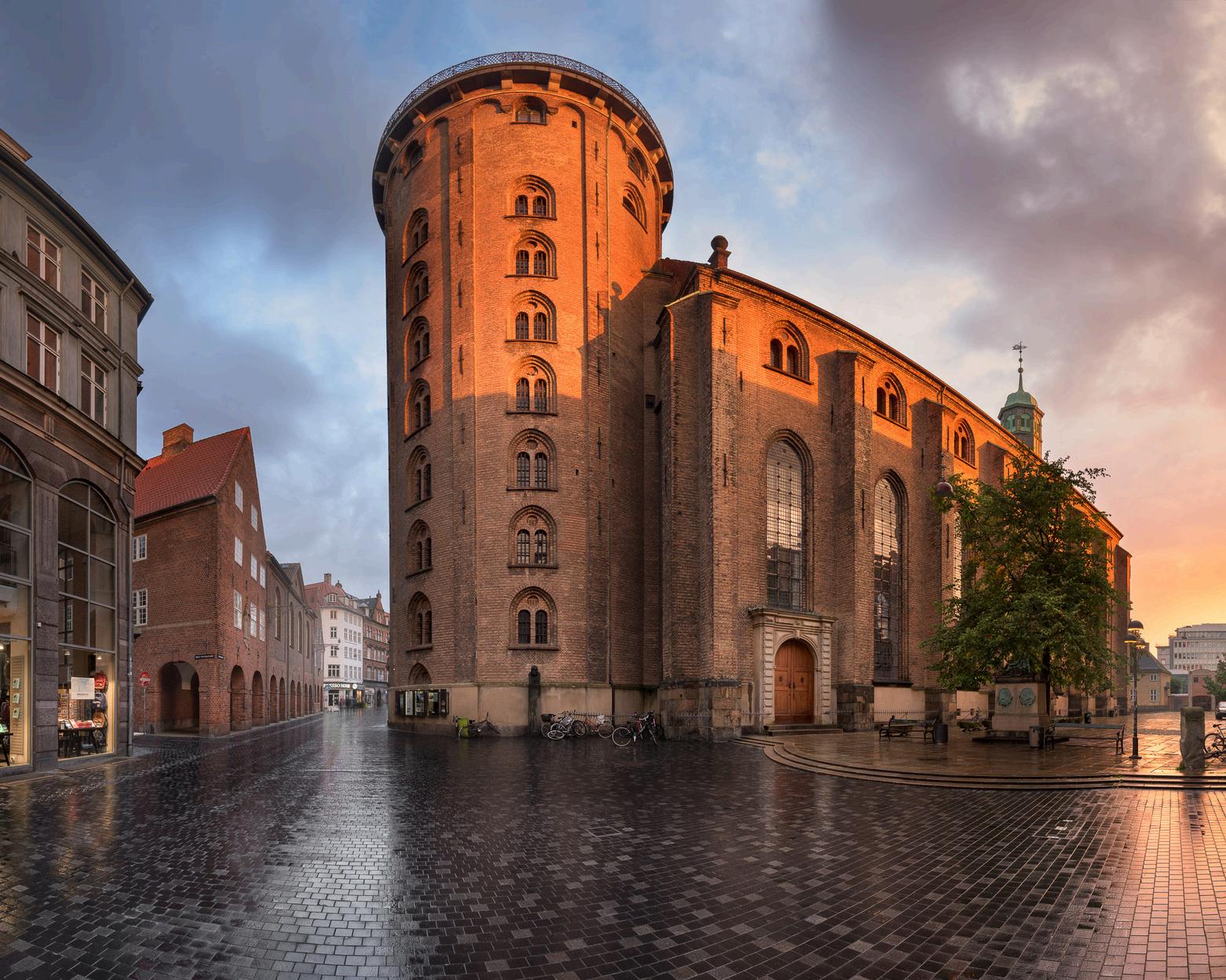

The Round Tower

Copenhagen, Denmark

built in the 17th century and complet the reign of King Christian IV of Denm architect Hans van Steenwinckel the cylindrical shape made of brick, topp copper roof.

49 ft diameter 118 ft tall,

A spiralramp winds its way around t tower, allowing astronomers to trans equipment, such as telescopes and i tower's design facilitated the study o without the hindrance of nearby buil

On the rear side, the tower is attache Church, but it has never served as a Library Hall, located halfway up the R houseschangingexhibitions of art, d and cultural events

Top of Round Tower houses the olde observatory in Europe

Ramp Ob ti D k Library Hall Library Hall

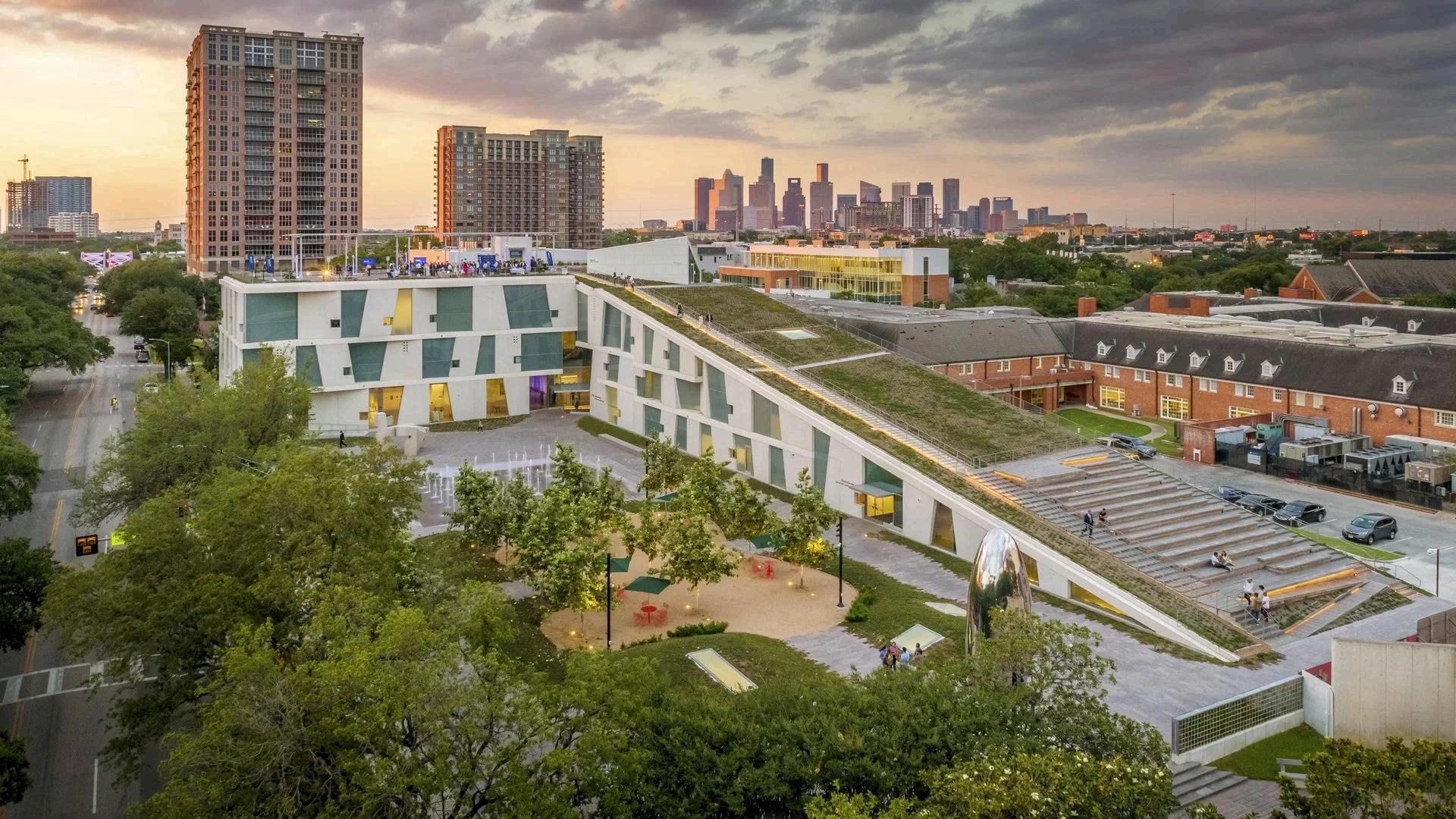

Glassell Schoolof Art,Museum ofFineArts

Houston, Texas

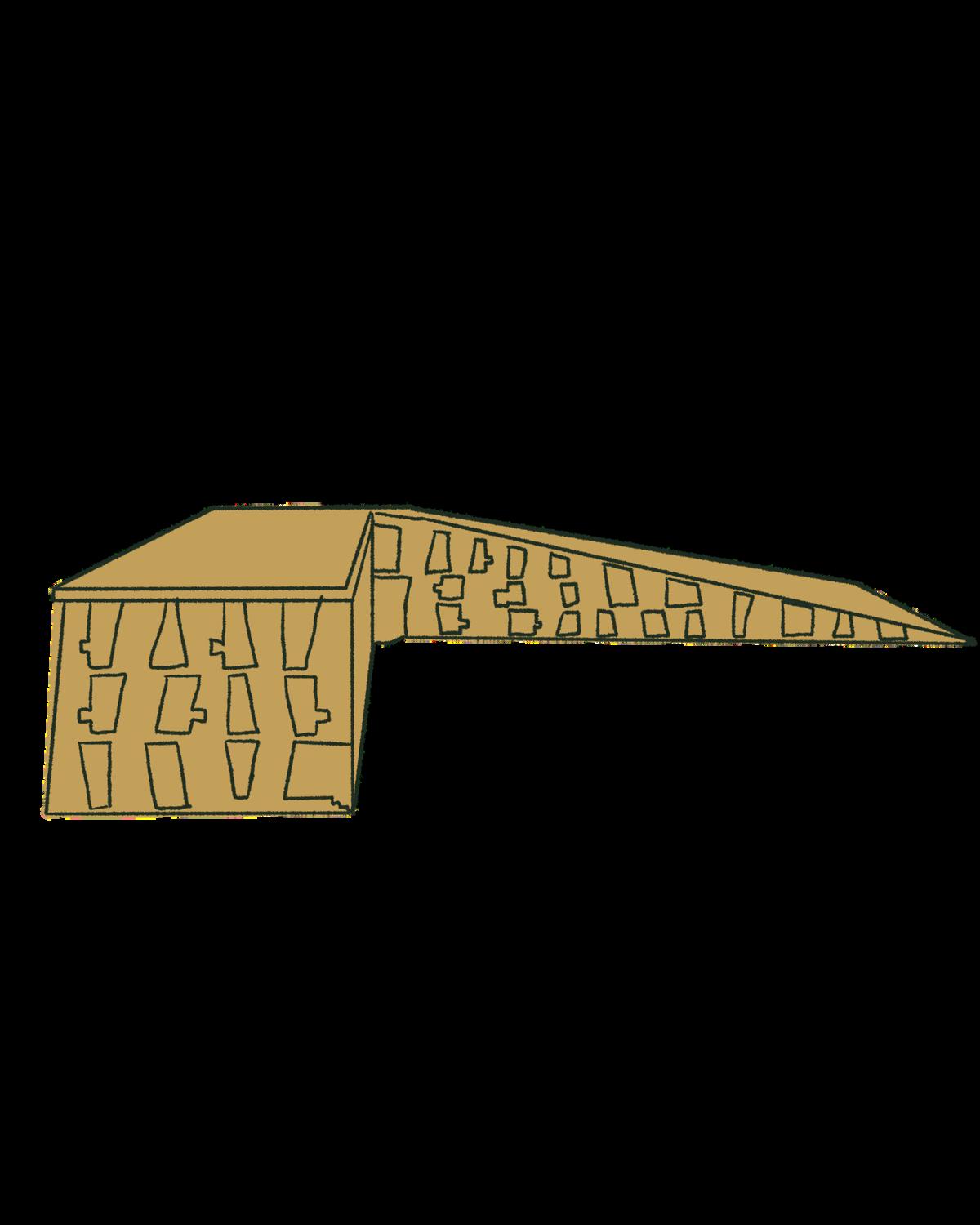

The inclined roof shapes an amphitheater and a public path to a rooftop garden

n the 1970s, cape with d interior

The adaptive reuse project expanded the school's educational facilities, including studios, classrooms, lecture halls, workshops, and exhibition spaces

Precast concrete structural elements from Waco, Texas, support the floors, define the exterior, and reflect the adjacent sculpture garden's angles.

incorporated sustainable design principles and green building features, such as energyefficient systems, natural daylighting, and environmentally friendly materials (LEED Silver)

P li i Sk t h S h lI t i

EastWestSections NorthSouthSections

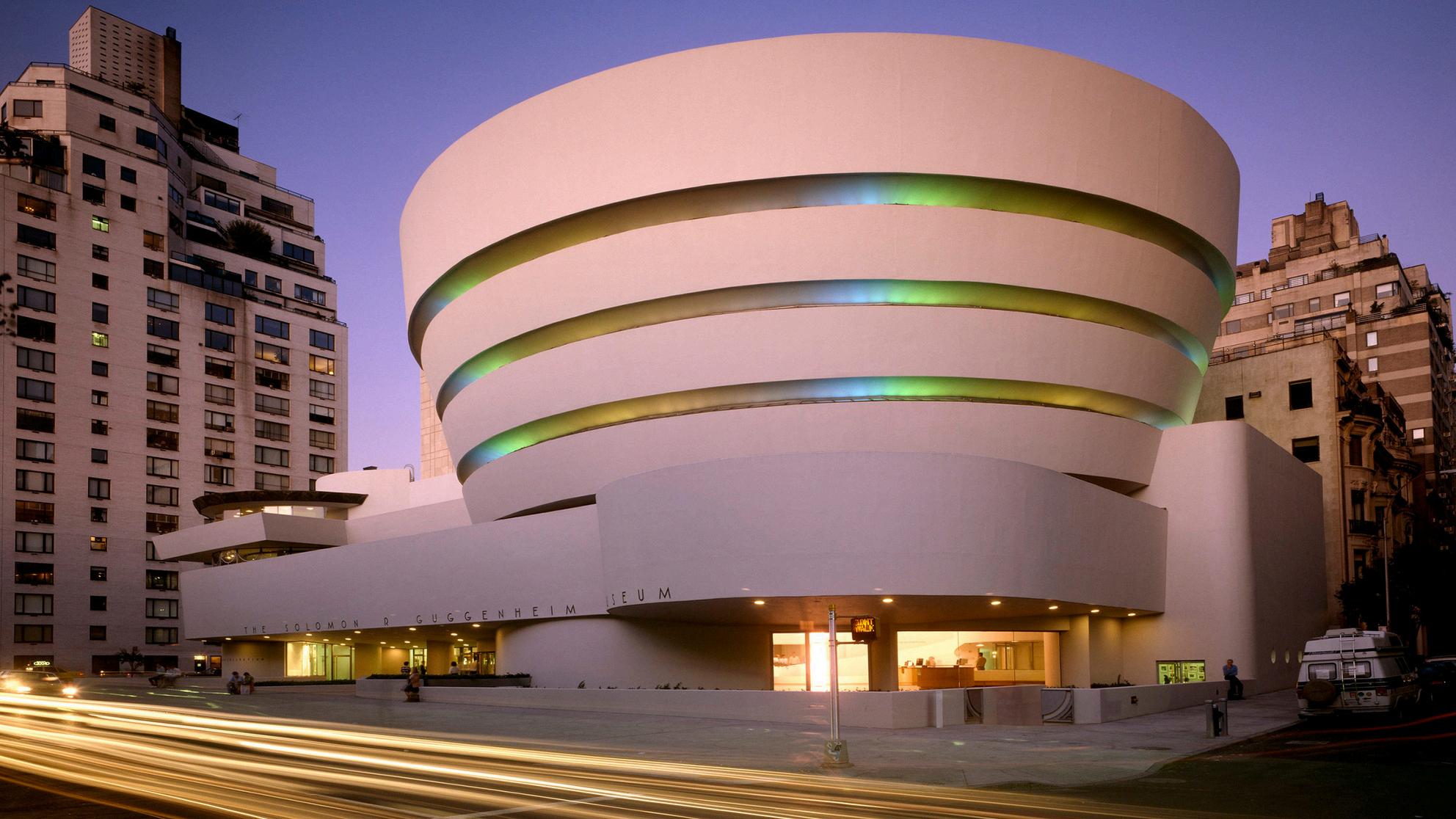

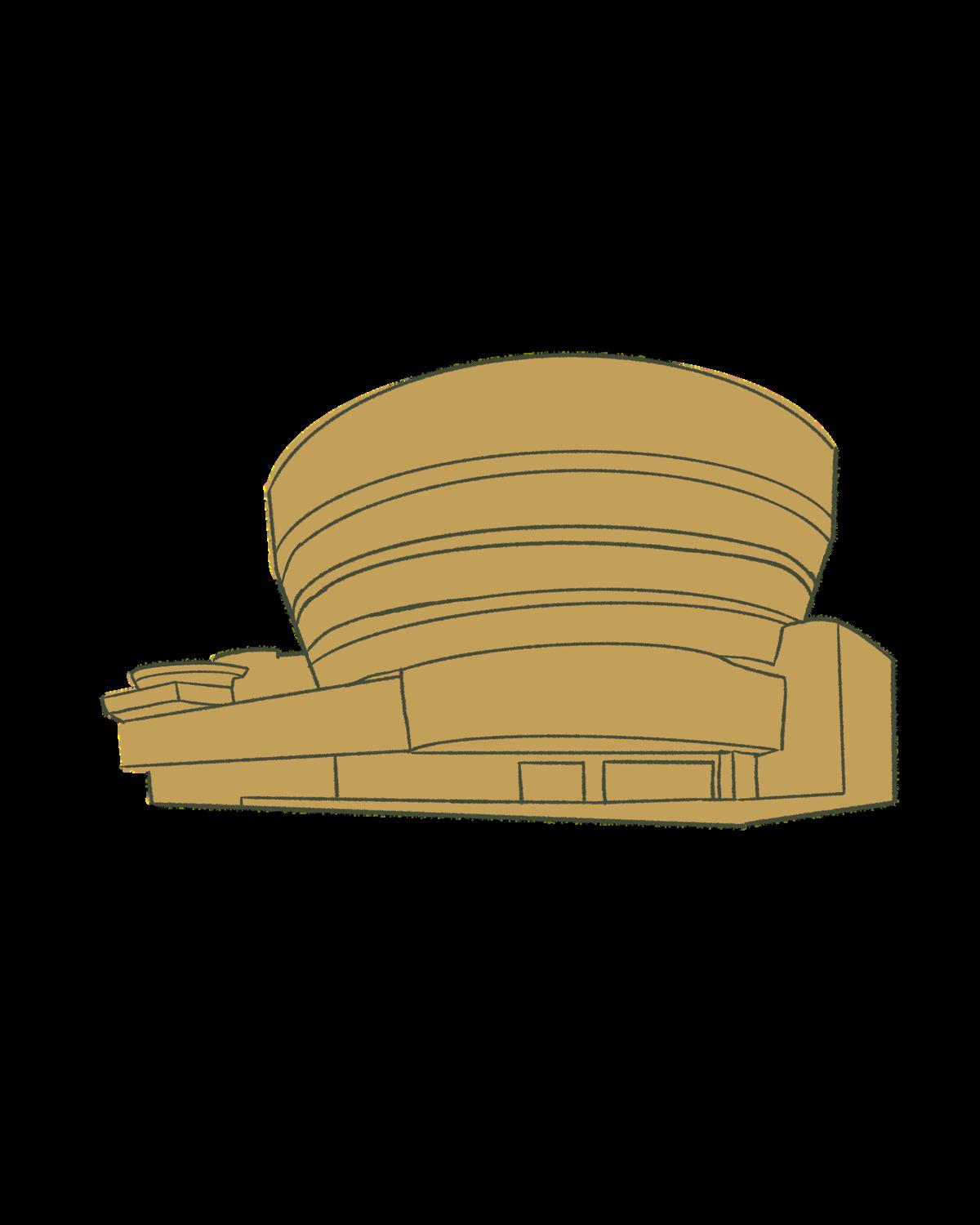

Guggenheim Museum

New York, New York Designed by Frank Lloyd Wright in the 1950

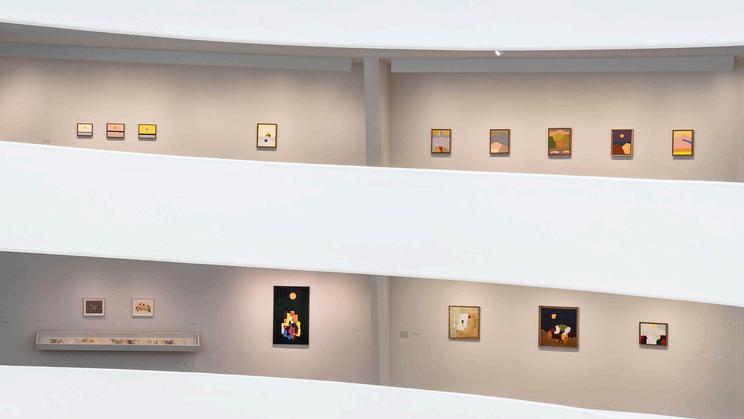

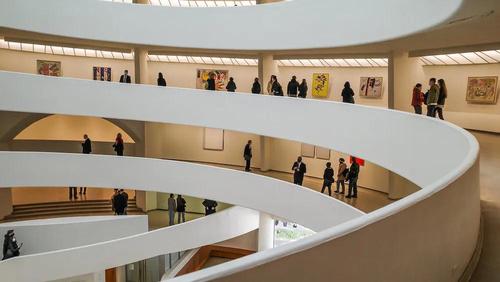

The central feature of the museum is its s continuous gallery space without tradition

Instead of conventional staircases, visitor around the central atrium, allowing for a s encouraging uninterrupted exploration an At the center of the rotunda is a circular a sense of openness and connection betwe features a combination of materials such as concrete, glass, and limestone, contributing to its modern yet timeless aesthetic.

Wright's design incorporates sculptural elements, including curving walls, rounded edges, and geometric patterns, creating a dynamic and visually engaging environment.

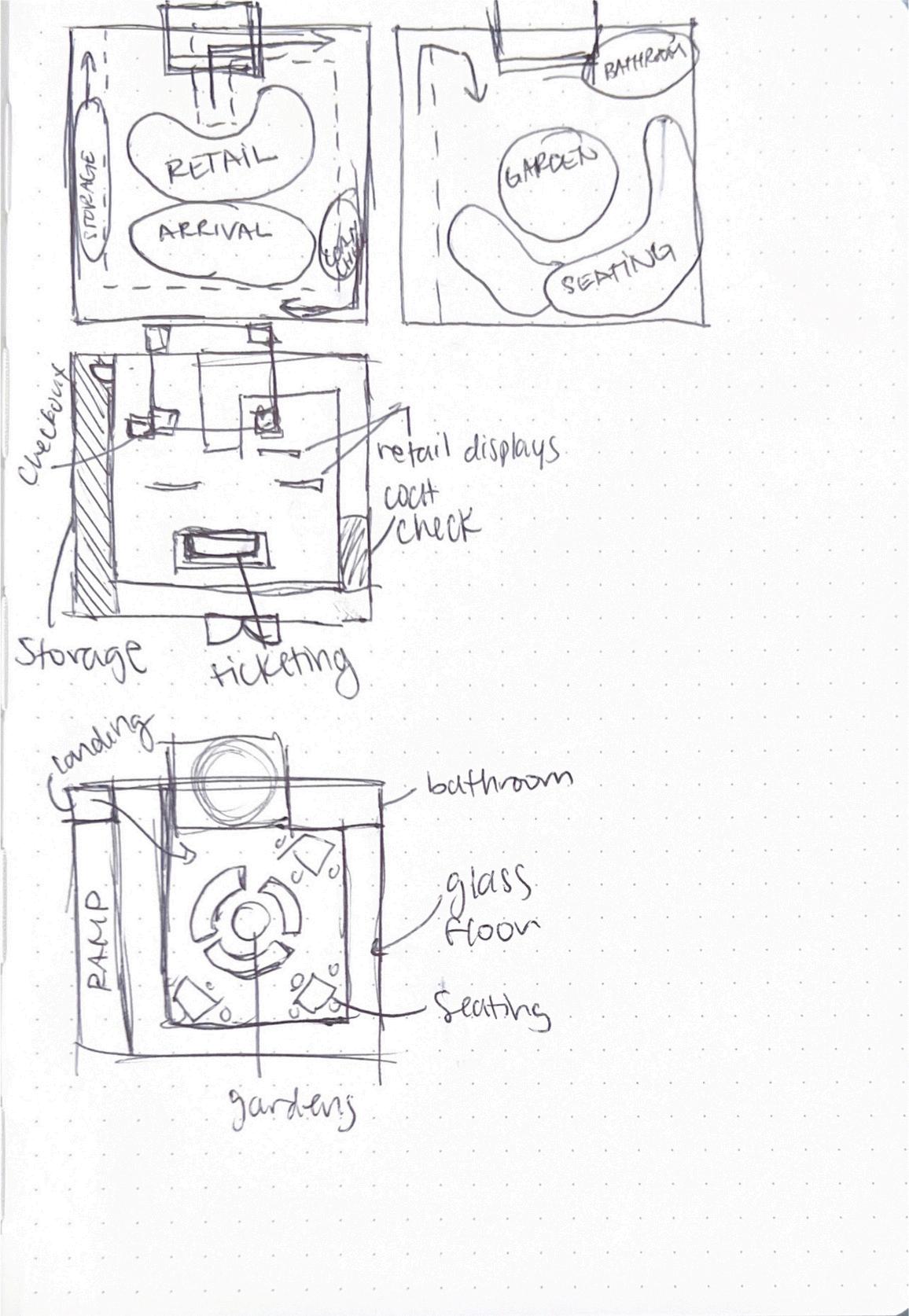

ARCHITECTURAL PROGRAMMING

Concept

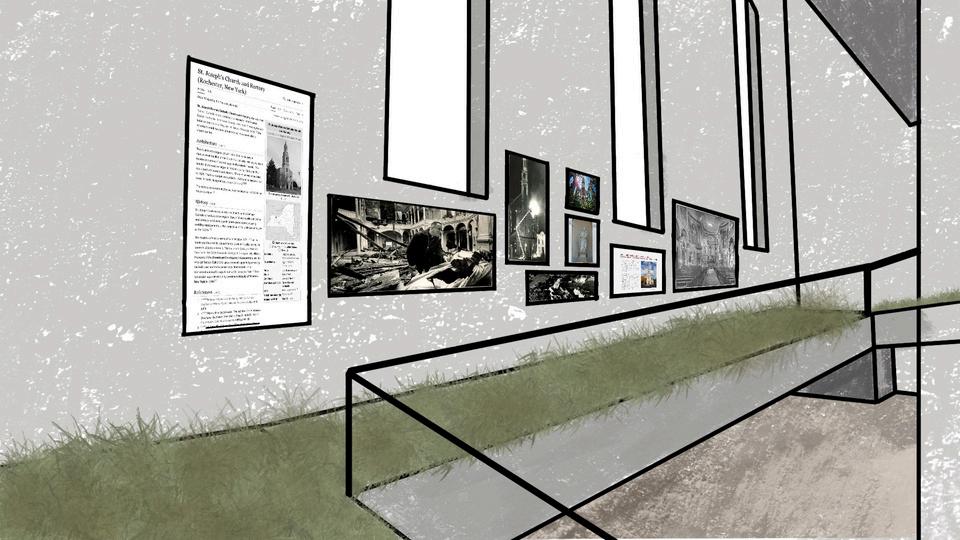

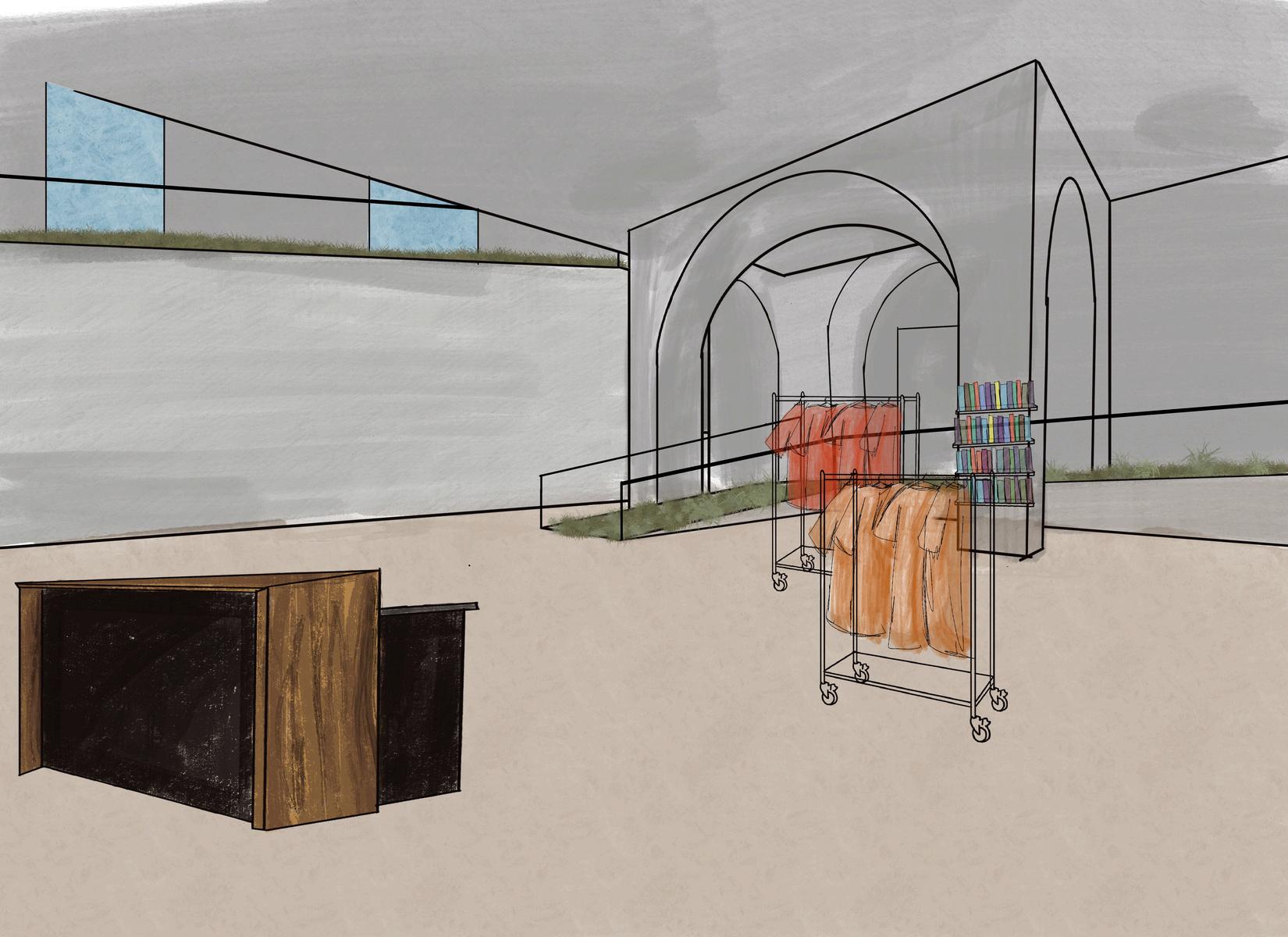

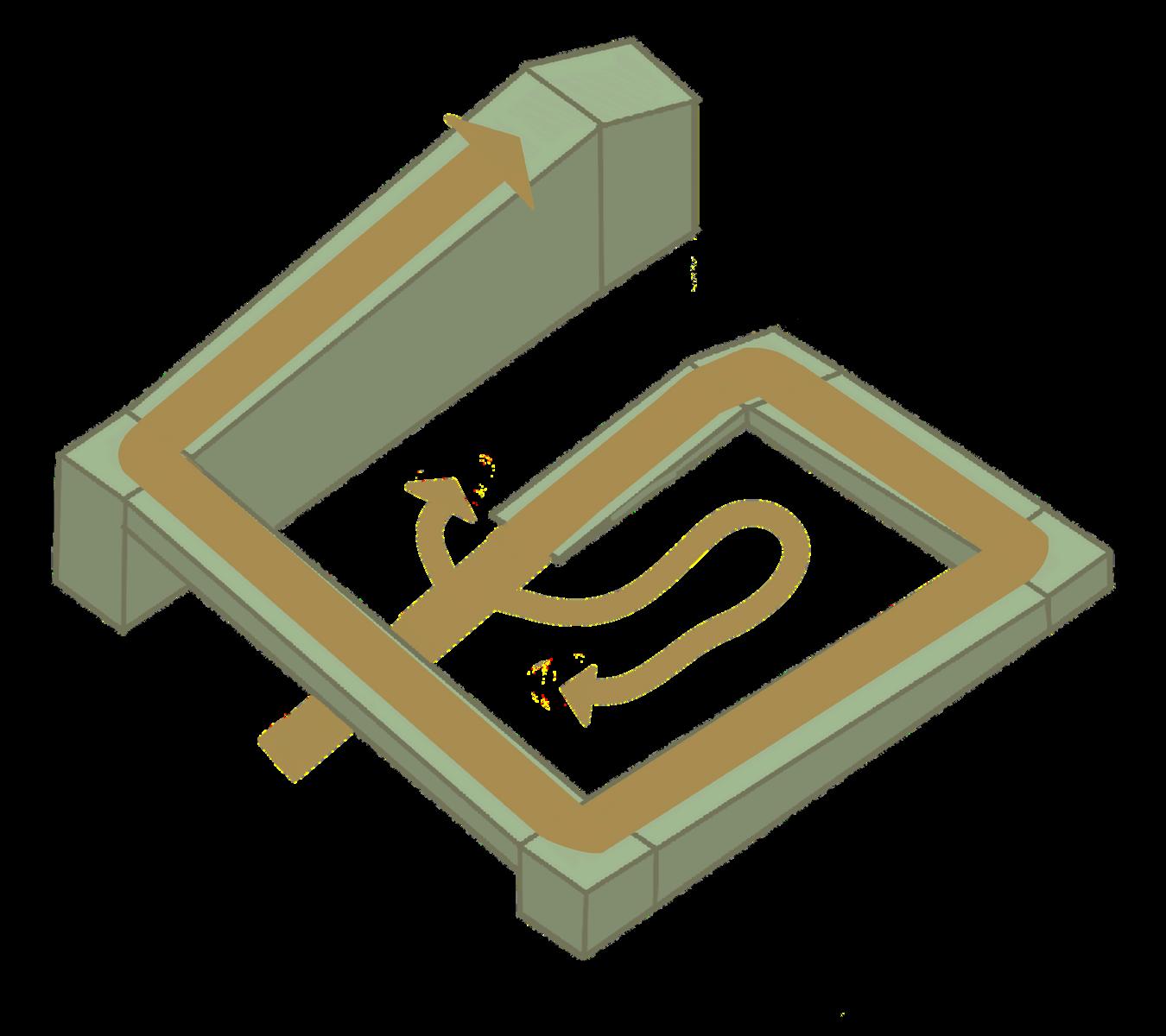

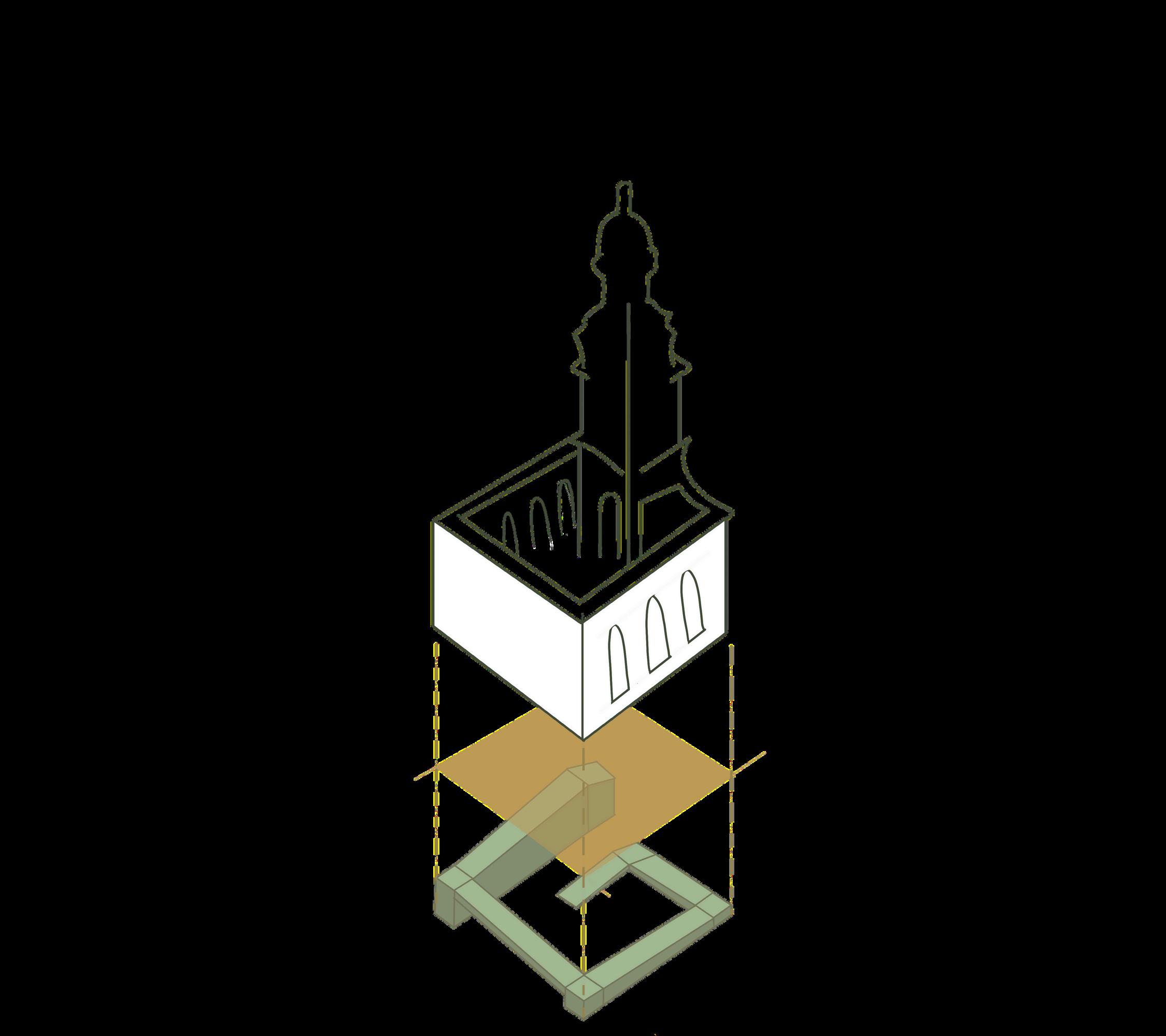

The New St. Joseph’s Church is an exhibition space designed to showcase the rich history of St. Joseph's Church in Rochester, NY, and its remarkable recovery from a devastating fire. Inspired by the architectural elements of the Glassell School of Art in Houston, TX, the exhibition features green ramps that gracefully ascend the interior of the church. These ramps serve as symbolic representations of growth, hope, and the church's transformative journey toward renewal. The design of the exhibition space adopts a dynamic and immersive style reminiscent of the Guggenheim Museum, guiding visitors along a continuous path that unfolds the narrative of the church's history, challenges, and triumphs.

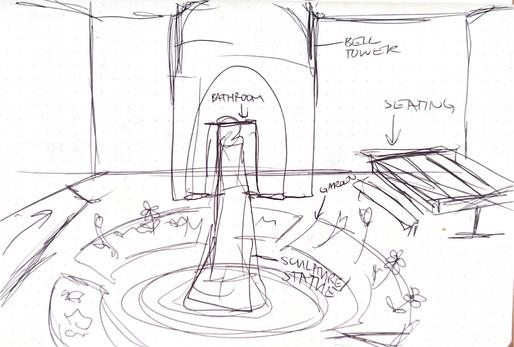

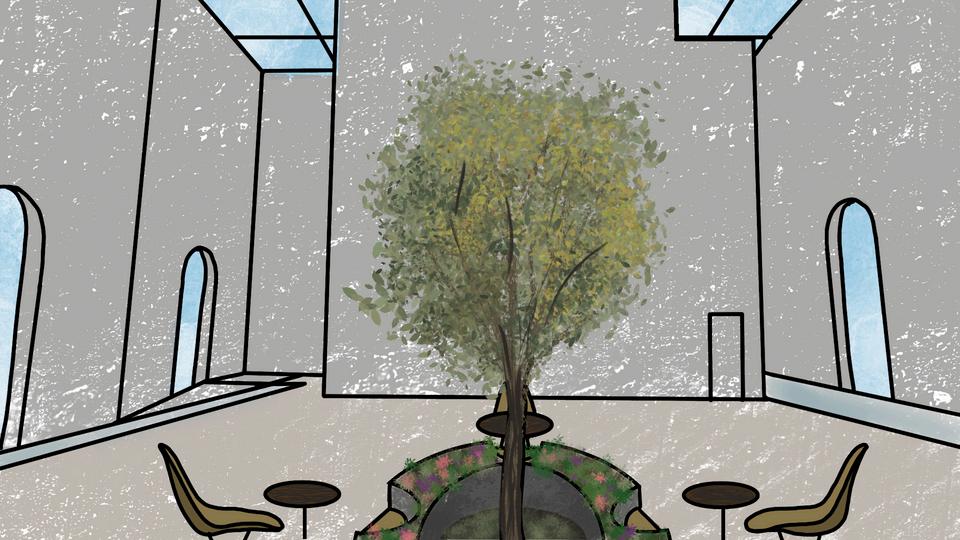

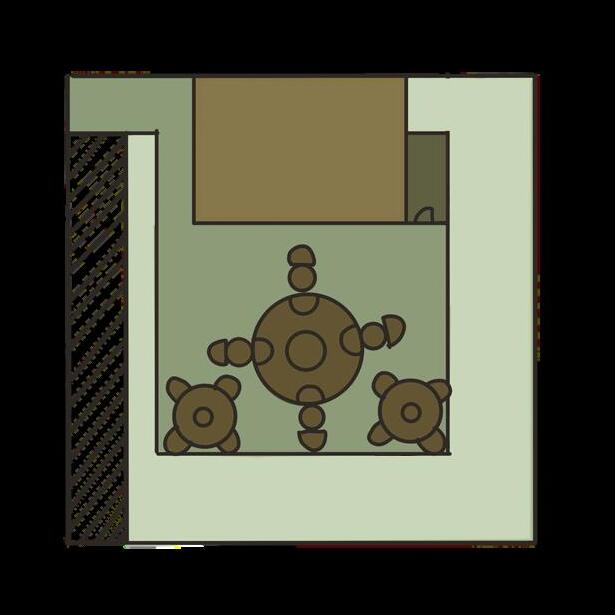

At the pinnacle of the green ramps, visitors reach a culminating gathering space situated atop the church's skeleton. This elevated garden area creates a sense of elevation, accomplishment, and unity as visitors reflect on the church's enduring spirit and the collective efforts that led to its restoration. Ultimately, the revitalized exhibition space at St. Joseph's Church aims to educate, inspire, and instill a sense of pride in the community by celebrating the church as a symbol of perseverance, transformation, and community resilience.

SiteMap

buildingfootprint surroundingbuildings roads parking/pavedareas trees greenareas ROCHESTERPREP REDFRONTLIQUOR/ FOURGUYS QUIKMINIMART ROCHEARLY CHILDHOOD CENTER PLEASANTST N CLINTON AVE ANDREWSST ERLANDEESSENCE SALON COMMUNITYBIBLE CHURCH F R A N K L I N S T N
