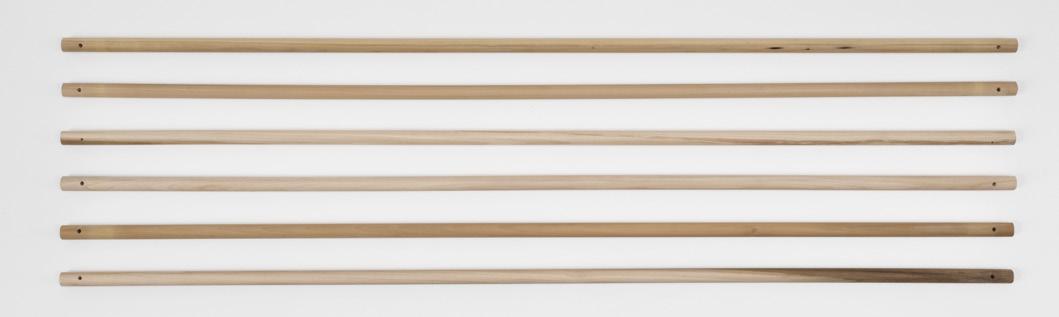

Please Check To Make Sure No Parts Are Missing □ 6 Dowel Rods

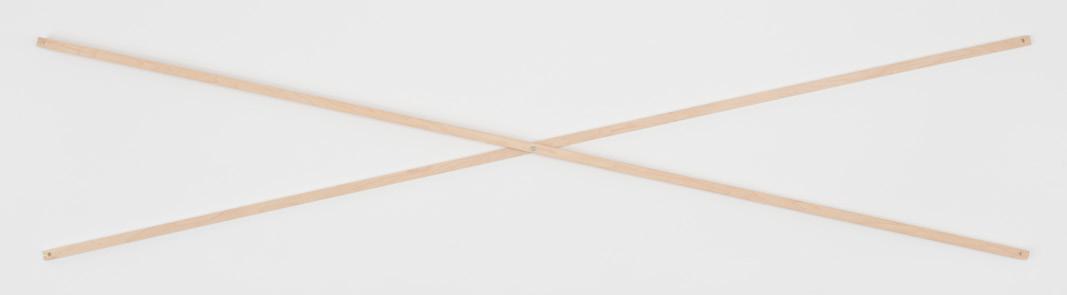

□ Back Cross Brace

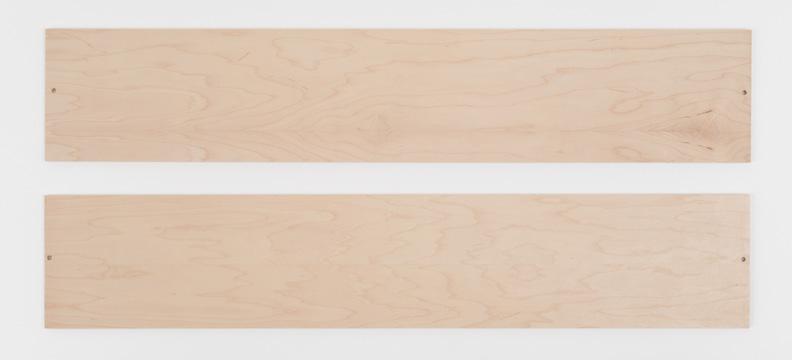

□ 2 Floor Board Pieces

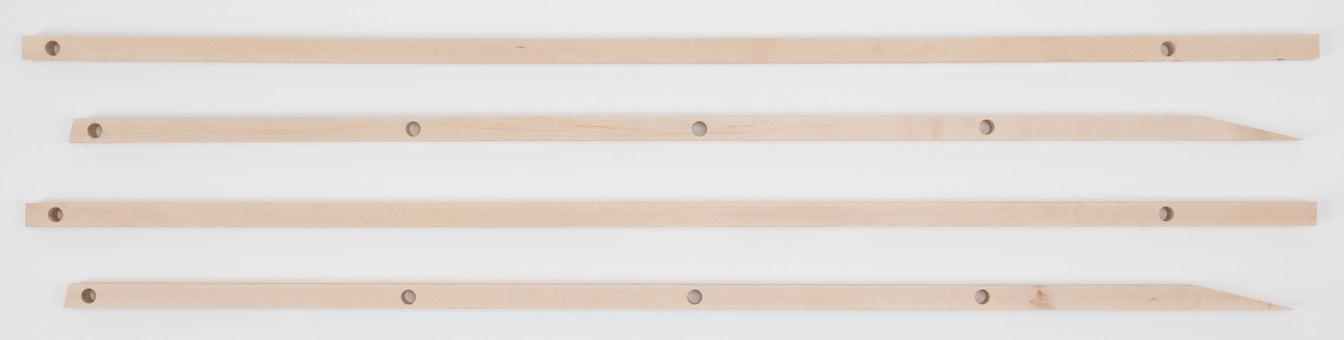

□ 2 Wooden legs

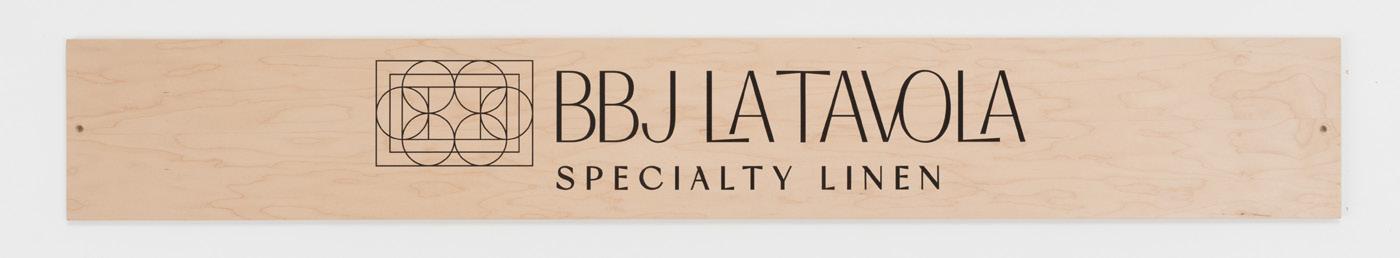

□ 1 Wooden Sign with Logo

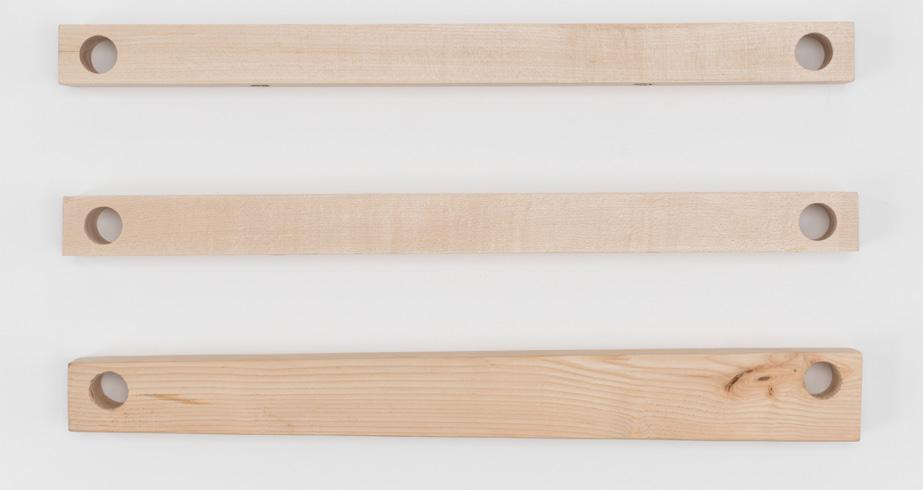

□ 3 Wooden Base Pieces

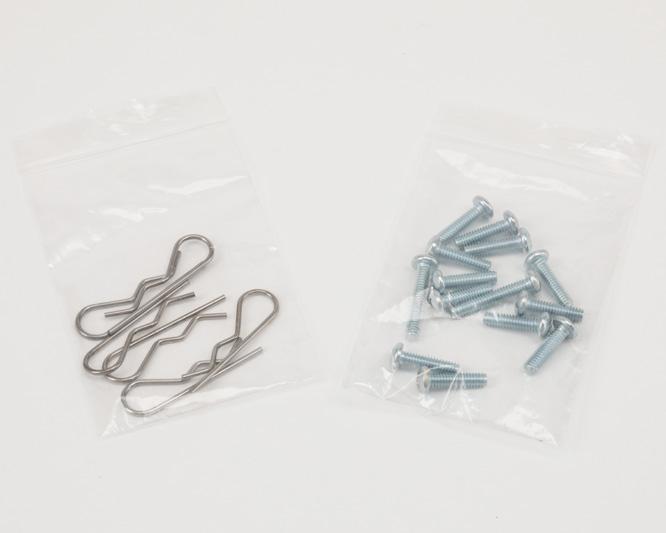

□ Screws & Cotter Pins
Step 1
Unpack Everything
> Open the box carefully.
> Inside, you’ll find all the wood pieces, rods, hardware, and a checklist to make sure nothing is missing.
Build The Frame

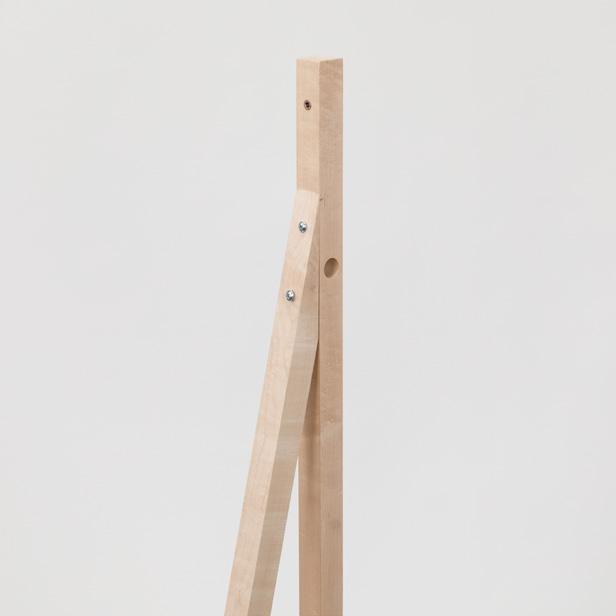

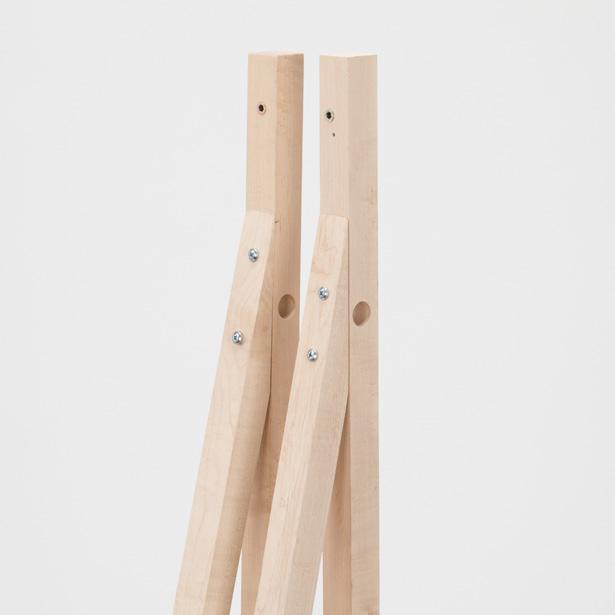

> Align the Legs: Take one upright square post and one angled square post Overlap them near the top.

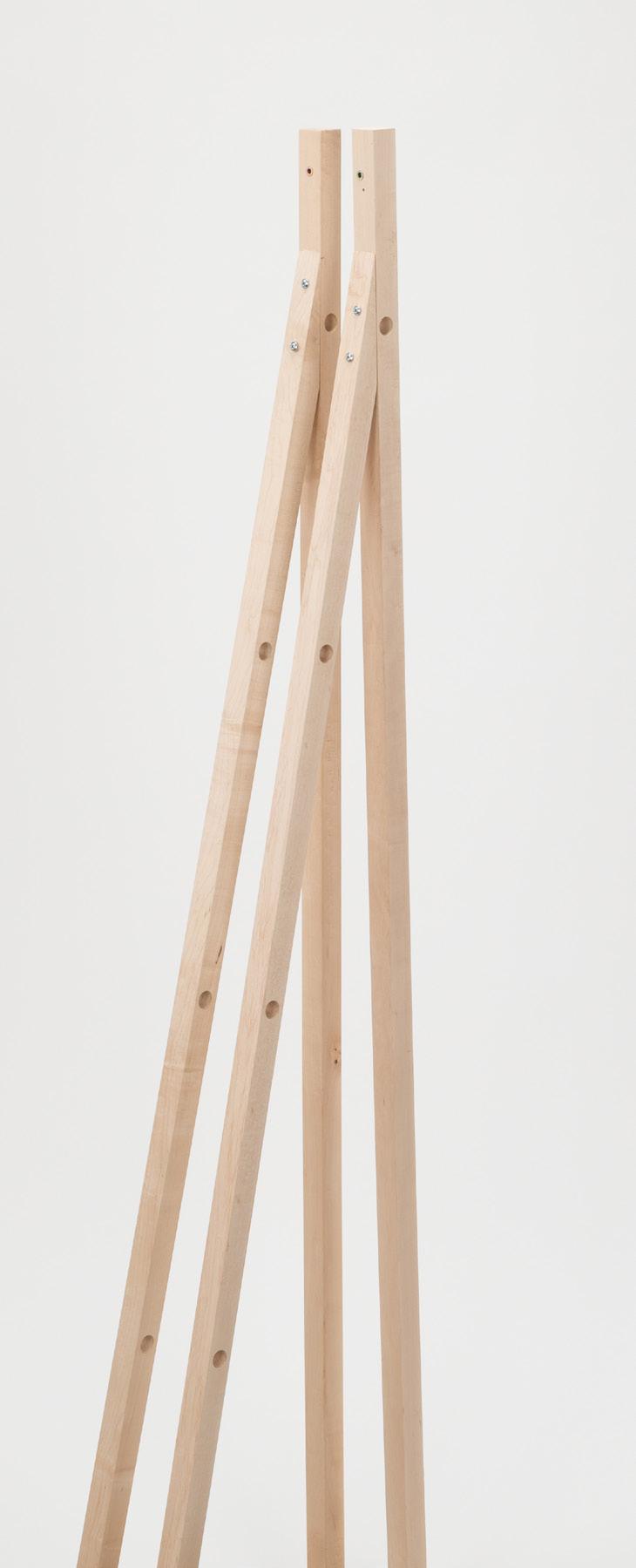

> Secure the legs: Use the screws provided, fasten the angled post to the upright post through the pre-drilled holes. Do this for both sets of legs to create two complete A-frame side assemblies.
Insert The Rods
> Slide a Dowel Rod through the holes in each leg.

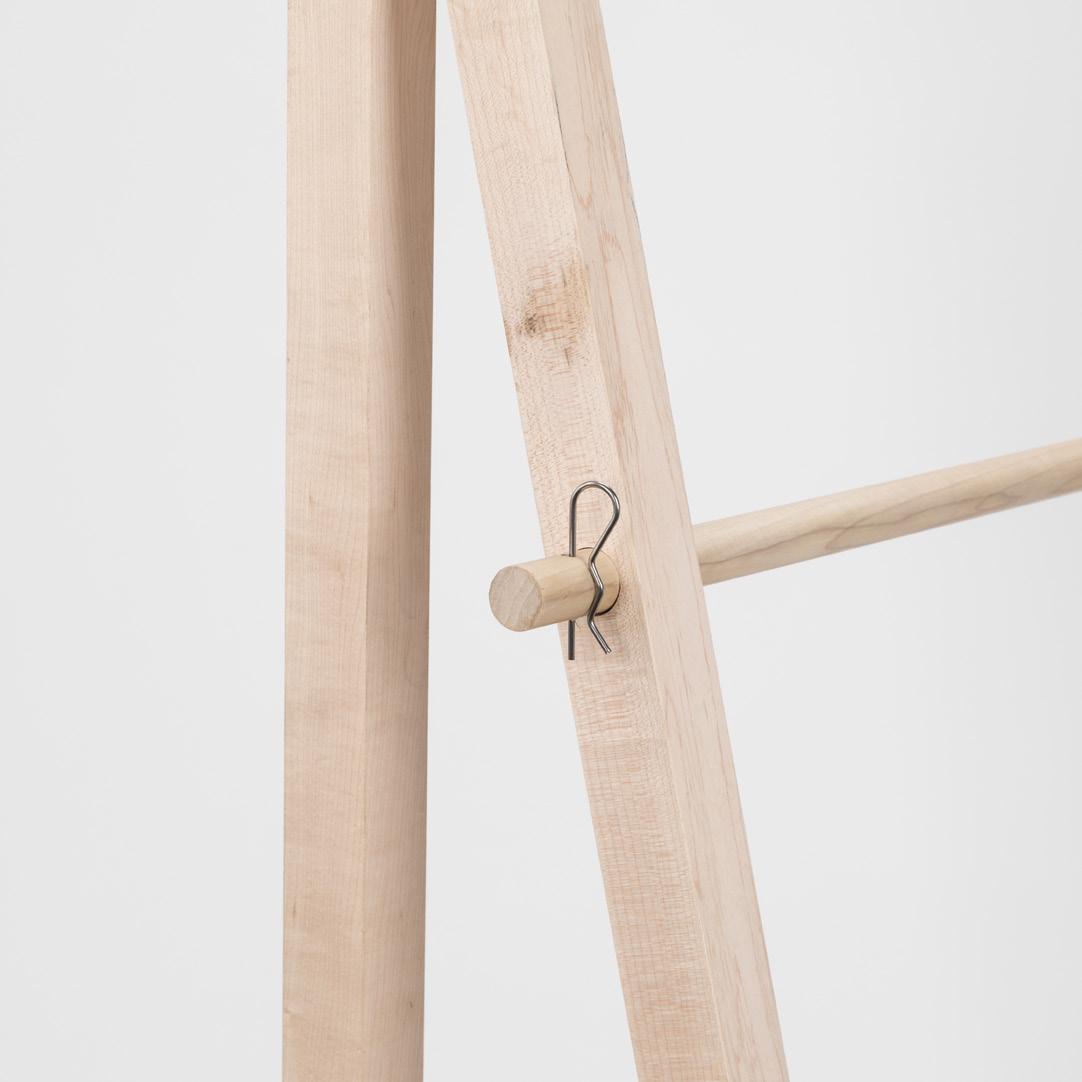

> Using a cotter pin on each side, secure the rods to the legs.
> Leave the holes in the base of the legs open for now.
Add Bottom Wooden Blocks

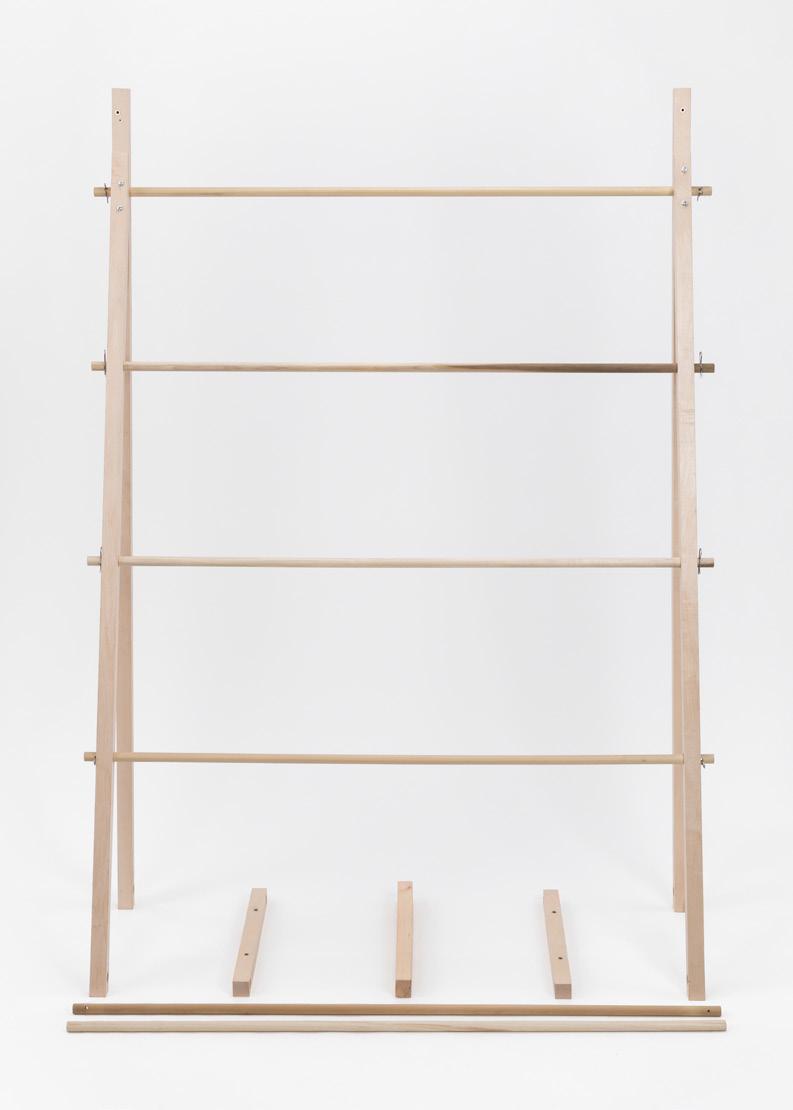

> Lay out the 3 Wooden Base pieces as shown below with the larger of the 3 pieces in the middle. The 2 end pieces are the same size.
> Slide the remaining 2 Dowel Rods through the first set of legs.
> Slide the Wooden Base Pieces onto the wooden dowel rods as you slide it through the other set of legs.
> Secure the Dowel Rods on each side with a cotter pin, just like the dowel rods from step 3
5

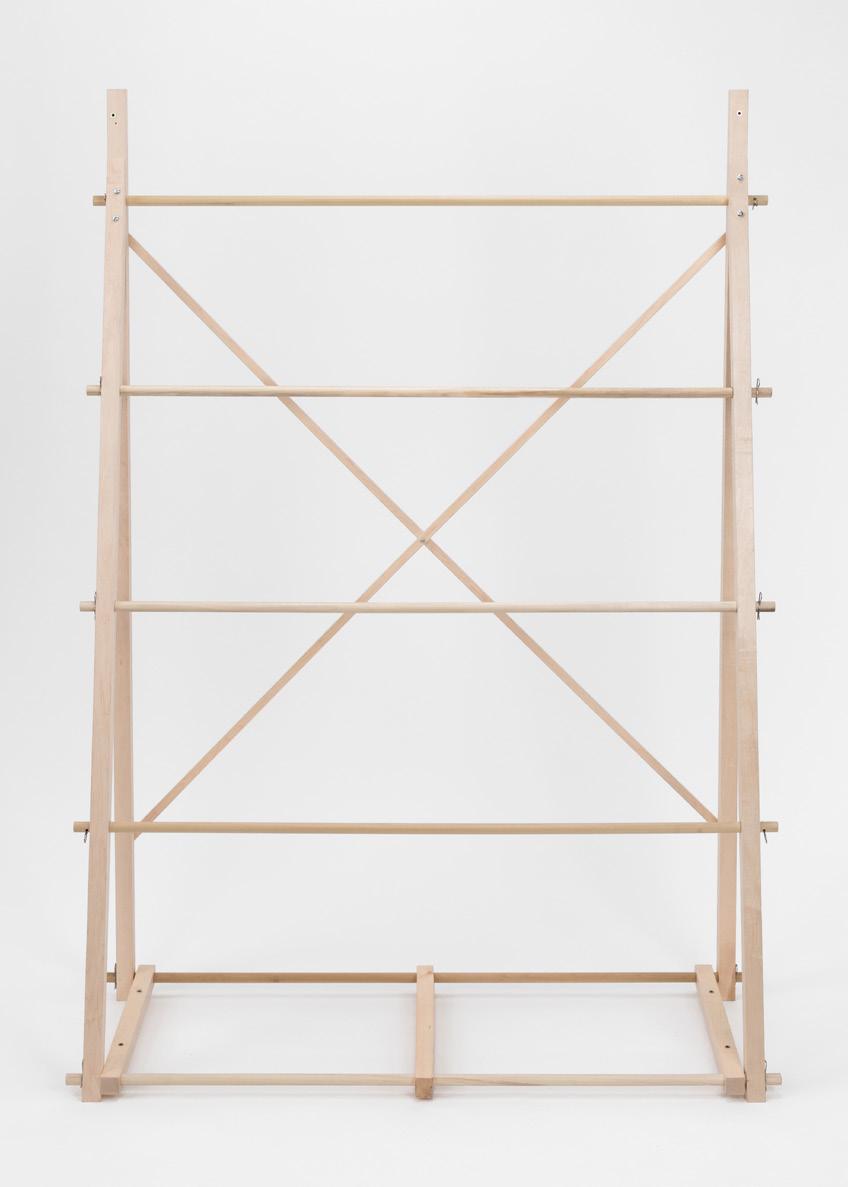

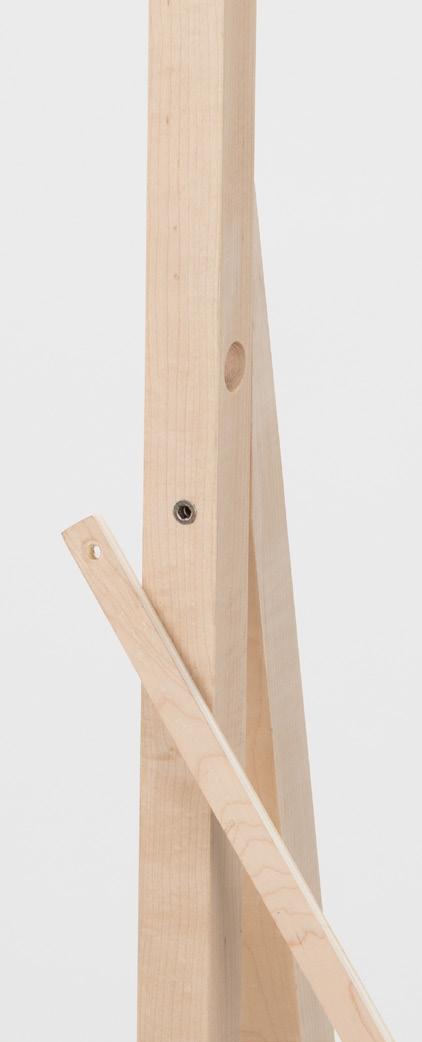

Attach The Cross Brace

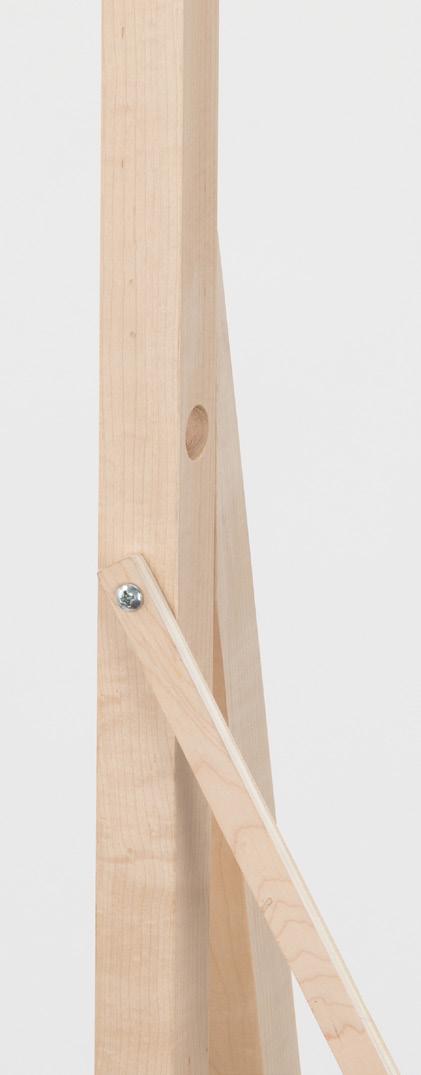

> Lineup the holes in the cross to the holes in the back of the frame
> Using the screws provided secure the cross brace to the frame

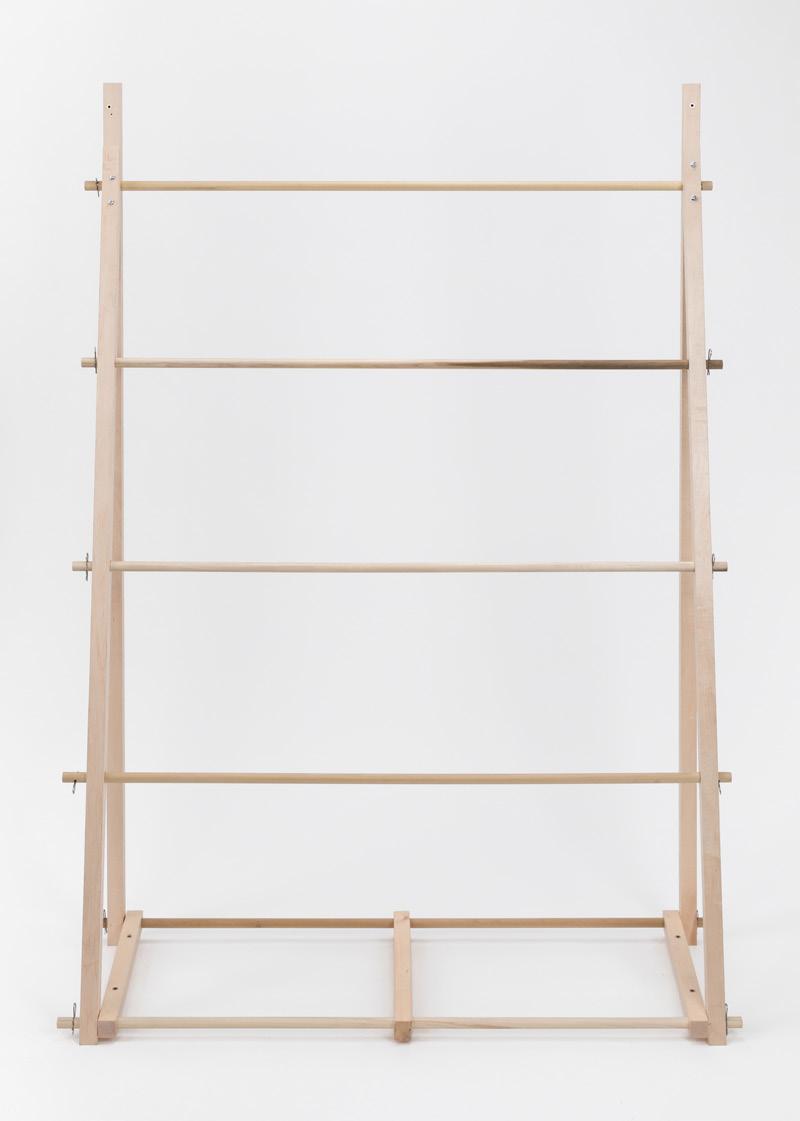

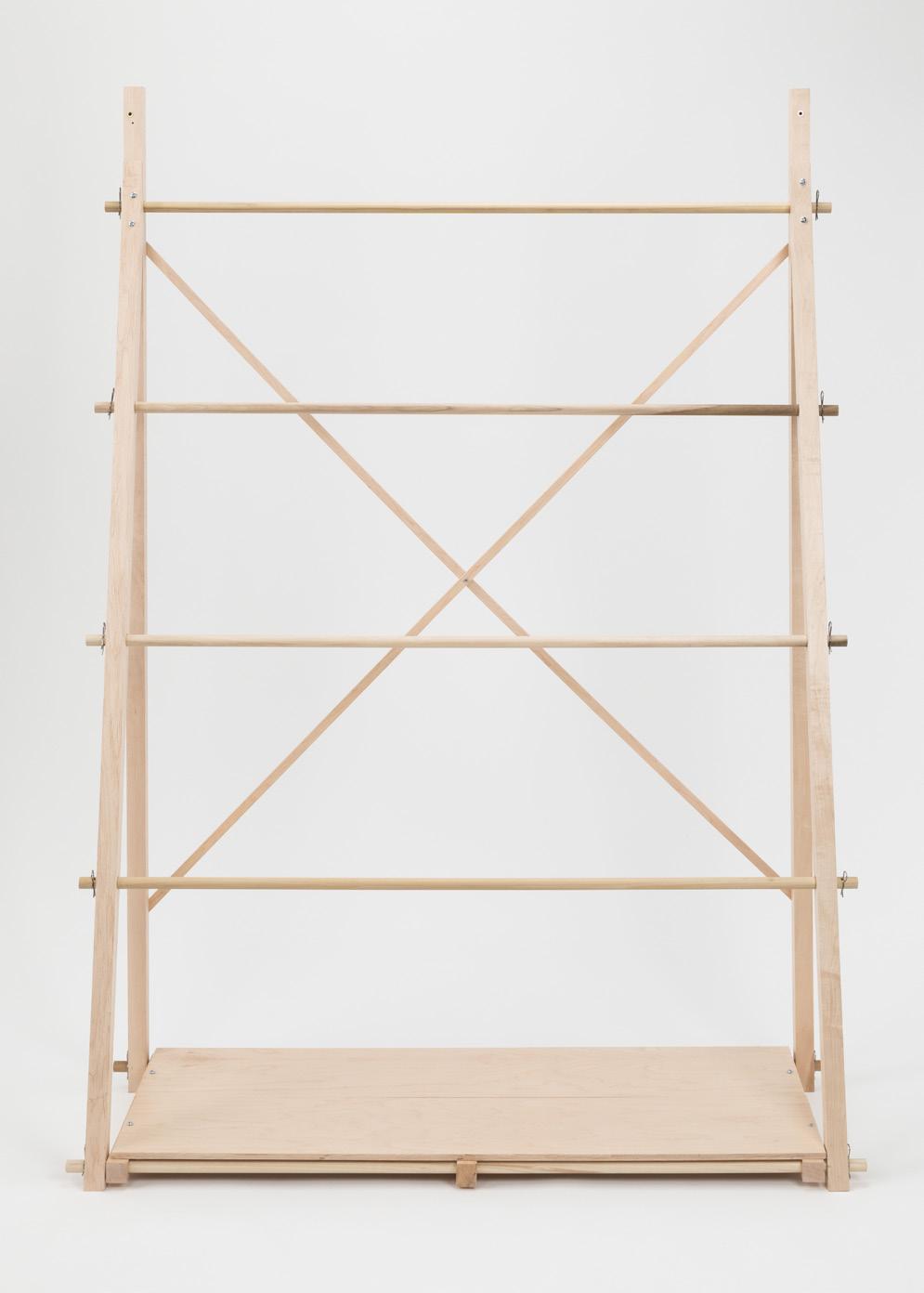

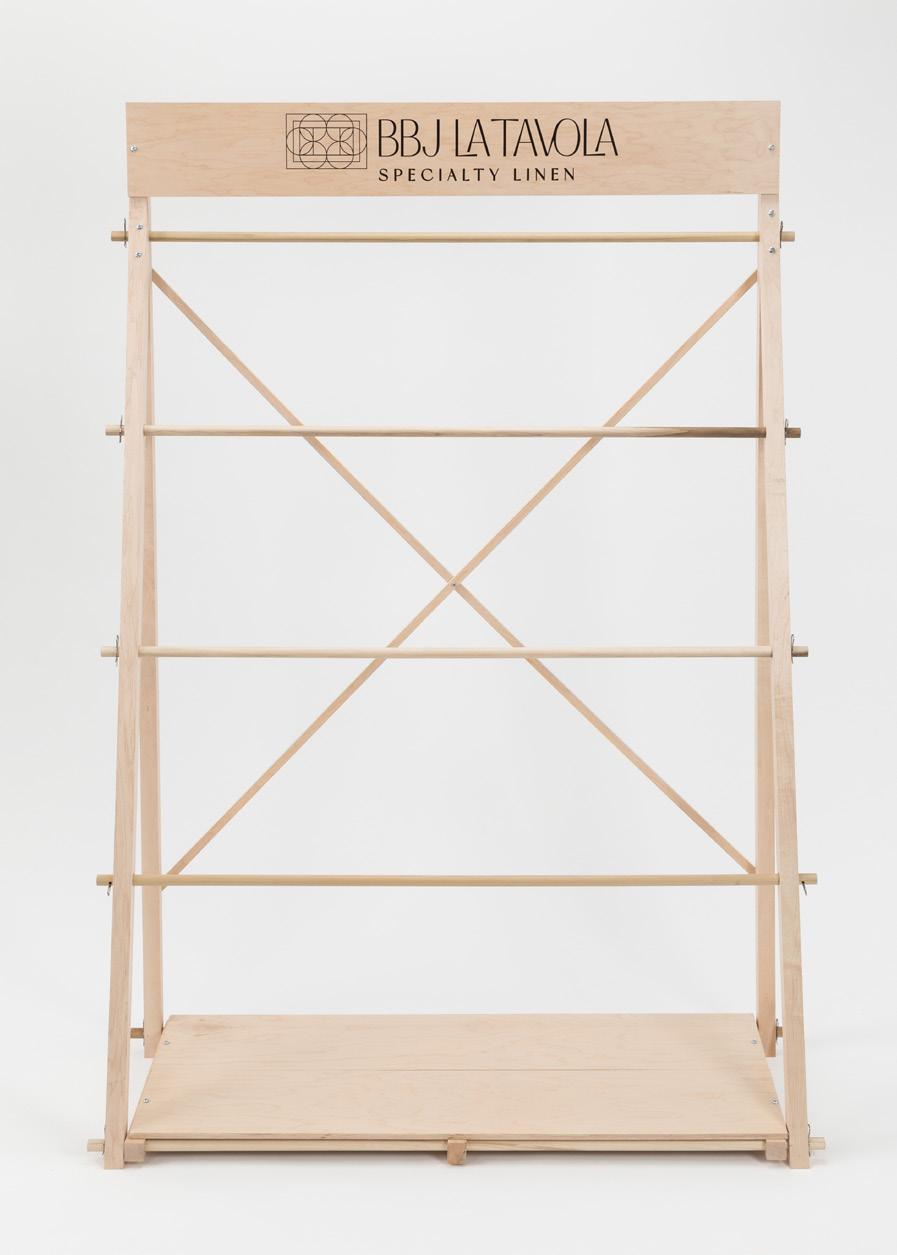

> Your swatch display rack should now look like image

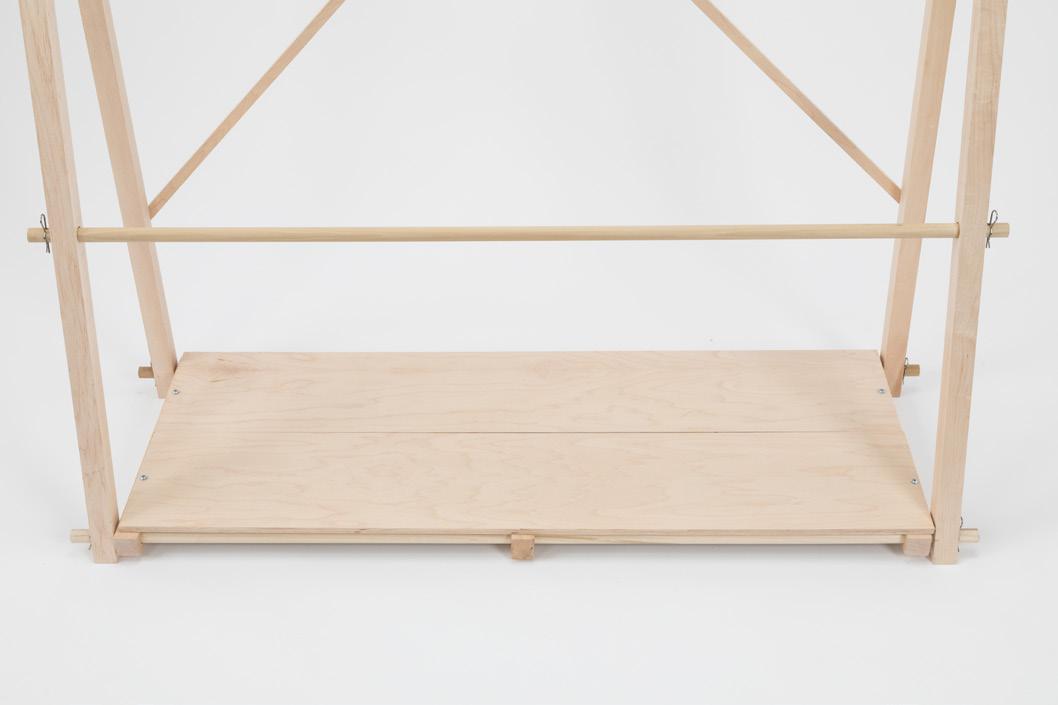

Install The Base

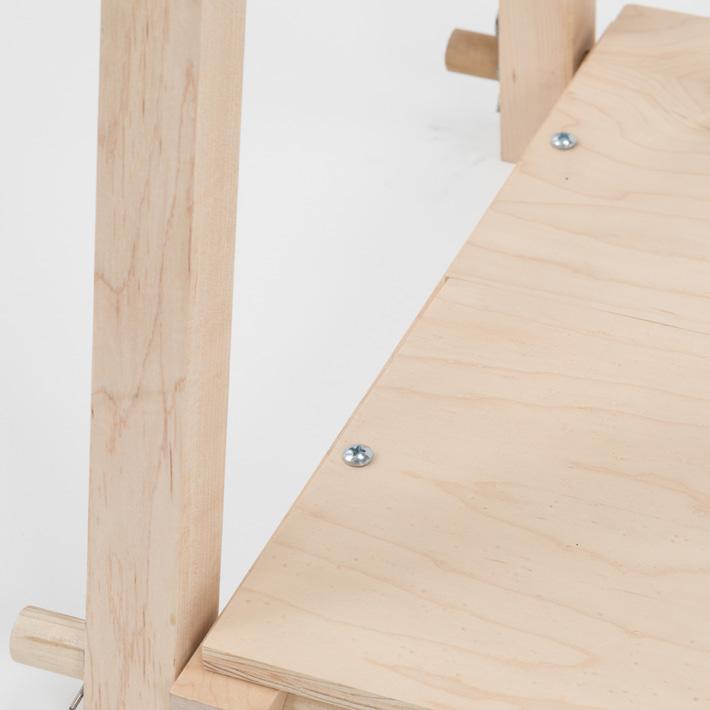

> Lay the 2 Floor Board Pieces on top of the 3 Wooden Base Pieces, lining up the pre-drilled holes with the screw holes in the Wooden Base Pieces.
> Secure the 2 Floor Board Pieces to the Wooden Base Pieces using the provided screws.
Step 7

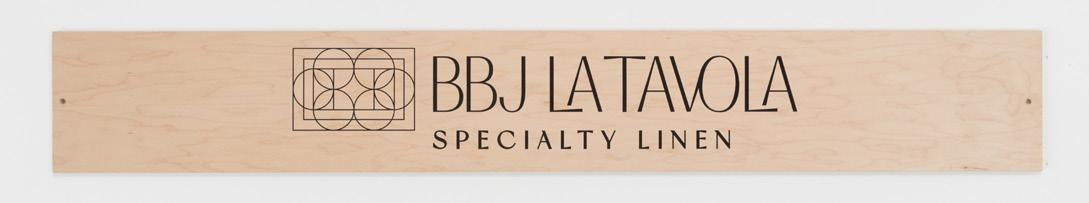

Install Wooden Sign

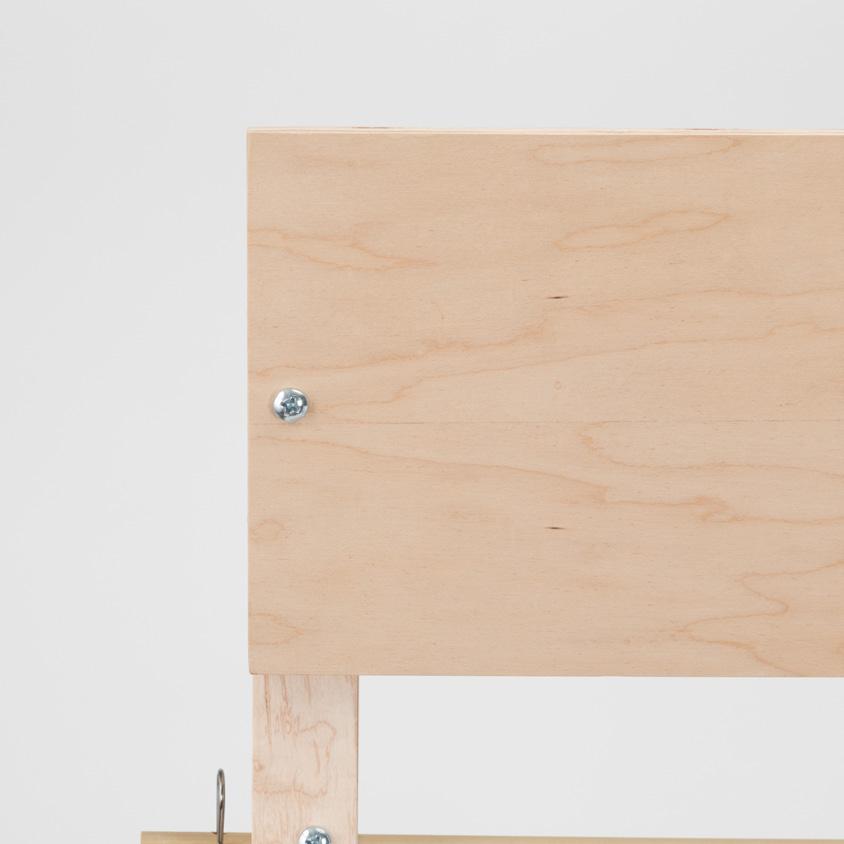

> Align the pre-drilled holes in the Wooden Sign with the screw holes at the top of stand, making sure the side with the logo is facing the front.
> Secure the sign to the stand using the provided screws.
Final Check
> Make sure all screws and pins are tight.
> Confirm the display stands solidly and doesn’t wobble.
> If you notice any issues or missing parts, contact spalacios@bbjlatavola.com or call 630-290-8105 for help.
