A Balco balcony The balcony has a special place in our hearts. It is a

We want you to be able to use your balcony in the best

place for relaxation, recovery and socialising or just

possible way, all year round, so we make sure that you

whatever you want it to be.

get the help and support needed throughout the balcony process, from the first thoughts you may have, until the

Why choose Balco?

final inspection has been completed. High quality and

Balco’s glazed system has many benefits.

extensive experience combined with a healthy and solid

The balcony does not simply work wonders on a dull and

economy make us a stable and secure partner.

worn building façade; it also increases the value of the apartment and the property. In addition, energy costs

The objective of each project is crystal clear:

are reduced and the balcony door and windows are

As a customer, you should be able to enjoy frequent and

protected, reducing future maintenance.

extensive use of your unique Balco balcony.

4

5

Balcony systems Frontage...........................................................................6 Windows...............................................................................8 Parapets...........................................................................12 Handrails...............................................................................14 Slabs...................................................................................16 Fixings..........................................................................18 Walls & roofs..........................................................................20

Frontage Balco offers several options when it comes to the design of balcony glazing. Although the balconies may seem identical, each balcony is unique. A fundamental part of our work is to ensure continuous quality assurance in every detail. The front glazing with parapet and windows will determine how the balcony will work and feel, both inside and out.

6

Air -- glazing with handrails •

Lowered parapet to allow for larger windows

•

Height of parapet 800 mm

•

Height of handrail 1100 mm

•

Various parapet designs available

•

Option of mullion in the parapet

•

Ventilation – VentTec®

•

Drainage – CleanLine ®

•

Can be combined with all Balco’s window systems

Sight -- glazing without handrails •

Height of parapet 1100 mm

•

Various designs of frontage available

•

Option of mullion in the parapet

•

Ventilation – VentTec®

•

Drainage – CleanLine®

•

Can be combined with all Balco’s window systems

Vision® •

System without corner posts

•

Comes with frameless window

•

Creates an unbroken glass surface area

•

Various parapet designs available

•

Option of mullion in the parapet

•

Ventilation – VentTec®

•

Combined with Sight or Air

TwinView® Vision® •

System without corner posts

•

Comes with TwinView­­® window

•

Creates an unbroken glass surface area

•

Various parapet designs available

•

Option of mullion in the parapet

•

Ventilation – VentTec®

•

Combined with Sight or Air®

Floor-to-ceiling systems •

Used on the ground floor or with a railing in front

•

Various designs of frontage available

•

Optional mullions on the windows

•

Ventilation – VentTec®

•

Drainage – CleanLine®

•

Window options: Twin® or TwinView®

•

Can be combined with several of Balco’s window systems

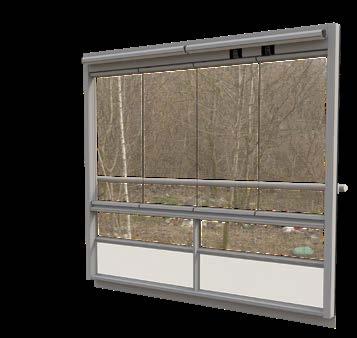

Space •

Stable floor-to-ceiling sliding windows

•

Railing in front of the windows

•

Various designs of frontage available

•

Optional mullions on the windows

•

Ventilation – VentTec®

•

Drainage – CleanLine®

•

Can be combined with several of Balco’s window systems

7

Windows Twin® Our Twin window gives you two systems in one, with

Minimum window width:

450 mm*

maximum flexibility and the option of opening up the

Maximum window width:

1100 mm*

entire balcony. The unique window can be opened up

Maximum window height:

1800 mm*

folding window. You get an open balcony that you can

Maximum width per unit:

6500 mm* / unit

close again.

Maximum height per unit:

2800 mm* /unit

like a sliding window, but can also be folded in like a

Window glass: Float / tempered glass 4–5 mm Noise reduction

~21 dB

Energy savings

~21%**

8

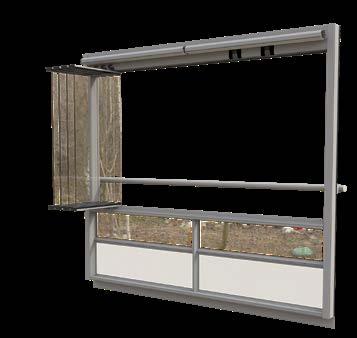

Fully closed

Fully to the side

Partly open

Fully open

Design Design is the most stable and quiet frame-free

Minimum window width:

450 mm*

system on the market. It creates the impression of

Maximum window width:

900 mm*

uninterrupted space, as the glass in the window is on

Maximum window height:

1800 mm*

Maximum width per unit:

5400 mm* / unit

Maximum height per unit:

2800 mm* /unit

Window glass:

Tempered glass 6–8 mm

Noise reduction

~17 dB

Energy savings

~15%**

the same level as the parapet material. You can easily operate the Design window using just one hand.

9

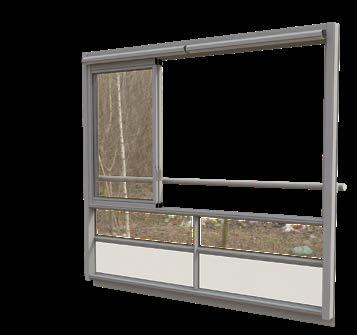

Fully closed

Fully open

*Measurements are subject to prevalent wind loads and national building codes. **Energy savings may vary and are greatly affected by the surroundings of the particular building.

TwinView® TwinView is for those who want the best of both worlds – the benefits of both an open and a glazed balcony at the same time. The TwinView window lets a generous amount of light into the balcony. Since the outer profiles of the window are hidden behind the glass, a uniform glass surface is created when seen from the outside. With TwinView, Balco has taken a step further in the company’s work on environmental impact by reducing the proportion of aluminium by 12 percent. Thanks to a new design, TwinView, despite having thinner profiles, is as stable as its predecessor Twin.

We are happy to help with colour selection for your glazing to match the façade of the building.

TwinView is also available as a floor-to-ceiling window.

The floor-to-ceiling TwinView is a sliding window for apartments with access to a patio on the ground floor.

Minimum window width:

450 mm*

Maximum window width:

1100 mm*

Maximum window height:

1800 mm*

Maximum height of

10

floor-to-ceiling window:

2400 mm*

Maximum width per unit:

5500 mm* / unit

Maximum height per unit:

2800 mm* /unit

Window glass: 4-6 mm thick tempered glass Noise reduction

~21 dB

Energy savings

~21%**

*Measurements are subject to prevalent wind loads and national building codes. ** Energy savings may vary and are greatly affected by the surroundings of the particular building.

TwinView®, floor-to-ceiling

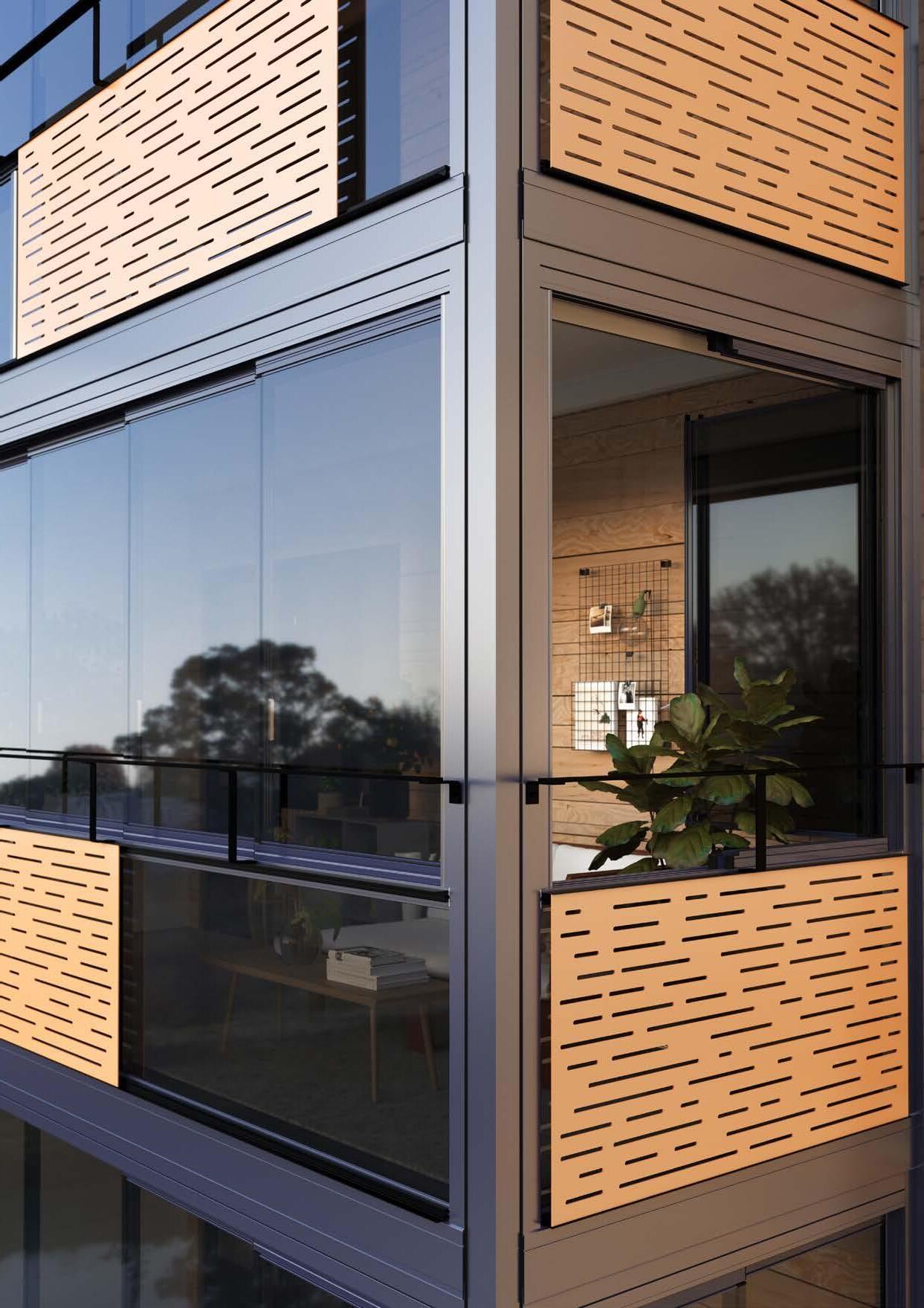

Illustrated: Frontage: Air

Handrail:

Window:

Ventilation: VentTec®

TwinView®

Parapet glass: Clear glass with surfacemounted perforated decorative panel RAL 8001.

Golf

Drainage:

CleanLine®

RAL colour:

RAL 7012

11

Parapets

12

The balcony parapet design also makes a big difference in terms of the amount of light let in and privacy. With different parapet materials and colours, you can choose a neutral look, or create a completely unique design for your balcony glazing.

To add an expressive touch to the balconies and building

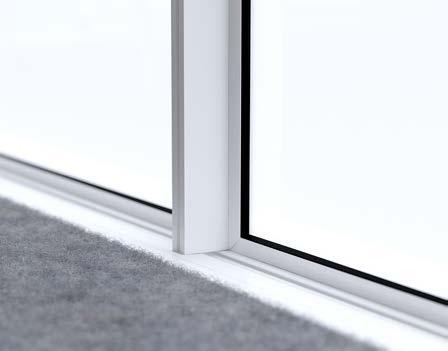

The rail profile consists of a homogeneous tubular profile

façade, Balco offers a wide range of parapet materials. It

for increased stability. The central dividing mullion

is possible to mix colours and materials, e.g. glass with

connects to the vertical profile internally, adding stability

decorative profiles, or mix glass and laminate, as in this

to the front of the glazing. All fixings are covered by a

image.

colour-coordinated adjustment profile at floor level.

Glass and panel material can be changed from inside the balcony to facilitate potential maintenance.

Illustrated: Frontage:

Sight

Ventilation:

VentTec®

Window:

Twin®

Drainage:

CleanLine®

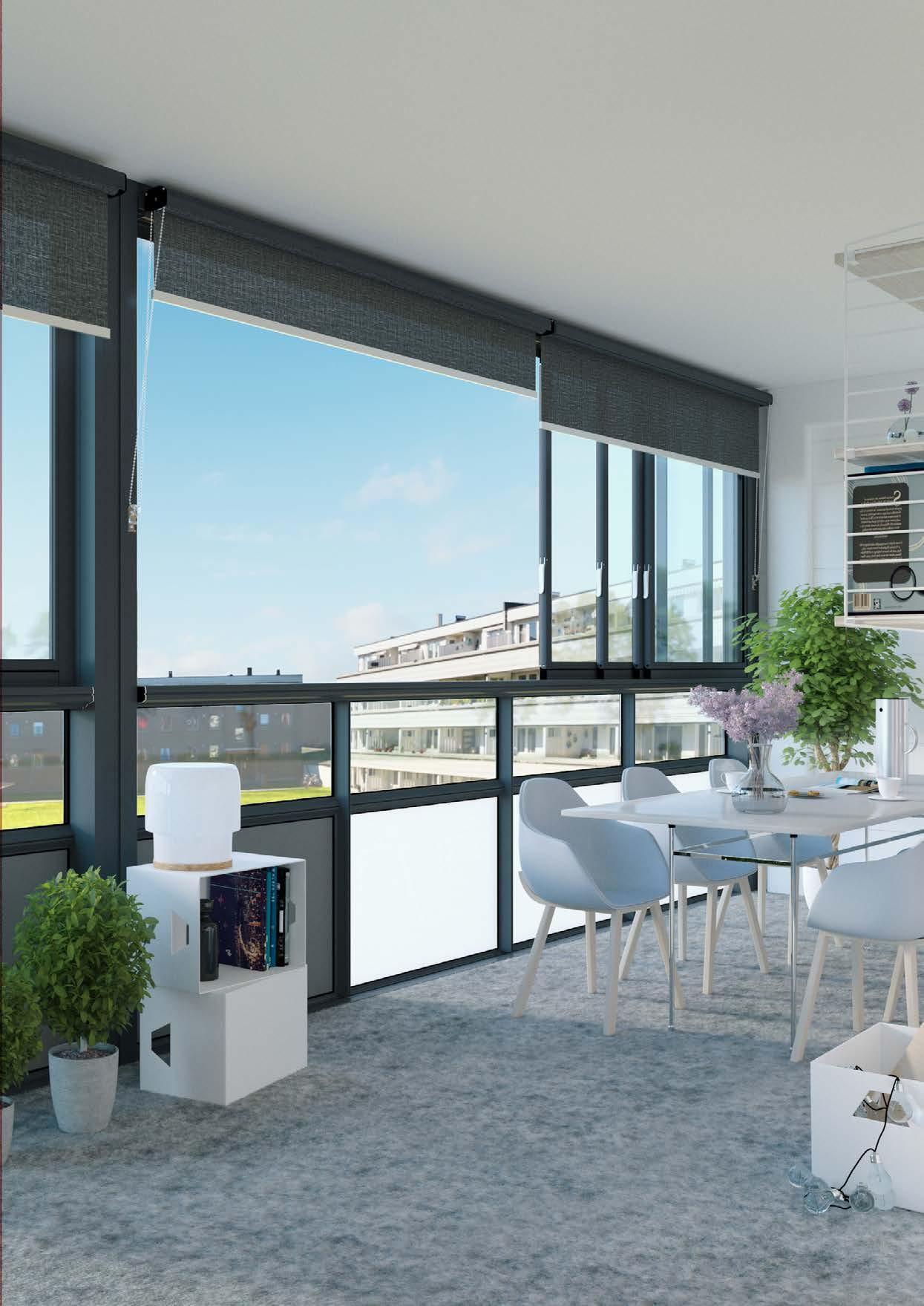

Accessories:

Roller blind – Pg 2, ES934

Parapet glass: Laminate and opalized glass at the bottom with mullion and clear glass at the top.

Carpet – 0901 Stone grey RAL colour:

RAL 7012

13

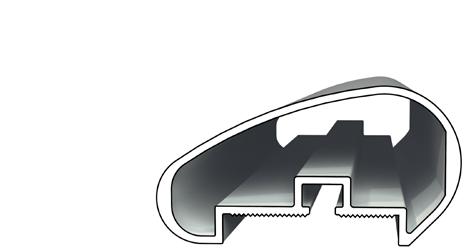

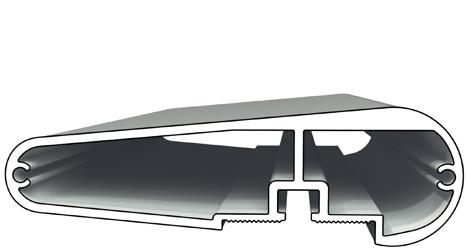

Handrails All Balco handrails are made of aluminium and can be painted in any RAL colour. You can choose from several different profiles. When assembled, the profiles are provided with a matching end cap.

Balco’s handrails can be mounted in lengths up to 2800 mm without intermediate supports.

14

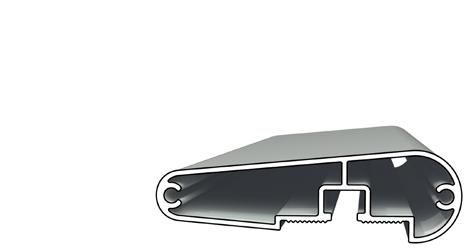

BKS 5260 – Alfa Width

100 mm

Height

52 mm

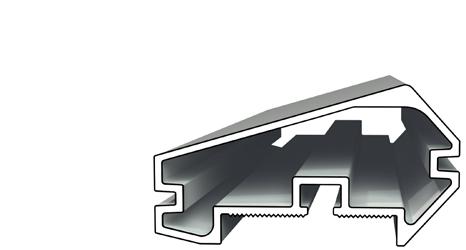

BKS 5820 – Bravo Width

100 mm

Height

30 mm

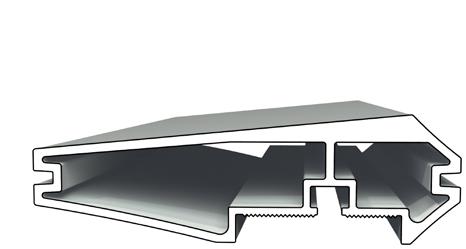

BKS 5821 – Charlie Width

150 mm

Height

45 mm

BKS 5851 – Delta Width

150 mm

Height

44.9 mm

15

BKS 18841 – Echo Width

100 mm

Height

52.6 mm

PG25 – Foxtrot Diameter 50 mm 70 mm

Golf Width

50 mm

Height

10 mm

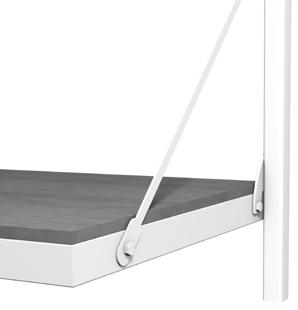

Slabs The balcony slab is the basis of all Balco’s balconies and balcony systems. ConFe®, which stands for “Concrete Ferrum”, means concrete and iron, and is the name of Balco’s own factory-made balcony slab.

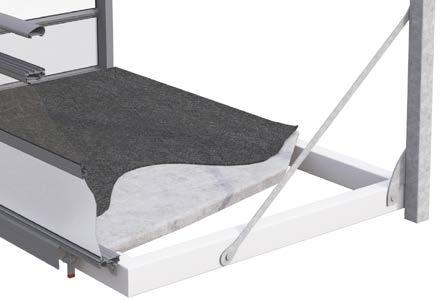

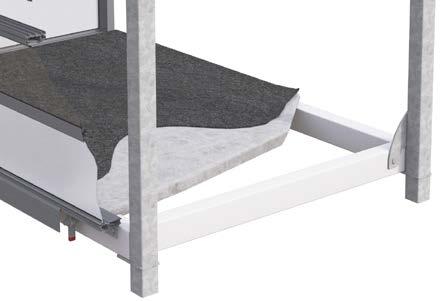

The structure of the balcony slab ConFe is made up of a galvanised, powder-coated steel frame. The frame is provided with rectangular, hollow steel profiles that stabilise the structure and make it durable. On top of the steel frame, a 70 mm reinforced concrete slab is attached.

The rebars are fully enclosed to ensure the highest possible protection against corrosion. In addition, permeable concrete acts as an expansion vessel where the water is allowed to freeze without destroying the balcony.

16

ConFe® – Balcony Slab

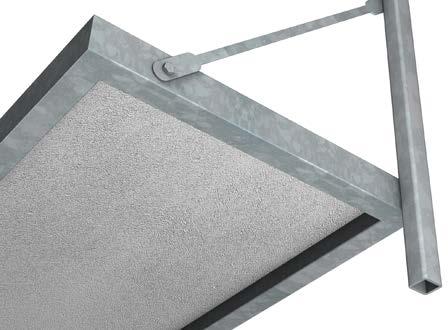

Underside of the slab The underside of the balcony slab is delivered untreated or painted white.

17

Untreated

Painted white

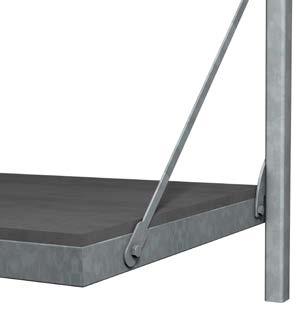

The steel frame The steel frame is supplied galvanised as standard.

A white or grey-painted steel frame are common options.

Hot-dip galvanised

White lacquered

Painted grey

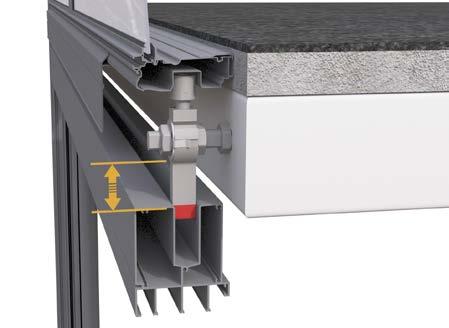

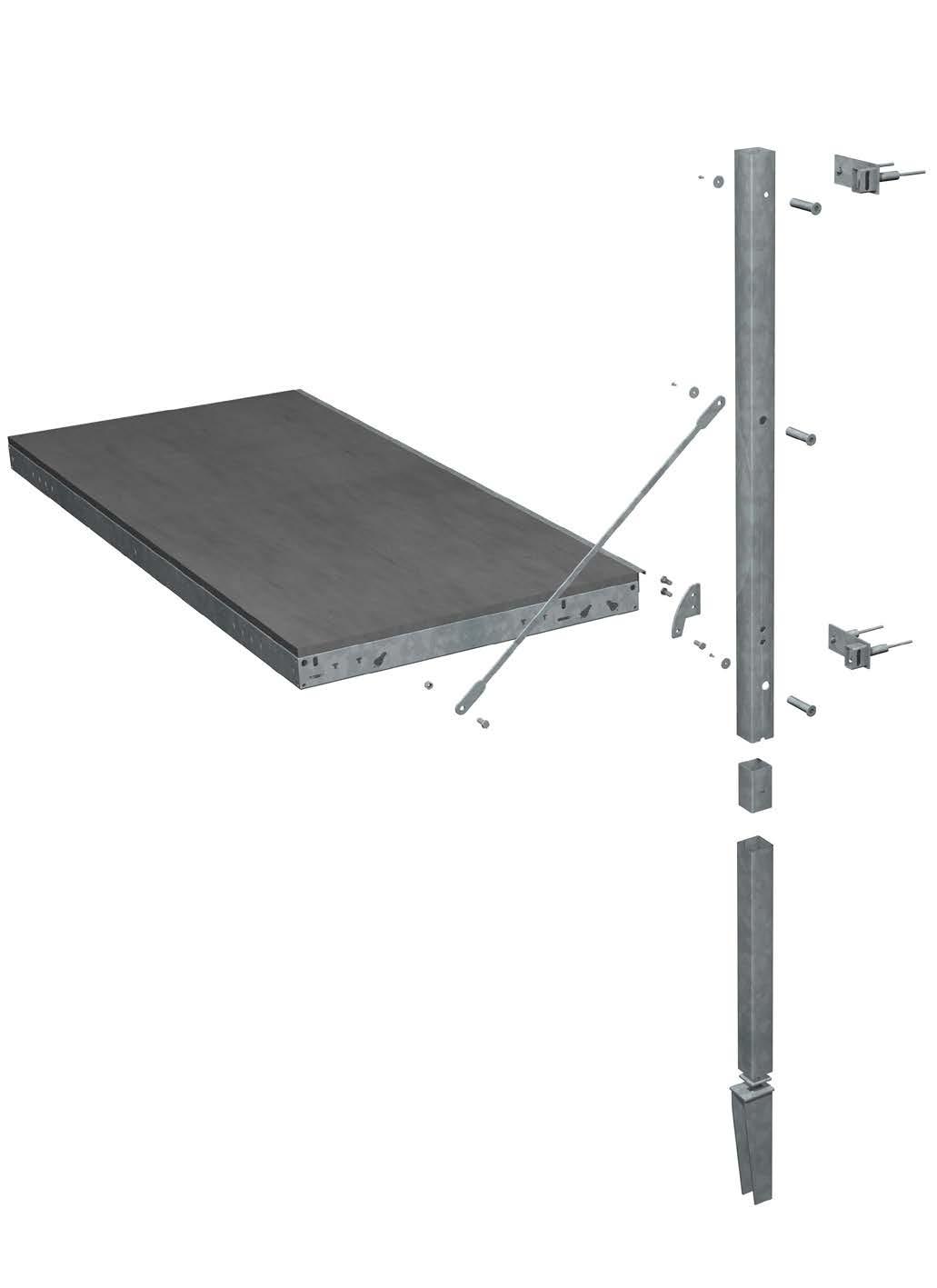

Fixings Balco adapts balcony projects to your building’s conditions. We have qualified and experienced mechanical design engineers who dimension each individual balcony project according to current norms and requirements.

Many of our products are patented and our fixing system is one of them. As a rule, we mount a pillar along the façade to which we attach the balconies. The pillar is attached to a bracket in the foundation wall or to a foundation in the ground, where it is held in place by

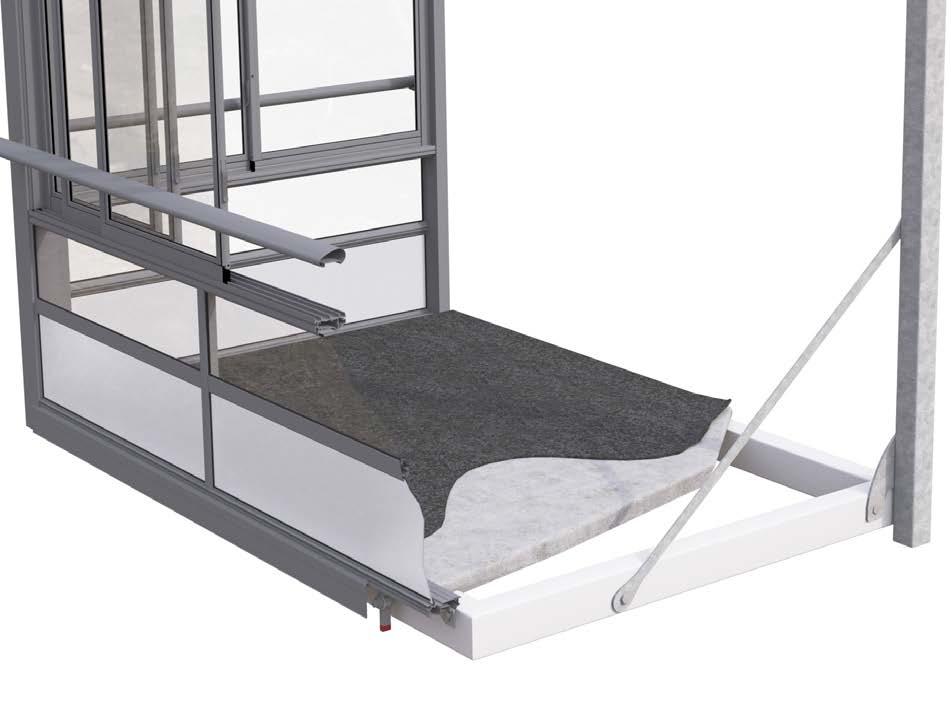

Installation using tension rods

means of the fixing system in the floor structure of the 18

building. Usually, the balcony slabs are stabilised with tension rods. In a few cases where loads cannot be applied in the building, pillars are mounted at the front edge of the balcony.

Protection for concrete Balco’s glazing is fitted in front of the concrete slab, which means that the concrete is protected from moisture and the balcony will have a larger surface area.

Building-tolerant installation with universal glazing joint

Installation using a four-pillar system

Balco uses a unique and patented product that ensures building-tolerant installation. Using our universal glazing joint, we can adapt all glazing to its exact floorto-ceiling height with an adjustment range of 50 mm.

The principle behind the fixing system addresses the movements that occur due to e.g. temperature changes; it also offsets potential dimensional deviations relating to the building. Moreover, it means that installation can be performed safely and effectively.

The fixings are adapted to each project and come already galvanised.

Building-tolerant installation

19

Main components of the fixing

Walls & roofs Light gable

20

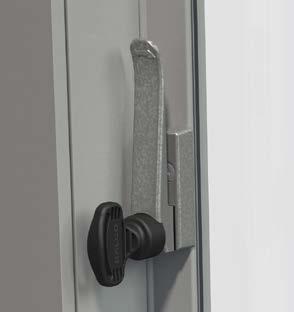

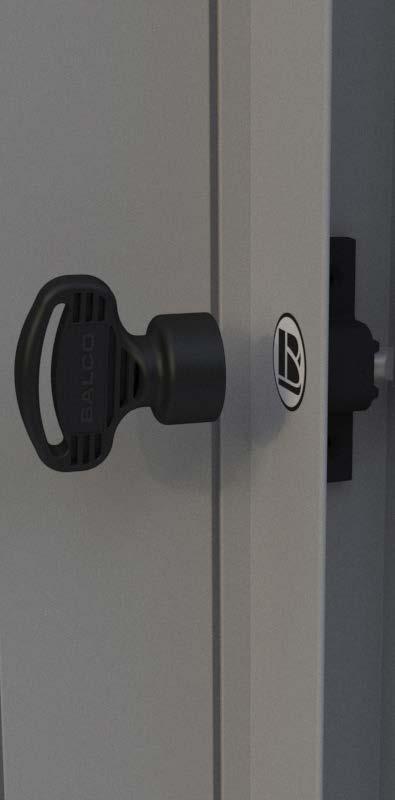

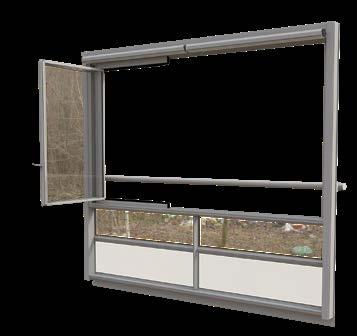

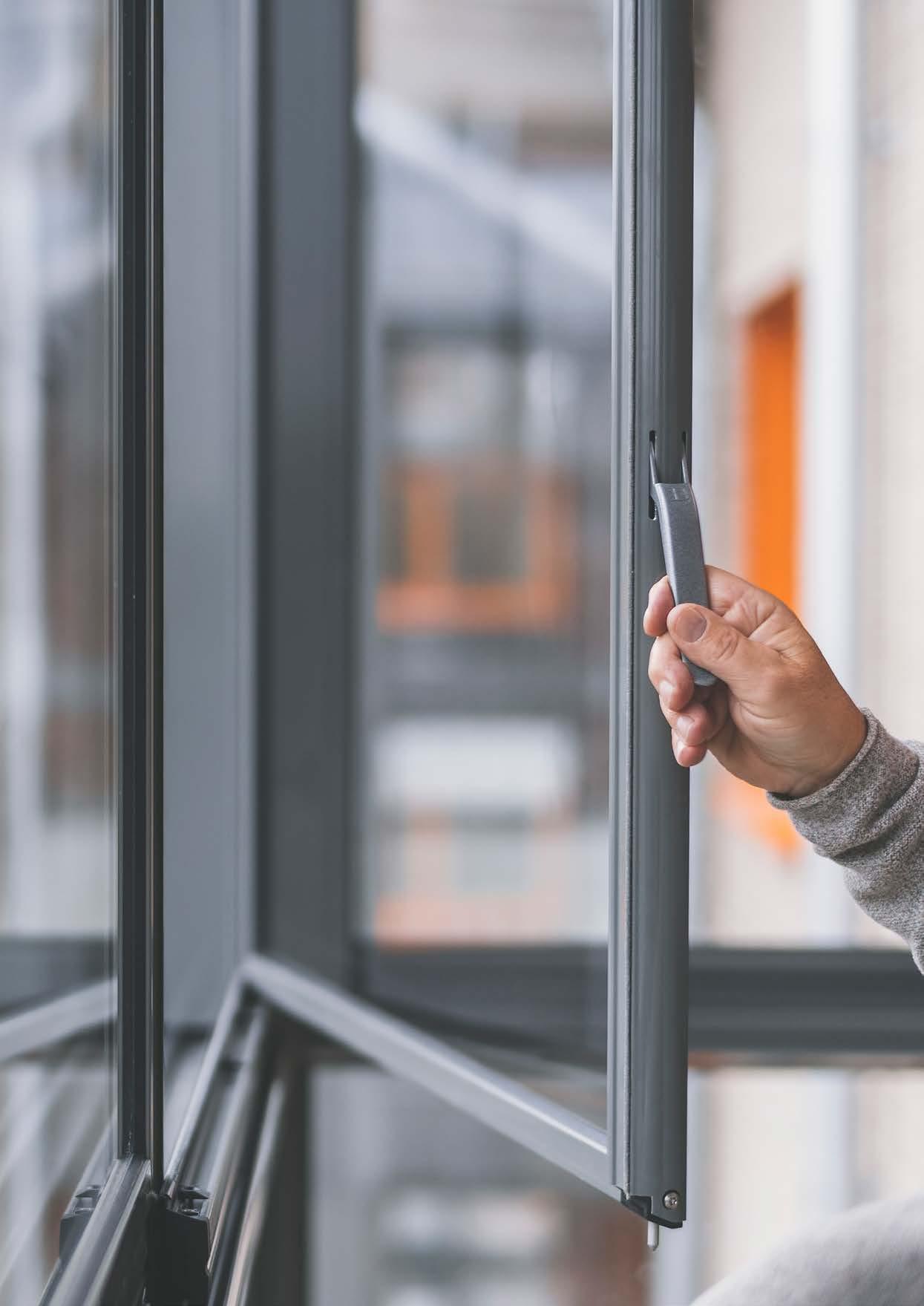

A light gable is a balcony gable with only one opening

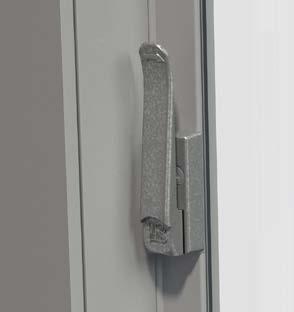

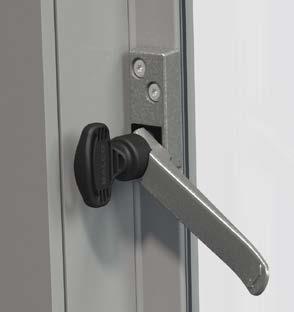

Turn the handle downwards and open the window. To

window. We often install light gables when the original

close the window, move the handle back to the starting

balcony is recessed into the façade. You open it with

position and turn it upwards. The window is locked once

our magnetic key located on the handle of the gable.

you remove the magnetic key.

Partition walls It is common for two or more balconies to be

partition wall with a fire rating of EI 60. The wall

interconnected on a building façade. To separate the

structure is insulated with mineral wool and enclosed in

balconies, we use a stylish, energy-efficient, fireproof

steel plate.

21

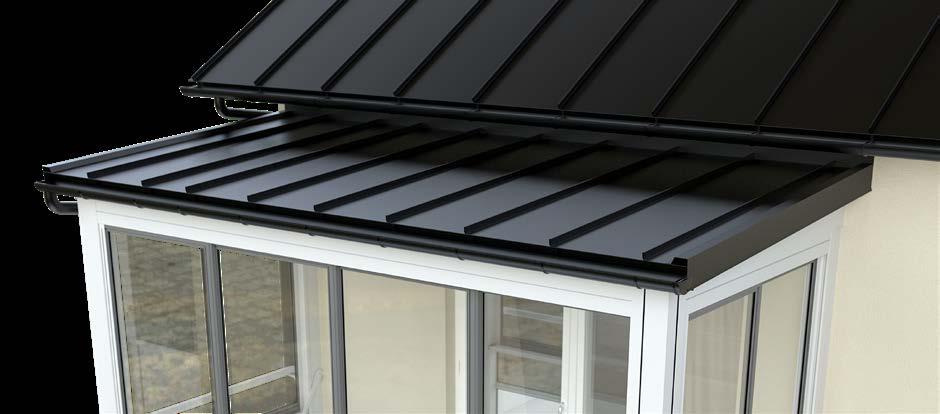

Roofs Balco’s roofs are insulated and fireproof with a fire rating

environment on the balcony. The roof is delivered white

of REI 30. They are equipped with ventilation gaps that

on the inside and black on the outside. Roof drainage and

prevent condensation and contribute to a better indoor

snow guards are available as options.

22

23

Unique solutions from Balco Drainage.............................................................................24 Ventilation............................................................................25 Climate wall...........................................................................26 Access gallery glazing............................................................28 Glazed corners.......................................................................31

Drainage – CleanLine® Drainage is an important feature of a glazed balcony.

rainy and windy weather, there is an additional slot drain

Balco’s CleanLine drainage system ensures controlled

integrated into the bottom profile of the balcony section,

water runoff and minimises the risk of the wind driving

and this ensures water run-off from the balcony.

rain into the balcony and generating negative pressure.

The rainwater is captured in the lower rail profile of the

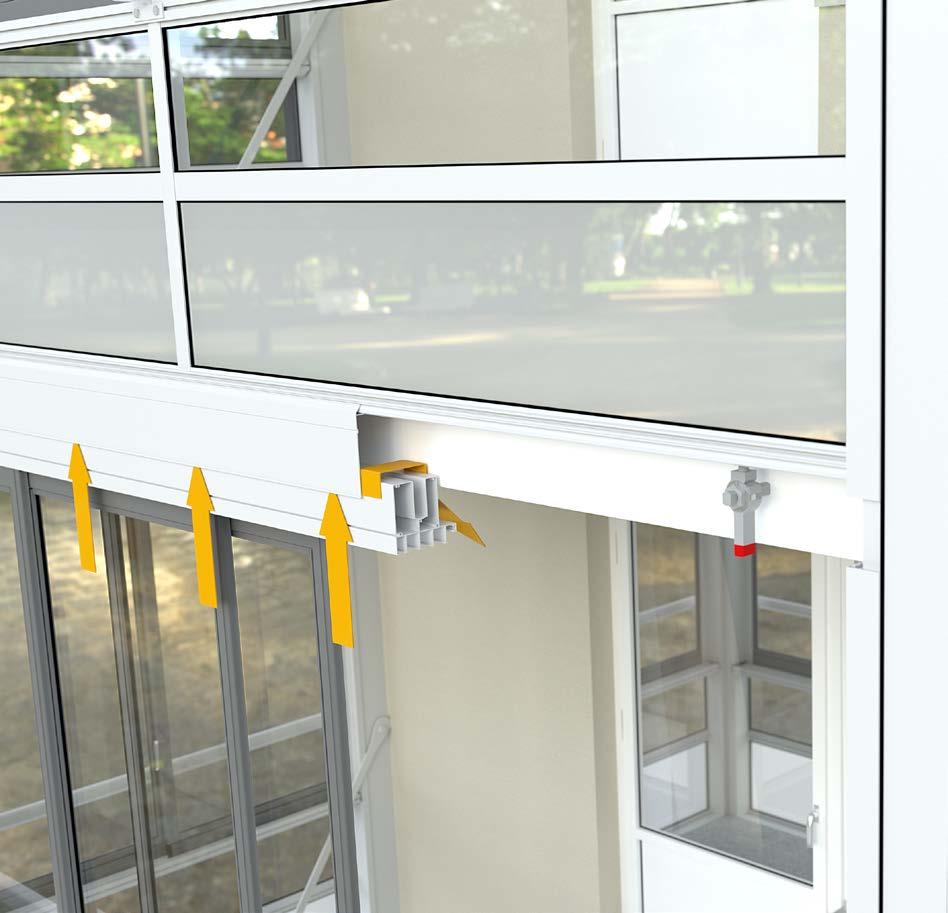

Follow the arrows on the image below, and you will see

glazing and is carried via horizontal channels to the

how our CleanLine system works. The water is carried

corner posts. Internal channels then carry the water

from the glass panes down into the lower rail profile and

down, floor by floor, to below the lowest balcony. If for

on via the corner posts down to the ground, or to the

some reason the windows have been left open during

building’s existing drainage system.

24

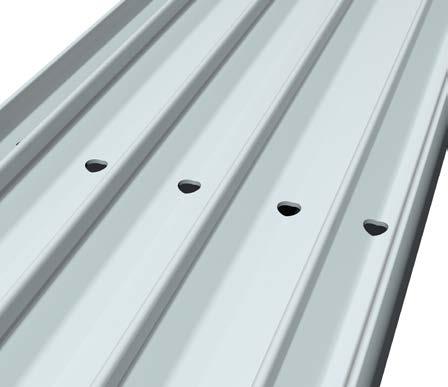

Drainage holes in the lower rail profile

Slot drain in bottom profile

Ventilation – VentTec® Good ventilation contributes to a better climate, both

Follow the arrows on the image below, and you will see

on the balcony and inside the apartment. All Balco

how our VentTec system works. Air is drawn in along the

glazing systems have our patented ventilation system

entire glazing system.

– VentTec. It prevents pressure differences inside and outside the balcony that can let dampness in. The airflows generated respond to the need for air to the apartment and prevent condensation on the glazing.

25

26

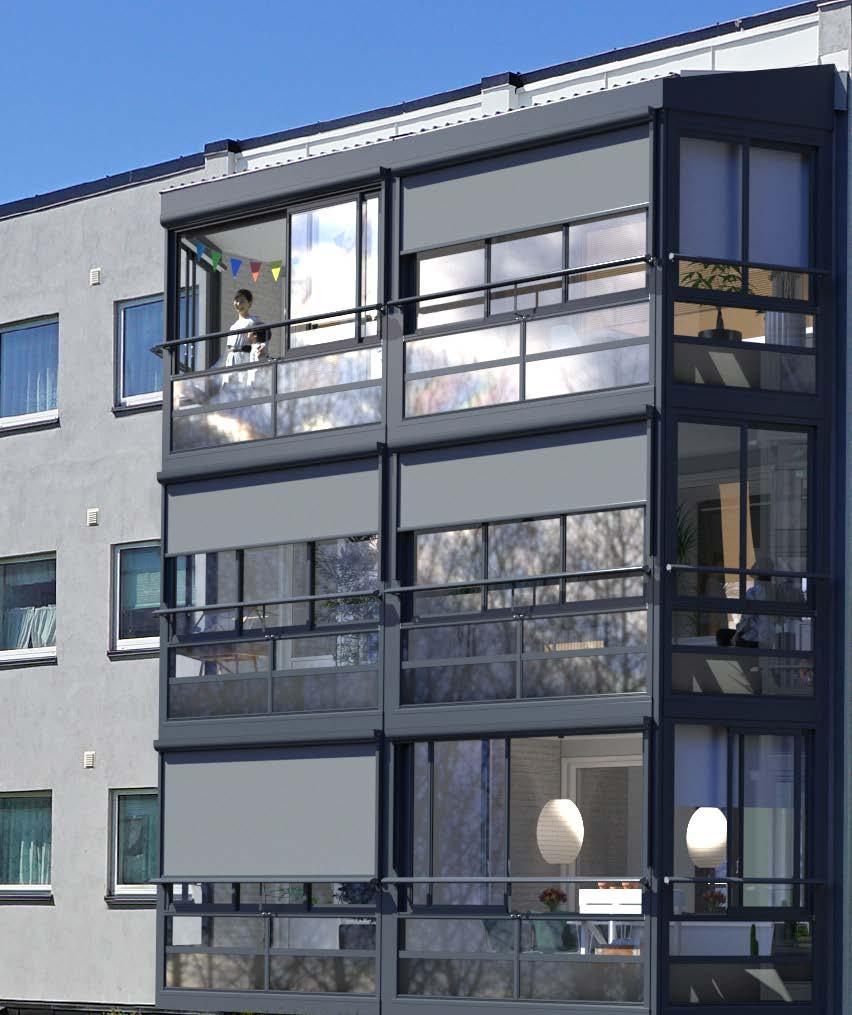

Climate wall The glazed balconies act as a climate-protective shell

a reduction in floor drafts and reduced heating costs.

for the property. With a climate wall, the entire façade

Independent studies have shown that a climate wall

of the building is covered with our glazed balcony

provides energy savings of up to 20 percent. A climate

systems. The result corresponds to approximately 10–15

wall also eliminates the need to renovate not only the

cm of new insulation. The glazing also helps to heat

balcony and façade, but also windows and doors.

the air before it reaches the apartment, which means

Illustrated: Frontage: Sight

Ventilation: VentTec®

Window:

Drainage:

CleanLine®

RAL colour:

RAL 7015

Twin®

Parapet glass: Grey lamella glass at the bottom with mullion and clear glass at the top.

27

Access® gallery glazing Access is Balco’s glazing system designed for galleries

Maximum window size:

1800 mm x 1100 mm

and entry balconies.

Maximum unit size:

2800 mm x 5400 mm*

Rain, snow and cold are a troublesome combination

Window glass: 4–5 mm float glass or tempered clear glass

for open galleries, as it takes a lot of work to keep the galleries free of dirt and slipping hazards.

By glazing the galleries with our Access system,

Noise reduction:

~21 dB

Energy savings:

~20%**

effective and fireproof climate protection is formed.

The system also creates a buffer zone that heats up cool air before it reaches the homes, contributing to lower energy consumption and greater comfort for you and your neighbours. Access has an automatic opening function that initiates in the event of smoke or fire.

28

*Measurements are subject to prevalent wind loads and national building codes. ** Energy savings may vary and are greatly affected by the surroundings of the particular building.

Control unit The access system’s electromagnet and smoke detector are connected to the gallery’s control unit. In the event of an alarm or a fault, the control unit cuts power to the magnet and all windows open. An alarm is sounded in alarm mode. The system is interconnected so that all window units open when any smoke detector is triggered.

Manual tripping and resetting

For system tests:

Press the red button on the control unit.

To reset:

Press the reset button on the control unit.

After resetting, all sections can be closed by sliding the innermost window towards the electromagnet.

Smoke detector If smoke is present, the windows open automatically to allow fresh air in and provide a possible evacuation route.

29

Electromagnetic latch The electromagnetic latch releases the windows during system tests or when the smoke detector cuts power. The windows also open in the event of a power failure.

Carrier Access has a carrier located on the innermost window that brings the remaining windows with it, allowing the glazing to be opened fully. The carrier is connected to a drop weight located next to the side profile. This means that the system does not need electrical power to open it.

30

31

Vista® glazed corner A corner of glass gives the balcony a lovely panoramic view and lets the maximum amount of light onto your balcony. Our Vista glazed corner has a unique, patented design that can be combined with several of Balco’s glazing systems. To provide privacy and protect against sunlight, we are happy to help with blinds and alternative glass options.

Illustrated: Frontage: Air

Drainage:

CleanLine®

Window:

Accessories:

Vista® glazed corner

Pleated blind – black

bottom with mullion and

Carpet – 0901 Stone grey

clear glass at the top.

Ceiling with recessed

TwinView®

Parapet glass: Opalized glass at the

Handrail:

lighting.

BKS 5260 – Alfa

Ventilation: VentTec®

RAL colour:

RAL 7012

32

Options Sun protection.......................................................................34 Privacy.........................................................................36 Lighting......................................................................38 Doors..............................................................................40 Magnetic locks.....................................................................42 Floor covering.......................................................................43 Window boxes.......................................................................44 Flag bracket..........................................................................45

33

Sun protection Of course we love the light and the glorious rays of the sun. But sometimes we want to be able to screen ourselves off, both from the sun and curious passers-by. Balco has solutions for sun protection and privacy to suit all our glazing systems.

Roller blinds A roller blind for your balcony glazing gives you excellent protection against sunlight and heat, makes it harder for people to see in and makes your balcony a snug environment. All of our glazing systems are prepared for having roller blinds fitted and come with integrated fixings for the roller cover.

34

You can choose between several different fabric qualities and colours. The fabrics we supply are made of 100% PVC-free acrylic-treated polyester. They are easy to use and always come with a childproof pull chain.

Roller blind

Pleated blinds Pleated blinds in the windows can help achieve uniformity of design. Our pleated blinds are of dual function design, which means that they can be placed anywhere in the window. The pleated fabric gives the balcony a visual boost and, when combined with our compact and frameless system, add a nice touch to the interior design.

Our pleated blinds are made from durable Oeko-Tex certified polyester fabric. The rear side of the blinds has a mother-of-pearl finish, which reflects the light and helps ensure a cooler balcony. The pleated blinds are attached to the window frame by means of colourcoordinated aluminium profiles. There are no loose hanging strings, and this makes them easy and safe to use. If the material gets creased, it easily regains its shape when you move the profiles of the blind together.

Pleated blind

Electric vertical awnings An awning gives a stylish impression, as it is integrated

awnings, making it possible to see out, while allowing

into the balcony system to make it as invisible as

daylight to enter. The awnings are motor-powered with

possible. It creates good lighting conditions and climate

solar and wind automation as well as remote control for

on the balcony regardless of weather and wind. We

individual customisation. The fabric is transparent from

supply the highest quality retractable and vertical

the inside, but opaque from the outside.

35

Vertical awning

36

Privacy – Slats Slats are as much a beautiful additional touch to a glazing project as a screen affording privacy for your neighbour’s balcony. The slats are made of aluminium and come supplied in the RAL colour of your choice.

Slats, view from the inside

Illustrated: Frontage: Air

Ventilation: VentTec®

Window:

Drainage:

TwinView®

Parapet glass: Grey laminated glass at the

CleanLine®

Accessories Carpet – 0901 Stone grey

bottom with mullion and

Options:

Slats

clear glass at the top.

RAL colour:

RAL 7035 and RAL 8015

Handrail:

Bravo – BKS 5820

Charlie – BKS 5821

37

Lighting Ceiling with integrated LED lighting We can offer a beautiful and smart ceiling with

•

87% light reflection

integrated LED lighting for your balcony. Rockfon Blanka

•

> 99% light diffusion.

X-edge -- contributes to a bright and comfortable indoor environment. The ceiling helps to improve speech clarity

The antistatic, resistant surface has a long service life

and lowers the acoustic level inside the balcony. The

and is easy to clean.

ceiling tiles have a flat matt, smooth, white surface, ensuring excellent light reflection and diffusion.

38

LED loops All our glazed balconies can be equipped with LED loops, which are positioned in the upper part of all the frontages. The lighting is dimmable and adds a pleasant and decorative light.

39

40

Doors For those who live on the first floor or ground floor, there is the possibility of installing an outer door to the glazed balcony. This is a convenient alternative if you have a shared yard or garden adjacent to the balcony.

Illustrated: Frontage: Air

Ventilation: VentTec®

Window:

Drainage:

Twin®

Parapet glass: Clear glass with decorative rail in front Handrail:

Alfa – BKS 5260

CleanLine®

Options: Outer door RAL colour:

RAL 9010 and RAL 6013

41

Magnetic locks Traditionally, locks are required on sliding windows on a balcony. This is why Balco offers anyone who installs our glazing the option of ordering locks for the balcony system. Where the balcony system comes supplied with magnetic locks, they are located on the outer window profiles, and a set of magnetic keys are included with the balcony glazing.

42

1. Place the magnet on the area marked “B”.

2. The window will unlock automatically when the magnet adheres to the marked area.

3. To lock the window again, return it to its original position.

Note! The window is not locked until you remove the magnet.

To get the lock to work, you place the magnetic key in the designated place. The magnet releases the windows in the system so that they can slide. You need to remember that the windows are not locked until you remove the magnetic key from the magnetic lock and slide the windows to the closed position.

Floor covering We offer carpet inlay for all Balco’s glazed balconies.

The carpet is specifically finished for an outdoor environment; it is both durable and easy to clean. The carpet is also soft to walk on and makes the balcony feel nice and snug.

43

Window boxes

44

A window box is a nice accessory for a glazed balcony.

Our window boxes are detachable and can be placed

Balco is happy to help deliver one or more window

on both the outside and inside of the balcony. We

boxes, adapted specifically for our glazing systems. We

recommend an inner pot for our window boxes so that

match them to the balcony and help to place them in

you can easily lift the plants in and out, as well as to

position.

prevent soil and water from escaping.

Flag bracket Balco gives customers who install Balco glazing the opportunity to “hoist” the flag on special holidays.

You can order a flag bracket for the glazing from us, in a colour to match your system.

45

Proven quality that ensures peace of mind

46

Every year the global agency Dun & Bradstreet carries

Balco has been certified according to EN 1090-1 by

out a credit assessment of Swedish companies. Over

Nordcert since 2013. The EU has approved Nordcert

the last ten years we have achieved the highest credit

as a notified body under the CE/1505 mark according

rating – AAA.

to the Construction Products Regulation. Balco issues a Declaration of Performance and CE marking in accordance with the EU’s Construction Products Regulation.

HÖGSTA KREDITVÄRDIGHET BALCO AB 556299-4482 | 2021-12-07

Our ISO 9001 certification means that you will receive a

The UC GOLD seal indicates that BALCO AB is of sound

quality-assured product/service that meets all of your

financial standing and a safe partner to do business

demands as a customer. ISO 14001 dictates that we will

with. The credit rating is based on UC Risk Corporate,

carry out production in an environmentally responsible

which is the market’s most reliable credit assessment

manner.

model. The seal is issued by UC AB.

47

The Nordic Balcony Association’s symbol. As members,

This symbol indicates that the solution is unique to

we endeavour to follow the Association’s guidelines to

Balco. We hold over forty patents for detailed parts,

deliver safe, secure balconies of high technical quality.

making our products even better.

Balco – the biggest name in balconies Balco has been supplying innovative balcony solutions under its own brand since 1987 and has been listed on the stock exchange since 2017. We control the entire process from product development to production in two in-house factories. The objective of each project is crystal clear: As a customer, you should be able to enjoy frequent and extensive use of your unique Balco balcony.

www.balco.se

ALL_1112_202206_Product range glazing systems_EN

48
