Product Catalog (Winter '22 Edition)

Page 1

Volume 12
STALLS
Stabling Equipment & Hardware
AMERICAN
Luxury
Contents 04 How to Order 06 08 Stall Front Systems Sliding Stall Fronts 18 22 Stall Doors 32 Stall Partitions 46 Barn Entry Doors 42 Dutch Doors 48 Barn Windows 52 Design Options 56 Stall Gates 64 Portable Horse Stalls 70 Frame Tents 72 Equine Flooring 90 Barn Lighting 2 80 Hardware & Accessories 96 Our Values & Pledge European Stall Fronts

About Us

American Stalls was founded in 2006 when we won an RFP to build 1,500 horse stalls for a prestigious horse show venue in Saugerties, NY.

Ever since, we have worked on thousands of barns across North America. We've worked on projects including everything from a six-stall private barn to large Olympic-training barns. For over 17 years, we have been a leading manufacturer for luxury horse stalls and stabling equipment.

Horse stalls, barn doors, and equine flooring are large investments toward your horses’ safety and your farm. This is why we custom build products that fit your lifestyle, design needs, and that stands the test of time. Our products are designed for horse people by horse people.

Horse stalls are deceptively simple. They require an expert understanding of steel fabrication, equine know-how, materials engineering, and the know how of a horse barn.

We share our expertise by building world class barn products that will impress your friends, family, and clients. Most importantly, American Stalls products will serve their primary function – to safely house your horses for years to come.

3

How to Order

1 RESEARCH

Research what styles you would like in your dream project. Visit friends’ barns to get a better idea. Order our print materials. Look through our photos and videos on our website at www.americanstalls.com.

4 REVIEW & DECIDE

Before we build your equipment, we will send you technical CAD drawings. You will review these drawings at this stage to confirm design and measurements. Our team will also provide an estimated date of completion.

2 CONTACT US

We are horse people who understand the hectic schedules of fellow horse people. We also understand the complexities that go into planning a barn project. Contact our team and we will assist you every step of the way.

5 CRAFTING YOUR PROJECT

Our design team works closely with our manufacturing team – handpicking the highest quality materials for your project. Each piece of equipment undergoes strenuous quality control measures.

3 POTENTIAL OPTIONS

We will send you options and pricing once you have spoken with one of our design consultants. Our consultant will provide recommendations based on your project’s location, requirements, and our budget.

6 ONGOING SUPPORT

Our American Stalls team is here for you throughout your project. Our team prides itself in its transparency and communication. This ongoing communication continues after delivery to ensure complete satisfaction.

4

ELEGANCE SAFETY LONGEVITY all in perfect harmony

5

STALL FRONT SYSTEMS

We understand that each barn, horse, and owner is unique. For this reason, our Stall Front Systems are custom built to order. We work with our clients to customize everything in a stall front – from finishes to feed options to design lines. This ensures that each stall front is to work in harmony with your horses.

Each stall front uses our high-quality steel. We then prime and powder coat the steel for a smooth, durable finish. Lastly, we offer hand selected wood in a variety of species including southern yellow pine, tigerwood, or HDPE.

Our choice in material means that your horse stalls are guaranteed to not only look good but stand the test of time.

H I N G E D | S L I D I N G
6
I N G E D | S L I D I N G
HINGED, EURO STALL FRONTS SLIDING STALL FRONTS 1A MADE IN THE USA 7 1B 2A 2B
H
STALL FRONT TYPES

SLIDING STALL FRONTS

Our sliding stall fronts are a great choice for all barns. Since the door slides rather than swings outward, sliding doors save space in an aisle. This space-saving feature makes sliding doors a perfect choice for busier and larger facilities.

Our sliding stall fronts can be dressed up with brass accents, arches, and yokes. They can also be simple and functional with many feed and water options. Our sliding stall fronts are custom built to look, feel, and operate to your needs.

STEEL FABRICATION:

Gauge: 14GA United States steel

Frame: 2”x2” square tube

Upper Bars: 1″ round tube on 3″ centers (2″ between bars) on upper bars

Lower Bars (Optional): 1" round tube placed on 2.5" centers 1.5" punched u-channel

THE FINISH:

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Other finish options available including zinc powder prime or hot dip galvanized for maximum corrosion resistance.

TRACK & LATCH:

Track: Industry-leading track and roller system with self cleaning design to allow easy sliding horse stall doors

Latch: Stainless steel pin lock latch (see page 15)

8
MADE IN THE USA
9
SLIDING STALL FRONT EXAMPLES MADE IN THE USA 10 1C 1D 1E 1F 1G 1H 1J 1K 1L
12
13

Sliding Door | Horse Stall Kit

1M 1N

Our sliding door horse stall kits are a great alternative to our fully welded sliding stall fronts. The main difference is that our fully welded fronts are ready to be installed while our kits require more onsite labor. Each kit includes the same level of customization as our fully welded systems, but offers a more cost-effective solution. Each kit includes the following components:

Sliding Stall Door & Grill Sections

Track System

Pin Lock Latch

U-Channel

MADE IN THE USA
1. 2. 3. 4.
14
Door | Horse Stall Kit 15 StallDoor GrillSection GrillSection
Sliding
Track&Trolleys
16
17 Sliding Track Package –Pin Lock Latch System Door Stop (Left) & Door Guide (Right) HARDWARE | Sliding Stall Fronts (1) Stainless Steel Pin & Chain (1) Stainless Steel Pin Receptacle (1) Aluminum Wall Sheath (4) Installation Screws Our sliding horse stalls include our state-of-the-art Pin Latch. This system includes:
Mesh – 90º vented mesh Round Bars – 1" round bars at door bottom Bedding Guards Available: 4", 6", and 8" 15+ Yoke Options – Including removable yokes, hinged yokes,
and open
Door Center & Bottom –
or steel center and
rails
DOORS
IN THE USA 18
Many clients choose to only add stall doors – instead of fully welded stall fronts. At American Stalls, we understand that each barn is unique. Stall doors are always a very personal choice since they are used dozens of times each day. That is why every single stall door is custom built to order. Custom options include door bottom designs, shavings guards, different yokes, and so much more. Rest assured, your stall doors will be made to your design goals and lifestyle needs. Options include, but are not limited to:
french yoke,
yokes
Wood
bottom
STALL
MADE

SLIDING

EXAMPLES*

3A 19 3B 3C 3D 4A 4B 4C 4D
STALL DOOR
*Track system not drawn to scale.
20 YOKE OPTIONS Open V-Shaped Yoke Hinged, Fold-Down V-Shaped Yoke Open Rectangular Yoke Removable Rectangular Yoke Hinged, Fold-Down Rectangular Yoke
21

EUROPEAN STALL FRONTS

Swooping curves, graceful shapes, and heavy-duty hardware are key features of our European stall fronts. Hinged horse stall fronts are functional as they offer your horses maximum socialization and ventilation. They also give your barn an elegant, old-age look and feel.

Our hinged stall fronts are equipped with heavy-duty bullet hinges that allow your stall door to swing into the barn aisle. All hinged stall fronts include our easy-to-use plunger latch. The sky is the limit when it comes to design our European-styled stall fronts.

STEEL FABRICATION:

Gauge: 14GA United States steel

Frame: 2”x2” square tube

Euro Wings & Yoke: 1.9" round tube

Upper Bars: 1″ round tube on 3″ centers (2″ between bars) on upper bars

Lower Bars (Optional): 1" round tube placed on 2.5" centers

1.5" punched u-channel

THE FINISH: HINGES & LATCH:

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Other finish options available including zinc powder prime or hot dip galvanized for maximum corrosion resistance

Hinges: 304-stainless steel barrel hinges

Latch: Spring loaded plunger latch

H I N G E D S T Y L E
MADE IN THE USA 22
23
STALL FRONT EXAMPLES MADE IN THE USA 24 2A 2B 2C 2D 2E 2F 2G 2H 2K
EUROPEAN

EXAMPLES

25 2L 2M 2N 2O
EUROPEAN STALL FRONT
MADE IN THE USA
26
27
28
17 29 HARDWARE | European Stall Fronts
Bullet
Post Caps (Available in Aluminum, Brass, and Powder Coat)
Spring
Loaded Plunger Striker Plate Heavy-Duty
Hinges
30

LATCH SYSTEMS

Pin Latch – Sliding horse stalls include our pin latch made of ½” thick stainless steel. When the door is closed, the pin latch is stored at a 45º angle inside a wall sheath that is bolted either on the stall front or tongue and groove. When the door is in use, the pin latch is safely secured inside the pin provided pin receptacle.

Plunger Latch – European (hinged) stall fronts use our spring loaded plunger latch. This plunger comes with a striker plate to accept plunger latch when door is closed.

IN THE USA
MADE
P
I
N L A T C H & P L U N G E R S Y S T E M S
31
Pin Latch System Plunger Latch System

STALL PARTITIONS

Our horse stall partitions are built in various styles to meet your design and function needs. When making your decision on the design, you should factor in the following elements:

1. 2. 3. 4.

The climate in your area

The temperament of your horses

The operational style of your facility

The primary use of the stalls

STEEL FABRICATION:

Gauge: 14GA United States steel

Frame: 2”x2” square tube

Upper Bars: 1″ round tubes on 3″ centers (2″ between bars)

1.5" punched u-channel

Hinged partition available to make foaling stalls (i.e. 12'x24')

THE FINISH:

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Other finish options available including zinc powder prime or hot dip galvanized for maximum corrosion resistance.

MADE IN THE USA 32
PARTITION
*Lumber not included 5A 33 5B 5D 5C
STALL
EXAMPLES*
5A 5A – Half-Grilled Stall Partition 5C – Full Privacy Stall Partition 5D – Partial Privacy Stall Partition 5C (Kit) | Full Privacy Stall Partition All Fully Welded Partitions can also be built as Kit Partition. 34
Hinged Partition for Foaling OperatesonHinges(Left)&PlungerLatches(Right) 35

BARN ENTRY DOORS

Your Barn End Doors are the first thing you see when entering a barn. They also welcome your horses home. This is why your Barn Doors should operate with ease – all while making a statement.

Our Barn Entry Doors use our high-quality steel and industry-leading track system. This combination ensures durability and outstanding protection.

We guarantee that our Barn Entry Doors will glide with easy for years to come – no matter how large your Barn Doors are.

Choose from dozen of custom options to make your Barn Doors unique to your barn. Choose from glass designs, welded cross bucks, and different fills.

Make a statement with a stunning custom barn door from American Stalls.

36
37

BARN ENTRY DOORS

Make a statement to your barn with our Barn Entry Doors (otherwise known as "aisle entry doors"). Our team will customize your barn doors to look and feel how you would like. Our team can make your barn end doors incredibly personalized. We offer custom powder coat finishes, different glass configurations, and the ability to embed your logo into our doors. Rest assured, each American Stalls Barn Entry Door is custom designed and built to fit the style and measurements you need.

STEEL FABRICATION:

Gauge: 14GA United States steel

Frame: 2”x2” square tube (2"x4" available upon request)

1.5" punched u-channel

U-channel accepts standard grade construction kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

THE FINISH & DESIGN OPTIONS:

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Other finish options available including zinc powder prime or hot dip galvanized for maximum corrosion resistance.

Cross Bucks: 4" welded cross bucks available

Glass Upgrade: Installed, tempered glass available

IN THE USA 38
MADE
BARN END DOOR EXAMPLES 39 6A 6B 6C 6D 6E 6F 6G 6H
Choose from endless designs to custom design your Barn Doors. 40
41

EXTERIOR BARN DOORS

Dutch doors are the one of the most versatile options to add to any barn. Dutch Doors add style, ventilation, and sunlight to your barn.

Our doors are solid welded and come pre-hung for easy installation. Our latch systems are made from galvanized steel. They are fully manufactured for maximum durability to the elements and rigors of any working barn.

Doors can be opened from either the inside or outside. We also build singlehinged doors that can be used as entry doors. Lastly, we also manufacture sliding paddock doors – using the same high-quality track systems as our barn end doors.

Rest assured, our steel-based, exterior doors are built to last.

D U T C H D O O R S P A D D O C K D O O R S
42
43

DUTCH DOORS & PADDOCK DOORS

Dutch doors (and sliding paddock doors) are the one of the most versatile options to add to any barn. They add key functions including: 1. 2. 3.

ELEGANCE: Provide your barn that classic American look and feel.

VENTILATION: Gives the opportunity for more cross ventilation in each horse stall unit. SAFETY: Allows for direct exit from each stall in the case of an emergency

STEEL FABRICATION:

Gauge: 14GA United States steel

Frame: 2”x2” square tube 1.5" punched u-channel U-channel accepts standard grade kiln-dried lumber size (2'x6' or 2'x8') U-channel built with 14GA steel

THE FINISH & DESIGN OPTIONS:

Steel Treatment: Pre-galvanized steel Powder Coat: Custom TGIC polyester powder coat

Other finish options available including zinc powder prime or hot dip galvanized for maximum corrosion resistance.

Cross Bucks: 4" welded cross bucks

Glass Upgrade: Installed, tempered glass available.

MADE
THE
44 Barrel Hinge Top Door Handle Cane Bolt Latch Utilized for Bottom Door
IN
USA
45 7D 7C 7E 7B
EXTERIOR BARN DOOR EXAMPLES
44
Note: All hinged Dutch Doors can be built as Sliding Paddock Doors (as shown above).
Note: All Dutch Doors with Glass-Tops include Protective Grill Guards behind Tempered Glass
47

IN

Our barn windows are built to bring ventilation and natural light to your barn. Our hinged Barn Windows are made to order so they can fit existing openings. Many times, our barn windows are paired with bars and yokes to allow socialization of your horses. Our barn windows can give your horse the opportunity to hang his head to enjoy the outside environment. Lastly, All window grills are solid welded and arrive pre-hung, ready to install. Key features include: 1. 2. 3.

Can open 180-degrees to allow for maximum airflow and socialization Allow natural light to enter each stall – making for a healthier barn environment Depending on the climate, our barn windows can be prepared for glass in-fill or no glass in-fill

Gauge: 14GA United States Steel Frame: 2”x2” square tube Yoke Upgrade: Low Yokes and Mid Yokes Available Grill Guard: 7/8" Round Tube Grill Guard Available Steel Treatment: Pre-galvanized steel Powder Coat: Custom TGIC polyester powder coat Glass in-fill available (glass not provided)

Includes bullet hinges that are powder coated to match windows

Includes hold back latch and non-locking handle

STEEL FABRICATION THE FINISH: HARDWARE & HINGES:
MADE
THE
BARN WINDOWS 48
USA
Barrel Hinge Window Handle

BARN WINDOW EXAMPLES:

49 8A
8C 8D 8E
8B
50
Hinged Dutch Window paired with hinged Window Yoke Hinged, Glass Shutters with Fixed Grill Guard
51 Window solutions custom built for your design and functionality goals

DESIGN FINISHES

At American Stalls, our guara equipment is safe, elegant, an our barn equipment uses pretreatment ensures that your i the rigors of any barn environ consistent beautiful finishes i help you choose a finish that needs and geographical envir

HOT-DIP GALVANIZATION

Hot dip galvanizing will provid

This process creates a thick, sc rustproof coating – even in coa exposure. American Stalls first cleans our equine equipment. T submerged into a bath of molte which creates several layers of easy-identifiable crystallized p

POWDER COAT FINISH:

Powder coasting is superior to when it comes to stalls – leadin finish. Before coating, we ensu ensure a smooth, consistent fin protective “skin” over the equi

A L V A N I Z
G
A T I O N & P O W D E R C O A T
52

DESIGN FINISHES

All American Stalls horse stall equipment is finished with the industry's leading TGIC Polyester Systems 9000 Series. Our powder coat products have the broadest formulating range in color and gloss, and many will meet or exceed AAMA 2603 performance requirements. The work horse of the industry, the 9000 series is often used in interior or exterior applications, and provides excellent flexibility, impact resistance, and application properties. Typical uses include aluminum extrusions, premium agricultural equipment, and heavy duty machinery and equipment. Film Thickness: 2-4 mills Hardness: H-2H Humidity Resistance: 1,500 hours: no more than "few" blisters size 8, figure #4 ASTM D 714 Corrosion Resistance: 1,500 hours of salt solution: minimum rating of 7 on scribe or cut edges: minimum blister rating of 8 in the field (ASTM D 1654) ASTM D 714

P O W D E R C O A T F I N I S H
53
KEY INFORMATION:

FILL MATERIALS

At American Stalls, we combine our expertise manufacturing with the very best fill materia luxury stabling equipment our equine-safe fi

Southern Yellow Pine: The majority of American Stalls projects utilize Pine. We offer this lumber in a tongue and gro x 8″ x 12′ . It is double v-notched for a tight fit a grade-one for ultimate strength. This lumber is allowing you to achieve the exact aesthetic for

High Density Polyethylene (HDPE): Our HDDPE comes in a 2″ x 6″ x 12′ tongue and HDPE is a plastic-based lumber which is kick-p offering a longer product life-cycle. Additional to clean and maintain. This characteristic make for facilities that have strict biosecurity require

Brazilian "Tigerwood": Offered in a tongue and grove 1″ x 5″ x 3′-7′ , do configuration. This premium fill offers a very u appearance. It is beautiful, low maintenance, an woods on the market. Additionally, it is very re and rot – making this lumber ideal for humid c

L U M B E R | H D P E | S T E E L
54
55

STALL GATES

As horse people, we used almost every stall gate in the market and we never quite found one that met our high standards. For that reason, we decided to build our own stall gates in 2011. Ever since, our stall gates have built a reputation for their elegance and strength.

When you purchase our stall gates, you can expect premium steel components, safe design, and a stunning finish. Whether you are remodeling your existing barn, redoing an existing show barn, or simply building your first new barn, our stall gates are the perfect finishing touch.

Our stall gates are extremely versatile as you can also place them behind your existing Dutch door or paddock door. Regardless of the application, our stall gates are bound to add elegance, ventilation, and safety.

Our Stall Gates (European Style) are guaranteed to be a hit in your barn.

" S T A L L S C R E E N S "
56

American Stalls’ Stall Gates are the perfect addition to any existing barn or for a new barn project. Our Stall Gates are available in two sizes:

HALF-SIZE: 51" W x 42" H – Perfect for large breeds, ponies, and miniature breeds

FULL-SIZE: 51" W x 65" H – Perfect for larger horse breeds

GRILLED: 51" W x 58" H – Perfect for all horse breeds

Mesh promotes airflow and odor management Yoke allows for increased socialization

Bar & Mesh design allows for clear visibility

Gauge: 15-GA frame | 16-GA bars

Frame 1.25" square tube

European Yoke: 1.10" round tube

Bars: 7/8" round tubes placed on 2.5" centers

BENEFITS: STEEL FABRICATION: THE FINISH & MISCELLANEOUS: S T A L L S C R E E N S STALL GATES 57 STALL GATE Half-Sized Stall Gate Full-Sized Stall Gate Grilled Stall Gate PRICE $255.00 $320.00 $310.00
Mesh: 2"x2" vented openings Steel Treatment: Pre-galvanized steel Powder Coat: Black Installation hardware is included with each stall gate –including hinges, gate chain, and screws
GRILLED STALL
58
STALL GATES FULL-SIZED STALL GATE (65"H) HALF-SIZED STALL GATE (42"H)
GATE (58"H)
59
HALF-SIZED STALL GATE (42" H) 60 $255.00
61
As seen in Martha Stewart's private barn renovation & as featured on the Martha Stewart Blog
FULL-SIZED STALL GATE (65" H)
$320.00 62
Idea: Our stall gates are not only great to sit behind sliding stall doors, but they are also great to sit behind Dutch Doors
63
The barn is the setting for so many of life’s most precious memories.

PORTABLE HORSE STALLS

American Stalls’ portable horse stalls can be found at the best equestrian facilities throughout the world – including the best Showgrounds, premier US fairgrounds, and many Grand Prix level training facilities.

Our portable horse stalls lead the industry because of our commitment to design, durability, and safety. The Show Series horse stalls feature heavy-duty steel components, premium craftsmanship, and mindful design that promotes safety.

Although they are termed “portable” and “temporary,” our Show Series horse stalls are built to last and safely house your horses. Rest assured, your American Stalls portable horse stalls will serve your horse and facility for years to come.

P R E M I U M T E M P O R A R Y H O R S E S T A L L S
64
65

The Classic Show Series horse stalls are premium portable horse stalls that can be found at some of the best facilities across the world. They feature:

STEEL P O R T A B L E H O R S E S T A L L S

Galvanized steel and a powder coat finish provide superior rust protection for 15+ years.

All steel bars mindfully spaced 3″ apart for optimal safety and ventilation.

Heavy-duty steel that withstands any impact from horses and heavy machinery

40oz vinyl that withstands kicks and other impact

Vinyl is UV-stabilized so you can set up your stalls indoors or outdoors.

Gauge: 14GA frame | 16GA bars

Frame: 1.25" square tube

Bars: 1.00" round tubes placed on 3" centers

Steel Treatment: Pre-galvanized steel

Pre-welded door (48") that swings out a complete 180º

Powder Coat: Black is standard (other colors available)

Vinyl: Tan vinyl is standard (other colors available)

40oz vinyl (2 sheets per panel)

4-layered polyethylene foam placed between vinyl

FABRICATION: THE CLASSIC SERIES 66

STALL PANEL 9' Front Panel 9' Divider Panel 12' Front Panel 12' Divider Panel

PRICE $650.00 $590.00 $750.00 $690.00

Alternative Fill: HDPE in-fill available THE FILLER & FINISH:
67

The Elite Show Series horse stalls are portable horse stalls that can be found at some of the leading equine facilities – popular at boutique training barns and polo clubs. Key features include:

Galvanized steel and a powder coat finish that provide superior rust protection for 15+ years. All steel bars mindfully spaced 3″ apart for optimal safety and ventilation.

Heavy-duty steel that withstands any impact from horses and heavy machinery

40oz vinyl that withstands kicks and other impact

Gauge: 14GA frame | 16GA bars Frame: 1.25" square tube Bars: 1.00" round tubes placed on 3" centers Steel Treatment: Pre-galvanized steel Gentle Roll Yoke: 1.10" Round Tube Pre-welded door (48") that swings out a complete 180º Powder Coat: Black is standard (other colors available) Vinyl: Green vinyl is standard (other colors available) 40oz vinyl (2 sheets per panel) 4-layered polyethylene foam placed between vinyl Alternative Fill: HDPE in-fill available

P O R T A B L E H O R S E S T A L L S THE ELITE SERIES 68 STALL PANEL 9' Front Panel 9' Divider Panel 12' Front Panel 12' Divider Panel PRICE $690.00 $590.00 $790.00 $690.00 ONLY AVAILABLE FOR CUSTOM ORDERS. MINIMUM QUANTITY OF 40 STALLS.
Vinyl that UV-stabilized so you can set up your stalls indoors or outdoors. STEEL FABRICATION:
THE FILLER & FINISH:
69

GRAND PRIX FRAME TENTS

Our Grand Prix Frame Tents are built for clients that host horse shows and other events. Our tents feature construction that is meant to smooth and tighten the traditional look of frame tents by using a tensioned valance, or catenary curve, as opposed to clips or buckles. This allows the Grand Prix Frame tent to use less hardware, making for faster and easier installations. These tents are routinely used by our clients including large horse show venues, polo clubs, expo centers, and fairgrounds. These tents are used to house portable horse stalls, but also used for hospitality use. This includes hospitality tent set ups for VIP lounges at events.

70
Available in most layout sizes 16 oz. blockout, flame resistant, mold & mildew resistant vinyl 95% of tent top is bonded with HEAT SEALED construction Stock colors and custom printing available by special order Tent Construction T E N T S F O R H O R S E S T A L L S & H O S P I T A L I T Y
PRIX FRAME TENTS 71
GRAND

EQUINE FLOORING

Stall flooring is essential to the performance and safety of any horse barn. That is why our American Stalls team has partnered with the best flooring suppliers in the industry to supply superior flooring solutions to our customers.

Our flooring options include aisle pavers, stall mattress systems, and premium horse rubber mats. Regardless of the product, our equine solutions is guaranteed to:

Promote good joint health and overall health among your horses

Promote a safe barn that provides traction through anti-slip properties Save you on bedding and labor costs over the long run

72
73

STALL MATTRESS

Our stall mattress system is a wall-to-wall waterproof stall mat system. The StableComfort™ stall mat system provides unsurpassed comfort through a resilient stall surface which simulates natural turf. While standing, this stall flooring system provides a supportive, even surface. While lying down the StableComfort stall flooring decreases the timeline of injury rehabilitation and aids in loosening stiff joints.

The system ultimately helps reproduces the characteristics of natural pasture as it provides a comfortable surface for your horse to rest upon.

GENERAL INFORMATION: BENEFITS:

Available for any stall size

Standard version: Includes rubber-filled mattress, rubber crumb, top cover, and plastic strip fasteners

Premium version: Includes all of the above and an additional 3/4" thick foam pad

z

Easy to clean

Proven to be equivalent to 4-6" of bedding

Decreases the timeline of injury rehabilitation and aids in loosening stiff joints

S T A B L E C O M F O R T
74
Starting at $1080 Per 12x12 Stall
75
StableComfort Mattress & StableWall shown

N G & S T

Comfort, traction, and urine/odor management are of utmost importance in your horse stalls. That is why our American Stalls mats are engineered to provide the best in all areas. Our interlocking mats are backed by a 15 year warranty guaranteed never to curl or buckle. Made from 100% vulcanized rubber, our mats are designed to maintain shape under extreme machinery from even heavy machinery.

100% Recycled, Vulcanized Rubber Thickness: 3/4" Surface Texture: Flat top, button bottom Size: 4' x 6' Weight: 94 lbs Formats: Interlocking, Straight Edge, or C t C t

I N T E R L O C K I
RUBBER MAT (3/4") R A I G H T E D G E
76
RUBBER MATS

INTERLOCKING

MATS

100% Recycled, Vulcanized Rubber Thickness: 3/4" Surface Texture: Flat Stall Sizes 12'x12' 10'x12' and 10'x10' Size: 4' x 6 Flat bottom accumulat barn aisles 15 year lim Recomme asphalt, or SPECIFICATIONS FEATURES &
77
STALL
Available in most common stall sizes. Precut stall mat kits feature our tight fitting dovetail interlocking tabs to minimize movement and urine seepage. Stall mat kits have interlocking seams and square cut outside edges. 100% Recycled Vulcanized Rubber

RUBBER PAVERS

Our interlocking pavers are a simple, attractive flooring option. They cushion the horses' hooves, are durable in all weather conditions and are easy to install. Our pavers are particularly wellsuited for aisles and exterior wash and grooming areas. This is because they allow for fantastic self-drainage and provide a slip-resistant surface. Additionally, they are all season, weather resistant which means they can be utilized both indoors and outdoors.

SPECIFICATIONS

100% Recycled, Vulcanized Rubber

Paver Size: 7 3/4" x 6 1/4"

2 Thicknesses: 7/8" & 1-3/4"

FEATURES & BENEFITS

Excellent shock absorption and protection

Resistant to bacterial growth and mold

Slip resistant even when wet Controls bacteria and dust

Easy to install and maintain Recommend to install over compact gravel base or concrete.

I N D I V I D U A L R U B B E R P A V E R S
78
79 58

HARDWARE & ACCESORIES

Details are everything. Whether it is a horse barn or a private residence, the hardware can make the world of a difference.

At American Stalls, we offer our hardware and accessories in steel, aluminum, bronze, and brass materials. Our brass and aluminum accessories can add elegance to your barn. This includes ball finials and flat caps to the round posts in your stall fronts.

We also offer accessories – including cross tie rings, blanket bars, saddle racks, and bridle hooks – that not only provide a beautiful look, but serve a functional purpose. Each piece of hardware is handcrafted by local artisans using 100% United States raw materials.

80

BRIDLE HOOK (ROUND)

$510USD

The American Stalls Bridle Hook (Large, Round) is a seamless bridle hook that is handcrafted to your design needs. Each bridle hook's plate measures at an OD of 6". Each bridle hook is then equipped with an elegantly bridle curve and tastefully appointed hook. Note: All hardware is custom built in the USA and arrives in a finish of client's choice.

81

BRIDLE HOOK

$28USD

Our bridle hook is manufactured with heavy duty 14-GA United States steel by true craftsmen. Each piece is built and is designed with a wide stance to maintain your bridle’s shape and look. This bridle hook is multifunctional and can also serve as a halter hook.

Our bridle hooks feature a 3" W x 2" H baseplate. They then feature a hook that has 2.5" of depth. This provides ample room for your bridles and halters.

All bridle hooks are custom built to order. This means that we can powder coat your hooks to your liking.

Standard choices include Echo Black, Mesa Tan, Storm Grey, and Ivy Green. Custom finishes available upon request and subject to a surcharge.

82

HOOKS – SINGLE & DOUBLE

$130USD | $225USD

The American Stalls prong hook is built to seamlessly blend into your tack room or horse barn.

Each single hook features a versatile 1-1/2" W x 2" H plate. Each double hook features a substantial 4" W x 3" H plate.

Note: All hardware is custom built in the USA and arrives in a finish of client's choice.

83

CROSS TIE RING

$170USD

The American Stalls Cross Tie Ring is a simple, yet timeless piece of barn hardware. Easy on the eye, but extremely versatile and durable. Each Cross Tie Ring arrives with two pieces including the cross tie plate (1 1/4" x 2 3/4") and ring.

Note: All hardware is custom built in the USA and arrives in a finish of client's choice.

BOAT CLEAT

$150USD

Create an instant nautical appeal with our boat cleat for your barn hardware. Each boat cleat features rounded curves, smooth lines, and can be custom built to a length of choice.

Note: All hardware is custom built in the USA and arrives in a finish of client's choice.

84

GATE LATCH

$38USD

Our Gate Latches are built using a heavy-duty 304 stainless steel. They are then finished in a durable black powder coat finish. These Latches are the built to complement our stall gates. Clients can also use these latches for other uses including existing sliding horse stalls, paddock gates, and other equine gate products.

Our Gate Latch is guaranteed to stand the test of time and safely house your equine friends.

13 mm diameter solid bolt 12.5mm padlock hole.

Note: Bottom right photo shows latch in raw stainless steel finish. All latches are finished in a black powder coat like above (right).

85
86

BLANKET BAR

$84USD | $108USD

Our blanket bars are a must in every barn. Each blanket bar is handcrafted to ensure your blankets are in great condition after each workout.

Our blanket bars are designed to be 38” wide and provide 6” of depth to make sure you have ample space to hang multiple blankets.

Our clients mount these blanket bars to their stall fronts, in the aisle, and even in their tack room wall. Available in two (2) round tube diameters including 1.3" and 1.9" diameters.

87

AUTOMATIC WATERERS

PricingVariesDependingonCustomization

American Stalls offers the industry-leading Nelson Automatic Waterers –a must for both the stall and pasture. Each waterer features durable construction – including stainless steel and aluminum. It features mindful design such as a removable drinking bowl for easy cleaning.

Available in various mounting options – including wall mounts and freestanding options. Contact your American Stalls Project Manager to determine which is the best waterer for your barn.

All waterer systems include a limited 3 year manufacturer's warranty.

88

STALL FEEDERS

PricingVaries

Horse Stall Feeders are often paired with our automatic waterers to make for a functional horse stall. We offer Nelson Feeders in both the 400 Series and 500 Series.

Each feeders system includes stainless feed bowls and housing. It includes mindful design that features round, smooth edges. Similar to Waterers, all Feeders are available to mount on stall walls and swing-out feeder doors. Lastly, all Feeders are easy to clean with a feed retention lip on the top cover casting to minimize feed waste.

Feeders are easy to install as they are preassembled and ready to bolt on wall. All feeding systems include a limited 1 year manufacturer's warranty.

89

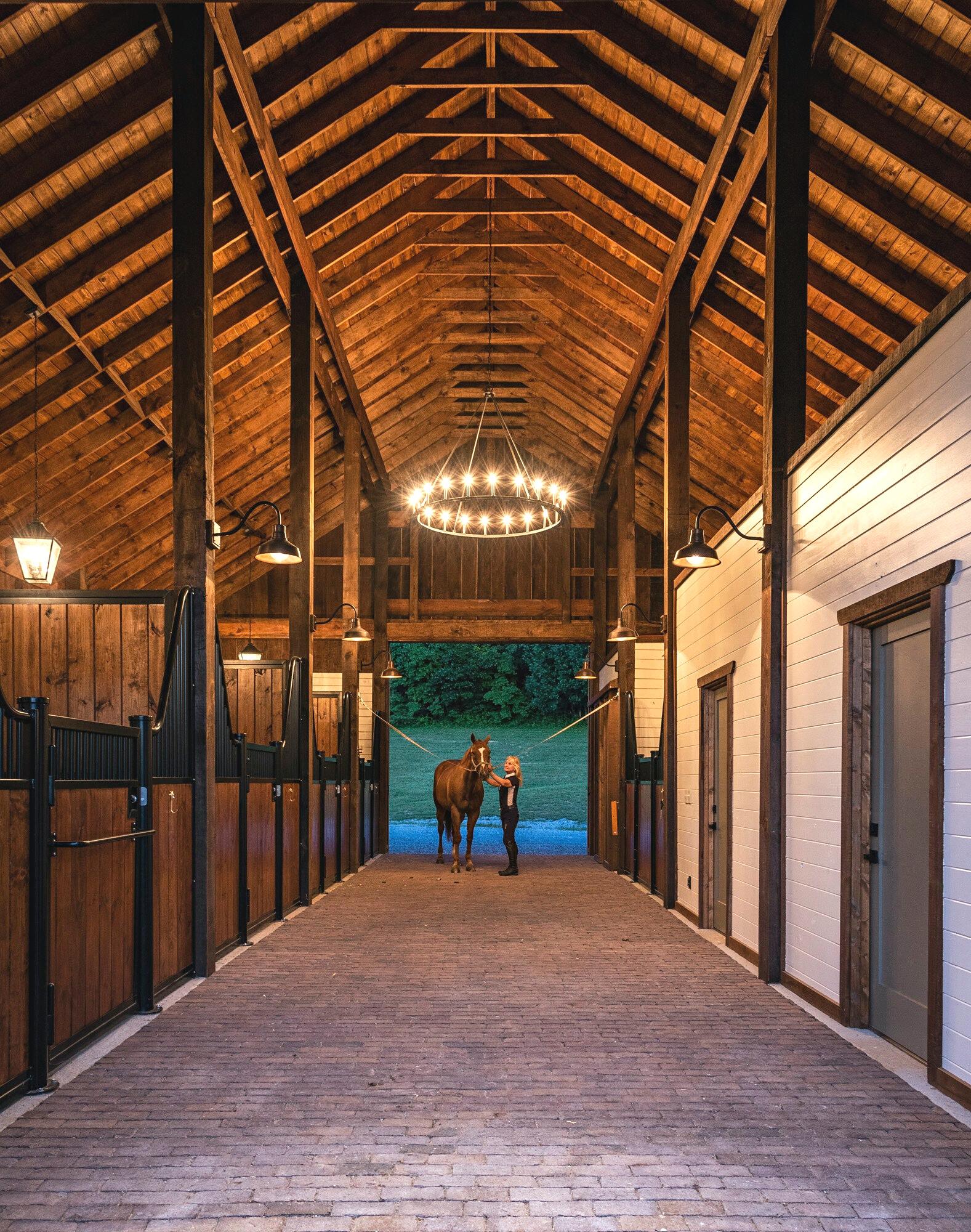

BARN LIGHTING

In any horse barn, we emphasize the need for proper lighting. We build our exterior doors to ensure ample natural sunlight enters your barn. This helps keep your barn healthy and well lit.

In addition to natural sunlight, our team offers the highest-quality exterior and interior lighting for your barn. Our approach to lighting is similar to our approach to any of our stabling equipment.

Each light fixture should be an elegant addition to your barn's aisle and exterior facade. Inspired by early 20th century lighting, we ’ ve taken classic designs and updated them with modern finishes and options. Each lamp is truly an art piece.

Last but not least, each light fixture should be exceptionally durable. Our lighting uses sustainable, 100% American metals including steel, copper, and brass. We then use the same high-quality finishes to ensure that your barn lighting is elegant and built to last.

90
D E T A I L S F O R T H E H O R S E B A R N

BARN LIGHTING THAT INSPIRES

91

GOOSENECK LAMPS

PricingVariesDependingonCustomization

First made popular in the mid-1900s, gooseneck light fixtures are an iconic turn-of-the-century style of wall lighting. Known for the bent, swooping shape of their arms, our gooseneck lights provide a unique vintage look reminiscent of the fixtures found on classic farmhouses and barns.

Our gooseneck fixtures and light shades are offered with various mounting options, sizes, and finishes. Shades vary in width, height, color, and finish to match or contrast with the gooseneck arm, depending on individual preferences. An American Stalls Project Manager can assist with customized options.

92

CORD PENDANTS

PricingVariesDependingonCustomization

Cord hung lights deliver a timeless aesthetic to any barn's center aisle or tack room. To create this iconic look, a shade hangs from the ceiling with help from a stylish cord. Pendant lights can function as an eye-catching focal point or can assume a background role.

Along with these aesthetic benefits, cord hung pendants can also perform more practical applications. These fixtures provide the perfect touches of illumination in tack rooms and client lounges. In large aisles, hanging pendant lights supply general illumination, creating warm, welcoming spaces for riders. An American Stalls Project Manager can assist with customized options.

93

WALL SCONCES

PricingVariesDependingonCustomization

Wall sconce lights typically have compact mountings that keep the fixture close to the wall or mounting surface. This low-profile design makes wall lamps suitable for narrow or tight spaces like barn tack rooms, breezeways, feed rooms, and barn offices. Wall sconces are also adaptable as accent lighting in larger aisles.

With dozens of customization options to choose from including finish color, mounting styles, LED options, and add-ons like wire cages and cast guard and glass, your wall sconce can be hand-crafted to complement most any décor or space. An American Stalls Project Manager can assist with customized options.

94
95

OUR VALUES & PLEDGE

Honesty

We are a family run and operated business located in northern Virginia that believes in good, honest work. This means that our team members will be honest about production times, transparent about upgrade costs, and work hard to get you the most costeffective solutions. You can expect a well-made product that is built with integrity and that will serve you for years to come.

Excellence

You will see our attention to detail in everything that we do at American Stalls. This means silent track systems, seamless welds, and beautiful finishes. It means that our products will fit and function in your barn as advertised. It means customer service that continues to support you – even years after your initial purchase. In short, we will deliver a world class customer experience.

Extreme Ownership

We have been around since 2006 and we fully intend on being around 100 years later. For this reason, we think long-term in everything we do. This includes our choice in materials and our approach to building relationships with our clients, We always work hard to deliver long-term value.

96
97

HOW WE SUCCEED

RELATIONSHIPS & SERVICE

Exceptional customer service is in our genes. Some just have it – an innate desire to deliver meaningful experiences. What our clients speak about most is that singular experience of being truly seen, heard, and understood. This relationship-driven approach continues long after the original purchase.

At American Stalls, we work instinctively and from the heart to serve our clients. An American Stalls purchase is an investment in equine products, but also in a relationship with our firm. Each purchase is the seed for our purpose. We deeply care for our people and make it our mission to build long-lasting, genuine relationships with our clients.

98
99
WWW.AMERICANSTALLS.COM 10625 Jones Street, Suite 101A, Fairfax, Virginia USA 22030 Toll-Free: (855) 957-8255 | Local: (703) 596-1063 | Fax: (888) 285-2572 | sales@americanstalls.com AMERICAN STALLS Luxury Stabling Equipment & Hardware
