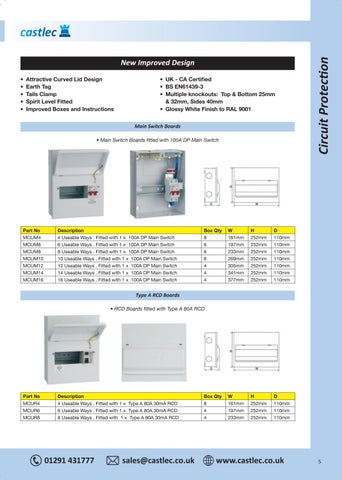

Attractive Curved Lid Design Earth Tag Tails Clamp Spirit Level Fitted Improved Boxes and Instructions
� UK - CA Certified � BS EN61439-3 � Multiple knockouts: Top & Bottom 25mm & 32mm, Sides 40mm � Glossy White Finish to RAL 9001 Main Switch Boards
� Main Switch Boards fitted with 100A DP Main Switch
Part No MCUM4 MCUM6 MCUM8 MCUM10 MCUM12 MCUM14 MCUM16
Description 4 Useable Ways . Fitted with 1 x 100A DP Main Switch 6 Useable Ways . Fitted with 1 x 100A DP Main Switch 8 Useable Ways . Fitted with 1 x 100A DP Main Switch 10 Useable Ways . Fitted with 1 x 100A DP Main Switch 12 Useable Ways . Fitted with 1 x 100A DP Main Switch 14 Useable Ways . Fitted with 1 x 100A DP Main Switch 16 Useable Ways . Fitted with 1 x 100A DP Main Switch
Box Qty 8 6 6 6 4 4 4
W 161mm 197mm 233mm 269mm 305mm 341mm 377mm
H 252mm 252mm 252mm 252mm 252mm 252mm 252mm
D 110mm 110mm 110mm 110mm 110mm 110mm 110mm
W 161mm 197mm 233mm
H 252mm 252mm 252mm
D 110mm 110mm 110mm
Circuit Protection
New Improved Design
Type A RCD Boards � RCD Boards fitted with Type A 80A RCD
Part No MCUR4 MCUR6 MCUR8
Description 4 Useable Ways . Fitted with 1 x Type A 80A 30mA RCD 6 Useable Ways . Fitted with 1 x Type A 80A 30mA RCD 8 Useable Ways . Fitted with 1 x Type A 80A 30mA RCD
01291 431777
sales@castlec.co.uk
Box Qty 8 4 4
www.castlec.co.uk
5
