MATERIALS
https://issuu.com/7sarch/docs/arch405_materials_binder
1
BINDER ANDREW PETERS ARCH405 03/11/2024 ISSUU:
2

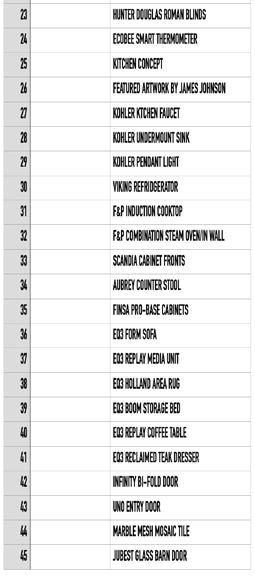

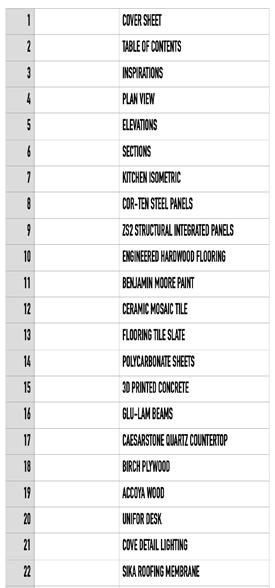

TABLE OF CONTENTS
INSPIRATIONS
3
PLAN VIEW
KEY/TAG ITEM DESCRIPTION
MATERIAL SCHEDULE
E1 CORTEN STEEL PANELS
S1 STRUCTURAL INTEGRATED PANELS
F1 ENGINEERED HARDWOOS
P1 BENJAMIN MOORE PAINT
W2 MOSAIC TILE
F2 FLOORING TILE SLATE
R1 POLYCARBONATE SHEETS
W3 3D PRINTED CONCRETE
S1 GLU-LAM BEAMS
KC7 CAESARSTONE QUARTZ COUNTERTOP
W4 BIRCH PLYWOOD
E2 ACCOYA WOOD
FN8 OFFICE DESK
L1 COVE LIGHTING
R2 ROOFING MEMBRANE
WC1 ROMAN BLINDS
M1 SMART THERMOSTAT
KP1 KOHLER KTCHEN FAUCET
KP2 UNDERMOUNT SINK
L1 PENDANT LIGHT
KA1 VIKING REFRIDGERATOR
KA2 INDUCTION COOKTOP
KA3 COMBINATION WALL OVEN
KC9 CABINET FACES
FN1 COUNTER STOOL
KC 1-7 CABINETS
FN2 EQ3 SOFA
FN3 EQ3 MEDIA UNIT
FN4 EQ3 HOLLAND RUG
FN5 EQ3 BOOM STORAGE BED
FN6 EQ3 REPLAY COFFEE TABLE
FN7 EQ3 TEAK DRESSER
DR1 INFINITY BI-FOLD DOOR
DR2 UNO ENTRY DOOR
W5 KITCHEN MOSAIC TILE
DR3 SLIIDING GLASS BARN DOOR
4
DR1
DR3
DR3
KA1 KA2
FN1
FN1
FN5 FN2
KC5
F2
KP2 KP1
W2
KC7 W4
WC1
M1 FN3 FN4 FN6
FN7
O1
DR2 F1 F1 F1 KC8
R1 E1 Concrete 6" DR2 E1 S2 E2 S1 R2 R1 E1 E1 E W S N

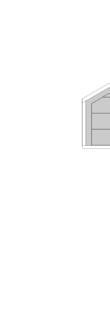

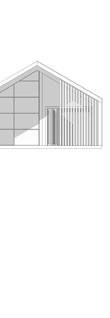

ELEVATIONS

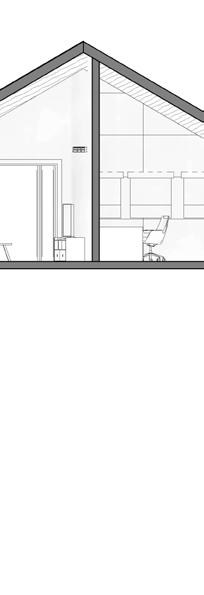

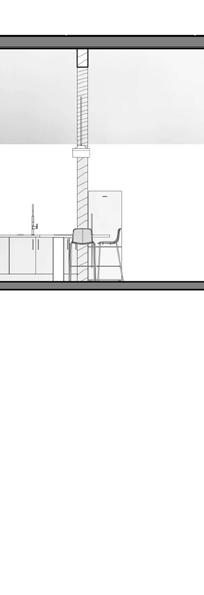

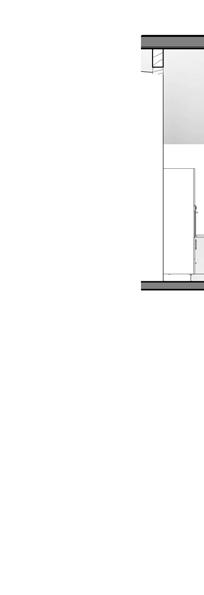

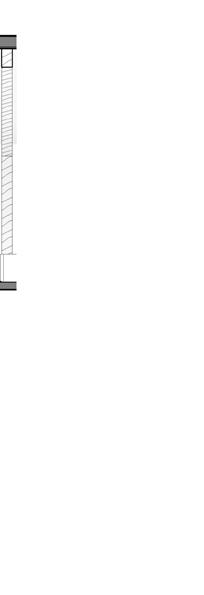

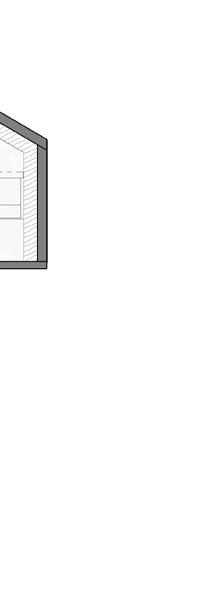

SECTIONS
FN6 O1 FN3 DR1 L2 FN2 WC1 P1 FN4 S1 L1 P1 P1 W5 W3 KP1 P1 FN1 KC5 KITCHEN

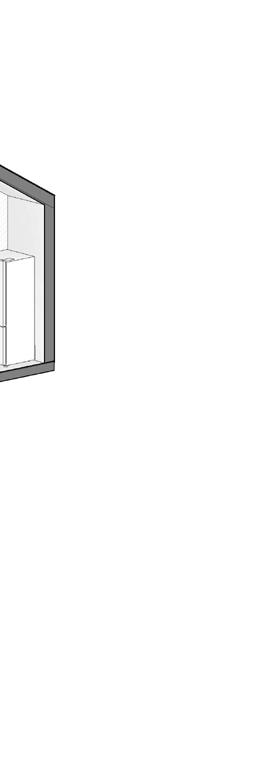

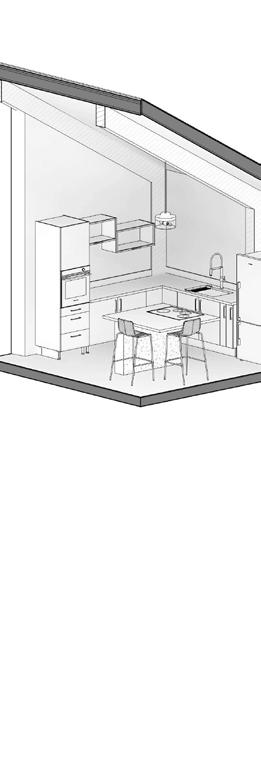

KITCHEN ISOMETRIC
L1 KP1 KP2 KA2 KA1 FN1 FN1 KC6 KC6 KC1 KC1 KC2 KC3 KC4 KA3 KC5 KC7 KC8 W5
Material Specifications
Key E1
Room Exterior cladding/roofing
Manufacturer Western States Metal Roofing
Item name Corten steel panel
Finish Rust
Dimension 4’x10’ max, 11 gauge
Colour Rust
Pattern Vertical panel
Repeat Yes
Pricing/unit 400 CAD
Units needed 18
Total cost 7200 CAD
Description Corrosion resitant, recycled materials, durable, can be custom cut to required dimensions
https://www.westernstatesmetalroofing.com/metalflat-sheets
8
Material Specifications
Key S2
Room Wall system
Manufacturer ZS2 Technologies
Item name Tech Panel (SIP)
Finish Primed
Dimension 8”t, cut to spec at factory
Colour N/A
Pattern No
Repeat Yes
Pricing/unit 24 CAD/sf
Units needed 576
Total cost 13,824 CAD
Description SIP panel replaces framing, drywall, exterior sheeting, insulating, high R value. Send plan to manufacturer to get panels custom made. https://zs2technologies.com/techpanel-new/
9
Material Specifications
Key F1
Room Living room/bedroom/corridor/office
Manufacturer Stone/Tile
Item name Roku
Finish Shibui
Dimension 3/4” x 7”x 96”
Colour Light beige
Pattern Plank
Repeat Yes
Pricing/unit 7.15 CAD/sf
Units needed 580
Total cost 4187 CAD
Description Engineered hardwood flooring planks
https://stone-tile.com/CA_EN/
10
Material Specifications
Key P1
Room Bedroom 1, Bedroom 2
Manufacturer Benjamin Moore
Item name Aura Matte
Finish Matte
Dimension N/A
Colour OC-57 White Heron
Pattern No
Repeat No
Pricing/unit 90 CAD/3.79 L
Units needed 4
Total cost 360 CAD
Description matte finish bedroom wall paint
11
Material Specifications
Key W2
Room Bathroom/guest bathroom backsplash
Manufacturer Stone/Tile
Item name
Retro Penny Round
Finish Gloss
Dimension 30cm x 30cm x 1 (sheet), indivdual penny 3/4”
Colour Rainy sky
Pattern Mosaic
Repeat Yes
Pricing/unit 9.32CAD/sq.ft
Units needed 80
Total cost 745.60 CAD
Description Mosaic tile for bathroom wall
https://stone-tile.com/CA_EN/
12
Material Specifications
Key F2
Room Kitchen
Manufacturer Stone/Tile
Item name Venice
Finish Slate
Dimension 40x60x1.5cm
Colour Basalt
Pattern grid
Repeat Yes
Pricing/unit 17.33 CAD/sq.ft
Units needed 230
Total cost 3985.90 CAD
Description Natural stone tile for Kitchen and hallway finish
https://stone-tile.com/CA_EN/
13
Material
Specifications
Key R1
Room Roof
Manufacturer Macrolux
Item name BDL 25mm
Finish translucent polycarbonate sheet
Dimension 600mm x 25mm x length of roof
Colour translucent 80% emmisivity
Pattern Yes
Repeat Yes
Pricing/unit 5 CAD/sf
Units needed 700
Total cost 3500 CAD
Description High impact resistance, thermally efficient, cost effective, easy assembly, good fire resistance. https:// www.macroluxcanada.com/bdl
14
Material Specifications
Key W3
Room Living Room
Manufacturer Sika
Item name Sikacrete® 3D
Finish Concrete
Dimension TBD
Colour grey
Pattern Horizontal parametric lines
Repeat No
Pricing/unit 3500 CAD
Units needed 1
Total cost 3500 CAD
Description Custom designed 3D printed concrete entertainment unit wall. Printing patterns for interesting shape and built in shelving. https://www.sika.com/en/knowledge-hub/3d-concrete-printing.html
15
Material Specifications
Key S1
Room Framing component
Manufacturer Kalesnikoff
Item name Glu-lam beam
Finish Douglas Fir
Dimension 180mm x 280mm x 4m
Colour Natural
Pattern No
Repeat Yes
Pricing/unit 478CAD
Units needed 6
Total cost 2868 CAD
Description Use for columns and trusses. https://kalesnikoff. com/products/mass-timber-glulam-beams/
16
Material Specifications
Key KC7
Room Kitchen
Manufacturer Caesarstone
Item name Caesarstone quartz countertop
Finish Eased edge, rough finish
Dimension 2 cm thickness, 120” x 56.5”
Colour Airy concrete
Pattern No
Repeat No
Pricing/unit 1450 CAD
Units needed 1
Total cost 1450 CAD
Description https://www.caesarstoneus.com/countertops/4044-airy-concrete/#caesarstone-ar
17
Material Specifications
Key W4
Room Den
Manufacturer Windsor Plywood
Item name Birch plywood
Finish Stain to match glulam beams, tbd
Dimension 1/2”x 4’x8’
Colour light brown/pale
Pattern Yes
Repeat Yes
Pricing/unit 105 CAD
Units needed 6
Total cost 630 CAD
Description Straight or slightly wavy, with a fine, even texture. Low natural luster. https://www.windsorplywood. com/product/russian-birch-plywood/
18
Material Specifications
Key E2
Room Exterior
Manufacturer Accoya
Item name Accoya cladding (brise soleil)
Finish Textured/brushed
Dimension 5/4 4” x 118”
Colour Red cedar
Pattern Vertical brise soleil
Repeat Yes
Pricing/unit 54 CAD
Units needed 65
Total cost 3510 CAD
Description Exterior cladding/brise soleil. Highly durable treated wood.
https://www.accoya.com/uk/products/cladding/
19
Material Specifications
Key FN8
Room Office
Manufacturer Unifor
Item name Flipper bench
Finish Compact laminate
Dimension 1800mm x 800mm adjustable height
Colour PN Platinum grey
Pattern No
Repeat No
Pricing/unit 1800 CAD
Units needed 1
Total cost 1800 CAD
Description Office/den workstation
https://www.unifor.it/en/office-furniture/flipper-bench
20
Material Specifications
Key L1
Room Living room
Manufacturer Alcon
Item name 1-Inch Perimeter Wall Wash Trimless Linear Recessed LED Light
Finish White
Dimension 1”x 1.73” x 8’
Colour White
Pattern No
Repeat No
Pricing/unit 799.95 CAD
Units needed 1
Total cost 799.95 CAD
Description Wall wash for Living room feature wall
https://www.alconlighting.com/specsheets/alcon/12100-10-PR.pdf
21
Material Specifications
Key R2
Room Roof/Walls
Manufacturer Sika
Item name Sikalastic 626
Finish Polyurethane coating
Dimension 15mm thick
Colour black
Pattern No
Repeat No
Pricing/unit 300 CAD
Units needed Number
Total cost 600 CAD
Description Poly-urethane roof and wall coating as an extra layer of protection
https://usa.sika.com/dam/dms/us01/k/sikalastic_-626.pdf
22
Material Specifications
Key
WC1
Room Office/den
Manufacturer HunterDouglas
Item name Alustra woven textures roman blinds
Finish woven textural finish
Dimension 2’x4’
Colour breeze
Pattern No
Repeat Yes
Pricing/unit 450 CAD
Units needed 2
Total cost 900 CAD
Description motorized blinds for office space
https://www.hunterdouglas.ca/window-treatments/ shades/roman-shades/alustra-woven-textures-roman
23
Material Specifications
Key M1
Room Living room
Manufacturer Ecobee
Item name Smart thermostat premium
Finish gloss black
Dimension 15”x 5” x 1”
Colour Black
Pattern No
Repeat No
Pricing/unit 329.99 CAD
Units needed 1
Total cost 329.99 CAD
Description https://www.ecobee.com/en-ca/smart-thermostats/
24
Material Specifications
Kitchen Concept
The home design is a modern open concept design. Materials, fixtures and appliances were chosen to be sleek, minimalistic and high peformance. Natural light floods the room, highlighting the beauty and simplicity of the space and components. Smooth, glossy kitchen surfaces contrast the raw glt beams.
25
Material Specifications
Featured Artwork
The chosen artwork for the space is a piece from James Johnson. I first saw his artwork on the Lib-Tech “Double Dip” snowboard. Tlingit artwork has always spoken to me, and as such is being featured in this project
26
Material Specifications
Key KP1
Room Kitchen
Manufacturer Kohler
Item name Components
Finish Titanium
Dimension 24” x 9” x 5”
Colour Titanium
Pattern No
Repeat No
Pricing/unit 2502 CAD
Units needed 1
Total cost 2502 CAD
Description Spec sheet: https://resources.kohler.com/webassets/kpna/catalog/pdf/en/K-28267_spec_US-CA_ Kohler_en.pdf
27
Material Specifications
Key KP2
Room Kitchen
Manufacturer Kohler
Item name Strive 29” undermount single bowl kithen sink
Finish Stainless steel
Dimension 29” x 18 5/16” x 9 5/16”
Colour Stainless steel
Pattern No
Repeat No
Pricing/unit 1604 CAD
Units needed 1
Total cost 1604 CAD
Description Spec sheet: https://resources.kohler.com/webassets/ kpna/catalog/pdf/en/K-5409_spec_US-CA_Kohler_ en.pdf
28
Material Specifications
Key L1
Room Kitchen
Manufacturer Kohler
Item name Crue 4” pendant
Finish Titanium
Dimension 4 3/4” x 12 7/16” x 57” max
Colour Colour
Pattern Pattern
Repeat Yes
Pricing/unit 337 CAD
Units needed 3
Total cost 1011 CAD
Description Spec sheet: https://resources.kohler.com/webassets/kpna/catalog/pdf/en/K-35876-PE01_spec_USCA_Kohler_en.pdf
29
Material Specifications
Key KA1
Room Kitchen
Manufacturer Viking
Item name 36” Custom Panel Fully Integrated Bottom-Freezer
Refrigerator - FBI7360W
Finish Stainless steel
Dimension 36” x 84” x 27”
Colour Stainless steel
Pattern No
Repeat No
Pricing/unit 3800 CAD
Units needed 1
Total cost 3800 CAD
Description https://www.vikingrange.com/consumer/product/ products/refrigeration/built-in-refrigeration/7-series-built-in-refrigerator-freezers/viking-professional/36--custom-panel-fully-integrated-bottom-freezer-refrigerator---fbi7360w
30
Material Specifications
Key KA2
Room Kitchen
Manufacturer Fisher & Paykel
Item name Primary Modular Induction Cooktop, 30”, 4 Zones with SmartZone
Finish Gloss Black
Dimension 30”
Colour Gloss Black
Pattern No
Repeat No
Pricing/unit 2400 CAD
Units needed 1
Total cost 2400 CAD
Description https://www.fisherpaykel.com/ca/cooking/cooktops/minimal-cooktops/primary-modular-induction-cooktop-30in-4-zones-with-smartzone-ci304dttb1-82827.html
31
Material Specifications
Key KA3
Room Kitchen
Manufacturer Fisher & Paykel
Item name 24” Combination Steam Oven
Finish Gloss Black
Dimension 36”W x 35”H x 26”D
Colour Gloss Black
Pattern No
Repeat No
Pricing/unit 3950 CAD
Units needed 1
Total cost 3950 CAD
Description https://www.fisherpaykel.com/ca/cooking/ovens/minimal-ovens/combination-steam-oven-24in-23-function-os24smtnb1-84732.html
32
Material Specifications
Key KC9
Room Kitchen
Manufacturer Nieu
Item name Scandia cabinet fronts
Finish Gloss slabs
Dimension 3/4”
Colour Winter white
Pattern No
Repeat Yes
Pricing/unit 43 CAD/sf
Units needed 80
Total cost 3440 CAD
Description order to meet design requirments. https://www. nieucabinetdoors.com/ca/product/scandia-slab/
33
Material Specifications
Key FN1
Room Kitchen
Manufacturer Rove concepts
Item name Aubrey counter stool
Finish Vegan suede with walnut legs
Dimension 18 in x 19 in x 37 in
Colour Chiffon
Pattern No
Repeat Yes
Pricing/unit 336 CAD
Units needed 3
Total cost 1008 CAD
Description https://www.roveconcepts.com/aubrey-counter-stool?locale=en_CA&gad_source=1&gclid=CjwKCAiA8sauBhB3EiwAruTRJifoIZBC51-L1nbto2C346_Lo6M0EtRSLs7Go39BoZ64JloDLuk5AhoClhcQAvD_BwE&aid[12]=173&aid[153]=1276
34
Material Specifications
Key KC1-7
Room Kitchen
Manufacturer Finsa
Item name Pro Base Cabinets
Finish Melamine
Dimension Varies
Colour Matte white
Pattern No
Repeat Yes
Pricing/unit 200 CAD
Units needed 10
Total cost 2000 CAD
Description Cabinet units. https://www.finsa.com/en/fp/max060-/max/blanco-polar/soft-iii
35
Material Specifications
Key FN2
Room Living Room
Manufacturer EQ3
Item name Form Sofa
Finish Leather
Dimension 92”w × 37”d × 34.3”h
Colour Rein Toast
Pattern No
Repeat No
Pricing/unit 5600 CAD
Units needed 1
Total cost 5600 CAD
Description Made to order, 4-6 weeks lead time.
https://www.eq3.com/ca/en/search/SOFA
36
Material Specifications
Key FN3
Room Living Room
Manufacturer EQ3
Item name Replay Media Unit
Finish Walnut
Dimension 54.9”w × 16.5”d × 22.9”h
Colour Walnut
Pattern No
Repeat No
Pricing/unit 1499 CAD
Units needed 1
Total cost 1499 CAD
Description https://www.eq3.com/ca/en/category/living/media--storage/media-units
37
Material Specifications
Key FN4
Room Living Room
Manufacturer EQ3
Item name Holland Rug
Finish n/a
Dimension 8’x10’x.5”
Colour Brown tones
Pattern No
Repeat No
Pricing/unit 800 CAD
Units needed 1
Total cost 800 CAD
Description Area rug for Living room.
https://www.eq3.com/ca/en/category/rugs/area-rugs
38
Material Specifications
Key FN5
Room Bedroom
Manufacturer EQ3
Item name Boom Storage Bed
Finish Walnut
Dimension 68” w x 84.5” d x 39.5” h (queen)
Colour Walnut
Pattern No
Repeat No
Pricing/unit 4000 CAD
Units needed 1
Total cost 4000 CAD
Description Master bedroom bed with built in storage.
https://www.eq3.com/ca/en/category/bedroom/beds/ storage-beds
39
Material Specifications
Key FN6
Room Living Room
Manufacturer EQ3
Item name Replay Coffee Table
Finish Walnut
Dimension 36.9”w × 36.9”d × 10.9”h
Colour Walnut
Pattern No
Repeat No
Pricing/unit 1499 CAD
Units needed 1
Total cost 1499 CAD
Description Matches Entertainment Unit. https://www.eq3.com/ ca/en/product/clesvncri0jsk356buew9xccx/living/ accent-tables/coffee-tables/replay-square-coffee-table
40
Material Specifications
Key FN7
Room Bedroom
Manufacturer EQ3
Item name Reclaimed Teak Low Dresser
Finish Teak faces with Charcoal Cabinet
Dimension 75”w × 19”d × 28”h
Colour Teak w charcoal cabinet
Pattern No
Repeat No
Pricing/unit 1319 CAD
Units needed 1
Total cost 1319 CAD
Description Bedroom Dresser https://docs.eq3.com/resources/ prod/Casegoods_Reclaimed_Bedroom_spec%20 sheet.pdf
41
Material Specifications
Key DR1
Room Living room/patio
Manufacturer Marvin
Item name Infinity Bi-fold door
Finish Aluminum
Dimension 84” x14’
Colour Ebony
Pattern No
Repeat No
Pricing/unit 3500 CAD
Units needed 1
Total cost 3500 CAD
Description Large bi-fold door for patio opening. https://marvincanada.com/products/collections/infinity-collection/infinity-bi-fold/
42
Material Specifications
Key DR2
Room Entrance
Manufacturer Gentek
Item name Uno NHP Entry door
Finish Uno accent 1
Dimension 84” x 36”
Colour Black
Pattern No
Repeat No
Pricing/unit 800 CAD
Units needed 1
Total cost 800CAD
Description Main entrance. https://www.gentek.ca/product-catalog/windows-doors/high-performance-steel-door/
43
Material Specifications
Key W5
Room Kitchen
Manufacturer MSI
Item name Arabescato Venato White Cube 11.75” x 12” Honed Marble Mesh-Mounted Mosaic Tile
Finish Marble
Dimension 11.75” x 12”
Colour Venato white
Pattern Yes
Repeat Yes
Pricing/unit 24 CAD/sf
Units needed 100
Total cost 2400 CAD
Description Kitchen walls.
https://www.wayfair.ca/home-improvement/pdp/msi-arabescato-venato-whitecube-1175-x-12-honed-marble-mesh-mountedmosaic-tile-mvp12290.html
44
Material Specifications
Key DR3
Room Bedroom, Office
Manufacturer JuBest
Item name 30in x 84in Glass Barn Door with 5FT Sliding Door
Hardware Kit Included
Finish Aluminum
Dimension 36” x 84”
Colour Black with Smoked Glass
Pattern No
Repeat Yes
Pricing/unit 350 CAD
Units needed 2
Total cost 700 CAD
Description Privacy door for office and bedroom, barn style
https://jubest.com/
45
