ORIENTATED INFILL:

Most of the public space is specifically intended to become a platform with infrastructure that is flexible that encourages adaptation and alteration. A series of walls and storerooms, covered with steel pergolas and grids, are placed within the public spaces and is intended to become the base structures for userbased programs where it could be enveloped, covered, dangled from or informed by.

THE GRID AS INFORMAL TRADE

SHED

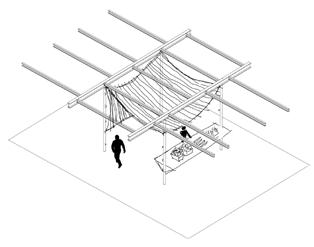

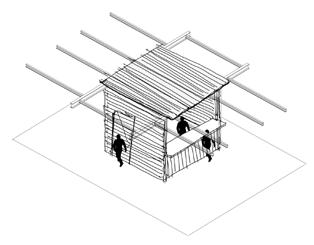

This type of intervention could be erected in the morning and removed later with a possible table erected between the post using the structure provided

THE GRID AS GATHERING SPOT

Benches could be erected between the posts using the structure provided for family gatherings or weddings using the communal facilitied to prepare food

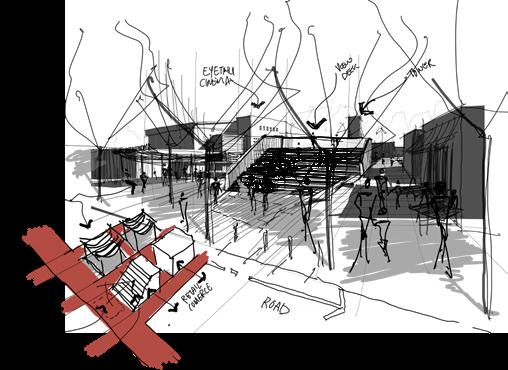

THE GRID AS SHOP

The structure could be used to erect more formal structures against the built walls where services is provided in the posts

THE GRID AS PLAYGROUD

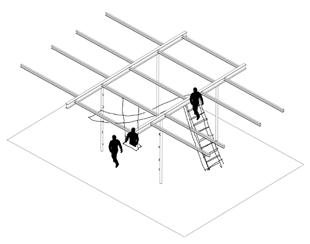

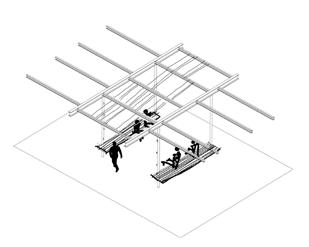

Play equipment could be suspended of the structure by the users combining a large sphere of programs in the space

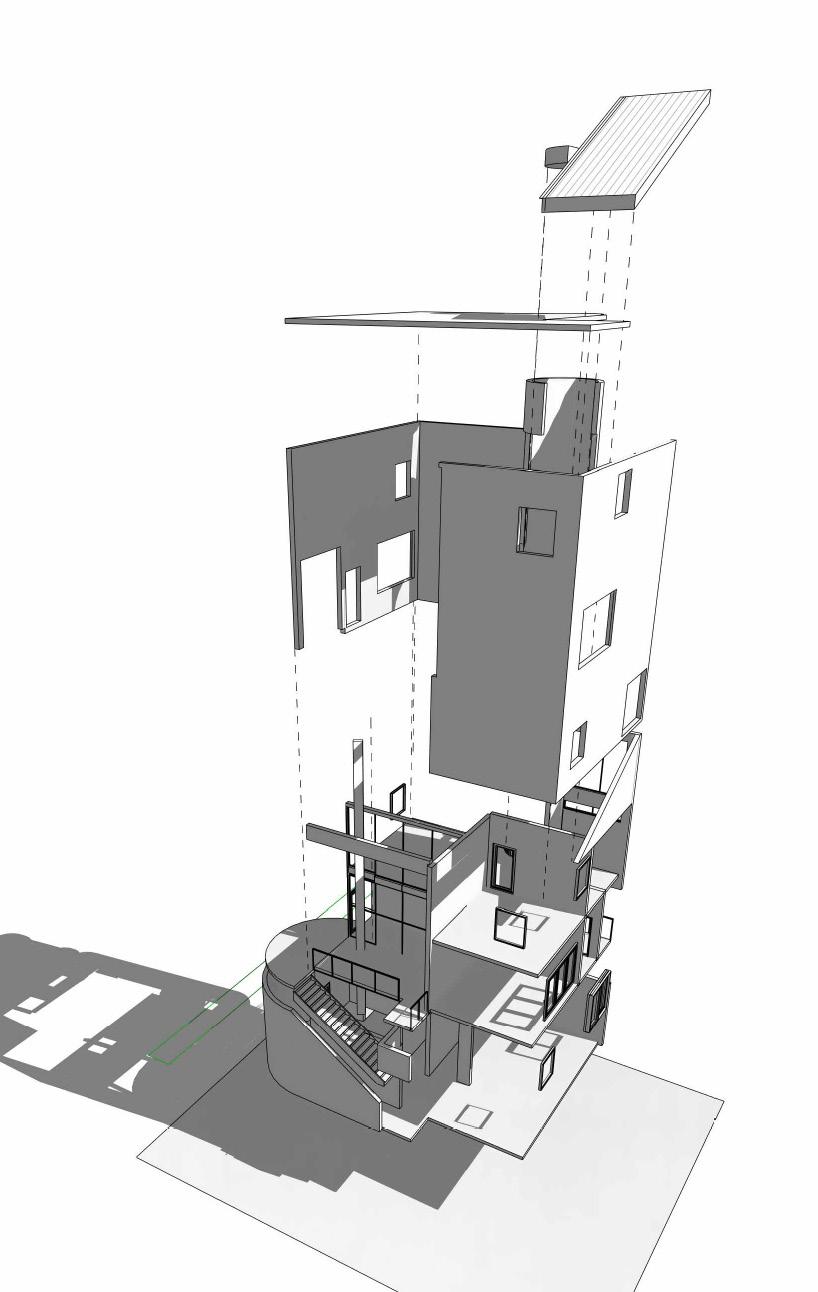

PORTFOLIO

SNETHEMBA JIYANE

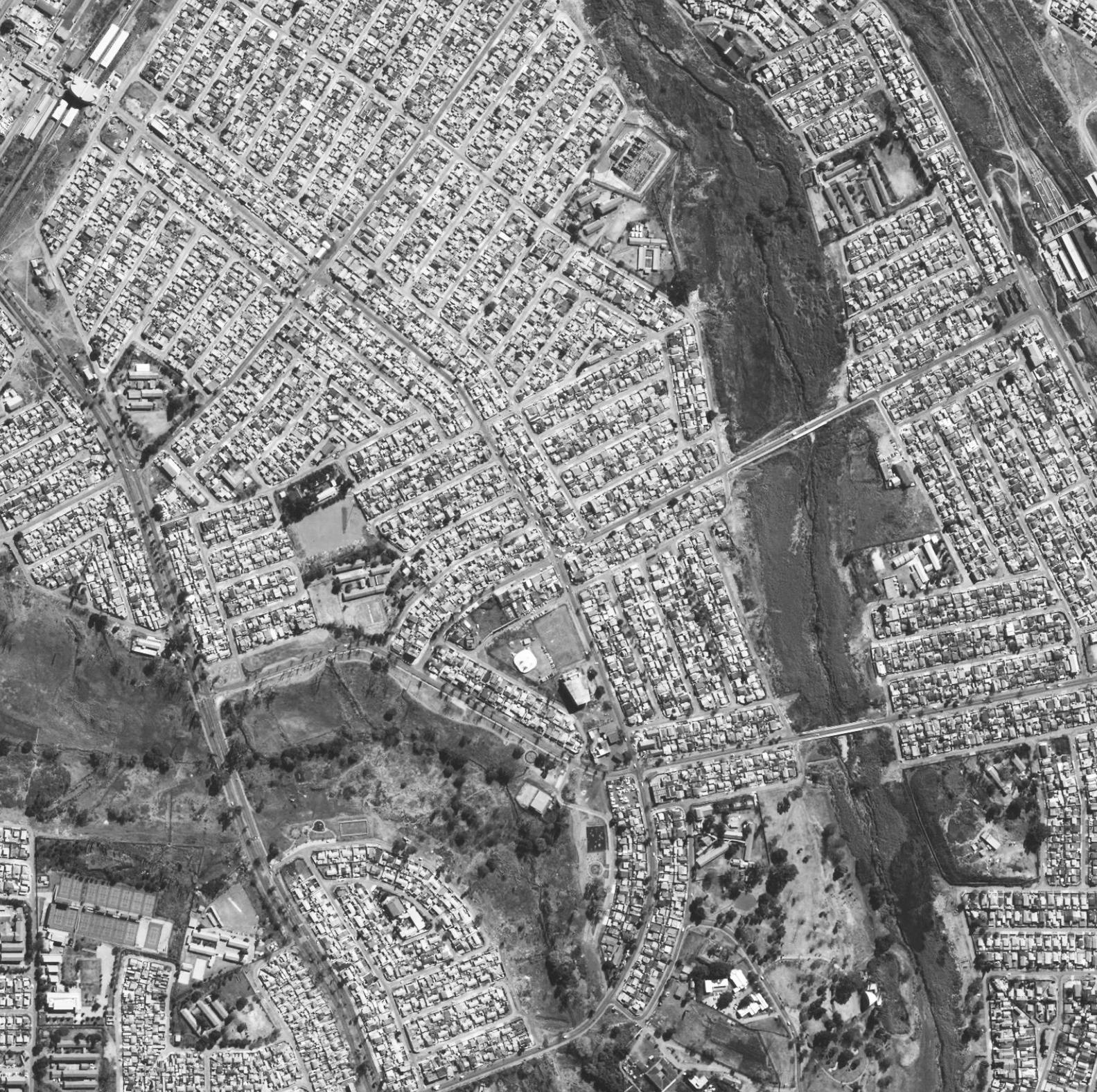

SITE LOCATION

The Eyethu Cinema site is located on the Southern tip of Mofolo Central.

Machaba drive as main artery. Zulu drive as border between land uses connecting Mofolo to Elias Motsoaledi Road – a main road connecting multiple suburbs of Soweto. Kenini Street linking Machaba and Zulu Road

CONTEXT STUDY 01:

Formal and informal trade is found along Machaba Road, the same for the intersection of Kinini and Machaba. Eyethu Lifystyle center along with directly adjacent buildings, a block of retail buildings if found

This is one of the few instances where the building seems to have been intentionally built for commerce. Unfortunately, to the west this block is empty or used as vehicle scrap metal storage. This could be a result of the underused street scape of Kinini and Ishabalala Streets.

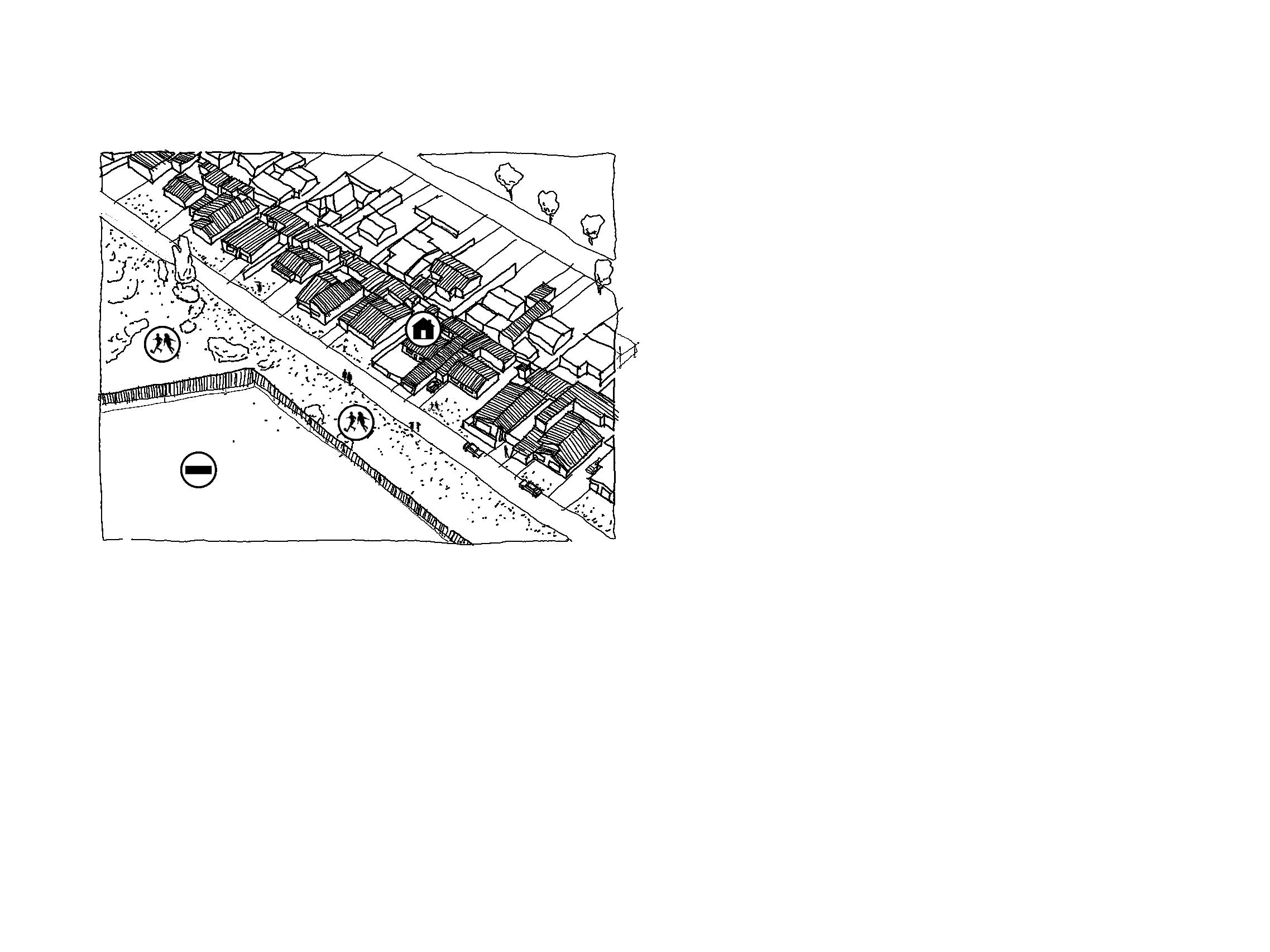

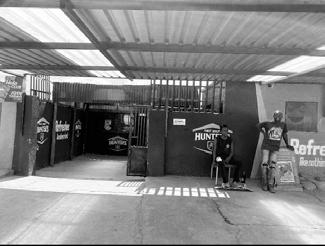

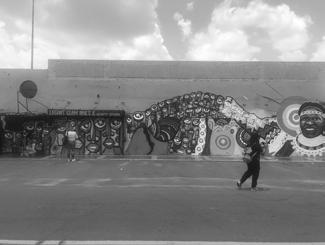

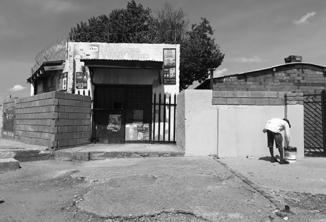

However along Machaba Drive, where ever there is a solid wall facing the road, informal trade is set up and the formalised commerce is reflected where some homes around the intersection are adapting to become mixed retail and domestic. Thus taking advantage of the script of the main road activity and responding with an appropriate set.

Figure 25

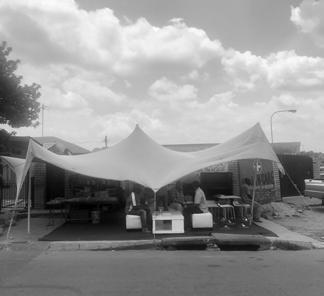

Formal & Informal Trade along Machaba Dr. Snethemba, 2024; Kabini, 2024)

CONTEXT STUDY 0

2:

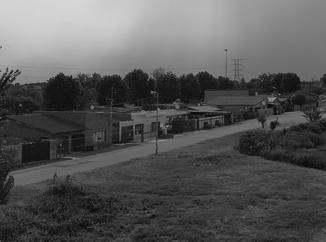

The residential buildings to the west of the site along Maleyu Street is still mostly used as the intended domestic program.

This could be because of Maleyu Street being a quiet domestic road with the empty field not having any programmatic response to it.

They use the empty field as park space and some larger gathering spills over to that side.

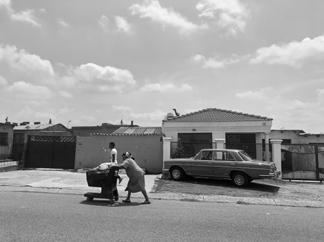

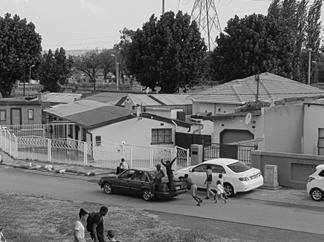

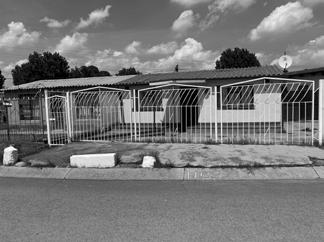

Figure 29 Residential buildings along Maleyu Street Snethemba, 2024; Kabini, 2024)

URBAN INTERVENTION CASE STUDY

BERNARD TSCHUMI

PARC DE LA VILLETTE

Paris-1983

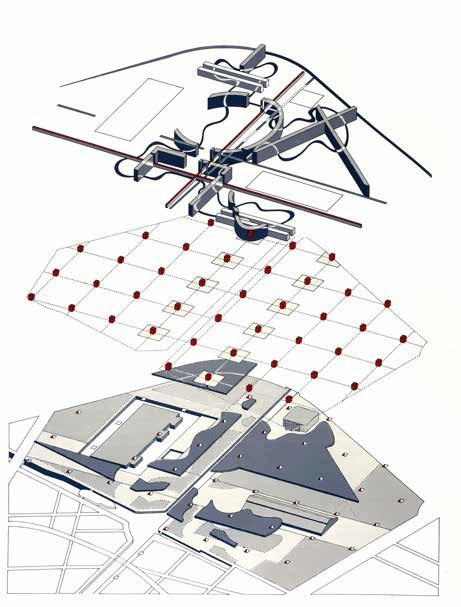

Originated in a competition to design then the biggest park in Paris. Tschumi used the principle of superimposition of a typical urban grid on the natural landscape - “almost a perverse reiteration of the urban life” He used the nodes created through this conjunction as ‘follies’ that a visitor could stumble upon to reorient themselves in the larger unfamiliar context. (Souza, 2011)

Similar to Tschumi, I aim to rid the foreign unused emptiness of the site by introducing a scale and grain that is familiar to the intended users.

Thus learning from the theoretical understanding of the conjunction of the known and the unknown as a guide to use superimposing as a method of space planning.

Further, his planning created grid intersection that emphasis nodes where he had planned or unplanned programs that could be discovered by the user. This could in a way encourage a drifting through the park that encourage exploration. The attempted use of my intervention will aim to do this as well.

ARCHITECTURAL CASE STUDY

DANIEL BUREN

Les 2 Plateaux - Project d’amenagement de la Cour du Palais Royal

Paris-1986

A courtyard intervention in the Historic Palais Royal in Paris. The Buren aimed to include the architectural composition of the palace, which is essentially linear, repetitive and gridded. The intervention emerges from the conjunction of these two principles, which is to say from all the possibilities of both of them, but nevertheless without them contradicting one another or cancelling each other out.

(Labedade, n.d.)

Buren managed to, on theoretical level, implement two contrasting programs on the space with playing to the strenghts of both. This precedent could aid my intervention in understanding the conjunction of the planned nature of architecture and the unplanned idealogy of the intended space.

Spacially, Buren used a conjunction of the strict grid and altering the levels of the floorscape to create the threshold between different uses. Thus using mutliple dimensions to create space.

Buren used the altering levels to allow ‘the human to be the scalpture’ to observe or to be observed. This principle is at the core of the conceptual aim of my intervention to expose narrative.

Figure 35

Conjunction by Tschumi

(Souza, 2011)

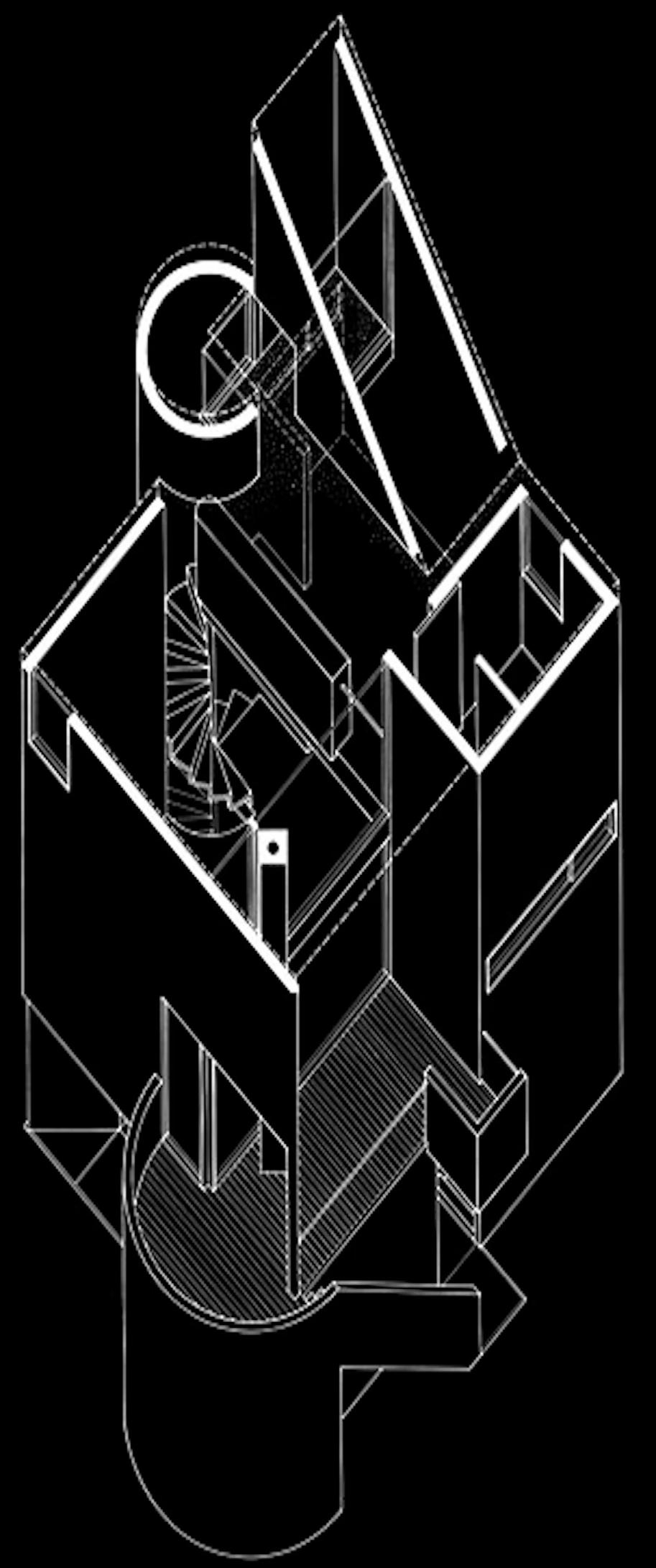

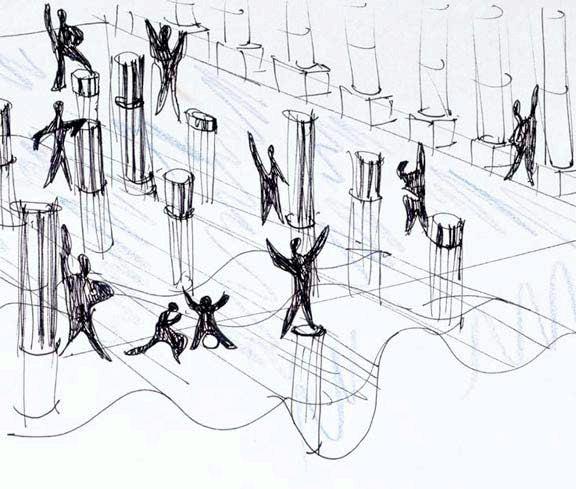

Figure 37 a movement study by Buren (Labedade, n.d.)

Figure 36

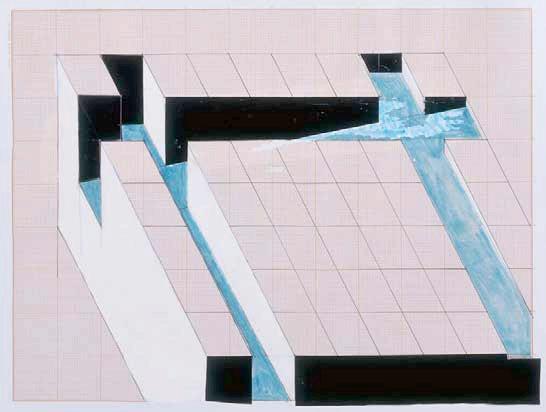

Spacial study by Buren (Labedade, n.d.)

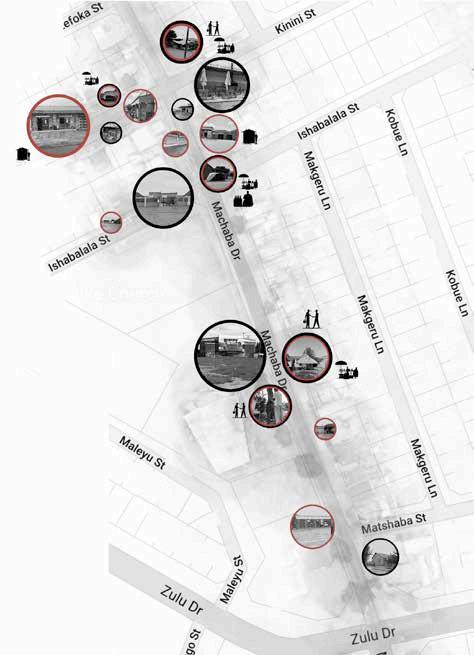

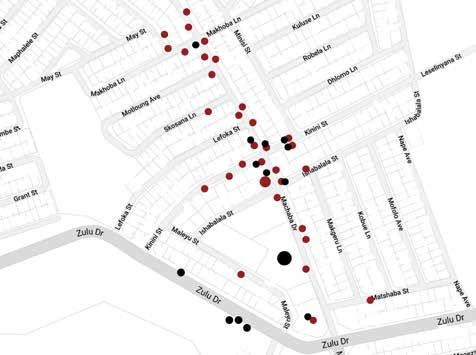

MAPPING SOCIAL AND BUSINESS NODES ALONG MACHABA DRIVE

What we notice is that although there are many small scale businesses around the site, the more prominent and large scale business are situated on Machaba drive.

The reasoning behind that could be that Machaba drive connects Eyethu Cinema to the train station and taxi route which makes the road a main road when it comes to transport access.

Due to this, the road becomes a place where most businesses are situated because it is highly frequented. Due to the fact that businesses are run from their private homes, the ones that are situated on Machaba drive benefit most from this influx of people in the peak times of the day, i.e. morning, evening.

Majority of the business spaces are merged with social spaces, creating a space that has many layers.

SITE CONTEXT

MOVEMENT

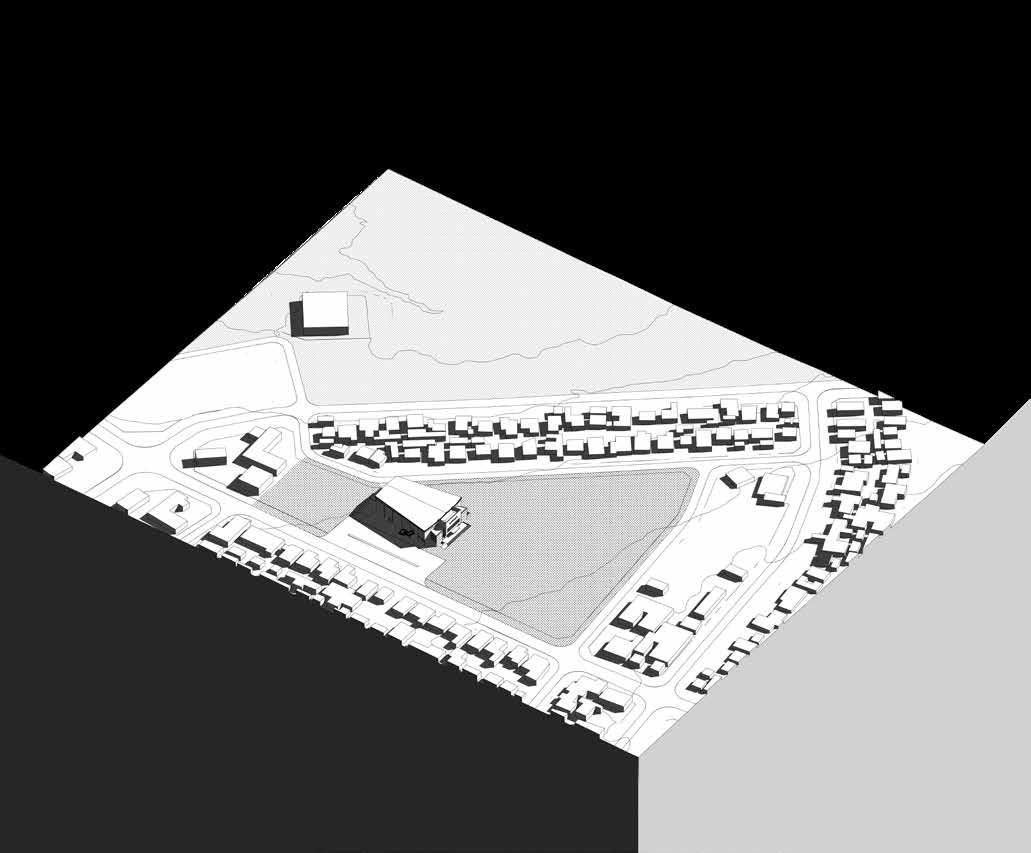

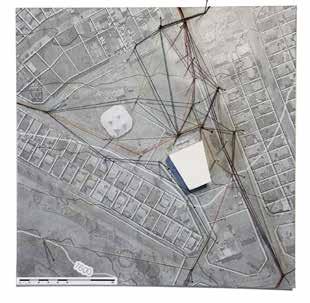

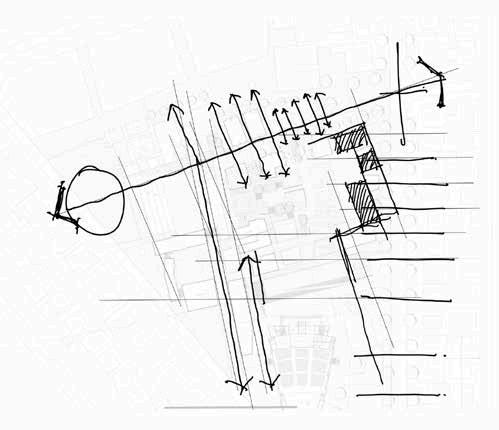

The empty field around Eyethu is in contrast to otherwised well defined Machaba Drive. This model show the effect this has on the movement of pedestrians when passing the site.

EMPTY FIELD & CAR WASH/FILLING STATION (ABANDONED)

SCALE

The Eyethy Cinema scale is alien to the context of the larger Mofolo community. The intervention seak to soften this contrast by responding to the building scale of the surrounding buildings.

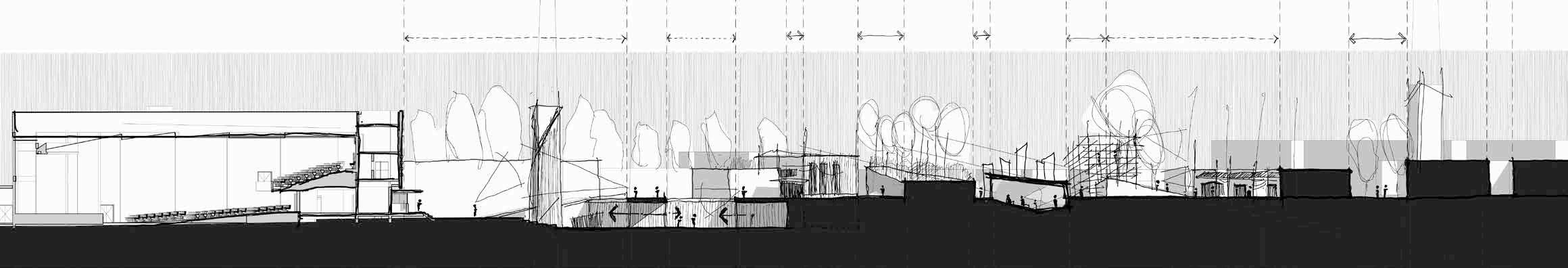

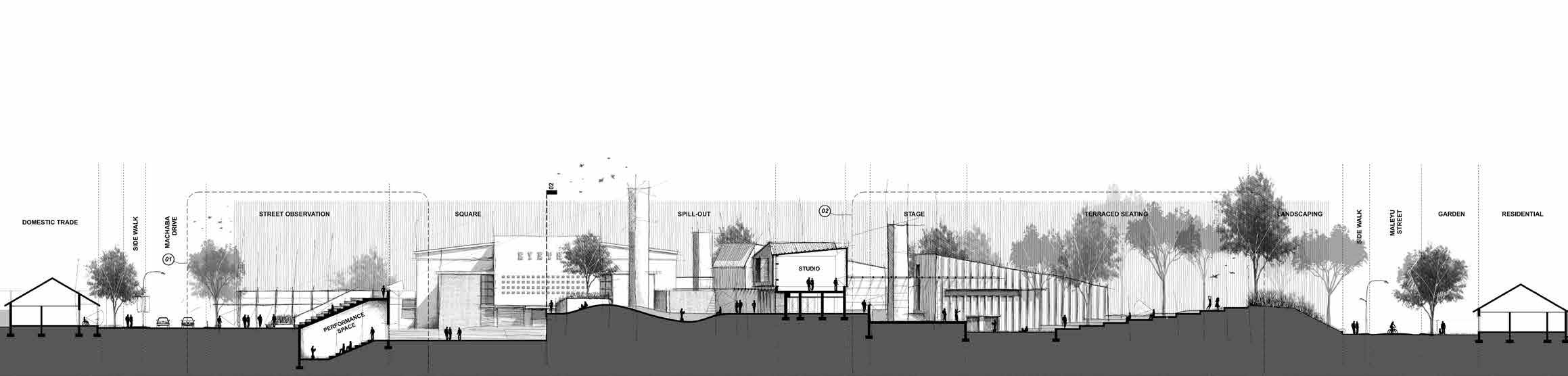

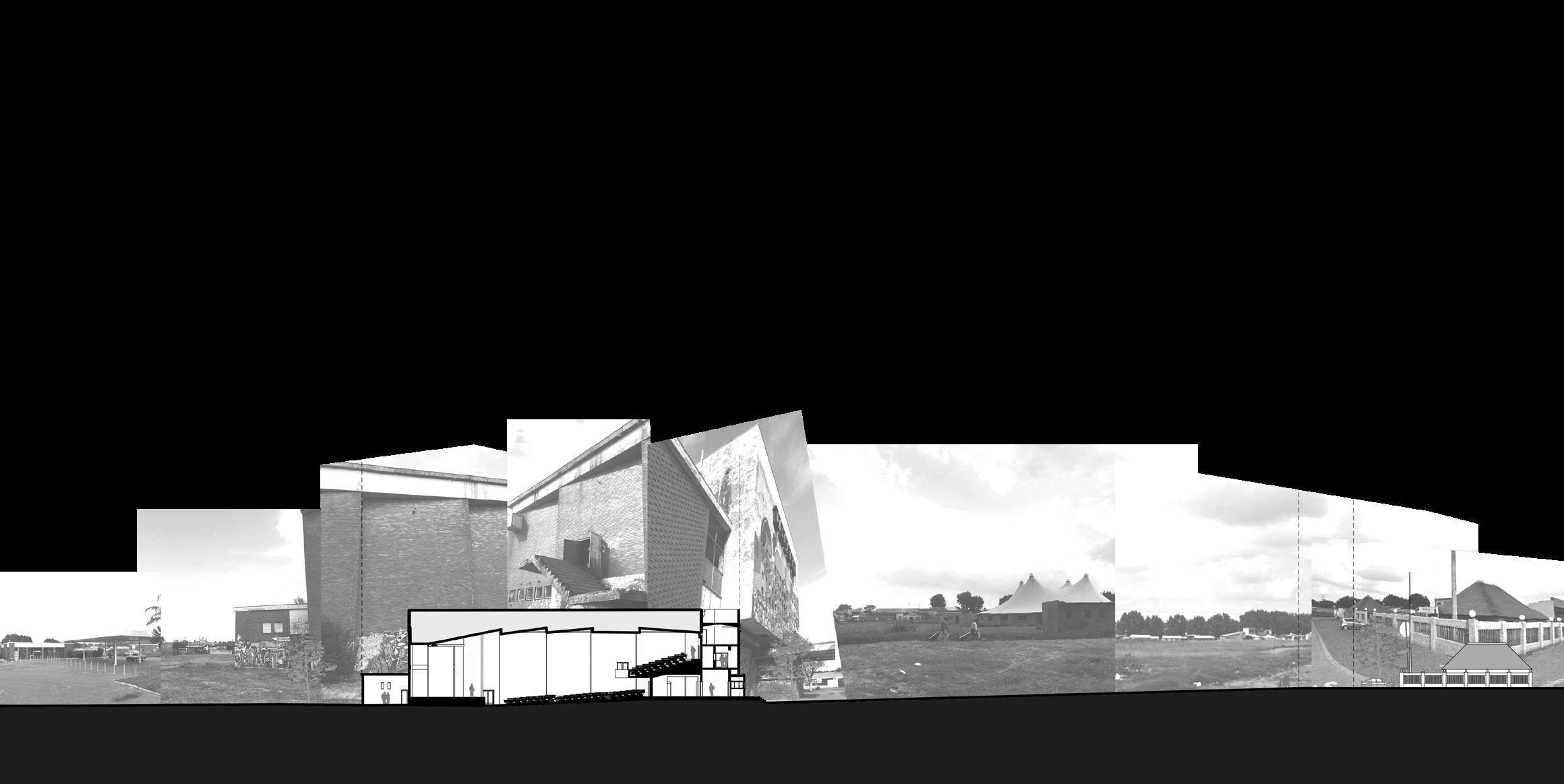

SITE SECTION

The abandoned cinema buidling is surrounded by empty field and neighboured by mostly domestic scale buildings.

The building is of a much larger scale than that of the adjacent buildings.

A temporary tent structure to the North of the site is used as a church and a filling station is left abandoned to the south.

EYETHU CINEMA

EYETHU LIFESTYLE CENTER

EMPTY FIELD & TENT CHURCH

Figure 32

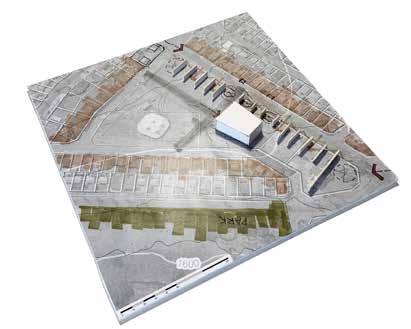

Movement study model (Snethemba 2024)

Figure 33

Scale inverstigation model (Snethemba, 2024

INITIAL APPROACH

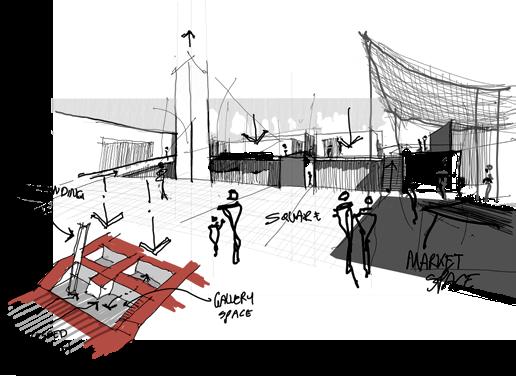

GALLERY

Facing the main square fronting the Eyethu Cinema Hall. Recessed below the square floor level and protruding below and between the movement patheways. This create courtyard spaces visualy accessable from the pathways be require drifting and discovery to directly interact with.

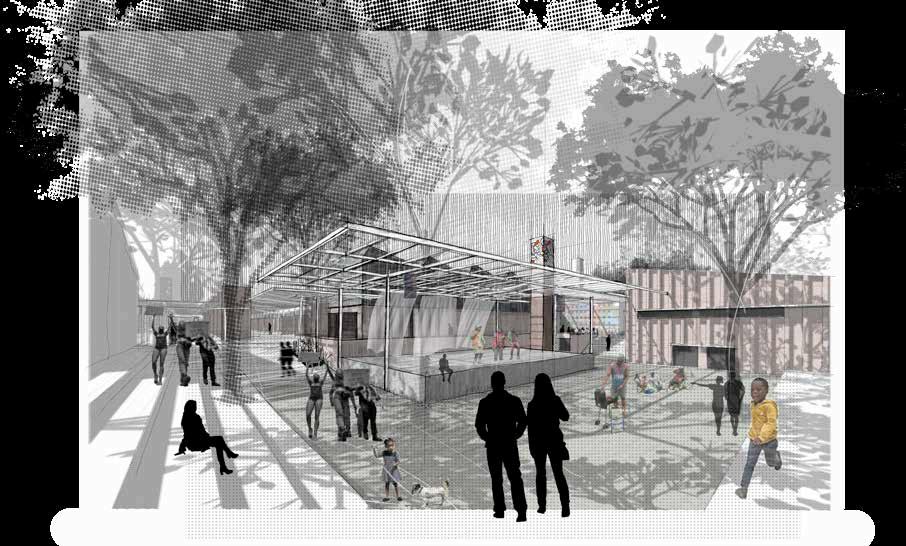

PERFORMANCE TERRACE

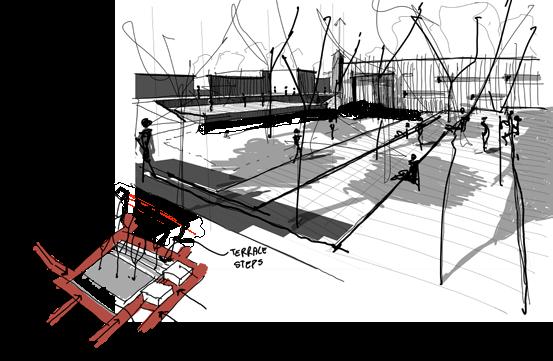

An open space with planted teracced steps allow for both planne performances or gathererings but also for a safe park. The terraces and central location of the staging area while being enveloped by buildings are intended to be comfortable to sit and observe the surrounding activities.

NODE

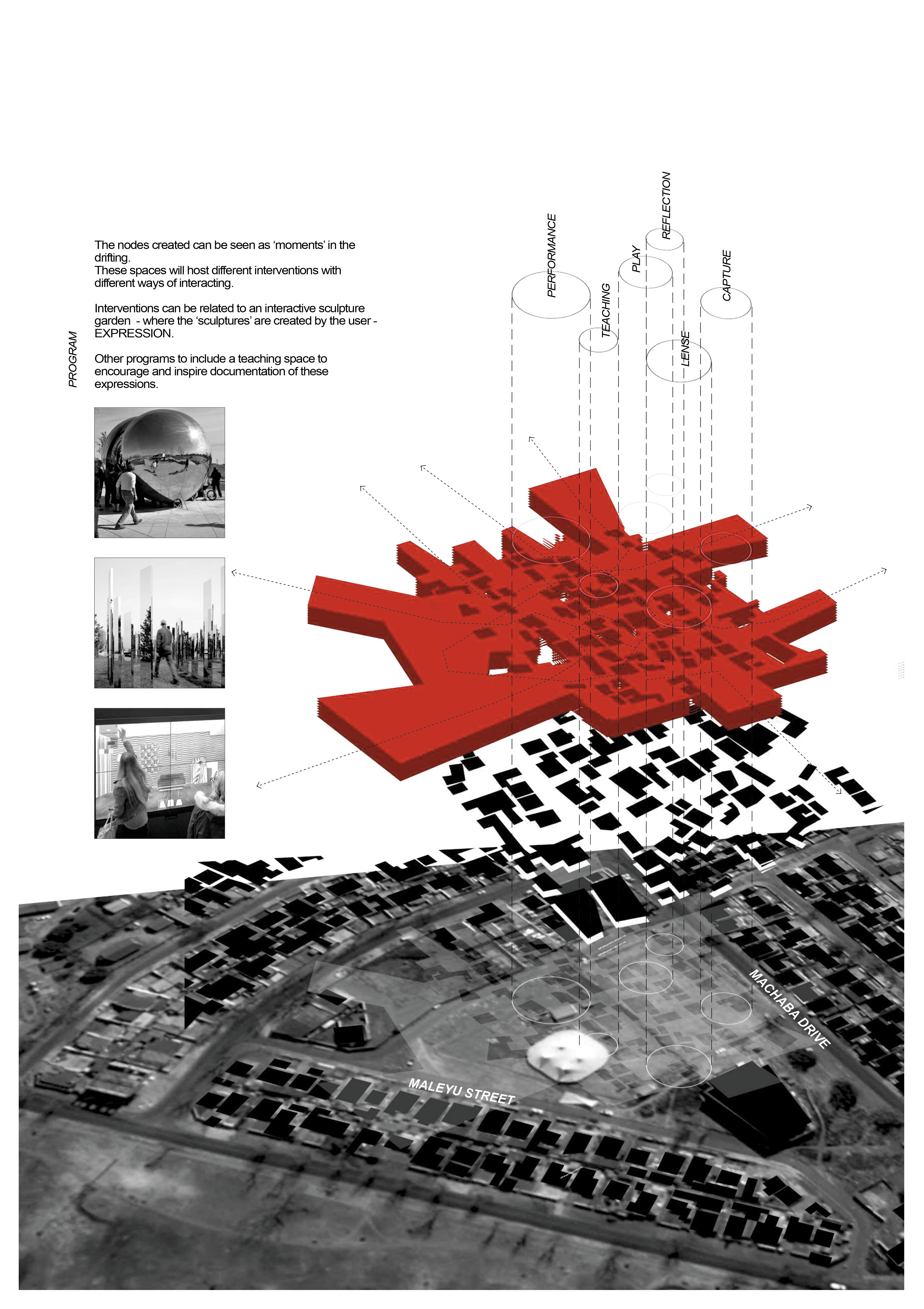

The areas identified as ‘nodes’ are spaces created between the other interventions on the site. The closeness and intimacy of each node differs and each will thus cater for a different level or form of expression.

TRADING

Situated on the edge of the precint along all major movement routes, a combination of formal and informal trade spaces. The layout and design of these spaces to be designed to encourage interaction with the precinct through visual and physical connections.

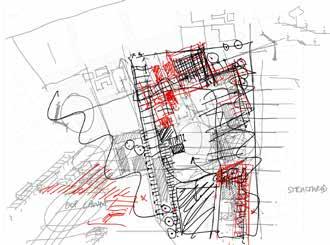

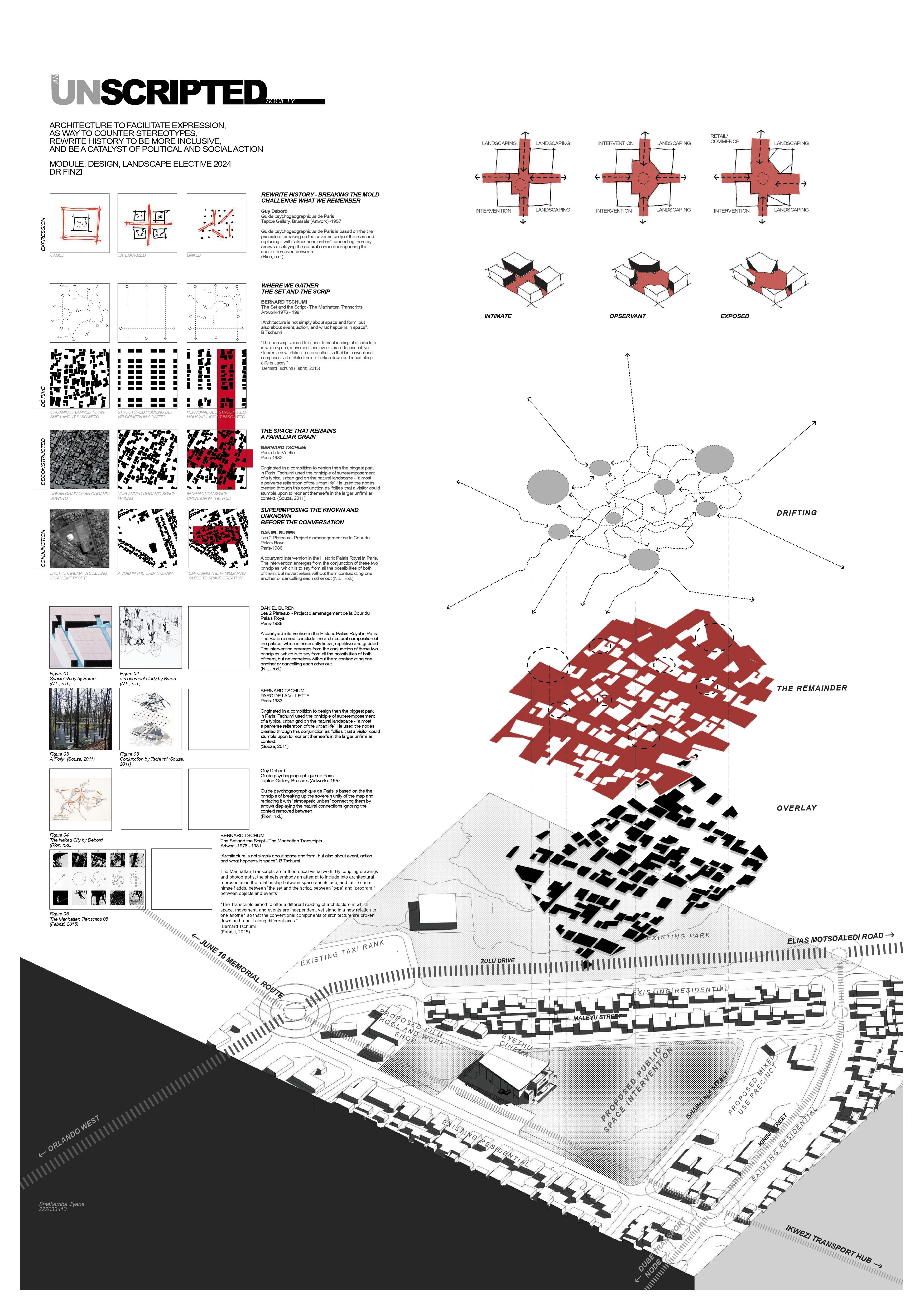

DESIGN DEVELOPMENT

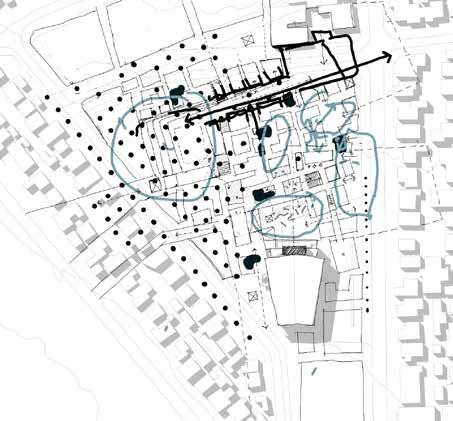

After the initial approach the design developed in four destinct steps:

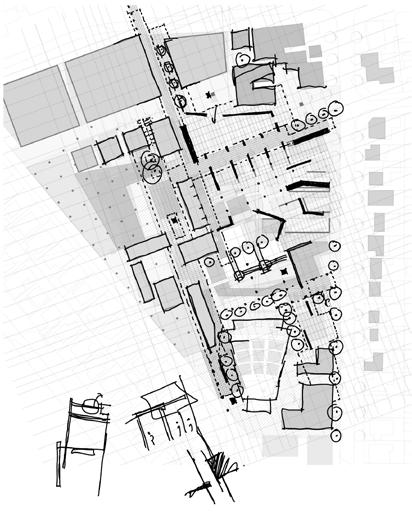

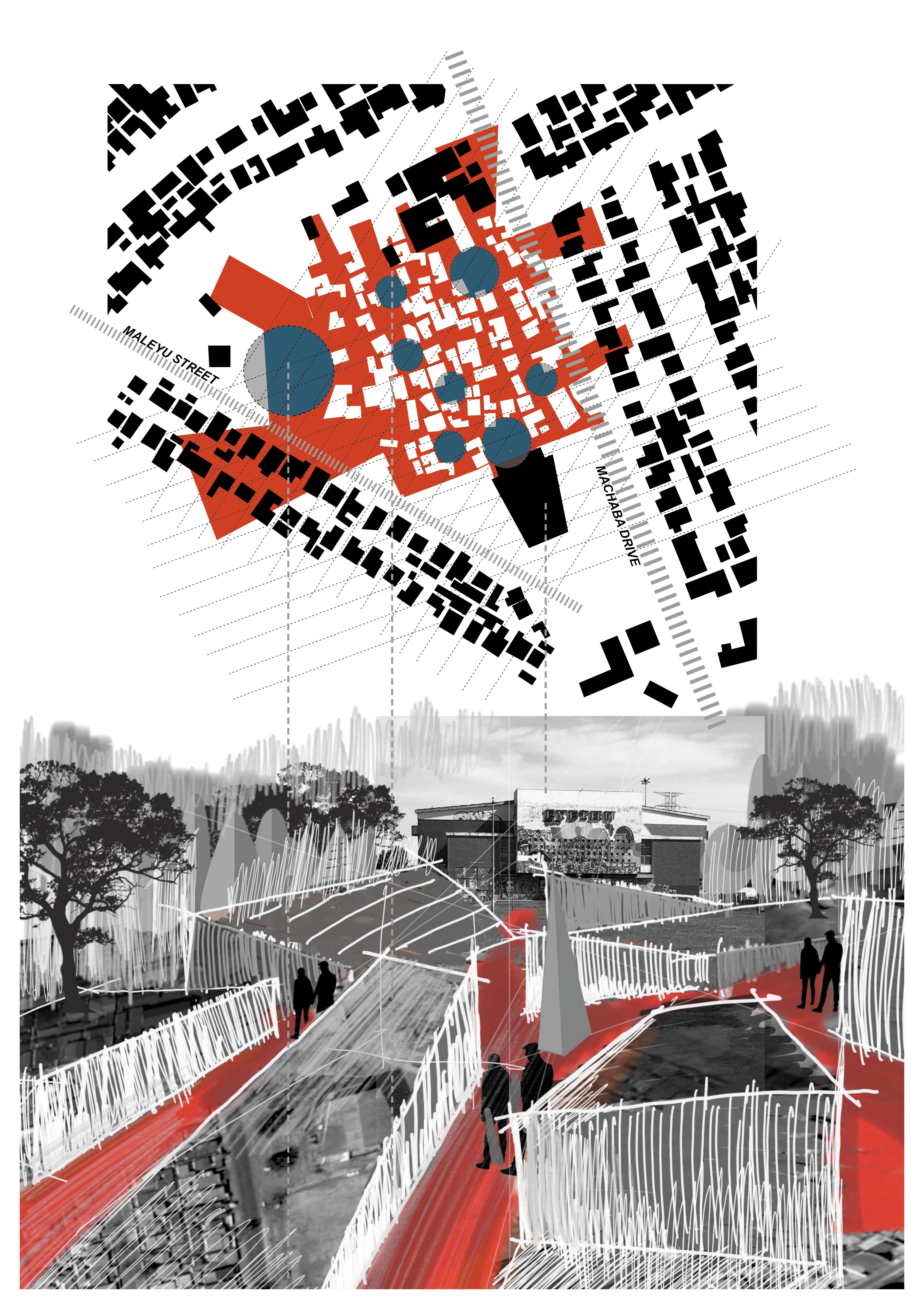

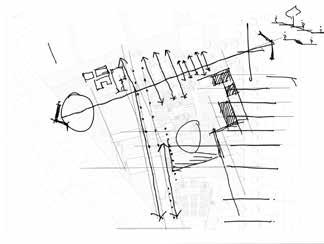

AUse the overlay site plan and:

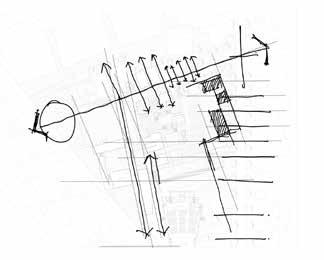

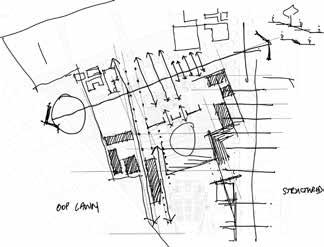

- Exploring the site layout by restricting the spaces to lines or grids connecting the site to existing urban context

- Analysed the site programs to better enhance that of the existing context and uses

- Further explore the scale of the new to the existing

B

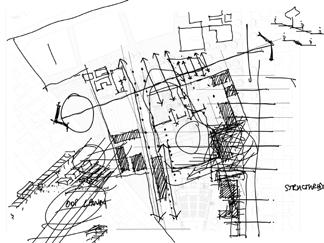

-Analyse the open spaces formed in the organic overlay

-Explore how these space could be defined in an urban famework

-Define what areas should be planned and what areas to be left for user defined interventions

C- Using the hierarchy of movement as a driver to establish and difine the hierarchy on the site

- Explore the site building mass - what should be permanent and what should be temporaty

- How architecture can enhance or encourage the temporary

D- Exploring how architecture can enhance or encourage the temporary or unplanned

- Designated larger open spaces for market space as well as different types of gathering

- Use a series of walls, benches etc to be the ‘foundation’ of possible temporary or permant structures to be built be the user

- A clearer definition between the more open and built up

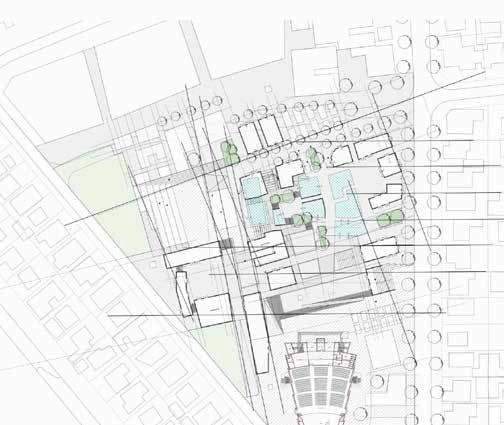

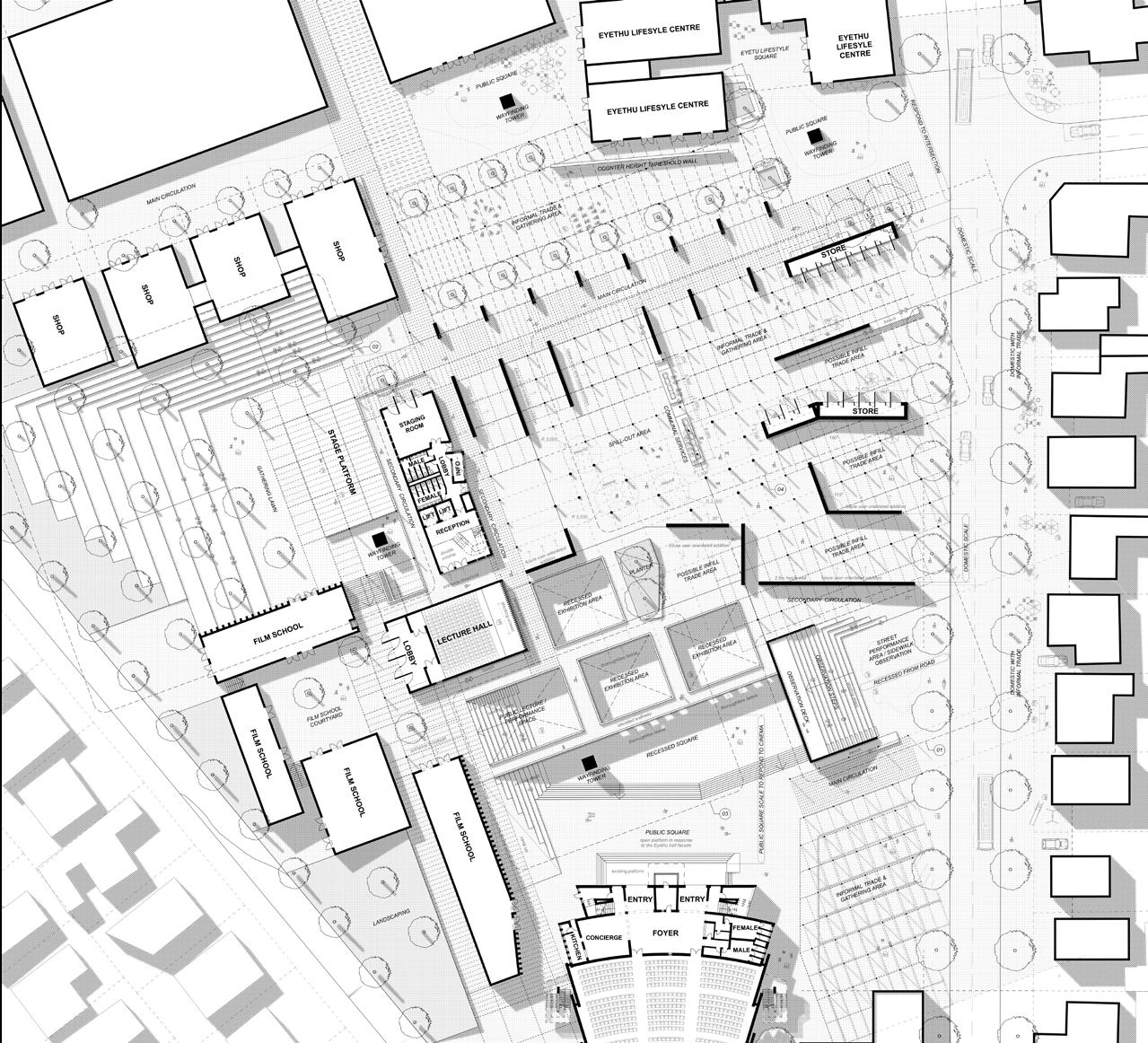

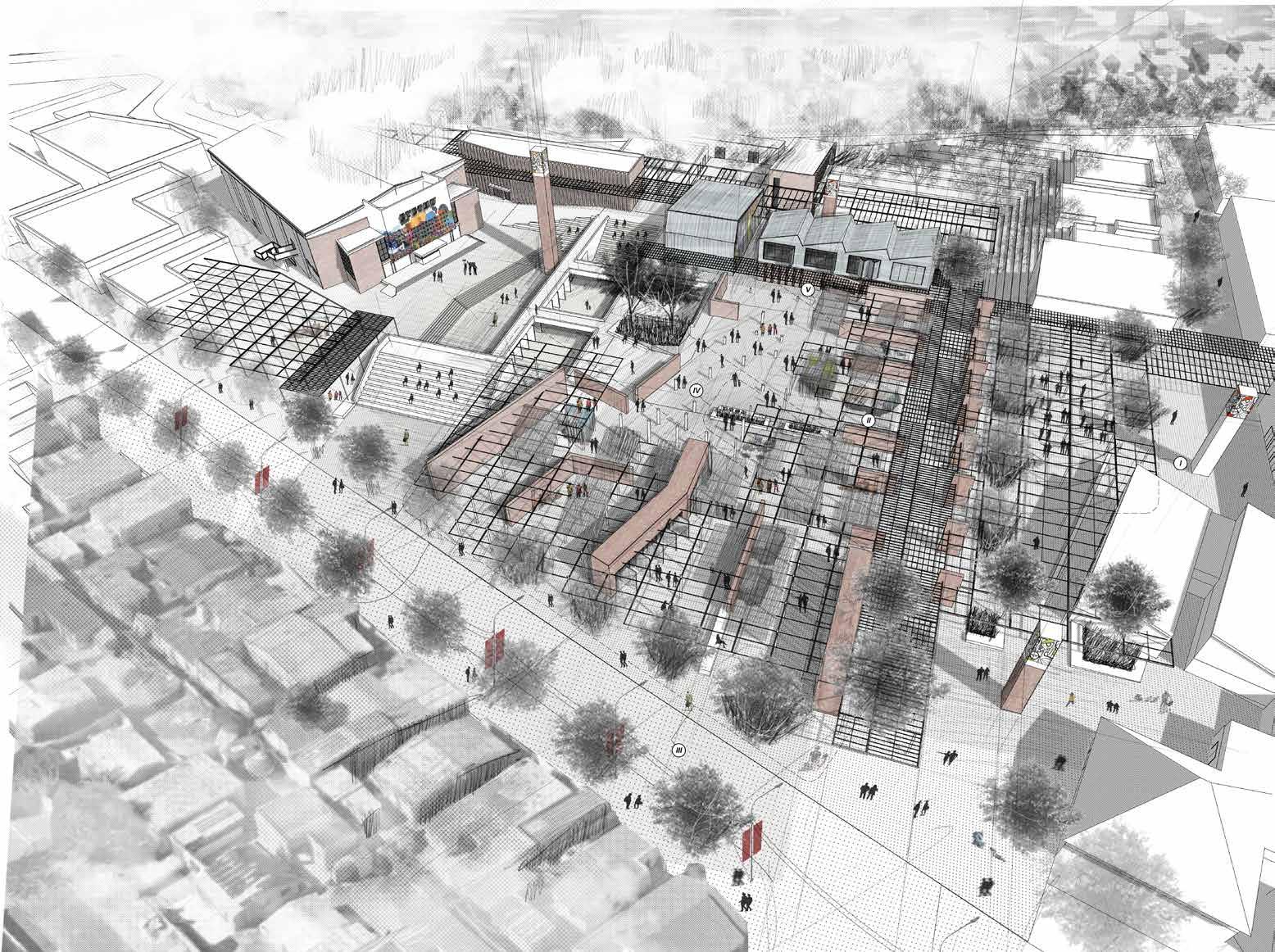

FINAL LAYOUT

PUBLIC SPACE PROGRAMS

The left-over space should cater for the unplanned, user orientated activity. To achieve this, four programs were identified as possible catalysts for the every-day narratives of the users to be portrayed. These programs act as destination points and will establish movement and activity throughout the site.

The planned areas for the programs are identified on the layout and sections. These areas, as part of an urban framework, are studied and explained through axonometric diagrams, identifying the prominent and characteristic aspects of these spaces through design principles.

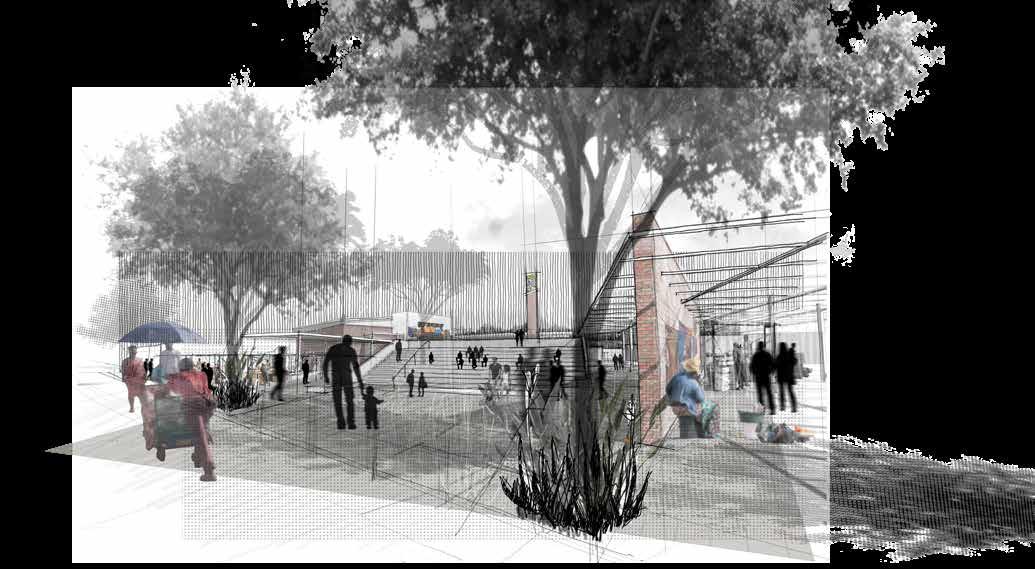

In a conceptual eye-level perspective, a combination of sketch and pixelated photographic cut-outs to expand on the planned and unplanned conceptual nature of the spaces.

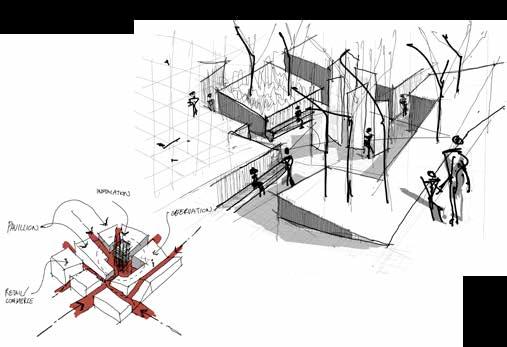

01_OBSERVATION SPACES

02_GATHERING SPACES

03_EXHIBITION SPACES

04_INFORMAL TRADE & LESS FORMALISED TRADE

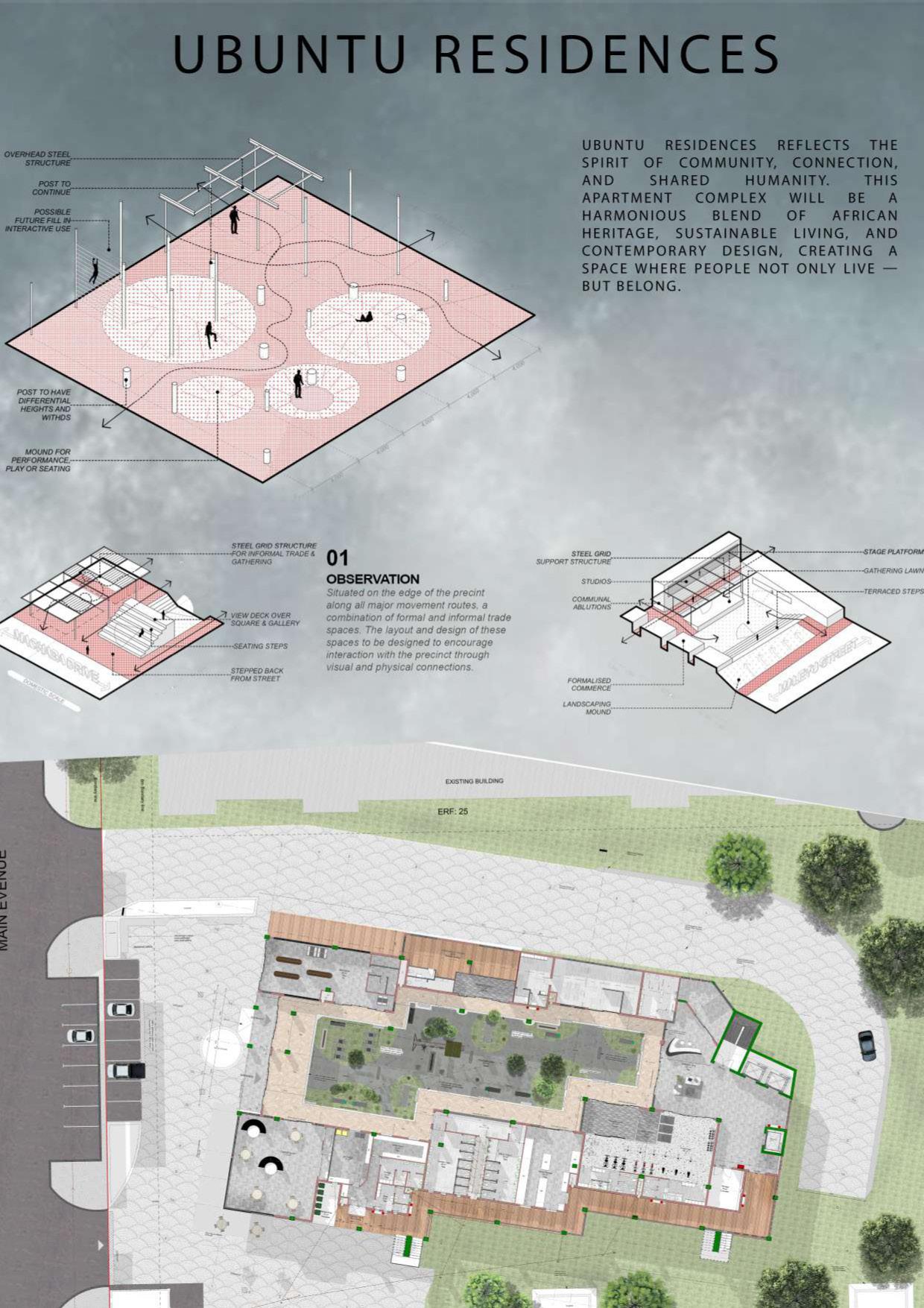

01 OBSERVATION
