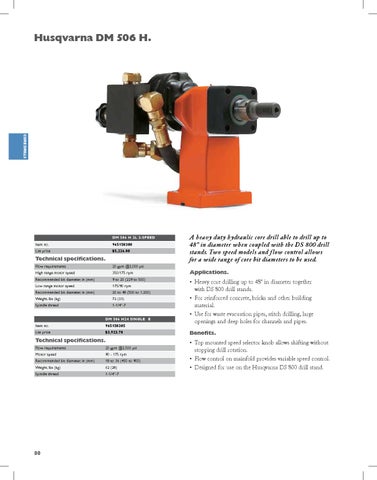

Husqvarna DM 506 H.
CORE DRILLS DM 506 H 2L 2-SPEED
Item no.
965158308
List price
$5,226.00
Technical specifications. Flow requirements
A heavy duty hydraulic core drill able to drill up to 48" in diameter when coupled with the DS 800 drill stands. Two speed models and flow control allows for a wide range of core bit diameters to be used.
20 gpm @2,000 psi
High range motor speed
350/175 rpm
Applications.
Recommended bit diameter, in (mm)
9 to 20 (229 to 500)
Low range motor speed
175/90 rpm
• Heavy core drilling up to 48" in diameter together
Recommended bit diameter, in (mm)
20 to 48 (500 to 1,200)
Weight, lbs (kg)
72 (33)
Spindle thread
1-1/4”-7 DM 506 H24 SINGLE E
Item no.
965158305
List price
$3,923.70
Technical specifications. Flow requirements
20 gpm @2,500 psi
Motor speed
90 - 175 rpm
with DS 800 drill stands. • For reinforced concrete, bricks and other building material. • Use for waste evacuation pipes, stitch drilling, large openings and deep holes for channels and pipes. Benefits. • Top mounted speed selector knob allows shifting without
stopping drill rotation.
Recommended bit diameter, in (mm)
18 to 36 (450 to 900)
• Flow control on mainfold provides variable speed control.
Weight, lbs (kg)
62 (28)
• Designed for use on the Husqvarna DS 800 drill stand.
Spindle thread
1-1/4”-7
80
